Product type	VGA extension with audio over UTP
Brand	Nedis
Model	CREP5930BK
Dimensions (transmitter)	100 × 65 × 25.5 mm
Weight (transmitter)	208 g
Dimensions (receiver)	81.5 × 43 × 23 mm
Weight (receiver)	108 g
Power supply	5 V – 2 A (two adapters included)
Maximum power consumption	5 W per unit
Maximum transmission distance	300 m via UTP cable (with crossover)
Maximum supported resolution	1920 × 1200
Supported vertical frequencies	60 / 75 / 85 Hz
Supported resolutions	640×480, 800×600, 1024×768, 1280×720, 1280×768, 1280×960, 1280×1024, 1600×900, 1600×1200, 1920×1080, 1920×1200
Input connectors	1 × VGA (female 15-pin), 1 × stereo audio (3.5 mm jack)
Output connectors	1 × local VGA (female 15-pin), 1 × local audio, 1 × RJ45 (UTP to receiver)
Available adjustments	GAIN (brightness) and PEAK (tilt)
Operating temperature	0 °C to +70 °C
Operating humidity	10 % to 85 % RH (non-condensing)
Storage temperature	-10 °C to +80 °C
Storage humidity	5 % to 90 % RH (non-condensing)
Maintenance	Clean with a dry cloth only. Do not use solvents.
Safety	Do not open the device. Unplug in case of issue. Do not expose to water or moisture.
Warranty	Warranty void if modified or used incorrectly.
Certifications	FCC, CE, UL
Package contents	Transmitter, receiver, two 5 V / 2 A power adapters, user manual

Frequently Asked Questions - CREP5930BK NEDIS

What type of UTP cable should I use for the extension?

Use a CAT-5e or CAT-6 cable with internal crossover to achieve a maximum distance of 300 meters.

Can I connect the receiver without power?

No, the receiver requires its own 5 V / 2 A power supply. Both adapters are included with the kit.

How to adjust image quality remotely?

Use the GAIN (brightness) and PEAK (tilt) potentiometers on the transmitter. Adjust them according to the length of the UTP cable.

What resolutions are supported?

The device supports a wide range of resolutions from 640×480 up to 1920×1200, with vertical frequencies of 60, 75 or 85 Hz.

Can I connect multiple receivers in series?

The kit includes one receiver. To multiply outputs, you need to use an additional splitter. The connection is designed for one receiver per transmitter.

How to connect the audio?

Connect the stereo audio source to the Audio In input of the transmitter (3.5 mm jack). The local audio output is available on the transmitter, and the remote audio output on the receiver.

What to do if the image is blurry or does not display?

First check that all cables are properly connected. Adjust the GAIN and PEAK settings. Make sure the source resolution is compatible (max 1920×1200). Test with a good quality UTP cable.

Can the device work without a receiver?

Yes, the transmitter has a local VGA output that works independently of the receiver. You can use it as a simple local splitter.

What is the maximum distance without loss of quality?

For optimal quality, it is recommended not to exceed 300 meters with a good quality UTP cable. Beyond that, losses may occur.

How to clean the device?

Use a dry, soft cloth. Never use solvents, abrasive products or water. Always unplug the device before cleaning.

USER MANUAL CREP5930BK NEDIS

VGA over UTP-extender

MANUAL DE USO (p. 18)

Extensor VGA sobre UTP

KAYTTOOHJE (s. 25)

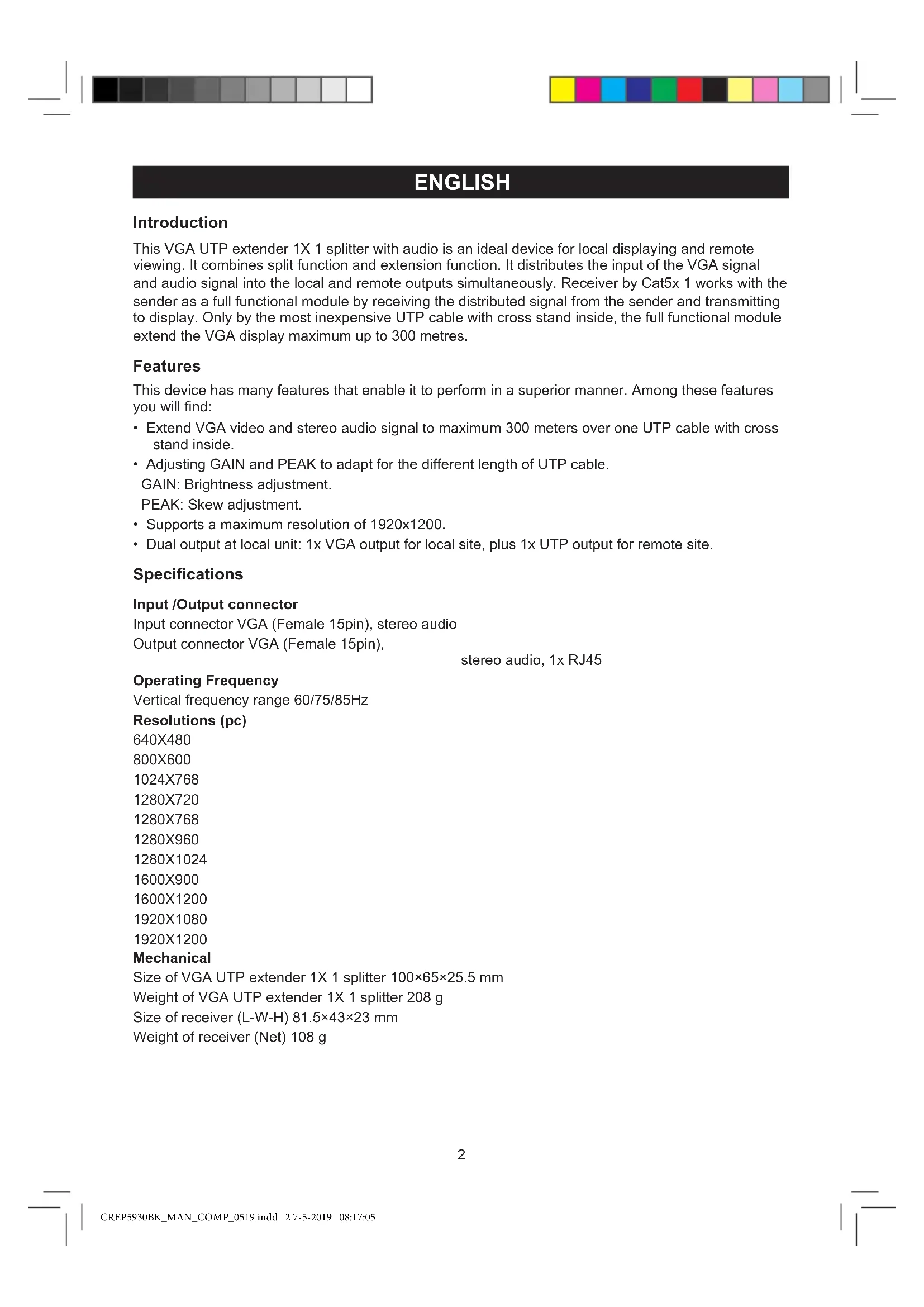

This VGA UTP extender 1X 1 splitter with audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal into the local and remote outputs simultaneously. Receiver by Cat5x 1 works with the sender as a full functional module by receiving the distributed signal from the sender and transmitting to display. Only by the most inexpensive UTP cable with cross stand inside, the full functional module extend the VGA display maximum up to 300 metres.

Features

This device has many features that enable it to perform in a superior manner. Among these features you will find:

• Extend VGA video and stereo audio signal to maximum 300 meters over one UTP cable with cross stand inside.
• Adjusting GAIN and PEAK to adapt for the different length of UTP cable.

GAIN: Brightness adjustment.

PEAK: Skew adjustment.

Supports a maximum resolution of 1920x1200.
- Dual output at local unit: 1x VGA output for local site, plus 1x UTP output for remote site.

Specifications

Input/Output connector

Input connector VGA (Female 15pin), stereo audio

Output connector VGA (Female 15pin),

stereo audio, 1x RJ45

Operating Frequency

Vertical frequency range 60/75/85Hz

Resolutions (pc)

640X480

800X600

1024X768

1280X720

1280X768

1280X960

1280X1024

1600X900

1600X1200

1920X1080

1920X1200

Mechanical

Size of VGA UTP extender 1X 1 splitter 100× 65× 25.5mm

Weight of VGA UTP extender 1X 1 splitter 208 g

Size of receiver (L-W-H) 81.5 × 43 × 23 ~mm

Weight of receiver (Net) 108 g

Environmental

Operating temperature 0^ to +70^

Operating humidity 10% to 85% RH (no condensation)

Storage temperature -10 °C to +80 °C

Storage humidity 5% to 90% RH (no condensation)

Power requirement

Power supply for VGA UTP extender 1X 1 splitter 5V@ 2 A, max 5 W

Power supply for receiver 5V@ 2A,max 5 W

Regulatory approvals

Converter unit FCC, CE, UL

Power supply UL, CE, FCC

Note: specifications are subject to change without notice.

Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

VGA UTP extender 1X 1 splitter
- User's manual
- One receiver
- Two pieces of 5 ~V @ 2 ~A DC power supply

Panel descriptions

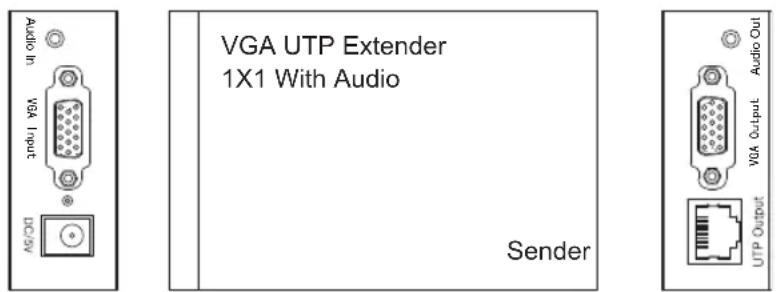

Sender

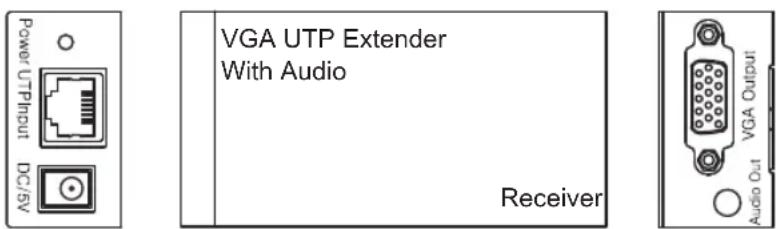

Receiver

Connection and operation

• Connect the single VGA source to the main VGA input using a length of VGA cable
• Connect VGA output of the sender to a local display and audio output of the sender to a local sounder
• Connect sender and each receiver using a piece of CAT-5e/6
• Connect VGA outputs of receivers to remote displays and audio output of receivers to remote sounders
• Plug one 5 V @ 2 A power supply into the VGA UTP 1X 1 splitter and the other 5 V @ 2 A power suppliers to receiver

Attention: Insert / Extract cable gently

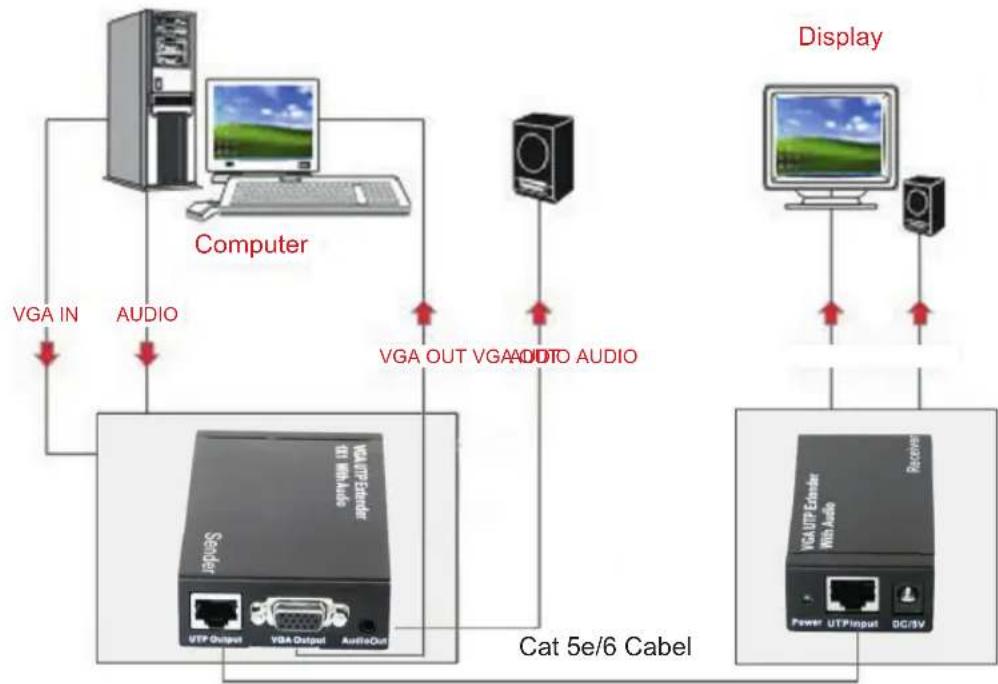

Connection Diagram

Safety precautions:

CAUTION

DISK OF ELECTRIC SHOCK

DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose

the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
