USER MANUAL IAN 351854 Livarno Lux

Black-and-white photo of a large oval-shaped object on grassy ground, with inset close-ups of spherical objects (no text or symbols)

LED-SOLARLEUCHTE / LED-SOLARLEUCHTEN / LED SOLAR LIGHT / LED SOLAR LIGHTS / LAMPE SOLAIRE À LED / LAMPES SOLAIRES À LED

DE AT CH

LAMPA SOLARNA LED / LAMPKI SOLARNE LED

Assembly, operating and safety instructions

NL BE

LED-SOLARLAMP / LED-SOLARLAMPEN

GB / IE Assembly, operating and safety instructions Page 20

HG06012B

Simple line drawing of a dome-shaped object with concentric rings and a labeled point '1' (no text or symbols beyond the label)

HG06012E

Simple diagram of a circle with a labeled arrow pointing to the center (no text or symbols)

HG06012F

Simple line drawing of a dome-shaped object with a horizontal line and a labeled point '1' (no text or symbols beyond the label)

A

HG06012A HG06012B HG06012E HG06012F

2 2 2 2

Simple line drawing of a pendulum with a suspended weight and directional arrows (no text or symbols)

Diagram of a mechanical device with a sphere and a vertical rod, showing internal components and motion direction (no text or symbols)

Simple line drawing of a pendulum with a hanging weight and pointer (no text or symbols)

B HG06012A/ HG06012B HG06012E/ HG06012F

C HG06012A HG06012B HG06012E HG06012F

D HG06012A/ HG06012B HG06012E/ HG06012F 8 6 7 9 10 11 12

GEFAHR EXPLOSIONSGEFAHR! Verwenden

GEFAHR EXPLOSIONSGEFAHR! Verwenden

Intended use......Page 22

Parts description Page 22

Scope of delivery....Page 23

Technical data......Page 23

Safety instructions......Page 23

Product-specific safety instructions ...... Page 24

Safety instructions for batteries/rechargeable batteries ..... Page 25

Initial use ...... Page 27

Assemble the product ...... Page 27

Installing the product...... Page 27

Preparing the product prior to initial use ...... Page 27

Switching the product on/off and change light color ...... Page 28

Replacing the rechargeable battery ...... Page 28

Troubleshooting Page 29

Maintenance / Cleaning......Page 31

Disposal Page 31

Warranty Page 32

Warranty claim procedure......Page 33

Service Page 33

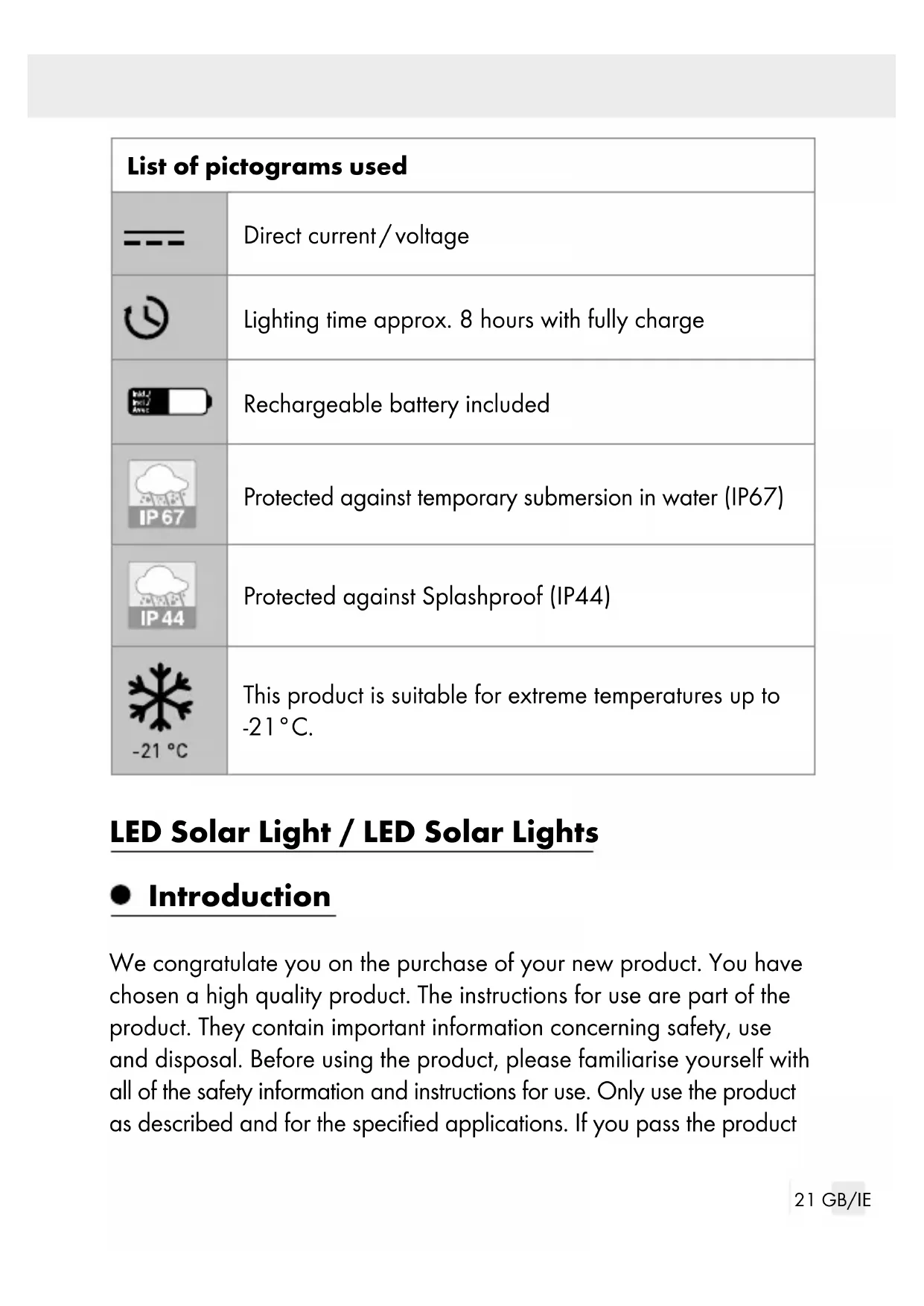

List of pictograms used
	Direct current/voltage
	Lighting time approx. 8 hours with fully charge
	Rechargeable battery included
	Protected against temporary submersion in water (IP67)
	Protected against Splashproof (IP44)
	This product is suitable for extreme temperatures up to -21°C.

LED Solar Light / LED Solar Lights

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product

on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended as an outdoor accent light. The product is not intended for commercial use or for use in other applications.

Not suitable for ordinary lighting in household room illumination.

This product is suitable for extreme temperature down to -21 °C.

The solar module built into this product converts sunlight into electricity and stores it in the rechargeable battery 9 The product switches on at dusk.

The LED is a very long-life and energy-saving light source. The light duration depends on the amount of sunlight, the angle at which light hits the solar module 6, and the temperature (the rechargeable battery capacity varies by temperature). A vertical angle of light at temperatures above the freezing point is ideal. The rechargeable battery 9 does not achieve maximum capacity until after several charge and discharge cycles.

Parts description

1 cover
2 ground spike
3 rechargeablebattery
compartment cover (only HG06012A/HG06012B)

4 mode switch
5 main switch
6 solar module
7 silicone seal

8 screws
9 rechargeable battery
10 solar panel (only HG06012E/HG06012F)
11 circuit board incl. LEDs (only for HG06012E/HG06012F)
12 screws on the solar module (only HG06012E/HG06012F)

- Scope of delivery

Immediately after unpacking, verify the parts are complete and the product is in proper condition.

1 ground spike (For model A, B)
1 solar module incl. LEDs and incl. rechargeable battery (For model A, B)
2 solar module incl. LEDs and incl. rechargeable battery (for model E, F)
2 ground spike (for model E, F)
1 assembly, operating and safety instructions

- Technical data

Rechargeable

battery: 1 x rechargeable Li-ion rechargeable battery /

$$ 1 8 6 5 0 / 3. 7 \mathrm{V} = - / 1 8 0 0 \mathrm{mAh} (\text { for model A, B }) $$

$$ 1 \times \text { rechargeable Li - ion rechargeable battery } / $$

$$ 1 8 6 5 0 / 3. 7 \mathrm{V} = - / 1 2 0 0 \mathrm{mAh} (\text { for model E, F }) $$

LED: 2 x LED (not replaceable) (for model A, B)

$$ 4 \times \text { LED (not replaceable) (for model E, F) } $$

Power: 0.2 W

Protection type: IP67 (for model A, B), IP44 (for model E, F)

- Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

RISK OF ACCIDENT AND DAN- GER TO LIFE FOR INFANTS AND CHILDREN!

• Keep rechargeable batteries away from children. Do not leave the rechargeable batteries lying around. There is a danger that these will be swallowed by children or pets. If they are accidentally swallowed seek immediate medical attention.
  Children or persons lacking knowledge or experience in handling the product or have limited physical, sensory or mental abilities, must not use the product without supervision or instruction by a person responsible for their safety. Children must be supervised at all times to prevent them from playing with the product.
  ■ Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.
  This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products.
• Do not use the product if you detect any type of damage.
  The LED is not replaceable.
  If the LED fails at the end of its life, the entire product must be replaced.
  DANGER - EXPLOSION HAZARD! Do not use

the product in explosive environments containing flammable vapours, gasses or dusts.

Product-specific safety instructions

- Do not expose the product to strong vibration or high mechanical loads.

■ Make sure the lampshade is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar module 6 will be diminished.
- Cold temperatures negatively impact the rechargeable batteries operating time. Clean and store. Switch off before storage. The product in a dry, warm location during extended periods of non-use, e.g. in winter.
In the event of damage, repairs or other problems with the product, please contact an electrician. The LED cannot be replaced.

DANGER - EXPLOSION HAZARD! Use only

rechargeable batteries of the recommended type. Other rechargeable or single-use batteries could explode during charging.

DANGER - RISK OF INJURY! When removing

the product, be sure to also remove the ground spike to prevent hazards (e.g. tripping).

DANGER - FIRE HAZARD! Never switch the

product on inside the packaging.

Safety instructions for batteries / rechargeable batteries

■ DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION! Never recharge non-re-

chargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
  WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
  In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
  ■ Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
  ■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
■ Use a dry lint-free cloth or cotton swab to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.

- Initial use

• Assemble the product

☐ Remove the packaging and assemble the product as shown in Figure A.
☐ Then insert the ground spike 2 into the bottom of the product (see Fig. A).

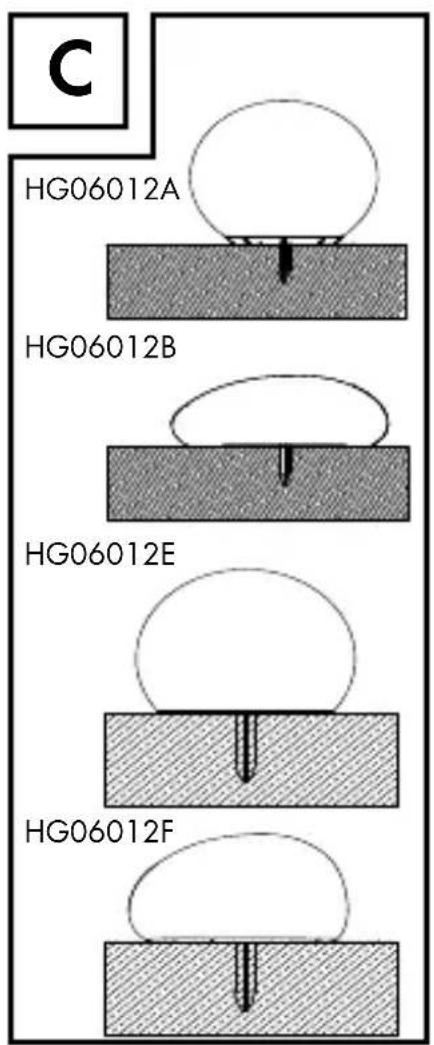

• Installing the product (Fig. C)

Note: The product can be installed without a power source.

Only use the product with the included ground spike.

☐ Push the assembled product far enough into the ground (lawn, flower bed) so it is stable (see Fig. C). Since the product relies on sunlight, consider and observe the following points prior to installation.

1. Select a location where the solar module 6 is exposed to direct sunlight during the day.
2. Position the product so the solar module 6 is not covered or in the shade (trees, roof ridge, etc.).
3. Be sure the solar module 6 is not impacted by another light source, e.g. yard or street lighting, as this will prevent the product from switching on at dusk. Remember many light sources will only switch on due to the time or movement during the night.

● Preparing the product prior to initial use

Note: The product features a twilight sensor and an main switch 5. When fully charged the product on time is approx. 8 hours.

☐ Press the main switch 5 to switch position "I" to the switch on before using it for the first time.
□ Place the product in the sun.

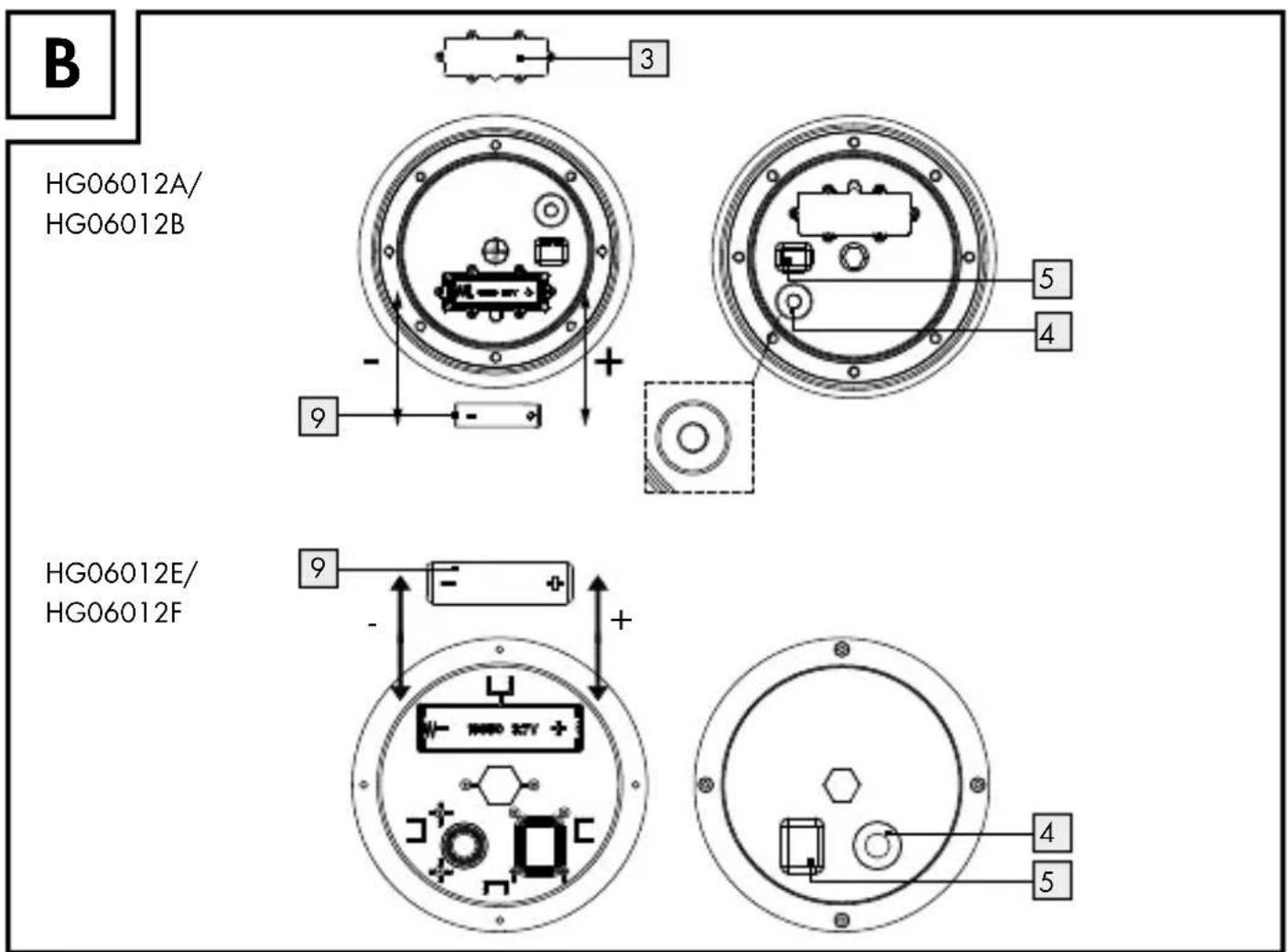

- Switching the product on / off and change light color (Fig. B)

☐ Press the main switch 5 to switch position "I" to switch on. The LEDs light up briefly to show the light color. The product will automatically switch on at dusk. At dawn the product will automatically switch off.
☐ Press the mode switch 4 to change the light color. The product will continuously light up in the currently selected colour.
☐ Press the main switch 5 to switch position "0" to switch off. The product is permanently switched off.
☐ After switching off and on again the last selected mode lights up.

- Replacing the rechargeable battery

Note: The rechargeable battery 9 is designed for prolonged operation. However, it may need to be replaced after being used for a long time. Rechargeable batteries are subject to natural wear and the output may decrease. For optimal performance the battery 9 should be replaced every 12 months.

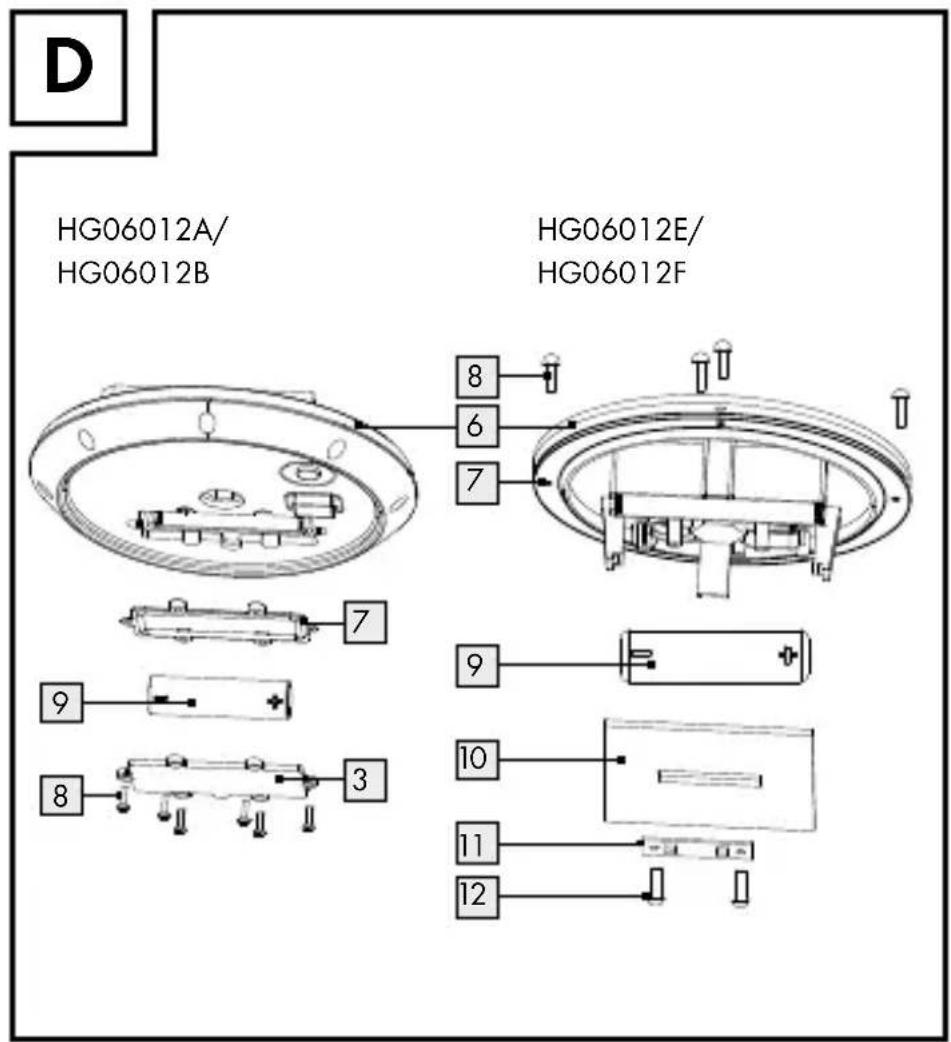

Replace the rechargeable battery 9 as shown in figure D.

☐ Remove the ground spike 2.

☐ Press the main switch 5 to switch position "0" to switch off the product.

For model A, B

☐ Loosen the fastening screws 8 by using a small cross head screw-driver and then lever out the battery compartment cover 3 with the help of a slot screwdriver.
Exchange the old rechargeable battery to a new one. Take care to the correct polarity, when inserting the new rechargeable battery 9. The polarity is indicated in the battery compartment. The new rechargeable battery 9 has to have the same technical data like the old one (see "Technical data").

☐ Now again fasten the battery compartment cover 3, fasten the fastening screws 8 by using a small cross head screwdriver. When closing, pay attention to the silicone cover 7, otherwise the IP protection is not guaranteed. Press the main switch 5 to switch the product on during darkness.

For model E, F

☐ Loosen the fastening screws 8 by using a small cross head screw-driver. Loosen the screws on the solar module 12 then lever out the solar module 6, LED 11 and solar panel 10 with the help of a slot screwdriver. Pay attention to the wires. Lift up the circuit board 11 very carefully and insert it again. Pay attention to the groove in the solar module 6 when inserting it again.
Exchange the old rechargeable battery to a new one. Take care to the correct polarity, when inserting the new rechargeable battery 9.

The polarity is indicated in the battery compartment.

The new rechargeable battery has to have the same technical data like the old one (see "Technical data"). The rechargeable battery must be kept as horizontal as possible when inserting it.

Now again fasten the LED 11, solar panel 10 and solar module 6 fasten the fastening screws 8 by using a small cross head screw-driver. When closing, pay attention to the silicone cover 7 otherwise the IP protection is not guaranteed.

☐ Press the main switch 5 to switch position "I" to enable the product switching on during darkness.

- Troubleshooting

Note: The product contains sensitive electronic components. Radio transmitting equipment in the immediate vicinity may therefore cause interference. These could be e.g. mobile phones, two-way radios, CB

radios, radio / other remote controls and microwaves. If you notice the product is malfunctioning, remove any sources of interference from the area around the product.

Note: Electrostatic discharge can lead to malfunctions. In the event of such malfunctions, briefly remove and reinsert the rechargeable battery 9.

Note: The performance of the rechargeable battery 9 is better in summer than in winter due to the weather.

Error Cause Solution
LED doesn’t light up Sur	roundings are too bright or light from other light sources is hitting the product.	Change the location (away from e.g. yard or street lighting).
	Product is switched off.	Make sure the main switch 5 is on.
Weak LED light The rechargeable battery 9 is not fully charged or defective.		Charge the rechargeable battery 9 with a charger or replace with a new rechargeable battery (see “Replacing the rechargeable battery”).
LED doesn’t light up LED defective The LED cannot be replaced. Dispose of the product properly (see “Disposal”)

● Maintenance / Cleaning

Note: The LED cannot be replaced. The product is maintenance-free.

■ Never use caustic cleaners.
☐ Regularly clean the product with a dry, lint-free cloth. Use a slightly moist cloth to remove any stubborn dirt.
☐ Replace the rechargeable battery 9 if the operating time decreases noticeably after some time despite good sun exposure (see chapter "Replacing the rechargeable battery").

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

CE IP67 (HG06012A/HG06012B)

CE IP44 (HG06012E/HG06012F)

5 Interruptorprincipal

6 Módulo solar

7 Junta de silicona

8 Tornillos

9 Batería

10 Panel solar (solo HG06012E / HG06012F)

11 Placa con LED (solo HG06012E/HG06012F)

12 Tornillo (módulo solar) (solo HG06012E/HG06012F)

Contenido
