USER MANUAL BR 3512 C Bp Kärcher

Register your product www.kaercher.com/welcome BR 35/12 C Bp

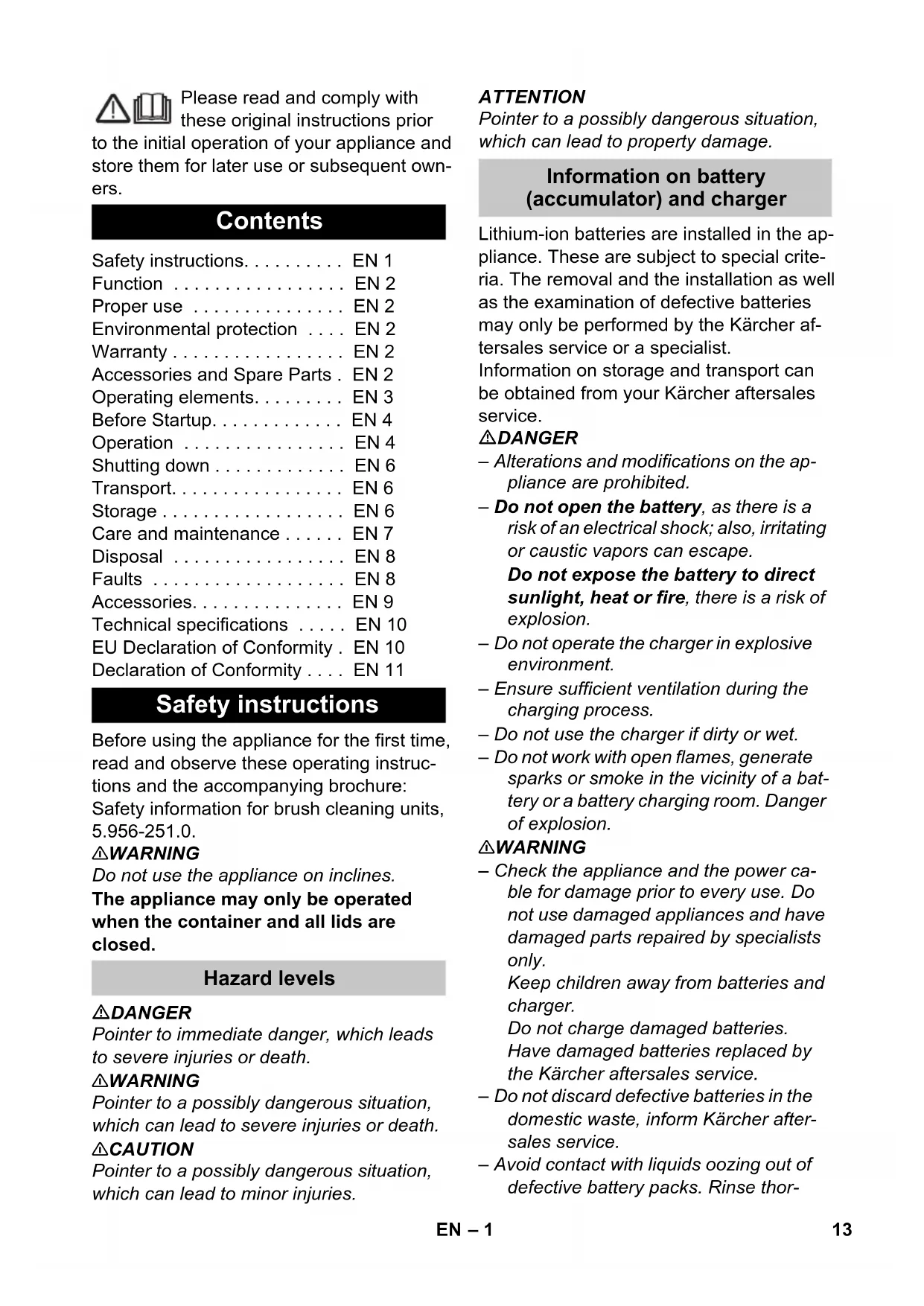

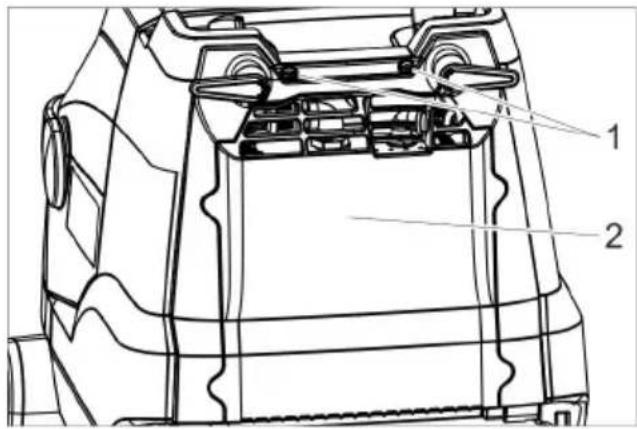

dB(A) 84 EU-Konformitätserklärung Produkt: Scheuersaugmaschine Typ: 1.783-xxx Einschlägige EU-Richtlinien 2006/42/EG (+2009/127/EG) 2014/30/EU 2011/65/EU 2014/53/EU (TCU) Angewandte harmonisierte Normen EN 60335–1 EN 60335–2–72 EN 60335-2-29 EN 55012: 2007 + A1: 2009 EN 55014-1:2006 + A1: 2009 + A2:2011 EN 55014–2: 1997 + A1: 2001 + A2: 2008 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 61000–6–2: 2005 EN 62233: 2008 EN IEC 63000: 2018 Angewandte nationale Normen TCU EN 301 511 V12.5.1 EN 300 440 V2.1.1 EN 300 328 V2.2.2 EN 300 330 V2.1.1 Chairman of the Board of Management Director Regulatory Affairs & Certification 12 DE– 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. Before using the appliance for the first time, read and observe these operating instruc- tions and the accompanying brochure: Safety information for brush cleaning units, 5.956-251.0. 몇 WARNING Do not use the appliance on inclines. The appliance may only be operated when the container and all lids are closed. DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. Lithium-ion batteries are installed in the ap- pliance. These are subject to special crite- ria. The removal and the installation as well as the examination of defective batteries may only be performed by the Kärcher af- tersales service or a specialist. Information on storage and transport can be obtained from your Kärcher aftersales service. DANGER – Alterations and modifications on the ap- pliance are prohibited. – Do not open the battery, as there is a risk of an electrical shock; also, irritating or caustic vapors can escape. Do not expose the battery to direct sunlight, heat or fire, there is a risk of explosion. – Do not operate the charger in explosive environment. – Ensure sufficient ventilation during the charging process. – Do not use the charger if dirty or wet. – Do not work with open flames, generate sparks or smoke in the vicinity of a bat- tery or a battery charging room. Danger of explosion. 몇 WARNING – Check the appliance and the power ca- ble for damage prior to every use. Do not use damaged appliances and have damaged parts repaired by specialists only. Keep children away from batteries and charger. Do not charge damaged batteries. Have damaged batteries replaced by the Kärcher aftersales service. – Do not discard defective batteries in the domestic waste, inform Kärcher after- sales service. – Avoid contact with liquids oozing out of defective battery packs. Rinse thor- Contents Safety instructions... EN 1 Function ... EN 2 Proper use ... EN 2 Environmental protection ... EN 2 Warranty ... EN 2 Accessories and Spare Parts . EN 2 Operating elements... EN 3 Before Startup... EN 4 Operation ... EN 4 Shutting down ... EN 6 Transport... EN 6 Storage ... EN 6 Care and maintenance ... EN 7 Disposal ... EN 8 Faults ... EN 8 Accessories... EN 9 Technical specifications ... EN 10 EU Declaration of Conformity . EN 10 Declaration of Conformity ... EN 11 Safety instructions Hazard levels Information on battery (accumulator) and charger 13EN– 2 oughly if you accidentally come in con- tact with the fluid. Also consult a doctor if the fluid comes in contact with your eyes. 몇 CAUTION – These operating instructions must be observed unconditionally. Observe rec- ommendations of the lawmaker for han- dling batteries. – The mains voltage must correspond with the voltage indicated on the type plate of the appliance. – Use the charger only to charge ap- proved battery packs. – The accumulator may only be operated with this appliance. It is dangerous and prohibited to use it for other purposes. If the safety switch is released, the brush drive shuts off. The scrubbing vacuum cleaner is used for the wet cleaning of level floors. It can be easily adjusted to the cleaning task by setting the water quantity. A working width of 350 mm and a capacity of 12 l in the fresh and wastewater tank each enable effective cleaning with long action times. The battery can be charged on a 230V power outlet by means of the integrated charger. Use this appliance only as directed in these operating instructions. – This appliance is suited for the commer- cial use, e.g. in hotels, schools, hospi- tals, factories, shops, offices, and rental companies. – The appliance should only be used for cleaning level floors that are not affect- ed by moisture. – This appliance is intended for inside use. – The appliance is not suited for the cleaning of frozen grounds (e.g. in cold stores). – The appliance may only be equipped with original accessories and spare parts. The packaging material can be recy- cled. Please do not place the packag- ing into the ordinary refuse for disposal, but arrange for the proper recycling. Old appliances contain valuable ma- terials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appli- ances using appropriate collection sys- tems. Information on ingredients (REACH) The latest information on ingredients can be found under: www.kaercher.de/REACH The warranty terms published by our com- petent sales company are applicable in each country. We will repair potential fail- ures of your accessory within the warranty period free of charge, provided that such failure is caused by faulty material or de- fects in fabrication. In the event of a warran- ty claim please contact your dealer or the nearest authorized Customer Service cent- er. Please submit the proof of purchase. Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaerch- er.com. Safety installations Function Proper use Environmental protection Warranty Accessories and Spare Parts 14 EN– 3 1 Fresh water tank cover 2 Fluff filter 3 Steering wheel 4 Star knob, height adjustment of the steering wheel 5 Star knob, transport position of the steering wheel 6 Unlocking device, cover waste water tank 7 Cover dirt water reservoir 8 waste water tank 9 Carrying handle for waste water tank 10 Rotating handle for brush contact pres- sure (1=min, 4=max) 11 Water distribution bar 12 Unlocking button for brush roller 13 Brush roller 14 Coarse dirt container 15 Vacuum bar lift pedal 16 Vacuum bar 17 Fresh water level display 18 Coupling for draining the fresh water 19 Step depression 20 Battery charging display 21 Cable hook, rotating 22 Safety button Operating elements 15EN– 4 1 Dosage cleaning solution 2 Switch for detergent solution 3 Control lamp to apply detergent solution 4 Indicator lamp vacuuming Green: Suction turbine in operation Orange, flashing: Suction turbine over- loaded 5 Indicator lamp brush drive Green: Brush is rotating Orange, flashing: Brush overloaded 6 Battery status display Green Battery charged Orange: Battery almost empty Red Appliance swithces off: Load bat- tery 7 Indicator lamp Eco mode 8 Switch Eco mode 9 Power switch Note: The device is equipped with a safety mech- anism to prevent total discharge, i.e. when the permissible minimum capacity is reached, the machine will be shut off. The charging process takes approx. 3 hours. The charger automatically switches off the charging process. If necessary, the appliance can be used again before the battery has been fully charged. Insert the mains plug into the socket. 1 Battery is charged (green) 2 Battery is being charged (yellow, flash- ing) 3 Malfunction (red) Release the star knob for the transport position. Straighten the steering column. Tighten the star handle. 몇 WARNING Risk of damage. Only use the recommend- ed detergents. With other detergents, the operator bears the increased risk regarding the operational safety, risk of accident and reduced service life of the appliance. Only use detergents that are free of solvents, hy- drochloric acid and hydrofluoric acid. Follow the safety instructions for using de- tergents. Note: Do not use highly foaming detergents. Observe the dosing notes. Swivel up the carrying handle of the waste water tank. Lift out the waste water tank and put it aside. Remove the lid from the fresh water reservoir. Fill in fresh water (maximum 50 °C). Add detergent. Follow dosing instruc- tions for detergent. Before Startup Charging battery Battery charging display Operation Filling in detergents 16 EN– 5 Recommended detergents: Detergents are available in specialised stores. Close the cover of the fresh water res- ervoir. Place the waste water tank on the appli- ance. Release the star knob for the height ad- justment of the steering wheel. Adjust the steering wheel to the desired height. Tighten the star handle. Adjust the dosing of the cleaning solu- tion in accordance with the soiling and the type of the flooring material. Adjust the rotary handle of the brush contact pressure to the desired value. Only adjust the brush contact pressure when the cleaning head is raised. Note: If the appliance pulls forwards too strongly during operation, reduce the contact pres- sure. Bring the Eco mode switch into the de- sired position. Normal operation: The appliance works at the maximum brush speed and the highest suction performance. Eco: The appliance works at reduced brush speed and suction performance. This also reduces the energy consump- tion. The possible action time with one charging cycle increases. ATTENTION Risk of damage to the floor covering. Do not operate the appliance on the spot. Risk of damage. Lift the vacuum bar before pulling the appliance backwards over a longer distance. Set the appliance switch to "I". Switch on "Detergent" button. Press the switch of the suction turbine; the vacuum process will start. Push down the pedal of the vacuum bar lifting device at the back to lower the vacuum bar. Pull the safety switch towards the steer- ing wheel, the brush drive and the appli- cation of the cleaning solution are switched on (if preset). Push the appliance forward until the parking stand folds up and the cleaning head touches the ground. Move the appliance over the surface to be cleaned. Note: If the steering wheel is turned by 180°, the appliance also reverses. Release the safety switch. Drive the appliance forward for another 1-2 m to draw off residual water. Push down the pedal of the vacuum bar lifting device at the front to raise the vacuum bar. ATTENTION Vacuum lips and brush can be deformed permanently. Always park the appliance with the parking stand folded out. Set the appliance switch to "0". Place one foot in the tread and lift the front of the appliance by pulling on the steering wheel until the parking stand folds out. 몇 WARNING Please observe the local provisions regard- ing the wastewater treatment. Application Detergent Regular cleaning (even for floors sensitive to alkalies) RM 745 RM 746 Cleaning dirt from grease

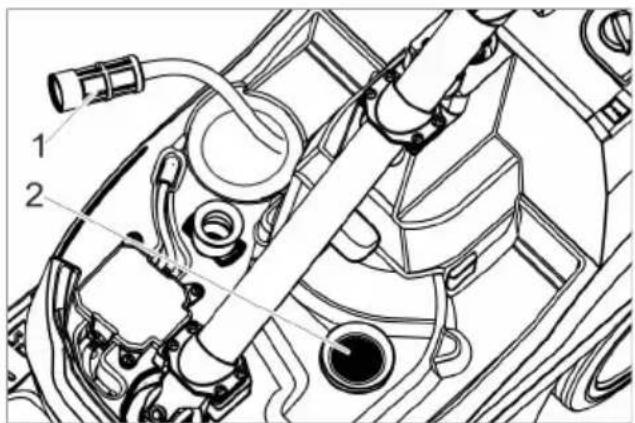

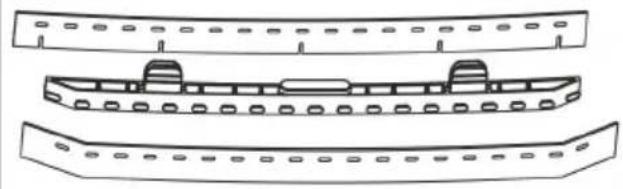

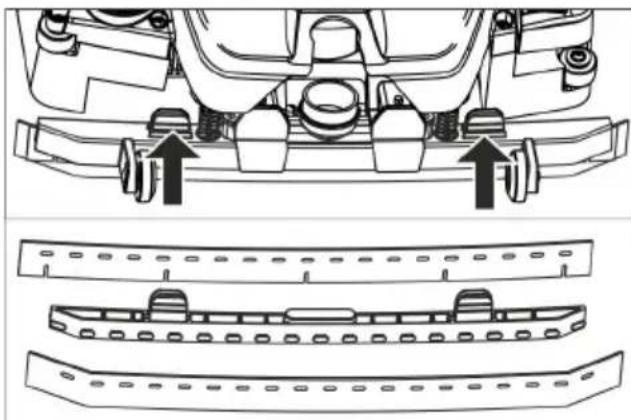

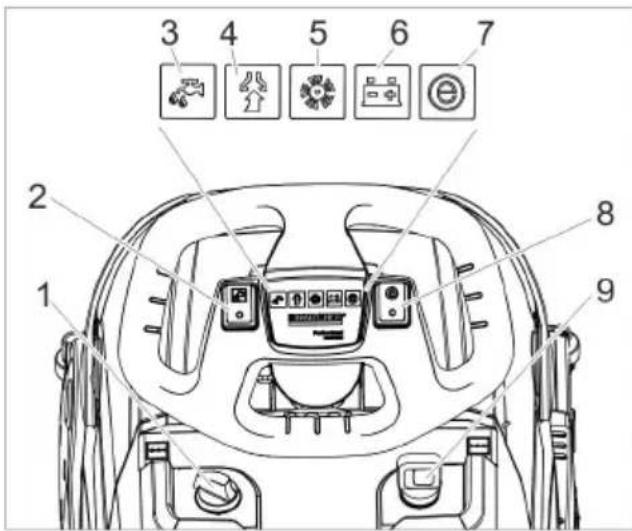

RM 69 ASF Basic cleaning (strip- ping) of alkali-resistant hard coatings RM 752 Basic cleaning (strip- ping) linoleum RM 754 Base cleaner, acidic RM 751 Disinfection cleaning RM 732 Settings Cleaning Shutting Down the Appliance Emptying the waste Water tank 17EN– 6 Swivel the handle of the waste water tank up and let it snap into place. Remove the waste water tank. Remove the cover of the waste water tank. Empty the waste water tank. Swivel the waste water tank sideways during emptying so that the tank is com- pletely drained. Rinse the dirt water reservoir with clear water. Reattach the waste water tank to the appliance. 몇 WARNING Please observe the local provisions regard- ing the wastewater treatment. 1 Coupling for draining the fresh water 2 Fresh water level display Slide the coupling down. Remove the hose of the level indicator and swivel it downwards. In case of danger of frost: Empty the fresh and dirt water reser- voirs. Store the appliance in a frost-protected room. To reduce the space requirements for transport and storage, the steering column can be folded down. Release the star knob for the transport position. Swivel the steering wheel forwards. Tighten the star handle. Completely charge the battery prior to longer operational breaks extending over several weeks. Set the appliance switch to "0". ATTENTION Risk of damage to the battery due to total discharge. Always switch the power switch to "0" dur- ing operational breaks. 몇 CAUTION Risk of personal injury or damage! Mind the weight of the appliance during transport. Remove the brush to avoid damage to the brushes. When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. 몇 CAUTION Risk of personal injury or damage! Consid- er the weight of the appliance when storing it. This appliance must only be stored in inte- rior rooms. Emptying the Fresh Water Tank Frost protection Folding down the steering column Shutting down Transport Storage 18 EN– 7 DANGER Risk of injury. Turn the appliance switch to "0" and pull the mains plug of the charger prior to performing any work on the appli- ance. ATTENTION Risk of damage for the appliance due to leaking water. Drain the wastewater and re- maining fresh water prior to performing tasks on the appliance. Park the machine on an even surface. ATTENTION Risk of damage. Do not sluice the appli- ance with water and do not use aggressive detergents. Drain off dirt water. Remove the lid of the waste water tank and wash the inside of the lid and the float with water. Rinse the waste water tank with clear water. Clean the vacuum bar. Remove bulk waste container and emp- ty it. Clean the outside of the appliance with a damp cloth which has been soaked in mild detergent. Clean the vacuum lips, check for wear and replace them if required. Clean brush. Check the brush for wear and replace if required (see "Maintenance tasks"). Charge battery if required. Remove the water distribution bar on the cleaning head and clean the water channel. 1 Fresh water filter 2 Fluff filter Clean the fresh water filter. Clean the fluff filter. Check the condition of the seals be- tween waste water tank and cover, re- place if required. Have the prescribed inspection carried out by the customer service. Compress the fastening devices and pull the vacuum lips out of the vacuum bar towards the bottom. Remove the vacuum lips from the hold- er. Note: Thanks to the perforation pattern the vacu- um lips cannot be mixed up. They cannot be turned and reinstalled. Replace vacuum lips. Care and maintenance Maintenance schedule After the work Weekly Monthly Yearly Maintenance Works Replacing the suction lips 19EN– 8 Insert the holder with the vacuum lips into the vacuum bar and snap into place. 몇 WARNING Risk of crushing due to the parking stand folding up during the brush replacement. Turn the steering wheel by 90° to the left prior to the brush replacement. Press the release button for the brush roller and swivel the brush roller toward the bottom and pull it off the driver. Place the new brush roller on the driver and lock into place on the opposite side. To ensure a reliable operation of the appli- ance maintenance contracts can be con- cluded with the competent Kärcher sales office. DANGER The removal of the battery may only be per- formed by the Kärcher aftersales service or a specialist. The evaluation, whether the battery is dam- aged or not, is done by an authorised after- sales technician The Chapter "Safety instructions" for han- dling accumulators must be observed un- conditionally. 1 Screw 2 Cover Unscrew 2 screws. Swivel the lid downwards. Loosen and remove the battery plug. Remove the battery. Dispose of used battery in accordance with the applicable provisions. DANGER Risk of injury. Turn the appliance switch to "0" and pull the mains plug of the charger prior to performing any work on the appli- ance. ATTENTION Risk of damage for the appliance due to leaking water. Drain the wastewater and re- maining fresh water prior to performing tasks on the appliance. In case of faults that cannot be remedied using the table below please contact the customer service. Replacing the brush roller Maintenance contract Disposal Removing the battery Faults Fault Remedy Appliance cannot be started Switch on the appliance switch, wait 3 seconds, check charge condition of the battery. Insufficient water quantity Check fresh water level, refill tank if necessary. Switch on "Detergent" button. Open the dosing device for the cleaning solution. Clean the fresh water filter. 20 EN– 9 The appliance can be equipped with vari- ous accessories depending on the cleaning task. Please request our catalogue or visit us on the Internet at www.kaercher.com. Insufficient vacuum perfor- mance Lower the vacuum bar. Empty the waste water tank. Clean the seals between waste water tank and cover and check for tightness, replace if required. Clean the vacuum lips on the vacuum bar, turn or replace if required Check if the suction hose and vacuum bar are chocked, clean if required Check the suction hose for tightness; replace if required. Insufficient cleaning result Check/set the brush contact pressure. Check the brush type and the detergent for their suitability. Check the brushes for wear, replace if required. Brush does not turn Pull the safety switch towards the steering wheel. Check if foreign matters are blocking the brush roller; re- move foreign matter if required. Switch off the switch for the brush drive, wait for a short pe- riod of time, switch the switch back on. Fault Remedy Accessories Description Part no.: Description Brush roller, white (soft) 4.037-036.0 For polishing floors. Brush roller, red (medium, standard) 4.037-031.0 For cleaning slightly dirtied or sensitive floors. Brush roller, green (hard) 4.037-038.0 For cleaning heavily dirtied floors. Brush roller, black (very hard) 4.037-039.0 For cleaning heavily dirtied floors. Brush roller, orange (high/ low) 4.037-037.0 For scrubbing structured floors (safety tiles, etc.). Microfibre roller 4.037-040.0 Cleaning brush made of microfibres with espe- cially high cleaning performance, especially for fine stone tiles. Pad roller shaft 4.762-009.0 For intake of roller pads. Roller pad, red (medium) 6.369-047.0 For cleaning slightly dirtied floors. Roller pad, green (hard) 6.369-052.0 For cleaning normal to heavily dirtied floors. Roller pad, yellow (soft) 6.369-053.0 For polishing floors. Fill hose 6.680-124.0 For filling the fresh water tank Suction lip kit 4.037-035.0 As replacement 21EN– 10 We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. The undersigned act on behalf and under the power of attorney of the company man- agement. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Technical specifications Power Nominal voltage V 25,9 Battery capacity Ah (5h) 22 Battery type Li-ion Average power con- sumption W 500 Protective class - 1 Suction engine output W 280 Brush engine output W 185 Operating temperature range °C 0...40 Vacuuming Cleaning power, air quantity l/s 20 Cleaning power, nega- tive pressure kPa 8 Cleaning brushes Working width mm 350 Brush diameter mm 96 Brush speed 1/min 1050 Charger Voltage V/Hz 220...240/

Power Input W 300 Dimensions and weights Theoretical surface cleaning performance
