HandyLaser - Laser level Laserliner - Free user manual and instructions

Product type	Laser level
Brand	Laserliner
Model	HandyLaser
Laser class	2 / < 1 mW
Laser wavelength	650 nm
Operating distance	50 m
Bubble accuracy	0.5 mm/m
Power supply	2 AAA 1.5V batteries
Dimensions (L x H x D)	210 x 59 x 62 mm
Weight	128 g (batteries included)
Working conditions	0 to 50°C, max. 80% RH, non-condensing
Storage conditions	-10 to 70°C, max. 80% RH
Housing material	Impact-resistant fiberglass reinforced plastic
Mounting	Strong magnets, spring clamp, adjustment feet
Vials	Vertical and horizontal
Switch	ON/OFF with LED laser indicator
Maintenance	Clean with a damp cloth, no solvents
Safety	Laser class 2, do not look into the beam
Accessories (depending on model)	90° beam splitter
Warranty	See online manual at laserliner.com

Frequently Asked Questions - HandyLaser Laserliner

How to insert the batteries?

Open the battery compartment (4) and insert two AAA 1.5V batteries observing the indicated polarity. Close the compartment.

How to turn on the device?

Use the ON/OFF switch (1) to turn the device on or off. The LED laser indicator (10) lights up when the laser is active.

What is the laser range?

The laser range is 50 meters under normal conditions.

How to mount the device for tiling?

Use the spring clamp mount (7) to attach the device to the edge of the tile. The laser beam parallel to the horizontal vial allows precise alignment.

What to do if the laser does not turn on?

First check the batteries: their charge level may be low. Replace them if necessary. If the problem persists, do not use the device and contact customer service.

How to clean the device?

Clean all components with a slightly damp cloth. Do not use cleaning agents, scouring products, or solvents.

Can I use the device outdoors?

Yes, but observe the working conditions: temperature between 0 and 50°C, max. 80% RH. Avoid direct exposure to rain or high humidity.

What is the accuracy of the bubble level?

The bubble accuracy is 0.5 mm/m, ideal for leveling and alignment work.

How to use the 90° beam splitter?

If your model is equipped, the 90° beam splitter deflects the laser beam at a right angle. Attach it in front of the laser output window to obtain a perpendicular line.

What to do in case of malfunction?

First consult the complete manual online. If the problem persists, do not attempt to repair the device yourself. Contact a professional or Laserliner customer service.

USER MANUAL HandyLaser Laserliner

3D model of a train or vehicle with black and white components, no visible text or symbols

DE 02

EN 06

NL 10

DA 14

FR 18

ES 22

IT 26

PL 30

FI 34

PT 38

SV 42

NO 46

TR 50

RU

UK

CS

ET

LV

LT

RO

BG

EL

SL

HU

SK

magnetic

Laserliner

Laserliner

Warning symbol with a triangular frame and central sunburst pattern (no text)

Close-up of a battery with two different sizes and polarity markings (no visible text or symbols)

Laserliner

23451 10 9 6 8 7 6

3D mechanical component with a black arrow pointing to a small cylindrical feature (no text or symbols visible)

Diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols)

3D diagram of a mechanical device with downward arrows indicating force or movement (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Mechanical assembly diagram showing a motor and gear mechanism with motion arrows (no text or labels)

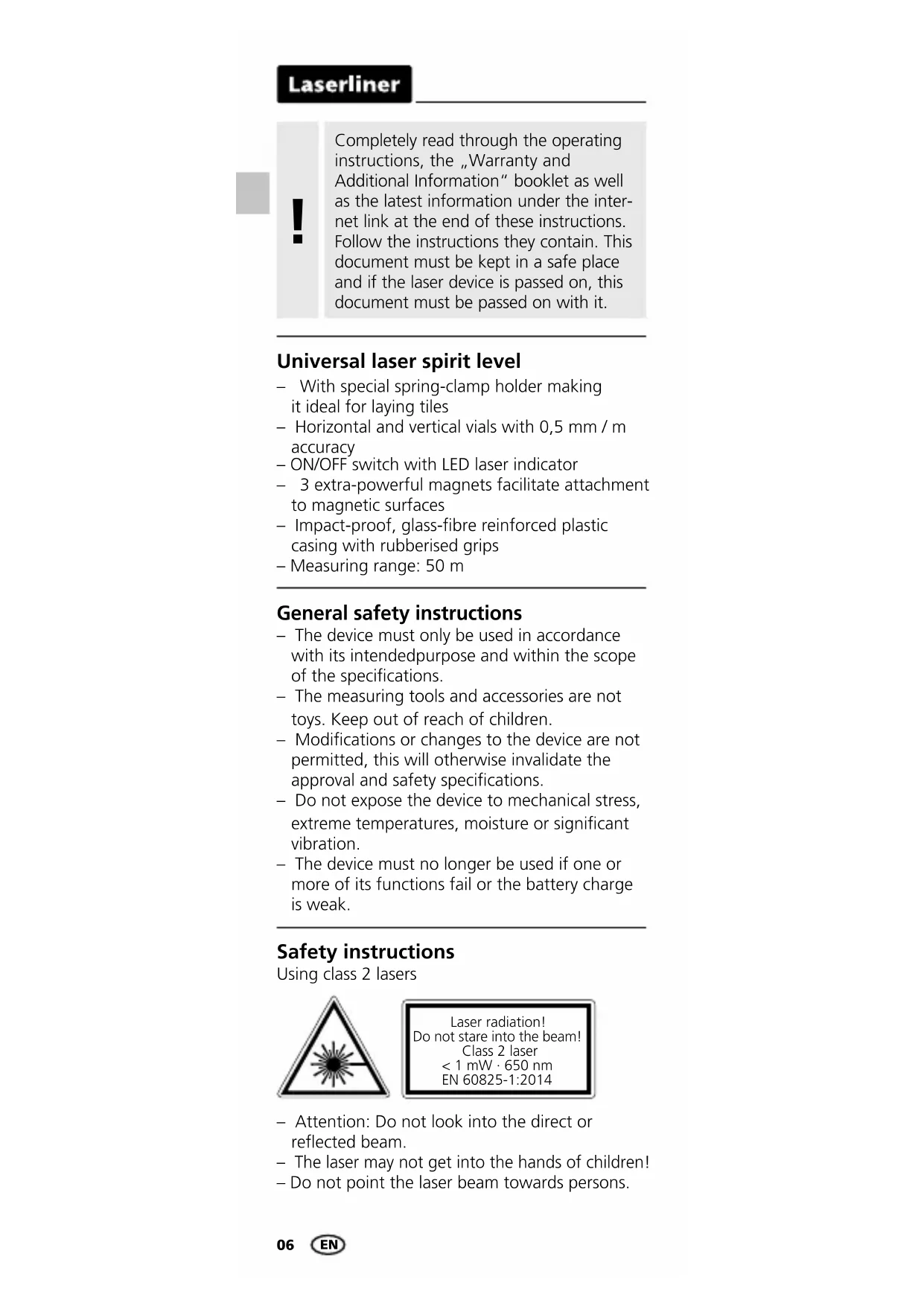

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Universal laser spirit level

• With special spring-clamp holder making it ideal for laying tiles
• Horizontal and vertical vials with 0,5 mm / m accuracy
• ON/OFF switch with LED laser indicator
• 3 extra-powerful magnets facilitate attachment to magnetic surfaces
• Impact-proof, glass-fibre reinforced plastic casing with rubberised grips
• Measuring range: 50 m

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 650 nm EN 60825-1:2014

• Attention: Do not look into the direct or reflected beam.
• The laser may not get into the hands of children!

• Do not point the laser beam towards persons.

• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.

• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must only be used in accordance with its intended purpose and within the scope of the specifications. Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Danger – powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields" (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

1 Inserting batteries

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

Close-up of a battery component with two cylindrical batteries and one external bulb (no visible text or symbols)

Laserliner

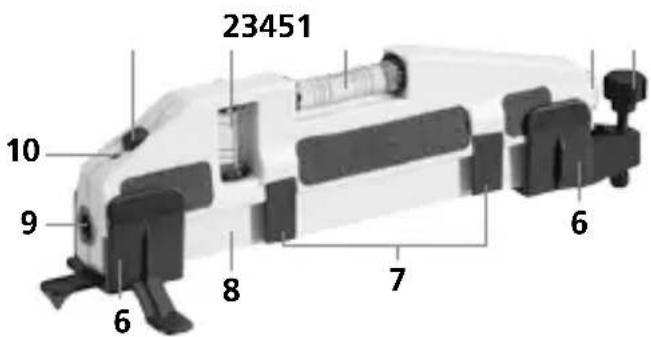

2 3 4 51 10 9 6 8 7 6

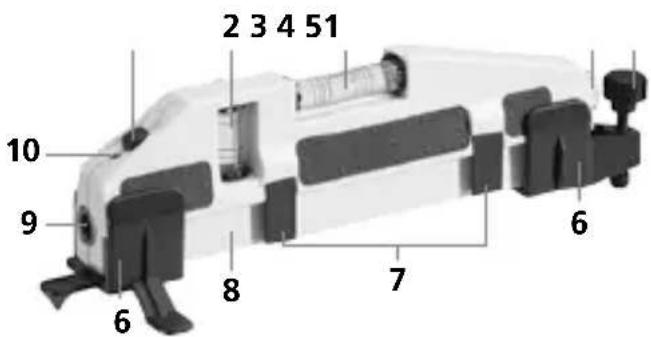

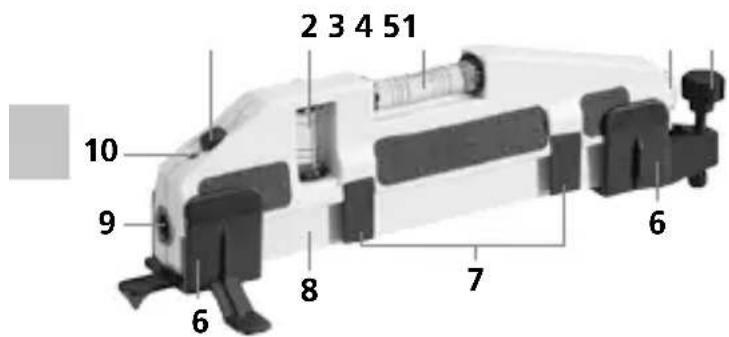

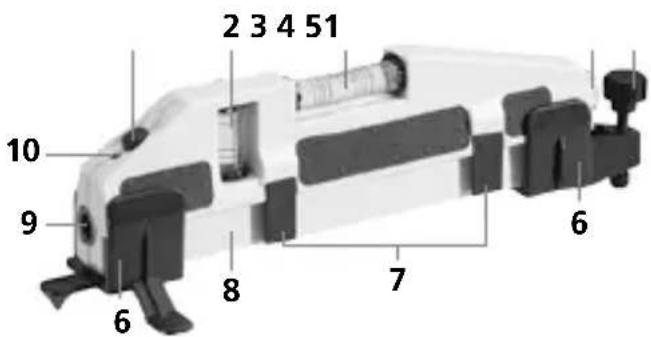

1 ON/OFF switch
2 Vertical vial
3 Horizontal vial
4 Battery compartment
5 Levelling foot adjustment

6 Levelling foot
7 Spring-clamp holder
8 Magnets (bottom)
9 Laser output windows
10 LED laser indicator

2 ON/OFF

3D mechanical component with a black arrow pointing to a small cylindrical feature (no text or symbols visible)

3 Attaching adjustable legs

Diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols)

4 To fit wall tiles

3D diagram of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Pure mechanical component diagram without any text, numbers, or symbols

To fit wall tiles, the device is attached to the first tile by means of the spring-clamp holder that is pushed out with the pins at the rear. The laser beam that runs parallel to the horizontal spirit level is directed along the edge of the tile. This makes it possible to precisely align the tile with the bubble level.

5 90° beam splitter

(depending on product version)

Two technical diagrams showing a mechanical component and its motion trajectory with curved arrows (no text or symbols)

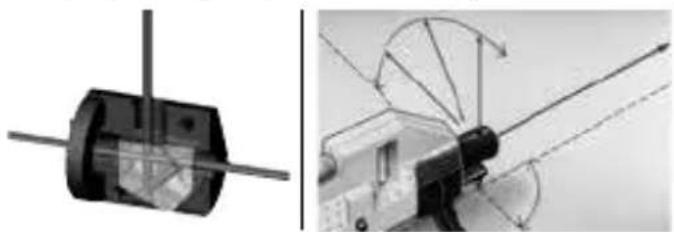

The 90° beam splitter allows the laser beam to be additionally deflected by 90°.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technische Daten

Vial accuracy 0,5 mm	/ m
Laser applications	50 m
Laser wavelength 650 nm
Laser class	2 / < 1 mW
Power supply 2 x 1,5V	AAA
Operating conditions	0 ... 50°C, max. humidity80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions	-10°C ... 70°C,max. humidity 80% rH
Weight	128 g (incl. batteries)
Dimensions(W x H x D)	210 x 59 x 62 mm

Subject to technical alterations. 18W32

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=ACQ
