USER MANUAL PFMR 1600 C3 PARKSIDE

PDF ONLINE www.lidl-service.com

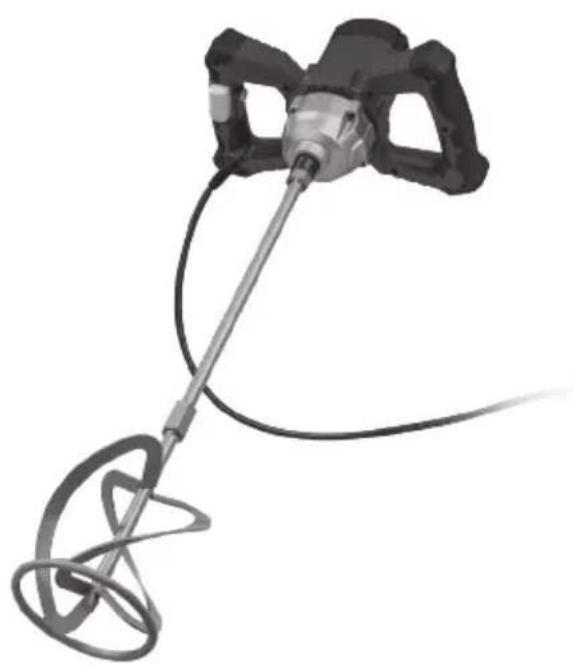

Mechanical device with a metal stirrer and coiled coil, no visible text or symbols

Operation and safety notes Translation of the original instructions

FR BE

Authorised Signatory

DE

Warnings and symbols used Page 21

Introduction Page 21

Intended use.... Page 21

Parts description.... Page 22

Scope of delivery.... Page 22

Technical data Page 22

Safety instructions.... Page 23

General power tool safety warnings Page 23

Mixer safety instructions.... Page 26

Vibration and noise reduction Page 27

Behaviour in emergency situations.... Page 27

Residual risks Page 27

Initial use Page 28

Unpacking Page 28

Accessories Page 28

Before use Page 28

Fitting the universal stirrer.... Page 28

Removing and disassembling the universal stirrer .... Page 29

Operation.... Page 29

Switching on/off (see Fig. E) Page 29

Soft-start function ...... Page 29

Speed pre-selection (see Fig. F).... Page 29

Working with the mixer Page 29

After use.... Page 30

Cleaning and care Page 30

Cleaning. Page 30

Maintenance Page 30

Repair.... Page 30

Storage Page 31

Transportation Page 31

Troubleshooting Page 31

Service Page 32

Disposal Page 32

Warranty Page 33

Warranty claim procedure.... Page 33

Service Page 33

EC declaration of conformity Page 34

Warnings and symbols usedThe following warnings are used in this instruction manual, on the packaging and on the rating label:
	Read the instruction manual.		Warning of general danger
			Risk of electric shock
	Wear eye protection! Wear ear protection!
	Wear a dust mask! Wear protective gloves
	Wear protective, slip-resistant footwear! Protection class II (Double insulation)
	Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use.		Alternating current/voltage
			Use in dry indoor rooms only.
	Lock		CE mark indicates conformity with relevant EU directives applicable for this product.
	Unlock

PADDLE MIXER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This paddle mixer (hereinafter "product" or "power tool") is designed for mixing liquid and powdered materials such as mortar, plaster, adhesives and non-solvent paints, varnishes and similar type of materials. The relevant mixing action is dependent on the consistency, viscosity of the materials and the quantity to be mixed. A universal stirrer with appropriated rotational speed setting will achieve best mixing effect.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial use or for any other use.

Parts description

Figure A, C & F:

1 Handle
2 Assembly spanner
3 Agitator shaft (with M14 internal thread)
4 Universal stirrer
4a Spiral
4b Shaft
5 ON/OFF switch
6 Lock-off button
7 Speed control button + (increase speed)
8 Speed control button (decrease speed)

- Scope of delivery

1 Paddle mixer
1 Universal stirrer
2 Assembly spanners
1 Instruction manual

- Technical data

Paddle mixer: PFMR 1600 C3

Rated voltage, frequency: 230–240 V\~, 50 Hz

Rated power: 1600 W

Rated no-load speed n_0 : 0–800 min ^-1

Stirrer fitting: M14

Stirrer head ∅: 138 mm

Weight (incl. accessories): 5.2 kg

Protection class: II / ☐

Noise emission value:

Sound pressure level L_pA : 83.5 dB(A)

Uncertainty K_pA : 3 dB

Sound power level L_WA : 94.5 dB(A)

Uncertainty K_WA : 3 dB

WARNING!

Wear ear protection!

NOTE

Universal stirrers 4 and other spiral 4a shapes (with or without shaft 4b) are available from your authorised dealer.
Specifications:
Outer diameter (spiral): ≤ 150 mm
Total length: ≤ 650 mm
Threaded connection: M14

NOTE

The sound emission values have been obtained according to the noise test code given in EN 62841-1. The noise for the operator may exceed 80 dB(A) and ear protection measures are necessary.

Vibration total value:

Work mode - vibration

emission value a_h : <2.5 m/s ^2

Uncertainty K : 1.5 m/s ^4

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another;
The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Mixer safety instructions

1. Hold the tool with both hands at the intended handles. Loss of control can cause personal injury.
2. Ensure sufficient ventilation when mixing flammable materials to avoid a hazardous atmosphere. Developing vapour may be inhaled or be ignited by the sparks the power tool produces.
3. Do not mix food. Power tools and their accessories are not designed for processing food.
4. Keep the cord away from the working area. The cord may be entangled by the mixer basket.
5. Ensure that the mixing container is placed in a firm and secure position. A container that is not properly secured may move unexpectedly.

6. Ensure that no liquid splashes against the housing of the power tool. Liquid that has penetrated the power tool can cause damage and lead to electric shock.

7. Follow the instructions and warnings for the material to be mixed. Material to be mixed may be harmful.

8. If the power tool falls into the material to be mixed, unplug the tool immediately and have the power tool checked by a qualified repair person. Reaching into the bucket with the tool still plugged in can lead to electric shock.

9. Do not reach into the mixing container with your hands or insert any other objects into it while mixing. Contact with the mixer basket may lead to serious personal injury.

10. Start up and run down the tool in the mixing container only. The mixer basket may bend or spin in an uncontrolled manner.

Additional safety instructions of operating mixer

The power tool must never be used in surroundings where an explosive atmosphere exists.
■ Never mix any materials containing flammable solvent or substance.
■ Make sure mixing stirrer is placed inside the mixing container when power tool is switched ON.
■ Make sure power tool is completely stopped prior to taking out the stirrer from mixing container.
■ Always wear safety goggles to operate the power tool.
- Do not wear loose-fitting clothes to operate the power tool.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
- Ensure that the product is in good condition and well maintained.
- Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles / grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
- Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.

- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

Initial use

Unpacking

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1. Unpack all parts and lay them on a flat, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
   Do not use the product unless missing parts have been delivered in addition or defective parts have been replaced. Using an incomplete or damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable personal protective equipment.

Accessories

To operate this product safely and correctly, the following accessories, i. e. tools and attachments, are necessary:

■ Suitable personal protective equipment

Accessories and tools are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").

If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

Before use

WARNING!

Risk of accident if the machine is operated using electrical power supply that does not match the specifications shown on the rating label of the tool.
The mains voltage and the frequency of the power source must correspond with the specifications on the machine's rating plate.

WARNING!

Always switch the product off and disconnect it from the mains before performing inspections, installing accessories or making adjustments!

● Fitting the universal stirrer

■ Screw the shaft 4b into the spiral 4a completely (Fig. B).

NOTE

You do not need to fix the spiral 4a to the shaft 4b very tightly. The product's rotational motion securely tightens shaft and spiral.

■ Then screw the assembled universal stirrer 4 into the agitator shaft 3 completely (Fig. C).
- Tighten the universal stirrer 4 firmly by using assembly spanners 2 per rotational direction (Fig. D).

- Removing and disassembling the universal stirrer

Removing the universal stirrer 4 from the agitator shaft 3: Use the assembly spanners 2 per rotational direction of (follow the reverse steps of "Fitting the universal stirrer" mentioned above).

Disassembling the spiral 4a from the universal stirrer 4:

• Place one assembly spanner 2 on the hexagonal connector of the shaft 4b.
• Place the other assembly spanner on the hexagonal connector of the spiral 4a.
• Hold the one spanner 2 firmly in place while turning the other spanner in a counter clockwise direction to loosen the connection.
• Unscrew the spiral 4a completely and remove the spiral from the shaft 4b.

Operation

● Switching on/off (see Fig. E)

Switching on:

■ Press and hold the lock-off button 6. Then, press the ON/OFF switch 5 and hold it in position.

Switching off:

■ Release the ON/OFF switch 5.

Soft-start function

This product has electronically controlled soft start function which enables the product starting up smoothly to avoid a "kick-back". This function enhances safety and also prevents the materials to be mixed from spurting out of the mixing container.

● Speed pre-selection (see Fig. F)

The product's mixing speed can be adjusted to different viscosities.

Before you start working: Adjust the rotational speed according to the viscosity of materials to be mixed:

Speed control button	Rotational speed
+ 7	Increase speed
- 8	Decrease speed

NOTE

The universal stirrer 4 moves for a short while after the product has been switched off. Do not put aside the product until it comes to a complete stop.
Always start from lowest speed setting. Then increase the pre-selected speed until the best mixing effect is achieved.
You can change the pre-selected speed only while the product is connected to the mains.
Even after disconnecting the product from the mains: The most recently speed pre-selection stays in place until you set a new speed.

- Working with the mixer

• Dip the universal stirrer 4 into the material you want to mix.
  Once the spiral 4a is completely immersed in the material you can switch the product on.
  During mixing, move the universal stirrer 4 through the mixing container and continue mixing until the material is thoroughly mixed.

Upon switching the product off: Leave the spiral 4a in the material that you mixed until the universal stirrer 4 comes to a complete stop.

After use

1. Switch the product off. Disconnect the product from the mains and let it cool down.
2. Check, clean and store the product as described below.

● Cleaning and care

WARNING!

Always switch the product off, disconnect it from the mains and let the product cool down before performing inspection, maintenance and cleaning work!

■ Remove the universal stirrer 4 from the agitator shaft 3 (Fig. C, D). Clean the universal stirrer with water.
Dry the universal stirrer 4 after cleaning and spray a little anti-rust oil onto them before storage.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Maintenance

Before and after each use, check the product and accessories (or attachments) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements (see "Technical data").

Cleaning

The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.
- Regular and proper cleaning will help ensure safe use and prolong the life of the product.
- Inspect the product before each use for worn and damaged parts. Do not operate it if you find broken and worn parts.
■ Never allow fluids to get into the product.
- Clean the product with a dry cloth. Use a brush for areas that are hard to reach.
In particular clean the air vents after every use with a cloth and brush.
■ Remove stubborn dirt with high pressure air (max. 3 bar).

Repair

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

• Switch the product off and disconnect it from the mains.
  ■ Clean the product as described above.
  ■ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
  ■ Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C.
  We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.

Transportation

• Switch the product off and disconnect it from the mains.
• Attach transportation guards, if applicable.
  ■ Always carry the product by its gripping surface.
• Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
• Secure the product to prevent it from slipping or falling over.

Troubleshooting

WARNING!

Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself!

Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly.

Problem Possible cause Solution

Product does not start.	Not connected to power supply. Power cord or plug is defective. Other electrical defect to the product.	Connect to power supply. Check by a specialist electrician. Check by a specialist electrician.
Product does not reach full power.	Power source (e.g. generator) has too low voltage. Air vents are blocked.	Connect to another power source. Clean the air vents.
Unsatisfactory result.	Accessory is worn. Replace with a new one. Accessory not suitable for intended operation.	Use suitable accessory.

Service

WARNING!

Have your product repaired at the service centre or an electrician, using only original manufacturer parts. This will maintain the safety of this product.
If the supply cord or plug is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 383462_2107) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE

EC declaration of conformity

EC DECLARATION OF CONFORMITY

IAN: 383462_2107

Product identification: PARKSIDE Paint and Mortar Mixer

Model Number: HG09105

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-10:2017

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013/A1:2019

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Name and address of the manufacturer:

This declaration of conformity is issued under the sole responsibility of the manufacture:

Original declaration of conformity

Neckarsulm

Place

18.11.2021

Date

Benjamin Steeb

Managing Director

ppa. Budra ppa. Jens Buchheim

Authorised Signatory

DÉCLARATION DE CONFORMITÉ CE

IAN : 383462_2107

Authorised Signatory

Authorised Signatory

NL

DEKLARACJA ZGODNOŚCI WE

IAN: 383462_2107

Nazwa produktu: PARKSIDE MIESZADŁO DO FARB I ZAPRAWY

Benjamin Steeb Managing Director

ppa. Jenj Buchheim Authorised Signatory

PL

Míchač barev a malty: PFMR 1600 C3

Benjamin Steeb Managing Director

ppa. Bydai

ppa. Jeans Buchheim Authorised Signatory

CZ

Benjamin Steeb Managing Director

ppa. Jens Buchheim Authorised Signatory

Authorised Signatory

mørtelmikser: PFMR 1600 C3

Nominel spænding,

frekvens: 230–240 V\~, 50 Hz

Nominel effekt: 1600 W

Tomgangshastighed n_0 : 0–800 min ^-1

Mørtelblander: M14

Rørehoved ∅: 138 mm

Authorised Signatory

DK

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

Authorised Signatory

IT

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

Authorised Signatory

HU

Uporabljena opozorila in simboli .... Stran 172

Uvod.... Stran 172

Predvidena uporaba .... Stran 172

Opis delov.... Stran 173

Obseg dobave. Stran 173

Negotovost K_pA : 3 dB

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Authorised Signatory

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model-Nr.: HG09105

Version: 01/2022

IAN 383462_2107

8=
