Product type	Paint mixer
Brand	Parkside
Model	PFMR 1400 D3
Power	1400 W
Voltage	230 V ~ 50 Hz
No-load speed	0 - 700 rpm
Mixing capacity	Up to 30 L
Weight	2.8 kg
Cable length	3 m
Beater diameter	120 mm
Shaft material	Stainless steel
Speed controller	Electronic
Handle	Ergonomic with non-slip coating
Protection	Double insulation
Protection class	II
Maintenance	Clean with a damp cloth after use
Spare parts available	Replacement beater, tightening key
Included accessories	1 beater, 1 tightening key
Application	Mixing paint, filler, lightweight mortar
Safety	Safety shutdown in case of overload
Sound level	85 dB(A)
Vibrations	< 2.5 m/s²
Warranty	3 years

Frequently Asked Questions - PFMR 1400 D3 PARKSIDE

How to start the Parkside PFMR 1400 D3 mixer?

Make sure the switch is in the off position, plug in the appliance, then turn the speed adjustment wheel to the desired position. Press the lock button if necessary and hold the switch pressed to start mixing.

What types of materials can I mix with this appliance?

This mixer is designed for paints, varnishes, fillers, lightweight mortars, glues and other materials of similar consistency. Do not use for very viscous or abrasive materials without consulting the manual.

How to adjust the mixing speed?

The speed is adjusted progressively via the wheel on the handle. Turn it towards the '+' symbol to increase speed, towards '-' to decrease. Use a low speed to start and increase gradually.

How to clean the mixer after use?

Unplug the appliance. Clean the beater and shaft with a damp cloth and mild detergent. Never immerse the appliance in water. Wipe thoroughly before storing.

Does the mixer heat up during use?

A slight heating is normal during prolonged use. If the appliance becomes very hot or emits a burning smell, stop immediately and let it cool down. Check that the vents are not blocked.

Can I use the mixer with thick fillers?

Yes, but make sure not to exceed the maximum capacity (30 L) and adjust the speed. For very thick fillers, start at low speed to avoid splashes and motor overload.

What to do if the beater gets stuck during mixing?

Release the switch immediately and unplug the appliance. Check that the beater is not stuck due to debris or too thick material. Clean the beater and resume mixing at reduced speed.

How to change the beater of the mixer?

Unplug the appliance. Use the supplied tightening key to loosen the fixing nut. Remove the old beater, insert the new one and tighten firmly with the key. Make sure the beater is securely fixed before restarting.

The mixer makes an abnormal noise, what to do?

Stop the appliance immediately and unplug it. Check that the beater is correctly fixed and that no foreign object is in contact with the rotating parts. If the noise persists, contact Parkside after-sales service.

Where can I find spare parts for the PFMR 1400 D3?

Spare parts (beater, key, etc.) are available in Lidl stores or on the Parkside website. You can also contact Parkside customer service to order specific parts.

USER MANUAL PFMR 1400 D3 PARKSIDE

FARB- UND MÖRTELRÜHRER / PAINT AND MORTAR MIXER / MALAXEUR DE PEINTURE ET DE MORTIER PFMR 1400 D3

DE AT CH

Translation of the original instructions

NL BE

VERF- EN MORTELMIXER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Inhaltsverzeichnis

Einleitung....2

Hauptgriff: a_h=3,3 m/s^2

Zusatz Handgriff: a_h=3,3 m/s^2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE - 44867 BOCHUM

GERMANY

www.kompernass.com

Original-

Semi Uguzlu

General Power Tool Safety Warnings 11

1. Work area safety.... 11
2. Electrical safety 11
3. Personal safety....12
4. Power tool use and care 12
5. Service....12
   Residual risks 13

Before use....13

Fitting the universal stirrer (see fig. A).... 13
Removing the universal stirrer....13
Fitting the stand/hanger....13
Using the stand/hanger 13

Use....14

Switching the appliance on/off (see fig. b) 14
Setting the speed (see fig. B) 14
Working with the stirrer 14

Maintenance and cleaning....14

Disposal....14

Translation of the original Conformity Declaration....16

PAINT AND MORTAR MIXER PFMR 1400 D3

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The machine is intended for mixing liquid and powdered building materials such as paint, mortar, glue, plaster and similar substances. Depending on the material consistency and mix quantity, you will need to use the universal stirrer with the appropriate mixing effect. The machine may only be used in accordance with its designation. Any use beyond this is deemed as improper. The user, not the manufacturer, is liable for any resulting damage or injuries of any kind. Please note that our appliances are not constructed for commercial, manual trade or industrial use. We accept no warranty liability if the appliance is used in commercial, manual trade or industrial operations or equivalent activities.

Features

1Handle
② Assembly spanner
3 Stand/hanger
④ Agitator shaft with M-14 internal thread
5ON/OFFswitch
6 Locking button
⑦ Universal stirrer
7a Mixing spiral
7b Shaft

Package contents

1 paint and mortar mixer PFMR 1400 D3
1 universal stirrer
2 assembly spanners
1 stand/hanger
4 Phillips-head screws
1 set of operating instructions

Technical data

Rated voltage: 230 V \~ 50 Hz (AC)

Rated power

consumption:1400W

Rated idle speed: 0-700 rpm

Universal stirrer

fitting:M14

Protectionclass:II/ (double insulation)

Weight without

universal stirrer: 3760 g

Noise emission value:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Noise emission value:

Sound pressure level: L_PA = 92 dB(A)

Uncertainty: K_PA = 3 dB

Sound power level: L_WA = 103 dB(A)

Uncertainty: K_WA = 3 dB

Wear hearing protection!

Vibration emission values (vector total of three directions) determined in accordance with EN 60745:

Mainhandle: a_h=3.3 m/s^2

Auxiliary handle: a_h=3.3 m/s^2

Uncertainty: K = 1.5 m/s^2

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level will vary according to the use of the power tool and may sometimes be higher than the value specified in these instructions. Regular use of the power tool in this way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

eral Power Tool SafetyWarnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Residual risks

Even if you operate this power tool properly, there will still be residual risks. The following risks can occur in relation to the power tool's design and structure:

■ Lung damage, if no suitable breathing protection is worn.
■ Hearing damage, if no suitable hearing protection is worn.
■ Damage to health caused by vibrations if the appliance is used for extended periods or is not properly used and maintained.
■ Crushing injuries, if you come into contact with rotating parts.
Risk of electric shock! Hold the appliance by the insulated handles when you are carrying out work during which the deployed tool may come into contact with concealed power cables or its own power cable. Contact with a live cable can also make metal parts of the appliance live and could result in an electric shock.

WARNING!

The power tool creates an electromagnetic field during operation. This field can, in certain circumstances, impair active or passive medical implants. To reduce the risk of fatal injuries, we recommend that people with medical implants consult their doctor and the manufacturer of the medical implant before operating this machine.

Before use

◆ Always remove the mains plug from the wall socket before making any settings on the appliance.

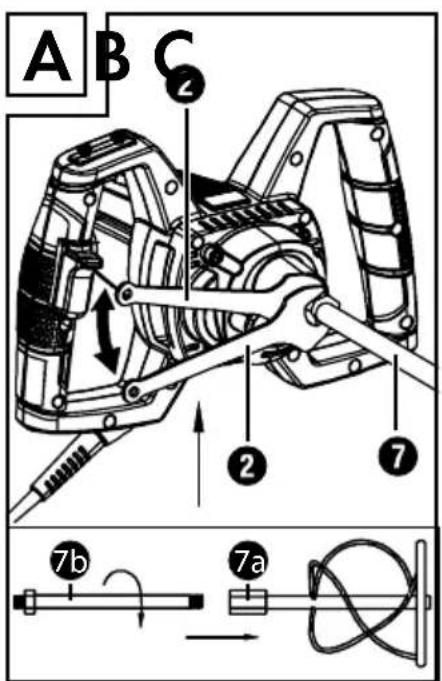

Fitting the universal stirrer (see fig. A)

♦ Screw the mixing spiral ^7a firmly onto the shaft ^7b .
Afterwards, screw the universal stirre ^7 into the agitator shaft with M-14 internal thread ^4 .
To do this, hold the agitator share firmly with an assembly spanner 2
Now tighten the universal stirre ^7 with the second assembly spanner ^2 est.

Removing the universal stirrer

◆ Proceed in reverse order to remove the universal stirrer ⑦

Fitting the stand/hanger

◆ Fit the stand/hange 3 to the handle 1 sing the four supplied Phillips-head screws (see fig. C).

Using the stand/hanger

Use the stand/hange ^3 to hang up the appliance or stand it on the floor. In this way, you can protect it from soiling.

Use

Switching the appliance on/off (see fig. b)

Switching on:

◆ Press the ON/OFF switch ^5 .

Switching off:

◆ Release the ON/OFF switch 5

Switching to continuous operation:

◆ Lock the ON/OFF switch⑤ with the locking button ⑥

Switching off continuous operation:

◆ Press in the ON/OFF switch5 briefly.

Setting the speed (see fig. B)

NOTE

The ON/OFF switch ^5 has a variable speed control.
▶ You cannot change the speed setting during continuous operation.

◆ Press the ON/OFF switch ^5 lightly for a low speed.
◆ Increase the pressure to increase the speed.

Working with the stirrer

♦ Dip the universal stirre⑦ into the material you want to mix at a low speed.
Once the universal stirre ^7 is completely immersed in the material you can increase the speed.
During mixing, move the universal stirre through the mixing vessel and continue mixing until the material is thoroughly mixed.

Maintenance and cleaning

WARNING! RISK OF INJURY!

Always remove the plug from the power socket before working on the power tool.

■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleaning agents that can damage plastic.
- Keep the appliance clean, dry and free from oil or grease. Do not allow liquids to get into the paint and mortar mixer.
■ Clean the paint and mortar mixer regularly; preferably directly after finishing work.

NOTE

▶ Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline.

Disposal

Packaging consists of environmentally friendly material. It can be disposed of in the local recycling containers.

· dispose of power tools in your normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the appliance.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

NOTE

For Parkside and Florabest tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

WARNING!

■ Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

WARNING!

■ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 295714

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)\*

*The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1: 2009/A11: 2010

EN ISO 12100: 2010

EN 55014-1: 2006/A2: 2011

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

Type designation of machine:

Paint and mortar mixer PFMR 1400 D3

Year of manufacture: 09 - 2017

Serial number: IAN 295714

Bochum, 26/09/2017

Semi Uguzlu

- Quality Manager -

We reserve the right to technical changes in the context of further product development.

Table des matières

Introduction....18

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)\*

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Semi Uguzlu

- manažer kvality -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE - 44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones · Estado das informações:

09/2017 Ident.-No.: PFMR1400D3-092017-1
