| Product Type | Paint & Mortar Mixer |
| Model | PFMR 1400 C2 |
| Brand | Parkside |
| Power Input | 1400 W |
| Mains Voltage | 230 V ~ 50 Hz |
| Idle Speed | 0 - 700 min⁻¹ (variable) |
| Mixer Holder | M14 inner threading |
| Protection Class | II / (double insulated) |
| Weight (without mixing paddle) | 3590 g |
| Sound Pressure Level | 92.5 dB(A) |
| Sound Power Level | 103.5 dB(A) |
| Vibration (front handle) | 3.93 m/s² |
| Vibration (rear handle) | 8.33 m/s² |
| Intended Use | Mixing fluid or powder building materials like paint, mortar, adhesives, plaster |
| Scope of Delivery | Mixer, mixing paddle, mixing spiral, shaft, support bracket, 2 open-end spanners, 4 crosshead screws, instructions |
| Agitator Types | Mixing paddle and mixing spiral (M14 thread) |
| ON/OFF Switch | Variable speed trigger with hold-to-run button for continuous operation |
| Support Bracket | For hanging or setting down the mixer to prevent dirt |
| Safety Features | Insulated handle surfaces, automatic shut-off, requires ear protection above 85 dB(A) |
| Maintenance | Clean with dry cloth; no petrol, solvents, or aggressive cleaning agents |
| Warranty | 3 years from date of purchase (private use only) |
| Spare Parts Availability | Via manufacturer’s call centre (carbon brushes, switches, etc.) |
Frequently Asked Questions - PFMR 1400 C2 PARKSIDE
User questions about PFMR 1400 C2 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Paint mixer in PDF format for free! Find your manual PFMR 1400 C2 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PFMR 1400 C2 by PARKSIDE.
USER MANUAL PFMR 1400 C2 PARKSIDE
PAINT & MORTAR MIXER PFMR 1400 C2
GB
PAINT & MORTAR MIXER
Operation and Safety Notes
Translation of the original instructions
BG
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
HR
Prije nego što pročitate tekst, otvorite stranicu sa slikama i upoznajte se na osnovu toga sa svim funkcijama uređaja.
BG
GB Operation and Safety Notes Page 5
HR Upute za posluživanje i za Vašu sigurnost Stranica 13
Intended use....Page 6
Features Page 6
Scope of delivery....Page 6
Technical Data Page 6
General power tool safety warnings
-
Work area safety......Page 7
-
Electrical safety Page 7
-
Personal safety......Page 7
-
Power tool use and care....Page 8
-
Service Page 8
Safety notes for paint and mortar mixer Page 8
Before use
Mounting the agitator....Page 9
Dismantling the agitator....Page 9
Installing the support bracket....Page 9
Using the support bracket....Page 9
Operation
Turning the device ON/OFF Page 9
Setting the speed....Page 9
Working with the mixer Page 9
Maintenance and Cleaning
Cleaning Page 9
Service Page 10
Warranty Page 10
Disposal Page 10
Translation of the original declaration of conformity /
Manufacturer Page 11
Paint & mortar mixer PFMR 1400 C2
- Introduction
Congratulations on your purchase. You have selected a high quality product. The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. When passing this product on to others please be sure to also include all of its documentation.
Intended use
The machine is intended for mixing building materials that are in a fluid or powder form, e.g. paint, mortar, adhesives, plaster and similar substances. Depending on the consistency of the material and the amount to be mixed, the appropriate agitator with the suitable mixing effect should be used. The machine may only be utilised for its intended use. Any other use is not intended. The user / operator, not the manufacturer, is liable for resulting damages or any type of injury resulting from any other use that is not intended. Please note that our devices were not constructed for commercial, manual, or industrial use. We do not accept any warranty liability if the device is used for commercial, manual, or industrial operations, or activities similar to these.
Features
1
2
3
4
5
6
7
7a
7b
Handle
Open-end spanner for changing agitator
Support bracket
Agitator shaft with M-14 inner threading
ON/OFF switch
Hold-to-run button
Mixing paddle
Mixing spiral
Shaft
- Scope of delivery
1 Paint & mortar mixer PFMR 1400 C2
1 Mixing paddle
2 Open-end spanners for changing agitator
1 Support bracket
4 Crosshead screws
1 Instructions for use
Technical Data
Mains voltage: 230V\~50Hz
Power input: 1400 W
Idle speed: 0-700 min -1
Mixer holder: M14
Protection class: II/
Weight without
mixing paddle: 3590g
Noise and vibration data:
Values for noise determined in accordance with EN 60745. The A-weighted noise levels of the electrical power tool are typically:
Sound pressure level: 92.5 dB(A)
Sound power level: 103.5 dB(A)
Instability K: 3 dB
Wear hearing protection!
The total vibration (vector sum of three directions) is calculated in accordance with EN 60745:
Front Handle: a _h : 3.93 m/s ^2
Rear Handle: a_h : 8.33 m/s ^2
Uncertainty K = 1.5 m/s^2
WARNING! The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure.
The vibration level will change according to the application of the electrical tool and in some cases, may exceed the value specified in these instructions.
Regularly using the electric tool in such a way may make it easy to underestimate the vibration.
Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of work, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the work period.
● General power tool safety warnings
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury.
Save all warnings and instructions for future reference!
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) D not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Verify the power tool is switched off before connecting it to the mains and / or connecting the battery, picking it up, or carrying it. Accidents can happen if you carry the device with your finger on the ON/OFF switch or with the device switched on.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Pull the mains plug out of the socket and / or remove the rechargeable battery before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent the device from unintentionally starting.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
● Safety notes for paint and mortar mixer
Hold the device by the insulated handle surfaces when performing work where there is danger of the applied tool striking hidden electrical lines or its own power line. Contact with a live wire could cause metal parts of the device to become live and lead to electric shock.
Do not use device in surroundings with explosive atmospheres. Do not mix solvents or substances containing solvents with a flashpoint below 21 °C.
Do not place cables around any part of your body.
Only turn the device on or off when it is in the mixing vessel. Make sure that it is securely and safely positioned. When mixing, do not place hands or objects in the mixing vessel.
If the sound pressure level at the work station exceeds 85 dB(A), wear hearing protection!
■ Wearing work gloves and safety glasses is recommended when working with the agitator.
■ Wearing snug fitting clothing is required.
Before use
■ Always pull the mains plug before executing settings on the device.

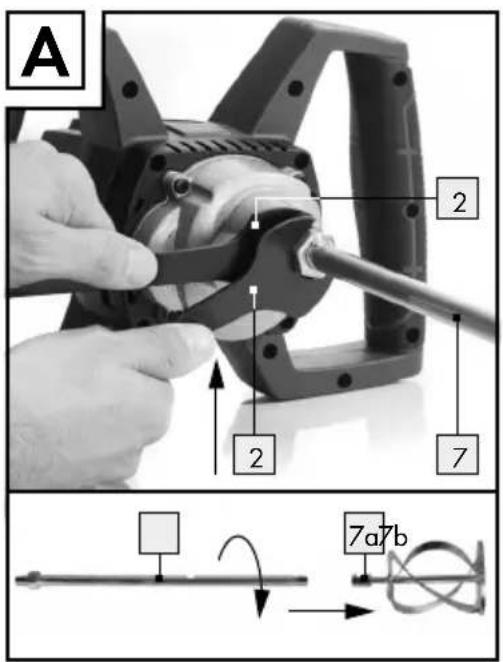

- Mounting the agitator (see Ill. A)
□ Firmly screw the shaft 7b to the mixing spiral 7a.
☐ Subsequently, screw the agitator 7 into the agitator shaft with the M-14 inner threading 4.
☐ Secure the chuck with an open-end spanner 2 and tighten the stirrer 7 with a second open-end spanner 2.
• Dismantling the agitator
☐ To remove the agitator, repeat the process in the reverse order.

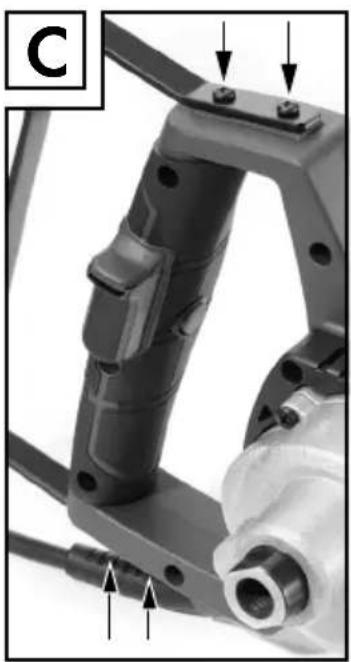

• Installing the support bracket
☐ Install the support bracket 3 by securing the four included crosshead screws in the designated location on the handle (see Fig. C).
• Using the support bracket
☐ Use the support bracket 3 to hang the device or to set it on the ground. This will prevent it from dirtying.
Operation

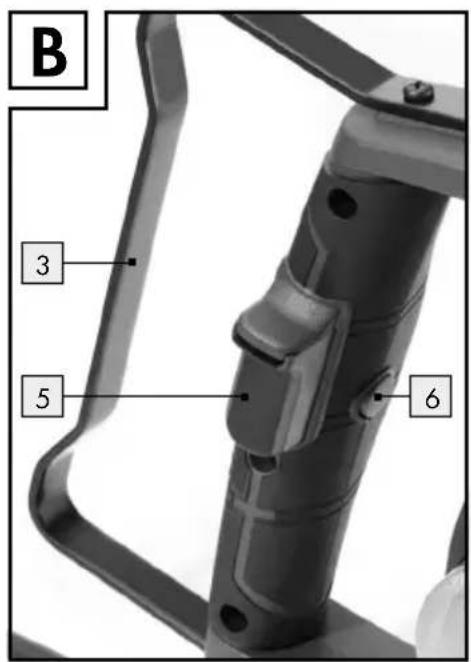

- Turning the device ON / OFF (see Ill. B)
Switching on:
☐ Press the ON / OFF switch 5.
Switching off:
☐ Release the ON / OFF switch 5.
Switching on permanent operation:
☐ Secure ON/OFF switch 5 with hold-to-run button 6.
Switching off permanent operation:
☐ Press ON/OFF switch 5 quickly.
Setting the speed (see Ill. B)
Note: The ON / OFF switch 5 has a variable speed control.
Note: The speed cannot be adjusted in non-stop operation.
☐ Press the ON / OFF switch 5 lightly to reduce the speed.
☐ Increase the pressure to increase the speed.
- Working with the mixer
☐ Submerge the mixer in the mixture at a low speed.
☐ After the agitator has been submerged completely, you may increase the speed.
☐ During the mixing process, move the agitator around the mixing vessel and mix the mixture until it is completely processed.
● Maintenance and Cleaning
WARNING! DANGER OF INJURY! Pull
the mains plug out of the mains socket before you carry out any task on the device.
Cleaning
Use a dry cloth to clean the casing. Under no circumstances should you use petrol, solvents or cleaning agents, which may be aggressive to the plastic.
□ Always keep the device clean, dry and free of oil or grease. Do not allow liquids to enter the interior of the paint and mortar mixer.
☐ Clean the paint and mortar mixer regularly, preferably immediately after finishing your work.
- Service
WARNING! If the plug or the mains lead needs to be replaced, always have the replacement performed by the manufacturer or its service centre.
This ensures that the safety of the device is maintained.
Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre.
Warranty
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
GB Service Great Britain
Tel.: 0871 5000 720
(£0.10 / minute)
e-mail: kompernass@lidl.co.uk
IAN 273041
- Disposal
The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.
Do not dispose of electrical power tools with household rubbish!
In accordance with European Directive 2012/19/EU (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.
● Translation of the original declaration of conformity / Manufacturer CE
We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURGSTRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:
Machinery Directive
(2006/42/EC)
Electromagnetic Compatibility
(2004/108/EC)
RoHS Directive
(2011/65/EU)
Applicable harmonised standards
EN 60745-1:2009/A11:2010
EN ISO 12100:2010
EN 55014-1:2006/A2:2011
EN 55014-2:1997/A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
Type / Description of product:
Paint & mortar mixer PFMR 1400 C2
Date of manufacture: 11-2015
Serial number: IAN 273041
Bochum, 30.11.2015
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical modifications in the course of product development.
