PFMR 1400 B1 - Paint mixer PARKSIDE - Free user manual and instructions
Find the device manual for free PFMR 1400 B1 PARKSIDE in PDF.
| Type | Paint & Mortar Mixer |
| Brand | Parkside |
| Model | PFMR 1400 B1 |
| Power Input | 1400 W |
| Mains Voltage | 230 V ~ 50 Hz |
| Idle Speed | 0 - 700 min⁻¹ (variable) |
| Mixer Holder | M14 internal thread |
| Protection Class | II (double insulated) |
| Weight (without paddle) | 3.59 kg |
| Sound Pressure Level (LpA) | 90.3 dB(A) (K=3 dB) |
| Sound Power Level (LwA) | 101.3 dB(A) (K=3 dB) |
| Vibration Emission (ah) | 1.570 m/s² (K=1.5 m/s²) |
| Mixing Paddle | Included (mixing spiral with shaft) |
| Support Bracket | Yes, for hanging or resting |
| Open-End Spanners | 2 included for changing agitator |
| Hold-to-Run Button | Yes, for continuous operation |
| ON/OFF Switch | Variable speed trigger |
| Intended Use | Mixing paints, mortar, adhesives, plaster (fluid or powder) |
| Safety Features | Insulated handles, automatic shut-off when released |
| Cleaning | Dry cloth, no solvents; keep dry and free of oil/grease |
| Warranty | 3 years (private use only) |
Frequently Asked Questions - PFMR 1400 B1 PARKSIDE
User questions about PFMR 1400 B1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Paint mixer in PDF format for free! Find your manual PFMR 1400 B1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PFMR 1400 B1 by PARKSIDE.
USER MANUAL PFMR 1400 B1 PARKSIDE
PAINT & MORTAR MIXER PFMR 1400 B1
GB
PAINT & MORTAR MIXER
Operation and Safety Notes
Translation of original operation manual
HU
FESTÉK- ÉS HABARCSKEVERŐ
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
PL
GB Operation and Safety Notes Page 5
Intended use....Page 6
Features Page 6
Scope of delivery....Page 6
Technical Data Page 6
General safety advice for electrical power tools
-
Workplace safety......Page 7
-
Electrical safety......Page 7
-
Personal safety......Page 7
-
Careful handling and use of electrical power tools....Page 8
-
Service......Page 8
Safety notes for paint and mortar mixer Page 8
Before use
Mounting the agitator....Page 9
Dismantling the agitator....Page 9
Installing the support bracket....Page 9
Using the support bracket....Page 9
Operation
Turning the device ON/OFF Page 9
Setting the speed....Page 9
Working with the mixer Page 9
Maintenance and Cleaning
Cleaning Page 10
Service Page 10
Warranty Page 10
Disposal Page 10
Declaration of Conformity / Manufacturer......Page 11
Paint & mortar mixer PFMR 1400 B1
- Introduction
Congratulations on your purchase. You have selected a high quality product. The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. When passing this product on to others please be sure to also include all of its documentation.
Intended use
The machine is intended for mixing building materials that are in a fluid or powder form, e.g. paint, mortar, adhesives, plaster and similar substances. Depending on the consistency of the material and the amount to be mixed, the appropriate agitator with the suitable mixing effect should be used. The machine may only be utilised for its intended use. Any other use is not intended. The user / operator, not the manufacturer, is liable for resulting damages or any type of injury resulting from any other use that is not intended. Please note that our devices were not constructed for commercial, manual, or industrial use. We do not accept any warranty liability if the device is used for commercial, manual, or industrial operations, or activities similar to these.
Features
1
2 Open-end spanner for changing agitator
3 Agitator shaft with M-14 inner threading
4 Hold-to-run button
5 ON/OFF switch
6 Mixing paddle
6a Mixing spiral
6b Shaft
7 Support bracket
- Scope of delivery
1 Paint & mortar mixer PFMR 1400 B1
1 Mixing paddle
2 Open-end spanners for changing agitator
1 Support bracket
4 Crosshead screws
1 Instructions for use
Technical Data
Mains voltage: 230V\~50Hz
Power input: 1400 W
Idle speed: 0-700 min -1
Mixer holder: M14
Protection class: II/
Weight without
mixing paddle: 3590 kg
Noise and vibration data:
Values for noise determined in accordance with EN 60745. The A-weighted noise levels of the electrical power tool are typically:
Sound pressure level: 90.3 dB(A)
Sound power level: 101.3 dB(A)
Instability K: 3 dB
Wear hearing protection!
The total vibration (vector sum of three directions) is calculated in accordance with EN 60745:
Vibration emission value a_h = 1.570 m/s^2 ,
Uncertainty K = 1.5 m/s ^2
WARNING! The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure.
The vibration level will change according to the application of the electrical tool and in some cases, may exceed the value specified in these instructions.
Regularly using the electric tool in such a way may make it easy to underestimate the vibration.
Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of work, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the work period.
● General safety advice for electrical power tools
WARNING! Please read all safety information and instructions.
Failure to observe the safety information and instructions can result in electric shock, fire and/or serious injury.
For future reference keep all the safety advice and instructions in a safe place.
The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).
1. Workplace safety
a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments, which contain inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.
2. Electrical safety
a) He mains plug on the device must match the mains socket. The plug must not be
modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching grounded surfaces such as pipes, radiators, ovens, and refrigerators. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. The penetration of water into the electrical device increases the risk of an electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled cables increase the risk of an electric shock.
e) If you are working outdoors with an electrical power tool, always use extension cords that are approved for outdoor use. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD) for protection if the operation of the electrical power tool in a moist environment cannot be avoided. The use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid unintentional operation of the device. Check that the electrical power tool is switched off before you connect it to the mains, pick it up or carry it.
Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch on the device. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this, you will be in a better position to control the electrical power tool in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted, do not forget to check that they are properly connected and used correctly. The use of these devices reduces the hazard presented by dust.
4. Careful handling and use of electrical power tools
a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job, you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug from the socket before you make any adjustments to the device, change accessories or when the device is laid aside. This precaution is intended to prevent you from unintentionally starting the device.
d) Always ensure that electrical power tools are kept out of reach of children when not in use. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Maintain the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations for this particular type of device. When doing this, take the working conditions into consideration, as well as the task at hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.
5. Service
a) Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
● Safety notes for paint and mortar mixer
- Hold the device by the insulated handle surfaces when performing work where there is danger of the applied
tool striking hidden electrical lines or its own power line. Contact with a live wire could cause metal parts of the device to become live and lead to electric shock.
Do not use device in surroundings with explosive atmospheres. Do not mix solvents or substances containing solvents with a flashpoint below 21 °C.
- Do not place cables around any part of your body.
- Only turn the device on or off when it is in the mixing vessel. Make sure that it is securely and safely positioned. When mixing, do not place hands or objects in the mixing vessel.
If the sound pressure level at the work station exceeds 85 dB(A), wear hearing protection!
■ Wearing work gloves and safety glasses is recommended when working with the agitator.
■ Wearing snug fitting clothing is required.
Before use
■ Always pull the mains plug before executing settings on the device.

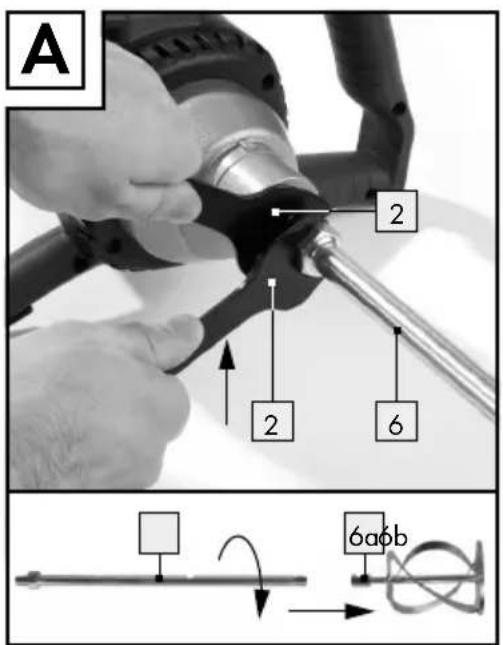

- Mounting the agitator (see Ill. A)
□ Firmly screw the shaft 6b to the mixing spiral 6a.
☐ Subsequently, screw the agitator 6 into the agitator shaft with the M-14 inner threading 3.
☐ Secure the chuck with an open-end spanner 2 and tighten the stirrer 6 with a second open-end spanner 2.
• Dismantling the agitator
☐ To remove the agitator, repeat the process in the reverse order.

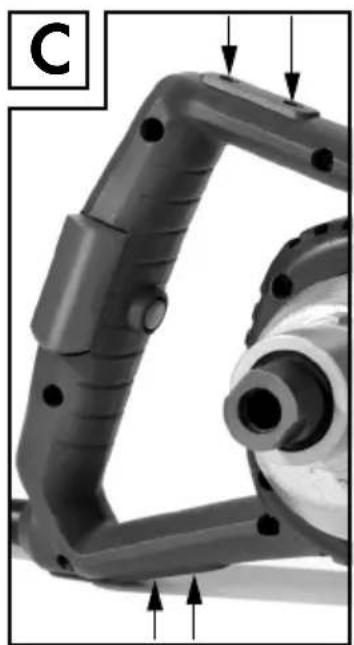

• Installing the support bracket
☐ Install the support bracket 7 by securing the four included crosshead screws in the designated location on the handle (see Fig. C).
• Using the support bracket
☐ Use the support bracket 7 to hang the device or to set it on the ground. This will prevent it from dirtying.
Operation

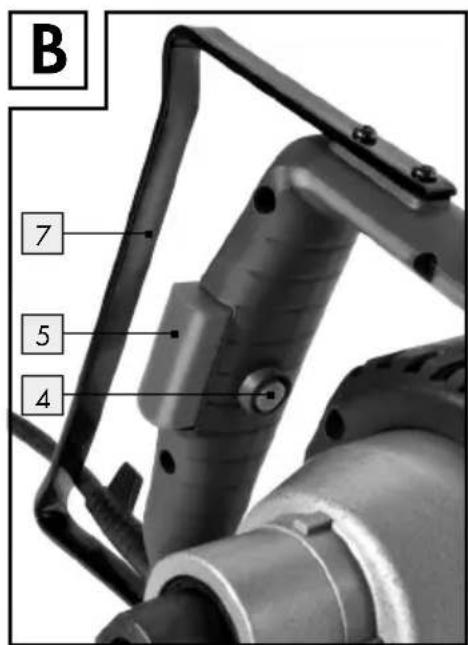

● Turning the device ON / OFF (see III. B)
Switching on:
☐ Press the ON / OFF switch 5.
Switching off:
☐ Release the ON / OFF switch 5.
Switching on permanent operation:
☐ Secure ON/OFF switch 5 with hold-to-run button 4.
Switching off permanent operation:
☐ Press ON/OFF switch 5 quickly.
Setting the speed (see Ill. B)
Note: The ON / OFF switch 5 has a variable speed control.
☐ Press the ON / OFF switch 5 lightly to reduce the speed.
☐ Increase the pressure to increase the speed.
- Working with the mixer
☐ Submerge the mixer in the mixture at a low speed.
☐ After the agitator has been submerged completely, you may increase the speed.
☐ During the mixing process, move the agitator around the mixing vessel and mix the mixture until it is completely processed.
● Maintenance and Cleaning
WARNING! DANGER OF INJURY! Pull the mains plug out of the mains socket before you carry out any task on the device.
Cleaning
■ Use a dry cloth to clean the casing. Under no circumstances should you use petrol, solvents or cleaning agents, which may be aggressive to the plastic.
□ Always keep the device clean, dry and free of oil or grease. Do not allow liquids to enter the interior of the paint and mortar mixer.
□ Clean the paint and mortar mixer regularly, preferably immediately after finishing your work.
Service
WARNING! If the plug or the mains lead needs to be replaced, always have the replacement performed by the manufacturer or its service centre.
This ensures that the safety of the device is maintained.
Warranty
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
GB Service Great Britain
Tel.: 0871 5000 720
(0,10 GBP/Min.)
e-mail: kompernass@lidl.co.uk
IAN 79719
- Disposal
The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.
Do not dispose of electrical power tools with household rubbish!
In accordance with European Directive 2002 / 96 / € (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.
- Declaration of Conformity / Manufacturer €
We, Kompernaß GmbH, the person responsible for documents: Mr Semi Uguzlu, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, norm documents and EU directives:
Machinery Directive (2006/42/EC)
EU Low Voltage Directive (2006/95/EC)
Electromagnetic Compatibility (2004/108/EC)
RoHS Directive (2011/65/EU)
Applicable harmonised standards
EN 60745-1/A11:2010
EN 60745-2-1:2010
EN 50144-1/A2:2011
EN 50144-2/A2:2008
EN 61000-3-2/A2:2009
EN 61000-3-3:2008
Type/Description of product: Paint & mortar mixer PFMR 1400 B1
Date of manufacture: 12-2012 Serial number: IAN 79719
Bochum, 31.12.2012
Semi Uguzlu - Quality Manager -
We reserve the right to make technical modifications in the course of product development.
