USER MANUAL BAX1501 EGO

READ OPERATOR’S MANUAL

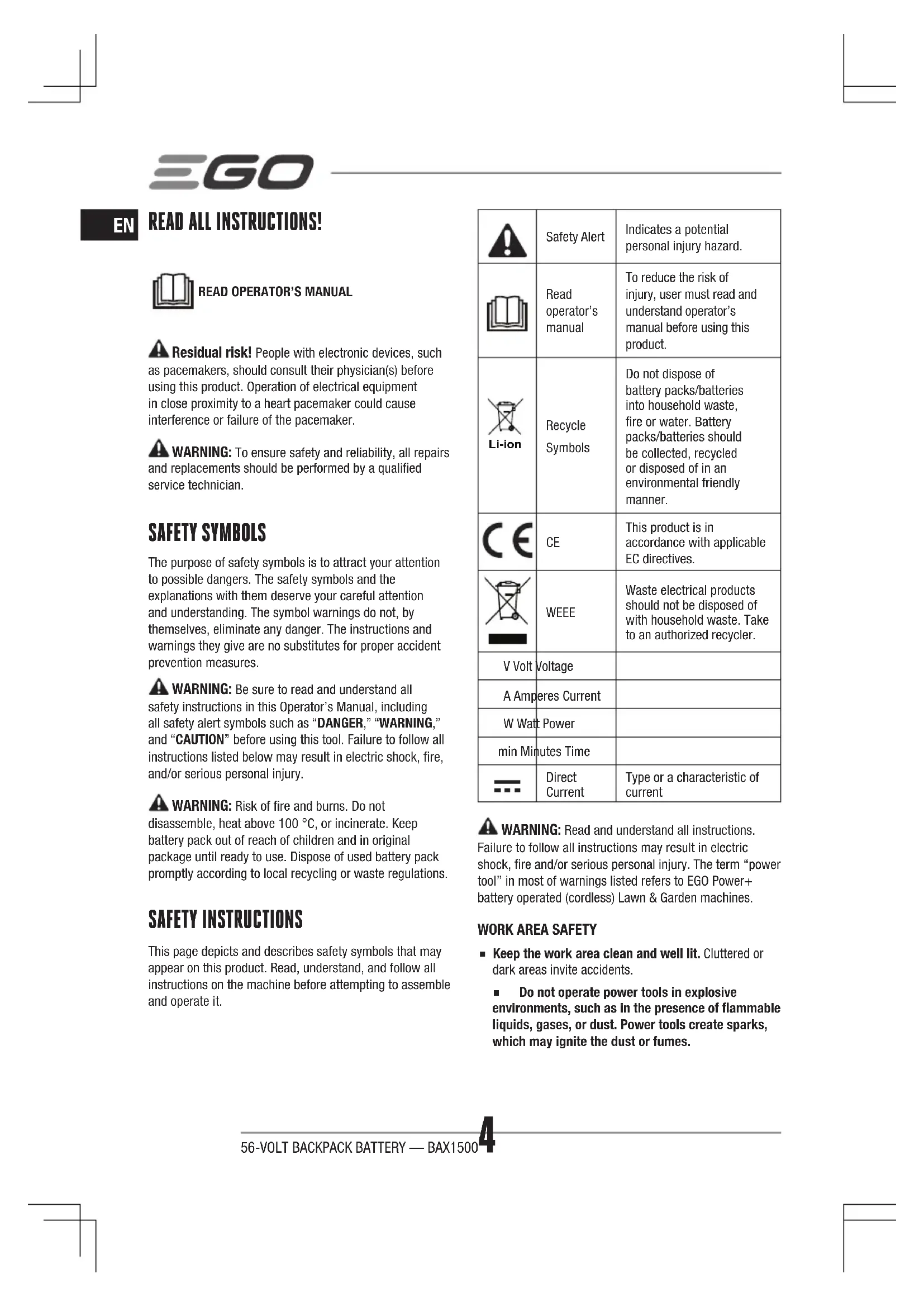

Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.

WARNING: To ensure safety and reliability, all repairs

and replacements should be performed by a qualied service technician. SAFETY SYMBOLS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: Be sure to read and understand all

safety instructions in this Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,” and “CAUTION” before using this tool. Failure to follow all instructions listed below may result in electric shock, re, and/or serious personal injury.

WARNING: Risk of re and burns. Do not

disassemble, heat above 100 °C, or incinerate. Keep battery pack out of reach of children and in original package until ready to use. Dispose of used battery pack promptly according to local recycling or waste regulations. SAFETY INSTRUCTIONS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it.Safety AlertIndicates a potential personal injury hazard.Read operator’s manualTo reduce the risk of injury, user must read and understand operator’s manual before using this product. Li-ion RecycleSymbolsDo not dispose of battery packs/batteries into household waste, re or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental friendly manner. This product is in accordance with applicable EC directives.WEEE Waste electrical products should not be disposed of with household waste. Take to an authorized recycler.V Volt VoltageA Amperes CurrentW Watt Powermin Minutes TimeDirect CurrentType or a characteristic of current

WARNING: Read and understand all instructions.

Failure to follow all instructions may result in electric shock, re and/or serious personal injury. The term “power tool” in most of warnings listed refers to EGO Power+ battery operated (cordless) Lawn & Garden machines.

◾ Keep the work area clean and well lit. Cluttered or dark areas invite accidents. ◾ Do not operate power tools in explosive environments, such as in the presence of ammable liquids, gases, or dust. Power tools create sparks, which may ignite the dust or fumes.56-VOLT BACKPACK BATTERY — BAX1500 5

ELECTRICAL SAFETY ◾ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ◾ Use only with chargers and power tools listed in “SPECIFICATIONS”.

BATTERY PACK USE AND CARE

◾ When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. ◾ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. ◾ Do not dismantle, open or shred secondary battery. ◾ Do not expose the battery to heat or re. Avoid storage in direct sunlight. ◾ Do not short-circuit a cell or a battery. Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. ◾ Do not remove a battery from its original packaging until required for use. ◾ Do not subject cells or batteries to mechanical shock. ◾ Keep the battery out of the reach of children. Seek medical advice immediately if a battery has been swallowed. ◾ Keep the battery clean and dry. ◾ Wipe the battery terminals with a clean dry cloth if they become dirty. ◾ Secondary battery need to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. ◾ Do not leave a battery on prolonged charge when not in use. ◾ After extended periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance. ◾ Retain the original product literature for future reference. ◾ Use only the battery in the application for which it was intended. ◾ When possible, remove the battery from the equipment when not in use. ◾ Dispose of properly. SERVICE ◾ Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.

SPECIFIC SAFETY RULES

◾ Know your power tool. Read the operator’s manual carefully. Learn the applications and limitations, as well as the specic potential hazards related to the tool. Following this rule will reduce the risk of electric shock, re, or serious injury. ◾ Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool. Always remove the battery before changing accessories. Following this rule will reduce the risk of electric shock, re or serious personal injury. ◾ Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately. ◾ Do not charge the battery in a damp or wet location. Following this rule will reduce the risk of electric shock. ◾ For best results, your battery should be charged in a location where the temperature is greater than 0℃ and less than 40℃. Do not store it outside or in vehicles. ◾ Do not let gasoline, oils, petroleum-based products, etc. come in contact with plastic parts. These substances contain chemicals that can damage, weaken or destroy plastic. ◾ Have your battery pack serviced by a qualied repairperson using only identical replacement parts. This will ensure that the safety of the battery pack is maintained. ◾ Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you lend someone this tool, lend them these instructions also to prevent misuse of the product and possible injury.56-VOLT BACKPACK BATTERY — BAX15006

SPECIFICATIONS Rated Voltage 56VMax Capacity 1568WhMatched Charger CHX5500ECharging CurrentRapid Charging: 8ANormal Charging: 4ACharging TimeRapid Charging: Approximately 3.5hNormal Charging: Approximately 7hMatched Power ToolsLBX6000, HTX6500, BCX3800Weight 8.7kgSpecied ambient temperature range for discharging-20℃~40℃ DESCRIPTION KNOW YOUR BATTERY PACK (Fig. A) 1. Cable2. Handle3. USB Port 4. USB/DC Switch5. 12 DC Port6. Power Indicator and Switch Button7. Shoulder Strap Fixation Spring8. Belt Strap Fixation Spring9. Fuse Service Cover10. Shoulder Strap11. Frame12. Wet13. Belt14. Harness (Sold Separately)15. Hip-pad Accessory (Sold separately) OPERATION POWER INDICATOR ON BATTERY PACK (Fig. B) This lithium-ion backpack battery is equipped with a power indicator, which indicates the charge capacity level and error of the battery pack. Press the power indicator to display the capacity level when the battery is not in charge. The LED indicator will shine for 10 seconds. ◾ In the case of charging, the LED indicator may display various interfaces listed below without pressing the switch button. CHARGINGBattery Capacity / ErrorLED’sRemarks <20% Flashing green Off Off Off Off 1 blinking 20% ≤ Capacity < 40% On Flashing green Off Off Off 1 on, 1 blinking 40% ≤ Capacity < 60% On On Flashing green Off Off 2 on, 1 blinking 60% ≤ Capacity < 80% On On On Flashing green Off 3 on, 1 blinking 80% ≤ Capacity < 100% On On On On Flashing green 4 on, 1 blinking Capacity = 100% (fully charged) On On On On On 5 on for several mins, then switch off Battery can’t be charged Off Off Off Off Off5 LED lights all will be switched off Over-temperature BatteryOff Off Off Off Off5 LED lights all will be switched off If the backpack battery is discharging or remains unused, PRESS THE SWITCH BUTTON, the LED indicator will exhibit a different interface as shown below from the charging one.56-VOLT BACKPACK BATTERY — BAX1500 7

80% < Capacity≤ 100% On On On On On 5 LED lights on for 10 seconds after button- pressing 60% < Capacity≤ 80% On On On On Off 4 LED lights on for 10 seconds after button- pressing 40% < Capacity≤ 60% On On On Off Off 3 LED lights on for 10 seconds after button- pressing 20% < Capacity≤ 40% On On Off Off Off 2 LED lights on for 10 seconds after button- pressing 10% < Capacity≤ 20% On Off Off Off Off 1 LED light on for 10 seconds after button- pressing ≤10% Flashing green Off Off Off Off 1 LED light blinks for 10 seconds after button-pressing Under voltage (<2.7V) Flashing red Flashing red Flashing red Flashing red Flashing red 5 red light blinks for 10 seconds after button- pressing Over-temperature Battery Shining red Shining red Shining red Shining red Shining red 5 red light on for 10 seconds after button- pressing BATTERY PROTECTION The battery circuitry protects the battery pack from extreme temperature, over-discharge and over-charge. To protect the battery from damage and prolong its life, the battery pack circuitry will turn off the battery pack if it becomes overloaded or if the temperature becomes too high or too low during use. This may happen in extremely high torque, binding, and stalling situations. ◾ In the case of charging, the battery pack will shut down with all 5 LEDs being switched off when its temperature exceeds 60°C or below 0°C. Once the temperature returns back to normal in 90 minutes, the battery will return to work automatically. Otherwise, the battery will shut down, reinsert the plug into the charger again, can reactivate charging. ◾ The battery pack will also shut down with all 5 LEDs being switched off when the voltage of a battery cell exceeds its protective voltage. It is recommended to discharge the battery pack immediately. If this tip is repeated many times, please contact with EGO service centers. ◾ In the case of discharging, when the temperature of battery pack exceeds 70°C or below -20°C, the battery pack will shut down with the 5 LED shining red for 10s after button-pressing. The battery pack will return to work in both conditions when normal temperature resumes and will allow the power tool to restart. ◾ When the voltage of a battery cell is less than 2.7V, the battery pack will shut down with the 5 LED blinking red for 10s after button-pressing. It is recommended to stop work and charge your battery pack immediately. If this tip is repeated many times, contact your service technician for assistant.

WARNING: You should never heat the battery pack

under any circumstances.

CHARGE THE BATTERY PACK

The battery pack is shipped partially charged. Before using it for the rst time the battery should be charged.

WARNING: Do not charge the battery pack outdoors

or expose it to wet or damp conditions. Water entering the charger or battery pack will increase the risk of electric shock. For any additional details, please refer to the Operator’s Manual for the EGO CHX5500E Charger.56-VOLT BACKPACK BATTERY — BAX15008

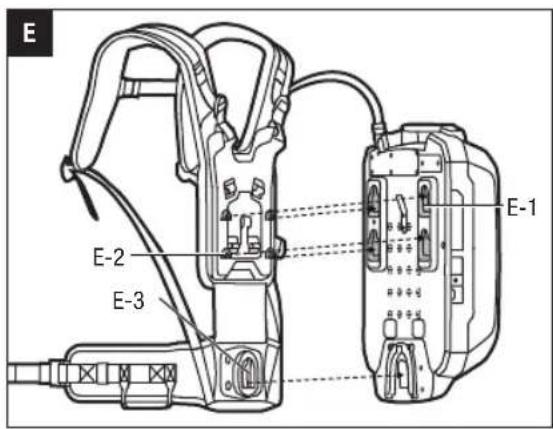

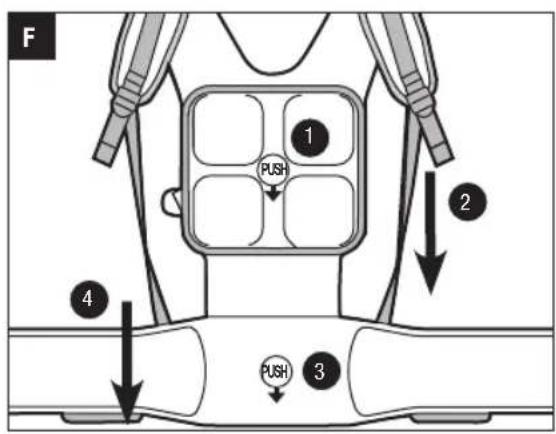

BATTERY PACK To Connect Align the four location ribs on the frame with the mounting grooves and connect the location slot on the belt with the belt xation spring. Then slide the harness up until a click happening. (g.E). E-1 Mounting Groove E-3 Belt location slot E-2 Frame Location rib To Disconnect Press the two release buttons on harness behind the frame and slide the harness out (Fig. F).

PUT ON THE BATTERY PACK

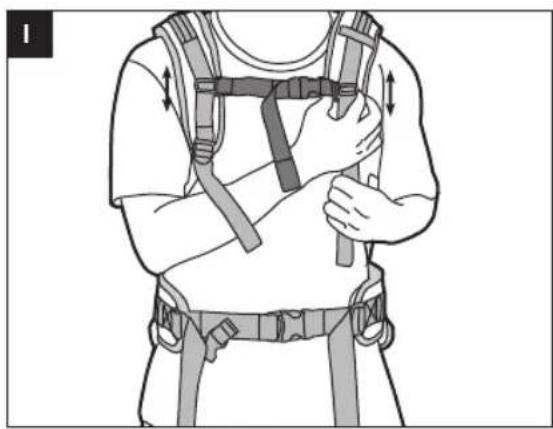

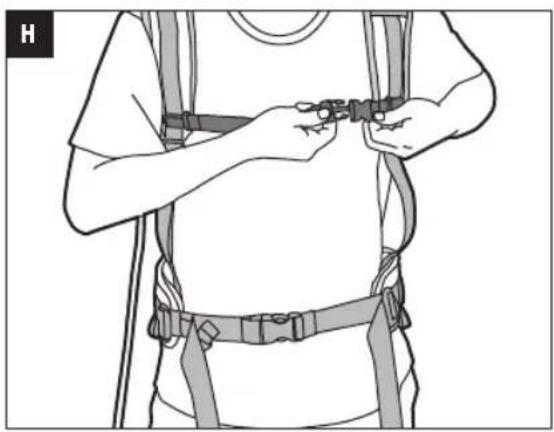

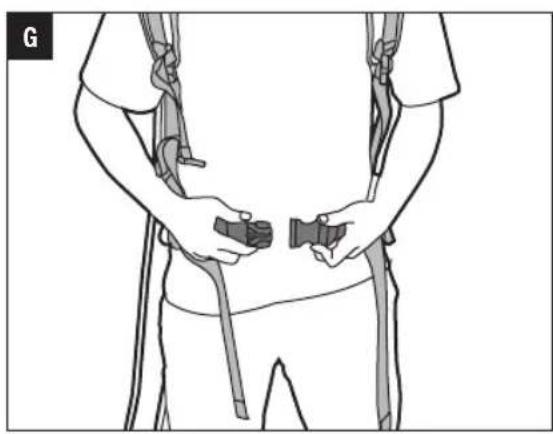

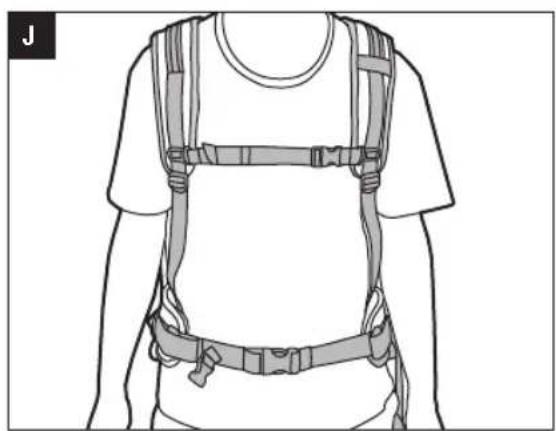

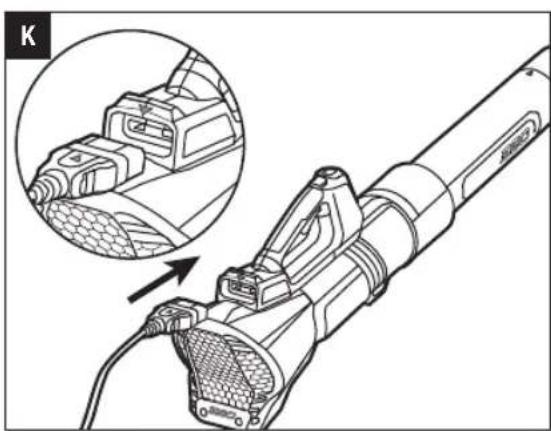

In normal operation, the battery pack with the harness is worn on the back. To prevent fatigue and work comfortably, the harness is equipped with a belt joint and shoulder strap joints, which guarantees freedom of movement. The belt length of the lap belt and shoulder straps can be adjusted freely. The back cushion should t rmly and securely on your back. ◾ Adjust the belt and shoulder strap length to make yourself comfortable before normal work, the length should t your body size through the lap belt and shoulder strap joint. ◾ Insert the two parts of the belt buckle and chest buckle into each other until a click occurs (Fig. G & H). ◾ Adjust the height of the chest buckle to make yourself comfortable (Fig. I). ◾ Readjust the length of the belt strap and chest strap. ◾ Insert any extra length of belt around the waist and chest strap into the elastic (Fig. J). TO ATTACH AND DETACH THE BATTERY PACK Charge before rst use Guide the battery pack cable around the side of the body, and connect the power tools to the 1.5m connection cable. Follow the instructions in the power tools’ manual for the futher details. To Install (Fig. K) With aligned ▲ logo respectively on the plug and the power tools, insert the plug into the power tools until the green seal completely disappearing into the socket. To Remove Pull the plug out of the power tools.

1. Connect the charger to the power supply

2. Insert the battery plug into the charger.

3. If the battery pack is in the normal charging, the

green LED1 on the charger will ash. After green button-pressing for at least 1s, the normal charging (charging current 4A) will transform to rapid charging (charging current 8A) and green LED2 on the charger will ash with LED1 off.

4. 5 LEDs of battery pack shining green continuously

means the battery pack is fully charged. Wait until the cooling fan of the charger stops, remove the battery pack from the charger and disconnect the charger from power supply. NOTICE: ◾ The battery pack will fully charge if left on the charger, but it will not overcharge. ◾ Following the instructions in the Operator’s Manual for the EGO CHX5500E charger for more details. ◾ A signicantly reduced running after fully charging the battery pack indicates that the batteries are near the end of their usable life and must be replaced. ◾ If you have not inserted the plug into its place completely, LED of charger light would ash continually. ◾ The charger may warm during charging. This is part of the normal operation of the charger. Charge in a well- ventilated area.

Uncover the rubber covers and insert the USB/DC plugs into USB/DC ports (Fig. C & D). Then press the USB/DC switch button, the battery pack will connect the devices via USB or DC ports. C-1 Rubber Covers D-2 12V DC Port D-1 USB Port D-3 USB/DC Switch NOTICE: ◾ The functions of USB and 12V DC power can work with 56V power source simultaneously. After using of USB/12V DC, pull out the USB/DC plugs and put the rubber covers into its place. ◾ Should not use the USB/12V DC while the battery pack is charging.56-VOLT BACKPACK BATTERY — BAX1500 9

WARNING: When emergency occurs, take off the

battery pack from your shoulder immediately. Releasing the belt and chest buckle, then taking off the shoulder harness at each side is a quick release method. WARNING: Do not over tighten the shoulder straps as it may make it difcult to remove the battery pack. WARNING: Only certain EGO products can match the battery pack, which is listed in “SPECIFICATION”. We recommend you should not use the battery pack on other power tools. MAINTENANCE

WARNING: The battery pack must be repaired or

replaced in EGO qualied service centre and technicians.

WARNING: To avoid serious personal injury, always

remove the battery pack from the tool when changing accessories, cleaning or performing any maintenance.

WARNING: When servicing, use only identical EGO

replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING: If cleaning with compressed air is the

only method to apply, always wear safety goggles or safety glasses with side shields. If the operation is dusty, also wear a dust mask. GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean clothes to remove dirt, dust, oil, grease, etc.

WARNING: Do not let brake uids, gasoline,

petroleum-based products, penetrating oils, etc. come in contact with plastic parts at any time Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. BATTERIES Do not disassemble the battery pack or attempt to replace the cells. Handling of the batteries, especially when wearing rings and jewelry could result in serious burns. To obtain the longest possible battery life, read and understand the operator’s manual.

WARNING: It is good practice to unplug the charger

and remove the battery pack when not in use.

BATTERY PACK REMOVAL AND PREPARATION FOR

RECYCLING Li-ion Do not dispose of battery charger and batteries/rechargeable batteries into household waste! According to the European law 2012/19/EU, electrical and electronic equipment that is no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.Consult your local waste authority for information regarding available recycling and/or disposal options.

WARNING: Upon removal of the battery pack for

disposal or recycling, cover the battery pack’s terminals with EN heavy-duty adhesive tape. Do not attempt to destroy or disassemble the battery pack or remove any of its components. Lithium-Ion batteries must be recycled or disposed of properly. Also, never touch the terminals with metal objects and/or body parts as a short circuit may result. Keep away from children. Failure to comply with these warnings could result in re and/or serious injury.56-VOLT BACKPACK BATTERY — BAX150010

The power tools doesn’t work ◾ No electrical contact between the power tool and battery. ◾ The battery pack is depleted. ◾ The battery pack or power tool is too hot. ◾ The cable or plug is out of work. ◾ The voltage of a battery cell is below 2.7V. ◾ Attached the battery pack to the power tool. ◾ Charge the battery pack. ◾ Cool the battery pack or power tool until the temperature drops to normal values. ◾ Contact with EGO service centers. ◾ Charge the battery pack immediately. The battery pack can’t be Charged ◾ The battery temperature exceeds or reduces below the specied value. ◾ No electrical contact between battery and charger. ◾ The connection between the charger and power source goes wrong. ◾ Stop charging or discharging until the temperature becomes normal. ◾ Reinsert the battery pack into the charger. ◾ Reinsert the charger plug into the power source. WARRANTY

Please visit the website egopowerplus.com for full terms and conditions of the EGO Warranty policy.11RUCKSACK-AKKU 56 VOLT — BAX1500
