USER MANUAL TouringS+ GENEVA

WARNING! Your TOURING / S+ arrives in BATTERY PROTECTION MODE. Before using it for the first time you must first connect to a USB charger to go into normal operation mode.

Line drawing of a washing machine connected to a plug, showing internal components and wiring (no text or symbols)

TOURING/S+ is a very powerful high performance HI-FI system with audio capabilities much larger than its size. To get the best audio performance out of your TOURING/S+, please follow these recommendations:

• By placing TOURING/S+ 45° in a corner you get the best bass performance.

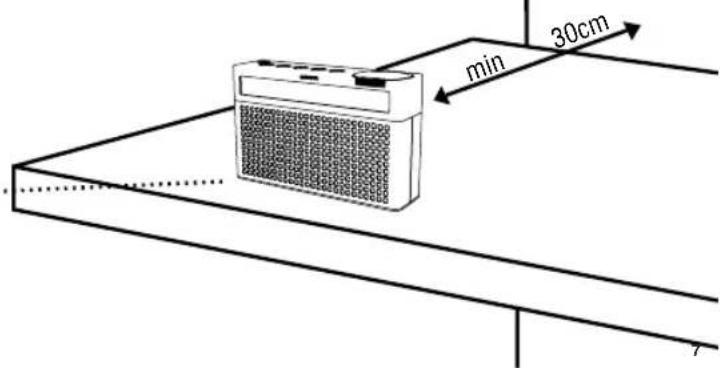

• Place it at least 30 cm from a wall to ensure that bass radiator do not overwhelm the high frequencies.
  ● Avoid objects or table shelf in front of the unit as they reflect sound waves.
• For optimal listening, place the unit on similar height as listening position.

If you hear a lot of distortion when playing music loud on TOURING/S+, please check and adjust the output volume on the device you play from. Different devices such as smartphones, laptops etc. have very different audio output levels that may effect sound quality if not adjusted.

Side profile sketch of a human head and neck (no text or symbols)

min 30cm

DE

DIE BESTE SOUNDLEISTUNG VON IHREM TOURING / S +

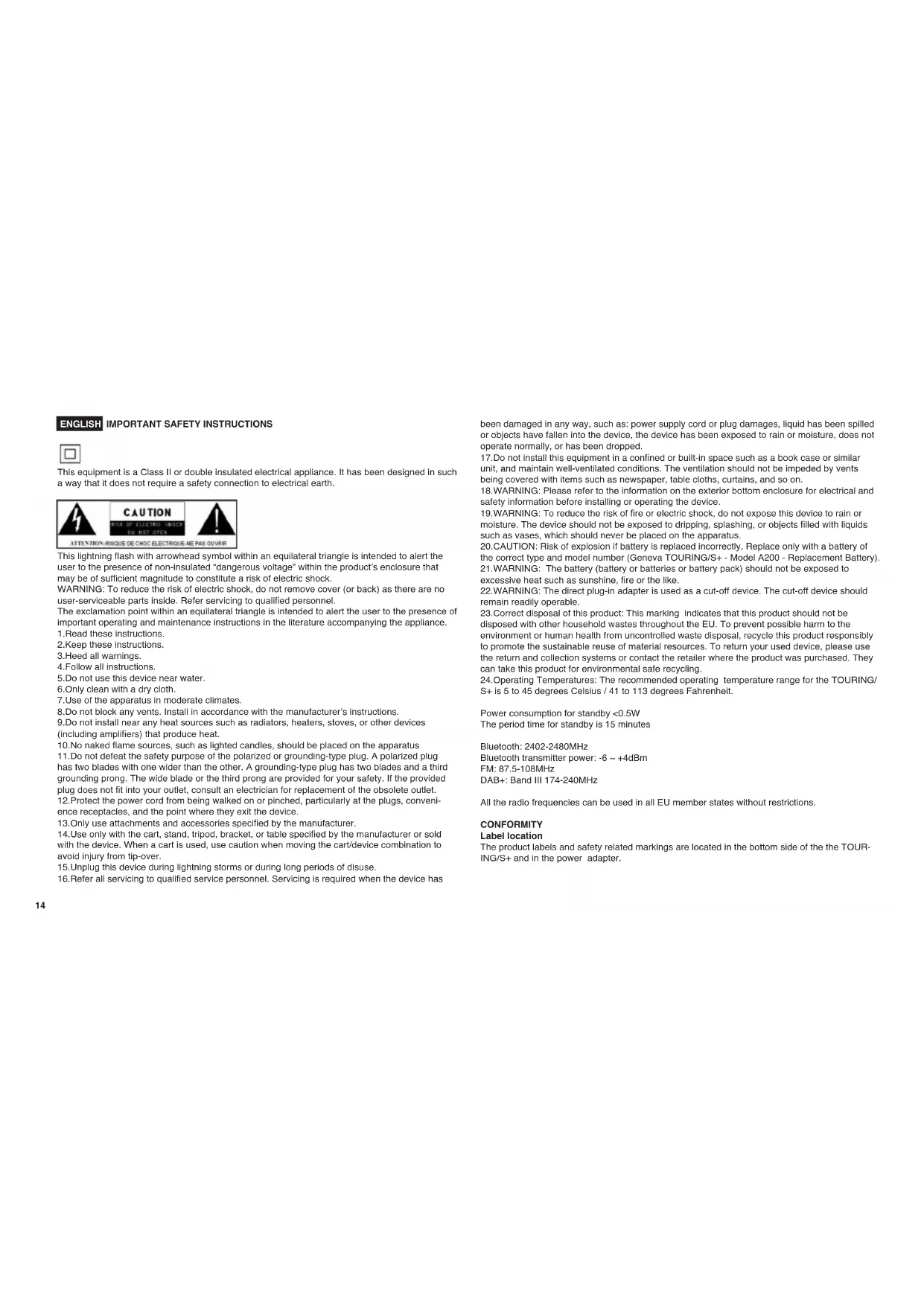

ENGLISH IMPORTANT SAFETY INSTRUCTIONS

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

1. Read these instructions.
2. Keep these instructions.
   3.Heed all warnings.
3. Follow all instructions.
   5.Do not use this device near water.
4. Only clean with a dry cloth.
5. Use of the apparatus in moderate climates.
   8.Do not block any vents. Install in accordance with the manufacturer's instructions.
6. Do not install near any heat sources such as radiators, heaters, stoves, or other devices (including amplifiers) that produce heat.
7. No naked flame sources, such as lighted candles, should be placed on the apparatus
   11.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
8. Protect the power cord from being walked on or pinched, particularly at the plugs, convenience receptacles, and the point where they exit the device.
9. Only use attachments and accessories specified by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the device. When a cart is used, use caution when moving the cart/device combination to avoid injury from tip-over.
11. Unplug this device during lightning storms or during long periods of disuse.
12. Refer all servicing to qualified service personnel. Servicing is required when the device has

been damaged in any way, such as: power supply cord or plug damages, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. Do not install this equipment in a confined or built-in space such as a book case or similar unit, and maintain well-ventilated conditions. The ventilation should not be impeded by vents being covered with items such as newspaper, table cloths, curtains, and so on.
2. WARNING: Please refer to the information on the exterior bottom enclosure for electrical and safety information before installing or operating the device.
3. WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. The device should not be exposed to dripping, splashing, or objects filled with liquids such as vases, which should never be placed on the apparatus.
4. CAUTION: Risk of explosion if battery is replaced incorrectly. Replace only with a battery of the correct type and model number (Geneva TOURING/S+ - Model A200 - Replacement Battery)
5. WARNING: The battery (battery or batteries or battery pack) should not be exposed to excessive heat such as sunshine, fire or the like.
   22.WARNING: The direct plug-in adapter is used as a cut-off device. The cut-off device should remain readily operable.
6. Correct disposal of this product: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle this product responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
7. Operating Temperatures: The recommended operating temperature range for the TOURING/S+ Is 5 to 45 degrees Celsius / 41 to 113 degrees Fahrenheit.

Power consumption for standby <0.5W

The period time for standby is 15 minutes

Bluetooth: 2402-2480MHz

Bluetooth transmitter power: -6 \~ +4dBm

FM: 87.5-108MHz

DAB+: Band III 174-240MHz

All the radio frequencies can be used in all EU member states without restrictions.

CONFORMITY

Label location

The product labels and safety related markings are located in the bottom side of the the TOURING/S+ and in the power adapter.

CE

CE Conformity

G-Lab GmbH declares that the TOURING/S+ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

The declaration of conformity may be consulted at the request to G-Lab GmbH, Zug, Switzerland or on genevalab.com.

RECYCLING

This product can be recycled: Products bearing this symbol must NOT be thrown away with normal household waste. At the end of the product's life, take it to a collection point designated for recycling of electrical and electronic devices.

Find out more about return and collection points through your local authority.

The European Waste Electrical and Electronic Equipment (WEEE) Directive was implemented to dramatically reduce the amount of waste going to landfills, thereby reducing the environmental impact

on the planet and on human health. Please act responsibly by recycling used products. If this product is still usable, consider giving it away or selling it.

Used batteries: Please dispose of used batteries properly, following the local regulations. Do not place the battery in fire.

© 2018 G-Lab GmbH. All rights reserved.

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of G-Lab GmbH.

Geneva TOURING/S+, User Manual, Version v1, model A200.

The Bluetooth® word mark and logos are registered Trademarks owned by Bluetooth SIG, Inc. © 2018 G-Lab GmbH. All rights reserved.

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of G-Lab GmbH.

GENEVA Touring/S+

OVERVIEW

You can play music from the following sources:

• FM radio.
• DAB radio.
- Mobile phone or computer via Bluetooth.
- Other devices with a line-in cable.

USING TOURING/S+

FM Radio

1. Press — until the display shows "FM" and a frequency, for example "103.2".

2. Select an FM station with and : ▶

3. Use a single touch: change frequency by 0.1MHz.

4. Hold down for a short time: automatically search for the next or previous station.
5. After a few seconds the display will show the RDS information.

DAB / DAB+

1. Press FM until the display shows "DAB/DAB+".
2. Select a DAB station with and . TOURING/S+ is compatible with

DAB, DAB+, DMR and DMB.

Keep pressed the (or) button to scroll the stations list.

When using your TOURING/S+ for the first time, the radio needs to find available radio stations in your region (a scan function). After a SCAN, the stations will be automatically stored.

- Hold down the — button until "SCAN" displays. The indication will blink for

a few seconds, then the display will confirm that the first station has been found. "SCAN" is also needed after traveling to a new location that provides different radio stations, or when you move the radio to a different room with a different radio reception.

Presets

You can save six FM stations plus six DAB stations. To save a preset:

1. Select the station you want to save.

2. Long press PRESET the display shows "PRESET 1" as blinking.

3. If you want to save using a different PRESET number, press

to select the desired number.

1. After, long press PRT to save the station.

To recall a preset:

1. Short press PREThe display will show the first saved preset. If a saved

station is playing, the display will show the next saved preset.

1. If you want to recall a different station, press

1. Wait two seconds and the unit will play the selected preset station.

Line-in

To connect a source device to your TOURING/S+, you need a stereo audio cable with 3.5mm jack plug connector.

1. Connect the cable to the audio source device (headphone or line-out plug).
2. Connect the other end of the cable to the line-In socket on the back of the TOURING/S+. The unit will automatically change mode to LINE IN.
3. By disconnecting the cable from TOURING/S+, the unit will return to the previously selected mode.

Bluetooth

Mobile phones and computers with Bluetooth can connect to the TOURING/S+ and play music. The mobile phone or computer must support Bluetooth A2DP. Initial set-up ("pairing"):

1. Press the key. The display will show "BLUE". Wait for 20 seconds until the display shows "PAIRING" as blinking.
2. Select "settings" on your mobile phone. Select "General/Bluetooth". Turn on Bluetooth. New Bluetooth devices are discovered automatically (on some devices you will need to press 'scan').
3. After a few seconds, "TOURING/S+" will appear.
4. Select "TOURING/S+". The mobile phone is now connecting ("pairing") to the TOURING/S+.
5. If the mobile phone asks for a PIN, enter "0000" (four zeros).
6. You can now play music on your mobile phone and listen to it on the TOUR-

ING/S+.

NOTE: to force Bluetooth pairing, press the ✕ button on the back of Touring S/+

Playing music

Most mobile phones will connect automatically to the TOURING/S+ after initial set-up ("pairing").

1. Be sure the Bluetooth setting on your mobile phone is ON.

2. Press the key. The display will show "BLUE", then will show

"SEARCH", as blinking.

1. After a few seconds, TOURING/S+ will automatically connect to your mobile phone. The display will show "CONNECT".

2. Play music on the mobile phone and the music will start playing on the TOURING/S+ automatically after a few seconds.

TROUBLESHOOTING

Why is my mobile phone not connecting?

You will find more detailed information on various mobile phones on our support pages at www.genevalab.com.

The TOURING/S+ will not turn on, and the display shows "LOW BATT". The battery is low on charge.

Connect the power adapter to the TOURING/S+ and the battery will begin charging. You can use the TOURING/S+ while the charger is connected.

The TOURING/S+ will not turn on, and nothing happens.

If the battery is very low, there will not be enough power to even turn on the display. TOURING/S+ can be turned on after it has been connected for a short while to the power adapter.

Why is the TOURING/S+ turning off after a while?

After a few minutes of inactivity, the device will automatically turn itself off to save battery.

What is the pin for a Bluetooth connection?

The PIN is 0000 (four zeros). Not all computers or mobile phones require a pin code during initial set-up (pairing).

I have an unreliable connection via Bluetooth and there are dropouts.

- Move the mobile phone closer to the TOURING/S+.

- Move or turn off other wireless devices that can disturb a Bluetooth connection (for example Wi-Fi, other mobile phones etc).

How do I know if the battery is charging?

A small dot on the lower right of the display will turn on if the battery is being charged.

When the charger is being connected the display will also show "CHARGE".

How can I check the battery charge?

A dot on the lower right corner of the display shows the battery status:

• OFF: battery fully charged.

- Blinking: battery is low.

When the battery is low, the volume will automatically be limited to 50. The unit can still play music for some minutes.

If the battery is empty, the display will show "LOW BATT" and TOURING/S+ will automatically turn off.

Display shows 'NO DAB SERVICE' or 'NO DAB SIGNAL'

Extend the antenna. You may have to experiment different positions to find the best reception. Positions higher up or nearer windows may improve reception.

More information, troubleshooting, etc.

Select "Support" at www.genevalab.com.

Service and repair

If the product is damaged and needs repair, please contact your dealer. Visit www.genevalab.com to find a dealer in your area.

Warranty

See the specific terms for your country at www.genevalab.com.
