USER MANUAL Vanilla 2.5 ICM1S250 WILFA

Modern kitchen appliance with digital display showing 6:00, no visible text or symbols on the device itself.

VANILLA 2.5

ICE CREME MAKER ICM1S-250

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

4 IMPORTANT SAFETY INSTRUCTIONS
7 SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT
8 PRODUCT OVERVIEW
9 FUNCTION BUTTONS
10 ASSEMBLING AND HOW TO USE
12 DISASSEMBLY AND CLEANING
12 TIPS AND TRICKS
13 RECIPES
13 TROUBLESHOOTING
14 GUARANTEE
15 PRODUCT SPECIFICATIONS
15 SUPPORT AND SPARE PARTS
15 RECYCLABILITY

EN

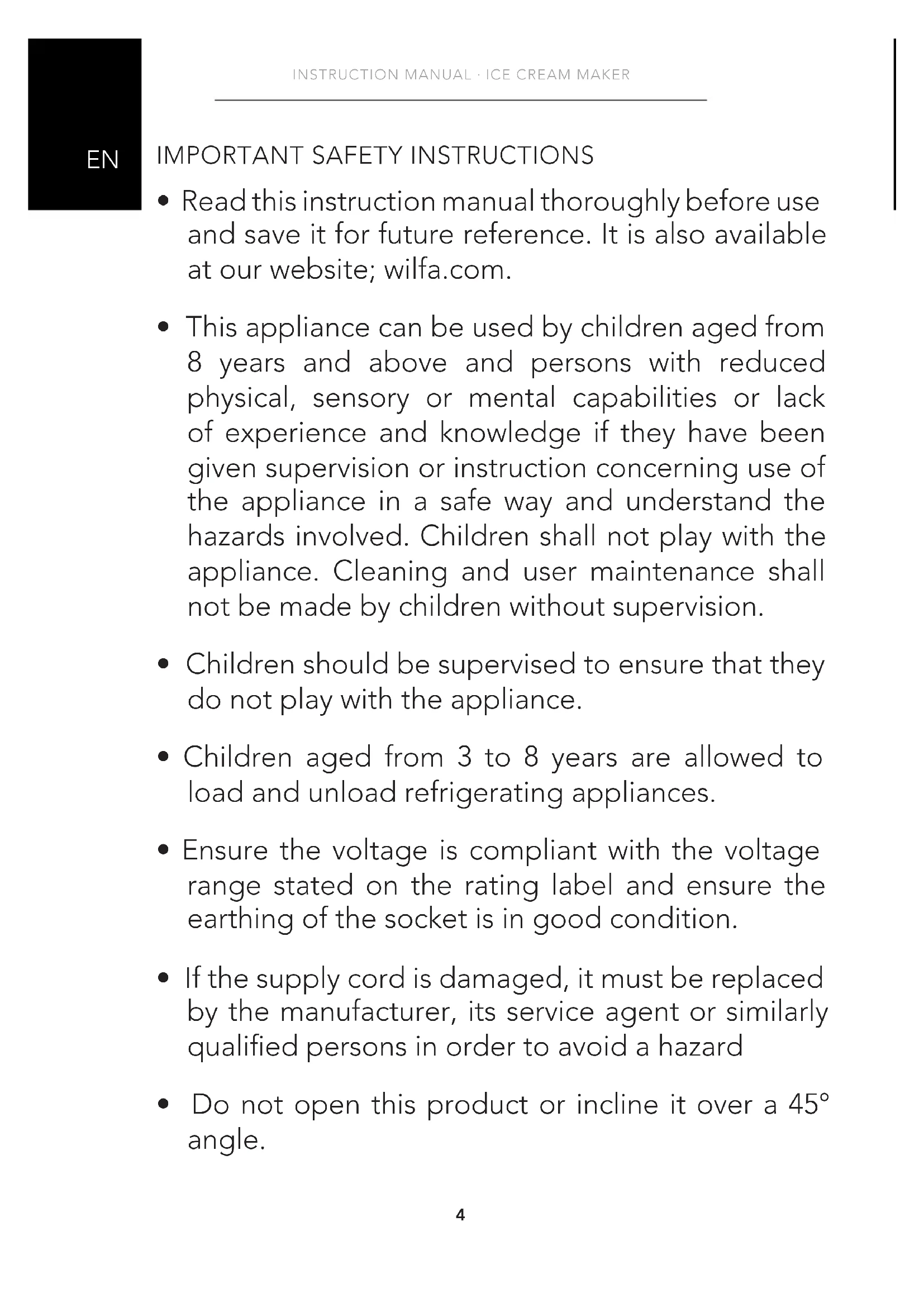

IMPORTANT SAFETY INSTRUCTIONS

• Read this instruction manual thoroughly before use and save it for future reference. It is also available at our website; wilfa.com.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Ensure the voltage is compliant with the voltage range stated on the rating label and ensure the earthing of the socket is in good condition.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

• Do not open this product or incline it over a 45^ angle.

• To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.

• Unplug the appliance after use or before cleaning.
• Keep the appliance 8 cm from other objects to ensure the good heat releasing.
• Do not use the appliance close by flames, hot plates, or stoves.
• Do not switch on the power button frequently (ensure 5min. interval at least) to avoid the damage of compressor.
• Metal sheet or other electric objects are not allowed to be inserted into the appliance to avoid fire and short circuit.
• Do not switch on the power before the bowl and mixing blade are installed.
• This product is intended for indoor, non-industrial, non-commercial; household use only.
• The plug must be removed before cleaning, maintaining, or filling the appliance
• Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

EN

• Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction
• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer
• Warning: When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame.

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of

EN

the components of the refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.

SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

- The temperature of the ingredients must be between 25 ± 5^ . Do not put the ingredients into freezer to pre-freeze, as it will make the mixing blade stop before the ice cream is in finished.

- Do not remove the mixing blade when the appliance is in working mode.

- When removing the ice cream, do not knock on the bowl or the edge of the bowl with any utensils as this can cause damage to the bowl.

- Do not use accessories which are not recommended by manufacturer.

EN

PRODUCT OVERVIEW

Technical diagram of a microwave oven with numbered parts for identification

1. Transparent lid
2. Removable bowl
3. Display
4. Buttons
5. Housing
6. Measuring cup
7. Mixing blade
8. Ventilation

FUNCTION BUTTONS

EN

POWER MENU START/PAUSE - +

"POWER": After connection to the power supply, the machine enters standby mode. Then press the "POWER" button to enter the setting mode, and the LCD screen will display "60:00". If no further operation is chosen, the light will turn off after 15 seconds. Simply press the "POWER" button again; the machine will go back to standby mode.

"MENU": By pressing this button, there are 3 optional working modes: "ICE CREAM" "COOLING ONLY" and "MIXING ONLY"; the icon "■" of the selected mode will flash. Hold this button for 3 seconds during mode operation, and the machine will go back the menu selection.

Time setting knob: Turn the knob to set the working time, the default working time for "ICE CREAM" "COOLING ONLY" and "MIXING ONLY" is 60 min, 60 min, 10 min, respectively. Rotating the knob towards "-" will decrease the working time, the minimum time setting is 5 min. Contrarily, rotating towards "+" will increase time, the maximum time setting is 60 min.

"START/PAUSE": After setting the menu and time, press this button to start the working mode. During operation, by pressing this button, the mixing will pause, and the time countdown will pause. When in pause mode, simply press this button again and the machine will continue the previous unfinished operation. Once the ice cream maker enters pause mode and no other operation is chosen, the compressor will stop working after 3 minutes and the machine will go back to standby state after 10 minutes.

EN

ASSEMBLING AND HOW TO USE

Before use, thoroughly wash all parts that will be in contact with the ice cream (including the fixed bowl, removable bowl, mixing blade, transparent lid and measuring cup). Make sure the power cord is unplugged while washing.

Note: Always place the Ice Cream Maker upright on a flat surface so the built-in compressor will provide the best possible performance.

1. Prepare recipe ingredients: Prepare ingredients from your chosen recipe. Note: You do not need to freeze the bowl in advance, as this machine has a built-in compressor that freezes the ingredients while stirring the ice cream.

2. Pour the mixed ingredients into the removable bowl

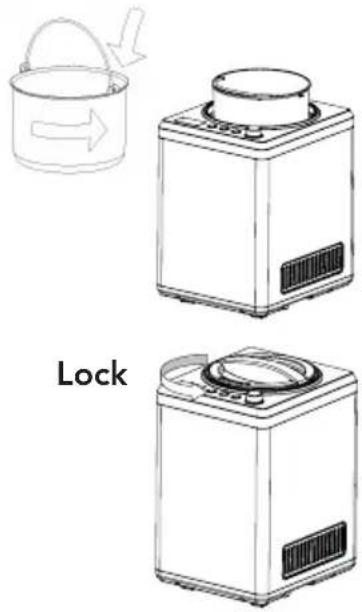

3. Put the removable bowl into the machine and slightly twist the bowl until it's placed firmly (See picture).

4. Place the mixing blade into the removable bowl and keep the mixing blade bottom hole fitted well with the motor axis. Then put the transparent lid onto the machine and lock it counterclockwise (See picture).

5. Plug in power cord and press the "POWER" button.

6. Press the "MENU" button to choose the working mode.

7. Turn the knob to set the working time.

8. Press the "START/PAUSE" button to start.

Line drawings of a microwave oven with a lid and a side view showing the lock mechanism (no text or symbols)

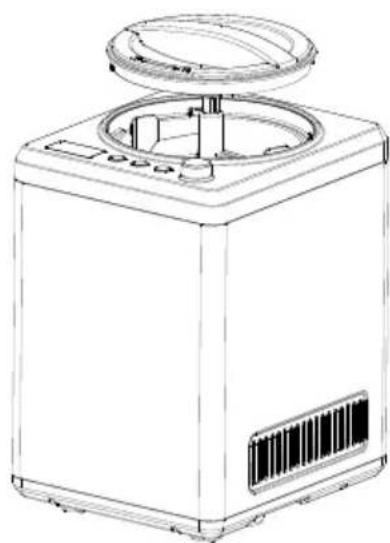

1. You can add your favorite ingredients by opening the lid (See picture).

2. When the ice cream is finished, turn off the machine before removing the bowl.

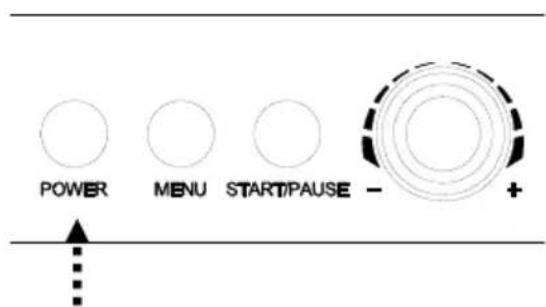

3. Press the "POWER" button

POWER MENU START/PAUSE - + +

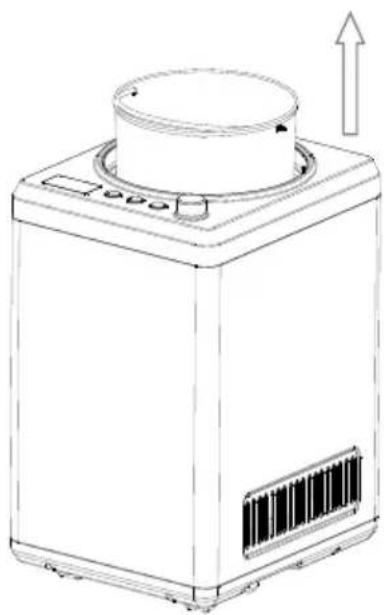

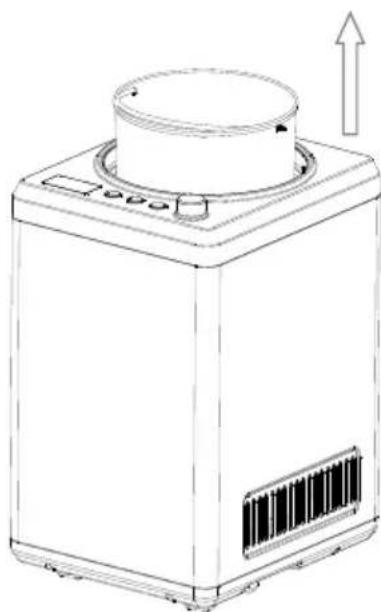

1. Pull the removable bowl out.

Line drawing of a small appliance with a lid and control panel (no text or symbols)

Line drawing of a rectangular appliance with a circular top and side panel, showing airflow direction (no text or symbols)

KEEP COOL FUNCTION

To avoid melting when the ice cream is finished, the following will happen automatically when the timer runs out: The machine will tun on the "keep cool" function, which will stay on for one hour. After one hour, the machine will enter standby mode.

MOTOR OVERLOAD PROTECTION FUNCTION

The device is equipped with a motor overload protection system that automatically measures the motor-temperature and reduces the speed/stops the mixing blade in case of overload. As a result, the motor might slow down when the ice cream becomes thicker or when something is blocking the mixing blade.

CONTROLLING THE VOLUME OF THE INGREDIENTS

To avoid the ice cream overflowing, make sure the ingredients do not exceed 60% of total capacity (maximum 1.5L). This is because the content expands around 40% when freezing.

EN

DIFFERENCES BETWEEN THE WORKING MODES

1. Ice cream mode: default working time is 60 minutes. This mode mixes the ingredients and freezes simultaneously.
2. Cooling only mode: default working time is 60 minutes. The operation is similar with that of ice cream mode, but without the mixing function.
3. Mixing only mode: default working time is 10 minutes. The operation is similar with that of ice cream mode, but without freezing function.

STORAGE OF ICE CREAM

Remove finished ice cream and transfer into another container using a plastic scoop or a wooden spoon. Note: Do not use a metal scoop, this can scratch the stainless-steel bowl.

DISASSEMBLY AND CLEANING

Caution: The plug must be removed before cleaning to avoid electric shock.

1. Take out the mixing blade and wash in warm soapy water
2. Take out the removable bowl and wash in warm soapy water or dish washer
3. Wipe off the transparent lid with a dampened cloth
4. Remove any residue on the main unit with a dampened cloth. Do not pour water on power cord, plug or ventilation, or immerse the appliance in water or any other liquid
5. Allow drying thoroughly with a dry cloth, then return the component to the home position.

TIPS AND TRICKS

• If you want an even firmer and colder ice cream, the finished ice cream can be placed in the freezer.
• The finished ice cream can also be stored in the freezer to enjoy later.
• Experiment with different things in your ice cream, such as Oreo cookies, chocolate chips, nuts and berries. These can be put in when the ice cream is beginning to solidify.

RECIPES

BASIC RECIPE

4,5 dl full cream

3 dl milk

3 eggs

2,2 dl sugar

Beat the eggs lightly for 1-2 minutes. Add the sugar a little at a time. Add the cream and milk. Switch on the machine and pour the mixture into the bowl through the ingredient opening. The machine should run for about 50 – 60 minutes.

FLAVOURS

Crushed Oreo cookies, chocolate, liquorice sprinkles, fruit, berries of your choice.

TROUBLESHOOTING

Problem Possible reasons	Solutions
Ice cream maker does not start	Power cord is not plugged in.The parts are not assembled correctly	Plug into power socketPlace the mixing blade into the removable bowl and keep the mixing blade bottom hole fitted well with the motor axis. Then put the transparent lid onto the machine and lock it
The ice cream does not freeze	The machine does not cool enough	Lack of refrigerant on the machine. Contact the retailer where you purchased the unit

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

Capacity: 2.5 L

Voltage: 220-240V/50Hz

Power Consumption: 250W

Unit Dimensions: 31,5 x 27,2 x 40,7cm

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

NO

NO

INNHOLD

18 VIKTIGE SIKKERHETSINSTRUKSJONER

21SPESIELLESIKKERHETSINSTRUKSJONER FOR DETTE PRODUKTET

22 PRODUKTOVERSIKT

23 FUNKSJONSKNAPPER

24 MONTERING OG BRUK

26 DEMONTERING OG RENGJ∅RING

26 TIPS OG TRIKS

27 OPPSKRIFTER

27 PROBLEML∅SNING

28 GARANTI

29 PRODUKTSPESIFIKASJONER

29 SUPPORT OG RESERVEDELER

29 GJENVINNING

NO

VIKTIGE SIKKERHETSINSTRUKSJONER

Technical diagram of a microwave oven with numbered parts for identification

Line drawings of three kitchen appliances: a bucket, a microwave oven, and a water heater (no text or symbols)

Line drawing of a small appliance with lid and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with top panel and side panel (no text or symbols)

KEEP COOL-FUNKSJON

Spenning: 220–240 V/50 Hz

Strømforbruk: 250 W

Enhetens mål: 31,5 x 27,2 x 40,7 cm

NO

SUPPORT OG RESERVEDELER

Technical diagram of a microwave oven with numbered parts for identification

Line drawing of a square kitchen appliance with lid and ventilation slots (no text or symbols)

SE

Line drawing of a rectangular appliance with a circular top and side panel, showing airflow direction (no text or symbols)

Technical diagram of a microwave oven with numbered parts for identification

1. Transparent låg
2. Aftagelig skål
3. Display
4. Knapper
5. Kabinet
6. Målebæger
7. Propel
8. Ventilation

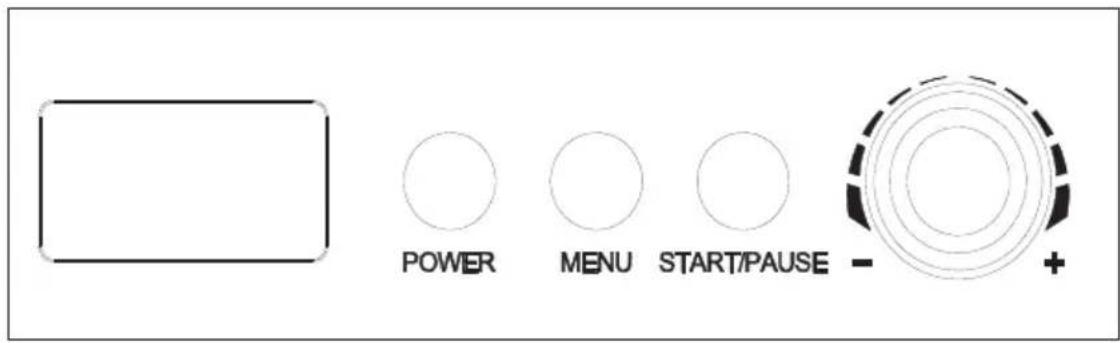

FUNKTIONSKNAPPER

POWER MENU START/PAUSE - +

Line drawings of three kitchen appliances: a bucket with a handle, a microwave oven, and a washing machine (no text or symbols)

Line drawing of a small appliance with lid and ventilation slots (no text or symbols)

Line drawing of a square kitchen appliance with a circular top and heat exchanger (no text or symbols)

DK

K∅LEFUNKTION

Technical diagram of a microwave oven with numbered parts for identification

Line drawings of two Lekitus kitchen appliances with a lid and fan, no text or symbols present

Line drawing of a microwave oven with lid and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with top panel and side panel, showing airflow direction (no text or symbols)

FI

Technical diagram of a microwave oven with numbered parts for identification

Line drawing of a square-shaped appliance with a lid and front panel (no text or symbols)

Schließen

Line drawing of a small white microwave oven with a circular top and ventilation grille (no text or symbols)

Line drawing of a small appliance with lid and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with top panel and side panel (no text or symbols)

DE

KALTHALTEFUNKTION

Technical diagram of a microwave oven with numbered parts for identification

1. Transparant deksel
2. Uitneembare kom
3. Display
4. Knoppen
5. Behuizing
6. Maatbeker
7. Mengblad
8. Ventilatie

FUNCTIEKNOPPEN

POWER MENU START/PAUSE - +

Line drawings of a kitchen appliance with a bucket and two views (top: empty, bottom: slot), no text or symbols present.

Line drawing of a small appliance with lid and ventilation slots (no text or symbols)

Line drawing of a rectangular appliance with a circular top and side panel, showing airflow direction (no text or symbols)

NL

KOELHOUDFUNCTIE

Technical diagram of a microwave oven with numbered parts for identification

Line drawings of a kitchen appliance with a bucket and two washers, no text or symbols present

Line drawing of a small appliance with lid and ventilation slots (no text or symbols)

Line drawing of a rectangular appliance with a circular top and heat exchanger, showing airflow direction (no text or symbols)

FUNKCJA CHŁODZENIA

Technical diagram of a microwave oven with numbered parts for identification

FR

Line drawing of a small appliance with lid and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with top panel and side panel, showing airflow direction (no text or symbols)

FONCTION MAINTIEN AU FROID

CARACTÉRISTIQUES DU PRODUIT

Capacité : 2,5 l

Tension : 220-240 V/50 Hz

Technical diagram of a microwave oven with numbered parts for identification

IT

Line drawings of a kitchen appliance with a lid and two views (top: bucket, bottom: two washers), no text or symbols present.

Line drawing of a two-step appliance with lid, fan, and control panel (no text or symbols)

Technical diagram of a microwave oven with numbered parts for identification

Line drawing of a small appliance with lid and ventilation slots (no text or symbols)

Line drawing of a portable kitchen appliance with a circular top and heat exchanger (no text or symbols)

Packaging from responsible sources

FSC® C146519
