Vanilje ICMC15 - Ice machine WILFA - Free user manual and instructions

Product Type	Compressor Ice Cream Maker
Brand	Wilfa
Model	Vanilje ICMC15
Capacity	1.5 litre (removable bowl)
Maximum Ingredient Volume	0.9 litre (60% of total capacity)
Dimensions (L x W x H)	402 x 281 x 245 mm
Weight	Approximately 7 kg
Power Supply	220-240 V, 50 Hz
Freezing Temperature	-18 °C to -35 °C
Refrigerant	R600a (30 g)
Main Functions	Ice cream making with integrated mixing and freezing, LCD screen, time programming (1 min to 99 min), start/stop, extended cooling mode
Included Accessories	Removable bowl, mixing blade, transparent lid, filling lid, spoon, graduated cup
Maintenance and Cleaning	Removable bowl dishwasher safe; blade, lids and body wiped with a damp cloth; do not immerse the appliance
Safety	Automatic shut-off in case of overload, protected compressor (wait 5 min before restart), do not use outdoors
Warranty	5 years, valid for domestic use
Spare Parts and Repairability	Wear parts (blade, bowl) available through Wilfa customer service; repair by a professional recommended
Usage	Domestic use only

Frequently Asked Questions - Vanilje ICMC15 WILFA

How to start the ice cream maker?

After assembling the removable bowl, blade, transparent lid and filling lid, plug in the appliance. Press the POWER button, set the time with TIME+ and TIME- (default 60 min), then press START/STOP to start the cycle.

What is the maximum ingredient capacity?

Do not exceed 60% of the total bowl volume, i.e. about 0.9 litres, to avoid overflow during freezing (the volume increases by about 40%).

Can I use frozen ingredients?

No, ingredients must be between +5°C and +25°C. Do not freeze them beforehand, as this could block the blade and give an incorrect texture.

How long does it take to make ice cream?

The default time is 60 minutes, but you can set it from 1 to 99 minutes depending on the recipe. On average, 50 to 60 minutes are sufficient.

How to clean the appliance?

Always unplug the appliance before cleaning. The removable bowl is dishwasher safe. The blade, lids and body are wiped with a damp cloth. Never immerse the appliance in water.

What to do if the ice cream is too hard or the motor stops?

The automatic shut-off in case of overload protects the motor. If the ice cream is too hard, reduce the cycle time or add more liquid. Wait 5 minutes before restarting to avoid damaging the compressor.

Can I add ingredients while running?

Yes, you can open the filling lid to add pieces (cookies, fruit) during the last 5 minutes. Press START/STOP to check the blade if necessary, the compressor continues.

What does the LCD display mean?

The screen displays the remaining (or elapsed) time, the freezing temperature in the top right corner, and two icons: one for mixing and one for freezing. In extended cooling mode, only the freezing icon is displayed.

What is the warranty for this product?

Wilfa offers a 5-year warranty from the date of purchase for domestic use. Keep your receipt as proof of purchase. The warranty does not cover normal wear, misuse, or unauthorized repairs.

Where to find spare parts?

Go to wilfa.com and check the customer service page. You will find information on spare parts, support and contact details.

USER MANUAL Vanilje ICMC15 WILFA

ICE CREAM MAKER ICMS-C15, ICMSB-C15

EN · Instruction manual

NL · Instructies

NO·Bruksanvisning

PL ·Instrukcje

SE ·Bruksanvisning

FR · Instructions

4 IMPORTANT SAFETY INSTRUCTIONS
7 PRODUCT OVERVIEW
8 BEFORE FIRST USE
8 ASSEMBLING AND HOW TO USE

11 MAINTENANCE
11 RECIPES
12 GUARANTEE
13 PRODUCT SPECIFICATIONS
13 SUPPORT AND SPARE PARTS
13 RECYCLABILITY

EN

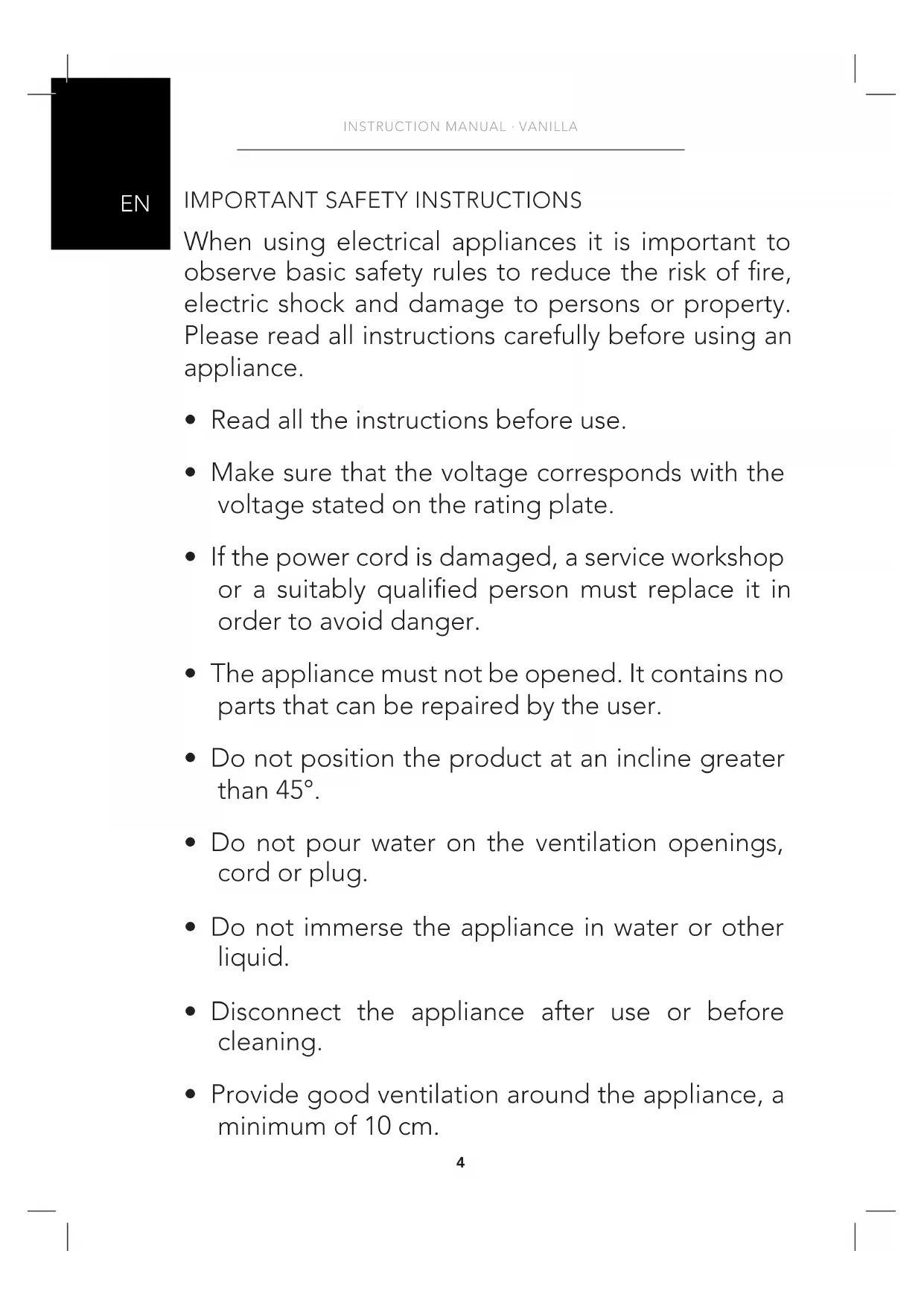

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances it is important to observe basic safety rules to reduce the risk of fire, electric shock and damage to persons or property. Please read all instructions carefully before using an appliance.

• Read all the instructions before use.
• Make sure that the voltage corresponds with the voltage stated on the rating plate.
• If the power cord is damaged, a service workshop or a suitably qualified person must replace it in order to avoid danger.
• The appliance must not be opened. It contains no parts that can be repaired by the user.
• Do not position the product at an incline greater than 45^ .
• Do not pour water on the ventilation openings, cord or plug.
• Do not immerse the appliance in water or other liquid.
• Disconnect the appliance after use or before cleaning.

• Provide good ventilation around the appliance, a minimum of 10cm .

• Only use accessories recommended by the manufacturer.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not use this appliance near flames, hot plates or a stove.
• Wait 5 minutes before pressing the POWER button again to avoid damage to the compressor.
• Do not insert objects into the ice cream machine through the ventilation openings. This can cause electric shock or fire.
• When removing the ice cream, do not knock the bowl or the edge of the bowl as this can cause damage to the bowl.
• Do not start the appliance until you have fitted the bowl and mixing blade.

EN

• The temperature of the ingredients must be between +5 - +25^ . Do not put the ingredients in the freezer in advance, as this can easily cause the mixing blade to jam and the ice cream will then not have the right consistency.
• Do not remove the mixing blade while the machine is working.
• Do not use outdoors.
• Never clean with scouring powder or other hard objects.
• Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended for use in household only.
  Take care of your manual.

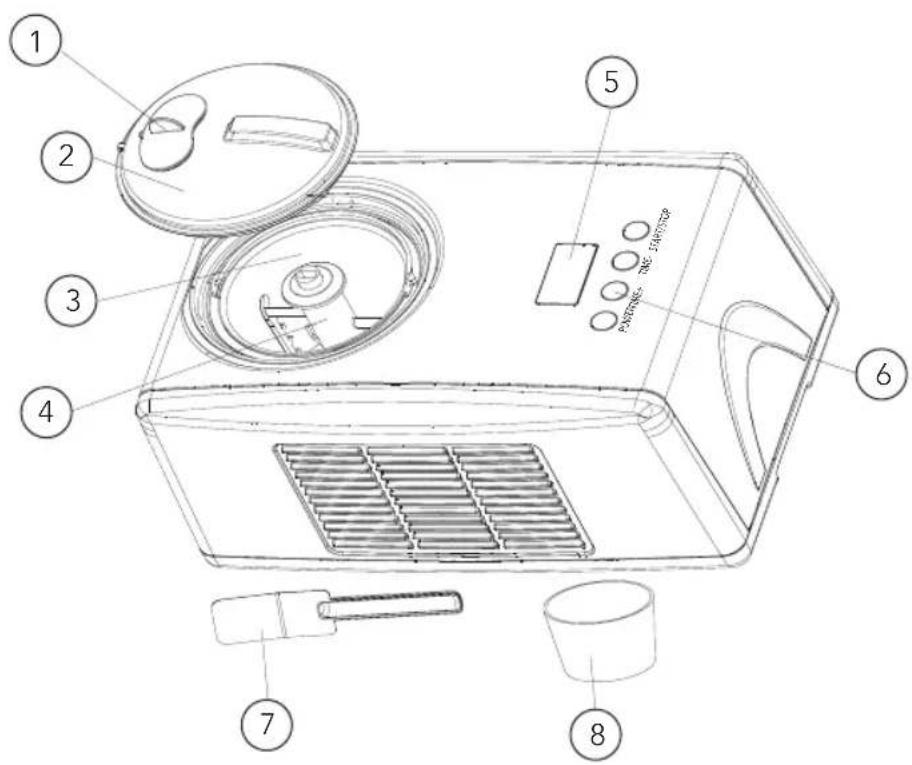

PRODUCT OVERVIEW

EN

1. Refill Lid
2. Transparent Lid
3. Removable Bowl
4. Mixing Blade
5. LCD Display
6. Buttons
7. Spoon
8. Measuring Cup

EN

BEFORE FIRST USE

Cleaning

Wash all parts that come into contact with the ice cream (including the fixed bowl, removable bowl, mixing blade, transparent lid, refill lid, measuring cup and spoon) before use.

Prepare the recipe ingredients

Prepare the ingredients in your own recipe or recipes from here. Stir together the ingredients and pour into the removable bowl. Note: You should not put the bowl in the freezer in advance, as this machine has a built-in compressor that freezes the ingredients during operation.

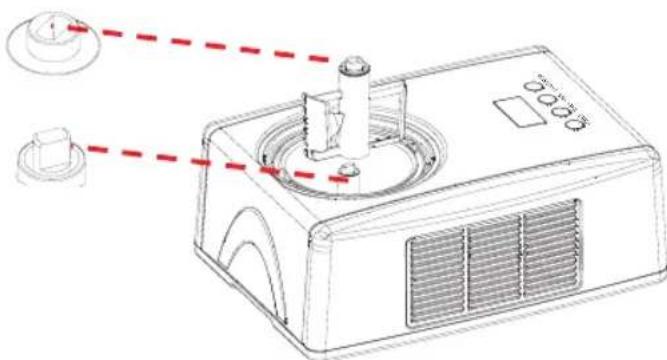

ASSEMBLING AND HOW TO USE

1. Insert the removable bowl in the machine.
2. Place the mixing blade into the removable bowl and make sure that the motor shaft fits with the blade (see the picture below).
3. Fit the transparent lid on top of the bowl and twist until it locks into position.
4. Place the refill lid on the transparent lid.

Starting the ice cream maker

Connect to the mains supply

Check the voltage to ensure that the voltage indicated on the rating plate matches the voltage where the product is being used.

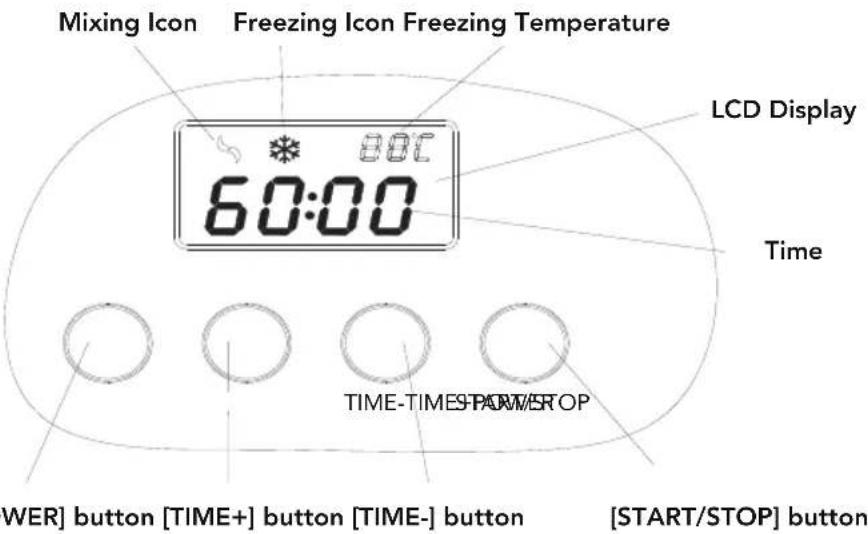

Function buttons

POWER Button: After connecting to the mains supply, press the POWER button and the display will show "60:00". This means that the default operating time is 60 minutes.

TIME+, TIME- Button: There are two buttons TIME+ and TIME- to adjust the time. Press the TIME+ or TIME- button and the time will increase or decrease in 1-minute increments. If you press and hold the TIME+ button, the time will increase rapidly, and if you press and hold the TIME- button, the time will decrease rapidly. You can choose different times according to your taste.

START/STOP Button: Once the time has been set, press the START/STOP button to start the ice cream process. You can press the START/STOP button during the process to check the mixing blade and ingredients (the compressor will still work).

Note: If the START/STOP button is held down for more than 3 seconds, the machine will stop. You will hear the sound "di, di, di" 10 times and the display will show "00:00". This function can be used if you wish to cancel the preset function.

EN

Extended chilling function

When the ice cream is finished the machine will chill (no mixing) up to 1 hour. The machine will chill at 10-minute intervals.

Warning: Always remember to unplug the machine when you are finished.

Operating time

When the machine is running, the operating time is adjusted by pressing the TIME+ or TIME--button.

After the operating time has elapsed

When the set time (for example 60 minutes) has elapsed and the machine stops and returns to its original state, you can once again choose an operating time by pressing the TIME+ button, then press the START/STOP button again. The machine will continue to run for the selected time, then stop to switch to the extended chilling function.

Display

The display shows the elapsed time.

Freezing temperature in the upper right corner.

Freezing icon

Mixing icon

Both of these icons will be shown on the display during the ice cream process. When the mixing process is stopped by pressing the START/STOP button or during the extended chilling function, only the freezing icon will be displayed

Automatic stop if overloaded

When the ice cream becomes hard, the motor can slow down and stop. This is to prevent the motor short-circuiting.

Volume of the ingredients

To avoid the ice cream overflowing, make sure the ingredients do not exceed 60% of total capacity (maximum 0.9L). This is because the content expands around 40% when freezing.

Storing the ice cream

Move the finished ice cream to another container using a plastic or wooden spoon. Avoid sharp objects, as these can scratch the inside of the removable bowl.

MAINTENANCE

Caution: The plug must be removed before cleaning to avoid electric shock.

1. Remove the paddle, wipe it with a damp cloth.
2. Take out the removable bowl, clean it with a soft damp cloth, or put it in the dishwasher.
3. Wipe the transparent lid and refill lid with a damp cloth.
4. Remove any dirt on the body or other places with a damp cloth, and do not pour water over cord, plug or ventilation, or immerse the appliance in water or any other liquid.
5. Dry thoroughly with a dry cloth, then return the components to the home position.

RECIPES

Basic recipe

For 4 persons

2 eggs

1.5 dl sugar
3 dl full cream
2 dl milk

Beat the eggs lightly for 1-2 minutes. Add the sugar a little at a time. Add the cream and milk. Switch on the machine and pour the mixture into the bowl through the ingredient opening. The machine should run for about 50 - 60 minutes.

Flavours

Crushed Orieo biscuits, chocolate, liquorice sprinkles, fruit, berries of your choice. Flavour additives are added during the last 5 minutes of mixing.

Strawberry sorbet

For 4 persons

100 g sugar

0.5 dl water

1 / 2 lemon

1 tablespoon golden syrup

500 g strawberries

Heat the water to 80 degrees. Add the sugar and remove from the stove.

Stir until the sugar has dissolved.

Add the juice of 12 a lemon and the golden syrup and stir.

Pour this mixture into a blender and add the strawberries. Mix in the blender until it reaches a smooth consistency. Start the ice cream maker and add the mixture. Run the ice cream maker until it produces a fine sorbet consistency.

EN

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

Capacity: 1.5 litres

Voltage: 220-240V

Frequency: 50 Hz

Power consumption: 150 W

Freezing temperature: -18 ~ -35 degrees

Product dimensions: 402 × 281 × 245 ~mm

Gas: 30g R600a

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
