USER MANUAL ICM1600 WILFA

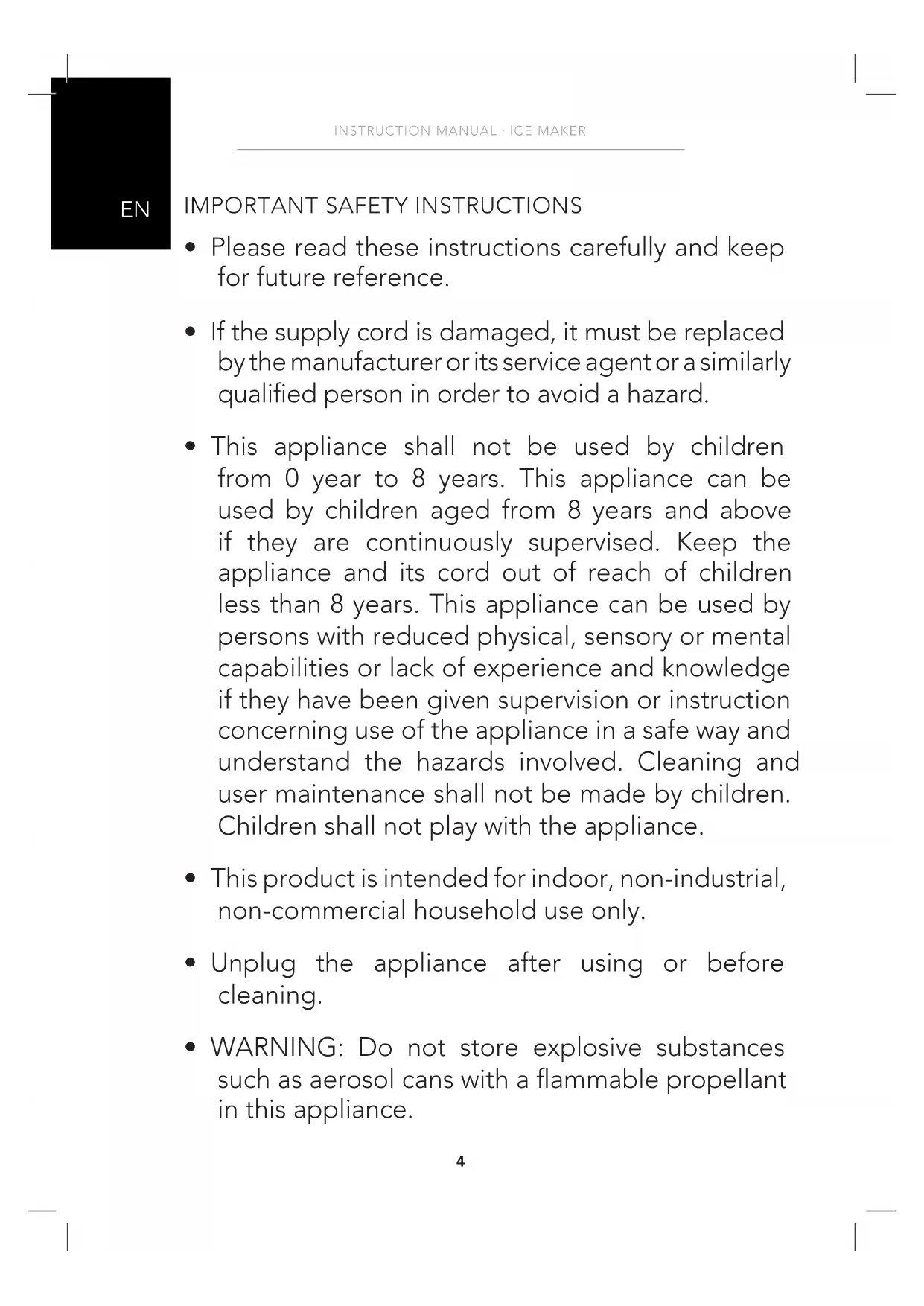

• Please read these instructions carefully and keep for future reference.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. Keep the appliance and its cord out of reach of children less than 8 years. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children. Children shall not play with the appliance.

• This product is intended for indoor, non-industrial, non-commercial household use only.

• Unplug the appliance after using or before cleaning.

• WARNING: Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.5

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• WARNING: To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions.

• WARNING: When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to ame.

• WARNING: Fill with potable water only.6

• The refrigerant (R600a) is ammable.

• Caution: Risk of re / Flammable materials

• The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless ammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.

• If the refrigerant circuit should be damaged:

• Avoid opening ames and sources of ignition.

• Thoroughly ventilate the room in which the appliance is situated.7

• Before using the Ice maker for the rst time, please wait 2 hours after positioning it, and keep the lid open for at least 2 hours before turning it on.

• During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine. This may damage the compressor and the sealing system.

• Remove all packing materials, check the machine carefully and make sure that the machine, power cord and plug are normal.

• The machine should be on a level surface. To ensure sufcient ventilation, the distance of the back of ice maker to the wall should be at least 15cm, it should be away from the oven, radiator or other heat source. Keep the appliance 8cm from other objects on the sides to ensure good heat releasing.

• Make sure that the home voltage is consistent with the voltage indicated by the machine.

• When the ambient temperature is lower than 15 degrees, please choose small ice. When the ambient temperature is higher than 30 degrees, it is recommended to choose large ice.

• Do not use chemicals, acidic or alkaline liquids to make ice.

• Pure water is not allowed to be used on this unit, spring water is recommended.

• It is normal for the compressor and condenser surface to reach temperatures between 70°C and 90°C during operation and surrounding areas may be very hot.

• Due to fast freezing, ice cubes may opaque. This is air trapped in the water and will not affect quality or taste of ice.

• Do not immerse in water.

• Do not switch on the power button frequently (ensure 5min. interval at least) to avoid the damage of compressor.8

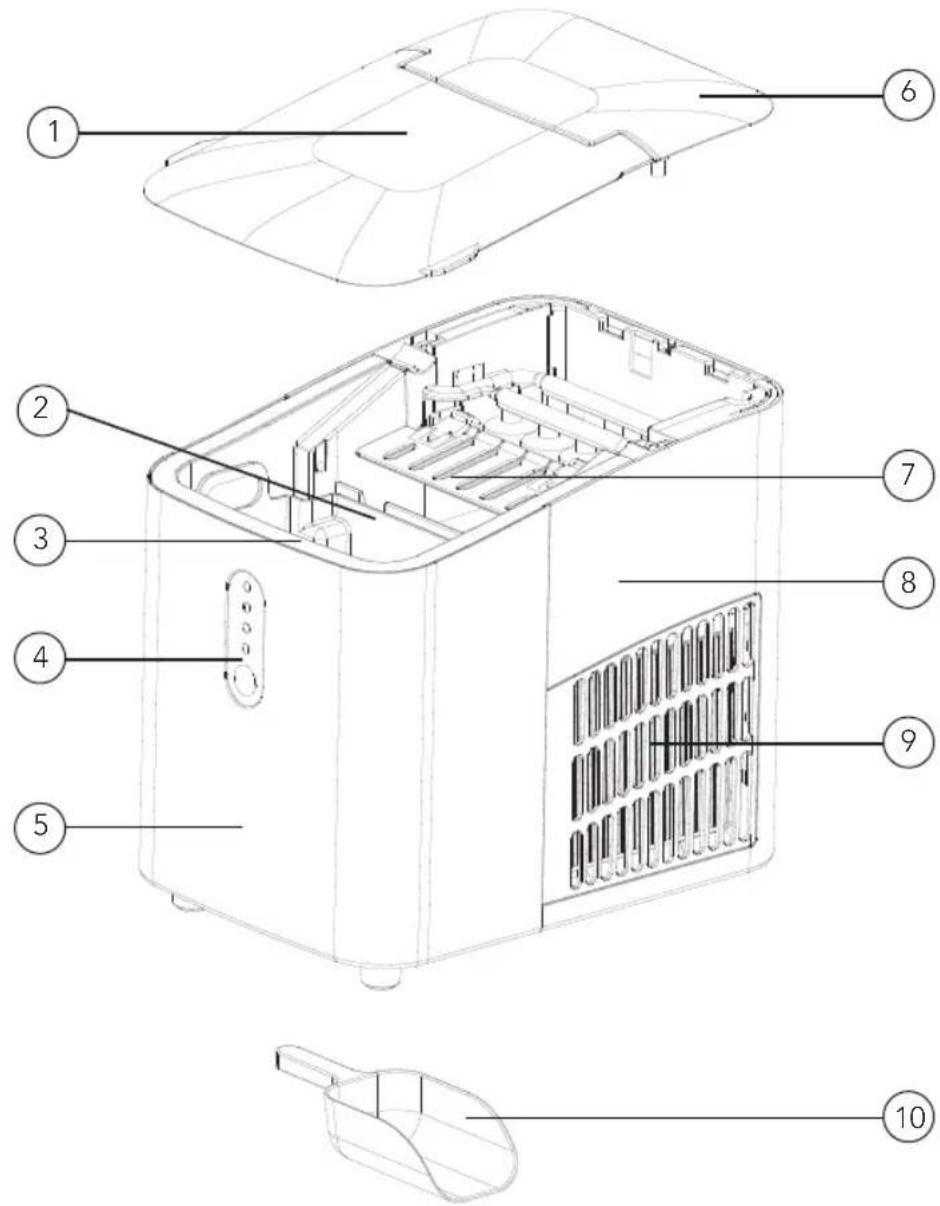

2. Ice collecting tray

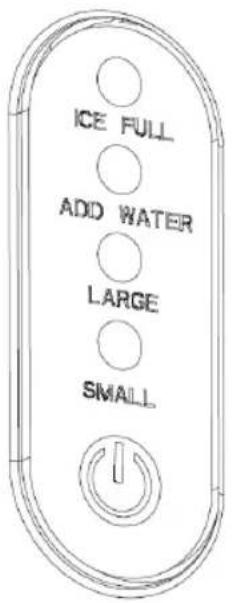

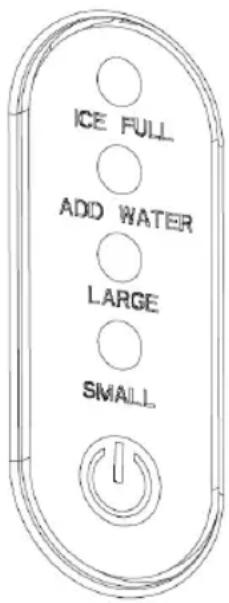

CONTROL PANEL ICE FULL: Ice full alarm indicator light ADD WATER: Water shortage alarm indicator light CLEAN: Large ice indicator light ICE MAKING: Small ice indicator light

1. Plug in power cord, the machine is in standby mode, and the small ice

indicator light ashes green. Press the START/PAUSE button, the indicator lights of small ice and large ice ash alternately. When the corresponding indicator lights up, press the START/PAUSE button again to choose size, and the machine starts to work. The corresponding indicator lights up for a long time, and the ice cube production starts.

2. CLEANING FUNCTION: Plug in power cord, press the START/PAUSE button

to start the machine, and then press the START/PAUSE button for 2 seconds. The machine enters the cleaning function, and the four lights ash alternately. Do not disconnect the power supply during cleaning. After cleaning, the machine will automatically enter the standby mode.

3. ADD WATER: When the “Add water” indicator light is on, it means that the

water tank is empty. Add water and press the START/PAUSE button to restart the machine.

4. ICE FULL: When the ice reaches the maximum amount of ice storage

container, the ICE FULL indicator light is on and the machine stops. Remove the ice cubes. When the ice position is lower than the full sensor position, the machine will restart automatically.10

1. Open the lid and take out the ice collecting tray and add water to the

container. Note: There is a maximum water level indicator in the container. The water should not exceed the level indicator. If the water exceeds the maximum line, you need to open the bottom drain plug, release the excess water, and close the lid.

• For the three rst cycles, the ice produced is small and irregular.

• When the ice collecting tray is full, please take out the ice immediately, do not let the ice overow the ice collecting tray.

• If the compressor does not work due to lack of water, ice full, power failure, etc, it will delay for 3 minutes to start up after restarted. CLEANING

1. Unplug the appliance after using or before cleaning.

2. Clean regularly surfaces that can come in contact with food and accessible

3. Clean the inner liner, ice collecting tray, water tank and ice scoop frequently.

When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the Ice maker. Rinse thoroughly before use.

4. After being idled for a period of time, the ice cube maker may not be able

to pump enough water up for air blockage. In this case, the water shortage indictor light is displayed, just press START/PAUSE button to restart the ice maker.

5. To ensure the cleanness of ice, please change the water at least once one day.

If you do not use it for a long time, please drain the water out and clean it.

6. If the refrigerating appliance is left empty for long periods, switch off and

leave the door open to prevent mold developing within the appliance.11

1. Please note, if a power failure occurs due to disconnection of the power cord,

or the power button has been pushed off during an ice making cycle, small pieces of ice formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice cubes can be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice cubes, then restarting.

2. Please check if the water container is at when the ice shovel can not remove

the ice to ice collecting tray. If not, please push the ice shovel gently by nger, then press START/PAUSE button to restart. Problem Possible reasons Solutions The ice maker does not start The ice maker is not plugged in Plug in the power cord The compressor works abnormally with a buzzing noise The voltage is lower than recommended Stop the ice maker and do not restart until the voltage is normal. “Ice Full” is on The ice basket is full Remove ice from the ice basket Water shortage light is on

1. There is no water

2. The pump is full of air

1. Add some water until it

to restart the machine The ice made is too large and with pieces sticking together. Ice of previous cycles left in the water tray Take out the ice under the standby state The ice making process was correct, but no ice came out?

1. The compressor has

2. Compressor damaged

3. Fan motor damaged

All indicator lights ash at the same time.

2. The motor is stuck, or

the motor falls off, or the motor is damaged

1. Take out the ice under the

ice shovel, plug in power again, and press the POWER button. After 3 minutes, the machine will restart automatically.

The machine has been working, but the water has been warming Solenoid broke down Contact the supplier. When the ice is full, the machine does not display the ice full icon

2. Move the ice maker away

GUARANTEE Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee. The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modied or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product

• Parts which are normally worn down

• Parts you can expect being replaced regularly (e.g. lter, battery etc.) Instructions manual is also available at our website wilfa.com15 AS Wilfa Nydalsveien 24, 0484 Oslo, Norway

For support please visit us at wilfa.com, and see our customer service/support page. Here you will nd frequently asked questions, spare parts, tips and tricks and all our contact information. RECYCLABILITY This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.16
