Product type	Automatic ice maker
Brand	Wilfa
Model	Frostbitt ICE12S
Ice cube size	Adjustable (small / large)
Ice basket capacity	Approximately 1 kg
Ice production	Up to 12 kg per 24h
Cycle time	6 to 13 minutes depending on size and temperature
Maximum water level	Visible mark in the reservoir (under the basket)
Power supply	220-240 V ~ 50 Hz
Power	150 W
Refrigerant	R600a / 26 g
Net weight	7.8 kg
Dimensions (W x D x H)	Approximately 30 x 40 x 35 cm
Housing material	Plastic
Transparent window	Yes, on the top cover
Sensors	Infrared (water level, basket full)
LED indicators	Power on, add water, basket full
Automatic shut-off	Yes, when the basket is full or water is low
Maintenance	Regular cleaning with mild detergent and warm water; drain via plug
Safety	Grounded plug, automatic shut-off, do not use extension cord
Warranty	5 years
Use	Household use only

Frequently Asked Questions - Frostbitt ICE12S WILFA

How to start the ice maker?

Open the lid, remove the basket, pour drinking water up to the maximum level mark. Replace the basket, close the lid, plug in the appliance. Press the ON/OFF button then select the ice cube size with the SELECT button.

What to do if the 'Add Water' indicator lights up?

The indicator signals a lack of water. Press ON/OFF to turn off the appliance, open the lid and fill with water to the maximum level. Wait at least 3 minutes before restarting by pressing ON/OFF again.

What to do if the 'Ice Full' indicator lights up?

The appliance stops automatically when the basket is full. Remove the ice cubes from the basket and the appliance will resume its cycle automatically.

Why are my ice cubes sticking together?

This can happen if the cycle is too long or the water is too cold. Try selecting small size for shorter cycles. If the problem persists, empty the water and replace it with room temperature water (between 8 and 32 °C).

Which ice cube size to choose when it is cold?

Below 15 °C, it is recommended to choose small size to prevent ice cubes from sticking together.

How to clean the ice maker?

Remove the basket. Clean the inside with a mild detergent diluted in warm water, using a soft cloth. Rinse with clean water and drain via the outlet plug. Dry with a clean cloth. The exterior is cleaned regularly with a mild detergent.

Can I use something other than water?

No, use only drinking water. Using sugary liquids or others could damage the appliance.

What to do if the machine does not produce ice?

Check that the ambient temperature is between 10 and 43 °C and that the water temperature is between 8 and 32 °C. If the cycle is normal but no ice, the cooling system may be faulty; contact a qualified technician.

Where to find spare parts?

Visit wilfa.com and go to the customer service/support page. You will find information on spare parts, tips, and contact details for after-sales service.

How to recycle the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point or contact your retailer for free and environmentally friendly recycling.

USER MANUAL Frostbitt ICE12S WILFA

IPEEDNcNoJIb3OBAHnEM IPOQTNTE BCE INHCTPyKlUN

EN

NO

SE

DK

FI

DE

NL

PL

FR

IT

ES

RU

EN

INSTRUCTION MANUAL·FROSTBITT

CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS
7 PRODUCT OVERVIEW
8 CONTROL PANEL
9 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
9 CLEANING AND MAINTENANCE OF YOUR ICE CUBE MAKER
10 OPERATION
11 TROUBLESHOOTING
12 GUARANTEE
13 PRODUCT SPECIFICATIONS
13 SUPPORT AND SPARE PARTS
13 RECYCLABILITY

EN

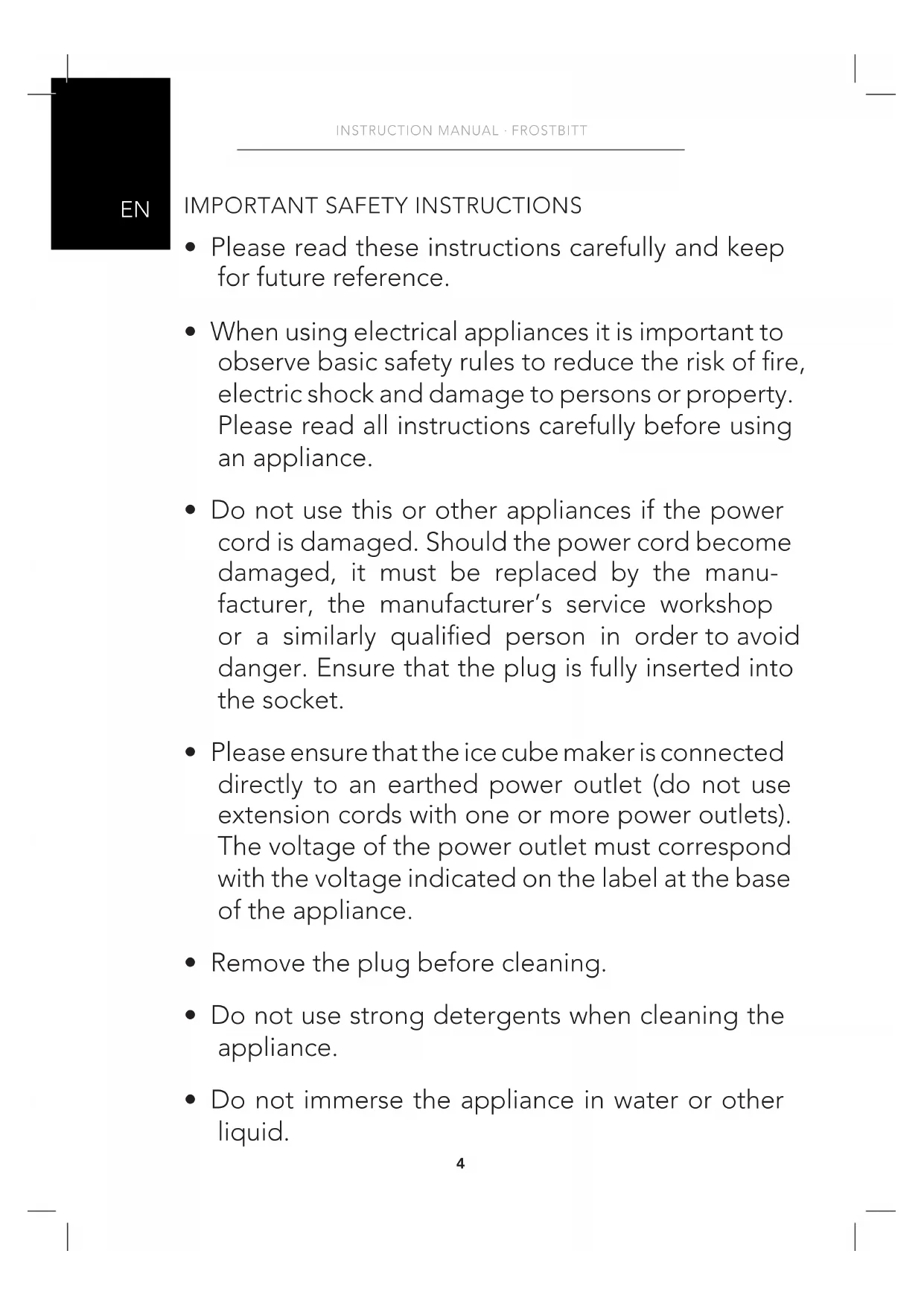

IMPORTANT SAFETY INSTRUCTIONS

• Please read these instructions carefully and keep for future reference.
• When using electrical appliances it is important to observe basic safety rules to reduce the risk of fire, electric shock and damage to persons or property. Please read all instructions carefully before using an appliance.
• Do not use this or other appliances if the power cord is damaged. Should the power cord become damaged, it must be replaced by the manufacturer, the manufacturer's service workshop or a similarly qualified person in order to avoid danger. Ensure that the plug is fully inserted into the socket.
• Please ensure that the ice cube maker is connected directly to an earthed power outlet (do not use extension cords with one or more power outlets). The voltage of the power outlet must correspond with the voltage indicated on the label at the base of the appliance.
• Remove the plug before cleaning.
• Do not use strong detergents when cleaning the appliance.

• Do not immerse the appliance in water or other liquid.

• Do not use the ice cube maker outdoors. Position the ice cube maker away from direct sunlight and ensure that there is at least 10cm distance between the back of the unit and the wall. Ensure that there is a distance of at least 10cm on either side of the unit.

• Do not use liquids other than water to make ice cubes.
• The appliance must not be used in a potentially explosive environment (easily combustible gases/ liquids, etc.).
• The appliance must not be turned upside down or on its side. This could result in serious damage to the cooling system.
• If the ice cube maker is transported during winter, it should be left to stand for a few hours at room temperature before starting up.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

EN

• The appliance is only intended for use in private households and not in restaurants, cafeterias, etc.
• The appliance must always be placed on a stable, dry and even surface.
• The appliance should be left to stand for at least 1 hour before being started up again after moving or re-positioning. This is to allow the cooling system to stabilise.
• Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

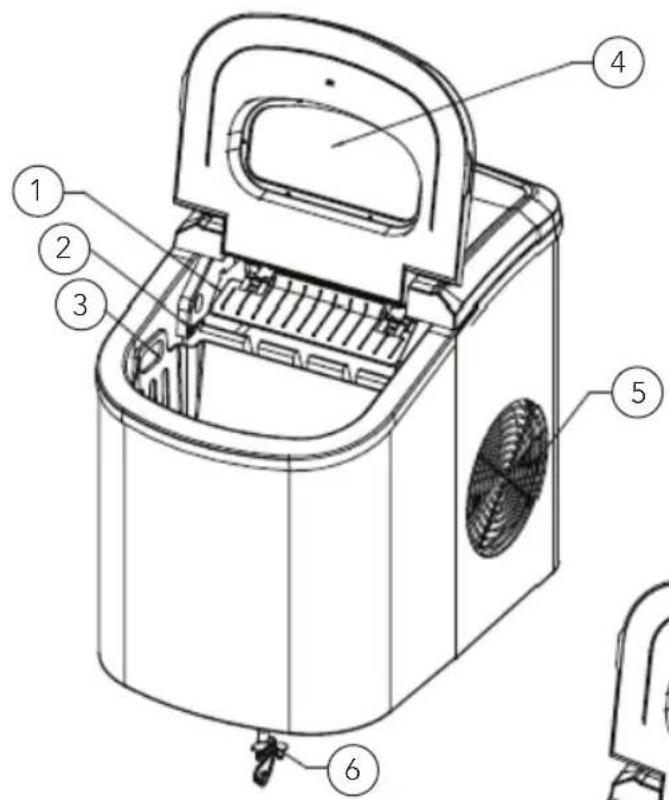

PRODUCT OVERVIEW

1. Ice tray
2. Sensor
3. Ice basket
4. Top cover with transparent window

5. Fan

6. Water outlet

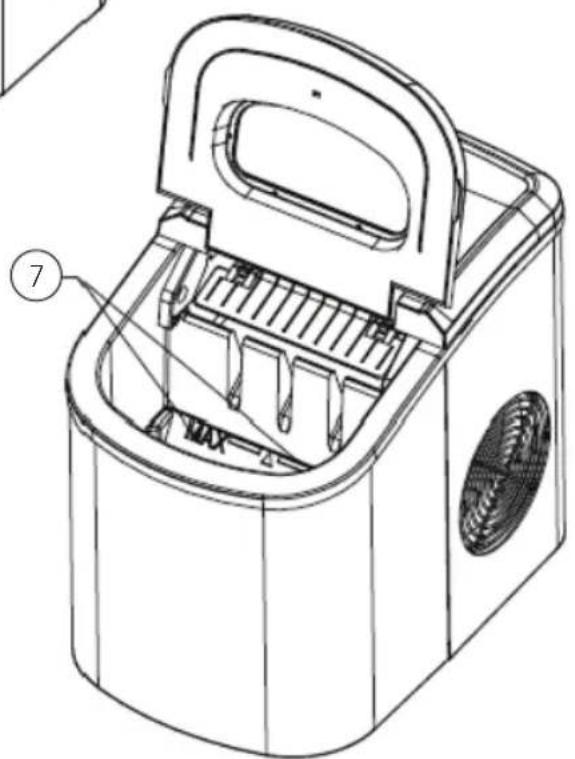

7. Maximum water level:

(Removetheicebasketto see thewaterlevelmarks.)

EN

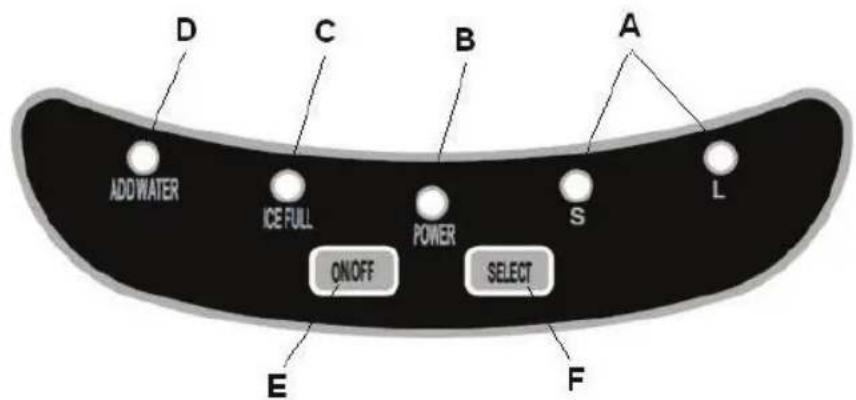

CONTROL PANEL

The ice cube maker is easily operated using two buttons on the control panel.

A. Size selection: Small and Large
B. Power indicator
C. Indicator showing that the ice basket is full
D. Indicator showing that the water container needs filling
E. On/off button for the unit
F. Button for selecting ice cube size

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

1. Remove external and internal packaging.
2. Remove tape fastened over the ice spoon, ice basket and ice tray. Clean the container and the ice basket.
3. Place the ice cube maker on an even surface, away from direct sunlight and other heat sources (i.e.: hobs, ovens, radiators). Place the appliance so that there is at least 10cm distance between the back and sides of the appliance and the wall.
4. The appliance should be left to stand for at least 1 hour before starting it up. This is to allow the cooling system to stabilise.

Warning: Use drinking water only.

CLEANING AND MAINTENANCE OF YOUR ICE CUBE MAKER

It is recommended to carefully clean the ice cube maker before using it.

1. Remove the ice basket.
2. Clean internally using diluted detergent, warm water and a soft cloth.
3. Use water to rinse the internal parts and empty the water by removing the outlet plug on the front of the base.
4. The ice cube maker exterior should be cleaned regularly using a mild detergent and warm water.
5. Dry internally and externally using a clean, soft cloth.
6. When the appliance is not in use, empty out all water and dry the container.

EN

OPERATION

1. Open the cover, remove the basket and pour water into the container.
2. Ensure that the water level is kept below the maximum water level.
3. Press the "ON/OFF" button on the control panel to turn the appliance on.
4. Select ice cube size by pressing the "SELECT" button. If the room temperature is lower than 15^ , we recommend selecting small ice cubes in order to prevent the ice from sticking together.
5. The ice cube cycle is between 6 and 13 minutes, depending on ice cube size and room temperature. The recommended room temperature is 10^ to 43^ .
6. If the "Add Water" indicator is lit up, water must be refilled before the ice cube cycle starts again. Press the "ON/OFF" button, fill water up to the maximum water level and press the "ON/OFF" button again to turn the unit back on. Allow the appliance to rest for at least 3 minutes before starting it again.
7. If the "Ice Full" indicator is lit up, the unit will stop and the ice cubes must be removed from the basket.
8. For reasons of hygiene, the water in the container should be changed at least once a day.

Warning: Direct sunlight or glare from sunlight could result in infrared sensor failure. The sensors in the appliance will then not function optimally. Keep the unit away from sunlight.

TROUBLESHOOTING

Problem Possible reasons Solutions

The "Add Water" indicator is on	Lack of water.	Stop the ice cube maker, fill water and press the "ON/OFF" button again to start the unit.
"Ice Full" is on The ice basket is full. Remove ice from the ice basket.
Ice cubes are stuck together	The ice cube cycle is too long.	Stop the ice cube maker, restart it when the ice cubes have melted. Select the smallest ice cube size.
	The water temperature in the internal container is too low.	Replace the water. The recommended water temperature is 8-32 °C.
The ice cube cycle is normal, but no ice is being made	The room temperature or water temperature in the internal container is too high.	The room temperature should be 10-43 °C, the water temperature should be 8 to 32 °C.
	Cooling system leak. Must be checked by a qualified technician.
	The copper pipe to the cooling system is blocked.	Must be checked by a qualified technician.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down

PRODUCT SPECIFICATIONS

Voltage: 220-240V/50Hz 100W

Cooling media R600a / 26g

Net weight 7,8 kg

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and

collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.
