USER MANUAL SGV 65 Kärcher

Register your product www.kaercher.com/welcome SGV 6/5 SGV 8/5

MAX 40°C “Click” “Click”

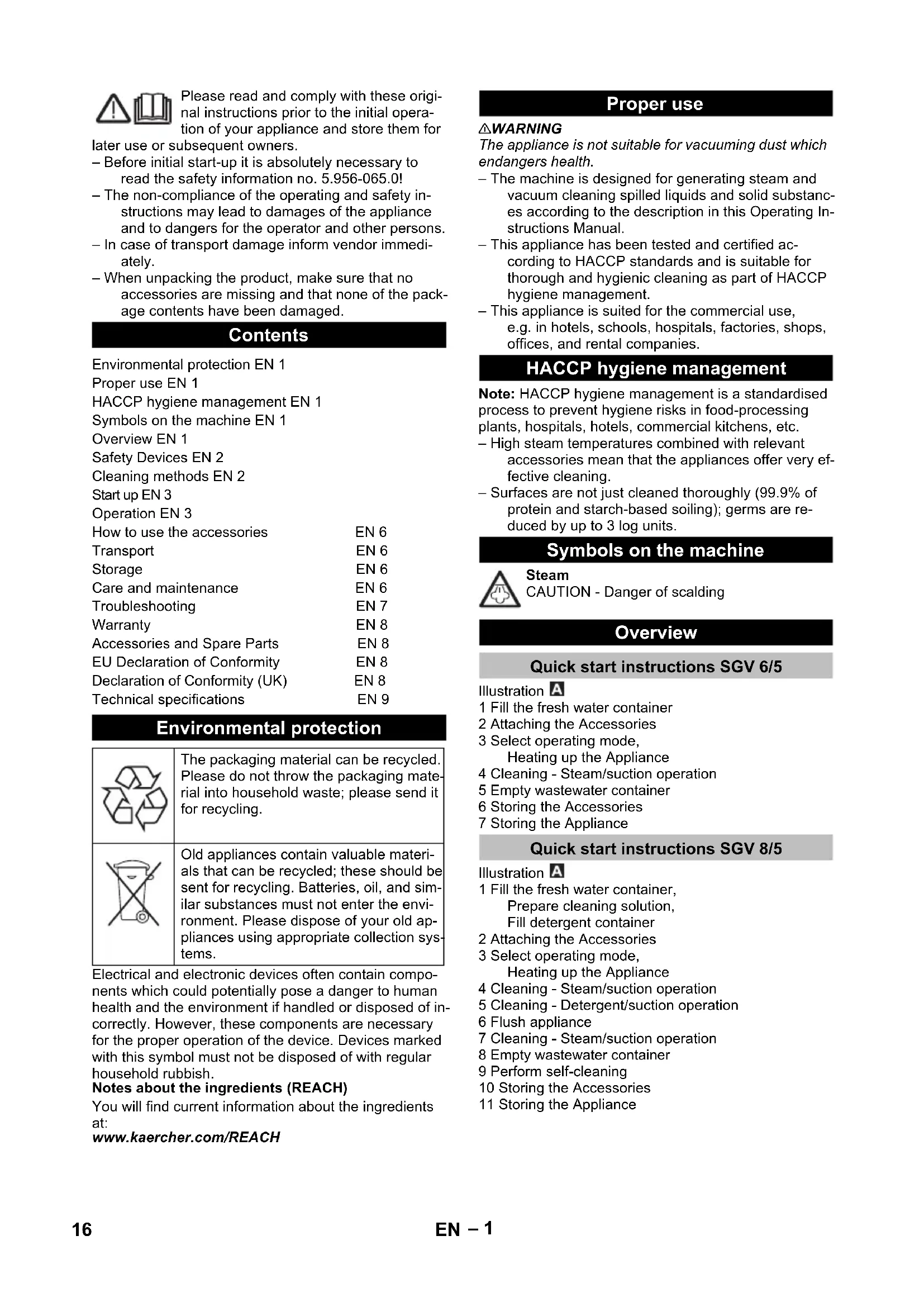

Teile-Nr. Kabellänge EU 6.648-098.0 7,5 m GB 6.648-102.0 7,5 m CH 6.648-119.0 7,5 m AU 6.650-709.0 7,5 m 15DE– 1 Please read and comply with these origi- nal instructions prior to the initial opera- tion of your appliance and store them for later use or subsequent owners. – Before initial start-up it is absolutely necessary to read the safety information no. 5.956-065.0! – The non-compliance of the operating and safety in- structions may lead to damages of the appliance and to dangers for the operator and other persons. – In case of transport damage inform vendor immedi- ately. – When unpacking the product, make sure that no accessories are missing and that none of the pack- age contents have been damaged. Electrical and electronic devices often contain compo- nents which could potentially pose a danger to human health and the environment if handled or disposed of in- correctly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH 몇 WARNING The appliance is not suitable for vacuuming dust which endangers health. – The machine is designed for generating steam and vacuum cleaning spilled liquids and solid substanc- es according to the description in this Operating In- structions Manual. – This appliance has been tested and certified ac- cording to HACCP standards and is suitable for thorough and hygienic cleaning as part of HACCP hygiene management. – This appliance is suited for the commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies. Note: HACCP hygiene management is a standardised process to prevent hygiene risks in food-processing plants, hospitals, hotels, commercial kitchens, etc. – High steam temperatures combined with relevant accessories mean that the appliances offer very ef- fective cleaning. – Surfaces are not just cleaned thoroughly (99.9% of protein and starch-based soiling); germs are re- duced by up to 3 log units. Steam CAUTION - Danger of scalding Illustration 1 Fill the fresh water container 2 Attaching the Accessories 3 Select operating mode, Heating up the Appliance 4 Cleaning - Steam/suction operation 5 Empty wastewater container 6 Storing the Accessories 7 Storing the Appliance Illustration 1 Fill the fresh water container, Prepare cleaning solution, Fill detergent container 2 Attaching the Accessories 3 Select operating mode, Heating up the Appliance 4 Cleaning - Steam/suction operation 5 Cleaning - Detergent/suction operation 6 Flush appliance 7 Cleaning - Steam/suction operation 8 Empty wastewater container 9 Perform self-cleaning 10 Storing the Accessories 11 Storing the Appliance Contents Environmental protection EN 1 Proper use EN 1 HACCP hygiene management EN 1 Symbols on the machine EN 1 Overview EN 1 Safety Devices EN 2 Cleaning methods EN 2 Start up EN 3 Operation EN 3 How to use the accessories EN 6 Transport EN 6 Storage EN 6 Care and maintenance EN 6 Troubleshooting EN 7 Warranty EN 8 Accessories and Spare Parts EN 8 EU Declaration of Conformity EN 8 Declaration of Conformity (UK) EN 8 Technical specifications EN 9 Environmental protection The packaging material can be recycled. Please do not throw the packaging mate- rial into household waste; please send it for recycling. Old appliances contain valuable materi- als that can be recycled; these should be sent for recycling. Batteries, oil, and sim- ilar substances must not enter the envi- ronment. Please dispose of your old ap- pliances using appropriate collection sys- tems. Proper use HACCP hygiene management Symbols on the machine Overview Quick start instructions SGV 6/5 Quick start instructions SGV 8/5 16 EN– 2 Illustration 1 Locking mechanism of the wastewater container 2 Lid of the wastewater container 3 Wastewater container 4 Rough dirt filter 5 Filter holder 6 Steam suction hose 7 Push handle 8 Hose holder 9 Adapter for accessories (homebase) 10 Holder for steam suction pipe (parking position) 11 Retainer of the steam suction pipe (self-cleaning) (only SGV 8/5) 12 Holder for floor nozzle (parking position) 13 Steering roller with fixed position brake 14 Detergent container (SGV 8/5) Container for detergent spray bottle (SGV 6/5) 15 Recessed grip 16 Fresh water container 17 Accessory outlet 18 Locking mechanism of the accessory plug 19 Rubber lip insert for floor nozzle 20 Floor nozzle 21 Locking mechanism of the inserts for the floor noz- zle 22 Triangular nozzle 23 Accessory plug 24 Cover of the accessory outlet 25 Operating field 26 Cover of the accessory tray 27 Accessory tray 28 Accessory lock 29 Screw cap of the detergent container (only SGV 8/5) 30 Screw cap of the fresh water container 31 Carrying handle of the fresh water container, fold- ing 32 Detergent spray bottle (only SGV 6/5) 33 Steam suction pipe 34 Round brush 35 Handle 36 Detail nozzle/adapter for crevice nozzle 37 Extension for detail nozzle 38 Rubber lip for hand nozzle 39 Hand nozzle 40 Brush collar for hand nozzle 41 Crevice nozzle 42 Brush strip insert for floor nozzle 43 Step depression 44 Storage for floor nozzle 45 Cable hook, rotating 46 Air outlet, working air 47 Holder for steam suction pipe 48 Power cord 49 Holder for triangular nozzle 50 Quick start instructions 51 Cover of the wastewater container 52 Closure of the wastewater container 53 Nameplate Illustration 10/OFF 2 Operating mode: Cold water/suction operation 3 Operating mode: Steam/hot water/cold water/suc- tion operation (eco!efficiency) 4 Operating mode: Steam/hot water/cold water/suc- tion operation 5 Operating mode: Rinsing (SGV 8/5 only) 6 Operating mode: Detergent/suction operation (SGV 8/5 only) 7 Operating mode: Self-cleaning (SGV 8/5 only) 8 Rotating knob 9 Display (SGV 8/5 only) 10 Indicator lamp "Operational readiness" (green) 11 Indicator lamp "Heating on" (green) 12 Indicator lamp "Service" (yellow) 13 Indicator lamp "Fresh water container empty" (red) 14 Indicator lamp "Wastewater container full" (red) 15 Indicator lamp "Fault" (red) 16 Hand wheel 17 Suction button 18 Steam switch 19 Safety catch 20 Steam quantity regulator: Level I-II-III 21 Applying hot water 22 Applying cold water Safety devices serve for the protection of the user and must not be put out of operation or bypassed with re- spect to their function. – The handle is equipped with a safety catch on the steam switch, which prevents accidental steam re- lease. – In the event that the steam suction hose is shortly unattended during operation, it is recommended to activate the safety device (pull out safety catch). In order to trigger the steam release again, deactivate safety device (push safety catch in). – Please read the cleaning instructions of the manu- facturer before treating leather, special fabrics and wooden surfaces and always do a trial on a sample or some hidden part. Let the steam-treated surface dry and then check whether there are any changes to the colour or form on account as reaction to the steam. – We recommend that you be very careful while cleaning wooden surfaces (furniture, doors, etc.) because long exposure to steam can damage the wax coating, the finish or the surface colours. Hence we recommend that you use steam only for short intervals or first clean the surface with a cloth that has been steam-moistened. – For highly sensitive surfaces (for e.g. synthetic ma- terials, painted surfaces, etc.) we recommend that you use the steam function at the minimum perfor- mance level. – Cleaning of stainless steel: Avoid the use of abra- sive brushes. Use hand nozzle with rubber lip or detail nozzle without a round brush. Always test the compatibility of the fabrics on a hidden spot prior to treating them with the appliance: Steam first, then allow to dry before checking for colour chang- es or deformation. Device elements Operating field Safety Devices Safety catch Cleaning methods Cleaning of various materials Refreshing textiles 17EN– 3 When cleaning painted or plastic-coated surfaces, as found on kitchen and living room furniture, doors, par- quet, linoleum; wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. When cleaning these surfaces, briefly steam a cloth and wipe the surfaces with it. 몇 WARNING Health risk, risk of damage. Observe all indications on the detergent used. ATTENTION Detergent solutions with a pH-value higher than 13 (al- kaline) and smaller than 2 (acidic) can damage the ap- pliance. Note: For considerate treatment of the environment use detergent economically. For further information, please request product informa- tion sheet and EU safety data sheet of the relevant de- tergent. Only SGV 6/5: Note: The supplied spray bottle is empty. Fill the spray bottle with the detergent. Only SGV 8/5: Mix fresh water (max. 40 °C) and detergent in a clean container (concentration as per the instruc- tions for the detergent). Only SGV 8/5: Pull out the detergent container. Unscrew the screw cap of the detergent container. Note: For technical reasons (automatic bleeding of the pumps) there can be water in the detergent container. Fill detergent container with cleaning solution. Screw the screw cap of the detergent container back in. Slide the detergent container all the way in to the stop. ATTENTION Never fill fresh water tanks with demineralised water or detergent. This can damage the appliance or cause malfunctions. Pull out fresh water container. Unscrew the screw cap of the fresh water contain- er. Fill the fresh water container with at least 3 litres of water. Note: Regular tap water can be used. Screw the screw cap of the fresh water container back in. Slide the fresh water container all the way in to the stop. DANGER Risk of scalding! In order to prevent steam from escap- ing when accessories are disconnected, the safety catch on the steam switch must be pulled out. Check accessory for safe connection prior to use. Open the cover of the accessory outlet, plug the ac- cessory plug in the accessory outlet and snap it in place audibly. Connect accessory: Connect the handle or the steam suction hose with the desired accessory. Slide parts into each other until the accessory lock snaps into place. Disconnect accessory: Hold the accessory lock down and pull the accessory parts apart. Connect and hand-tighten screwable accessories. Illustration Illustration Always place the machine in a horizontal position during operation. Only SGV 8/5: – Text or a line/bar presentation is shown on the dis- play. – The line/bar presentation depicts a certain period of time. At the beginning of the period of time 10 bars are shown, which are replaced by lines from the right to the left until 10 lines are shown in the end. – EU/CH: German – GB: English Users, whose national language is not available as the display language: Select English as the display language. Available display languages: – German – English –French – Spanish – Japanese Set the rotary switch on the appliance to "0/OFF". Set the handwheel on the handle to cold water. Press the suction button and the steam switch. Set the rotary switch to cold water/suction opera- tion. Cleaning of Coated or Lacquered Surfaces Detergent Kitchen area Grease and protein re- mover RM 731 (alkaline) Floorings, e.g. safety tiles Universal floor cleaner RM 743 (alkaline) Porcelain stoneware RM 753 (alkaline) Sanitary area, e.g. show- er, floorings with limescale deposits Floor Deep Cleaner CA 20C (acidic) Start up Detergent spray bottle Prepare cleaning solution Fill detergent container Fill the fresh water reservoir Attaching the Accessories Accessories with plug connection Accessories with screw connection Replacing the inserts of the floor nozzle Replacing the inserts of the hand nozzle Operation Display Text # # # # _ _ _ _ _ _ Factory-set display language Selecting the display language 18 EN– 4 The lower line is flashing as the display language has not been saved yet. Release the suction button and the steam switch. Select a language by means of the handwheel. Press the steam switch in order to save the display language. The bottom line stops flashing. ATTENTION Risk of damage! Do not tilt the appliance while it is switched on. Plug in the mains plug. Set the rotary switch to the desired operating mode. Note: With this operating mode the handwheel has the "Apply cold water" function in every position. The steam/ hot water operation is deactivated. Set the rotary switch to cold water/suction operation. Press the steam switch. Cold water is dispensed as long as the button is pressed. Start suction operation: Press suction button brief- ly. End suction operation: Press suction button again briefly. Press the steam switch and at the same time press the suction button briefly. Suction operation starts and cold water is dispensed at the same time. Set the rotary switch to steam/hot water/cold water/ suction operation. DANGER Risk of scalding! In order to prevent unintended escape of steam, the safety catch on the steam switch can be pulled out. DANGER Scalding danger! The heating process starts and the indicator lamp "Heating on" is flashing green. After approx. 7 minutes the heating process is finished. The indicator lamp "Heating on" is green. Note: The heater switches on repeatedly during use (in- dicator lamp is flashing green) in order to maintain the pressure in the vessel. -Alternating display- Depending on the set steam level, the display shows the following: Steam maximum or Steam medium or Steam minimum Press the steam switch. Steam is dispensed as long as the button is pressed. – Light steam (level I): To sprinkle water on plants, clean fabrics, wallpa- pers, upholstery, etc. – Medium steam (level II): For carpeted floors, carpets, window panes, floors. – Heavy steam (level III): For the removal of stubborn soiling, stains and grease. Set the steam quantity regulation on the handwheel to the desired steam level. DANGER Scalding danger! Note: Hot water (approx. 70 °C) increases the cleaning effect. Verify the temperature resistance of the surface to be cleaned. Set the handwheel to hot water. Press the steam switch. Hot water is dispensed as long as the button is pressed. Set the handwheel to cold water. Press the steam switch. Cold water is dispensed as long as the button is pressed. Start suction operation: Press suction button brief- ly. End suction operation: Press suction button again briefly. Press the steam switch and at the same time press the suction button briefly. Suction operation starts and steam or hot/cold water is dispensed at the same time. Only SGV 8/5: In the operating mode eco!efficiency the appliance works with a reduced suction performance and a re- duced sound level. Set the rotary switch to steam/hot water/cold water/ suction operation (eco!efficiency). Only SGV 8/5: Note: Test the detergent resistance of the surface to be cleaned. Note: With this operating mode the handwheel has the "Apply cleaning solution" function in every position. The steam/hot water/cold water operation is deactivated. language German Turning on the Appliance filling process please wait Cold water/suction operation Applying cold water cold water Vacuuming operations Combined operation Steam/hot water/cold water/suction operation Steam operation heating # # # # _ _ _ _ _ _ steam/hot water ready steam/hot water steam maximum Steam quantity regulation Applying hot water hot water Applying cold water cold water Vacuuming operations Combined operation Steam/hot water/cold water/suction operation (eco!efficiency) Detergent/suction operation 19EN– 5 Set the rotary switch to detergent/suction opera- tion. Press the steam switch. Cleaning solution is dis- pensed as long as the button is pressed. Start suction operation: Press suction button brief- ly. End suction operation: Press suction button again briefly. Press the steam switch and at the same time press the suction button briefly. Suction operation starts and the cleaning solution is dispensed at the same time. Note: As soon as the entire content of the detergent container has been applied and vacuumed off again, the wastewater container must be emptied in order to prevent excessive formation of foam. Only SGV 8/5: – After operation with detergent, the appliance must be rinsed. – If the rotary switch is not set to rinsing after opera- tion with a detergent, the following message ap- pears on the display: Set rotary switch to rinsing. Hold down the steam switch. Rinsing starts. Hold the floor nozzle over a drain or start suction opera- tion. Rinsing in process. Time elapsed is displayed. Note: If the steam switch is released, the rinsing pro- cess stops. When pushing the steam switch again, the rinsing process is continued. Note: The rinsing process can be extended by pushing the steam switch longer. Open the cover of the wastewater container. Push the locking mechanism of the wastewater container up. Remove the wastewater container. Unlock the closure of the wastewater container and remove the lid. Empty the wastewater reservoir. During short interruptions of work, the floor nozzle can be brought into the parking position and the steam suc- tion pipe can be snapped in place. Set the rotary switch on the appliance to "0/OFF". Pull out the mains plug. Only SGV 8/5: Set the rotary switch on the appliance to self-clean- ing. -Alternating display- Fold out the holder for the floor nozzle (parking po- sition). Remove the floor nozzle from the steam suction pipe. Snap the steam suction pipe in the retainer (bot- tom) and the holder (top) in a way that the handle points outwards. Press the steam switch briefly. Self-cleaning starts. Self-cleaning proceeds automatically. Time elapsed is displayed. Empty and dry the fresh water tank. Empty and dry the detergent container (SGV 8/5). Empty, clean and dry the wastewater container. Thoroughly clean accessories: Clean handle, steam suction hose and accessory plug using a damp cloth. Clean the remaining accessories with hot water and dry. Clean the outside of the appliance with a damp cloth. Clean visible dirt off the appliance using a warm, damp cloth and detergent, or disinfect, as neces- sary. 몇 WARNING Risk of growth of microbial organisms! Select the clean- ing area for the appliance, such that contamination of the surrounding area, food and food-processing tools and machines, e.g. due to spray water, can be ruled out. Press the locking mechanism of the accessory plug and pull the accessory plug out of the accessory outlet. Allow accessories to dry sufficiently and place them in the accessory tray. Empty fresh water container. Only SGV 8/5: Empty and clean detergent contain- er. Illustration Store floor nozzle, steam suction pipes, steam suc- tion hose and power cable as shown in the illustra- tion. Applying the detergent solution detergent Vacuuming operations Combined operation After operation with detergent / rinsing select flushing program start flushing flushing # # # # _ _ _ _ _ _ flushing completed Empty wastewater container Putting Down the Accessories Turn off the appliance Self-cleaning prepare self-cleaning Self-cleaning see quick start start self-cleaning Self-cleaning # # # # _ _ _ _ _ _ Self-cleaning completed After each operation Storing the Appliance 20 EN– 6 Remove all water from the appliance prior to longer periods of non-use to avoid offensive odours. Allow appliance to dry sufficiently: Slightly pull out the wastewater, fresh water, and detergent con- tainer and open the cover of the accessory tray. Place the appliance in a dry room and secure it from unauthorized use. Note: Always allow the brushes to cool down so that any deformation of the bristles is avoided. Note: Detergent residue or care emulsions that are still present on the surface to be cleaned can lead to streaks during steam cleaning. However, these will disappear with repeated cleaning procedures. – Elimination of odours and wrinkles from hanging pieces of clothing, by steaming them from a dis- tance of 10-20 cm. The closer you hold the nozzle to the dirty spot, the higher the cleaning effect as temperature and pressure of the steam reach their maximum values immediately when they are emitted from the nozzle. – The use of the detail nozzle is recommended for hard to reach areas. – Treatment of stains on carpeted floors or carpets prior to the use of the brush. – Cleaning of stainless steel, window panes, mirrors and enamel surfaces. – Cleaning of corners on stairs, window frames, door posts, aluminium profiles. – Cleaning of fittings. – Cleaning of window shutters, radiators, interior cleaning of vehicles. – The round brush is suitable for stubborn soiling on especially small surfaces such as stove tops, roller shutters, tile joints, sanitary facilities, etc. Note: The round brush is not suitable for cleaning sensitive surfaces. – Extension: With this accessory an optimum clean- ing of places that are particularly hard to reach is possible. Ideal for cleaning heaters, door posts, windows, roller shutters, sanitary facilities. – Cleaning of large surfaces, floors made of ceram- ics, marble, parquet, carpets, etc. – Floor nozzle with rubber lip insert: For vacuuming up liquids from smooth surfaces. – Floor nozzle with brush strip insert: For etching and scrubbing down stubborn soiling. – Recommended for cleaning large glass and mirror surfaces, smooth surfaces in general or for the cleaning of fabric surfaces such as sofas, mattress- es, etc. – Rubber lip: For smaller surfaces such as multi- pane windows and mirrors. For window panes and larger surfaces such as wall tiles, worktops, stain- less steel surfaces. – Brush collar: For carpets, staircases, car interiors, fabric surfaces in general (after carrying out a test on a hidden area). For abrasive cleaning and scrubbing. Note: Preheat window panes during seasons with es- pecially low temperatures. In order to do so, lightly steam the entire glass surface from a distance of ap- prox. 50 cm. This will prevent tensions on the surface which might lead to glass breakage. Evenly steam the glass surface from a distance of approx. 20 cm in order to remove the dirt. Switch off the steam supply. Strip the glass surface web by web from top to bot- tom by means of the rubber lip and vacuum off. Wipe the rubber lip and the lower window frame dry as necessary. The triangular nozzle must only be used with the suction function. 몇 CAUTION Risk of injury and damage! Observe the weight of the appliance when you transport it. Place the floor nozzle in the tray on the rear side of the appliance and snap the steam suction pipe in place. Disconnect steam suction pipes. Release the park brakes and push the appliance by the push handle. Grab the appliance on the recessed grip and on the push handle for loading it.

Pull the device behind you at the carrying handle for transporting it over longer distances When transporting in vehicles, secure the appli- ance according to the guidelines from slipping and tipping over. Empty all containers first. 몇 CAUTION Risk of injury and damage! Note the weight of the appli- ance in case of storage. This appliance must only be stored in interior rooms. DANGER Switch off the appliance, pull the power plug and allow the appliance to cool down prior to performing any work on the appliance. Regularly check the condition of the seals (2x O- ring) in the accessory plug, in the handle and in the steam suction pipes. Replace seals if necessary. Note: Damaged or missing O-rings can cause in- creased temperatures in the handle. How to use the accessories Handle without accessories Application examples Detail nozzle Application examples Detail nozzle and accessories Floor nozzle Application examples Hand nozzle Application examples Hand nozzle and accessories Window cleaning Triangular nozzle Transport Storage Care and maintenance Checking seals 21EN– 7 Open the cover of the wastewater container. Push the locking mechanism of the wastewater container up. Remove the wastewater container. Unlock the closure of the wastewater container and remove the lid. Turn cover by 180° and set it aside. Remove the coarse dirt filter from the filter holder and replace it. Have the device decalcified by customer service. DANGER Switch off the appliance, pull the power plug and allow the appliance to cool down prior to performing any work on the appliance. DANGER Repair works may only be performed by the authorized customer service. Refill detergent. Insert the detergent container correctly, slide it all the way in to the stop. Turn off the appliance, wait briefly, turn on the ap- pliance once again. If the indicator lamp does not go out, repeat the procedure (max. 4 times). Advance warning descaling (100h more) Have the device decalcified by customer service. Descaling Have the device decalcified by customer service. Refill fresh water. Insert the fresh water container correctly, slide it all the way in to the stop. Empty wastewater. Insert the wastewater container properly and lock it. Turn off the appliance. Check fresh water container for proper seating. Switch the machine back on again. If the indicator lamp does not go out, repeat the procedure (max. 4 times). Inform Customer Service. Inform Customer Service. Inform Customer Service. Inform Customer Service. Check accessory plug for proper seating. Turn off the appliance, wait briefly, turn on the ap- pliance once again. Inform the after sales service if the error reoccurs. Check accessory plug for proper seating. If water gets into the handle, ensure complete dry- ing. Turn off the appliance, wait briefly, turn on the ap- pliance once again. Inform the after sales service if the error reoccurs. Remove clogging from floor nozzle, steam suction pipe, handle, and steam suction hose. Remove clogging from accessories. Check the seals (2x O-ring) in the handle and in the steam suction pipes. If malfunction can not be fixed, the device must be checked by customer service. Replacing the coarse dirt filter Maintenance intervals Yearly Troubleshooting Display without indicator lamp refill detergent Indicator lamp "Service" is flashing yellow service error: E07 service error: E14 Indicator lamp "Service" is yellow service error: E15 Indicator lamp "Fresh water container empty" is red refill fresh water Indicator lamp "Wastewater container full" is red drain wastewater Indicator lamp "Disturbance" flashes red service error: E01 The "Service" indicator lamp is yellow and the "Disturbance" indicator lamp is red at the same time service error: E01 service error: E07 service error: E09 service error: E16 Indicator lamp "Disturbance" is red service error: E12 service error: E13 Insufficient vacuum performance Increased temperatures in the handle Customer Service 22 EN– 8 The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service center. Please submit the proof of purchase. Only use original accessories and spare parts, they en- sure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com. We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements of the EU Directives, both in its basic design and construction as well as in the version put into circu- lation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. 5.966-234 The undersigned act on behalf and under the power of attorney of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Straße 28-40 71364 Winnenden (Germany) Tel.: [phone] Fax: [phone] Winnenden, 2020/11/01 We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construc- tion as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. 5.966-234 The undersigned act on behalf and under the power of attorney of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Straße 28-40 71364 Winnenden (Germany) Tel.: [phone] Fax: [phone] Winnenden, 2020/11/01 Warranty Accessories and Spare Parts EU Declaration of Conformity Product: Steam vacuum cleaner Type: 1.092-xxx Relevant EU Directives 2006/42/EC (+2009/127/EC) 2009/125/EC 2011/65/EU 2014/30/EU Applied harmonized standards EN IEC 63000: 2018 EN 55014–1: 2017 + A11: 2020 EN 55014–2: 2015 EN 60335–1 EN 60335–2–54 EN 60335–2–68 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 Applied national standards

Chairman of the Board of Management Director Regulatory Affairs & Certification Declaration of Conformity (UK) Product: Steam vacuum cleaner Type: 1.092-xxx Relevant UK Regulations S.I. 2008/1597 (as amended) S.I. 2010/2617 (as amended) S.I. 2012/3032 (as amended) S.I. 2016/1091 (as amended) Applied designated standards EN IEC 63000: 2018 EN 55014–1: 2017 + A11: 2020 EN 55014–2: 2015 EN 60335–1 EN 60335–2–54 EN 60335–2–68 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 Applied national standards
