USER MANUAL PRT 550 A5 PARKSIDE

= 1,97 dB Vibration (a

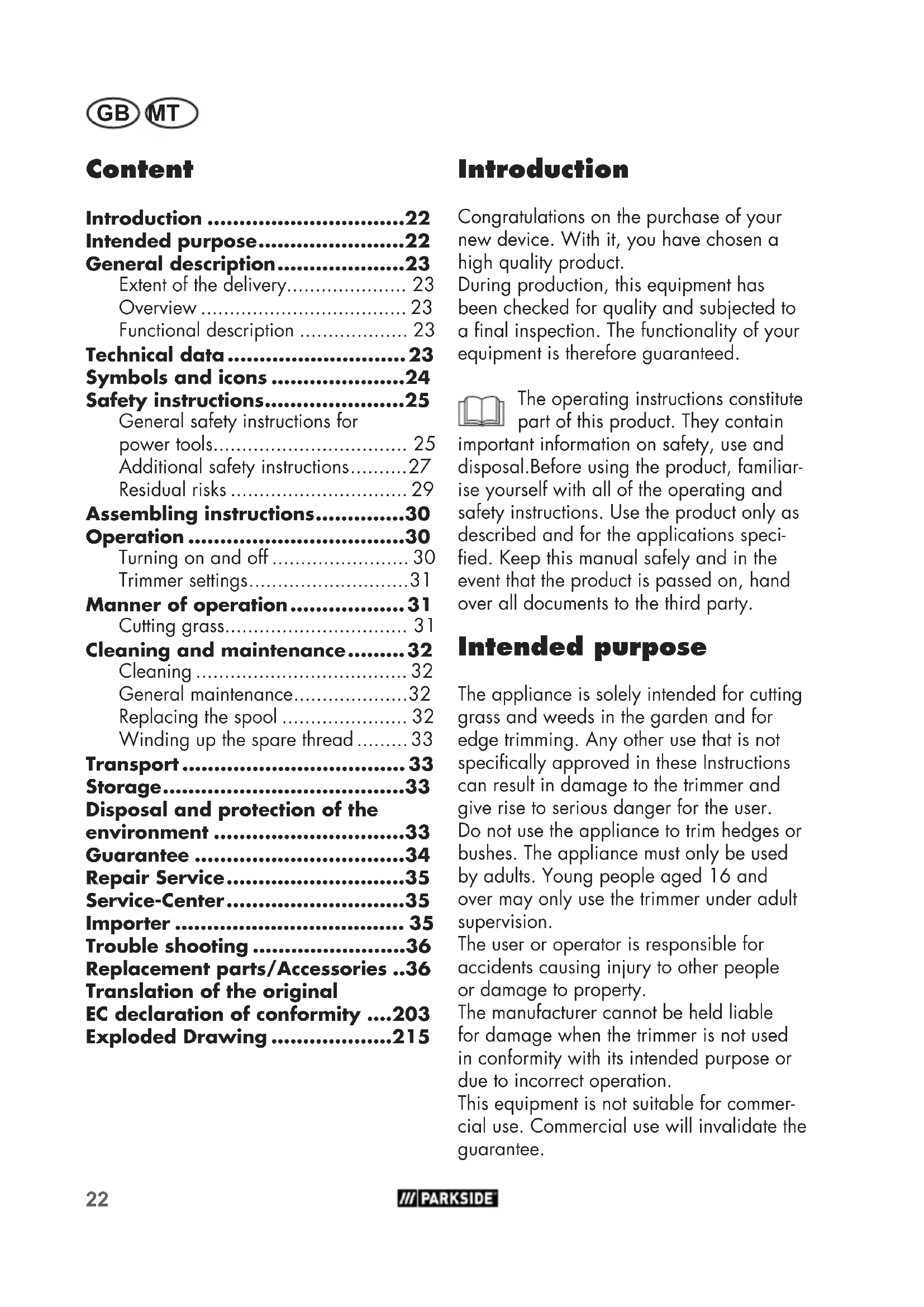

20 Ring 21 Opening, spool Functional description The hand-held, portable electric lawn trim- mer uses a fully automatic string spool for cutting. A hood covering the cutting device protects the user. Refer to the following descriptions for a functional description of the controls. Technical data Electric Lawn Trimmer ...PRT 300 B2 Nominal input voltage U ... 230 V~, 50 Hz Power consumption ......................300 W Idling speed ................ 12500 min

= 3 dB Sound power level (L

= 1.97 dB Vibration (a

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity. Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity. The stated vibration emission value was measured in accordance with a standard General description The illustration of the most im- portant functional components can be found on the fold-out pages. Extent of the delivery Carefully unpack the trimmer and check that it is complete: - Grass Trimmer - Protective cover with two screws - Spool (already tted) - Phillips screws - Auxiliary handle - Instruction Manual Overview 1 On/off switch 2 Upper handgrip 4 Power cable 5 Handle 6 Centre piece 7 Motor head 8 Protective cover 9 Cutting head 10 Auxiliary handle

11.1 Phillips screwdriver (large)

11.2 Phillips screwdriver (small)

12 Nut 13 Handle screw 14 Handle unit 15 Spool cover 15a Triangle marking 15b Line outlet loop, spool cover 16 Line spool 16a Line outlet loop, ring 17 Spring 18 Spool cap 19 Line cutter24 GB MT testing procedure and may be used to com- pare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission

value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Try to keep the exposure to vibra- tions as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load). Symbols and icons Symbols on the trimmer WARNING! Carefully read these Operating Instructions. Wear goggles and ear defenders. The cutting device will keep rotating for a few seconds after the device has been switched off. Keep hands and feet at a safe distance. Do not expose the trimmer to mois- ture. Do not work when it is raining and do not cut wet grass. Keep by-standers well away. They could be injured by ung out objects. Danger due to materials blown out of machine! Remove persons in the vicinity from the danger area. Unplug the connector immediately if the connection cable is damaged. Always remove the mains plug during maintenance work. Noise level rating L

in dB Electrical appliances must not be disposed of with the domestic waste. Protection class (Double insulation) Cutting circle 23cm Cutting circle Direction of line rotation Loosening the spool cover Fixing the spool cover25

Symbols in the manual Warning symbols with in- formation on damage and injury prevention. Warning symbols with in- formation on the prevention of personal injury caused by electric shock. Instruction symbols with information on preventing damage. Carefully read through the user manual Help symbols with information on improving tool handling. Safety instructions Ensure that the safety instructions are observed when operating the trimmer. General safety instruc- tions for power tools WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and instructions for future use. The term “Power Tools” used in the safety instructions refers to mains- operated power tools (with power cord) and to battery-operated pow- er tools (without power cord).

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystand- ers away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded sur- faces, such as pipes, ra- diators, ranges and refrig- erators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or un- plugging the power tool.26 GB MT Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an ex- tension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is una- voidable, use a residual current device (RCD) pro- tected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will re- duce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position be- fore connecting to power source and/or battery pack, picking up or car- rying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotat- ing part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and bal- ance at all times. This ena- bles better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and27

must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, chang- ing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentaIly. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condi- tion that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control. g) Use the power tool, acces- sories and tool bits etc. in accordance with these in- structions, taking into ac- count the working condi- tions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Ensure that the vents are free of soiling.

i) Disconnect the mains

plug/remove the re- chargeable battery from the device - whenever the user no longer remains in the vicinity of the machine. - before the removal of blockages. - before checking, cleaning or working on the machine. - after touching a foreign body in order to check the machine for damage. - for an immediate check if the machine begins to vibrate ex- cessively. If the machine starts to vibrate abnormally, an immediate check must be carried out, - search for signs of damage; - have any necessary repairs car- ried out on damaged parts; - examine for loose parts and tighten these.

Have your power tool ser- viced by a qualied repair person using only identi- cal replacement parts. This will ensure that the safety of the power tool is maintained. Additional safety instructions TRAINING

• The appliance is not suitable for use by children. Children must be supervised to ensure28 GB MT that they do not play with the device. Cleaning and mainte- nance must not be carried out by children.

• This appliance is not intended for use by persons with reduced physical, sensory or mental ca- pabilities, or lack of experience and knowledge.

• Local regulations or bylaws may determine the minimum age for using the device.

• The operator or user is responsi- ble for accidents or damage to other persons or their property.

• Children and persons with lim- ited physical, sensory or men- tal capabilities or inadequate experience and knowledge, or persons who are not familiar with the instructions, should never be allowed to use the machine! Local regulations may specify an age limit for the user.

• Never let children or persons who are not familiar with the instructions mentioned use the machine.

• Familiarise yourself with the controls and how to use the ma- chine correctly. PREPARATIOn

• Before each use, carry out a visu- al inspection on missing or wrong- ly mounted protective devices or parts of the cutting device.

• Before commissioning and after any impacts, check for signs of wear and damages, and have any necessary repairs per- formed.

• Use only approved extension cables (H05VV-F) that are not more than 75 m long and de- signed for outdoor use. Always roll out the cable drum com- pletely before use. Check the cable for damage and ageing.

• Do not connect a damaged ca- ble to the power supply. Do not touch a damaged cable before it has been disconnected from the power supply, as you could come into contact with live parts.

• Prior to use, check the connect- ing cable and extension cable for signs of damage or ageing. If the cable is damaged dur- ing use, disconnect it from the mains immediately. DO NOT

FROM THE POWER SUPPLY. Do not use the machine if the cable is damaged or worn. To unplug the cable from the socket, always pull on the plug, and never on the cable. OPERATIOn

• Wear safety goggles, stable shoes and long trousers over the entire period of use of the machine.

• The use of the machine under bad weather conditions, espe- cially in case of lightning risk, must be avoided.

• Warning! Do not touch any of the dangerous moving parts before you have unplugged the device from the mains sup- ply and the moving parts have come to a complete standstill.

• Caution, risk of injury from cuts on hands and feet.29

• Stop using the machine when persons, above all children, and house pets are in the vicinity.

• Use the machine only in daylight or with good articial lighting.

• Always keep your hands and feet away from the cutting equipment, above all when you switch the motor on.

• Never install metallic cutting elements.

• Never use the machine with damaged or missing protective equipment.

• Avoid an abnormal body pos- ture. Ensure secure footing at all times to maintain balance when working on slopes.

• Go slowly. Do not walk with the device in your hand.

• Always wear sturdy shoes and long trousers during operation of the machine.

• In the case of an accident or malfunction during op- eration, the device must be switched off imme- diately. Injuries must be properly treated or medi- cal assistance sought. Read the „Trouble shooting“ section to correct any malfunctions or contact our Service Centre.

• Extension cables must be kept away from dangerous moving parts to prevent damages to cables that can lead to contact with live parts.

• If the cable/extension cable gets damaged or becomes tangled during use, immediately turn off the mains and unplug the mains cable to disconnect the device from the mains supply.

• Use a circuit breaker device with an operating current of 30 mA or less.

• Keep connection and extension cables away from the cutting equipment.

• Make sure to keep the ventilation openings free of foreign objects.

• If the mains connection cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualied person in order to avoid hazards.

MAINTENANCE AND STORAGE

• Disconnect the mains before servicing or cleaning.

• Use only spare parts and ac- cessories supplied and recom- mended by the manufacturer.

• The machine must be checked regularly and maintained. Have the machine repaired in a li- censed workshop.

• When the machine is not being used, store it out of the reach of children. Residual risks Even if properly operating and han- dling this electric tool, some residual risks will remain. Due to its construc- tion and build, this electric tool may present the following hazards: a) Cuts b) Ear damage if working without ear protection. c) Damage to your health caused by swinging your hands and arms when operating the appli- ance for longer periods of time30 GB MT or if the unit is not held or main- tained properly. Warning! During operation, this electric tool generates an electromagnetic eld which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant be- fore operating the machine. Assembling instructions Fitting the centre piece:

1. Insert the centre piece (6) on to

2. Insert the handle (5) on to the

3. Screw in the centre piece (6)

using the 4 long Phillips screws (11.1). Mounting the protective cover:

4. Place the protective cover (8) on

5. Screw it in using the two short

Phillips screws (11.2). Mounting the auxiliary handle:

6. Unscrew and remove the pre-

assembled nut (12) and bolt (13) of the auxiliary handle (10).

7. Pull the ends of the auxiliary

handle (10) apart and slide them over the handle unit (14).

8. Screw on the auxiliary handle

(10) with the handwheel bolt (13) and nut (12). Operation Caution: risk of injury! Do not operate the appliance with- out the protective cover. To operate the appliance, wear suitable clothing, eye and ear protection. Prior to every use, check that the appliance is operative. Do not lock the On/ Off button in place. After re- leasing the On/Off button, the motor must switch off. Stop using the device if the On/Off button is damaged. Please observe local regulations concerning noise protection. Turning on and off For transport safety during delivery, the cutting line is knotted at the end. The end with the knot is cut by the line cutter (19) the rst time the cutting line is extended. Maintain a rm stand and hold the appliance well with both hands and at some distance away from your body. Before turning on the appliance, check that it will not touch any objects.

1. Connect the machine to the mains

2. Ensure your stance is stable and

hold the appliance tightly with both hands. Do not allow the spool cap to hit the oor.

3. To switch the device on, press

the On/Off button (1). To switch it off, release the On/Off button (1).31

• If no line ends are visible: Re- place the spool (

• Setting the line length manually: Unplug the mains plug! Pull on the line end and press on the cutting head (

9) repeatedly until the

line end protrudes approx. 1cm bey- ond the line cutter ( 19). Manner of operation WARNING. Danger of injury!

• Do not cut moist or wet grass.

• Before starting the unit, make sure that the spool is not touching any stones, scree, or other foreign objects.

• Switch on the trimmer before you approach the grass that is to be cut.

• Do not overload the trimmer dur- ing operation.

• Avoid contact with obstacles (stones, walls, fences, etc.). The spool would wear out quickly.

• Avoid using the device in bad weather, especially if there is a danger of lightning! Cutting grass Cut the grass by swaying the trimmer sideways to the right and left. Cut slowly while the trimmer is tilted forwards by approx. 30°. Cut tall grass by a series of levels from top to bottom. The device cannot be switched to continuous operation. After the device has been switched off, the blade con- tinues moving for some time. Allow the spool to come to a complete stop. Keep hands and feet at a safe distance! Risk of injury! Remove grass cuttings regularly from the spool to make sure that cut- ting is not impaired. Trimmer settings To adjust the auxiliary handle: The auxiliary handle can be set to various positions. Adjust the handle so that the spool cap is tilted slightly forward as you work Loosen the nut (12) and adjust the auxil- iary handle (10) to the desired position. Re-tighten the nut. Extend the cutting line: Your device is equipped with an auto-tap feed, i.e. the two lines are extended when you tap the cutting head on the ground. If the line is initially longer than the cutting circle, it is automatically shortened to the right length by line cutter. Caution: Free the line cutter of any grass cuttings regularly so as not to impair the cutting effect. Check the nylon line regularly for damage and make sure the cutting line still has the length specied by the thread cutter.32 GB MT Cleaning and maintenance Warning! Risk of injury from mov- ing dangerous parts! Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury! Switch off the device and unplug the mains plug. The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life. Cleaning Do not spray the appliance with water and do not im- merse it in water. Electric shock hazard!

• Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

• After every trimming session, remove grass and soil from the protective cover and the trimming assembly.

• Be careful with the line cutter. It can cause serious lacerations. General maintenance

• Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts.

• Check covers and safety devices for damages and correct installation. Re- place as necessary. Replacing the spool The correct winding direction of the spool is indicated on the spool itself.

1. Unplug the mains plug.

2. Open the spool cap (18) by holding

the spool cap (18) rmly with one hand and turning the spool cover (15) in the direction.

3. Remove the spool cover (15) from the

spool cap and take out the spool (16). Make sure not to lose the springs (17).

4. Press the line end of the new spool out

5. Thread the end of the line through the

line outlet loop (15b) in the spool cover (15).

6. Insert the new spool into the spool cap

(18). The side of the spool on which the winding direction is indicated by an arrow must be visible after insertion.

7. Put the spool cover (15) back on the

spool cap (18). Make sure that the triangle markings (15a) on the spool cover (15) and the spool cap (18) line up.

8. Screw on the spool cover (15) by

turning it in the direction. Hold the spool cap (18) rmly with one hand.

9. Pull on the line end and press on the

9) repeatedly until the

line end protrudes approx. 1cm bey- ond the line cutter (19). Check the line cutter (21). Never use the device without a string cut- ter or defective string cutter. If the line cutter is damaged, be sure to contact one of our customer service centres.33

Standard strings available from DIY stores can also be used, allowing you to re-use empty spools (see “Technical data”). The winding direction is indicated on the spool (16). Winding up the spare thread

1. Remove the empty spool, see section

“Replacing the spool” points 1-3.

2. Take the ring (20) upwards away from

3. Thread an end of the spare thread

through the opening (21) of the spool (16).

4. Wind the thread onto the spool (16).

The winding direction is indicated on the top side of the spool (16).

5. Thread the end of the line through the

7. Thread the end of the line through the

line outlet loop (15b) in the spool cover (15).

8. Insert the new spool into the spool cap

(18). The side of the spool on which the winding direction is indicated by an arrow must be visible after insertion.

9. Put the spool cover (15) back on the

spool cap (18). Make sure that the triangle markings (15a) on the spool cover (15) and the spool cap (18) line up.

10. Screw on the spool cover (15) by

turning it in the direction. Hold the spool cap (18) rmly with one hand.

11. Pull on the line end and press on the

9) repeatedly until the

line end protrudes approx. 1cm bey- ond the line cutter (19). Transport Carry the device (switched off) with one hand at the upper handle (

hand at the additional handle ( 10). Face the cutting unit towards the ground. This prevents any contact with the cutting unit during transport. Storage

• Store the trimmer in a dry place well out of reach of children.

• Do not stand the trimmer on its protec- tive cover. Suspend it by its upper han- dle in such a manner that the protective cover does not come into contact with other objects. This is because the pro- tective cover could become deformed, thereby changing its dimensions and its safety properties. Disposal and protection of the environment The appliance, accessories and packaging should be properly recycled. Machines do not belong with domestic waste.

• Take the device to a recycling plant. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.

• Defective units returned to us will be dis- posed of for free.

• Throw the cut grass on the compost. Do not throw it in the normal household waste.34 GB MT Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defec- tive equipment and proof of purchase to be presented within the three-year period with a brief written description of what consti- tutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period be- gins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. Spool) or to cover damage to breakable parts (e.g. battery, charger, cutting plate, protective housing, switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item num- ber (IAN 384571_2107) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci- cation of what constitutes the defect and when it occurred. In order to avoid35

acceptance problems and additional costs, please be sure to use only the ad- dress communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure ad- equate, safe transport packaging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Service Malta Tel.: 80062230 E-Mail: grizzly@lidl.com.mt IAN 384571_2107 Importer Please note that the following address is not a service address. Please initially con- tact the service centre specied above. Grizzly Tools Gmbh & Co. KG Stockstädter Straße 20 63762 Großostheim Germany www.grizzlytools.de36 GB MT Trouble shooting In the event of an accident or malfunction, disconnect the mains plug immediately! Failure to comply may result in injuries from cuts. Problem Possible cause Corrective action Appliance won‘t start On/Off switch (

Send in to Service Centre for repair Motor defective Intermittent operation Internal loose contact Send in to Service Centre for repair On/Off switch (

Much vibration Loud noise Trimming assembly dirty Clean trimming assembly (see „Cleaning and maintenance“) Motor defective Send in to Service Centre for repair Bad trim The line spool (

not have enough cutting line If necessary, extend the cutting line (see chapter “Device adjustments”) Replace the spool (

ing and Maintenance”). Cutting line is not led out of the spool cover ( 15) Remove the spool cover (

= 1,97 dB Vibration (a

= 1,97 dB Vibration (a

Translation of the original EC declaration of conformity We hereby conrm that the ElectricLawnTrimmer PRT 300 B2 series Serial number 000001 - 220000 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC•2014/30/EU•2000/14/EC&2005/88/EC 2011/65/EU* & (EU) 2015/863 In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: EN60335-1:2012/A2:2019•EN50636-2-91:2014 EN55014-1:2017/A11:2020•EN55014-2:2015

EN61000-3-2:2014•ENIEC61000-3-2:2019

EN61000-3-3:2013•EN61000-3-3:2013/A1:2019 EN IEC 63000:2018 We additionally conrm the following in accordance with the 2000/14/EC emissions guideline: Guaranteed sound power level: 90 dB(A) Measured sound power level: 88,2 dB(A) Compliance evaluation process carried out in accordance with Appendix VI, 2000/14/EC Registered Ofce: NB 0036, TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 München, Germany This declaration of conformity is issued under the sole responsibility of the manufacturer: Christian Frank Documentation Representative Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, Germany, 20.11.2021

• The object of the declaration described above satises the provisions of Directive 2011/65/ EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.204
