USER MANUAL TCAV 1720 DW EINHELL

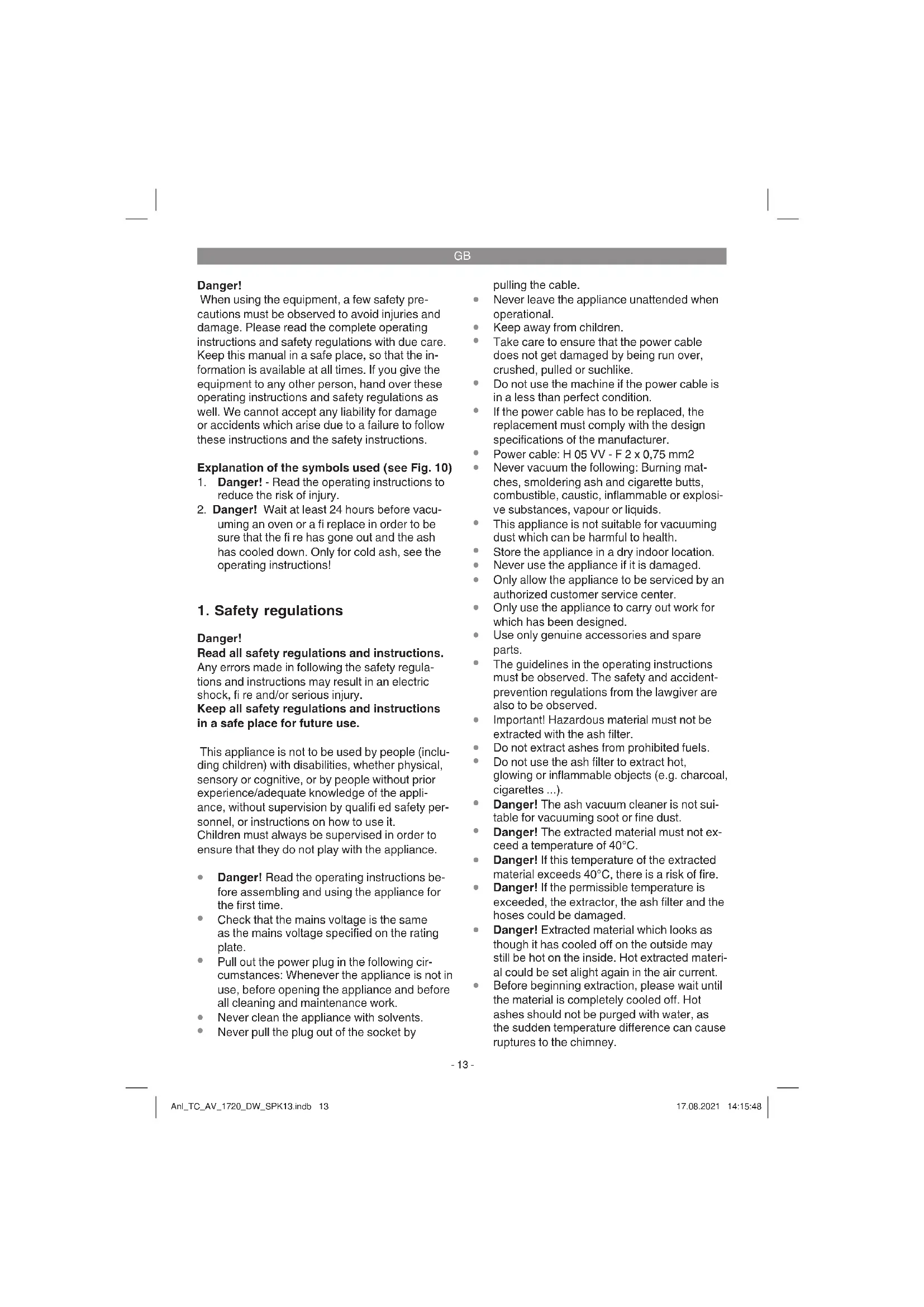

GB Original operating instructions Ash vacuum

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 10)

1. Danger! - Read the operating instructions to reduce the risk of injury.
2. Danger! Wait at least 24 hours before vacuuming an oven or a fi replace in order to be sure that the fire has gone out and the ash has cooled down. Only for cold ash, see the operating instructions!

1. Safety regulations

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

This appliance is not to be used by people (including children) with disabilities, whether physical, sensory or cognitive, or by people without prior experience/adequate knowledge of the appliance, without supervision by qualified safety personnel, or instructions on how to use it. Children must always be supervised in order to ensure that they do not play with the appliance.

• Danger! Read the operating instructions before assembling and using the appliance for the first time.
• Check that the mains voltage is the same as the mains voltage specified on the rating plate.
  Pull out the power plug in the following circumstances: Whenever the appliance is not in use, before opening the appliance and before all cleaning and maintenance work.
• Never clean the appliance with solvents.
• Never pull the plug out of the socket by

pulling the cable.

• Never leave the appliance unattended when operational.
• Keep away from children.
  Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or suchlike.
• Do not use the machine if the power cable is in a less than perfect condition.
  If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer.
  Power cable: H 05 VV - F 2 x 0,75 mm2
• Never vacuum the following: Burning matches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosive substances, vapour or liquids.
  This appliance is not suitable for vacuuming dust which can be harmful to health.
• Store the appliance in a dry indoor location.
• Never use the appliance if it is damaged.
  Only allow the appliance to be serviced by an authorized customer service center.
  Only use the appliance to carry out work for which has been designed.
• Use only genuine accessories and spare parts.
  The guidelines in the operating instructions must be observed. The safety and accident-prevention regulations from the lawgiver are also to be observed.
• Important! Hazardous material must not be extracted with the ash filter.
• Do not extract ashes from prohibited fuels.
• Do not use the ash filter to extract hot, glowing or inflammable objects (e.g. charcoal, cigarettes ...).
  Danger! The ash vacuum cleaner is not suitable for vacuuming soot or fine dust.
• Danger! The extracted material must not exceed a temperature of 40^ .
• Danger! If this temperature of the extracted material exceeds 40^ , there is a risk of fire.
• Danger! If the permissible temperature is exceeded, the extractor, the ash filter and the hoses could be damaged.
• Danger! Extracted material which looks as though it has cooled off on the outside may still be hot on the inside. Hot extracted material could be set alight again in the air current.
  Before beginning extraction, please wait until the material is completely cooled off. Hot ashes should not be purged with water, as the sudden temperature difference can cause ruptures to the chimney.

GB

Wait at least 24 hours before vacuuming an oven or a fireplace in order to be sure that the fire has gone out and the ash has cooled down.
- Check the hoses, the ash filter and the extractor regularly when extracting, to assess levels of heating.
If the appliance heats up, switch it off, pull the mains plug out and remove the filter bag immediately. Separate the ash filter from the extractor and remove the extracted material.
- Next, let the extractor and the ash filter cool off outside, under supervision.
If the power cable for this appliance is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
Cold ash is ash which has cooled for a sufficiently long time and no longer contains any glowing embers. This can be checked by combing through the ash with a metal object before you use the ash vacuum cleaner. Cold ash no longer radiates any perceivable heat.
After and before vacuum cleaning, empty and clean the tank in order to prevent the accumulation of materials which could present a fire hazard in the vacuum cleaner.
The ash vacuum cleaner is not allowed to be used for collecting harmful dusts (dust class L, M, H).

2. Layout and items supplied

2.1 Layout (Fig. 1,6)

1Handle

2 On/Off switch
3 Appliance head
4 Filter basket
5 Blow connector
6 Locking hook
7Tank
8 Suction hose connector
9 Suction tube
10 Flexible hose
11 Filter cartridge for fine ash dust.
12 Wing nut
13 Coarse filter
14 Wheels

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

Ash vacuum
Original operating instructions

3. Proper use

The ash vacuum cleaner is suitable for vacuuming cold ash or cold material residues from fi replaces, charcoal ovens, ash-trays or barbecues.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

GB

4. Technical data

Mains voltage: 220-240 V ~ 50/60 Hz

Power input: 1250 W

Tank volume: 201

Protection class:

Weight: ca. 3.9 kg

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

The appliance may only be connected to a shockproof socket.

5.1 Assembling the appliance

Fitting the appliance head (Fig. 2-5)

The appliance head (3) is fastened to the container (7) by the locking hook (6). To remove the appliance head (3), open the locking hook (6) and remove the appliance head (3). When fi tting the appliance head (3), make sure that the locking hook (6) locks into place correctly.

Plug the vacuum tube (9) onto the end of the suction hose (10).

Fit the suction hose (10) onto the connection (8) and turn until securely attached.

5.2 Fitting the fi Iter Notice!

Never use the ash vacuum without the fi liter! Always ensure that the fi iters are perfectly secure.

Removing/fitting the pleated filter (Fig. 6)

First undo the wing nut (12) and then remove the pleated filter (11) and the filter cage (4) by pulling. Assemble in reverse order. Check that the filter is securely seated at all times.

Important!

The equipment comes with a safety switch (z) which does not allow the equipment to be switched on when the pleated filter and the filter basket are not fitted.

Fitting the coarse fiiter (Fig. 7)

Fit the coarse filter (13) as shown in Figure 7.

5.3 Fitting the wheels (Fig. 9)

Fasten the wheels (14) as shown in Figure 9.

6. Operation

6.1 ON/OFF switch (Fig. 1/2)

Press the ON/OFF switch (2) to switch the equipment ON and OFF.

6.2 Blowing

Connect the suction hose (10) to the blow connector (5) of the ash vacuum cleaner.

6.3 Cleaning the appliance head

Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance.

6.4 Cleaning the container

The container can be cleaned with a damp cloth and some soft soap or under running water, depending on the amount of dirt.

6.5 Cleaning the fi Iter

Clean the filter basket (4), the pleated filter (11) and the coarse fi liter (13), e.g. by tapping and brushing or by blowing out with compressed air at low pressure.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

GB

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.
  We recommend that you clean the appliance immediately after you use it.

8.2 Servicing

At regular intervals and before each use, check that the fiilters in the ash vacuum are securely fitted.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Type of machine
Article number of the machine
Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30

°C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Suction tube
Consumables*	Pleated filter, foam filter, coarse filter
Missing parts

• Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?
Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?

Describe this malfunction.

GB

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

Chere cliente, cher client,

Stimata clienta, stimate client,

produsele noastre sunt supuse unui control de calitate riguros. Daca totusi vredata acest aparat nu va functiona ireprosabil, ne pare foarte rau si va rugam sa va adresati centrului nostru service, la adresa indica tla finalul acestui certificat de garantie. Bineinteles ca va stam si la Telefon cu placere la disposiztie, la numeroile de service mentionate. Pencru revendicare apretiilor de garantie trebuie tinut cont de urmatoarele:

6.5Kaagipoioctwviltpwv

Evaakrih h avakkawon avi ia iotpoi

O iokntnc nKtpiKc ukeun unoxpeout ai vti n tioptpoc va uuaiaotn ootn avakkwn oepinwnou kevtpoN cKtpiKw oukeuwv mEvvoia wuovn H nlaia ouokeun npotei va napaxwneoi e Kevtpo Etniopoc nKtpiKw oukeuwv me TmEvvoia twv eVikowv voowy avakkwn coai xepionc anoBantW. Dev ouipiaauavovta ta tmnatau oouekuvk ta tonntka otoxieia xwpic nKtpiKa eaptnmuata.

H avatunwnn nooniaodnnte aannc mopnns avanapayyn nts teknpwns n aaawv
deltaoyntikw nou avadepovtal ota npoiovta, akoun kai anoanaatika, enitpenetai mvo ptnn ouykataheom tnC Einhll Germany AG.

Me eiuulaaen teyivkowpontonnoeaw

GR

Evnpewon yia to epbiC

5. Pre puštanja u pigeon

Pre ukljucivanja proverite odgovaraju li podaci na tipskoj ploci podacima o mrezi.

Upozorenje!

Pre negro počnete da podesavate uredaj, iz-vucite utikač iz uticnic.

Urejaj sme da se prikiuci samo na uticnicu sa zaitnim kontaktom!

5.1 Montaža uredaja

Montaža glave uredaja (sl. 2-5)

Glavu uredaja (3) priivrstite pomocukica za zatvaranje (6) na spremnik (7). Da biste skinuli glavu uredaja (3) otvorite kukice za zatvaranje (6) i skinite glavu (3). Kod montaze glave (3) pripazite da se kukice (6) ispavnov ulgrave.

Usisnu cev (9) nataknite na kraj usisnog creva (10).

Utaknite usisno crevo (10) u priključak (8) i obrotanjem ga učvrstite.

5.2 Montaza fi Itera

Napomena!

Subject to change without notice

Archive-File/Record: NAPR024220

Documents registrar: Sergey Hirsekorn

Wiesenweg 22, D-94405 Landau/Isar

* GB Ach vacuum - Aspirater du sandres - AAspiracenere - DKV Asseguer - S Assegur - CZ Vysvazn na popel - SK Vysvazn na popel - NL Aszugir - E Aspirater de centro - FN Tlukmalr - SLO Sasznak ra papei - H Hamusvdo - RO Aspirater perin cenga - H G K Uxkupk axolina y aoytcrp - A Aspirater de dinas - HR BIH Lusaez - Pcpeia - PL Oskuratr da poplu 1K TFI Asipker - RUS flucunza - ZE Tfumur - LV Peine sucsp - LT Pemni, statalys BG Cwiater aan nenon UKR Tropovnya for koxoienyran zanm - MRC Bocenyar na nenon

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

Simple Pressure Vessels (Safety) Regulation
Electrical Equipment (Safety) Regulation
Radio Equipment Regulation
Personal Protective Equipment Regulation
The Ecodesign for Energy-Related Products and Energy Information Regulation
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
Nolse Emisslon in the Environment by Equipment for use Outdoors Regulation
Noise:measuredL = dB Aguaranteed L_WA = dB A
Supply of Machinery (Safety) Regulation
Annex IV
Notified Body:
Reg.No.:

Standards: BS 60335-1; BS 60335-2-2; BS 62233

BS 55014-1; BS 55014-2; BS 61000-3-2; BS 61000-3-3

Wirral, 2021.07.15

Tom Chambers, Managing Director Einhell UK Ltd.

Archive-File/Record: NAPR024220

Article Number: 23.516.66 I-No.: 21011

Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany

Documents registrar: Sergey Hirsekorn

EH 08/2021 (01)
