Product Type	Wireless Router
Brand	ASUS
Model	ROG Strix GSAX5400
Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz and 5 GHz
Total Speed	Up to 5400 Mbps
Antennas	4 external adjustable antennas
LAN Ports	4 RJ-45 Gigabit ports
WAN Port	1 RJ-45 Gigabit port
USB Port	1 USB 3.2 Gen1 port
Buttons	WPS, Reset, Power switch
Power Supply	DC 19V, 1.75 A max power adapter
Dimensions (approx.)	200 x 200 x 50 mm
Weight (approx.)	800 g
Operating Temperature	0°C to 40°C
Operating Humidity	50% to 90%
Main Functions	Gaming optimized, QoS, MU-MIMO, OFDMA, Beamforming, VPN, firewall
Configuration	Via web interface (http://router.asus.com) or ASUS Router app
Maintenance and Cleaning	Unplug before cleaning; use a dry cloth. Avoid metal obstructions and interference sources.
Security	Administrator password, WPA2/WPA3 encryption, built-in firewall
Spare Parts and Repairability	Power adapter and network cable included; consult ASUS support for parts.

Frequently Asked Questions - ROG Strix GSAX5400 ASUS

How to reset the router to factory settings?

Press and hold the Reset button on the back of the router for about 5 seconds until the power LED blinks. Release and wait for the router to restart.

How to update the router firmware?

Log in to the management interface (http://router.asus.com), go to Administration > Firmware Update and click Check. Follow the instructions to install the latest version.

What are the default Wi-Fi network name (SSID) and password?

The default SSID is ASUS_XX (XX corresponds to the last two digits of the 2.4 GHz MAC address). The default password is printed on the label on the back of the router.

How to configure the router via the ASUS Router app?

Download the ASUS Router app, enable Wi-Fi on your mobile, connect to the router's network (default SSID), then follow the app instructions to set up your internet connection.

What to do if I cannot access the management interface?

Ensure you are connected to the router (via cable or Wi-Fi). Type http://router.asus.com in the address bar. If that fails, try the default local IP address: 192.168.1.1.

How to optimize Wi-Fi coverage?

Place the router centrally, away from metal obstructions, electronic devices (microwaves, etc.), and thick walls. Orient the four external antennas as indicated in the guide.

Can I use a power adapter not provided?

No, use only the power adapter provided with your router. Using an incompatible adapter may damage the device.

How to connect a USB device to the router?

Plug your USB device into the USB 3.2 Gen1 port on the back of the router. You can then access shared files via the network or configure a print server in the management interface.

Does the router support VPN?

Yes, the router supports VPN connections. You can configure a VPN server or VPN client in the advanced settings of the management interface, under VPN.

How to change the Wi-Fi password?

Log in to the management interface. Go to Wireless > General, change the WPA Pre-Shared Key field and click Apply.

USER MANUAL ROG Strix GSAX5400 ASUS

Abstract logo design with stylized white and red shapes on dark background (no text or symbols)

REPUBLIC OF GAMERS

Q17673

QUICK START GUIDE

ROG STRIX GS-AX5400 Dual-band Gaming Router

Table of contents Table of contents

English....3

Български....9

Hrvatski....15

Čeština....21

Dansk 27

Nederlands 33

Eesti 39

Français 45

Suomi....51

Deutsch....57

Ελληνικά....63

Magyar 69

Italiano 75

Lietuvių 81

Latviešu....87

Norsk....93

Português....99

Polski....105

Русский....111

Română 117

Español....123

Srpski 129

Slovensky....135

Slovenščina....141

Svenska 147

Türkçe 153

Українська....159

165

Package contents Package contents

GS-AX5400 Wireless Router AC adapter
√ Network cable (RJ-45) Quick StartGuide

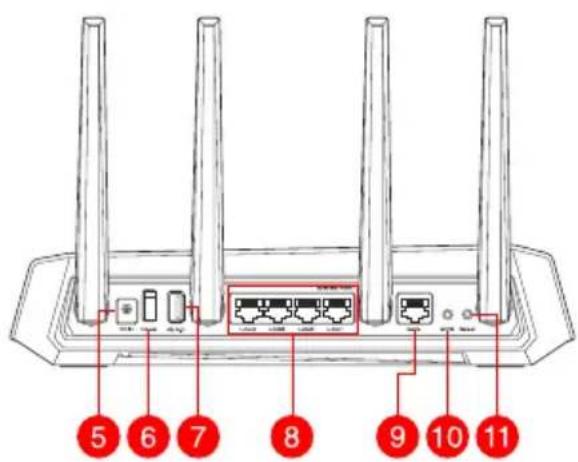

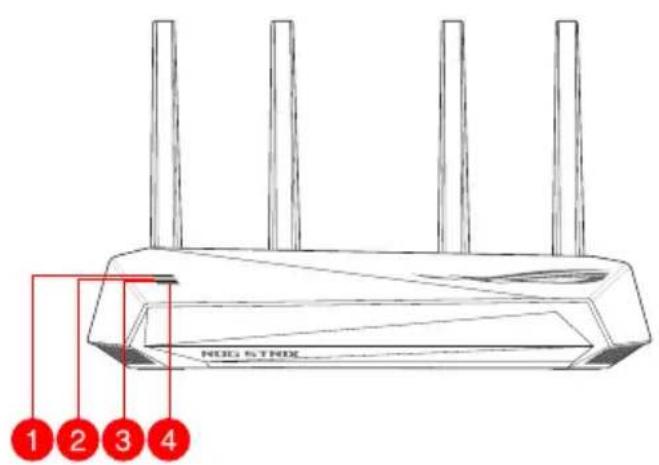

A quick look at GS-AX5400A quick look at GS-AX5400

1 WAN (Internet) LED USB 3.2 Gen 1 port
2 5GHz LED LAN 1 ~ 4 ports	8
3 2.4GHz LED WAN (Internet) port	9
4 Power LED WPS button	10
5 Power (DC-IN) port Reset button	11
6 Power switch

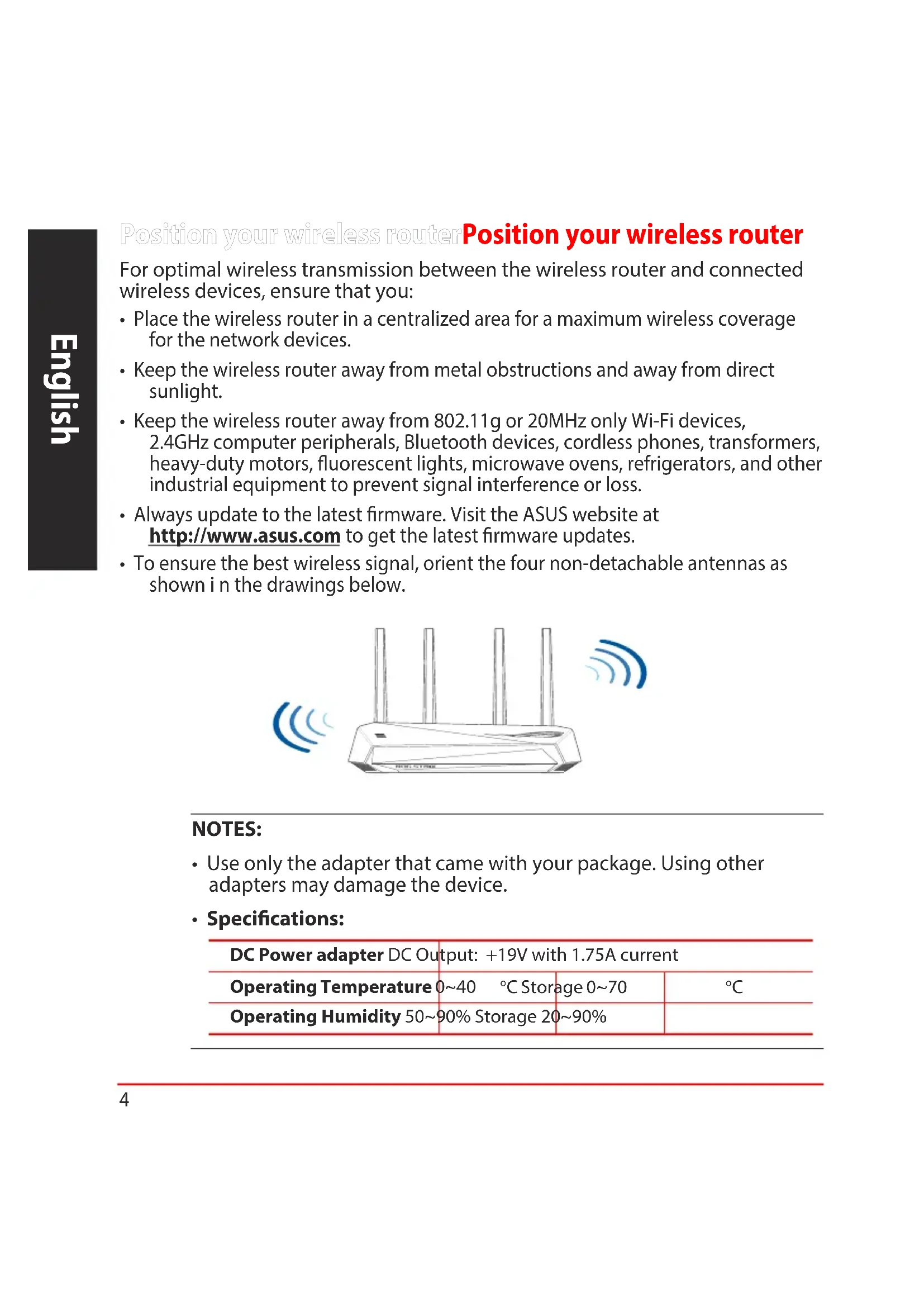

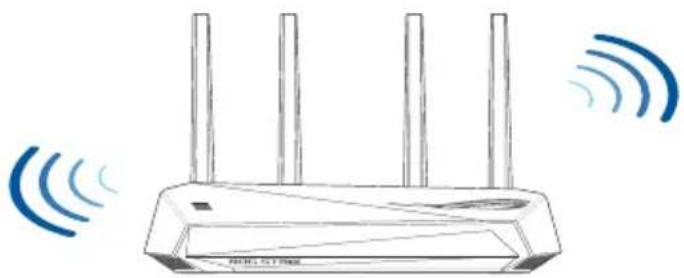

Position your wireless router Position your wireless router

For optimal wireless transmission between the wireless router and connected wireless devices, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage for the network devices.
• Keep the wireless router away from metal obstructions and away from direct sunlight.
• Keep the wireless router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss.
  • Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates.
• To ensure the best wireless signal, orient the four non-detachable antennas as shown in the drawings below.

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

NOTES:

• Use only the adapter that came with your package. Using other adapters may damage the device.
• Specifications:

DC Power adapter DC Output: +19V with 1.75A current
Operating Temperature	0~40 °C Storage	0~70	°C
Operating Humidity	50~90% Storage	20~90%

Preparing your modem Preparing your modem

1. Unplug the power cable/DSL modem. If it has a battery backup, remove the battery.

NOTE: If you are using DSL for Internet, you will need your username/password from your Internet Service Provider (ISP) to properly configure the router.

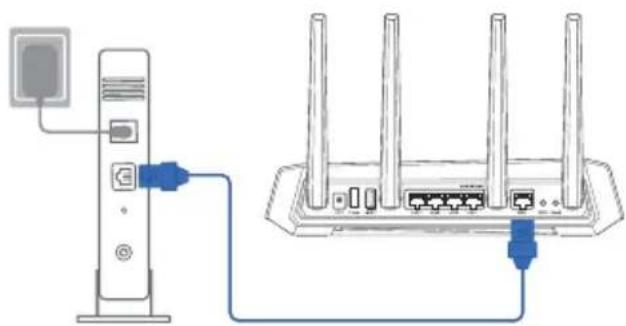

1. Connect your modem to the router with the bundled network cable.

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

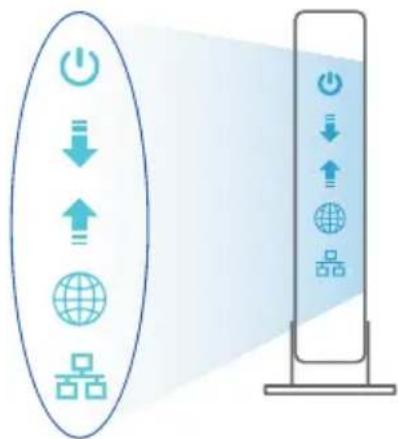

1. Power on your cable/DSL modem.

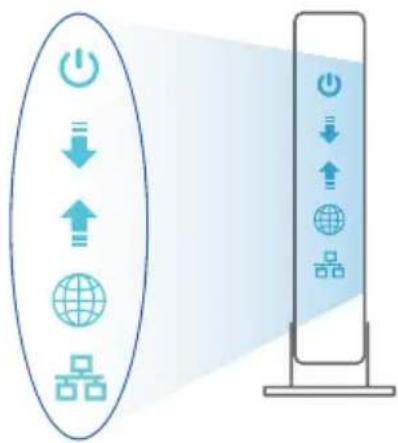

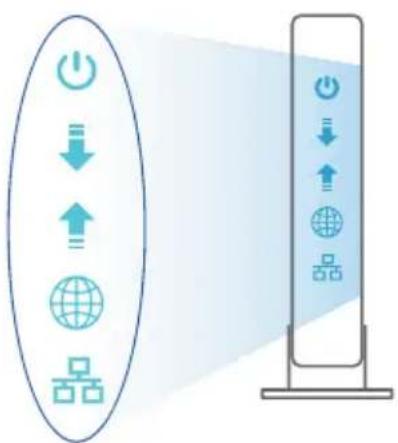

2. Check your cable/DSL modem LED lights to ensure the connection is active.


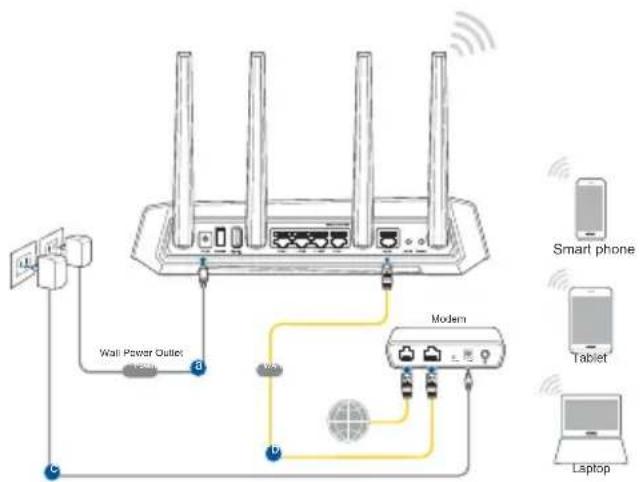

Setting up your GS-AX5400 Setting up your GS-AX5400

You can set up your router via wired or wireless connection.

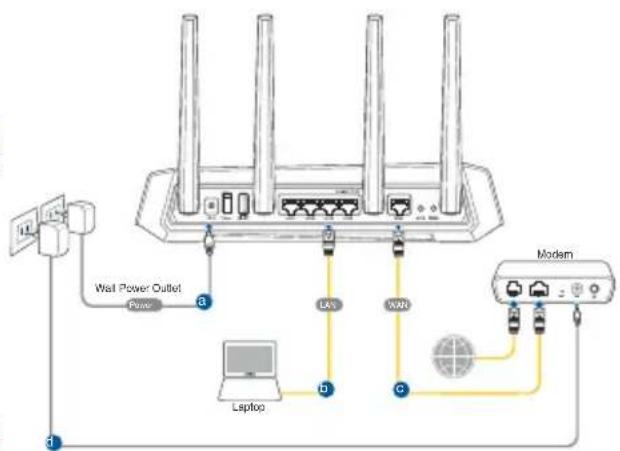

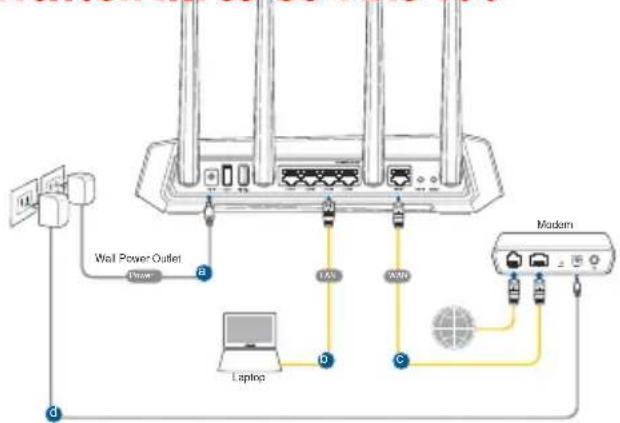

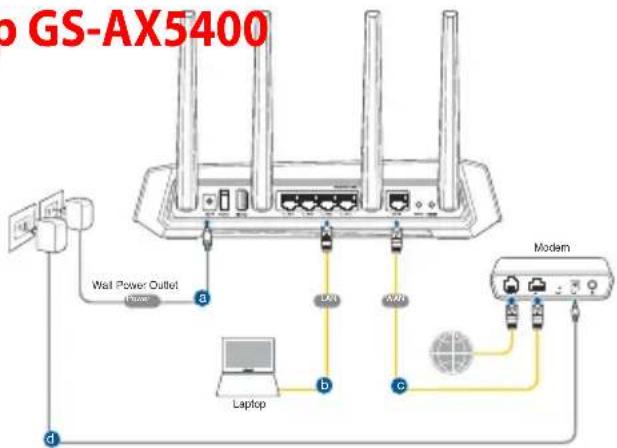

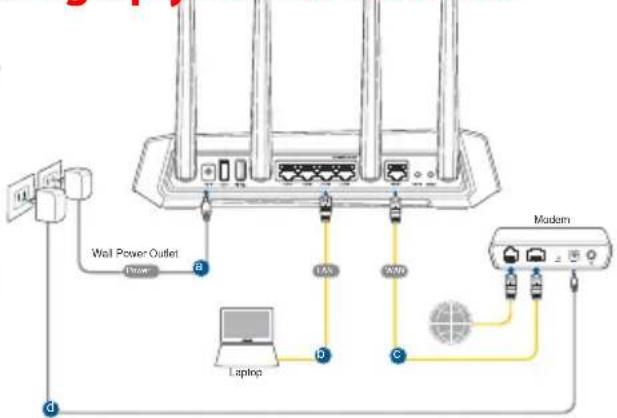

A. Wired connection

1. Plug your router into a power outlet and power it on. Connect the network cable from your computer to a LAN port on your router.

1. The web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.

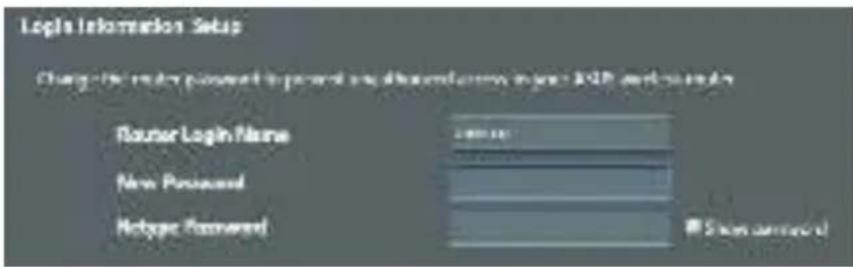

2. Set up a password for your router to prevent unauthorized access.

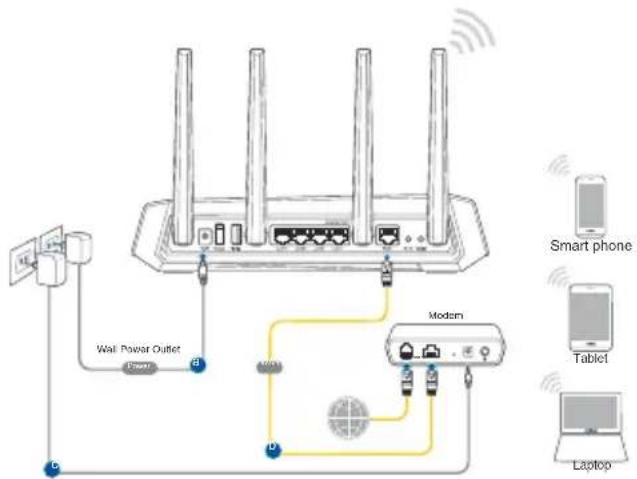

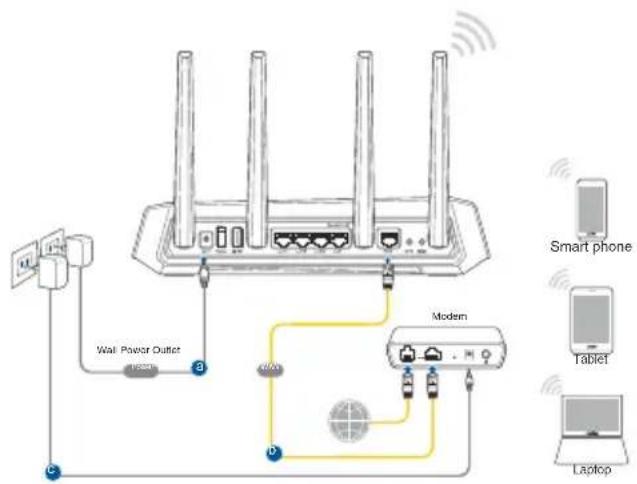

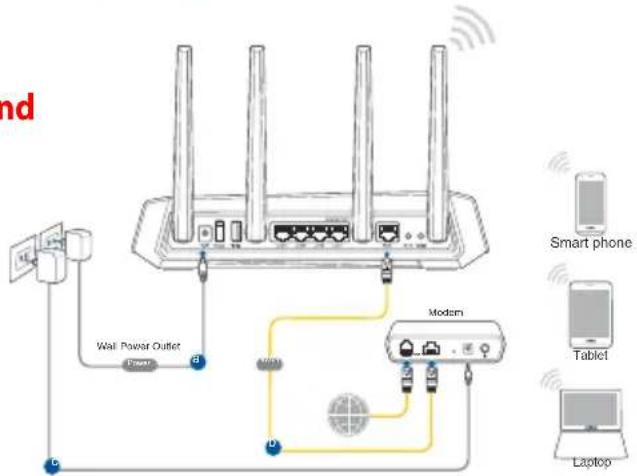

B. Wireless connection

1. Plug your router into a power outlet and power it on.


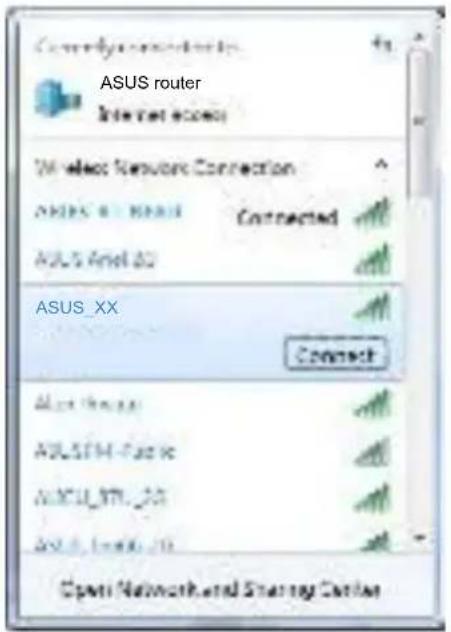

1. Connect to the network with SSID shown on the product label on the back side of the router. For better network security, change to a unique SSID and assign a password.

Wi-Fi Name (SSID): ASUS_XX

* XX refers to the last two digits of 2.4GHz MAC address. You can find it on the label on the back of your router.

1. You can choose either the web GUI or ASUS Router app to set up your router. a. Web GUI Setup

- Once connected, the web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.

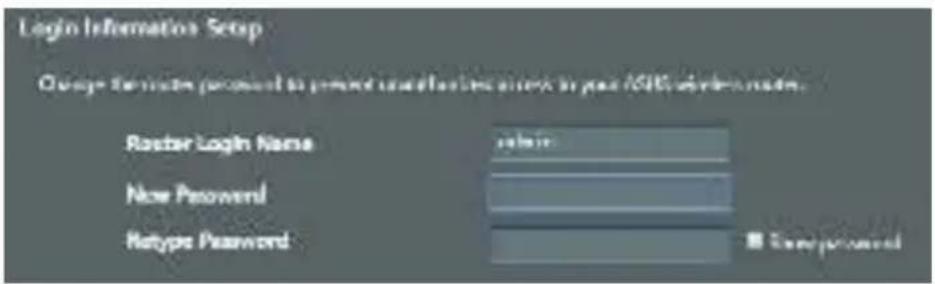

- Set up a password for your router to prevent unauthorized access.

b. App Setup

Download ASUS Router App to set up your router via your mobile devices.

- Turn on Wi-Fi on your mobile devices and connect to your router's network.

- Follow ASUS Router App setup instructions to complete the setup.

ASUS Router

ASUS Router

Remembering your wireless router settings

- Remember your wireless settings as you complete the router setup.

Router Name: Password:
2.4 GHz network SSID: Password:
5GHz network SSID: Password:

FAQFAQ

1. Where can I find more information about the wireless router?

• Technical support site: https://www.asus.com/support
- Customer hotline: refer to the Support Hotline section in this Quick Start Guide
- You can get the user manual online at https://www.asus.com/support

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

ЗАБЕЛЕЖКА:

Diagram showing connection between a desktop tower and a wireless router (no text or symbols present)

Wi-Fi име (SSID): ASUS_XX

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

NAPOMENE:

• Koristite samo onaj adapter koji ste dobili u pakiranju. Korištenjem drugih adaptera možete oštetiti uređaj.
• Tehnički podaci:

Adapter DC napajanja	DC izlaz: +19 V s maksimalnom strujom od 1,75 A
Radna temperatura	0 ~ 40 °C Pohrana 0 ~ 70		°C
Radna vlažnost 50~90% Pohrana 20~90%

Pripremanje modema Pripremanje modema

1. Iskopčajte kabel za napajanje/DSL modem. Ako postoji baterijsko napajanje, uklonite bateriju.

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

1. Uključite kabelski/DSL modem.

2. Pogledajte LED indikatore kabelskog/DSL modema za provjeru aktivnosti veze.

b. Podešavanje aplikacije

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

POZNÁMKA:

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

BEMÆRKNINGE:

Diagram showing connection between a desktop tower and a wireless router (no text or symbols present)

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

OPMERKING:

Diagram showing connection between a server tower and a wireless router (no text or symbols present)

De router installeren De router installeren

B. Draadloze verbinding

b. App-instelling

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

MÄRKUSED:

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

B. Traadita ühendus

Wi-Fi nimi (SSID): ASUS_XX

b. Rakenduse seadistamine

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

REMARQUES :

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

B. Connexion Wi-Fi

b. Configuration via l'application

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

HUOMAA:

Diagram showing connection between a desktop tower and a wireless router (no text or symbols present)

B. Langaton yhteys

Wi-Fi-nimi (SSID): ASUS_XX

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

HINWEISE:

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

WLAN-Name (SSID): ASUS_XX

Illustration of a wireless router with four antennas and four signal waves (no text or symbols)

ΣΗΜΕΙΩΣΕΙΣ:

Diagram showing connection between a server tower and a wireless router with three antennas (no text or symbols present)

B. Ασύρματη σύνδεση

Wi-Fi'Ovoμα (SSID): ASUS_XX

Illustration of a wireless router with four antennas and four signal waves (no text or symbols)

MEGJEGYZÉSEK:

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

Wi-Fi neve (SSID): ASUS_XX

Illustration of a wireless router with four vertical pins and three blue signal waves (no text or symbols)

NOTE:

Diagram showing connection between a server tower and a wireless router (no text or symbols present)

Nome rete Wi-Fi (SSID): ASUS_XX

Illustration of a wireless router with four antennas and four wireless waves (no text or symbols)

PASTABOS:

Diagram showing connection between a server tower and a wireless router (no text or symbols present)

B. Belaidis ryšys
1. Prijunkite kelvedj prie maitinimo lizdo ir jjunkite jì.

Illustration of a wireless router with four antennas and four signal waves (no text or symbols)

PIEZIMES:

Diagram showing connection between a desktop tower and a wireless router (no text or symbols present)

Wi-Fi nosaukums (SSID): ASUS_XX

Illustration of a wireless router with four antennas and four signal waves (no text or symbols)

MERKNADER:

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

1. Slå på kabel-/DSL-modemet.
2. Se LED-lampen på kabel-/DSL-modemet for å kontrollere at forbindelsen er aktiv.

Sette opp GS-AX5400 Sette opp GS-AX5400

B. Trådløs tilkobling
1. Koble ruteren til stikkontakt, og slå den på.

b. Oppsett med app

Last ned ASUS Router-appen for å konfigurere ruteren via en mobilenhet.

Line drawing of a wireless router with four antennas and three wireless waves (no text or symbols)

NOTAS:

Diagram showing connection between a desktop tower and a wireless router (no text or symbols present)

B. Ligação sem fios

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

Имя Wi-Fi (SSID): ASUS_XX

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

NOTE:

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

b. Configurare prin aplicatie

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

NOTAS:

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

NAPOMENE:

• Koristite isključivo adapter koji ste dobili u pakovanju. Korišćenje drugih adaptera može da ošteti uređaj.
• Specifikacija:

Adapter za jednosmernu struju	Izlaz jednosmerne struje: +19 V sa maks. strujom od 1,75 A
Radna temperatura	0°C–40°C Skladištenje	0°C–70°C
Radna vlažnost	50%–90% Skladištenje	20%–90%

Priprema vašeg modema Priprema vašeg modema

Diagram showing connection between a desktop tower and a wireless router (no text or symbols present)

1. Uključite svoj kabl/DSL modem.
2. Proverite LED lampice svog kabla/DSL modema da proverite da je veza aktivna.

Podešavanje vašeg GS-AX5400AX5400

Wi-Fi ime (SSID): ASUS_XX

b. Podešavanje aplikacije

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

POZNÁMKY:

Diagram showing connection between a server tower and a wireless router (no text or symbols present)

1. Zapnite káblový/DSL modem.
2. Skontrolujte kontrolky LED na modeme DSL/ napájací kábel a uistite sa, že pripojenie je aktívne.

B. Bezdrôtové pripojenie
1. Smerovač zapojte do elektrickej zásuvky a zapnite ho.

b. App Setup

Diagram showing a wireless router connected to a client tower via cable (no text or symbols present)

1. Vklopite kabelski modem/modem DSL.
2. Preverite lučke LED kabelskega modema/modema DSL in se prepričajte, da je povezava aktivna.

B. Brezžična povezava

Ime omrežja Wi-Fi (SSID): ASUS_XX

Illustration of a wireless router with four antennas and three wireless waves (no text or symbols)

ANMÄRKNINGAR:

Diagram showing connection between a tower-mounted device and a wireless router (no text or symbols present)

Wi-Fi-namn (SSID): ASUS_XX

b. App-inställning

- Teknisk support: https://www.asus.com/support

- Kundhotline: Se support hotlineskärmbilderna i Supplementguiden

Line drawing of a wireless router with four antennas and three wireless waves (no text or symbols)

NOTLAR:

Diagram showing connection between a tower-mounted device and a wireless router with four ports (no text or symbols present)

Wi-Fi Ad1 (SSID): ASUS\_XX

Illustration of a wireless router with four vertical pins and three blue signal waves (no text or symbols)

ПРИМІТКИ:

Diagram showing connection between a desktop tower and a wireless router (no text or symbols present)

Назва Wi-Fi (SSID): ASUS_XX

Illustration of a wireless router with four antennas and four signal waves (no text or symbols)

:תַעָה

•

.שְׁרָה

: כְרִיָה •

1.75A הכלה +19V :DC הכלה			DC הכלה הכלה
70^ 0^	הכלה	^ 0^	הכלה הכלה הכלה הכלה הכלה הכלה הכלה הכלה הכלה הכלה הכלה
90% 20%	הכלה	90% 50%	הכלה הכלה הכלה הכ NCAA הכ NCAA הכ NCAA הכ NCAA הכ NCAA הכ NCAA הכ NCAA הכ NCAA הכ NCAA הכ NCAA הכ N

Diagram showing connection between a power outlet and a wireless router (no text or symbols present)

ASUS Router

ASUS Router
