USER MANUAL PAFS 550 A1 PARKSIDE

PDF ONLINE www.lidl-service.com

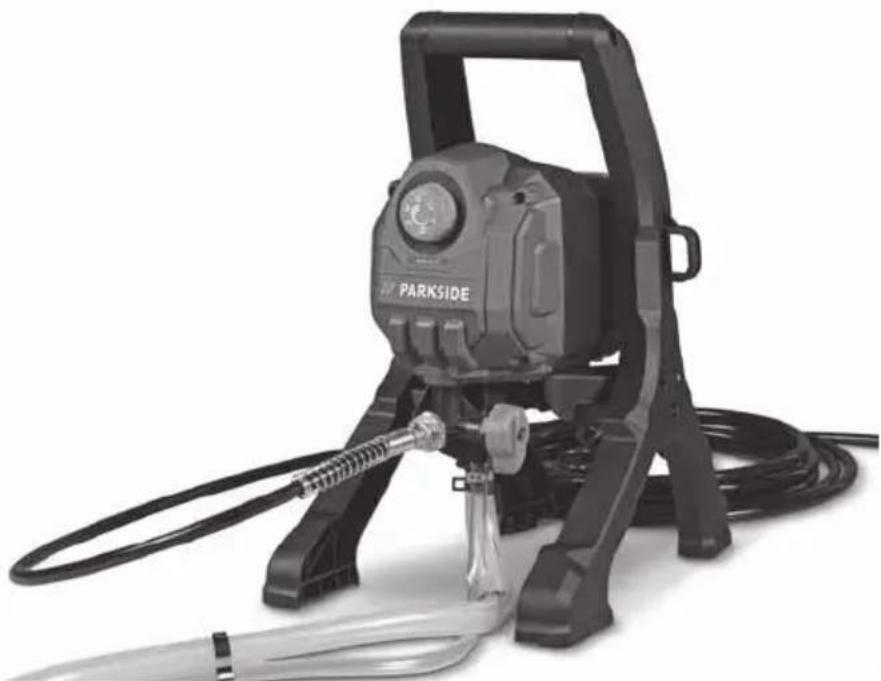

Exterior view of a Parkside air purifier with hoses and control panel (no text or symbols visible)

AIRLESS PAINT SPRAYER/ AIRLESS-FARBSPRÜH- SYSTEM / PISTOLET À PEINTURE AIRLESS PAFS 550 A1

GB IE

AIRLESS PAINT SPRAYER

Translation of the original instructions

FR BE

PISTOLET À PEINTURE AIRLESS

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB / IE Translation of the original instructions Page 1

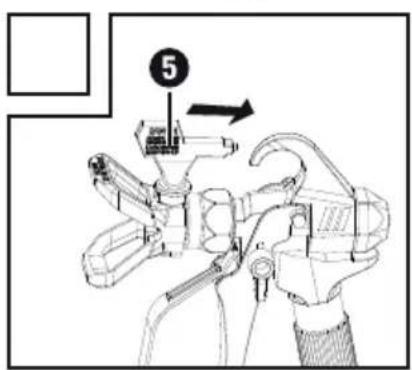

Technical diagram of a spray gun with numbered parts and labeled parts in Chinese

Technical line drawing of a robotic arm with a coiled cable and labeled component 'KSIDE' (no text beyond label)

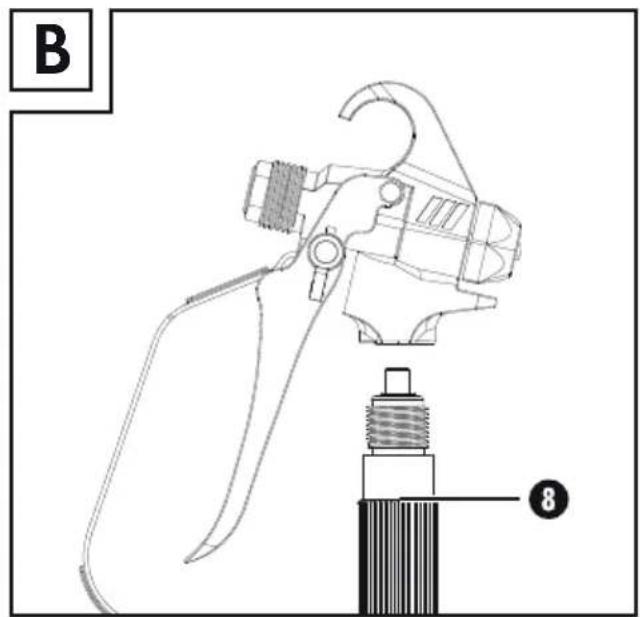

B 8

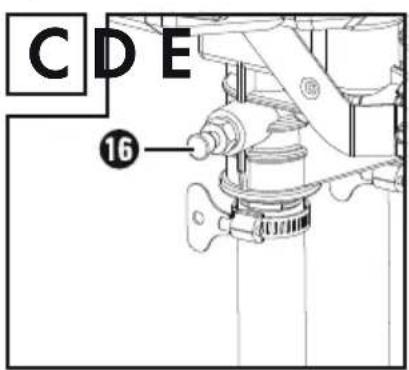

C D E 16

⑤

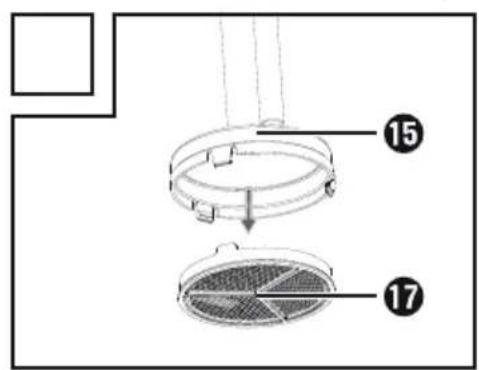

Technical diagram showing a circular component with labeled parts 15 and 17, likely illustrating a mechanical or architectural assembly.

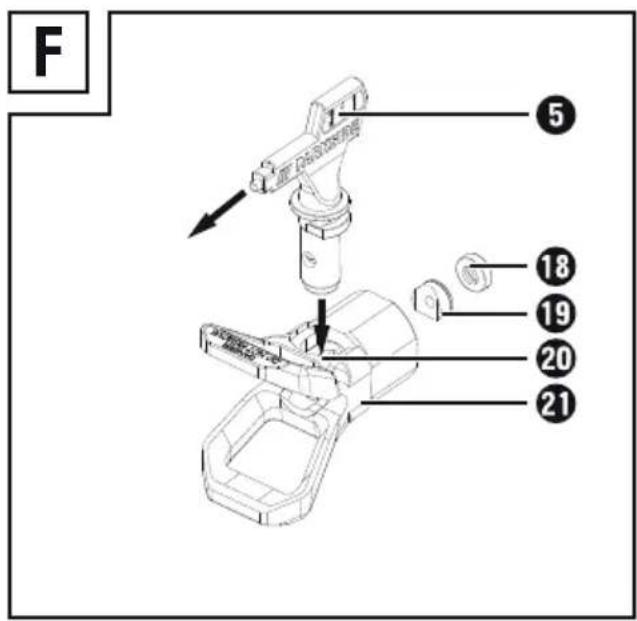

F 5 18 19 20 21

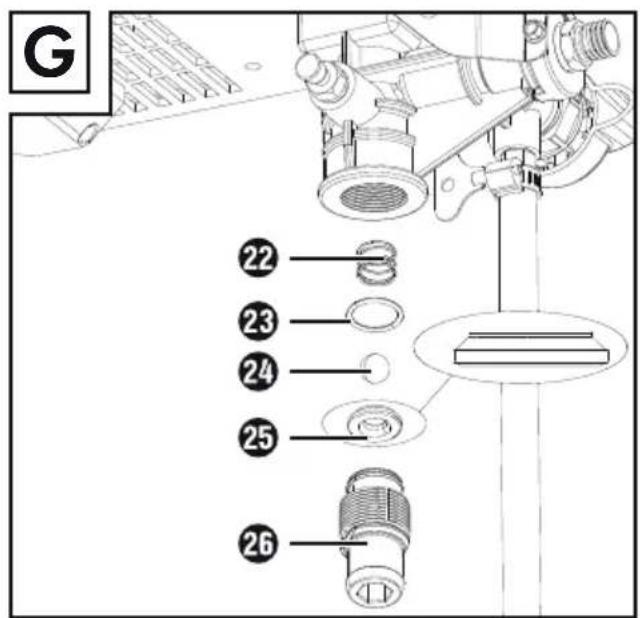

G 22 23 24 25 26

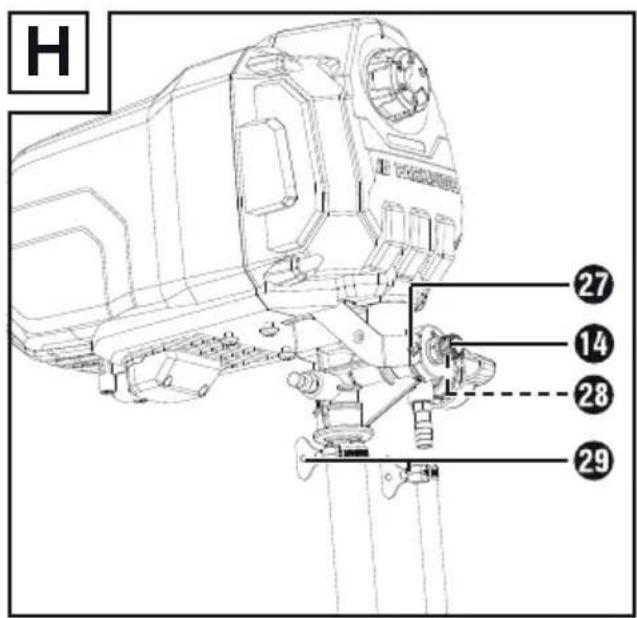

H 27 14 28 29

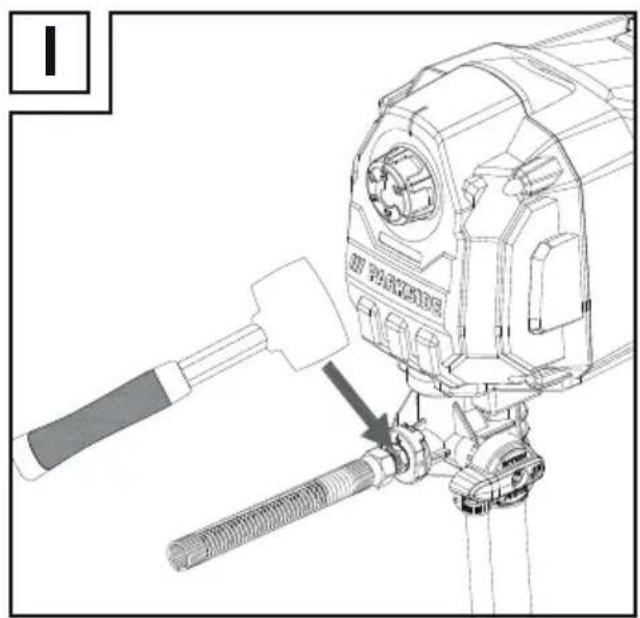

Technical line drawing of a mechanical device with a hammer and threaded rod, no visible text or symbols

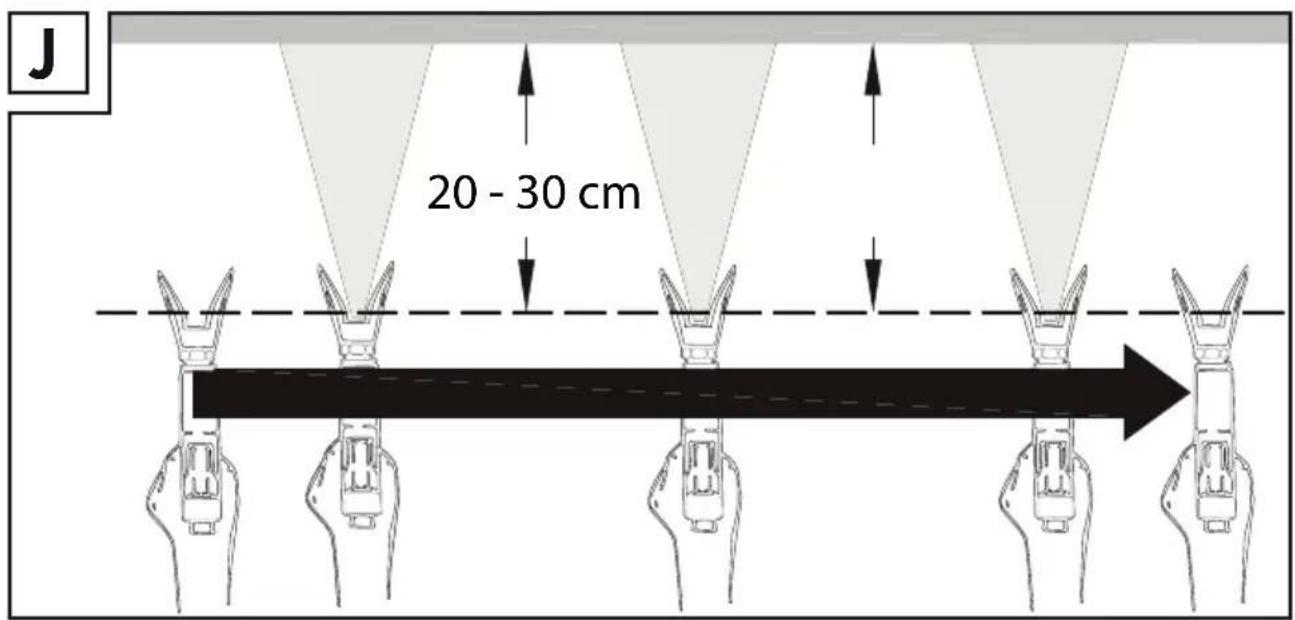

J 20 - 30 cm

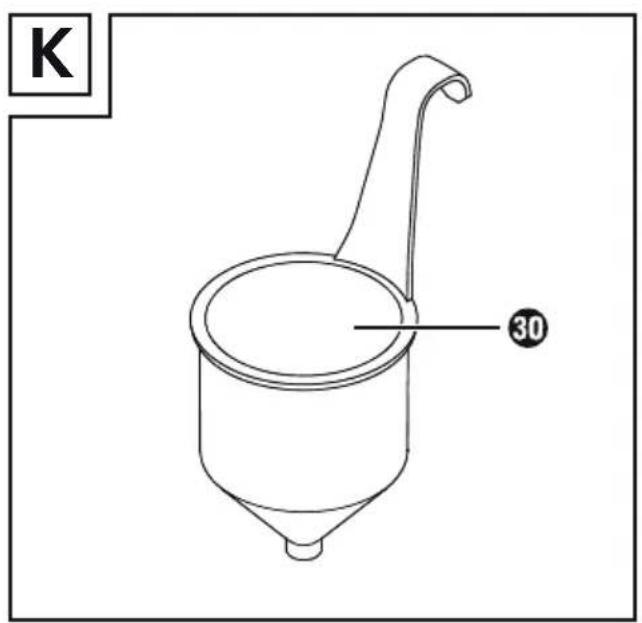

K 30

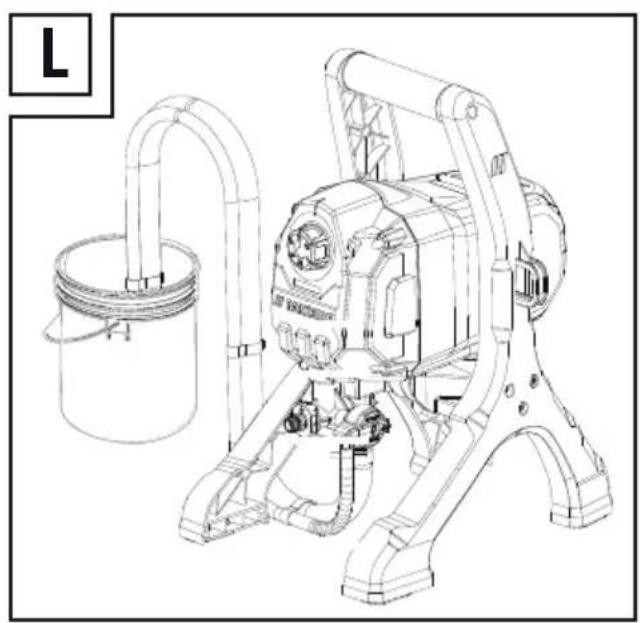

Technical line drawing of a mechanical pump assembly with cylindrical tank and connecting tubing (no text or symbols)

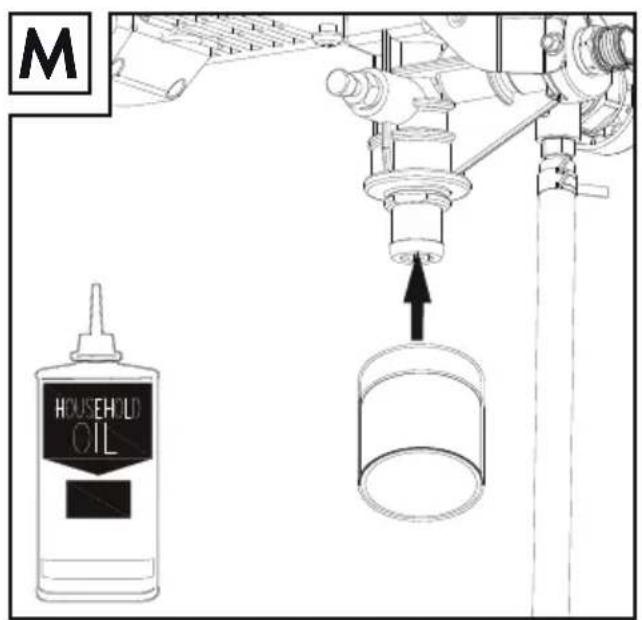

M HOUSEHOLD OIL

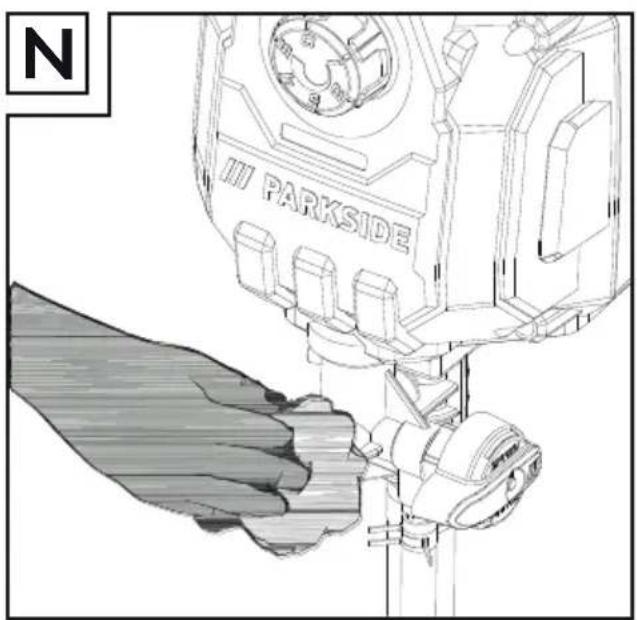

N III PARKSIDE

Contents

Introduction 2

Intended use 2

Equipment 2

Package contents 3

Technical specifications 3

General power tool safety warnings 4

1. Work area safety 4

2. Electrical safety

3. Personal safety 4

4. Power tool use and care 5

5. Service 5

Additional safety instructions....6

Safety instructions for the high-pressure hose....8

Original accessories/attachments 8

Working procedures 9

Preparing the paint 9

Before use 10

Assembly 10

Selecting/changing the nozzle 10

Replacing the HEA filter 10

Using the appliance .... 10

Settings 11

Spraying....11

Overheating protection 11

Depressurising the appliance .... 1 1

Eliminating suction problems ....

Blow out the nozzle 12

Work breaks 12

Shutting down, maintenance and cleaning 12

Cleaning the inlet valve 14

Cleaning the connecting thread 14

Storage and transportation 14

Troubleshooting 15

Disposal....15

Kompernass Handels GmbH warranty 16

Service....17

Importer 17

Original declaration of conformity 18

AIRLESS PAINT SPRAYER PAFS 550 A1

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is designed for painting indoor walls as well as outdoor objects. Permissible materials for use include:

- Water-based paints, wall paints and emulsion paints

Do not use:

• Flammable coatings, materials containing acetone or nitro thinners,
• Materials that contain highly abrasive components,
• Façade paint, Iyes and acidic coating materials.

Do not use the appliance in areas where there is a risk of explosion.

Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is intended for domestic use only.

Equipment

See illustrations on the fold-out page

① Return hose
② Suction hose
③ Pressure regulator dial
4 Storage compartment for nozzles and HEA filters
⑤ Nozzle
6 Safety catch
⑦ Paint spray gun
8 Handle
9 Trigger
⑩ Connecting thread for paint spray gun
⑪ HEA filter
⑫ High-pressure hose
13 Function switch
14 Connecting thread
15 Intake filter
16 Valve trigger
⑰ Filter plate
18 Plastic ring
19 Saddle washer
20 Nozzle chamber
21 Nozzle holder
22 Spring
23 O-ring
24 Ball
25 Washer
26 Inlet valve
27 Fastening screw
28 Hex screw
29 Hose clips
30 Viscosity cup

Package contents

1 airless paint sprayer
1 paint spray gun
1 intake hose, 1 m, (pre-fitted) including return hose
1 high-pressure hose, 9 m
1 white HEA filter (pre-fitted)
1 yellow HEA filter
2 nozzles 311 and 517* (*pre-fitted)
1 viscosity cup
1 set of operating instructions

Technical specifications

Motor unit

Rated voltage 230 V\~, 50 Hz (AC)

Rated power

consumption 550

Max. paint flow rate 1.25 L/min

Max. working pressure 110 bar

Max. temperature

of coating material 40°C

Ambient temperature,

appliance 20°C up to max. 40°C

Protection class I

Protection type IPX3 Protection against

water spray, at any angle up to 60° to normal operating position

Paint spray gun

Max. surface temperature 43°C

Max. temperature of

coating material 40°C

Noise and vibration data

Noise measurement value determined in accordance with EN 14462. The rated noise level of the paint spray gun is typically:

Sound pressure level L

$$ = 7 8. 4 \mathrm{dB} $$

Uncertainty

$$ K = 2. 5 \mathrm{dB(A)} $$

Sound power level

$$ L _ {W A} = 9 1. 2 \mathrm{dB} $$

Uncertainty

$$ K = 2. 5 \mathrm{dB(A)} $$

Wear ear muffs!

Total vibration value

on the handle

$$ a _ {b} < 2. 5 m / s ^ {2} $$

Uncertainty

$$ K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

Symbols on the appliance

	Always wear safety goggles.
	Always wear a mask.
	Always wear ear muffs.
	Always wear conductive protective gloves.
	Wear non-slip, conductive safety shoes.
	Wear protective clothing.

NOTE

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

▶ Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.

It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (wherein all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

▶ Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and accessory tools, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety instructions

RISK OF EXPLOSION AND FIRE!

▶ Make sure there are no ignition sources in the vicinity. There is a risk of explosion due to the potential formation of an explosive atmosphere in combination with ignition sources (e.g. by electrostatic discharge, electric sparks, hot surfaces)!

RISK OF INJURY! DUE TO MISUSE! Do not point the appliance towards people or animals.

■ RISK OF EXPLOSION/FIRE! SMOKING PROHIBITED! Do not cause any sparks or ignite a naked flame. Make sure there are no ignition sources in the vicinity, such as open flames, smoking cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc.

WARNING!

▶ Keep your distance from the nozzle tip!

Do not spray yourself, other people or animals. Keep your hands and other body parts out of the spray jet. If the spray jet pierces your skin, seek medical assistance immediately. The sprayed material can penetrate the skin (even when wearing gloves) and thus into your body.

Do not treat an injection wound as a simple cut. A high-pressure jet can inject toxins into the body and cause serious injuries (e.g. necrosis, loss of limbs). In the event of a chemical penetration of the skin, seek medical assistance immediately.

■ Before each use, the following points must be observed in accordance with the operating instructions:

1) Do not use an appliance if it is faulty.
2) Secure the hand spray gun against accidental activation using the safety catch on the trigger.
3) Ensure earthing - The connection must be made via a properly earthed safety socket (Schuko).
4) Check the maximum permissible operating pressure of the high-pressure hose and spray gun.
5) Check all connections for leaks.

■ Strictly follow the instructions on regular cleaning and maintenance of the appliance. Observe the following rules before carrying out any work on the appliance and at every work break:

6) Depressurise the spray gun and the high-pressure hose.
7) Secure the hand spray gun against accidental activation using the safety catch on the trigger.
8) Switch off the appliance.

■ Do not use the appliance in areas that fall under the explosion protection ordinance.

- Keep your work area clean, well lit and free of paint and solvent containers, cloths and other inflammable materials. Possible risk of spontaneous combustion. Make sure you have functional fire extinguishers available at all times.

■ Do not spray or clean with materials whose ignition point is lower than 21°C. Use water-based materials, non-volatile hydrocarbons or similar materials. The evaporation of volatile solvents will cause an explosive environment.

Do not spray near ignition sources such as static electric sparks, open flames, ignition flames, hot items, motors, cigarettes or sparks caused by plugging in/unplugging power cables or by operating switches. These kinds of ignition sources could ignite a fire in the environment.

■ Do not spray any material if you do not know whether it is potentially dangerous. Unknown materials can cause hazards.

■ To avoid potential risks, if the appliance's power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.

■ Wear additional personal protective equipment such as suitable gloves and a protective mask/respirator when spraying or when handling chemicals. Wearing appropriate protective equipment for the conditions reduces your exposure to dangerous substances.

■ Be aware of the potential hazards of the sprayed material. Follow the markings on the container and the manufacturer's information on the spray material you are using, including the instructions to use personal protective equipment. Follow the manufacturer's instructions to reduce the risk of fire and injuries caused by poisons, carcinogens, etc.

■ The spray gun must not be used for spraying flammable substances. Do not clean spray guns with flammable solvents.

■ Secure the appliance and the spray gun.

- Secure all hoses, connections and filter parts before starting up the spray pump. Unsecured parts can come loose with great force or fluid can escape at high pressure, causing serious injury. Always secure the spray gun when assembling or disassembling the nozzle and during any breaks in work.

■ Be prepared for recoil from the spray gun during operation. At high operating pressure, pulling the trigger causes a recoil force of up to 15 N. If you are not prepared for this, your hand may be pushed back or you may lose your balance. This can lead to injuries. Continuous exposure to this recoil can lead to permanent damage to health.

Max. operating pressure: The permissible operating pressure for the spray gun, high-pressure hose and spray gun accessories may not be less than the maximum operating pressure of 110 bar (11 MPa) indicated on the appliance.

■ The appliance must be connected via a properly earthed safety socket (Schuko). The connection must be equipped with a residual current device INF ≤ 30 mA.

■ Make sure that the mains supply being connected corresponds to the values indicated on the type plate.

■ Before carrying out any work on the appliance, relieve the pressure and disconnect the mains plug from the socket.

■ You must earth the object that you are intending to spray!

- Observe the user manual when installing, maintaining and repairing the appliance.

■ The appliance must be earthed during installation.

■ Ensure adequate ventilation in the spray area and sufficient fresh air in the entire room. Wear a mask.

■ Always wear suitable safety goggles to keep hazardous vapours and liquids away from your eyes.

■ Wear protective clothing to keep paint away from your skin and hair.

WARNING!

▶ Under certain circumstances, the flow rate of the coating material may cause electrostatic charges to occur on the appliance during spraying. They can cause sparks or flames when discharged. Therefore, make sure that the appliance is always earthed via the electrical installation. The connection must be made via a properly earthed safety socket (Schuko).

▶ Pay attention to the hazards that may be caused by the sprayed substance and also observe the labels on the containers or the instructions given by the manufacturer of the substance.

▶ When working indoors: Ensure that no vapours containing solvents form in the area around the appliance. Place the appliance on the side facing away from the spray object. Keep a minimum distance of 5 m between the motor unit and the spray gun.

▶ When working outdoors: Do not allow vapours containing solvents to drift towards the appliance. Pay attention to the wind direction! Position the appliance so that no vapours containing solvents can reach and build up around the appliance. Keep a minimum distance of 5 m between the appliance and the spray gun.

WARNING!

There is a risk of a short-circuit if water penetrates the appliance! Never clean the appliance with a high-pressure or steam cleaner.

▶ Do not use a solvent container with a small opening to clean the appliance. An explosive atmosphere could form. Earth the container beforehand.

Safety instructions for the high-pressurehose

DANGER!

■ Caution: Risk of injury from injection! Leaks can develop in the high-pressure hose due to wear, kinking and improper use. Fluid from the leak can be injected into the skin.

■ The electrostatic charge from the spray gun and high-pressure hose is discharged via the high-pressure hose.

- Check the high-pressure hose thoroughly before each use.

■ Never pull on the high-pressure hose to move the appliance.

■ Never try to repair a defective high-pressure hose yourself!

■ Replace a damaged high-pressure hose immediately.

■ Avoid sharp bending or kinking; the smallest bending radius is about 20 cm.

■ Protect the high-pressure hose from sharp objects and edges.

■ Never twist the high-pressure hose.

■ Do not immerse the high-pressure hose in solvent. Wipe the outside only with a soaked cloth.

■ Route the high-pressure hose so that there is no risk of tripping.

■ Do not run over the high-pressure hose (with a trolley, etc.).

NOTE

The risk of damage increases with old high-pressure hoses. We recommend replacing the high-pressure hose every 6 years.

Original accessories/attachments

WARNING!

▶ Do not use any accessories that are not recommended by PARKSIDE. You can order spare parts and accessories from the telephone numbers given in the section "Service".

RESIDUAL RISKS

When using the tool, additional residual risks may occur that are not listed in the enclosed safety instructions. These risks can arise from misuse, prolonged use, etc.

Even if you follow the relevant safety regulations and use safety equipment, certain residual risks cannot be avoided.

These include:

■ Lung damage, if no suitable breathing protection is worn;

■ Hearing damage, if hearing protection is not worn;

■ Eye damage, if suitable eye protection is not worn;

■ Damage to health due to swinging of your hands and arms during prolonged operation of the appliance or if the appliance is not properly held or maintained. If you use an appliance for a long period of time, take regular breaks.

WARNING! HAZARDS CAUSED BY MATERIALS AND SUBSTANCES!

There is a risk of coming into contact with or absorbing coating materials and/or cleaning fluids. There is also a risk of inhaling vapours from liquids. This can cause permanent damage under certain conditions.

▶ Always wear personal protective equipment when working on the appliance!

▶ Ensure sufficient technical or natural ventilation.

▶ Follow the manufacturers' safety instructions for the respective coating materials and cleaning liquids.

▶ If you experience any symptoms, seek medical advice!

Working procedures

NOTE

▶ Ensure that the spray material and thinning agent are compatible. Using an unsuitable thinning agent may cause clots that clog the appliance.
▶ To find out which thinning agent is suitable for your spray material (water, paint thinner), refer to the manufacturer's notes provided with the spray material.
▶ Granular products and products containing solids must not be sprayed. Their abrasive effect will shorten the service life of the appliance.

Preparing the spray surface

WARNING!

▶ Risk of electric shock due to penetrating spray material! Be sure to mask any sockets and switches.
◆ Cover any surfaces around the spray area extensively and thoroughly. Any surface that is not masked could become contaminated.
Make sure that the spray surface is clean, dry and free of grease.
- Polished surfaces should be lightly sanded and the sanding dust removed.

Spraying technique

◆ Always hold the paint spray gun at the same distance and at a right angle to the object. The ideal spraying distance is approx. 20–30 cm. Move the paint spray gun evenly with your whole arm (see fig. J).
◆ Determine the appropriate settings in each case by experimenting, e.g. on a piece of cardboard.
Do not switch the appliance on/off above the spray area, but start and stop the spraying process approx. 10 cm outside the spray area.

Preparing the paint

◆ Store the paint in a temperature-controlled room at 20–25°C for approx. 12 hours. Do not warm the paint using an external heat source!
If applicable, comply with any special instructions for spray gun application provided by the paint manufacturer on the paint containers. Always maintain a temperature of 20-25°C! Also take the temperature of the surface you are spraying into account.
◆ Stir the undiluted paint carefully for 10-15 minutes using a paint stirrer.

◆ Fill the supplied viscosity cup (DIN 4 mm) 30 to the brim with the paint.

- Lift the viscosity cup 30 out of the paint and allow the liquid to run out.

◆ Measure the time (in seconds) until the stream of liquid stops. This time is called "DIN seconds (DIN/sec)". The recommended viscosity is approx. 45–55 DIN/sec.

CAUTION!

▶ If the viscosity is too high, the machine will clog and could be damaged; if it is too low, the paint will not adhere well to the surface.
If the value is greater than 55 DIN/sec, add 100 ml of water and stir again for 5 minutes.
◆ Measure the DIN seconds again. Repeat the process until you achieve a viscosity of less than 55 DIN/sec.
◆ Filter the diluted paint using a fine mesh filter. Use only this paint when spraying.

Before use

Assembly

NOTE

▶ You can assemble the appliance using two adjustable spanners (not supplied).
▶ Alternatively, you can also use a 16 mm and 19 mm wrench (not supplied).

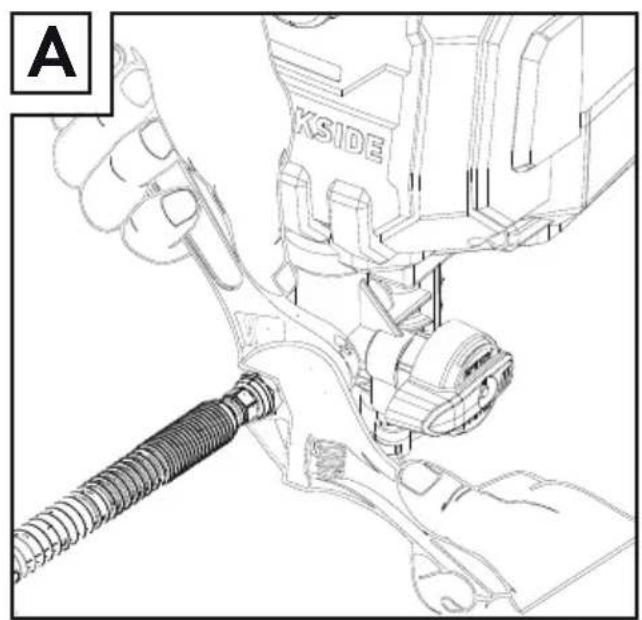

Fit the high-pressure hose 12 onto the connecting thread 14 on the appliance. Tighten the nut using an adjustable spanner. Counter the nut of the connection thread 14 with a second adjustable spanner (see fig. A).

Fit the other end of the high-pressure hose 12 to the connecting thread of the paint spray gun 10. Tighten the nut using an adjustable spanner. Counter the nut of the connection thread of the paint spray gun with a second adjustable spanner.

Selecting/changing the nozzle

Nozzle Use
Nozzle 311 low viscosity spray material
Nozzle 517 viscous spray material

Insert the appropriate nozzle ⑤ into the nozzle chamber ⑳ with the tip pointing in the spray direction (see fig. F).

Replacing the HEA filter

WARNING!

The system must be depressurised in order to carry out the following work. To do this, follow the instructions in the section "Depressurising the appliance".

Remove the high-pressure hose ⑫ from the paint spray gun ⑦.

Turn the handle ⑧ anticlockwise until the upper end can be detached from the paint spray gun ⑦ (see fig. B). You can attach an adjustable spanner to the lower end of the handle to help.

- Remove the high-pressure hose 12 from the paint spray gun 7. - Turn the handle 8 anticlockwise until the upper end can be detached from the paint spray gun 7 (see fig. B). You can attach an adjustable spanner to the lower end of the handle to help.

Insert the appropriate HEA filter ⑪ for the installed nozzle ⑤:
- white HEA filter (pre-fitted): nozzle 517 - yellow HEA filter: nozzle 311

♦ Screw the handle ⑧ clockwise back into the thread of the paint spray gun ⑦.

NOTE

Clean the HEA filters ⑪ regularly and replace them, if necessary. You can obtain replacement filters from the service hotline given in the section "Service".

Using the appliance

Place the suction hose ② and return hose ① into the paint bucket (see fig. L).
Press the valve trigger 16 to ensure that the valve is free of any blockages.

◆ Insert the plug into a mains power socket.

Turn the function switch 13 to the vertical position(PRIME).
Turn the pressure regulator dial ③ to position 2 to ensure that the paint is pumped through the system.
◆ Wait until the paint runs through the return hose ① back into the paint bucket. Turn the pressure regulator dial ③ to position 0 (off).

NOTE

▶ If no paint comes out, carry out the steps described in the section "Eliminating suction problems".

• Turn the function switch 13 to the horizontal position (SPRAY).
  Turn the pressure regulator dial ③ to a level corresponding to the viscosity of the sprayed material.
  Hold the paint spray gun ⑦ over an empty container.
  ◆ Unlock the paint spray gun ⑦ by turning the safety catch ⑥ so that its tip is facing down.

◆ Pull the trigger ⑨ until the paint comes out in a straight stream.
♦ Lock the paint spray gun ⑦ by turning the safety catch ⑥ with the tip as far back and up as possible.

Settings

You can use the pressure regulator dial ③ to switch the appliance on by setting a level greater than 0. The level you choose depends on the spray material used. Determine the best setting by carrying out a spray test.

◆ The function switch 13 has two settings:

• 1. PRIME (vertical position): This setting allows you to pre-fill the system with paint or to depressurise the appliance.
• 1. SPRAY (horizontal position): You can use this setting to work with the appliance.

Spraying

◆ Unlock the paint spray gun ⑦ by turning the safety catch ⑥ so that its tip is facing down.
◆ To spray, press the trigger ⑨ and hold it down.
◆ To stop spraying, release the trigger ⑨ again.

WARNING!

▶ Always secure the paint spray gun ⑦ while you are not actually spraying.

♦ Lock the paint spray gun ⑦ by turning the safety catch ⑥ with the tip as far back and up as possible.

Overheating protection

The appliance has an overheating protection. It switches the appliance off if overheating is imminent. If this happens, carry out the following steps:

◆ Turn the pressure regulator dial ③ to position 0 (off).
- Turn the function switch ⑬ to the vertical position (PRIME).

Let the appliance cool down for at least 30 minutes and, if necessary, remove the cause of the overheating. This could be, for example, an item that is covering the ventilation slots or if the appliance is too close to a wall.
◆ Put the appliance back into operation.

Depressurising the appliance

Always depressurise the appliance when you want to take it out of operation. Depressurise the system as follows:

◆ Turn the pressure regulator dial ③ to position 0 (off).
- Turn the function switch ⑬ to the vertical position (PRIME).
◆ Unlock the paint spray gun ⑦ by turning the safety catch ⑥ so that its tip is facing down.
Release the pressure by pulling the trigger ⑨. Hold the paint spray gun ⑦ over an empty container while doing so.

◆ Wait until all pressure and paint has been dispelled from the system. To stop spraying, release the trigger ⑨ again.

♦ Lock the paint spray gun ⑦ by turning the safety catch ⑥ with the tip as far back and up as possible.

Eliminating suction problems

• Press the valve trigger 16 3–4 times to remove any blockages or deposits from the valve.
  If the problem persists: tap the connecting thread 14 several times extremely carefully with a rubber mallet (see fig. 1) to loosen harder deposits.

Blow out the nozzle

WARNING!

▶ Always secure the paint spray gun ⑦ while you are not actually spraying.

Turn the inserted nozzle 5 180 degrees towards the rear (see fig. D). If the nozzle cannot be turned, try depressurising the appliance.
Press the trigger ⑨ to blow out the nozzle ⑤. Hold the paint spray gun ⑦ over an empty container while doing so. As soon as a straight spray jet comes out, the nozzle ⑤ is blown out.
Turn the inserted nozzle 5 180 degrees back towards the front.

NOTE

▶ Use an appropriate HEA filter ⑪ to minimise blockages.

Work breaks

◆ Depressurise the appliance.
- Turn the pressure regulator dial ③ to position 0 (off).
◆ Remove the plug from the mains socket.
Place the paint spray gun ⑦ in a plastic bag, which you then seal airtight.
◆ Wet the paint in the paint bucket with water so that no skin forms on the top.

Shutting down, maintenance and cleaning

CAUTION!

▶ Do not use flammable materials such as nitro thinners for cleaning.
- Please refer to the manufacturer's information of the respective spray material to find out which cleaning agents are suitable.

NOTE

• Thorough cleaning directly after every use is very important for safety and operation. Otherwise, the proper functioning of the appliance can no longer be guaranteed.
  ▶ Wear suitable protective gloves during cleaning work.
  ▶ Remove coating material residues at appropriate intervals. Remove any sprayed material that has got onto unwanted surfaces before it dries.

♦ Depressurise the appliance.

♦ Lock the paint spray gun ⑦ by turning the safety catch ⑥ with the tip as far back and up as possible.
Unscrew the nozzle holder 21 from the paint spray gun 7.
Place the suction hose ② together with the return hose ① in a container with warm water and some mild detergent.

♦ Turn the function switch to the horizontal position (SPRAY).

♦ Turn the pressure regulator dial ③ to position 5.

◆ Unlock the paint spray gun ⑦ by turning the safety catch ⑥ so that its tip is facing down.

- Drain off the remaining paint by pulling the trigger ⑨. Hold the paint spray gun ⑦ over a paint bucket while doing so.

CAUTION!

▶ If you are using a metal container, earth the paint spray gun ⑦ beforehand.

Release the trigger ⑨ as soon as the cleaning fluid starts flowing out.
♦ Lock the paint spray gun ⑦ by turning the safety catch ⑥ with the tip as far back and up as possible.
Turn the function switch 13 to the vertical position (PRIME).
◆ Unlock the paint spray gun ⑦ by turning the safety catch ⑥ so that its tip is facing down.
- Drain off the remaining paint by pulling the trigger ⑨. Hold the paint spray gun ⑦ over the detergent container while doing so.
Release the trigger ⑨ as soon as clear cleaning fluid starts flowing out.
Make sure that no detergent residue remains in the appliance. If necessary, rinse it again with water.
- Lock the paint spray gun ⑦ by turning the safety catch ⑥ with the tip as far back and up as possible.
Turn the pressure regulator dial ⓣ to position 0 (off). Remove the plug from the mains socket.
◆ Depressurise the appliance.
Remove the high-pressure hose ⑫ from the paint spray gun ⑦ with the aid of an adjustable spanner.
Disassemble the nozzle holder 21 along with the nozzle 5, saddle washer 19 and plastic ring 18 (see fig. F). Clean all parts thoroughly using suitable cleaning agents.
♦ Lock the paint spray gun ⑦ by turning the safety catch ⑥ with the tip as far back and up as possible.

NOTE

▶ Clean the HEA filters ⑪ regularly. Replace them if cleaning is no longer sufficient.
♦ Disconnect the suction hose ② and the return hose ① from the appliance using the hose clips ⑲. Clean the outsides of the hoses.
Remove the filter plate 17 of the intake filter 15 (see fig. E).

• Clean the filter plate ⑰ thoroughly under running water.
  Remove the high-pressure hose 12 from the connecting thread 14 using an adjustable spanner. Counter the connection thread 14 using a second adjustable spanner.
  Dip the inlet valve 26 into a container filled with approx. 250 ml of conservation agent (a fine, acid- and resin-free oil, e.g. Shell Corena S2 P 68/P 100/P 150) so that it can be sucked in (see fig. M).
  ◆ Insert the plug into a mains power socket.
• Turn the function switch 13 to the vertical position (PRIME).
  Hold a cloth in front of the connecting thread (see fig. N). Turn the pressure regulator dial to position 1 for about 30–60 seconds. This helps to preserve the appliance. The oil is discharged again through the outlet of the return hose ①. Turn the pressure regulator dial ③ to position 0 (off).
  ◆ Remove the plug from the mains socket.
  Then dismantle the paint spray gun ⑦ and remove the HEA filter ⑪ in the handle ⑧. If necessary, clean all of the components of the spray gun again using a brush. Oil all of the parts with a fine, acid- and resin-free oil, and store the oiled parts in a dust-proof location.
  Before using the appliance again, rinse it thoroughly with warm water to remove any oil residues.

Cleaning the inlet valve

WARNING! RISK OF INJURY!

Before carrying out any work on the appliance, switch it off, disconnect the mains plug and depressurise the appliance!

NOTE

▶ If there are irremediable problems with the paint suction, you should clean the inlet valve 26 or replace it, if necessary.

♦ Disconnect the suction hose ② from the appliance.
Remove the inlet valve 26 using an adjustable spanner.
Remove the O-ring 23, ball 24, washer 25 and spring 22 (see fig. G).
- Clean the parts thoroughly using suitable cleaning agents. Replace them, if necessary.

NOTE

▶ You can obtain replacement parts not listed here from the service hotline given in the section "Service".

♦ Grease the O-ring 23.
◆ Replace the parts into the inlet valve 26 (see fig. G).

♦ Screw the inlet valve 26 back into the appliance. Tighten it using an adjustable spanner.

Cleaning the connecting thread

WARNING! RISK OF INJURY!

Before carrying out any work on the appliance, switch it off, disconnect the mains plug and depressurise the appliance!

If you are still experiencing a poor spray pattern after cleaning the nozzle, you should clean the connecting thread 14.

Remove the high-pressure hose 12 from the connecting thread 14 using an adjustable spanner. Counter the nut of the connection thread 14 with a second adjustable spanner.
- Loosen the fastening screw 27 with a Phillips screwdriver (not supplied).
♦ Loosen the hex screw 28 with a 2 mm hex key (not supplied).
◆ Remove the connection thread 14 using an adjustable spanner.
- Clean the connecting thread 14 using a suitable cleaning agent. Replace it, if necessary.
♦ Screw the connecting thread 14 back into the appliance and tighten it using an adjustable spanner.
◆ Retighten the fastening screw 27 with a Phillips screwdriver.
♦ Turn the hex screw 28 with a 2 mm hex key.

Storage and transportation

■ Store the appliance in a dry and dust-free location.
■ Transport the appliance only when you have taken it completely out of service. Transport the appliance in such a way that it cannot be damaged or soiled. Preferably, use the original packaging.

The valves ⑤ and HEA filters ⑪ can be stored in the storage compartment for nozzles and HEA filters ④.

Troubleshooting

Fault Possible cause Remedy
The paint spray gun does not spray.	The inserted nozzle is clogged.	Clean the nozzle and use a suitable HEA filter.
	The HEA filter is clogged.	Clean or replace the HEA filter.
	The paint spray gun is locked.	Unlock the paint spray gun.
The motor is not running.	The appliance is not plugged in.	Insert the mains plug into an appropriate mains socket.
	The appliance has overheated.	Follow the instructions in the section "Overheating protection".
	There is no voltage on the mains socket.	Check the mains socket.
	The appliance has been operated and maintained according to the operating instructions, but still does not work.	Contact our Customer Service department.

Disposal

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Environmental compatibility and material disposal

■ Paints and lacquers ... are considered hazardous waste and must be disposed of accordingly.

■ Observe the local regulations.

■ Observe the manufacturer's instructions.

■ Environmentally harmful chemicals must not be allowed to get into the ground, groundwater or any body of water.

■ Spraying work next to bodies of water or adjoining surfaces thereof (catchment area) is therefore not permitted.

■ When purchasing paints or lacquers ... pay attention to their environmental compatibility.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 380862_2110 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 380862_2110.

WARNING!

▶ Have the power tool repaired by the Service Centre or a qualified technician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

NOTE

▶ Replacement parts that are not listed (such as carbon brushes, compressed air hoses, filters, nozzles) can be ordered via our call centre.

Service

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]

IE ServiceIreland Tel.: [phone] E-Mail: [e-mail] IAN 380862_2110

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Original declaration of conformity

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

* The manufacturer bears the sole responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 60204-1:2018

EN ISO 12100:2010

EN 1953:2013

EN 55014-1:2017/A11:2020

EN 55014-2:2015

EN 61000-3-2:2014

EN IEC 61000-3-2:2019

EN 61000-3-3:2013

EN 61000-3-3:2013/A1:2019

EN IEC 63000:2018

Type designation of the machine: Airless Paint Sprayer PAFS 550 A1

Year of manufacture: 04-2022

Serial number: IAN 380862_2110

Bochum, 28/12/2021

Safri Grudd J. K. F. A. B.

CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Inhaltsverzeichnis

Einleitung 20

AIRLESS-FARBSPRÜHSYSTEM PAFS 550 A1

Einleitung

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Safri Grudd J. K. F. G. R. D.

CE

Semi Uguzlu

Protection anti-surchauffe 50

Mettre hors pression 51

Protection anti-surchauffe

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines

(2006/42/CE)

J. J. J. J. J.

CE

Semi Uguzlu

WAARSCHUWING! GEVAAR DOOR MATERIAAL EN SUBSTANTIES!

♦ Vet de O-ring 23 in.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Safri Grudd J. K. F. G. R. D.

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Safri Grudd J. K. F. G. R. D.

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

J. K. F. G. R. D.

CE

Semi Uguzlu

- manažer kvality -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

John Fynski

CE

Semi Uguzlu

- Kvalitetschef -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Safri Grudd J. K. F. G. R. D.

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

OPOZORILO!

▶ Napravo dajte v popravilo samo servisni službi ali strokovnjaku, ki naj uporablja le originalne nadomestne dele. S tem zagotovite, da se ohrani varnost naprave.

OPOMBA

John Fynski

CE

Semi Uguzlu

- vodja kakovosti -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informacji Stav informacií · Estado de las informaciones · Tilstand af information · Versione delle informazioni · Információk állása · Stanje informacij: 12 / 2021 · Ident.-No.: PAFS550A1-122021-1
