USER MANUAL PFS 400 A1 PARKSIDE

PDF ONLINE www.lidl-service.com

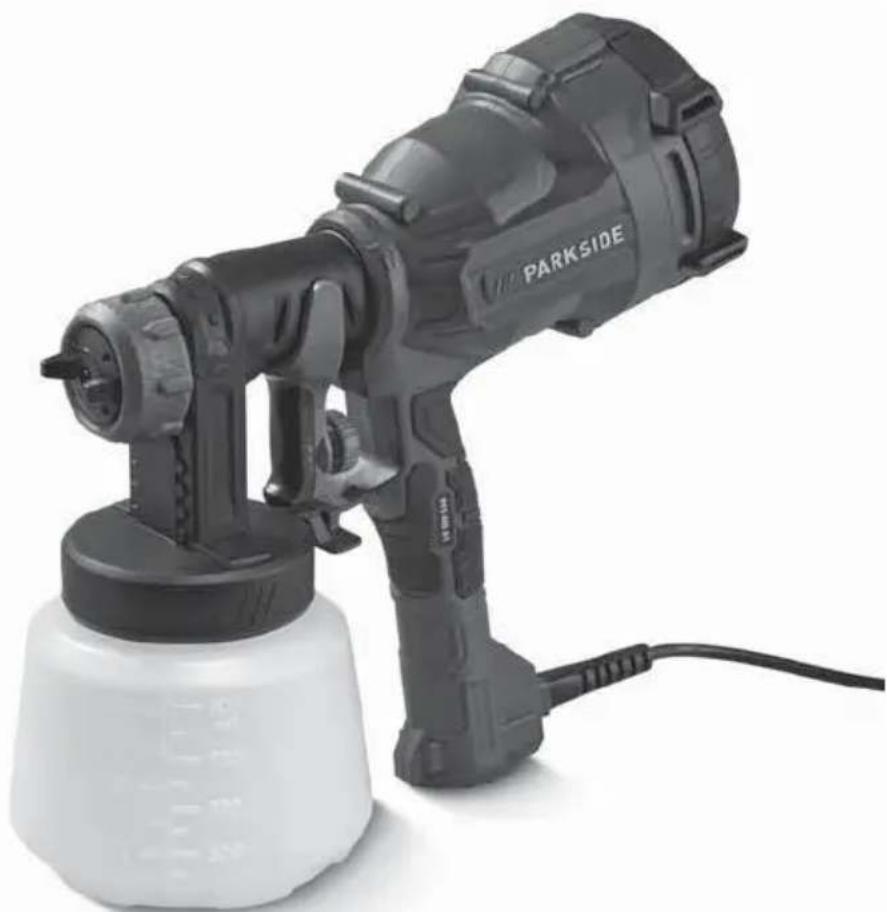

Exterior view of a Parkside spray gun with a white spray can and black handle (no text or symbols visible)

FARBSPRÜHSYSTEM / PAINT SPRAYER / PISTOLET À PEINTURE PFS 400 A1

DE AT CH

FARBSPRÜHSYSTEM

Translation of the original instructions

NL BE

VERFSPUITSYSTEEM

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Simple line drawing of a straight line with a circle at the end (no text or symbols)

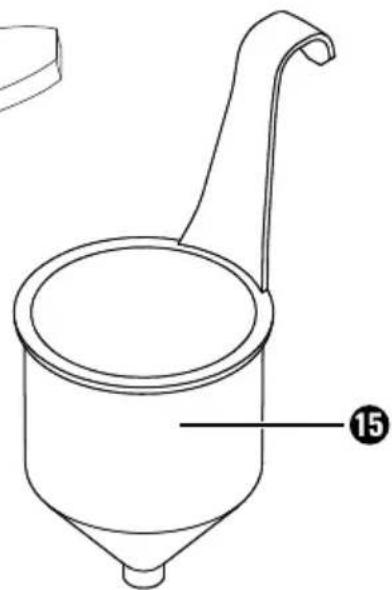

Line drawing of a funnel-shaped container with a handle and label '15' (no text or symbols on the diagram itself)

Inhaltsverzeichnis

Einleitung 2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

J. J. J. J. J.

CE

Semi Uguzlu

General power tool safety warnings....15

1. Work area safety 15
2. Electrical safety....15
3. Personal safety 16
4. Power tool use and care 16
5. Service 17
   Additional safety instructions for paint spray guns....17

Working procedures 17

Viscosity 17

Preparing the surface 18

Setting up 18

Assembly/disassembly 18
Choosing/changing the nozzle 18
Adding spray material 18
Switching the appliance on/off 18
Selecting a spray profile 19
Selecting a jet type 19

Maintenance and cleaning 19

Cleaning/replacing the air filter 19

Disposal....19

Translation of the original Conformity Declaration 22

PAINT SPRAYER PFS 400 A1

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is suitable for applying paint, lacquers and glazes. The use of easily flammable, combustible paints, lacquers or thinners is strictly prohibited. You can use the appliance to process spray material with a flow time of up to 70 seconds (max.). Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This tool is intended for domestic use only.

Features

① Union nut
② Nozzle head
3 Nozzle

4 Spray unit

5 Trigger

5a Lock

6 Motor unit

7 Screws

8 Air filter cover

9 Air filter

10 Paint cup

⑪ Riser pipe

⑫ Spray volume adjusting wheel

⑬ Cleaning brush
14 Cleaning needle
15 Measuring cup
16 Replacement air filter

Package contents

1 paint sprayer
2 nozzles* 1 x ∅ 1.8 mm, 1 x ∅ 2.6 mm
1 viscosity measuring cup
1 cleaning needle
1 cleaning brush
1 set of operating instructions
1 filter

* 1 x prefitted

Technical data

Rated output 400 W

Rated voltage 230 V \~, 50 Hz (AC)

Output 800 ml/min (water)

Paint cup 900 ml

Max. viscosity 70 DIN/s

Protection type II / ☐ (double insulation)

Noise and vibration data

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level L = 78 dB (A)

Uncertainty K = 3 dB

Sound pressure level _WA = 89 dB (A)

Uncertainty K = 3 dB

Wear hearing protection!

Total vibration value of the handle:

$$ a _ {h} < 2, 5 \mathrm{m} / \mathrm{s} ^ {2} $$

Uncertainty K = 1.5 m/s ^4

Symbols on the appliance

	Always wear safety goggles.
	Always wear a mask.

WARNING!

The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The vibration level varies depending on the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the power tool in such a way may cause the user to underestimate the vibration.

NOTE

- For an accurate estimate of the vibration load during a specific working period, the periods during which the appliance is switched off or is running but not actually being used must also be taken into consideration. This can significantly reduce the vibration load over the total working period. - Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safetywarnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety instructions for paint spray guns

- Keep your work area clean, well lit and free of paint and solvents, cloths and other inflammable materials. Possible risk of spontaneous combustion. Have a fully functioning fire extinguisher available at all times.

■ Ensure adequate ventilation in the spray zone and sufficient fresh air in the entire room. Evaporation of flammable solvents will cause an explosive environment.

Do not spray or clean with materials whose ignition point is lower than 21°C. Use materials based on water, non-volatile hydrocarbons or similar materials. The evaporation of volatile solvents will cause an explosive environment.

Do not spray near ignition sources such as static electric sparks, open flames, ignition flames, hot items, motors, cigarettes or sparks caused by plugging in/unplugging power cables or by operating switches. These ignition sources could ignite a fire in the environment.

■ Do not spray any material if you do not know whether it is potentially dangerous. Unknown materials can cause hazardous conditions.

■ Wear additional personal protective equipment such as suitable gloves and a protective mask/respirator when spraying or handling chemicals. Wearing appropriate protective equipment for the conditions reduces your exposure to dangerous substances.

Be aware of the potential hazards of the sprayed material. Take note of the markings on the container and the manufacturer's information on the sprayed material, including the instructions to use personal protective equipment. The manufacturer's instructions are to be followed to reduce the risk of fire or injuries caused by poisons, carcinogens, etc.

Do not use the spray gun to spray flammable substances. Do not clean spray guns with flammable solvents.

WARNING!

▶ Be aware of any dangers inherent to the spray material and pay attention to all packaging labels and other information provided by the producer of the substance.

Working procedures

Viscosity

The appliance can process spray materials up to a maximum 70 DIN/s. (viscosity). You can determine the viscosity (thickness) of the substance with the supplied measuring cup 15 sing a simplified measuring procedure.

◆ Fill the supplied measuring cups to the brim with the spray material.

◆ Remove the measuring cup 15 from the spray material and allow the liquid to run out.

◆ Measure the time (in seconds) until the stream of liquid stops. The resulting value is referred to as DIN seconds (DIN-s).

If the value is too high, gradually thin the spray material by adding small amounts of a suitable thinning agent in and mixing the liquid.

◆ Measure the DIN seconds again. Repeat the process until you measure a viscosity of less than 70 DIN/sec.

NOTE

▶ Do not exceed the maximal viscosity of the appliance. The spray material must not be too thick. Otherwise, the appliance might clog.
▶ Ensure that the spray material and thinning agent are compatible. Using an unsuitable thinning agent may cause clots that clog the appliance. Never mix synthetic resin varnishes with cellulose thinners.
▶ To find out which thinning agent is suitable for your spray material (water, paint thinner), refer to the manufacturer's notes provided with the spray material.
▶ Granular products and products containing solids must not be sprayed. Their abrasive effect will shorten the service life of the pump and valve.

Preparing the surface

◆ Carefully cover a large area around the spray surface. Any surface that is not masked could become contaminated.
◆ Ensure that the surface is clean, dry and free of grease.
- Polished surfaces should be lightly sanded and the sanding dust removed.

Setting up

Assembly/disassembly

Move the ▶ mark on the spray unit 4 to the 1 mark on the motor unit 6 Now, turn the spray unit 4 until the ▶ mark on the spray unit 4 locks into the 7 mark on the motor unit 6
◆ Unlock the locl5a. Turn the ▶ mark on the spray unit 4 to the 7 mark on the motor unit 6 to separate the two units.

Choosing/changing the nozzle

Nozzle Use
1.8 mm nozzle 3	all types of paints and lacquers
2.6 mm nozzle 3	viscous spray material

• Undo the union nu ^1 completely and remove it from the spray unit ^4
  ◆ Fit the desired nozzle onto the nozzle head ②
  ♦ Screw the union nu① back onto the spray unit ④

Adding spray material

◆ Unscrew the paint cup from the spray unit 4
To work on a horizontal object, place the riser pipe ⑪ in front, facing the nozzle head ② To work overhead, place the riser pipe ⑪ in the back, facing the motor unit ⑥
◆ Fill the paint cup with the spray material and screw it firmly onto the spray unit 4

Switching the appliance on/off

Working methods

• Hold the spray gun at a constant distance from the object. The ideal spraying distance is approx. 15 cm.
  ◆ Work out the best settings by carrying out a test.
  Do not switch the appliance on/off over the spray surface. Rather, start/end the spraying process approx. 10 cm from the spray surface.

Switching on

◆ Insert the plug into a mains power socket.
To switch the appliance on, pull the trigger and keep it pulled.

Switching off

◆ To stop spraying, simply release the trigger ^5 .
When you are finished working, disconnect the plug from the mains power supply.

Selecting a spray profile

Setting the spray volume

♦ Turn the spray volume adjusting wheel ^12 to the desired position:
(-) = minimum spray volume
(+) = maximum spray volume

NOTE

▶ We recommend starting at the minimum setting.

Selecting a jet type

• Undo the union nu1.
• Turn the protruding parts of the nozzle head ^2 so that they point to the desired symbol on the spray unit ^4

The appliance has the following settings:

• round jet
  vertical flat jet

horizontal flat jet

◆ Re-tighten the union nu①.

Maintenance and cleaning

WARNING! Disconnect the mains plug during breaks and while doing maintenance work on the appliance.

ATTENTION!

▶ Never immerse the paint spray gun completely in solvent.

NOTE

- Thorough cleaning after every use is very important for safety and operation. Otherwise, the needle could get blocked and proper operation of the appliance cannot be guaranteed.

■ Wear suitable gloves when cleaning.

■ After every use, squirt water through the appliance.

To clean the spray un④, nozzle head ② nozzles ③ and the spray holes inside, use the supplied cleaning brush ⑬cleaning needle ⑭ or a cloth. Never use petrol, solvents or cleansers which can damage plastic.

For rust protection purposes, you can spray a little sewing machine oil through the spray gun after cleaning.

♦ Oil all moving parts from time to time.

Do not use any silicon-based lubricants.

◆ Store the appliance only in dry interior rooms.

Cleaning/replacing the air filter

Check the air filter ⑨ regularly, otherwise malfunctions may occur.

◆ Remove the screw 7 from the air filter cover 8
◆ Remove the air filter cover ^8 .
◆ Remove the air filter ^9 and examine it for contamination.
If necessary, shake out the air filter ^9 and clean it under running water. Leave the air filter ^9 to dry.

NOTE

▶ If necessary, replace the air filter ^9 with the replacement air filter ^16 .

◆ Proceed in reverse order in order to reassemble the appliance.

Disposal

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Do not dispose of power tools in your normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be

collected separately and recycled in an environmentally compatible manner.

Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Environmental compatibility and material disposal:

■ Paints and lacquers... are considered hazardous waste and must be disposed of accordingly.
- Observe the local regulations.
- Observe the manufacturer's instructions.
■ Environmentally harmful chemicals must not be allowed to get into the ground, groundwater or any body of water.
■ Spraying work next to bodies of water or adjoining surfaces thereof (catchment area) is therefore not permitted.
■ When buying paints, lacquers... pay attention to their environmental compatibility.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile

parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 344907_2004.

WARNING!

▶ Have the power tool repaired by the Service Centre or a qualified technician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

NOTE

▶ Replacement parts not listed (such as the needle, nozzles, paint cup) can be ordered via our service hotline.

Service

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 344907_2004

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, Germany, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

Electromagnetic Compatibility

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 60745-1:2009/A11:2010

EN 50580:2012/A1:2013

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Type designation of machine: Paint sprayer PFS 400 A1

Year of manufacture: 07-2020

Serial number: IAN 344907_2004

Bochum, 19/08/2020

Safri Froude

CE

Semi Uguzlu

- Quality Manager -

The right to effect technical changes in the context of further development is reserved.

Table des matières

Introduction 24

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines

(2006/42/CE)

Jeddy Fjord

CE

Semi Uguzlu

VERFSPUITSYSTEEM PFS 400 A1

Inleiding

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 · 44867 BOCHUM

DUITSLAND · www.kompernass.com

Sofia Gruick

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Jeddy Fjord

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations
