USER MANUAL PDFP 500 B2 PARKSIDE

Translation of the original instructions

FR BE

PISTOLETÀ PEINTUREÀ AIR COMPRIMÉ

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE Translation of the original instructions Page 1

Intended use 2
Features 2
Package contents 2
Technical details 2

Safety information 3

Original accessories/auxiliary equipment 3
Safety instructions for fine spray systems 4

Operation 4

HVLP properties 4
4
Preparing the surface 5
Switching the appliance on/off 5
Setting the paint jet pattern 5
Adjusting the paint flow 5
Adjusting the airflow 6

Maintenance and cleaning 6

Disposal 7

Warranty. 7

Service 8

Importer 8

Translation of the original Conformity Declaration 8

GB

IE

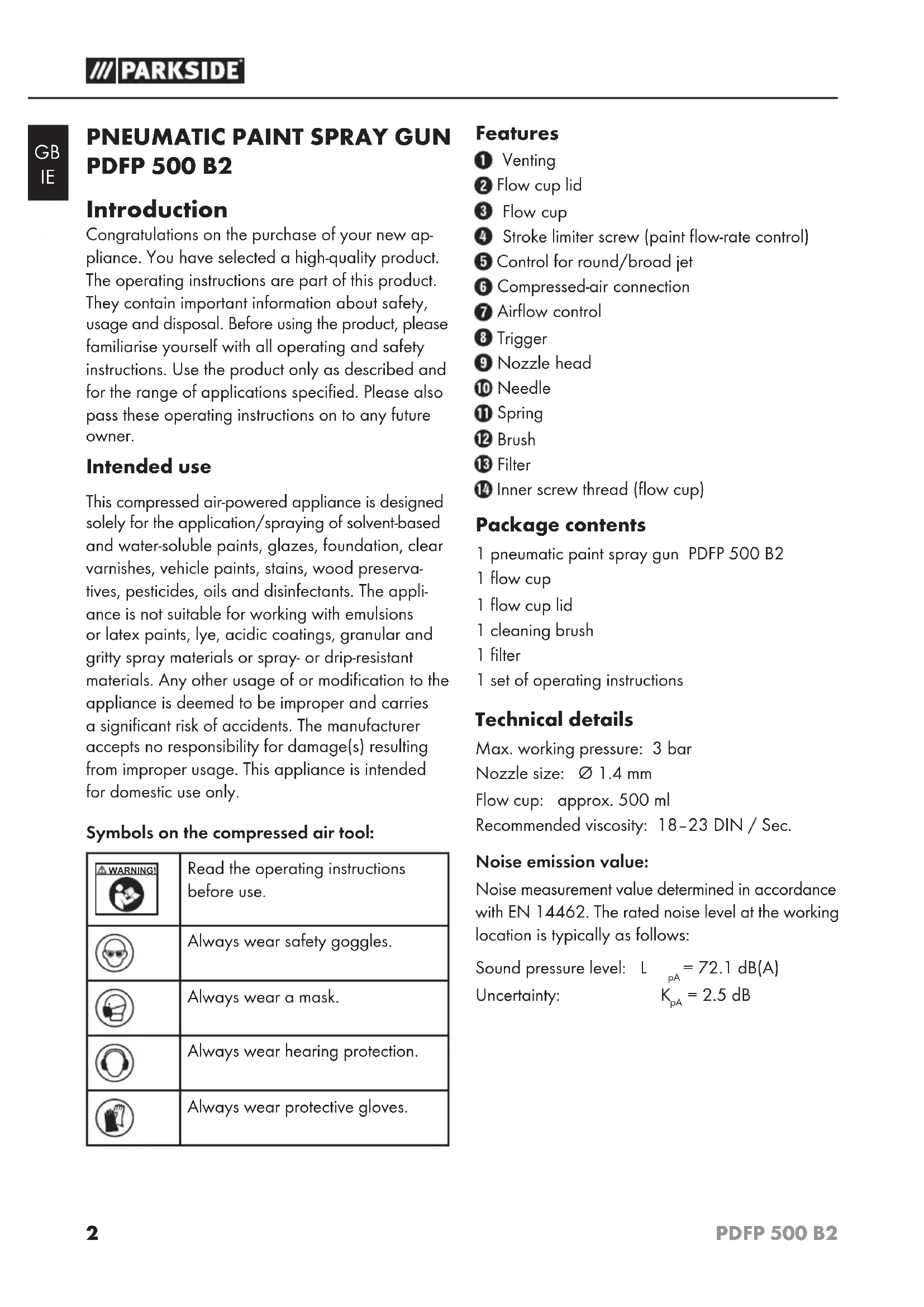

PNEUMATIC PAINT SPRAY GUN PDFP 500 B2

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This compressed air-powered appliance is designed solely for the application/spraying of solvent-based and water-soluble paints, glazes, foundation, clear varnishes, vehicle paints, stains, wood preservatives, pesticides, oils and disinfectants. The appliance is not suitable for working with emulsions or latex paints, lye, acidic coatings, granular and gritty spray materials or spray- or drip-resistant materials. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is intended for domestic use only.

Symbols on the compressed air tool:

WARNING!	Read the operating instructions before use.
	Always wear safety goggles.
	Always wear a mask.
	Always wear hearing protection.
	Always wear protective gloves.

Features

1 Venting
2 Flow cup lid
3 Flow cup
Stroke limiter screw (paint flow-rate control)
Control for round/broad jet
6 Compressed-air connection
Airflow control
Trigger
9 Nozzle head
10 Needle
Spring
Brush
13 Filter
14 Inner screw thread (flow cup)

Package contents

1 pneumatic paint spray gun PDFP 500 B2
1 flow cup
1 flow cup lid
1 cleaning brush
1 filter
1 set of operating instructions

Technical details

Max. working pressure: 3 bar

Nozzle size: 1.4mm

Flow cup: approx. 500 ml

Recommended viscosity: 18-23 DIN / Sec.

Noise emission value:

Noise measurement value determined in accordance with EN 14462. The rated noise level at the working location is typically as follows:

Sound pressure level: L =72.1 dB(A)

Uncertainty: K_pA = 2.5 dB

Safetyinformation

WARNING!

• Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

WARNING! KICKBACK!

At high working pressures, kickback can occur which can lead to danger due to continuous loads under certain circumstances.

WARNING! RISK OF SUFFOCATION!

When working with nitrogen, there is a risk of suffocation! Therefore, work only in well-ventilated rooms.

WARNING! RISK OF INJURY!

• Never exceed the maximum permissible operating pressure of 3 bar. Use a pressure reducer to adjust the working pressure.

■ RISK OF INJURY! MISUSE!Do not point the tool towards people or animals!

SMOKING PROHIBITED: RISK OF EXPLOSION/FIRE! Do not cause any sparks or ignite any naked flame.

WARNING! RISK OF INJURY!

Never use oxygen or other flammable gases as an energy source.

WARNING! RISK OF INJURY!

• First detach the hose from the compressed air source before disconnecting the supply hose from the appliance. In this way, you avoid uncontrollable thrashing about of the supply hose or kickback.

Use suitable body protection equipment to protect yourself. Wear a mask with an active carbon filter and safety goggles!

Keep children and other bystanders at a distance while operating the tool. Distractions can cause you to lose control.

• Disconnect the appliance from the compressed air source before starting any repairs or maintenance work, as well as during any breaks in work and before transportation.

When undoing the hose coupling, hold the hose firmly in your hand to prevent injuries caused by a thrashing hose.

Ensure there is no damage. Check the appliance for any possible defects before use. If the appliance exhibits any faults, it should not be used under any circumstances.

Do not kink the appliance's hose. Otherwise, it could get damaged.

Please heed the safety instructions provided by the manufacturer of the spray medium.

Stay alert, watch what you are doing and use common sense when operating the appliance. Do not use any appliance while you are tired or under the influence of drugs, alcohol or medication.

Do not remove any type plates. These contain important information for the safe operation of the appliance.

If you are inexperienced with the appliance, seek training in how to use it safely.

Original accessories/auxiliary equipment

Use only the additional equipment and accessories specified in the operating instructions. Using accessories other than those recommended in the operating instructions can lead to a risk of injury.

Safety instructions for fine spray systems

• Keep your work area clean, well lit and free of paint and solvents, cloths and other inflammable materials. Possible risk of spontaneous combustion. Have a fully-functioning fire extinguisher available at all times.

Ensure adequate ventilation in the spray zone and sufficient fresh air in the entire room. Evaporation of flammable solvents will cause an explosive environment.

Do not spray or clean with materials whose ignition point is lower than 21^ . Use materials based on water, non-volatile hydrocarbons or similar materials. The evaporation of volatile solvents will cause an explosive environment.

Do not spray near ignition sources such as static electric sparks, open flames, ignition flames, hot items, motors, cigarettes and sparks caused by plugging in/unplugging power cables or by operating switches. These ignition sources could cause a fire to ignite in the environment.

Do not spray any material if you do not know whether it is potentially dangerous. Unknown materials could cause dangerous conditions.

Wear additional personal protective equipment such as suitable gloves and a protective mask/respirator when spraying or handling chemicals. Wearing appropriate protective equipment for the conditions reduces your exposure to dangerous substances.

• Do not spray yourself, other people or animals. Keep your hands and other body parts out of the spray jet. If the spray jet pierces the skin, seek medical assistance immediately. The sprayed material can even penetrate through a glove and into the skin and thus into your body.

Do not treat such a penetration injury like a normal cut. A high-pressure jet can inject toxic materials into the body and cause serious injuries. In the event of a chemical penetration of the skin, seek medical assistance immediately.

■ Be aware of the potential hazards of the sprayed material. Take note of the markings on the container and the manufacturer's information on the sprayed material, including the instruction to use personal protective equipment. The manufacturer's instructions are to be followed to reduce the risk of fire or injuries caused by poisons, carcinogens, etc.
Never spray without the nozzle head fitted. Using a special nozzle with the appropriate nozzle head reduces the likelihood of high-pressure jets piercing the skin and injecting poisons into your body.

Operation

HVLP properties

This appliance has a HVLP system (high volume, low pressure). This ensures increased material (paint) application and lower consumption.

IMPORTANT: Do not exceed the maximum working pressure of 3 bar.

Connecting the device

The product may only be operated using cleaned, condensate- and oil-free compressed air and may not exceed the maximum operating pressure of 3 bar on the appliance.
To ensure that you can regulate the air pressure, the compressed air source should be equipped with a (filter) pressure reducer.

You will need a flexible compressed air hose with a quick-disconnect coupling and a suitable compressed air source to operate this appliance. Follow all the operating and safety instructions for the compressed air source and any special instructions regarding paint preparation.

NOTE

Take note of the correct working pressure. Excessively high pressure leads to strong dispersion and overly-rapid liquid evaporation. The surfaces become rough and develop poor adhesion properties. If, however, the working pressure is too low, the paint will not be adequately dispersed. This leads to wavy surfaces and droplets.

Connect the compressed air hose with the quick-action coupling to the compressed-air connection on the appliance. The connection locks automatically.
Set the working pressure on the filter pressure reducer of the compressed air source to 3 bar.

Preparing the surface

Carefully cover a large area around the spray surface. Any surface that is not masked could become contaminated.
Ensure that the spray surface is clean, dry and free of grease.
Polished surfaces should be lightly sanded and the sanding dust removed.

Switching the appliance on/off

Working methods:

Fit the filter in the gun (see fig. C).
Open the ver1 while working.
When thinning, ensure that the spray material and the thinners are suitable for each other. Using an unsuitable thinner can lead to the formation of lumps which, in turn, can block the spray gun.
Screw the flow cup 3 clockwise onto the spray gun.
Fill the flow cup with spray material and screw the lid n firmly.
Hold the spray gun at a constant distance from the object. The ideal spraying distance is approx. 15 cm.
Work out the right settings by carrying out a test.
Do not switch the appliance on/off over the spray surface, rather start/end the spraying process approx. 10~cm from the spray surface.

Switching on:

To switch on, pull the trigger and keep it pressed in.

Switching off:

To stop working, simply release the trigger.

Setting the paint jet pattern

The appliance has two settings: round jet and broad jet.

Round jet Broad jet

Setting the round jet:

Use the round jet for small surfaces, corners and edges.
Turn the control clockwise

Setting the broad jet:

You can use the broad jet vertically or horizontally for larger surfaces.
Turn the control clockwise The nozzle head can be turned into any position between the horizontal and the vertical.

Adjusting the paint flow

NOTE

The front locking bolt is designed to limit the adjustment range of the stroke limiter screw.

Increasing the paint flow:

Turn the stroke limiter screw anticlockwise.

Decreasing the paint flow:

Turn the stroke limiter screw clockwise.

Adjusting the airflow

NOTE

We recommend starting with the airflow set to maximum. To do this, open the airflow regulator 7 to maximum as described below in the section "Increasing the airflow".

Increasing the airflow:

NOTE

• Increasing the airflow is generally advisable if the dispersion is too coarse.

Turn the airflow contro anticlockwise.

Decreasing the airflow:

NOTE

Decreasing the airflow is generally advisable if the paint mist is too strong.

Turn the airflow control clockwise.

Maintenance and cleaning

Disconnect the appliance from the compressed air supply.

NOTE

Thorough cleaning after every use is very important for safety and operation. Otherwise, the needle could get blocked and proper operation of the appliance cannot be guaranteed.

Wear suitable gloves when cleaning.

Do not use any hydrocarbon-based solvents like benzene, ethyl chloride, etc., as these could trigger chemical reactions with some of the materials in the paint spray gun. This can lead to dangerous reactions.

CAUTION!

Never immerse the paint spray gun completely in solvent.

After every use, squirt thinners (only outside - risk of explosion!) or water through the appliance.

To clean the housing, the nozzle head and the spray holes inside it, use the supplied cleaning brush or a cloth. Never use petrol, solvents or cleansers which can damage plastic.

First, unscrew the stroke limiter screw by turning it in an anticlockwise direction.

Remove the spring.

Remove the needl using pliers (see fig. A).

Clean the needle carefully with the brush 12 (see fig. B).

Replace the needle in the paint spray gun.

Push the spring onto the end of the needle 10

Screw the stroke limiter screw tight by turning it clockwise

Screw the flow cup 3 anticlockwise off the spray gun.

Remove the filter as shown in fig. C and clean it with the cleaning brush.

Also clean the inner screw thread of the flow cup 3 sing the cleaning brush (see fig. D).

Replay the filter in the spray gun (see fig. C) and screw the flow cup 3 clockwise family onto it.

For rust protection purposes, you can spray a little sewing machine oil through the spray gun after cleaning.

Oil all moving parts from time to time.

After cleaning the needle, the thread and seal must be lightly greased with a suitable lubricant.

Do not use any silicon-based lubricants.

Store compressed-air appliances only in dry rooms.

Disposal

The packaging consists of enviro friendly material. It can be disposed of in the local recycling containers.

Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Environmental compatibility and material disposal:

Paints and lacquers... are considered special waste which must be disposed of accordingly.
Observe the local regulations.
Observe the manufacturer's instructions.
■ Environmentally harmful chemicals must not be allowed to get into the ground, groundwater or any body of water.
Spraying work next to bodies of water or adjoining surfaces thereof (catchment basin) is therefore not permitted.
When buying paints, lacquers... pay attention to their environmental compatibility.

Warranty

This appliance is provided with a 3-year warranty valid from the date of purchase. The appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge.

Service

WARNING!

Have the power tool repaired by the Service centre or a qualified technician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

NOTE

Replacement parts not listed (such as needles, springs, flow cups) can be ordered via our service hotline.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 275684

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 275684

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

Applied harmonised standards:

EN 1953:2013

Type designation of machine:

Pneumatic paint spray gun PDFP 500 B2

Year of manufacture: 02 - 2016

Serial number: IAN 275684

Bochum, 01/02/2016

C E

Semi Uguzlu

• Quality Manager -

The right to effect technical changes in the context of further development is reserved.
