USER MANUAL Juice Express JU550D MOULINEX

PROBLEMAS CAUSAS SOUÇÕES

– In bed&breakfast locaties.

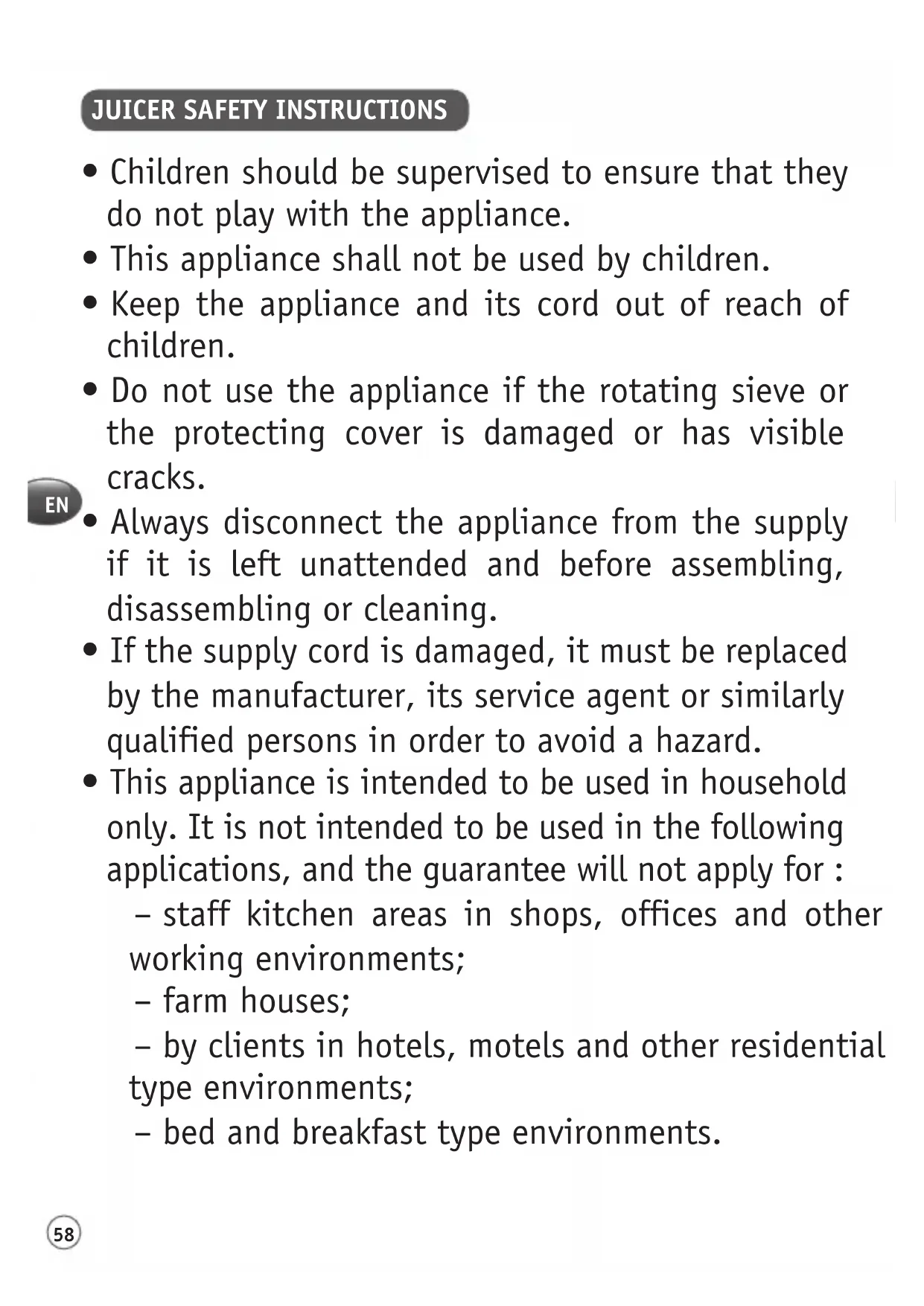

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance shall not be used by children.

• Keep the appliance and its cord out of reach of children.

• Do not use the appliance if the rotating sieve or the protecting cover is damaged or has visible cracks.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is intended to be used in household only. It is not intended to be used in the following applications, and the guarantee will not apply for : – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments.59

• The product will shut OFF automatically if it becomes too hot. It will turn ON again once the temperature has cooled down to room temperature (about 1 hour later). In such case, it is suggested that the user unplugs the appliance and turns the speed selector to “0”position. To restart, wait until the product has completely cooled down, plug in the product again and turn speed selector to 1 or 2.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

• Make sure you wash with warm soapy water using a sponge, all the attachments which have come into contact with food, immediately after use. The filter can be cleaned using the brush.

• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• Improper use of the appliance and its accessories may damage the appliance and cause injury.

• The sieve have sharp blades, take care when handling and during cleaning.60

• To avoid all accidents and damage the appliance, follow operating times and speed settings for accessories specified in the manual.

• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Always check the sieve before use.

• Please read these instructions carefully before first use. The appliance is designed for domestic use only. The manufacturer shall not accept any liability and reserves the right to cancel the guarantee in the event of commercial or inappropriate use or failure to follow the instructions.

• If there is any evident damage to the sieve, contact an Approved Service Centre. The sieve has sharp edges: handle it with care.

• Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.

• Do not place or use this appliance on a hotplate or close to an open flame (gas cooker).

• Do not immerse the motor unit or put it under running water.

• Use this appliance on a solid, stable worktop, away from water splashes. Do not turn it over.

• Any intervention other than normal cleaning and maintenance by the customer must be carried out by an approved service centre.

• Never unplug the appliance by pulling on the cord.

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.

• A domestic appliance must not be used: – if it has fallen on the floor – if it is damaged or incomplete.

• Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

• In such cases, or for any other repair, you must contact an Approved Service Centre.

• This product has been designed for domestic use only. The manufacturer accepts no responsibility, and the guarantee will not apply, for any commercial use, inappropriate use or failure to comply with the instructions.61

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

• Only use original accessories and components. We cannot accept any responsibility if this is not the case.

• Never put your fingers or any other object in the feeding tube while the appliance is in operation. Always use the pusher provided for this purpose.

• Never open the cover before the sieve has come to a complete stop.

• Do not remove the pulp container while the appliance is in use.

• Always unplug the appliance from the mains after use.

• Do not leave the power cord close to or in contact with sources of heat or sharp edges.

• Do not allow long hair, scarves, ties etc. to hang over the appliance or attachments when in use.

• Wait for all moving parts to stop before opening the appliance.

• Do not exceed the maximum quantities or operating periods indicated.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.62

This appliance is fitted with a safety mechanism. To start the juice machine, the cover (C) must be properly secured by the locking handle (G). Unlocking the handle will stop the juice machine. At the end of a cycle, place the control knob (J) to 0 and wait until the filter (D) stops completely before removing the cover (C).

• We recommend that you wash all the removable parts (A, B, C, D, E, M, N) in warm soapy water (see paragraph “Cleaning”). Rinse and dry them carefully.

• Unpack the appliance and place it on a clean, dry stable flat work surface away from water splashes.

• Ensure that all packaging has been removed before starting the appliance.

• Place the pulp collector (E) on the body of the appliance (see Fig. 2).

• Place the filter (D) in the pulp collector (E). Ensure that the filter is properly clipped onto the drive shaft (H) (see Fig. 3).

• Fit the cover (C) on top of the pulp collector (E) and turn to lock the lid (see Fig. 4).

• Push the locking handle (G) to the rear until it locks into place. You will hear an audible “click” (see Fig. 5).

• Slide the pusher (A) into the feeding tube (B) aligning the groove on the pusher with the small ridge in the feed tube (see Fig. 6).

• Place the juice jug (M) under the pouring spout in front of the appliance (see Fig. 7).

• Plug in the appliance.

• To start the appliance, use the control knob (J).

• Insert the fruits or vegetables through the feeding tube (B).

• The fruits and vegetables must be inserted only while the motor is running.

• Do not press too hard on the pusher (A). Do not use any other utensil. NEVER push with your fingers.

• When you have finished, stop the appliance by turning the control knob (J) to 0 and wait until the filter (D) stops completely.

• When the pulp collector (E) is full, or the juice flow slows down, empty the pulp collector and clean the sieve and the cover.

• Remove the “pulp collector + filter” assembly by pulling vertically using both hands (see Fig. 9 and 10).63

• Wash the fruit carefully before stoning.

• In general, you do not need to remove the skin or peel. You only need to peel fruit with thick and bitter skin, like lemon, orange, grapefruit.

• It is difficult to extract juice from bananas, avocados, blackberries, figs, aubergines and strawberries.

• Choose fresh, ripe fruit and vegetables, they will yield more juice. This appliance is suitable for fruits such as apples, oranges and pineapples or vegetables such as carrots and tomatoes.

• If you use overripe fruits, the filter will get clogged more quickly and less juice will be extracted.

• Important: All juice must be consumed immediately. On contact with air, it will oxidised quickly, which can change its taste, colour and nutritional value. Apple juice quickly turn brown. Add a few drops of lemon juice to slow this discoloration. PRACTICAL TIPS WHICH SPEED TO USE? Ingredients Speed Approx. weight (in kg) Quantity of juice obtained in ml (*)/ Operation time (for reference) Apples 2 1 650 / ≤ 1 min Carrots 2 1 550 / ≤ 1 min Carrots (fast operation) 2 1.8 700 / 23 sec Tomatoes 1 1 700 / ≤ 1 min Orange 1 1 700 / ≤ 1 min Pineapple 2 1 650 / ≤ 1 min Choosing the wrong speed may cause the appliance to vibrate abnormally. When the pulp collector or juice jug is full, users need to turn off the appliance for at least 2 minutes. After every 3 consecutive operations, the appliance needs to be turned off for at least 30 minutes before the next operation.

• The quality and quantity of juice varies greatly according to the freshness when harvested and the particular variety of fruit or vegetable. The quantities of juice indicated above are therefore approximate.64

CLEANING WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK?

• All removable parts (A, B+C, D, E+F, M and N) may be cleaned in the dishwasher.

• This appliance is easier to clean immediately after use.

• Do not use abrasive sponge, acetone, alcohol (white spirit), etc. to clean the appliance.

• Use the cleaning brush (L) to clean the filter.

• The filter must be handled with care. Avoid any mishandling that may affect the performance of the appliance.

• NOTE: You MUST replace your filter at the first sign of wear or damage.

• Clean the motor unit with a damp cloth. Dry carefully.

• Never immerse the motor unit under water or any other liquid.

PROBLEMS CAUSES SOLUTIONS

The appliance does not work. The plug is not inserted correctly; the control knob (J) is neither on “1” nor on “2”. Plug the appliance into a socket with the correct voltage. Turn the control knob to speed “1” or “2”. The cover (C) is not properly secured. Check that the cover (C) is properly secured by the locking handle (G) and positioned correctly in the grooves. The appliance is giving off a smell or is very hot to touch, is making an abnormal noise or smoking. The filter (D) is not properly fitted. Check that the filter (D) is fitted properly onto the drive shaft (H). The quantity of fruit or vegetables being processed is too great. Allow the appliance to cool down and reduce the amount of fruit or vegetables being processed. The flow of juice decreases. The filter (D) is blocked. Turn off the appliance, clean the feeding tube (B) and the filter (D). The pulp collector (E) is full. Remove the pulp from the pulp collector (E). For any other problem or fault, please contact your approved Service centre.65
