USER MANUAL Z25510 MOULINEX

Line drawing of a modern juice maker with three cups, showing internal processing and no text or symbols.

Downloaded from www.vandenborne.be FR ES PT IT EL NL DE EN AR FA RU UK KK

Downloaded from www.vam A B C D E F G H N L I J K L M

1

Illustration of household appliances including a blender, kitchen sink, and washing machine with no visible text or symbols

Downloaded from www.vandenborre.be

2

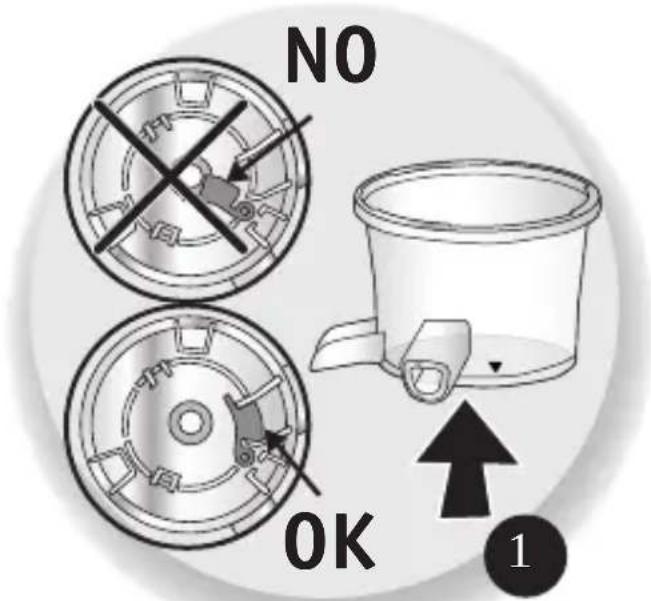

NO OK 1

Illustration of a kitchen mixer with a magnified view showing the interior portion (no text or symbols)

1

1

2

3

Note: if the filter and/or the pressing screw are not installed properly, it will be impossible to lock the cover.

Illustration of tomatoes, a onion, and raspberries (no text or symbols)

Illustration of hands slicing a melon with a crossed-out pan and a prohibition symbol (no text or labels)

Downloaded from www.vandenborre.be

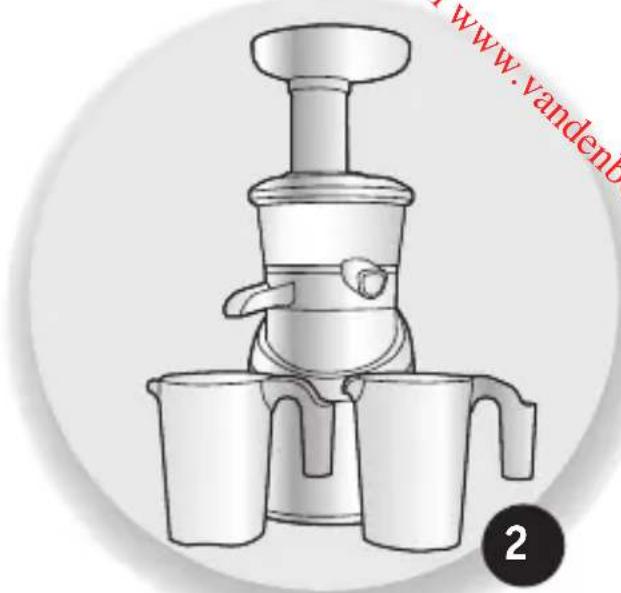

Illustration of a multi-tiered juice maker with buckets and a top handle, enclosed in a circular frame (no text or symbols on the device itself)

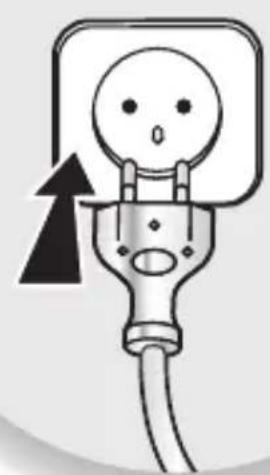

Simple line drawing of a plug with a bulb and arrow indicating upward motion (no text or symbols)

Illustration of a finger pressing a button into an ear, with no text or symbols present.

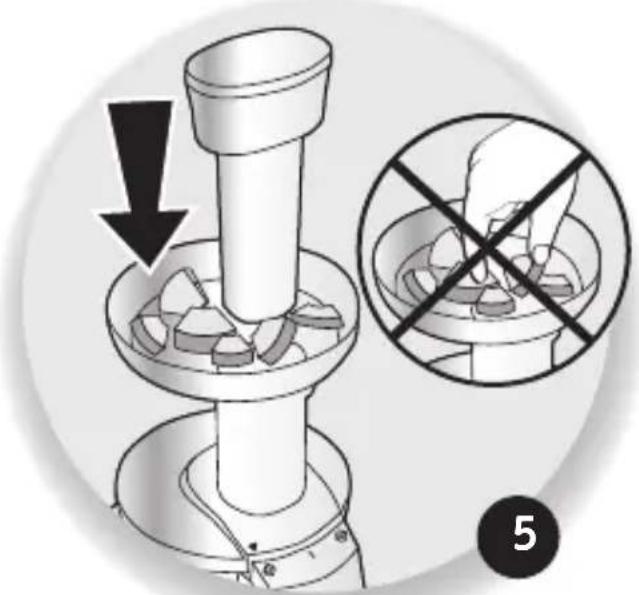

Diagram illustrating a mechanical presser with a downward arrow and a crossed-out magnified view showing no text or symbols.

① ② 6

4

Downloaded from www.vandenboire.be OK

NO

	×	×	×	✓
	✓	✓	✓	✓
*	✓	✓	✓	✓
	✓	✓	✓	✓

* selon modèle
* según el modelo
* consoante o modelo
* in base al modello
* Ανάλογα με το μοντέλο
* afhankelijk van het model
* je nach Modell

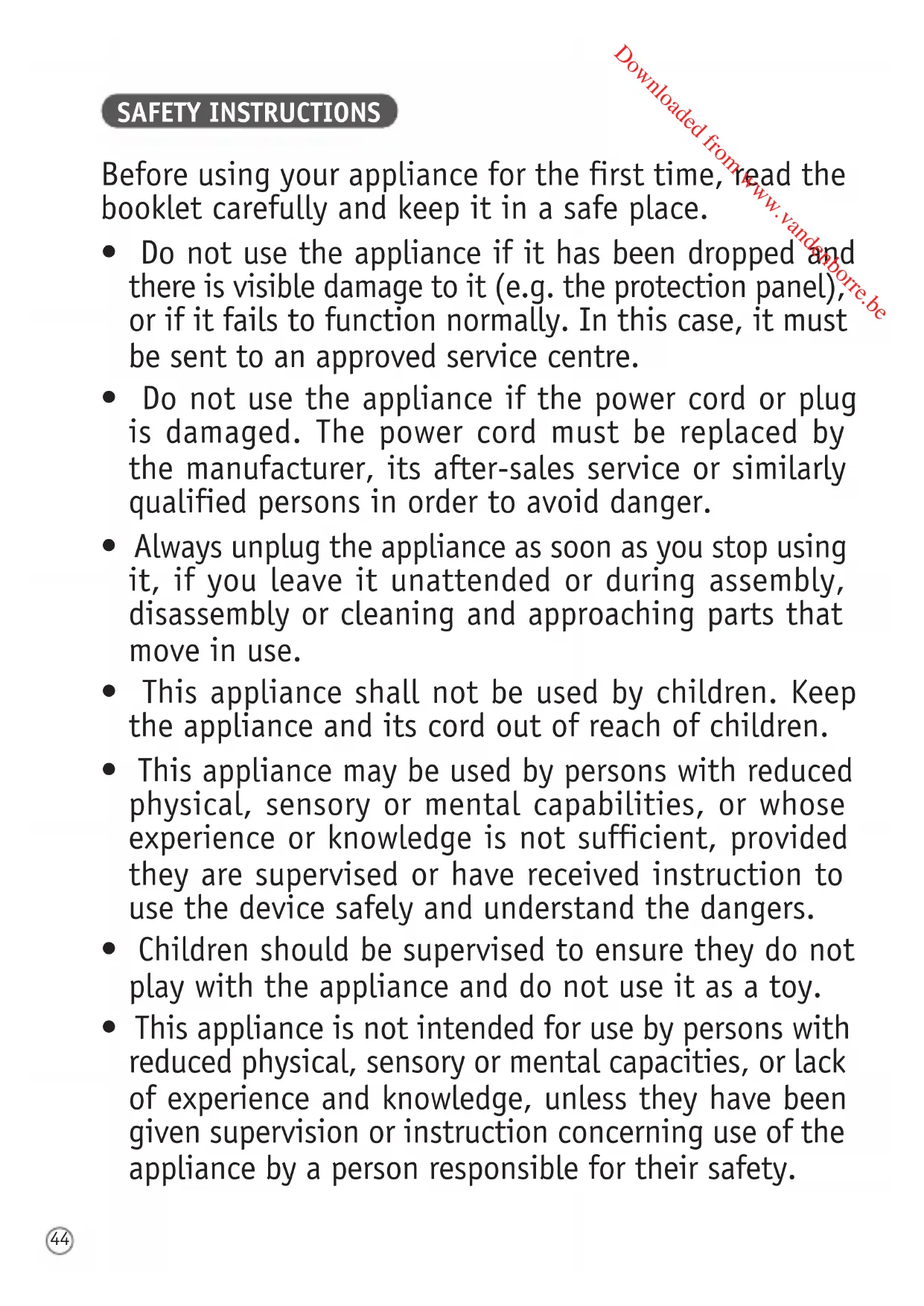

Before using your appliance for the first time, read the booklet carefully and keep it in a safe place.

- Do not use the appliance if it has been dropped and there is visible damage to it (e.g. the protection panel), or if it fails to function normally. In this case, it must be sent to an approved service centre.

- Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.

- Always unplug the appliance as soon as you stop using it, if you leave it unattended or during assembly, disassembly or cleaning and approaching parts that move in use.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.

- Children should be supervised to ensure they do not play with the appliance and do not use it as a toy.

- This appliance is not intended for use by persons with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Your appliance is for domestic culinary use only (for use inside the home only). It has not been designed to be used in the following circumstances, which are not cover by the warranty: in kitchen areas reserved for staff in shops, offices and other professional environments, on farms, by clients of hotels, motels and other residential environments and in guest rooms or similar accommodation.

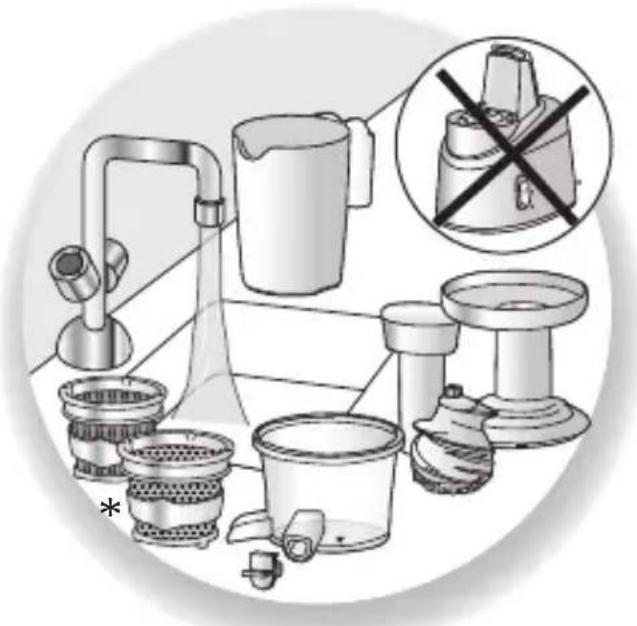

• The parts in contact with food should be cleaned with a sponge and soapy water or in the dishwasher; please consult the instruction manual for the complete cleaning and maintenance of your appliance.
• This appliance should not be used more than 20 min.
• Cleaning and user maintenance shall not be made by children without supervision.
• The instructions for appliances warn against misuse.
• In the case that, an additional accessory would be proposed, it would be accompanied with its own safety instructions.

DESCRIPTION

A Pusher

B Lid

C Pressing screw

DFilters(x2)

- Juice filter

- Coulis filter*

ERubber

F Bowl

G Dry residue exit

H Juice exit

I Dry residue strap

J Motor unit

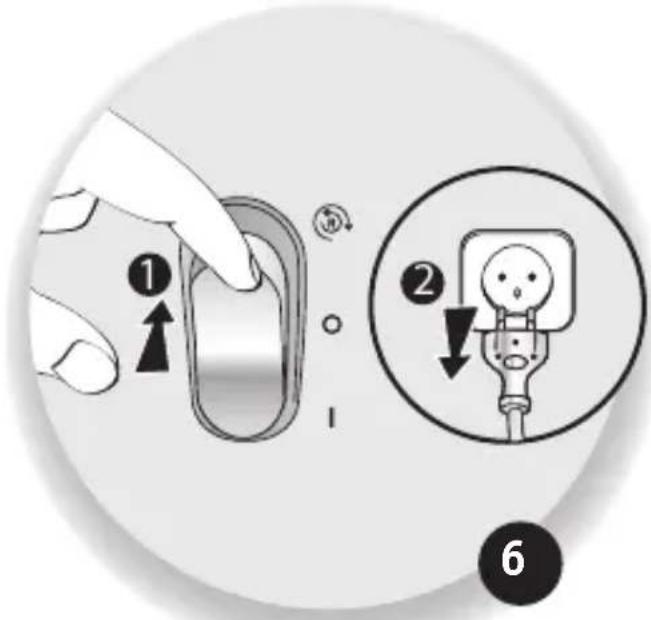

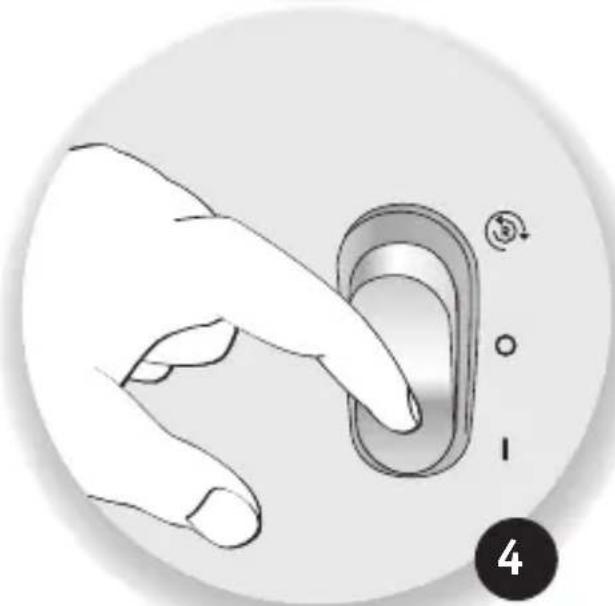

KStart/stopbutton

- position stop and Reverse

- 0: appliance stopped

- I: start

LJugs(x2)

M Cleaning brush

N Drip stop

PRACTIVAL TIPS

To stop the appliance, quickly press the Reverse position of the button.

After use, it is advisable to clean the appliance quickly to accumulation of dried food on the accessories. To make cleaning easier, you can first rinse it by pouring a glass of water through the feed tube during operation.

The appliance cuts out automatically after 20 minutes. Leave the appliance to cool down for a few minutes before you use it again.

Choose fresh fruits and vegetables. Wash them thoroughly. For maximum juice extraction, leave the appliance to run for a few more seconds after the ingredients have been juiced.

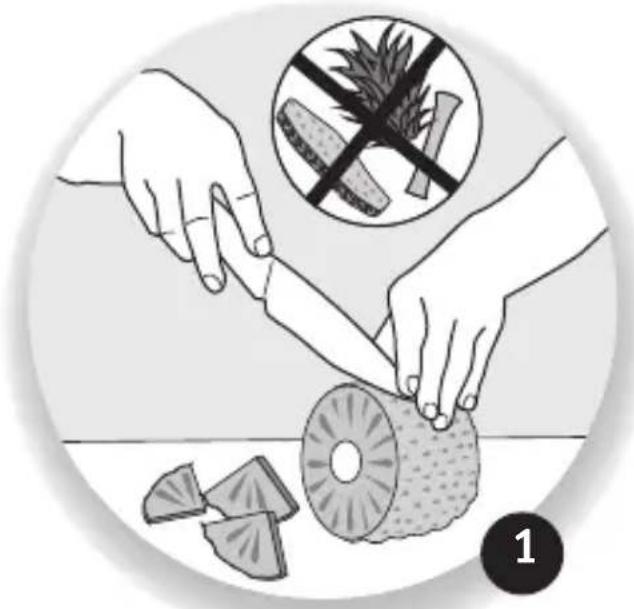

- Most fruits and vegetables do not need to be peeled or seeded, except for those with thick skins (lemons, pineapples, etc.) or large stones (peaches, apricots, mangoe, etc.) and pineapple cores.

Never place solid ingredients in your juicer (stones, ice cubes, sugar cubes), or fibrous foods or meat.

- Inserting hard ingredients can block the appliance. If this happens, use the Reverse function for a few seconds.

If it stays blocked:

• Open the cover (B), clean the juicing screw (C) and the filter (D) and then re-assemble
• Cut the ingredients into smaller pieces.

For recipes with ingredients of different textures, it is essential to stick to a juicing order for optimal operation:

1 ^st : non-fibrous fruits (note, make sure the core is removed from pineapples before juicing)
2^nd : non-fibrous vegetables
3 ^rd : fibrous fruit and vegetables and herbs (e.g. celery, rhubarb, parsley, basil)

The filter and the screw must be cleaned after fibrous fruits and vegetables and herbs have been juiced.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK?

PROBLEM SOLUTION
The appliance does not work.	1. Check that it is plugged in correctly.2. Check that it is assembled correctly.
The juice does not come out in sufficient quantity or it flows out through the pulp outlet (H).	Check that the pulp tab (I) and the rubber (E) are installed correctly.
The juice is too thick. 1. Preferably use less ripe fruit.2. Choose a firmer and less floury variety of fruit, especially for apples.
The appliance has stopped.	1. Make sure too much pulp is not clogged inside.2. Check that the stones have all been removed.→ Switch off the appliance and use the Reverse function for 2-3 seconds. Then turn on the appliance as usual.3. The appliance has been running for 20 minutes and left to cool for a few minutes.

RECYCLING

End-of-life electrical and electronic products:

Your appliance is designed to operate for many years. However, the day you plan to replace it, do not throw it away with normal household rubbish or in a landfill but take it to a suitable collection

point provided by your local authority (or to a recycling centre if applicable). Environmental protection first!

Your appliance contains numerous materials that can be recovered or recycled. Take it to a collection point for processing.
