Product Type	Juice Extractor
Brand	Moulinex
Model	Ultra Juice ZU600110
Power Supply	220-240 V ~ 50/60 Hz
Power	Not specified (estimated 150-200 W)
Main Functions	Juice extraction, reverse (reverse function), pulp level control, anti-drip system, ice and coulis preparation
Juice Bowl Capacity	Approximately 1 L (estimated)
Pulp Container Capacity	Approximately 1.5 L (estimated)
Included Accessories	Pusher, pressing screw, juice filter, rubber scraper, juice bowl, pulp container, travel bottle, cleaning brush, ice filter
Materials	ABS plastic, stainless steel (blade/filter), rubber (scraper)
Cleaning	Removable parts dishwasher-safe (except motor unit), cleaning brush included
Safety	Electronic overload protection, automatic stop in case of blockage, lockable safety lid, anti-start system if improperly assembled
Max Operating Time	15 minutes continuous
Usage	Indoor domestic use, altitude < 2000 m
Warranty	2 years (standard)
Repairability	Spare parts available through Moulinex after-sales service

Frequently Asked Questions - Ultra Juice ZU600110 MOULINEX

What to do if the juice extractor jams during use?

Use the reverse function by pressing the Reverse button for 5 seconds. If the jam persists, open the lid, clean the pressing screw and filter, and cut the ingredients into smaller pieces before resuming.

How to clean the juice filter properly?

Rinse the filter immediately after use under running water. Use the supplied cleaning brush to remove residues. All removable parts (except the motor unit) are dishwasher-safe.

What types of fruits and vegetables can be used?

The appliance is suitable for fruits and vegetables with high water content: apples, carrots, celery, oranges, etc. Avoid very soft fruits (ripe bananas) or very hard fibrous ones (sugar cane). Remove pits and thick skins before extraction.

The appliance suddenly stops and an audible alarm sounds. What to do?

This indicates an overload or blockage of the appliance. Cut off the power, remove excess food, use reverse to unblock, or let it rest for 30 minutes if the thermal protection has activated.

How to adjust the pulp level control?

Turn the lever (F) to the Closed position for soft fruits (more juice, wetter pulp) or to the Open position for hard fruits (drier pulp). Adjust according to the desired texture.

Can I use frozen fruits to make ice?

Yes, but thaw them for about 5 minutes before inserting. Use the small feeding tube to avoid overload. Do not use ice cubes in this machine.

The safety lid does not open after extraction. What to do?

Turn the pulp control lever to the Open position, then activate reverse for 5 seconds. This should reduce pressure and allow opening.

How to maintain the rubber scraper?

Check that it rotates freely. Clean it with soapy water. Slight play is normal. If it does not turn, check the gear (L) at the base of the juice bowl; contact customer service if damaged.

What is the recommended maximum operating time?

The appliance must not operate for more than 15 minutes continuously. If you need more time, let it cool down for 30 minutes before resuming.

The screen or light flashes and the machine does not start.

Check that the juice bowl and lid are correctly installed and aligned. If the problem persists, unplug and replug the appliance. Refer to the manual for more details.

USER MANUAL Ultra Juice ZU600110 MOULINEX

Line drawing of a modern kitchen brush with three cups and a side arm, no text or symbols present

A B C D E G H I K M N O P Q R F L J

Simple illustration of an open box with an upward arrow and a numbered circle (no text or symbols)

Diagram illustrating kitchen cleaning and equipment setup with a crossed-out kettle and labeled parts

Illustration of three kitchen appliances: a blender, a cup, and a mortar (no text or symbols)

Diagram showing a kitchen appliance with a handle and lid, no text or symbols present

1 2 4

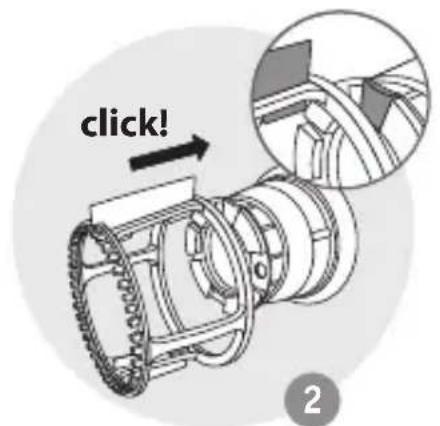

click! 2

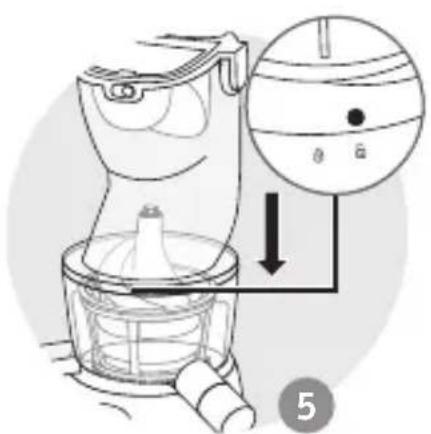

Diagram showing a kitchen mixer with a magnified view of the water level, labeled with number 5.

Diagram illustrating a mechanical device with an inset showing internal structure and directional arrows, labeled with number 3.

Diagram of a kitchen mixer with labeled parts and directional arrow indicating rotation

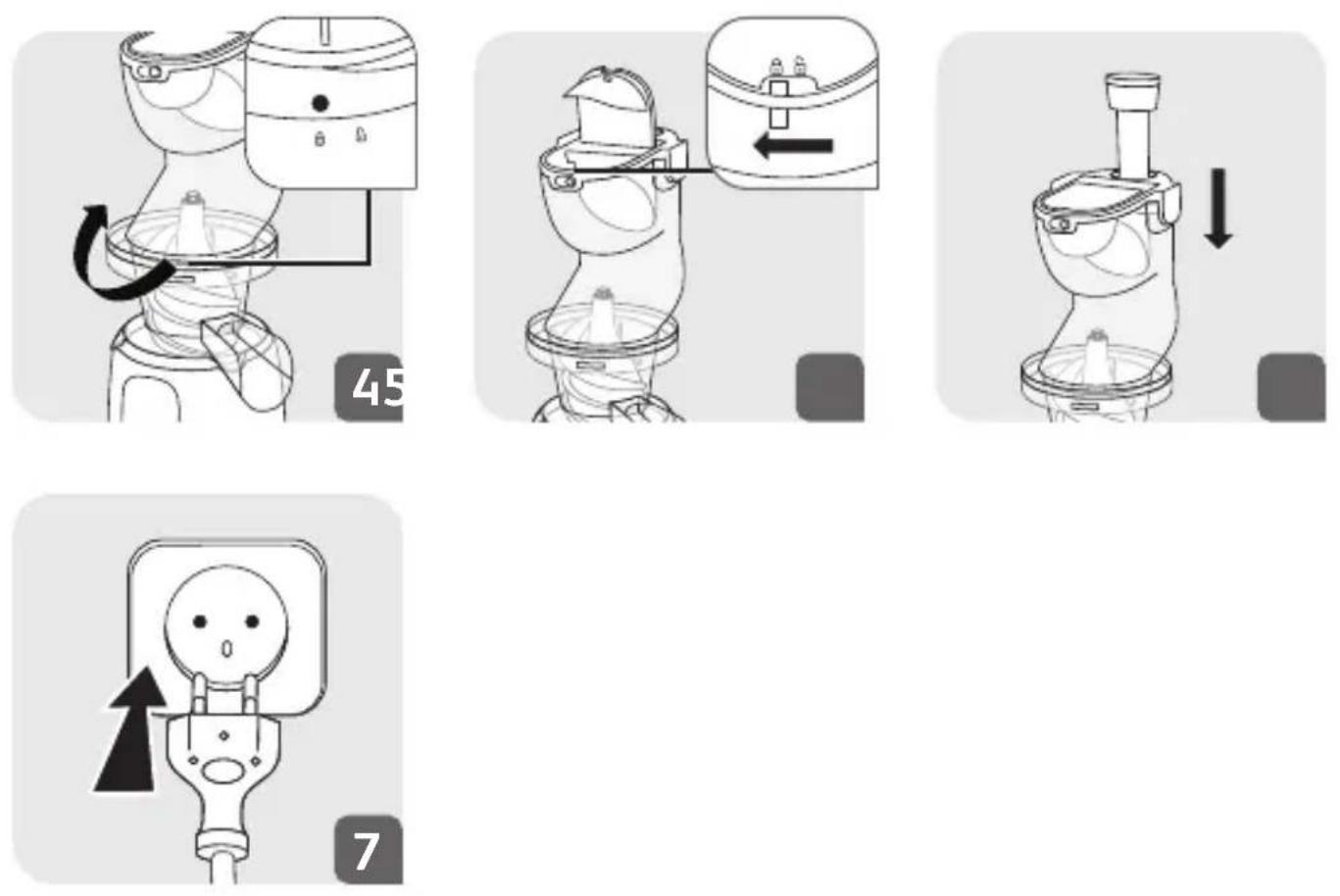

Diagram illustrating the step-by-step assembly of a kitchen mixer, showing component insertion and disassembly steps.

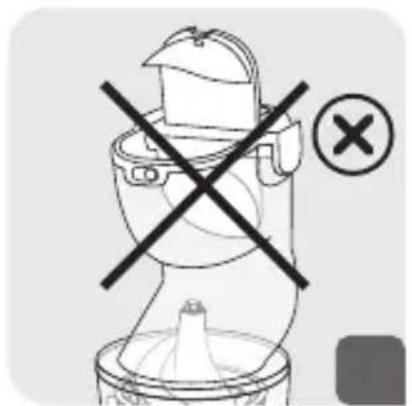

EN if the filter and/or the pressing screw are not installed properly, it will be impossible to lock the cover.

Illustration of hands slicing a radish with a knife, accompanied by a magnified inset showing dried root slices (no text or symbols)

Line drawing of a blender with three cups, no text or symbols present

Simple line drawing of a robot-like device with a circular head and rectangular body, no text or symbols present.

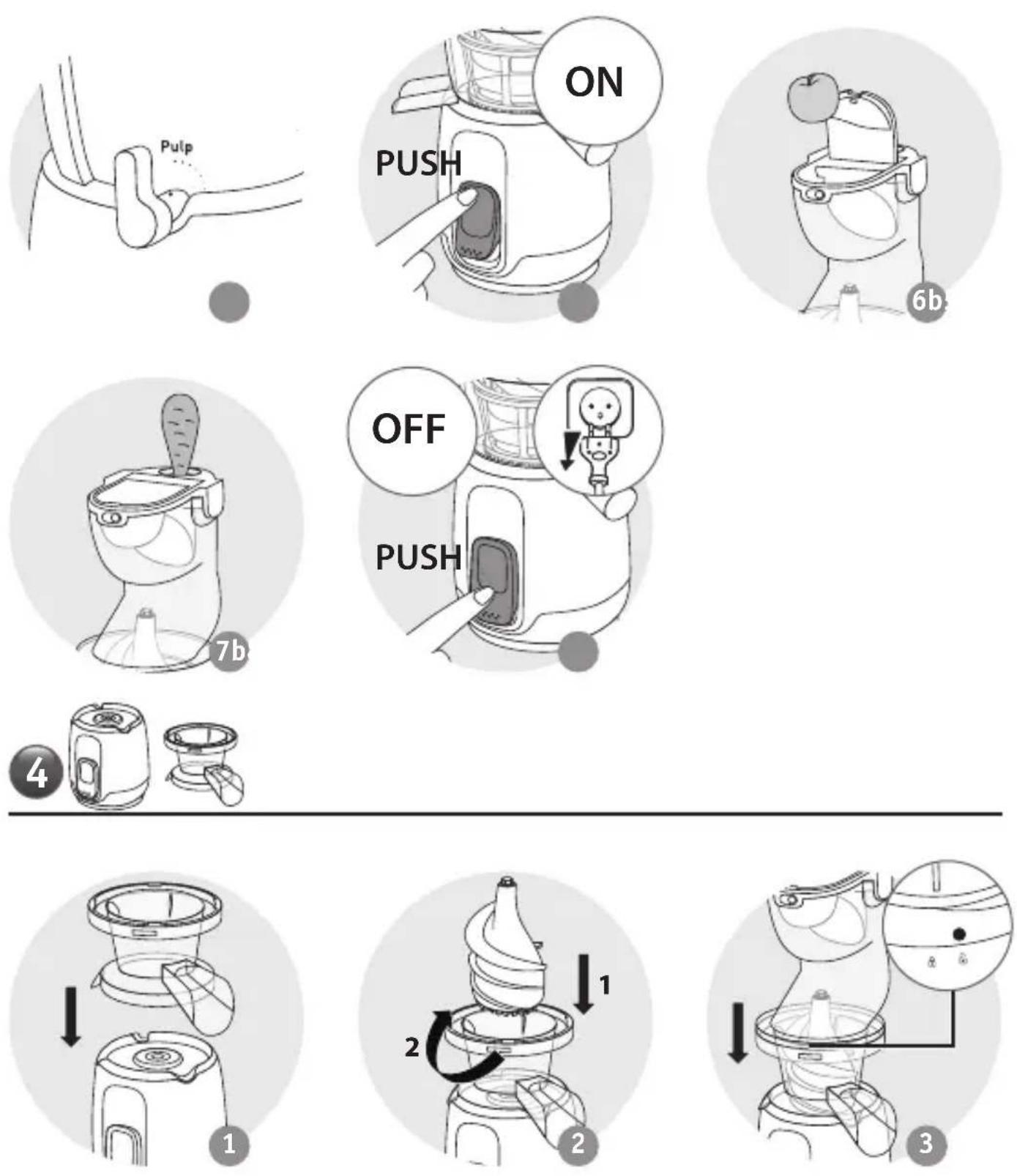

ON PUSH

Pulp

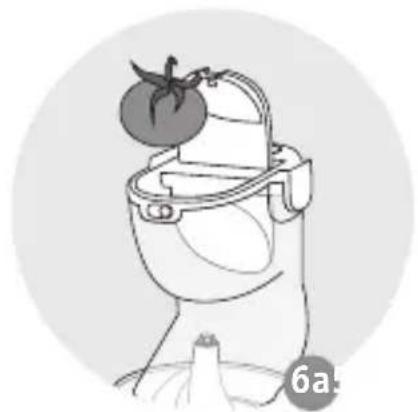

Line drawing of a tomato on a plate, no text or symbols present

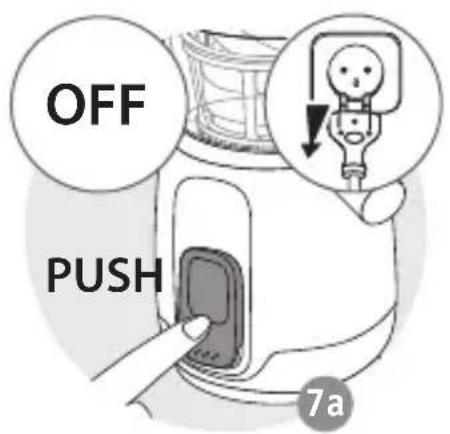

OFF PUSH 7a

4a

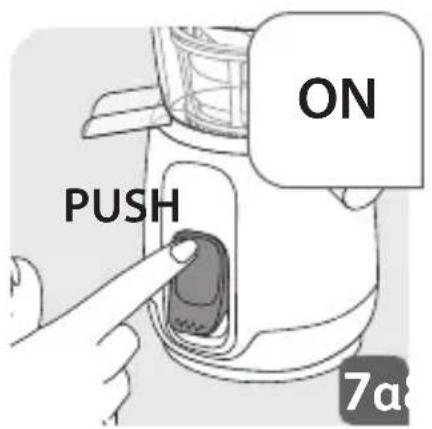

ON PUSH 7α

Diagram of a food waste bin with a checkmark indicating inspection (no text or symbols present)

Diagram of a kitchen mixer with crossed-out valve and prohibition symbol

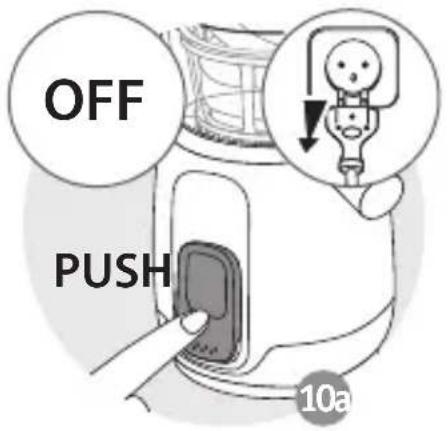

OFF PUSH 10a

ON PUSH

Illustration of a steamer with tomato and grape clusters on its side (no text or symbols)

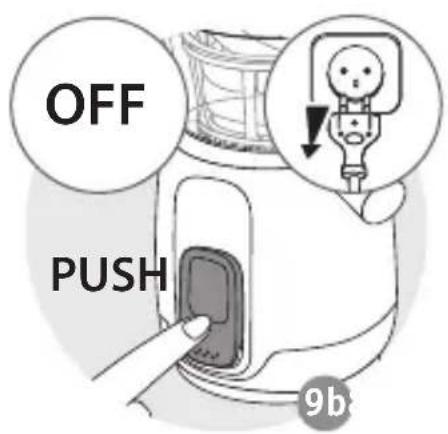

OFF PUSH 9b

	×	×	×	√
	√	√	√	√
	×	√	√	√
	√	√	√	√
	√	√	√	√
	√	√	√	√

INSTRUCTIONS DE SÉCURITÉ

RECYCLAGE DU PRODUIT

SOLO PARA LOS MERCADOS EUROPEOS

SOLO PER I MERCATI EUROPEI

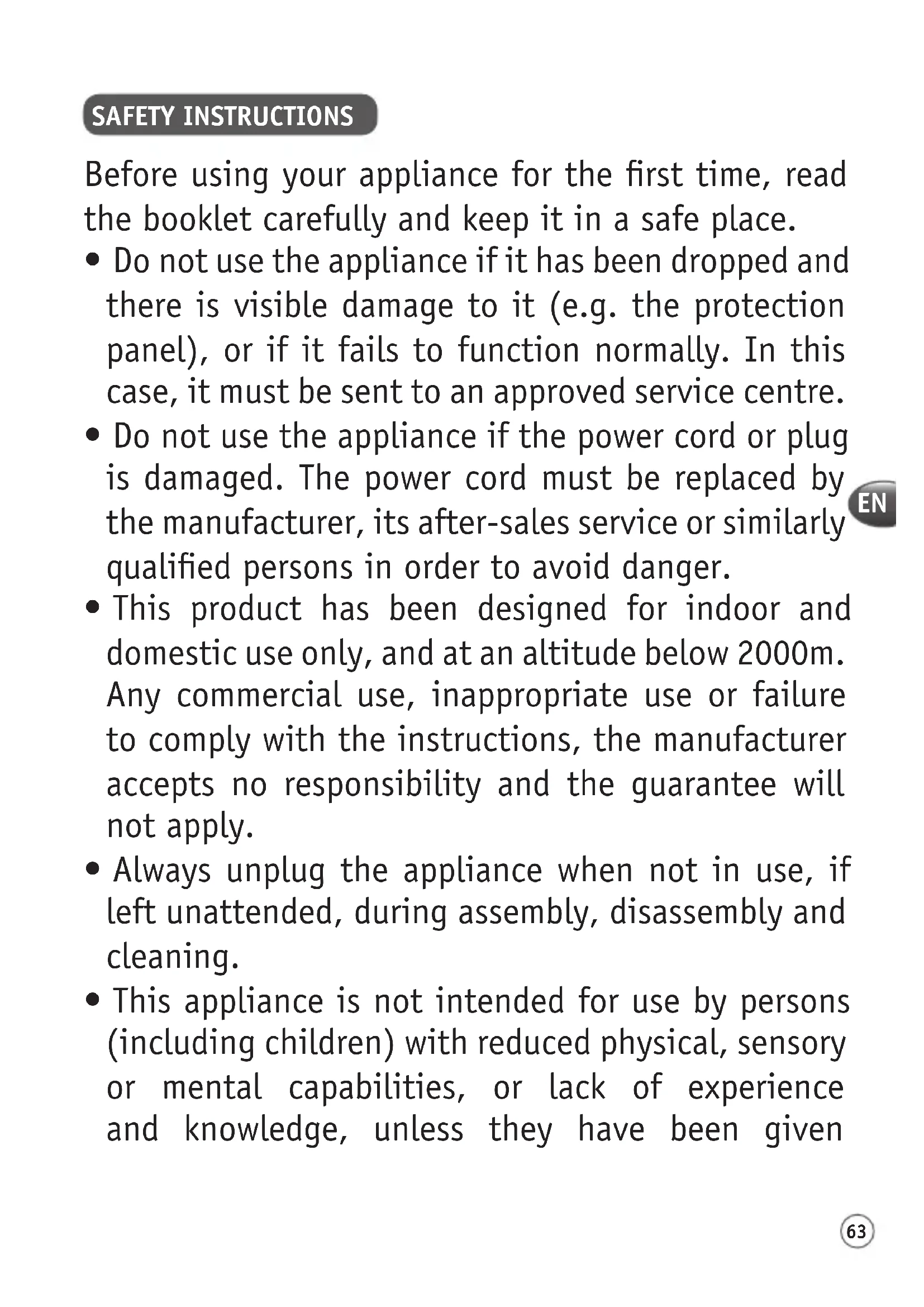

Before using your appliance for the first time, read the booklet carefully and keep it in a safe place.

• Do not use the appliance if it has been dropped and there is visible damage to it (e.g. the protection panel), or if it fails to function normally. In this case, it must be sent to an approved service centre.
• Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.

- This product has been designed for indoor and domestic use only, and at an altitude below 2000m. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

- Always unplug the appliance when not in use, if left unattended, during assembly, disassembly and cleaning.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance and do not use it as a toy.

- Do not allow children to use the appliance without supervision.

- Never push food with your fingers, always use the pusher.

- Your appliance is for domestic culinary use only (for use inside the home only). It has not been designed to be used in the following circumstances, which are not covered by the guarantee: in kitchen areas reserved for staff in shops, offices and other professional environments, on farms, by clients of hotels, motels and other residential environments and in guest rooms or similar accommodation.

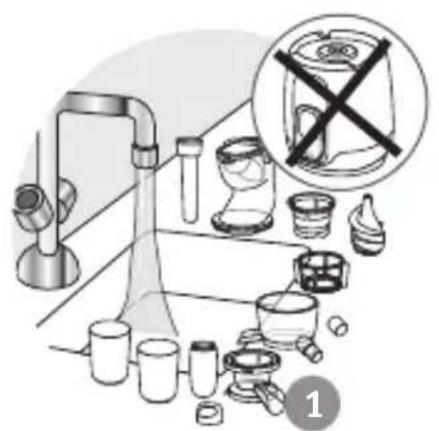

- The parts in contact with food should be cleaned with a sponge and soapy water or in the dishwasher; please consult the instruction manual for the complete cleaning and maintenance of your appliance.

- This appliance should not be used for more than 15 minutes at a time.

- To protect your appliance, there is a safety stop. If the contents are too much or the pieces are too

large, the appliance stops and beeps 10 times. Use the reverse function to unblock the appliance, and cut the pieces smaller.

• Cleaning and user maintenance shall not be made by children without supervision.
• The instructions for appliances warn against misuse.
• In the case that, an additional accessory would be proposed, it would be accompanied with its own safety instructions.
• Do not immerse the appliance, power cord or plug in water or any other liquid.
• Do not allow long hair, scarves, ties, etc. to hang over the appliance when it is in use.

EUROPEAN MARKETS ONLY

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• This appliance may be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.

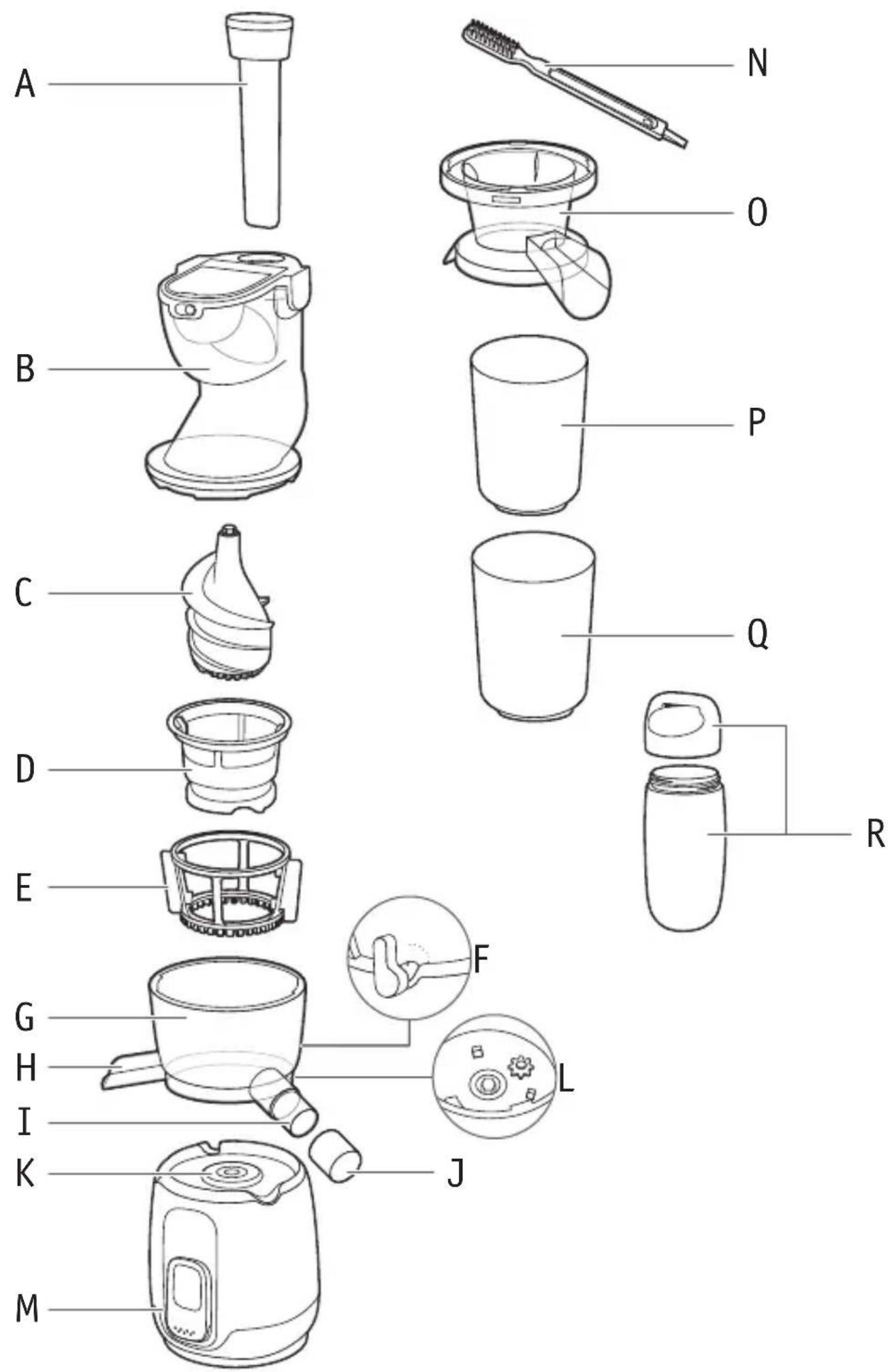

DESCRIPTION

A Pusher

B Feeding tube

C Pressing screw

D Filter

E Rubber scraper

F Pulp lever control

G Bowl

H Dry residue exit

I Juice exit

J Anti-drip

K Motor unit

L Gear

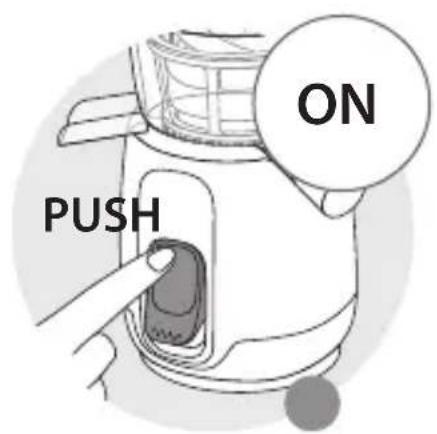

M ON/OFF & Reverse button

N Cleaning brush

0 Ice cream filter

P Pulp Collector

Q Juice jug

R On The Go Bottle

PRACTICAL TIPS

1- Choose fresh fruits and vegetables and wash them thoroughly.

This machine has been designed to juice fruits and vegetables with high water content, such as:

Hard fruits and vegetables: apples, pears, carrots, celery, pineapples, peaches, etc.

Soft fruits and vegetables: mandarin oranges, tomatoes, kiwis, oranges, grapes, watermelon, etc.

- Hard, fibrous fruits and vegetables must be cut into pieces within 2 to 4cm in size, and between 1 to 2cm thick.

- For hard fruits and vegetables with long fibres and leafy vegetables (such as celery), stems should be cut into pieces within 2 to 4cm long, and leaves should be rolled up before juicing.

- For fruits and vegetables with thick skins, or hard pits or seeds, the skins, pits and seeds should be removed before juicing.

- Frozen fruits and vegetables must be thawed before juicing.

2- For Ice Cream and Coulis functions :

- Fruits that can be made into ice-cream in this machine: banana, mango, strawberry, red berries...

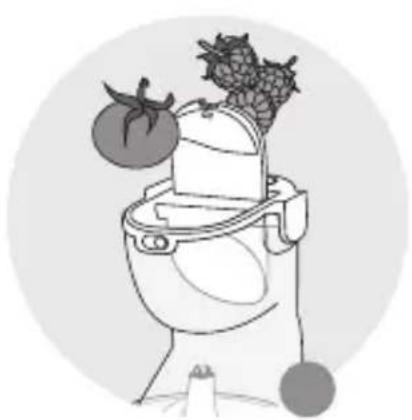

- Fruits that can be made into jams and purees in this machine: strawberries, tomatoes, chillies...

For Ice Cream, never insert frozen fruit through the big feeding tube. Always use the small one to avoid overload or safety break. Please let the fruit thaw for 5 min before starting to make the ice cream. Never use this function to make crushed ice.

3- For best juicing results, adjust the juicing strength according to the hardness of the fruits and vegetables by turning the adjustment lever.

For soft fruits and vegetables, turn the lever (F) to the "Closed" position.

For hard fruits and vegetables, turn the lever (F) to the "Open" position.

4- Inserting hard ingredients can block the appliance. If this happens, use the Reverse function for a few seconds.

To use Reverse function, push Reverse button (3) for 5 seconds.

If it stays blocked:

- Open the cover (B), clean the juicing screw (C) and the filter (D) and then re-assemble - Cut the ingredients into smaller pieces.

5- Add the fruits and vegetables into the juicer sequentially. Add the next batch only after the previous batch has been processed.

- For better juicing effect, juice low-fibre fruits and vegetables like carrots together with fibrous fruits and vegetables like celery.

- When juicing carrots, cut each carrot lengthwise into 4 pieces.

- Fruits and vegetables that are not entirely fresh have lower water contents, and will produce less juice.

- When juicing fruits and vegetables that have been left in the refrigerator for a few days, soak them in water to allow them to absorb an adequate amount of water before juicing.

- Kudzu, sugar canes and other fruits and vegetables with especially hard fibres cannot be juiced.

- Do not use ice in this machine.

- Do not use this machine for juicing fruits and vegetables with high oil contents.

- Bananas, soft mangoes and other fruits and vegetables that are soft and mushy do not juice well with this machine.

- For better juicing effect, juice soft fruits with high sugar contents together with hard fruits with high water contents. For example, you can juice apples together with pears. Not only does this add a new flavour to the juice, it also makes juicing more effective.

6- For better juicing performance, we advise to regularly clean the filter and the juice bowl.

7- After use, it is advisable to clean the appliance as quickly as possible to avoid the accumulation of dried food in the appliance. To make cleaning easier, you can first rinse it by pouring a glass of water through the feed tube during operation.

Common faults Handling method
The appliance cannot be turned on Check	if the plug has been plugged in properly.Check if the juicing jug has been fitted properly.
The appliance will not start, and the indicator lamp flashes	Check if the juicing or jam bowl has been fitted properly, and check if the safety lid is properly aligned.
The appliance stopped suddenly during operation, and is beeping	Is the appliance is clogged from excessive feeding (too many pieces or pieces too large)?Put the appliance into “Reverse” mode and let it run for 5 seconds.Has the appliance entered its safety mode after working continuously for more than 20 minutes?Solution: Allow the appliance to rest for 30 minutes, then try again.If you are unable to restart the appliance, get in touch with our customer service.
The filter has been scratched The gap between the filter and the rubber scraper is very small; do not run the appliance when empty.
Very little juice is extracted Water content varies between different fruits and vegetables.Fruits and vegetables also produce less juice when they lose their freshness.
There is a lot of water in the pulp When juicing soft fruits and vegetables, check that the pulp lever control is in the “Closed” position.
The rubber scraper does not rotate during operation	Check if the gear (L) at the base of the juice bowl has not deteriorated, if so contact your customer service
The juicing bowl shakes slightly when the machine is turned on	Slight shaking of the juicing bowl during operation is normal.
The safety lid cannot be opened after juicing	There could be too much residual pulp in the machine. Turn the lever (F) in open position, press the reverse button and allow the machine to run in reverse mode for 5 seconds.If you are unable to resolve the problem after trying the above, get in touch with our customer service.

RECYCLING

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

End-of-life electrical and electronic products:

Your appliance is designed to operate for many years. However, the day you plan to replace it, do not throw it away with normal household rubbish or in a landfill but take it to a suitable collection point provided by your local authority (or to a recycling center if applicable).

Environnemental protection first!

Your appliance contains numerous materials that can be recovered or recycled.

Take it to a collection point for processing.

EN
