USER MANUAL JU500161 MOULINEX

• Low Voltage Directive

• Electromagnetic Compatibility Directive

• Regulations governing materials in contact with food

• Environment. - Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee. - Never place or use this appliance on a hotplate or near an open flame (gas cooker). - Do not immerse the motor unit or put it under running water. - If the supply cord is damaged, it must be replaced by an authorised service dealer to avoid any injury or danger. - Always use this product on a flat, stable work surface, that is not subject to water splashes. Do not turn it over. - Never dismantle your appliance. Apart from the usual care and cleaning, the appliance requires no maintenance on your part. - The juice machine must be unplugged:

• if there are any signs that it is not working normally

• before cleaning or servicing

• after use. - Never pull on the supply cord to unplug the appliance. - Only use an extension after checking that it is perfect condition. - A domestic appliance must not be used:

• if it has fallen on the floor,

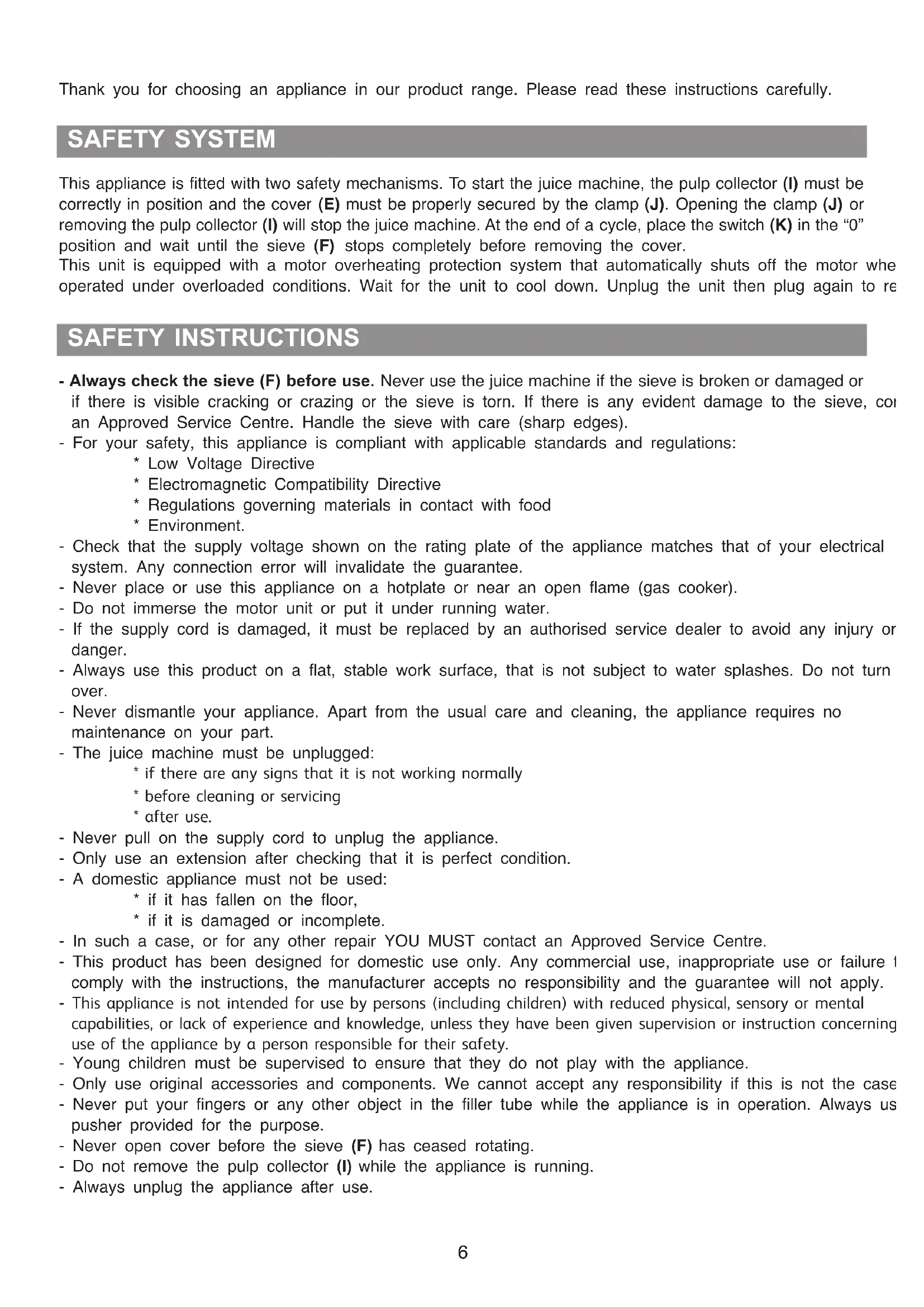

• if it is damaged or incomplete. - In such a case, or for any other repair YOU MUST contact an Approved Service Centre. - This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Young children must be supervised to ensure that they do not play with the appliance. - Only use original accessories and components. We cannot accept any responsibility if this is not the case. - Never put your fingers or any other object in the filler tube while the appliance is in operation. Always use the pusher provided for the purpose. - Never open cover before the sieve (F) has ceased rotating. - Do not remove the pulp collector (I) while the appliance is running. - Always unplug the appliance after use. SAFETY SYSTEM This appliance is fitted with two safety mechanisms. To start the juice machine, the pulp collector (I) must be correctly in position and the cover (E) must be properly secured by the clamp (J). Opening the clamp (J) or removing the pulp collector (I) will stop the juice machine. At the end of a cycle, place the switch (K) in the “0” position and wait until the sieve (F) stops completely before removing the cover. This unit is equipped with a motor overheating protection system that automatically shuts off the motor when operated under overloaded conditions. Wait for the unit to cool down. Unplug the unit then plug again to restart.7 BEFORE USE - We recommend that you wash the removable parts (parts A, E, F, G, I, P & Q) after unpacking the appliance (see chapter CLEANING AND CARE). - Unpack the appliance and then place it on a flat, stable work surface, slip back the clamp (J), remove the cover (E), take out the protective card on the sieve (F) then remove the sieve (F) and the juice collector (G). STARTING - Fit the pulp collector (I) on the rear of the appliance, tipping it forward slightly to slide the collector under the safety device. The pulp collector must be correctly positioned otherwise the machine will not operate. - Fit the juice collector (G) in the appliance, tipping it slightly forward to pass the pouring spout (H) through the hole provided. - Place the sieve (F) in the juice collector (G). Ensure that the sieve is correctly clipped onto the drive shaft (L) (audible click). - Fit the cover (E) on the juice collector (G), ejection spout to the rear.

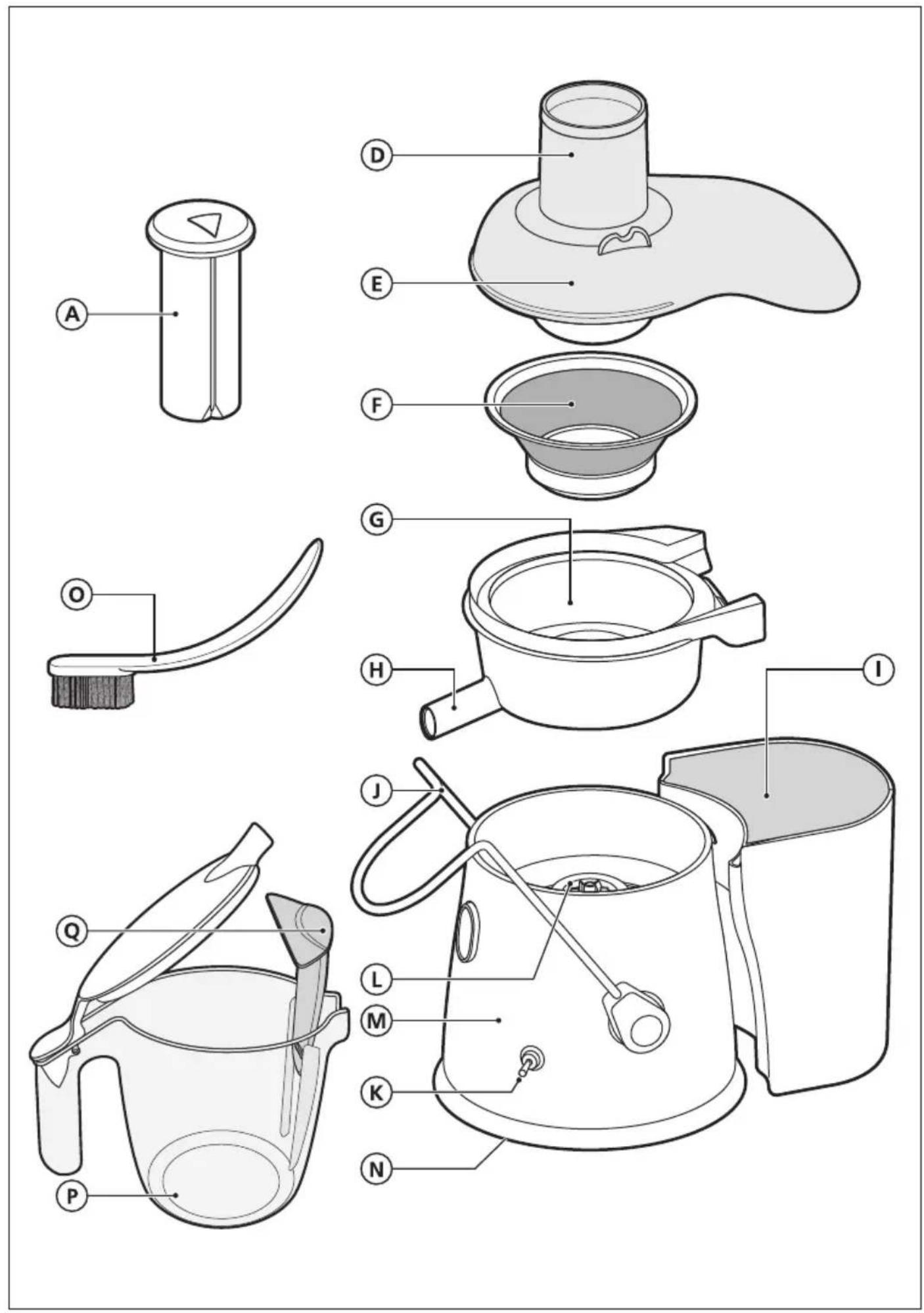

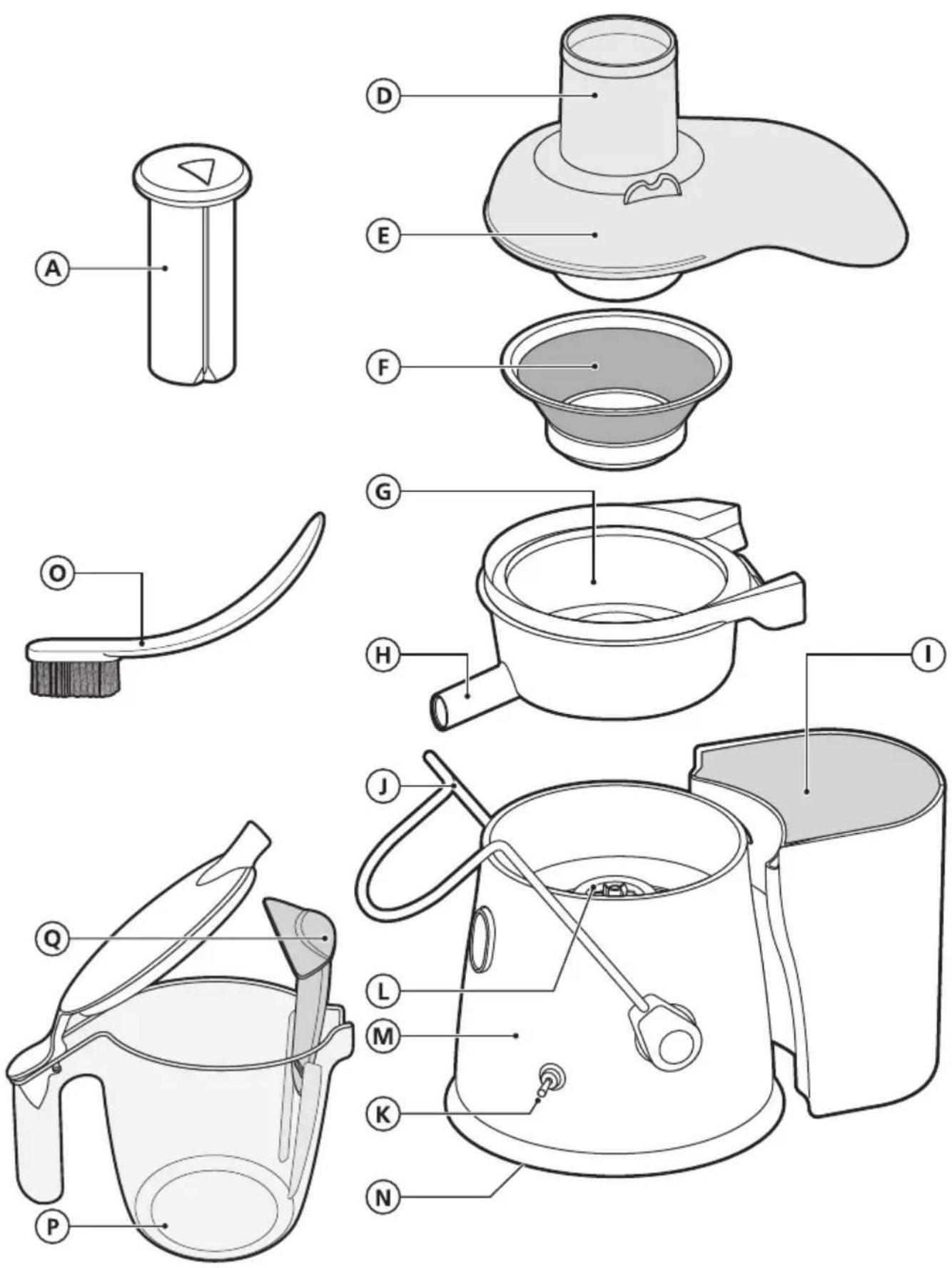

Large pusher Feed tube Cover Sieve Juice collector Pouring spout Pulp collector Clamp

Switch (1 or 2 speeds according to model) Drive shaft Motor unit Cord-tidy Brush Juice jug (according to model) Foam separator (according to model)

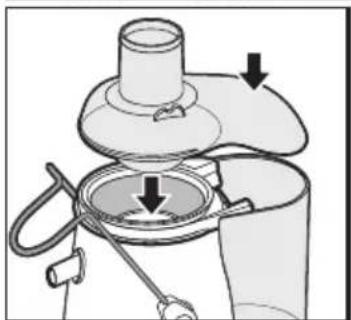

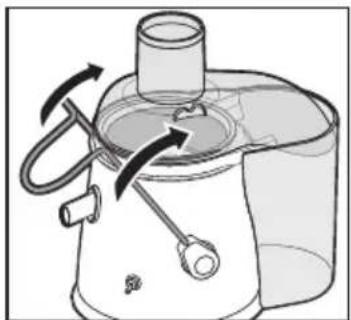

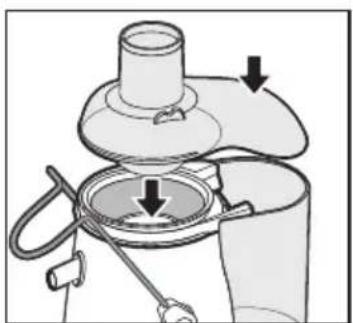

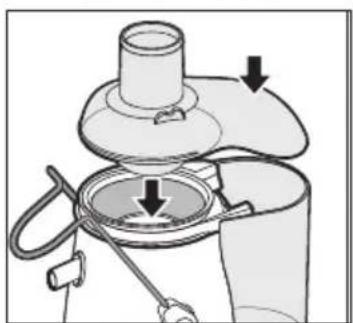

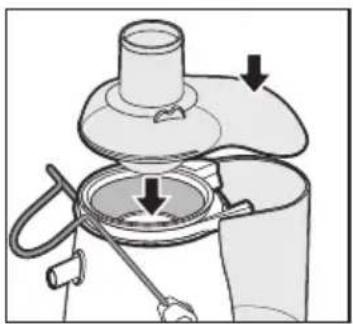

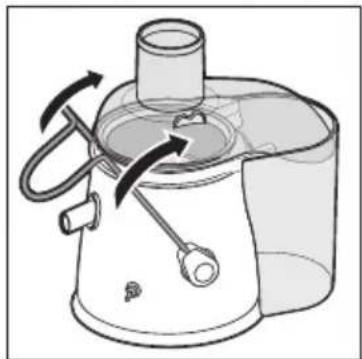

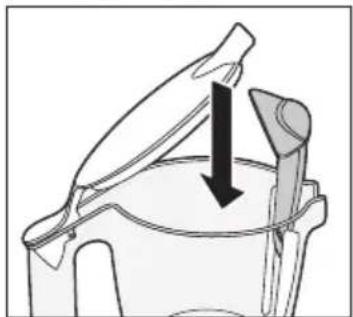

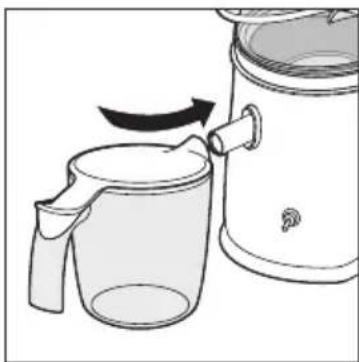

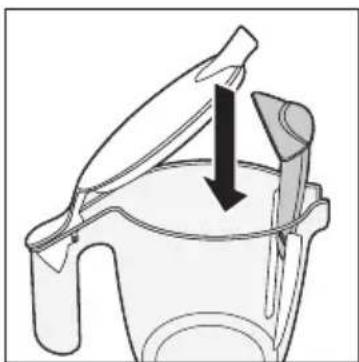

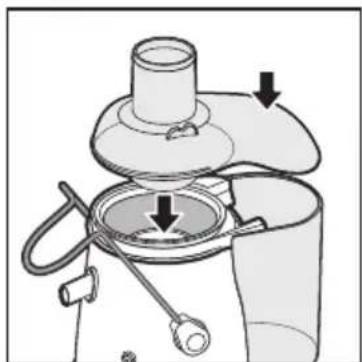

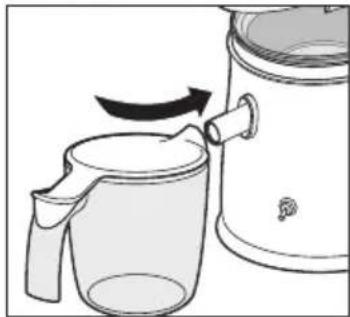

- Click the clamp (J) into place over the cover (E). Ingredients Approx. weight (in kg) Quantity of juice obtained in ml (*) 1 glass = 200ml (approximately) Speed Apples 1 650 2 Pears 1 600 2 Carrots 1 600 2 Cucumbers 1 (about 2 cucumbers) 600 2 Pineapple 1 300 2 Grapes 1 450 1 Tomatoes 1.5 900 1 Celery 1.5 950 2 - Position a glass or the juice jug (P) under the pouring spout (H) in front of appliance as shown on the picture. - If you wish to separate the juice from the froth, place the foam separator (Q) in the juice jug (P). The foam separator allows you to keep the froth into the juice collector when you pour the juice into a glass. Plug in the appliance: You can use the cord-tidy (N) to adjust the length of the cord. (*) The quality and quantity of juice varies greatly according to the date of harvest and the particular variety of fruit or vegetable. The quantities of juice indicated above are therefore approximate.9 USEFUL TIPS - Wash the fruit carefully before stoning. - You do not need to remove the skin or peel from most fruits. However, the thick peel and pith on citrus fruits such as oranges, grapefruits, lemons, limes, satsumas, mandarins, clementines, etc should be removed as it has a bitter taste. - If using fruits with hard or inedible skins such as pineapples, mangoes, guava or melons, always peel them before juicing. - Certain types of apples, pears, tomatoes etc. will fit in the feed tube whole, thanks to the “Direct Fruit System” (74 mm maximum diameter), so choose the appropriate type of fruit or vegetable. - It is difficult to extract juice from bananas, avocados, blackberries, figs, aubergines and strawberries. They are better processed in a blender or food processor. - Only use fresh fruit and not frozen fruit. - The juice machine should not be used for sugar cane and excessively hard or fibrous fruit. - Choose fresh, ripe fruit and vegetables, they will yield more juice. This appliance is suitable for such fruit as apples, pears, oranges, grapes, pomegranates and pineapple and such vegetables as carrots, cucumbers, tomatoes, beetroot and celery. - If you centrifuge over-ripe fruit, the basket will be blocked more quickly. - Important: All juice must be consumed immediately. On contact with air, it is very quickly oxidised, which can change taste, colour and, above all, nutritional value. Apple and pear juices quickly turn brown. Add a few drops of lemon juice to slow this discoloration.

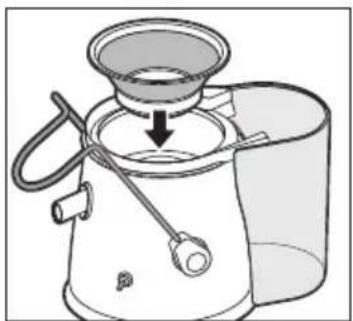

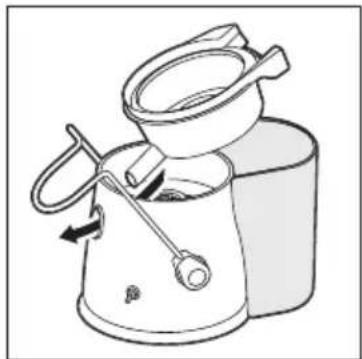

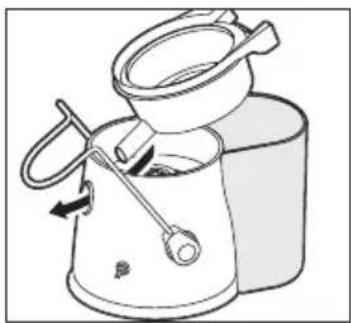

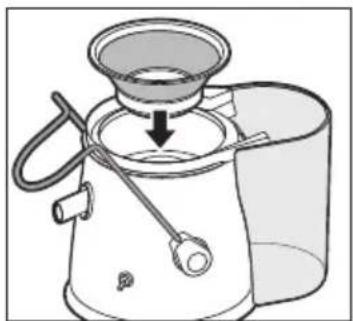

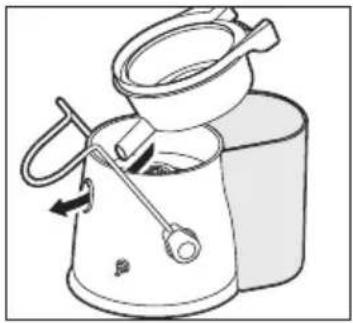

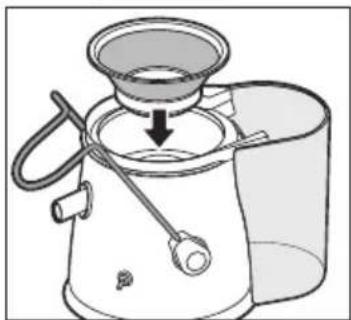

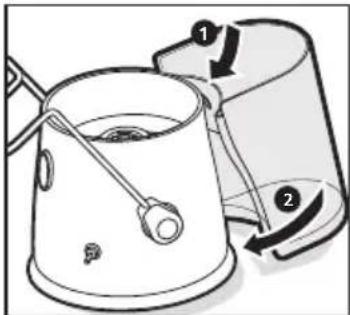

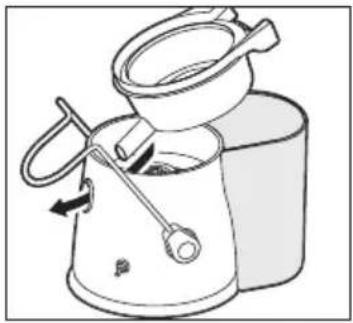

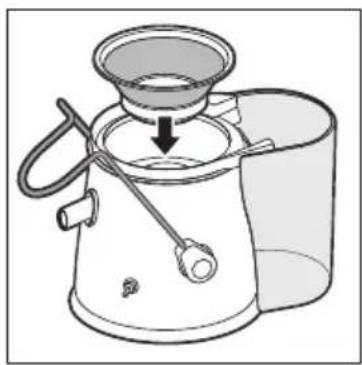

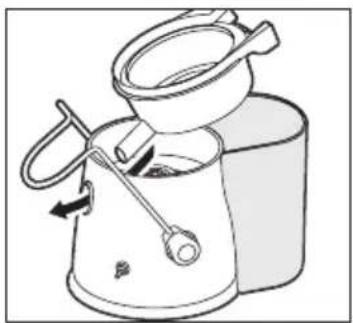

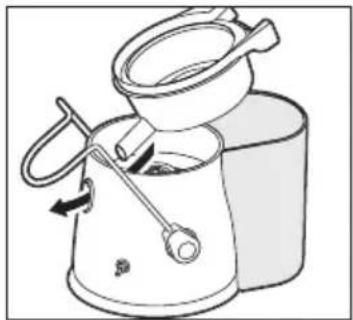

- All removable parts may be cleaned in the dishwasher. - This appliance is easier to clean immediately after use. Scrape off the pulp from all the removable parts of the machine and rinse them under running water. Once the pulp has dried onto the parts it is much harder to clean. Later you can then wash them in warm water and washing up liquid later or in the dishwasher. - Do not use scouring pads, acetone, alcohol (spirit) etc. to clean the appliance. - The sieve must be handled with care. Avoid any mishandling that may damage it. Replace your sieve at the first sign of wear or damage. - Clean the motor unit with a damp cloth. - The sieve (F) can be cleaned with the aid of the brush (O). Clean the mesh walls of the sieve (F) with the brush provided (O). If the fine mesh holes are blocked soak the sieve (F) in hot water to unblock the holes or wash in a dishwasher. This will remove the excess fibre build up and prevent juice overflowing. - Start the appliance using the switch (K): speed 1 (low speed) or speed 2 (normal speed). - Insert the fruit or vegetables through the feed tube (D). - The fruit and vegetables must be inserted while the motor is running. - Do not press too hard on the pusher, as this can alter the quality of the juice. - Do not use any other utensil. NEVER push food down with your fingers. - When you have finished, stop the appliance, using the switch (K) and wait for the sieve (F) to stop completely. - When the pulp collector (I) is full, or the flow of juice slows, empty the collector and clean the sieve (F).10 ELECTRICAL AND ELECTRONIC PRODUCTS AT END OF LIFE Environment protection first ! Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.

PROBLEM CAUSES SOLUTIONS

The appliance does not work The plug is not inserted correctly: The switch is not at “1” or “2”. Connect the appliance to a socket with the correct voltage. Operate the switch. The pulp collector (I) is not correctly fitted. Check the fitting of the pulp collector (I). The cover (E) is not properly clamped. Check that the cover (E) is properly fitted and clamped. The appliance is giving off a smell or is very hot to the touch, is smoking or making an abnormal noise The sieve (F) is not correctly fitted. Check the fitting of the sieve (F). The quantity of food being processed is too great. Leave the appliance to cool and reduce the quantity to be processed. If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice. WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK?
