USER MANUAL KMix CHX250 KENWOOD

Hesdi Office Address:

Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK

www.kenwoodworld.com

Made In China

19889/3

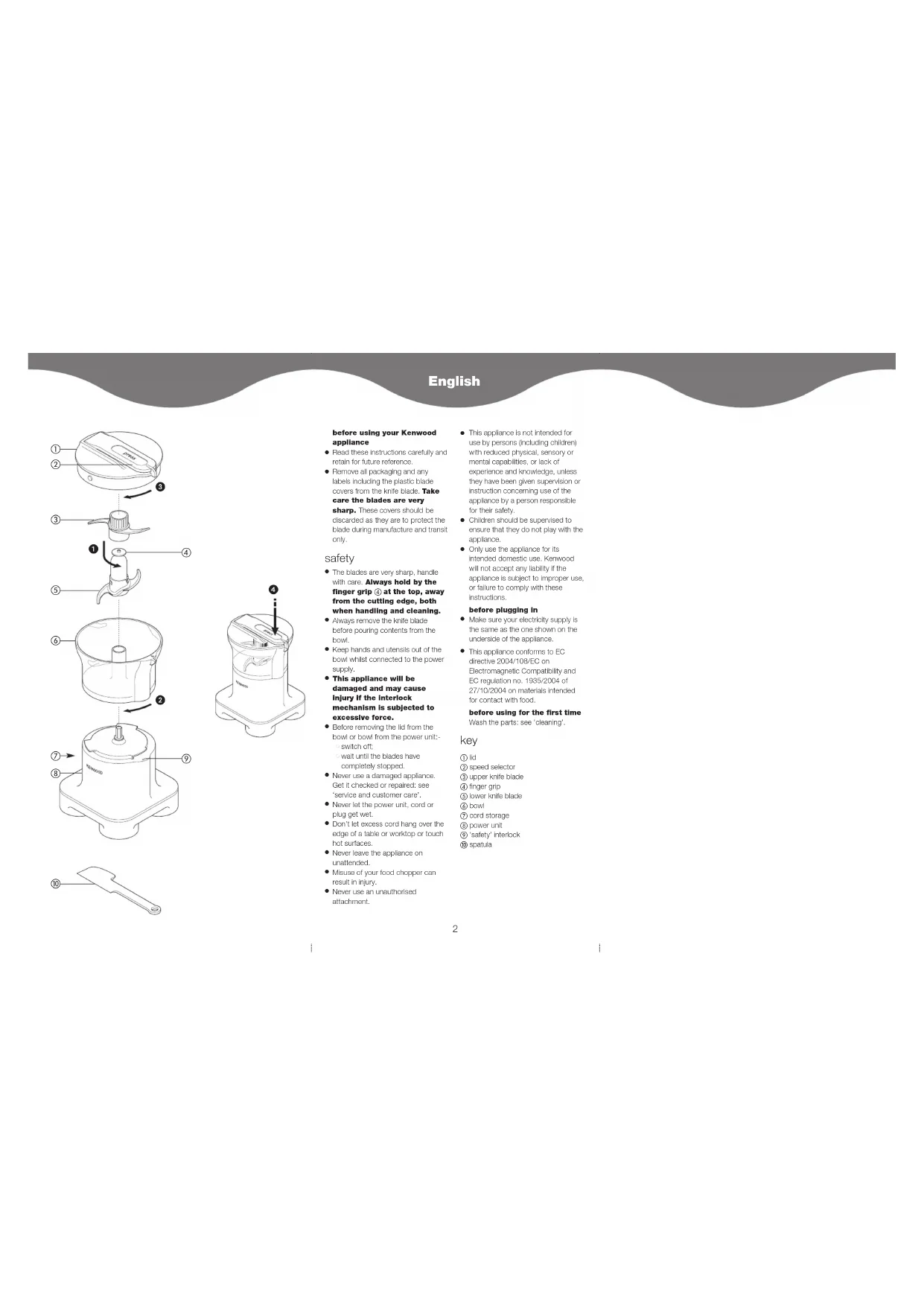

English

before using your Kenwood appliance

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels including the plastic blade covers from the knife blade. Take care the blades are very sharp. These covers should be discarded as they are to protect the blade during manufacture and transport only.

safety

The blades are very sharp, handle with care. Always hold by the finger grip at the top, away from the cutting edge, both when handling and cleaning.
Always remove the knife blade before pouring contents from the bowl.
Keep hands and utensils out of the bowl whilst connected to the power supply.
This appliance will be damaged and may cause injury if the interlock mechanism is subjected to excessive force.
Before removing the lid from the bowl or bowl from the power unit: switch off; wait until the blades have completely stopped.
- Never Use a damaged appliance. Get it checked or repaired: see "servicing and customer care".
- Never let the power unit, cord or pug gel wet.
- Don't let excess cord hang over the edge of a table or worktop or touch hot surfaces.
- Never leave the appliance on unattended.
- Misuse of your food chopper can result in injury.
- Never use an unauthorized attachment.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with those instructions.

before plugging in

Make sure your electricity supply is the same as the one shown on the underside of the appliances.
This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

before using for the first time Wash the parts: see 'cleaning'.

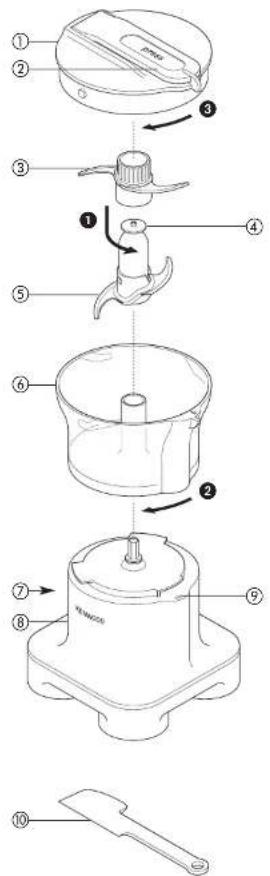

key

①
(2) speed selector
③ upper knife blade
④ finger girth
⑤ LOWER KNIT DEA
(6)cow
(2) cold storage 10
@ power unit
② SAEsTITIcK @spatula

to use your food chopper

The knife blade unit comes in 2 parts, a lower and an upper bla

• For coarser chopping use the lower blade on its own.
• For finer chopping or pureeing use both blades together. This will also give a faster result. To use both blades fit the upper blade onto the lower blade and turn anti-clockwise to locate in place ①. Take care as the blades are sharp. Note: After processing food, the upper blade may disengage from the lower blade. This is normal as the blade assembly is designed to be loose fitting to ease separation after use.

1 Fit the bowl onto the power unit, then turn clockwise to lock into place 2.

2 Fit the blade assembly into the bowl.
Always fit the bowl and blade assembly onto the food chopper before adding ingredients.
3 Cut the food into suitably sized pieces and place in the bowl. Larger pieces of food should be cut into approximately 1 to 2 cm pieces.
4 Fit the lid and turn clockwise to lock into place 3.
5 Connect to the power supply and press down on the speed selector to select the desired speed 4.
- Press the speed selector lightly to obtain speed 1.
- Press the speed selector firmly to obtain speed 2.
- Alternatively the speed selector may be pressed down for short periods of time to produce a pulsing action. This can be used to avoid over processing food.
6 Operate the food chopper until the desired result is achieved.
7 Reverse the above procedure to dismantle the unit.

Always unplug the food chopper before removing the lid.

important

• If preparing food for babies or young children, always check that the ingredients are thoroughly blended before feeding.
• Do not run the food chopper continuously for longer than 30 seconds. Leave to cool for 2 minutes in between each 30 second operation.
• Do not operate the food chopper if the bowl is empty.
  Always allow hot food to cool before processing.
• Do not exceed the maximum capacities stated or fill above the 400ml level marked on the bowl.
• Do not place any part of the chopper in the microwave.

Hints

• If the chopper labours, remove some of the mixture and continue processing in several batches, otherwise you may strain the motor.
• Remember that chopping hard foods such as coffee beans, spices, chocolate or ice will wear the knife blades faster.
• Beware of over processing some ingredients. Stop and check the consistency frequently.
• Various spices such as cloves, dill and cumin seeds can have an adverse effect on the plastic of your food chopper.
  To ensure even processing, stop and scrape down any food from the side of the bowl with the plastic spatula supplied.
  The best results are obtained by chopping small quantities at one time.
• Cut larger pieces of food into 1-2cm pieces. A large load or large pieces may cause uneven results.

Before chopping nuts, herbs, breadcrumbs etc, ensure that both the food and the blade, bowl and cover are thoroughly dry.

care and cleaning

Always switch off and unplug before cleaning.

- Handle the blades with care - they are extremely sharp.

Some foods may discolour the plastic. This is perfectly normal and won't harm the plastic or affect the flavour of your food. Rubbing with a cloth dipped in vegetable oil may help remove the discolouration.

lid/bowl/knife blade

Always separate the upper knife blade from the lower knife blade before cleaning. Take care the blades are very sharp.

• Wipe with a damp cloth, then dry.
• Do not immerse the power unit in water.
• Push excess cord into the base of the power unit.

cover/bowl/knife blade

• Wash by hand, then dry.
• Alternatively they can be washed on the top rack of your dishwasher.
  The parts are unsuitable for use in a Steam Steriliser. Instead use a sterilising solution in accordance with the sterilising solutions manufacturer's instructions.

processing guide

food maximum preparation speed/time capacity (approximate)
Meat 300g Remove bones, fat and gristle. Pulse on speed 2 Cut into 2cm cubes.
Herbs	30g	Remove stalks. Herbs are best chopped when clean and dry.	Speed 2 for 10 sec
Nuts e.g. almonds, walnuts	250g	Ensure shell is removed. Process until chopped. (Note: the consistency of fine ground almonds will not be achievable).	Speed 2 for 10 sec
Cheese e.g. Cheddar,	150g Cut into 1 -2cm cubes. Pulse on speed 2
Bread	75g	Remove crusts and cut into 1-2 cm cubes.	Speed 2 for 5 sec
Biscuit	150g	Break into pieces.	Speed 2 for 5 -10 sec
Hardboiled eggs	5	Halve or quarter depending upon size.	Pulse on speed 2
Small onions or shallots	300g	Halve small onions or cut into 2cm pieces.	Pulse on speed 2
Garlic	200g Break into cloves and remove skin.	Speed 2 for 5 sec
Soft fruit e.g. raspberries	300g Remove stalks.	Speed 2 for 5 sec
Dried fruit e.g. prunes, apricots	200g	Cut into 2 cm pieces.	Pulse on speed 2
Root ginger	150g Peel and cut into 1-2cm cubes. Pulse on speed 2
Soup 0.4l Never blend more than Speed 1 for 10 sec 0.4l soup. For best results drain the ingredients and place the solids into the bowl with a small quantity of liquid from the recipe. Process until the desired consistency has been reached, then add back to the remainder of the liquid.	Note: Use the single blade.

service and customer care

• If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

If you need help with:

• using your appliance or
  servicing or repairs Contact the shop where you bought your appliance.
  Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

recipes

pesto

45g basil leaves
25g pine nuts
2 cloves garlic pinch salt
50g parmesan cheese cut into 1 -2 cm cubes
100ml extra virgin oil

Fit both blades to the bowl. Place the ingredients into the bowl in the above order. Process on speed 2 for approximately 15 seconds or until the desired consistency has been achieved, scraping down as necessary.

100g smoked mackerel

50g cream cheese

salt and pepper

lemon juice (optional)

Fit the lower blade to the bowl.

Roughly cut up the mackerel and cream cheese and place into the bowl. Add the seasoning and lemon juice if desired. Pulse on speed 2 until the pâté is smooth, scraping down as necessary.

tapenade

6 sun dried tomatoes

15g drained anchovies in oil

10 basil leaves

100g pitted black olives

12 garlic clove, crushed

25g capers

7.5ml ground almonds

black pepper

Fit both blades to the bowl. Place the ingredients into the bowl in the above order. Pulse on speed 2 until a coarse paste is achieved, scraping down as necessary.

mango coulis

300g ripe mango cut into 1-2cm cubes

5ml fresh lime juice

10ml light brown sugar

5 -10ml orange liquor (optional)

Fit the lower blade to the bowl.

Add all the ingredients in the above order, then operate on speed 1 for approximately 10 seconds or until a smooth puree is achieved.

Use as required

avocado dip

1 ripe avocado cut into 1 -2cm cubes

1 clove garlic crushed

100g Greek style natural yogurt few sprigs fresh dil

Fit both blades to the bowl. Place the ingredients in the above order into the bowl and process on speed 2 for 10 seconds or until a smooth consistency is achieved, scraping down as necessary.

guacomole

1/2 small onion

1 tomato, skinned and seeds removed

1 small green chill, deseeded

1/2 clove garlic, crushed few parsley sprigs

1 ripe avocado

15ml lemon juice

salt and pepper

Fit the lower blade to the bowl.

Cut the onion, tomato and chilli into pieces approximately 1 -2cm in size. Place in the bowl with the garlic and parsley and pulse on speed 2 until finely chopped. Transfer to a serving bowl. Remove the skin and stone from the avocado and cut the flesh into 1-2cm cubes. Place into the bowl with the lemon juice and pulse on speed 2 until a fairly fine puree is achieved. Combine the avocado puree with the tomato mix and season to taste.

houmous

200g drained weight of tinned chickpeas

1 clove garlic, crushed

15ml tahi nipe

15ml olive oil

juice of 1 lemon

salt and pepper

Fit the lower blade to the bowl.

Place all the ingredients into the bowl in the above order and blend on speed 2 for approximately 30 seconds, scraping down the bowl as necessary until a smooth consistency is achieved. Operate for a shorter time if a coarser consistency is required.
