USER MANUAL H4R306WAH1 HAIER

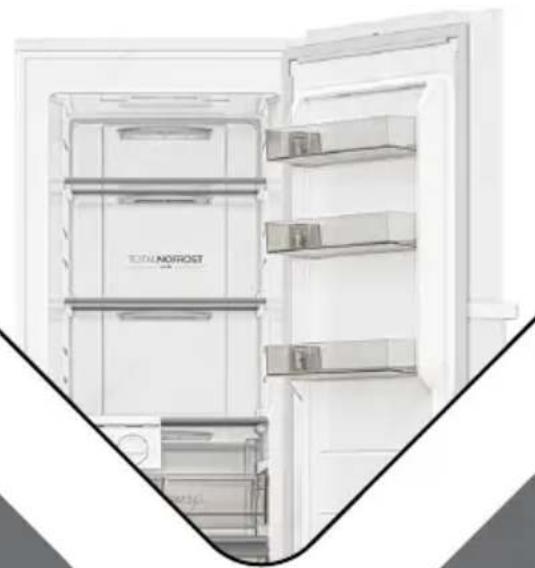

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Upright Fridge

H4R306\*AH1 H4R306\*AH1K

*-Colour code

EN

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

General information and tips

Warning – Important Safety information

Environmental information

Symbol of a trash bin crossed with no text or labels

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Warning!

Risk of injury of suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the door, the door catch and seals, to prevent children and pets to get closed in the appliance.

1 - Safety 4
2 - Intended Use....8
3 - Product Description....9
4 - Control panel....10
5 - Use....11
6 - Energy saving....14
7 - Equipment 14
8 - Care and Cleaning.... 15
9 - Troubleshooting.... 18
10 - Installation....21
11 - Technical Data....25
12 - Customer Service.... 26

Before switching on the appliance for the first time, read the following safety hints!:

RNING!

Before first use

▶Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

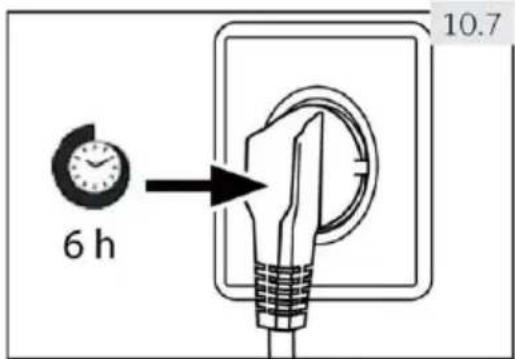

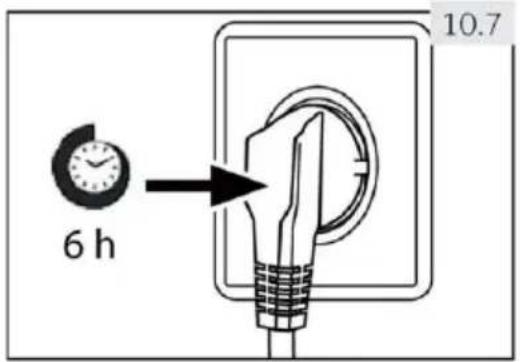

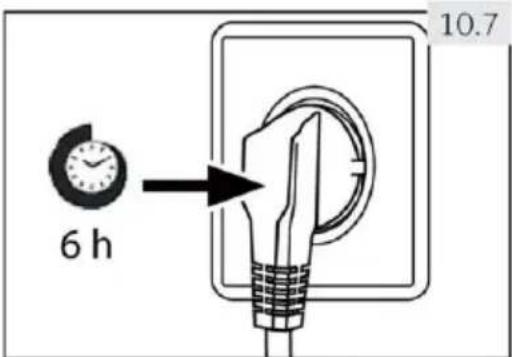

▶ Wait at least six hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.

▶Handle the appliance always with at least two persons because it is heavy.

Installation

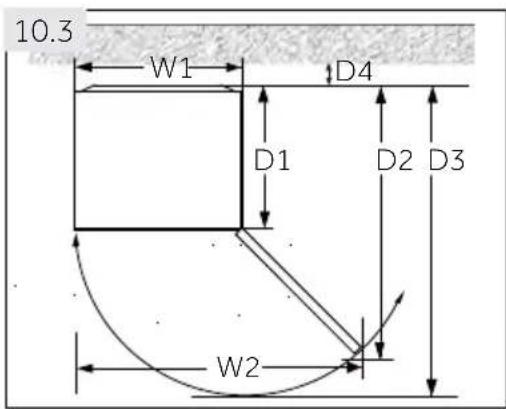

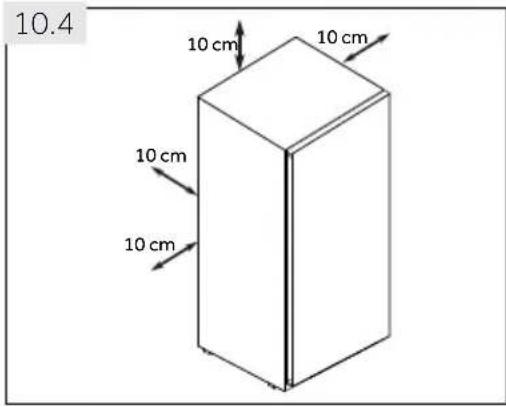

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.

▶Do not cover air vent openings.

▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.

▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

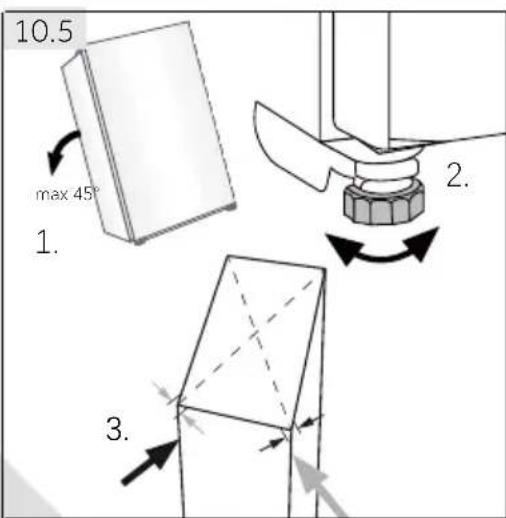

▶Install and level the appliance in an area suitable for its size and use.

- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.

▶Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.

The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

▶Use a separate earthed socket for the power supply which is easily accessible during cleaning. The appliance must be earthed.

▶Only for UK:The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶Do not use multi-plug adapters and extension cables.

▶Ensure that the power cable is not trapped by the freezer. Do not step on the power cable.

▶Do not damage the refrigerant circuit.

WARNING!

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
▶ Children shall not play with the appliance.
If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the freezer or any other appliance.
▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43 °C. It is recommended to use under the set climate type ring temperature to ensure the best operation of the equipment. The device can be used when the ambient temperature is not lower than -15°C.
▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the freezer, to ovoid personal injury caused by falling or electric shock caused by contact with water.
▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the freezer doors only when there are no children standing within the range of door movement.
Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Check the condition of food if a warming in the freezer has taken place.

NING!

Daily use

▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
▶If the illuminating lamps is damaged, it must be replaced by the manufacturer or by the qualified person at the specified maintenance provider.

Maintenance/cleaning

▶ Makesure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶Hold the plug, not the cable, when unplugging the appliance.
Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

▶Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

Refrigerant gas information

RNING!

The appliance contains the flammable refrigerant ISOBUTHANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

WARNING!

▶ Taking care to avoid causing a fire by igniting flammable material.
▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
-For flammable refrigerants is used in the freezer, please be careful when installing, handling, serving and recycling the appliance.
▶Please contact to the service agent to dispose the appliance because the flammable blowing gas was used.

2 - Intended use

2.1 Intended Use

"This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

This appliance is intended for cooling food. It has been designed exclusively for use in dry interior house-holds. It is not intended for commercial or industrial use. On demand this appliance can be used as fresh food compartment.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

2.2 Accessories

Check the accessories and literature in accordance with this list:

2.2

Energy label

Quick Guide

User manual Warranty card Co

Door extension cord

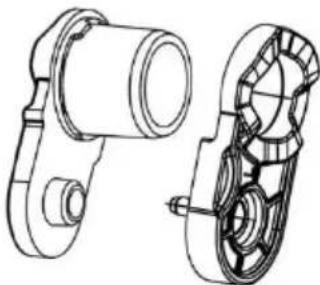

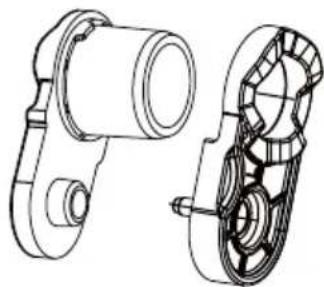

Technical line drawing of two mechanical components, one with a cylindrical shaft and the other a curved bracket (no text or symbols)

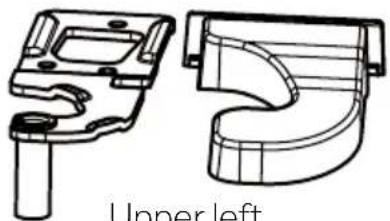

Upper left hinge for door reversibility
Upper left hinge cover

Technical line drawing of two mechanical components, one cylindrical and one circular, with no visible text or symbols.

Axe covers

Notice: Differences

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

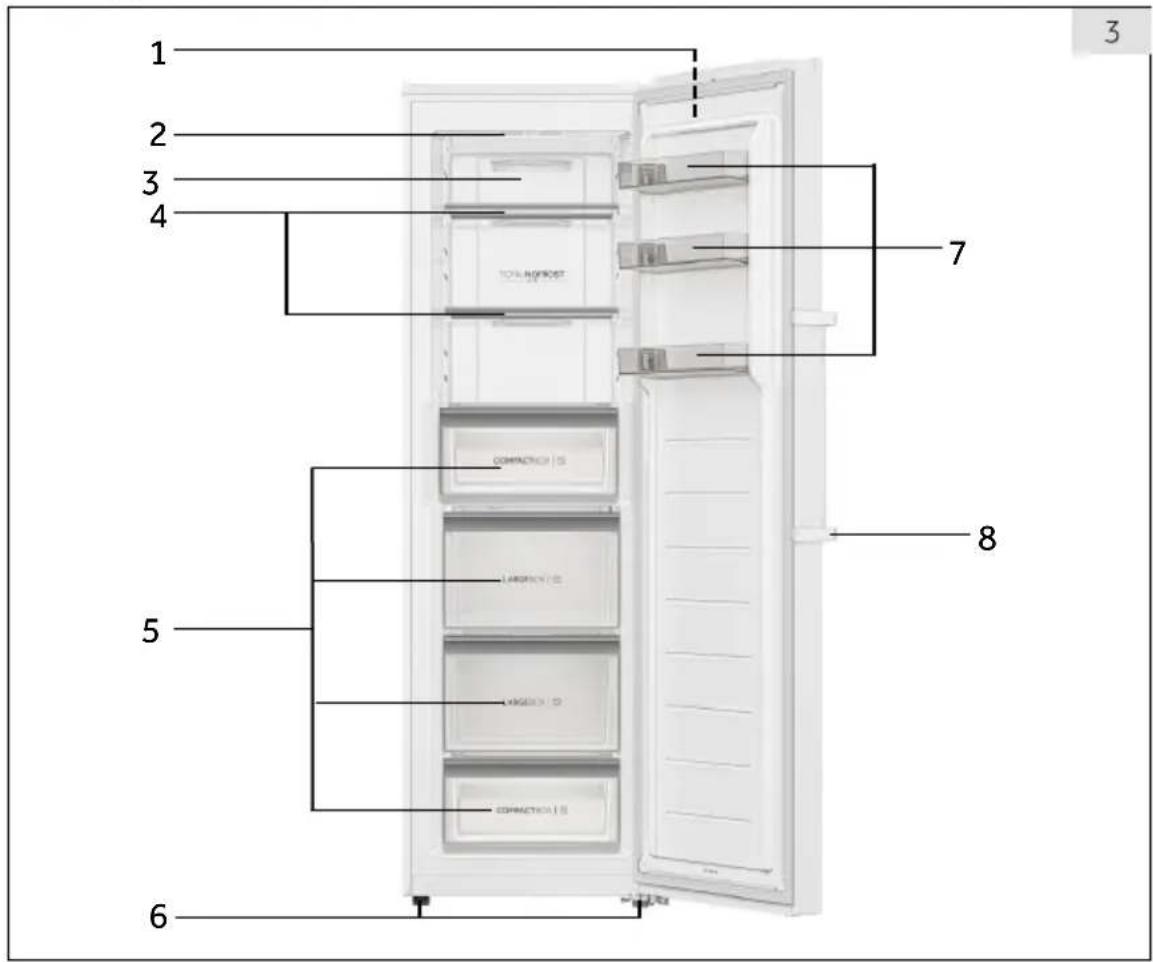

Picture of appliance (Fig. 3)

1 2 3 4 7 5 8 6

1 Control panel
2 LED light
3 Air duct
4 Glass shelves

5 Drawers
6 Adjustable feet
7 Removable door racks
8 Door handle

Note: This product contains a light source of energy efficiency class

4 - Control panel

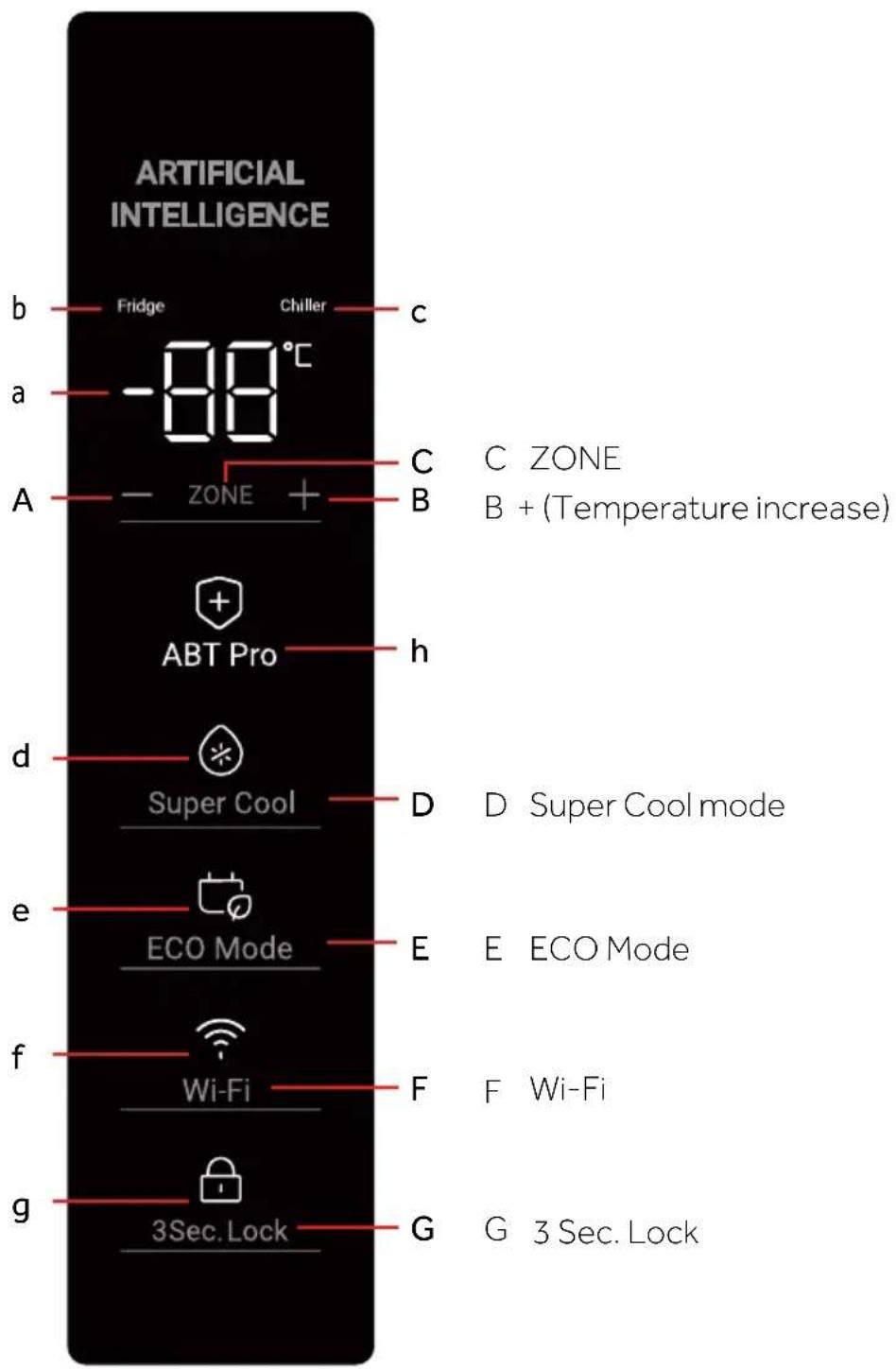

Control panel (Fig. 4)

4

A - (Temperature decrease)

ARTIFICIAL INTELLIGENCE b — Fridge — Chiller — c a — -88°C A — ZONE + C — B — C ZONE ABT Pro — h d — Super Cool — D — Super Cool mode e — ECO Mode — E — ECO Mode f — Wi-Fi — F — Wi-Fi g — 3Sec. Lock — G — G 3 Sec. Lock

5.1 Before first Use

▶Remove all packaging materials, keep them out of childrens reach and dispose them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.
▶After the appliance has been levelled and cleaned, wait for at least 6 hours before connecting it to the power supply. See Section INSTALLATION.
▶Precool the compartment for 2 hours at high settings before loading with food.

5.2 Switching the appliance on /off

The appliance is in operation as soon as it is connected to the power supply.

The zone Chiller is automatically set to 0^ C. the zone Refrigerated is automatically set to 4^ C. This is the recommended setting and the ideal temperature for cooling goods. If desired, you can change the temperatures manually. Please see ADJUSTING THE TEMPERATURE.

Indicators (a-g) will flash once consecutively. If the door is closed, the display switches off after 30 seconds. The panel lock might be active.

ce: Presettings

The appliance is preset to the recommended temperature of 0 °C for Chiller and 4 °C for Refrigerated. Under normal conditions you don't need to set a ambient temperature.
▶When the appliance is switched on after being disconnected from the main power supply, it may take up to 5 hours for the correct temperature to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

5.3 Standby-mode of display

When the door is closed the display screen turns off automatically 30 seconds after without operation. The display locks automatically. It lights up automatically when touching any button or opening the door.

5.4 Display lock and unlock

Automatic locking

Display is automatically locked after about 30 seconds without operation.

Manual locking

When the display is unlocked, press "3 Sec. Lock" (G) and hold for 3 seconds, after a beep, "3 Sec. Lindicator is light, display is locked. When the display is locked, press "3 Sec.

Lock"(G) and hold for 3 seconds, after a beep,"3 Sec. Lock"(g) indicator is off, display is unlocked.

ce: Display lock

When display is locked, functions such as temperature setting or super cool are disabled. When above operation is attempted, 3 Sec. Lockindicator will blink for 3 times, to remind that the display is locked.

5.5 Fridge/Chiller Gear switching and temperature viewing

Press the C key to switch the product between Fridge and Chiller and display the real-time temperature internal.

5.6 Temperature setting

Chiller mode range: 0^ C \~ 2^ C;

Refrigerate mode range: 2 ^ C 8 ^ C;

When display is unlocked, by touching "-" (A) and "+" (B), different temperture could be set and flashing displayed on indicator (a). this process will be accompanied by beeps.

After 5 seconds from stop touching, the indicator (a) will stop flashing and Display the adjusted gear until the display turns off. The set temperature is displayed after cooling effect is achieved.

Notice: Temperture Setting

In Super Cool mode and ECO mode, the temperature in refrigerated mode cannot be adjusted.
▶ After the temperature level is adjusted, the adjusted gear will be directly displayed until the display screen is off, and then the display will be light again to show the refrigerator temperature before adjustment.

5.7 Super Cool mode (D)

When display is unlocked, touching "Super Cool Mode"(D), indicator "Super Cool Mode"(d) is hight light and fridge works in Super Cool mode. To deactivate manually Super Cool mode, repeat steps above and indicator "Super Cool Mode"(d) is low light.

Notice: Super Cool

After 3 hours of entering the Super Cool mode, the Super Cool mode will be automatically exited. The refrigerator will exit and return to the original set gear.
In Super Cool mode, refrigeration temperature could not be adjusted. If you do so, Super Cool indicator will blink a while to remind that refrigerator is in Super Cool mode.

5.8 ECO mode (E)

In ECO mode, energy saving is achieved. The temperature will be set to 8 °C in Refrigerated mode.

When display is unlocked, touching "ECO Mode"(E), indicator "ECO Mode"(e) is hight light and fridge works in ECO mode. To deactivate manually ECO mode, repeat steps above and indicator "ECO Mode"(e) is low light.

Notice: Super Cool

In ECO mode, refrigeration temperature could not be adjusted. If you do so, ECO indicator will blink a while to remind that refrigerator is in ECO mode.

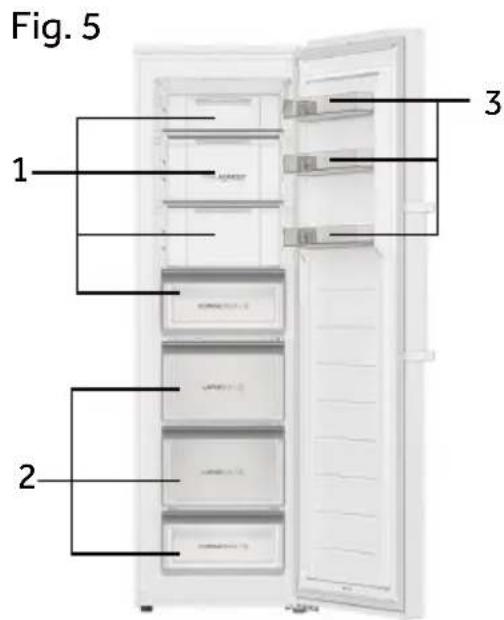

Fig. 5 1 2 3

Different foods should be placed in different areas according to their properties (Fig. 5).

1 Pickled foods, canned food, fruit, vegetables, salad, etc.
2 Meat products, snack foods, etc.
3 Eggs, canned food, spices, drinks and bottled foods, etc.

On refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs;

Food can be stored in the refrigerator at a temperature of at least 4°C for 1 day to 2 months, depending on its properties (e.g., meat: 1-2 days, vegetables: 3-5 days, eggs: 1-2 months).

In order to avoid expiration of storage periods, please note the fridge date, time limit and name of the food on the packaging according to the storage periods of different foods.

5.9 ABT Pro

The fridge is equipped with an Antibacterial module, which runs autonomously after power-on, and users do not need to operate. The indicator (h) lightens up showing that the module is running.

5.10 Power-off memory

This fridge has power-off memory, settings before power-off will be memorized. When power is back on, fridge will return to settings before power-off and continue to function. Display lock is not memorized, after power back on, display is unlocked.

5.11 Door open alarm

When the refrigerator is open for more than 3 minutes, the refrigerator alarm sounds; Between 3 and 7 minutes, the refrigerator alarms every 30 seconds; For more than 7 minutes, the refrigerator will sound an alarm every 5 seconds until the door closes; When the refrigerator sends out an alarm sound every 5 seconds, press any button at this time, and the alarm sound disappears.

Door open alarm

The light in the refrigerator turns off more than 7 minutes after the refrigerator is opened.

5.12 Error indication

This fridge is equipped with error indication. When an error is encountered, display will show flashing codes for different errors. In this situation, the fridge could still refrigerate but user should contact after sales service as soon as possible for optimal control of the refrigerator.

5.13 Wi-Fi

After the refrigerator is connected to Wi-Fi, it can be remotely controlled through a mobile app. (Please refer to the configuration page for specific configuration methods)

6 - Energy saving tips

Energy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).

▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
▶Make sure the door always closes correctly and unimpaired by food position. Keep door seals clean.
Clean the rear of the appliance regularly. Dust increases energy consumption.
The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.

7 - Equipment

7.1 ① ① ②

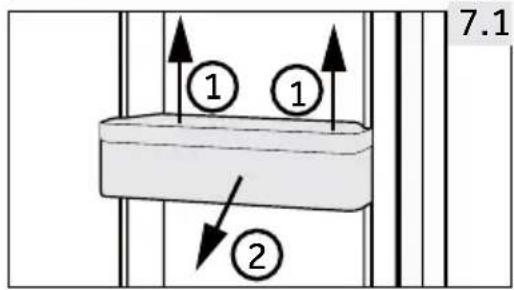

7.1 Removable door racks

The door rack can be removed for cleaning:

Place hands on each side of the rack, lift it upwards (1) and pull it out (2) (Fig. 7.1).

In order to insert the door rack, the above steps are carried out in reverse order.

7.2 ① ②

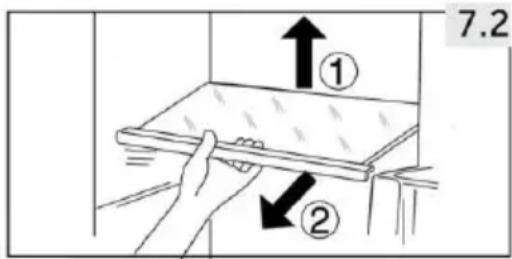

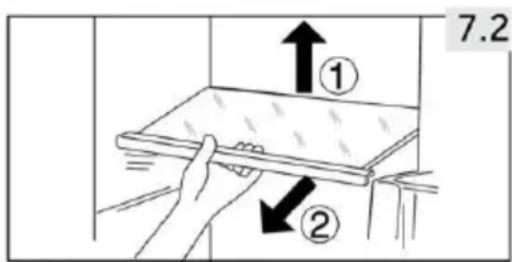

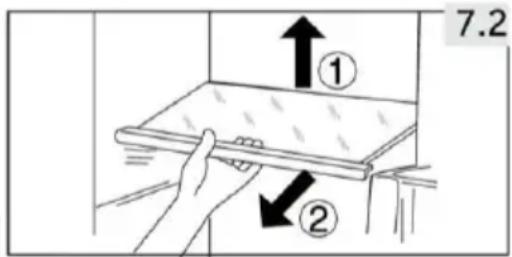

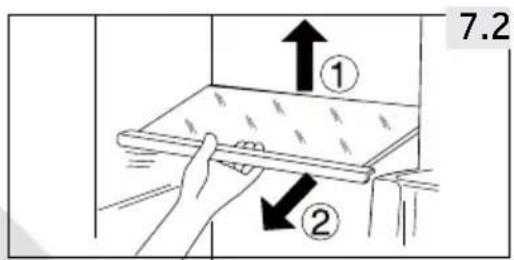

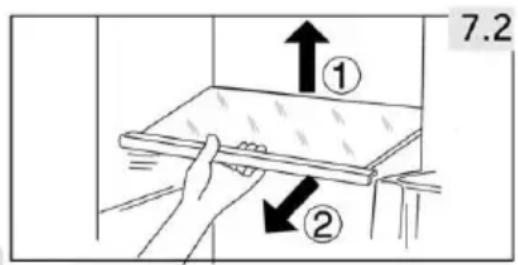

7.2 Glass shelves

1. To take out a shelf, remove it first by uplifting its hind edge (1) and pulling it out (2) (Fig. 7.2).
2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

WARNING!

Disconnect the appliance from the power supply before cleaning.

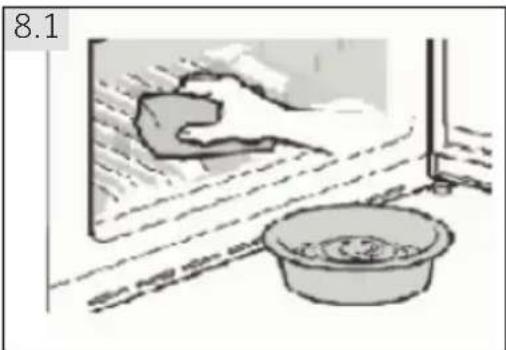

8.1 General

Clean the appliance when only little or no food is stored.

WARNING!

▶Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special freezer detergent to avoid damage.
▶Do not spray or flush the appliance during cleaning.
▶ Do not scrape off frost and ice with sharp objects.
▶Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
▶Do not touch the inside surface of the fridge storage compartment, especially with wet hands, as your hands may freeze onto the surface.
▶In case of heating check the condition of cooling goods.
▶Do not try to repair the appliance by yourself. In case of repair please contact our customer service.

▶Always keep the door gasket clean.
▶Clean the inside and housing of the appliance with a soft cloth or sponge dampened in warm water and neutral detergent (Fig. 8.1).
▶Rinse and dry with soft cloth.
▶Do not clean any of the parts of the appliance in a dishwasher.
▶Clean the accessory only with warm water and mild neutral detergent.

Illustration of a kitchen sink with a hand cleaning a wall, no text or symbols present

8 - Care and Cleaning

The user manual includes instructions for the using and operation of multiple models. Please refer to the instructions for the purchased models.

Drawer cleaning steps

1. Remove the front cover of drawer:

3D mechanical assembly diagram showing a blue component being cut with a red arrow indicating rotation (no text or symbols)

1. Cleaning of drawer body:

3D model of a modular device with two views: one showing a flat panel and the other showing a multi-tiered tray (no text or symbols)

1. Cleaning of drawer cover:

Blue rectangular object with a small protrusion at the top (no visible text or symbols)

1. Assembly after cleaning:

Two views of a mechanical device with blue and gray components, no visible text or symbols

Door seal cleaning

1. Door seal strip remove

Mechanical device with a lever and handle, showing a red curved arrow indicating rotation (no text or symbols visible)

1. Door seal cleaning

2. Installation after cleaning

Mechanical device with a black rod and red curved arrow indicating rotation (no text or symbols)

8.2 Non-use for a long period

If the appliance is not used for an extended period of time:

▶Take out the food.
▶Unplug the power cord.
▶Clean the appliance as described above.
- Keep the door and freezer drawers open to prevent the creation of bad odours inside.

Remove the door of the appliance (open the door and hold it before removing the screws) to avoid children entering into the appliance and getting locked in.

Notice: Switch off

To ensure the service life of the appliance, turn it off only if strictly necessary.

8.3 Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the freezer with adhesive tape.
3. Close the door and secure it with tape.
4. Do not tilt the freezer more than 45^ to avoid damaging the refrigerating system.
5. Wrap the feet of the freezer to avoid scratching the floor. Never move the freezer forcefully.

WARNING!

▶Do not lift the appliance by its handles.
▶Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The acoustic alarm can be switched off by pressing any button..

9.1 Troubleshooting

Problem Possible Cause Possible Solution
The compressor does not work.	· Mains plug is not connected in the mains socket.	· Connect the mains plug.
The appliance runs frequently or for a too long period of time.	· The indoor or outdoor temperature is too high.· The appliance has been off power for a period of time.· The door of the appliance is not tightly closed.· The door has been opened too frequently or for too long.· The temperature setting is too low.· The door gasket is dirty, worn, cracked or mis-matched.· The required air circulation is not guaranteed.· The interior is covered in ice.	· In this case, it is normal for the appliance to run longer.· Normally, it takes 8 to 12 hours for the appliance to cool down completely.· Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.· Do not open the door too frequently.· Set the temperature higher until a satisfactory temperature is obtained. It takes 3 hours for the temperature to become stable.· Clean the door gasket or replace them by the customer service.· Ensure adequate ventilation.· Defrost the appliance.
The appliance makes abnormal sounds.	· The appliance is not located on level ground.· The appliance touches an object close to it.· The applian ce stands on a wooden floor or near wooden walls.	· Level the appliance.· Remove objects around the appliance.· Wood amplifies the sound. Set the appliance somewhere else.

9 - Troubleshooting

Problem Possible Cause Possible Solution
The appliance makes a clicking sound	·This is normal. It is caused by the refrigeration unit switching on or off.	·-
A slight sound is to be heard similar to that of flowing water.	·This is normal. -	·
The appliance makes a motor sound	·The refrigeration unit has just turned itself on. This is normal	·-
It is not cold enough inside the appliance.	·The temperature is set too high.·Goods that are too warm have been stored.·Too much food has been stored at a time.·The goods are too close to each other.·The door is not tightly closed.·The door has been opened too frequently or for too long.	·Reset the temperature.·Always cool down goods before storing them.·Always store small quantities of food.·Leave a gap between several foods allowing air flowing.·Close the door.·Do not open the door too frequently.
It is too cold inside the appliance.	·The temperature is set too low.	·Reset the temperature.
Moisture accumulates on the surface of the appliance.	·The climate is too warm and too damp.	·This is normal in damp climate and will change when the humidity decreases. Wipe dry with a cloth.
Strong ice and frost in the freezer compartment.	·The goods were not adequately packaged.·The door is not tightly closed.·The door has been opened too frequently or for too long.·The door gasket is dirty, worn, cracked or mis-matched.·Something on the inside prevents the door from closing properly.	·Always pack the goods well.·Close the door.·Do not open the door too frequently.·Clean the door gasket or replace them by the customer service.·Reposition the shelves, door racks, or internal containers to allow the door to close.
The cooling system does not work.	·Mains plug is not connected to the mains socket.·The power supply is not intact.	·Connect the mains plug.·Check the electrical supply to the room. Call the local electricity company!
The sides of the cabinet and door strip get warm.	This is normal.	-
You hear an alarm signal.	The door is openThe temperature inside product is too high	Close the door or silence the alarm manually.
The door is difficult to open.	Once the appliance runs, it has an internal vacuum.	Open the door seal gently to let air enter the appliacne.
The door can't be closed properly. It always leaves a gap.	Because of the appliances's low temperature, the door seal can easily get hard and deformed.	Use a hair dryer or put a hot towel on the spot where the gasket is deformed.When the gasket is soft once again, close the door and compress it tightly.

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

10 - Installation

10.1 Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.

- Keep all packaging materials out of children reach and dispose them in an environmentally friendly manner.

▶ Take the appliance out of the packaging.

▶Remove all packaging materials.

10.2 Environmental conditions

The room temperature should always be between 10 °C and 43 °C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

10.3 Space requirements

Required space to open the door (Fig. 10.3):

10.3 W1 D4 D1 D2 D3 W2

Widthin mm		Depthin mm			Distance towall in mm	Modelidenti fier
W1	W2	D1	D2	D3 D4
595	964	608	1	153.5	1236.5	100

10.4 10 cm 10 cm 10 cm 10 cm

This appliance is not intended to be used as a built-in appliance.

10.4 Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed (Fig. 10.4).

10.5 Aligning the appliance

The appliance should be placed on a flt and solid surface. If the appliance is placed on a pedestal, strong and fire-resistant materials must be used. Never use the foam packing material as a pedestal.

10.5 max 45° 1. 2. 3.

1. Tilt the appliance slightly backwards (Fig. 10.5).

2. Set the feet to the desired level.

3. The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear eases the closing of the door.

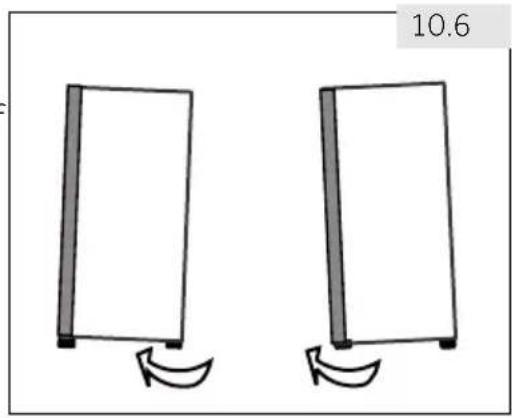

10.6 Using adjustable feet

If the fridge is unstable, the feet can be adjusted: Rotate the adjustable feet according to the direction of arrow (Fig. 10.6) to turn them up or down:

▶Turning the feet clockwise raises the appliance.
▶Turning the feet counterclockwise lowers it.

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

10.7 Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 6 hours (Fig. 10.7) so that the oil runs back into the capsule.

6 h 10.7

10.8 Electrical connection

Before each connection check if:

▶power supply, socket and fusing are appropriate to the rating plate.
▶the power socket is earthed and no multi-plug or extension.
▶the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

10 - Installation

10.9 Door Reversibility

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability.

WARNING!

The appliance is heavy. You need two persons to carry out the door reversibility.
Before any operation, first unplug the appliance from the mains.
▶Do not tilt the appliance more than 45^ to prevent damage of the cooling system.

Illustration of pliers and tools with plus and minus symbols (no text or labels)

2 10.9

Technical diagram of a mechanical bracket or mounting structure with mounting holes and a curved base (no text or symbols visible)

Technical diagram showing a mechanical assembly with a purple linkage and orange component (no text or symbols)

Technical illustration of a mechanical assembly with two views (top and side), showing internal components without any text or symbols.

Mechanical assembly diagram showing a component with mounting holes and a central housing (no text or symbols visible)

Exterior view of a modern office building (no signage)

Architectural detail of a building interior showing structural beams and doorways (no text or symbols visible)

Exterior view of a modern office building (no signage)

Illustration of a computer monitor with ports and a label '10' (no readable text or symbols on the device itself)

Assembly steps (Fig. 10.9):

1. Provide necessary tool.

2. Unplug the appliance.

3. Remove the screw hole cover, bolts, and hinge cover.

4. Unplug the connection cable.

5. Take upper left hinge cover and dor extension cord out of the gift bag, as shown in the figure, replace the hinge cover and install the extension cord into the wiring slot of the hinge cover.

6. Removes screws and hinge.

7. Remove cover on door. Remove axe cover on door

8. Open and remove the door.

9. Turn the door upside down, remove 3 screws on the bottom of the door. Remove 3 screws, door stopper and Lifting shaft sleeve on the bottom of the door

10. Take Lifting shaft sleeve out of the gift bag. Fix the lifting stop, Door stop, and 3 screws on the left side of the door

11 12

Exploded view of a mechanical assembly with gears and a shaft (no text or symbols visible)

13

3D rendered mechanical component with mounting holes and internal gears (no text or symbols)

14

15

16

17

3D mechanical assembly diagram showing mounting bracket and mounting holes (no text or symbols)

18

19 20

1. Tilt slightly backwards the cabinet, remove 3 screws and then the lower hinge.

2. Take lifting shaft sleeve out of the gift bag. Remove 2 bolts, remove the lifting shaft sleeve and lifting shaft

3. Install the lifting shaft sleeve and lifting shaft in the left hole and secure 2 bolts. (Adding lubricating oil to the shaft)

4. Fix the hinge to the opposite position of the cabinet with 3 screws.

5. On opposite side of the door, pull out left side connection cable and put it through the axe cover from step 5, mount axe cover. Mount the hole cover on the right side.

6. Mount the door.

7. Fix upper right upper hinge with 3 screws. (Add lubricating oil to the upper hinge before installation)

8. Connect the wiring harness as shown in the figure

9. Install the assembled hinge cover in step 5, secure the three screws and screw hole covers

10. Finished.

11 - Technical Data

11.1 Producturing regulation EU No. 2019/2016

Trade mark Haier
Model identifier	H4R306*AH1/H4R306*AH1K
Category of the model	Upright fridge
Energy efficiency class A
Annual energy consumption (kWh/year)	56
Storage volume cooling(L)	176
Storage volume chiller(L)	125
Temperature of other compartments>14°C	not applicable
Frostfree system	yes
Power cut safe(h) 12
Cooling capacity(kg/12h) 5
Climate classThis appliance is intended to be used at an ambiend temperature between 10°C Cand 43°C	SN-T
Maximum noise level (dB) 36
Construction type	freestanding

^1) based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Regarding specification details, please consult the rating plate and energy label inside the product. This appliance is intended to be used at an ambient temperature indicated below:

SN + 10°C~+32°C

N + 16°C~+32°C

ST + 16°C~+38°C

T + 16°C~+43°C

11.2 Additional Technical Data

Voltage / Frequency	220-240V ~/ 50Hz
Rated current (A) H4R306*AH1/H4R306*AH1K	1.0
Coolant	R600a
Dimensions (H/W/D in cm) H4R306*AH1/H4R306*AH1K	190/60/74.2
Light power/Light voltage 1.5W/ DC 12V

11.3 Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING

If you cannot find a solution there, please contact

▶your local dealer or

the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find below our addresses in Europe:

European Haier addresses
Country* Postal address Country* Postal address
Italy	Haier Europe Trading SRLVia De Cristoforis, 1221100 VareseITALY	France	Haier France SAS3-5 rue des Graviers92200 Neuilly sur SeineFRANCE
Spain Portugal	Haier Iberia SLPg. Garcia Faria, 49-5108019 BarcelonaSPAIN	Belgium-FRBelgium-NLNetherlandsLuxembourg	Haier Benelux SAAnderlechtRoute de Lennik 451BELGIUM
Germany Austria	Haier Deutschland GmbHHewlett-Packard-Str. 4D-61352 Bad HomburgGERMANY	PolandCzechiaHungaryGreeceRomaniaRussia	Haier Poland Sp. zo.o.Al. Jerozolimskie 181B02-222 WarszawaPOLAND
United Kingdom	Haier Appliances UK Co.Ltd.One Crown SquareChurch Street EastWoking, Surrey, GU21 6HRUK

*For more information please refer to www.haier.com

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels

Обезвреждане

Technical line drawings of mechanical components, showing front and side views (no text or symbols)

Technical line drawing of two mechanical components: a cylindrical housing and a bearing housing (no text or symbols)

Капачета за оста

Забележка: Разлики

7.1 ① ① ②

7.2 ① ②

Illustration of a kitchen sink with a bowl and a cloth, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one with a flat top and the other with a grid-like base (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two views of a mechanical device with blue and gray components, no visible text or symbols

Diagram of a mechanical device with a lever and rotating component (no text or symbols visible)

Mechanical device with a red curved arrow indicating rotation or force application (no visible text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Skříňová chladnička

H4R306\*AH1 H4R306\*AH1K

*-Barevný kód

Symbol of a trash bin crossed with no text or labels

Likvidace

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of two mechanical components with no visible text or symbols

Kryty os

Upozornění: Rozdíly

Obr. 5 1 2 3

7.1 ① ① ②

Illustration of a kitchen sink with a bowl and a cloth, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one showing a U-shaped opening and the other showing a grid-like structure (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

1. Montáž po čištění:

Two 3D mechanical components shown from front and side views, with no visible text or symbols.

Mechanical device with a red ribbon and black lever mechanism (no visible text or symbols)

Diagram of a mechanical device with a rod and lever mechanism (no text or symbols)

Two identical rectangular panels with curved arrows below, no text or symbols present

10.7. Doba čekání

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Standkühlschrank

H4R306\*AH1 H4R306\*AH1K

*-Farbcode

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Entsorgung

7.1 ① ① ②

7.2 ① ②

Illustration of a kitchen sink with a bed and a cloth, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one showing a U-shaped opening and the other showing a grid-like structure (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two 3D mechanical components shown from front and side views, with no visible text or symbols.

Mechanical device with a lever and handle, no visible text or symbols

Diagram of a mechanical device with a rod and lever mechanism (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

6 h 10.7

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

'Ορθιο ψυγείο

H4R306*AH1 H4R306*AH1K

*-Κωδικός χρώματος

EL

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Απόρριψη

Technical line drawing of two mechanical components, one cylindrical and one gear-like, with no visible text or symbols.

Elk. 5 1 2 3

7.1 ① ① ②

7.2 ① ②

Illustration of a kitchen sink with a bowl and a cloth, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one showing a U-shaped opening and the other showing a grid-like structure (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two views of a mechanical device with blue and gray components, no visible text or symbols

Mechanical device with a lever and handle, no visible text or symbols

Diagram of a mechanical device with a red arrow indicating direction, no visible text or symbols

Two identical rectangular panels with curved arrows pointing downward, no text or symbols present

6 h 10.7

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Frigorífico vertical

H4R306\*AH1 H4R306\*AH1K

*-Código de color

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Eliminación

Technical line drawing of two mechanical components: a cylindrical housing and a bearing housing (no text or symbols)

Tapas del eje

Aviso: Diferencias

Illustration of a kitchen sink with a bowl and a bed, no text or symbols present

3D mechanical assembly diagram showing a blue and white component with a red directional arrow (no text or symbols)

3D model of two modular storage compartments, one with a flat top and one with a grid-patterned bottom (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two views of a mechanical device with blue and gray components, no visible text or symbols

Mechanical device with a lever and handle, no visible text or symbols

Diagram of a mechanical device with a red arrow indicating direction, no visible text or symbols

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

Illustration of pliers, screwdrivers, and a positive terminal with plus and minus symbols (no text or labels)

2 10.9

Exterior view of a building roof structure with mounting brackets and doorways (no signage or text)

Pure mechanical diagram showing a lever and component without any text, numbers, or symbols

Technical illustration of a mechanical component with two views and internal structure (no visible text or symbols)

Diagram of a mechanical or electronic component with mounting holes and a central display (no text or symbols visible)

Exterior view of a modern office building (no signage)

Exterior view of a door frame with internal components and a small inset image showing a device (no visible text or symbols)

Exterior view of a modern office building (no signage)

Illustration of a computer monitor with a small screen and control panel (no text or symbols visible)

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels

Mise au rebut

Technical line drawing of two mechanical components: a cylindrical housing and a flanged housing (no text or symbols)

Couvercles de l'axe

Illustration of a kitchen sink with a bowl and a coat, no text or symbols present

3D mechanical assembly diagram showing a blue component being inserted into a white housing (no text or symbols visible)

Two 3D model views of a metal bracket component, one showing front and side views (no text or symbols)

Blue rectangular object with metallic tabs and small protrusions (no visible text or symbols)

Two views of a mechanical device with blue and white components, no visible text or symbols

Diagram of a mechanical device with a lever and red arrow indicating rotation (no text or symbols)

Mechanical device with a black rod and red curved arrow indicating motion (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

6 h 10.7

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Hűtőszekrény

H4R306*AH1 H4R306*AH1K

* -Színkód

HU

7.1 ① ① ②

7.2 ① ②

Illustration of a kitchen sink with a bowl and a coat, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a white housing (no text or symbols visible)

Two 3D model views of a modular device structure, one with a flat top and the other with a grid-like base (no text or symbols)

Blue rectangular object with metallic tabs and small protrusions (no visible text or symbols)

Two views of a mechanical device with blue and white components, no visible text or symbols

Diagram of a mechanical device with a lever and red arrow indicating rotation (no text or symbols)

Mechanical device with a black rod and red curved arrow indicating motion (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

6 h 10.7

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Frigorifero verticale

H4R306\*AH1 H4R306\*AH1K

*-Codice colore

Symbol of a trash bin crossed with no text or labels

Smaltimento

7.1 ① ① ②

7.2 ① ②

Illustration of a kitchen sink with a bowl and a bed, no text or symbols present

8 - Cura e pulizia

IT

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal-framed structure, one open and one closed, both without any text or symbols.

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two views of a mechanical device with blue and gray components, one showing internal structure and the other showing layered structure (no text or symbols visible)

Mechanical device with a lever and handle, no visible text or symbols

Mechanical device with a red curved arrow indicating rotation or force application (no visible text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

Interior view of a fully stocked refrigerator with visible doors and shelves (no text or symbols)

Staande koelkast

H4R306\*AH1 H4R306\*AH1K

*-Kleurcode

Symbol of a trash bin crossed with no text or labels

Verwijdering

Technical line drawing of a mechanical component with curved and straight sections (no text or symbols)

Technical line drawing of two mechanical components, one cylindrical and one circular, with no visible text or symbols.

7.1 ① ① ②

7.2 ① ②

Illustration of a kitchen sink with a bed and a cloth, no text or symbols present

3D mechanical assembly diagram showing a blue and white component with a red directional arrow (no text or symbols)

1. De lade schoonmaken:

Two 3D model views of a metal frame structure, one showing a U-shaped opening and the other showing a grid-like structure (no text or symbols)

1. De ladeafdekking schoonmaken:

Blue rectangular object with a small protrusion on top (no text or symbols visible)

3D CAD model of a mechanical housing with blue and gray components, shown from two different angles (no text or symbols visible)

Mechanical device with a red ribbon and black lever mechanism (no visible text or symbols)

Diagram of a mechanical device with a rod and lever mechanism (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

6 h 10.7

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Chłodziarka pionowa

H4R306\*AH1 H4R306\*AH1K

*-Kod koloru

PL

Symbol of a trash bin crossed with no text or labels

Utylizacja

Technical line drawing of two mechanical components: a cylindrical housing and a gear mechanism (no text or symbols)

7.1 ① ① ②

7.2 ① ②

Illustration of a kitchen sink with a bowl and a coat, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one showing a U-shaped opening and the other showing a grid-like structure (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two views of a mechanical device with blue and gray components, no visible text or symbols

Mechanical device with a red ribbon and black lever mechanism (no visible text or symbols)

Diagram of a mechanical device with a red arrow indicating direction, no visible text or symbols

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels

Eliminação

7.1 ① ① ②

7.2 ① ②

Illustration of a kitchen sink with a bowl and a bed, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one showing a U-shaped opening and the other showing a grid-like structure (no text or symbols)

1. Limpeza da tampa da gaveta:

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two views of a mechanical device with blue and gray components, no visible text or symbols

Mechanical device with a red ribbon and black lever mechanism (no visible text or symbols)

Diagram of a mechanical device with a red arrow indicating direction, no visible text or symbols

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Frigider vertical

H4R306\*AH1 H4R306\*AH1K

*-Cod de culoare

Symbol of a trash bin crossed with no text or labels

Eliminare

Technical line drawings of two mechanical components (no text or symbols)

Technical line drawing of two mechanical components, one cylindrical and one meshed, with no visible text or symbols.

Illustration of a kitchen sink with a bowl and a wall, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one showing a U-shaped opening and the other showing a grid-like structure (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two views of a mechanical device with blue and gray components, one showing internal structure and the other showing layered structure (no text or symbols visible)

Mechanical device with a red ribbon and black lever mechanism (no visible text or symbols)

Diagram of a mechanical device with a red arrow indicating direction, no visible text or symbols

Two identical rectangular panels with curved arrows indicating rotation or movement, no text or symbols present.

6 h 10.7

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels

Likvidácia

Technical line drawings of mechanical parts, one showing a flanged housing and the other a curved pipe fitting (no text or symbols)

Technical line drawing of two mechanical components: a cylindrical housing and a gear mechanism (no text or symbols)

Obr. 5 1 2 3

7.1 ① ① ②

7.2 ① ②

7.1. Vyberatel'né priehradky na dverách

Illustration of a kitchen sink with a bed and a cloth, no text or symbols present

8 - Starostlivost' a čistenie

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one showing a U-shaped opening and the other showing a grid-like structure (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two 3D mechanical components shown from front and side views, with no visible text or symbols.

Mechanical device with a lever and handle, no visible text or symbols

Diagram of a mechanical device with a rod and lever mechanism (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

6 h 10.7

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Pokončni hladilnik

H4R306\*AH1 H4R306\*AH1K

*-barvna koda

Zahvaljujemo se vam za nakup izdelka Haier.

Symbol of a trash bin crossed with no text or labels

Odstranjevanje

Pomagajte varovati okolje in zdravje ljudi. Embalažo odložite v ustrezne zbiralnike za recikliranje. Pomagajte pri recikliranju električnih in elektronskih odpadnih naprav.

Technical line drawings of two mechanical components (no text or symbols)

Zgornji levi tečaj za obračanje vrat

Technical line drawing of mechanical components including a cylindrical housing and a gear mechanism (no text or symbols)

7.1 ① ① ②

7.2 ① ②

7.1. Snemljive posode v vratih

Illustration of a kitchen sink with a bowl and a wall, no text or symbols present

3D mechanical assembly diagrams showing a blue component being inserted into a housing (no text or symbols visible)

Two 3D model views of a metal frame structure, one showing a U-shaped top and the other a rectangular tray with ribbed sides (no text or symbols)

Blue rectangular object with a small protrusion on top (no text or symbols visible)

Two technical diagrams showing a mechanical assembly with blue and gray components, no visible text or symbols.

Mechanical device with a red ribbon and black lever mechanism (no visible text or symbols)

Diagram of a mechanical device with a red arrow indicating direction, no visible text or symbols

8.2. Dolgotrajna neuporaba

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

6 h 10.7

Abstract geometric composition with four gray shapes and a blue horizontal line (no text or symbols)

Haier

Manual d'usuari

Interior view of a modern refrigerator with open doors and shelves (no visible text or symbols)

Nevera vertical

H4R306\*AH1 H4R306\*AH1K

*-Codi de colors

CA

Symbol of a trash bin crossed with no text or labels

Eliminació

Technical line drawing of two mechanical components, one cylindrical and one circular, with no visible text or symbols.

Tapes de destral

Avis: diferència

In order to avoid expiration of storage periods, please note the fridge date, time limit and name of the food on the packaging according to the storage periods of different foods.

5.9 ABT Pro

7.1 ① ① ②

7.1 Bastidors de portes desmuntables

Illustration of a kitchen sink with a cloth and a bowl, no text or symbols present

8- Cura i Neteja

3D rendering of a mechanical component with a blue handle and white base, showing internal structure (no text or symbols)

3D rendering of a U-shaped metal frame structure with internal ribs (no text or symbols)

1. Neteja de la tapa del calaix:

Blue rectangular object with a small protrusion on top, resembling a laptop or tablet (no text or symbols visible)

3D rendering of a white rectangular container with blue and red components, no visible text or symbols

Neteja de segell de la porta

1. Traieu la tira de tancament de la porta

2. Neteja de la junta de la porta

Mechanical device with a black rod and red arrow indicating rotation (no visible text or symbols)

Mechanical device with a black rod and red curved arrow indicating rotation (no text or symbols)

8- Cura i Neteja

10.3 Space requirements

Espai necessari per obrir la porta (Fig. 10.3):

Widthin mm		Depthin mm		Distance towall in mm	Modelidentifier
W1	W2	D1	D2	D3 D4
595	964	608	11	53.5 1236.5 100

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

10.7 Temps d'espera

Illustration of pliers and screwdrivers with plus and minus symbols (no text or labels)

2 10.9

3D mechanical assembly diagram showing mounting brackets and mounting holes (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Technical illustration of a mechanical assembly with two views (top and side), showing internal components without any text or symbols.

Mechanical assembly diagram showing components with mounting holes and a central housing (no text or labels)

Exterior view of a modern office building (no signage)

Architectural detail showing a window frame and door assembly (no text or symbols visible)

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

Exploded view of a mechanical assembly with gears and housing (no visible text or symbols)

13

3D rendered mechanical component with mounting holes and bolts (no text or symbols visible)

14

15

16

17

3D mechanical assembly diagram showing mounting bracket and mounting holes (no text or symbols)

18

19 20
