HFW99F19ESSB - Fridge HAIER - Free user manual and instructions

Device type	Haier French Door multi-door fridge-freezer, freestanding US-style, stainless steel finish.
Volumes	Total volume 690 L: refrigerator compartment 436 L, freezer compartment 254 L.
Energy class and consumption	Energy efficiency class E (under EU regulation 2019/2016). Annual consumption 363 kWh/year.
Freezing performance	Freezing capacity 13 kg / 24 h. Temperature rise time after a power cut: 12 h. Total No Frost system (automatic defrosting, no ice build-up in the freezer).
Noise level	36 dB(A) re 1 pW, noise emission class C — quiet for a 690 L French Door appliance.
Special functions	Six smart modes: Super Cool (rapid cooling, auto-stop after 4 h), Super Frz (rapid freezing for big batches), Auto Set (continuous automatic regulation), Holiday (vacation mode, fridge in long-term standby), ABT pro (anti-bacterial / anti-odour technology), Smart Windows (interior visualisation).
My Zone drawer	Convertible drawer with three presets to choose from: Fruit & Vegetables, Cool Drink, or 0 °Fresh (around 0 °C, ideal for meat and fish). Default setting: Fruit & Vegetables.
Water and ice dispenser	Built-in door water dispenser with internal water filter. Automatic ice maker, ice production capacity 0.8 kg/24 h, with a Quick Ice mode available.
Interior layout	Glass shelves, ABT pro air channel, humidity-zone drawer panel, Fresh Box drawers, upper and lower freezer drawers with sliding tray, multiple bottle racks on the doors (top, middle, bottom, left/right), LED back-lighting.
Display and presence sensor	Front touch display that lights up automatically when you approach (presence sensor) or open a door, and switches off after a period of inactivity. RESTART button: 1–2 s to reboot the display, > 8 s to enable extended energy-saving standby.
Power supply and refrigerant	220–240 V AC / 50 Hz, input current 2 A, main fuse 15 A. Eco-friendly R600a (isobutane) refrigerant. LED light source, energy class G, replaceable by a professional only.
Climate class and operating range	Climate class SN-N-ST-T: works between + 10 °C and + 43 °C ambient (covers every European climate zone). Freestanding type.
Dimensions and installation	H × W × D = 1900 × 905 × 748 mm (190 × 90.5 × 74.8 cm). Allow at least 10 cm clearance above and around the unit for ventilation, and wait 2–5 hours after levelling before first powering it on. Stainless steel colour (ESSB).

Frequently Asked Questions - HFW99F19ESSB HAIER

What temperatures should I set on the HFW99F19ESSB?

The values recommended by Haier are 5 °C in the fridge compartment and −18 °C in the freezer; they are applied automatically on first start-up. You can adjust them manually from the touch display, except while the Super Cool, Super Frz or Holiday modes are running.

What is the My Zone drawer for and how do I switch between modes?

The My Zone drawer is convertible and offers three presets: Fruit & Vegetables (default), Cool Drink, or 0 °Fresh (around 0 °C, perfect for meat and fish). On the home screen, tap "MYZONE" in the Temperature section and pick the mode you want. The setting is disabled while Holiday mode is active.

When should I use Super Cool and Super Frz?

Super Cool quickly chills the fridge compartment after a big grocery run: it stops automatically after 4 hours and the appliance returns to its previous setting. Super Frz does the same for the freezer when you load lots of fresh food at once. While these two modes are active, the corresponding temperature cannot be set manually.

What is the Holiday mode for?

Holiday mode puts the fridge compartment into long-term standby to save energy during an extended absence, while the freezer keeps running. Empty the fridge compartment first to avoid food spoilage. While Holiday is on, neither Auto Set nor Super Cool can be enabled, and My Zone is disabled — its previous settings come back as soon as you exit Holiday mode.

Do I need to defrost this fridge manually?

No. The HFW99F19ESSB has Total No Frost: it defrosts automatically and prevents ice build-up in the freezer. Never use a sharp object to scrape ice — you risk piercing the R600a refrigerant circuit (a flammable gas).

How do I turn on quick ice making?

The automatic ice maker is in the freezer compartment (item 19) along with its storage box and ice scoop. Standard production is 0.8 kg of ice per 24 h. Quick Ice mode is enabled from the touch display and temporarily speeds up production.

The display switches off on its own — is something wrong?

No, that is normal. When the doors are closed and the fridge is not used for a while, the display goes to sleep to save energy. It wakes up automatically when you touch it, walk in front of it (presence sensor) or open a door. The front courtesy light follows the same behaviour.

What does the RESTART button actually do?

It has two uses: a 1–2 second press reboots the display (handy if it freezes); a press longer than 8 seconds puts the display into extended energy-saving standby. To exit deep standby, unplug the fridge for a few minutes and then plug it back in.

What is the climate class and where can I install this fridge?

The HFW99F19ESSB is rated SN-N-ST-T: it works correctly with an ambient temperature between + 10 °C and + 43 °C, which covers every European climate zone, including a moderately heated garage or veranda. Avoid direct sunlight and proximity to a radiator or oven.

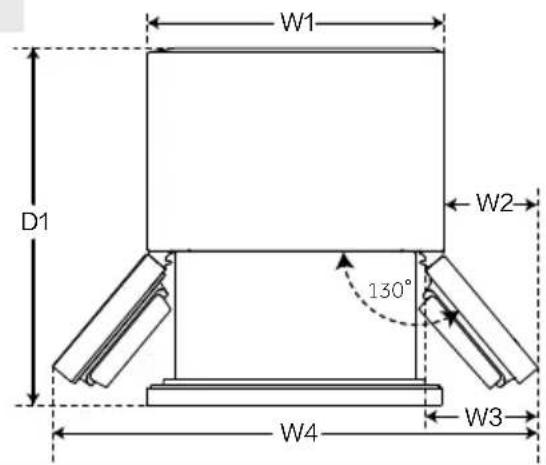

How much room should I leave around the fridge during installation?

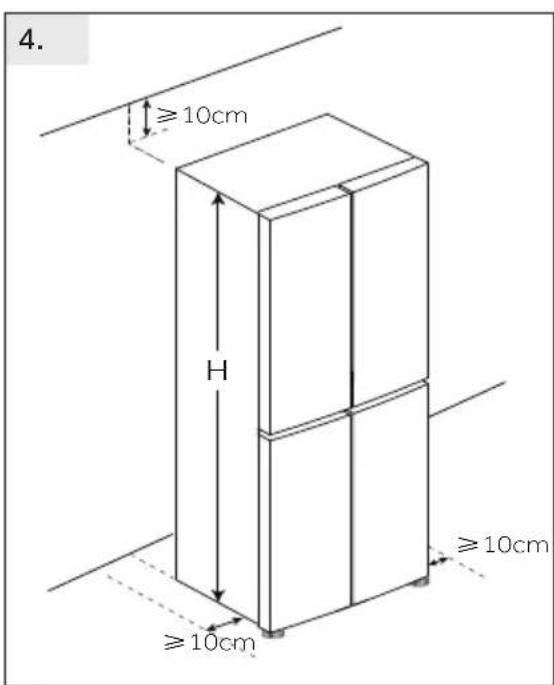

At least 10 cm above and around the unit for ventilation. The fridge measures 190 cm tall, 90.5 cm wide and 74.8 cm deep; move it with two people. After levelling and cleaning, wait 2–5 hours before powering it up for the first time so the refrigerant circuit can settle.

My fridge consumes more than expected — how can I cut the bill?

Check the doors close properly (good seals, no food sticking out), keep to the recommended temperatures (5 °C / −18 °C), do not load hot food, do not overfill so air keeps circulating, and clear the rear condenser. While you are away, switch on Holiday mode. The reference consumption is 363 kWh/year under standard test conditions.

The dispenser water tastes off — what should I do?

This fridge has a built-in water dispenser fed by an internal water filter (item 17). If the water tastes odd or the flow drops, the filter is reaching end of life and must be replaced with a genuine Haier cartridge. Flush a few glasses after fitting a new filter and after a long absence to clear stagnant water from the line. Also check that no strong-smelling food in the fridge is contaminating it (ABT pro reduces but does not eliminate this risk).

USER MANUAL HFW99F19ESSB HAIER

Adjust the temperature for fridge 13

Adjust the temperature for freezer 13

My Zone function 13

Special refrigerator functions 13

Super Cool function 13

Super Frz function 13

Auto Set function 13

Holiday function 14

Ice making 14

Fast Ice making 14

15 Equipment
28 Energy saving tips
29 Care and cleaning
31 Troubleshooting
35 Installation
38 Technical data
40 Customer service

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Energy lable

Warranty card

Quick Guide

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

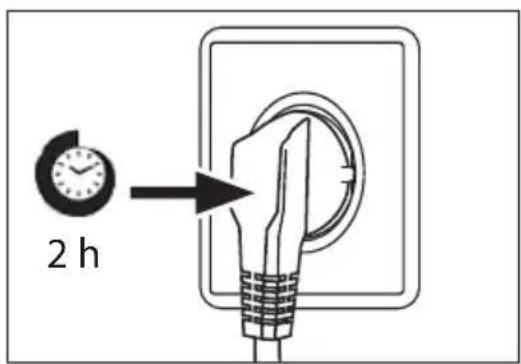

▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.

▶ Handle the appliance always with at least two persons because it is heavy.

Installation

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.

▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.

▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

▶ Install and level the appliance in an area suitable for its size and use.

- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.

▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.

The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

▶ Do not use multi-plug adapters and extension cables.

▶ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶ Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

- Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶ Children shall not play with the appliance.

If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.

▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

CE and

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE and UKCA marking.

CAUTION!

1.

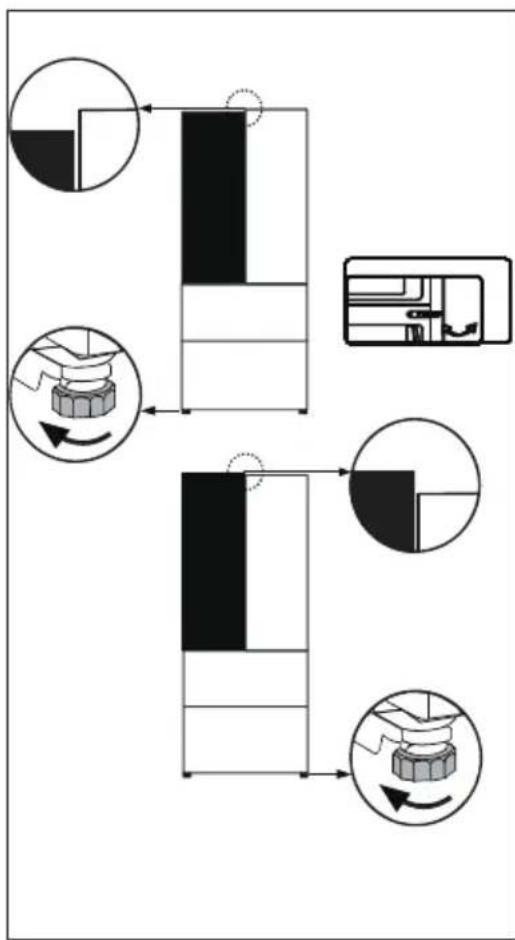

When you close the door, the vertical door strip on the left door should be bent inside (1).

2.

If you try to close the left door and the vertical door strip is unbent (2), you should bend it firstly, otherwise the door strip will hit the fixing shaft or right door. Thus a damage to the door slip or a leak will occur.

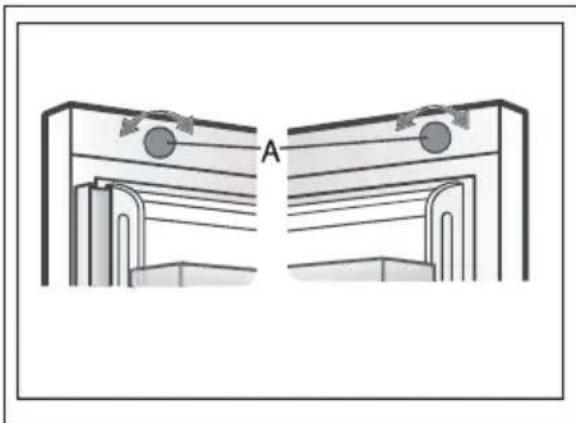

There is a heating thread inside the frame. The temperature of the surface will rise a little, which is normal and won't affect the function of appliance.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

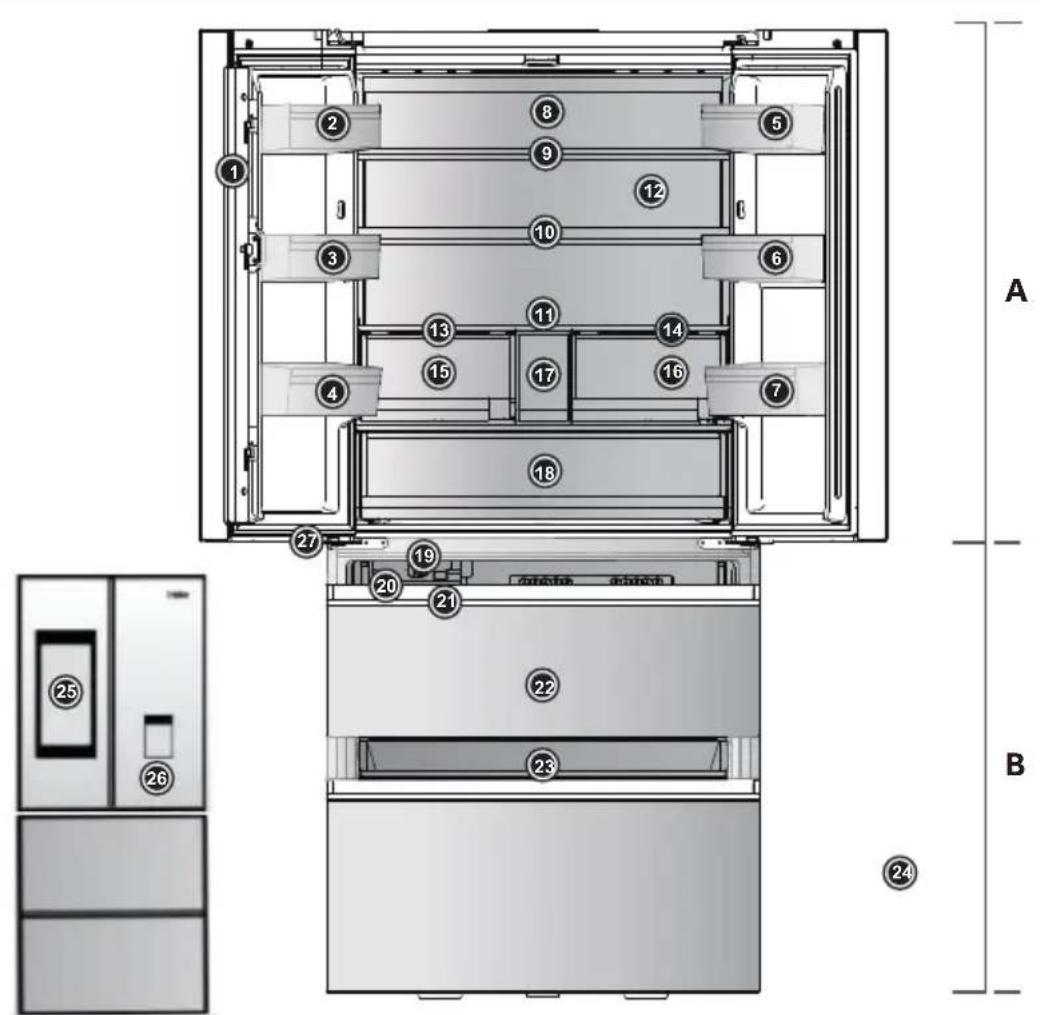

Technical diagram of a refrigerator with numbered compartments and labeled dimensions A and B

A: Fridge compartment

1 Door beam
2 Bottle holder(upper left)
3 Bottle holder(middle left)
4 Bottle holder(lower left)
5 Bottle holder(upper right)
6 Bottle holder(middle right)
7 Bottle holder(lower right)
8 Back lamp
9 Glass shelf
10 Glass shelf
11 Glass shelf
12 Air duct(with ABT pro)
13 Panel of Humidity Zone drawer

14 Panel of My Zone drawer
15 Humidity Zone drawer
16 My Zone drawer
17 Water filte
18 Fresh Box

B: Frezzer compartment

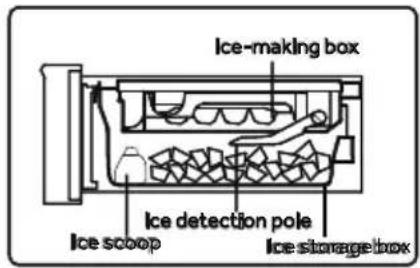

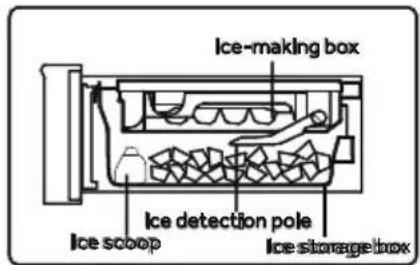

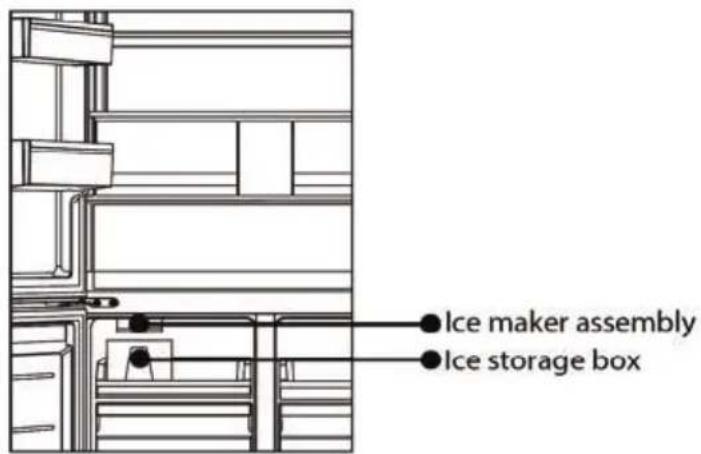

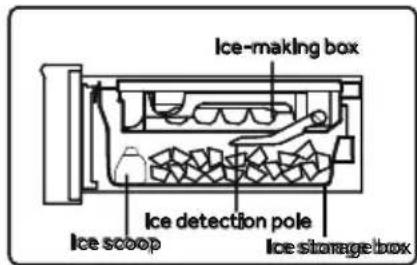

19 Auto ice maker
20 Ice storage box
21 Ice scoop
22 Upper freezer drawer
23 Sliding tray
24 Lower freezer drawer
25 Smart window
26 Water dispenser
27 Screen restar board

Before first use

Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.

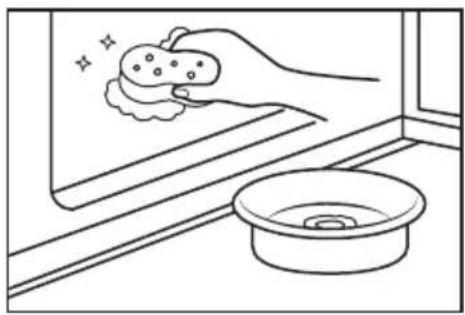

- Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.
▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food. The function Super Frz. helps to cool down the compartments quickly.
The refrigerator temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

First electrical connection

When the refrigerator is connected to the power for the first time, the display will light up.

Display off/on

Display off: When the door is closed and the appliance is not used within a certain amount of time, the screen off automatically.

Display lit When the display is off, it will be lit if you touch any position of the display, walk past the appliance, or open any door within human sensor range (with human sensor on). When the display is lit, the lamp on the left of the refrigeration door will be lit, and vice versa.

NOTICE:

Instructions for RESTART Button:

1. Press and hold for 1–2 seconds, then release to restart the screen.
2. Press and hold for more than 8 seconds, then release to switch the screen into deep sleep power-saving mode. To exit this mode: unplug the refrigerator for 3 minutes, then reconnect the power to restore normal operation.

4.1 Adjusting temperature in the refrigeration compartment (1 to 9°C)

On the home page, click the "FRIDGE ZONE" under the "Temperature" area. Adjust the temperature in the fridge compartment by dragging the Fridge slider between 1 and 9 °C. Or click the "+" or "-" buttons to increase or decrease the temperature.

4.2 Adjusting temperature in the freezer compartment (-14 to -24°C)

On the home page, click the "FREEZER ZONE" under the "Temperature" area. Adjust the temperature in the freezer compartment by dragging the Freezer slider between -14 and -24 °C. Or click the "+" or "-" buttons to increase or decrease the temperature.

4.3 Adjusting the function in the MyZone compartment (Fruit & Veg, Cool Drink, 0° Fresh)

On the home page, click the "MYZONE" under the "Temperature" area. Adjust the temperature in the myzone compartment by click the Fruit & Veg, Cool Drink or 0° Fresh. The factory default setting is Fruits & Veg.

Special refrigerator functions

The special functions of the refrigerator are divided into six types: Super cool, Super freezer, AutoSet, Holiday, Ice Making, and Fast Ice Making. Tap the function icon to turn on the function (The popup window will ask you to confirm, choose "YES".) and tap it again to turn it off. If the functions are mutually exclusive, the original function will automatically be turned off.

4.4 Super Cool

Under Super Cool state, the fridge temperature cannot be adjusted.

The Super Cool function will switch off automatically after 4 hours, and the refrigerator will run according to the latest setting before beginning Super Cool mode. When Super Cool is activated, the Auto Set and holiday functions cannot be turned on at the same time.

4.5 Super Freezer

Under Super Freeze state, the freezer temperature cannot be adjusted. When Super Freezer is activated, the Auto Set functions cannot be turned on at the same time.

The Super freeze function is designed to maintain the nutritional value of the food in the freezer. This function freezes food quickly. If you freeze a large amount of food at one time, it is recommended that you set the Super freezer function 24 hours in advance to lower the freezer temperature. When the food is added, the freezing speed of the freezer compartment is increased, and the food will be frozen quickly, effectively locking nutrients into the food and facilitating storage. The Super Freezer function switches off automatically after 50 hours, the freezer will then run according to the latest setting before entering Super Freezer mode.

4.6 AutoSet function

In AutoSet mode, the temperatures for refrigeration and freezing are respectively set at 5^ C and -18^ C. In this mode, the temperature of the refrigerating compartment and the freezing compartment cannot be adjusted. If the Super Cool, Super Freeze or Holiday function is set, the AutoSet function automatically closes and exits.

In Auto Set function, the function of My Zone can be manually adjusted according to the needs.

4.7 Holiday function

Holiday function is designed for not using the fridge for a long time. When the Holiday function is turned on, the freezer is under normal control, and the temperature of fridge is automatically set to be 17^ C. The actual temperature is not higher than 17^ C, which prevents peculiar smell caused by overtemperature, and helps reduce energy consumption at the same time.

NOTICE:

1. Under Holiday function, the fridge temperature cannot be adjusted.
2. Before using the Holiday function, please empty the fridge to prevent food goes bad in it. When the Holiday function is turned on, either Auto Set function or Super Cool function can -not be turned on at the same time.
3. In Holiday function, the setting of "Fruit&Veg, Cool Drink, 0°Fresh" icons in My zone will be switched off and the function of My zone cannot be adjusted. The fridge compartment My zone will display in the previous setting once exiting the Holiday function.

4.8 Ice making function

On the home page, click the "Smart Ice And Water Assistant", tap the function icon ICE MAK -ING to turn on/off the function.

4.9 Fast Ice making function

On the home page, click the "Smart Ice And Water Assistant", tap the function icon FAST ICE MAKING to turn on/off the function.

After the Fast Ice making function is turned on, the refrigerator will automatically turn off the function when it has lasted for about 6 hours. If you want to exit manually, you can tap the function FAST ICE MAKING to turn it off icon.

NOTICE:

If the Ice-making function is not turned on, turn on the Fast Ice making will also turned on the ice making function.

If the Ice-making function is turned off, the Fast Ice will also turned off.

Architectural cross-section diagram of a multi-level building facade with curved structural elements (no text or labels)

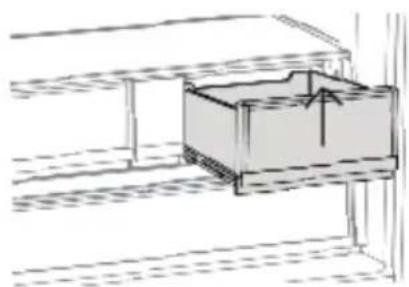

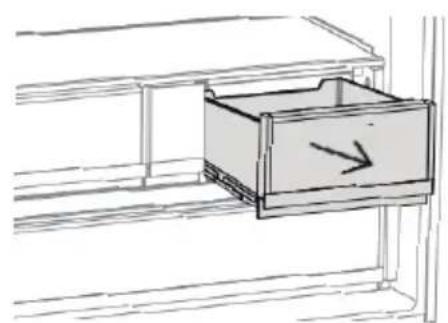

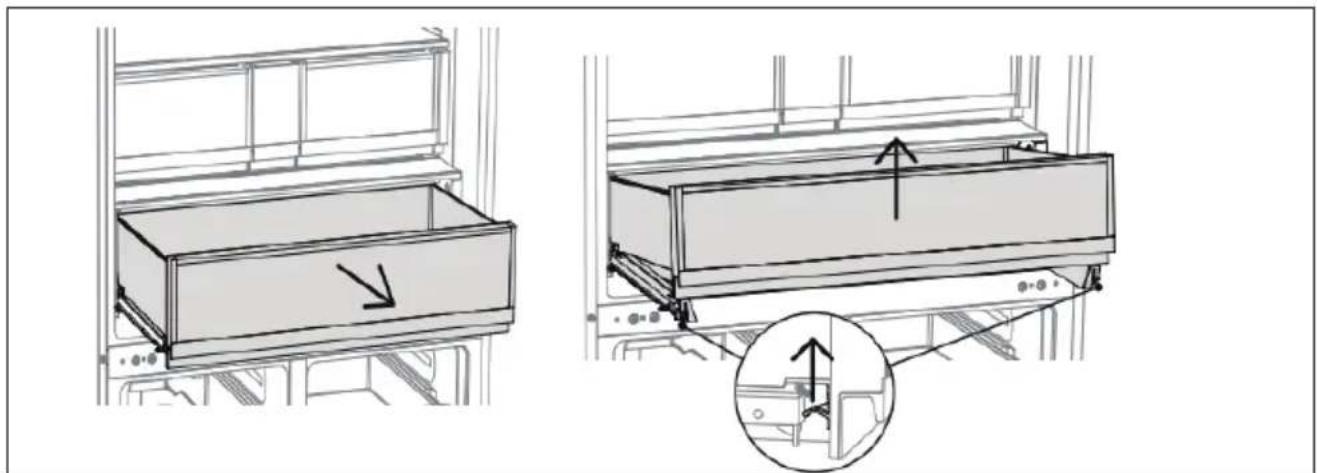

Multi-air-flow

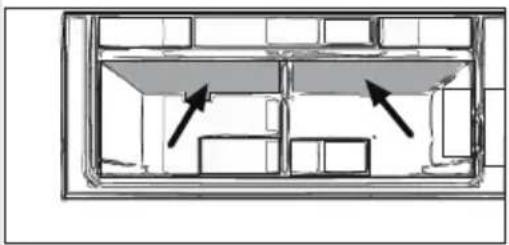

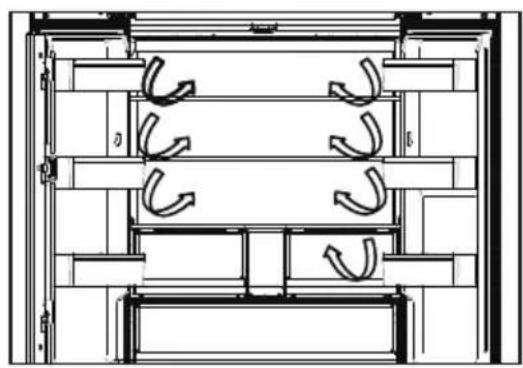

1. The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Diagram showing two labeled steps (① and ②) of a device or device with directional arrows indicating movement or force.

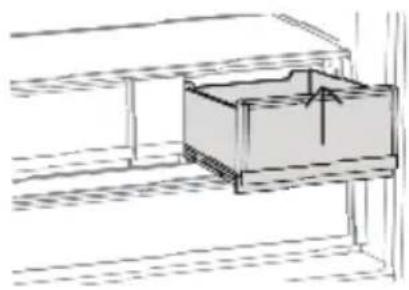

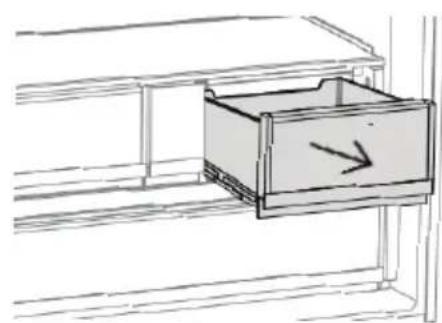

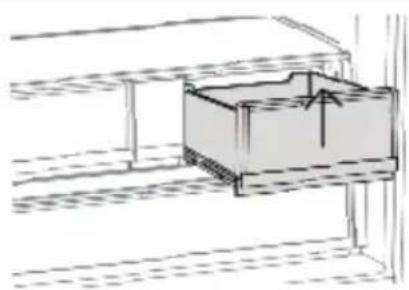

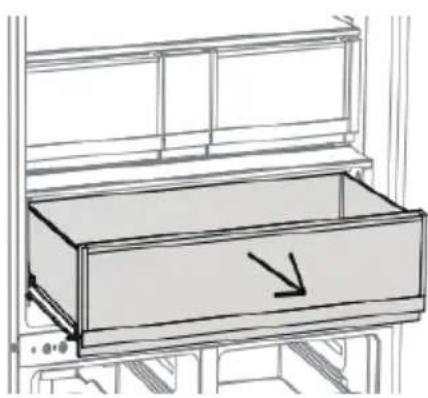

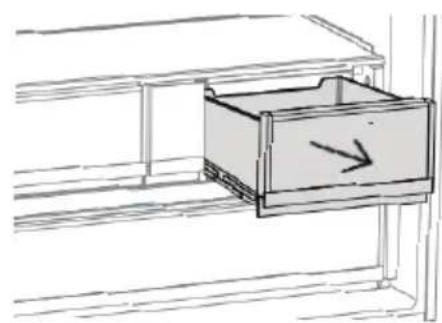

Adjustable shelves

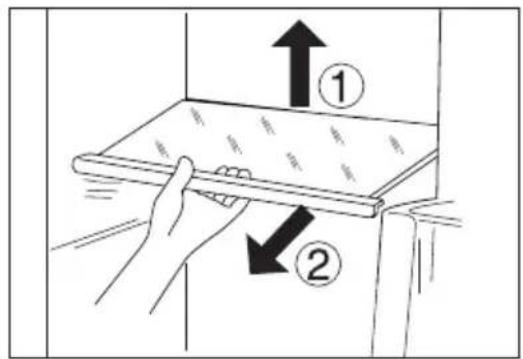

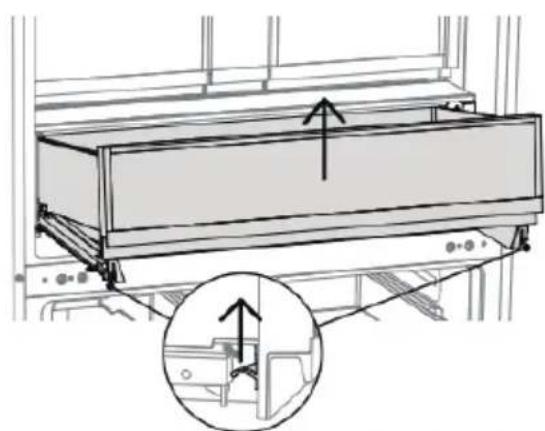

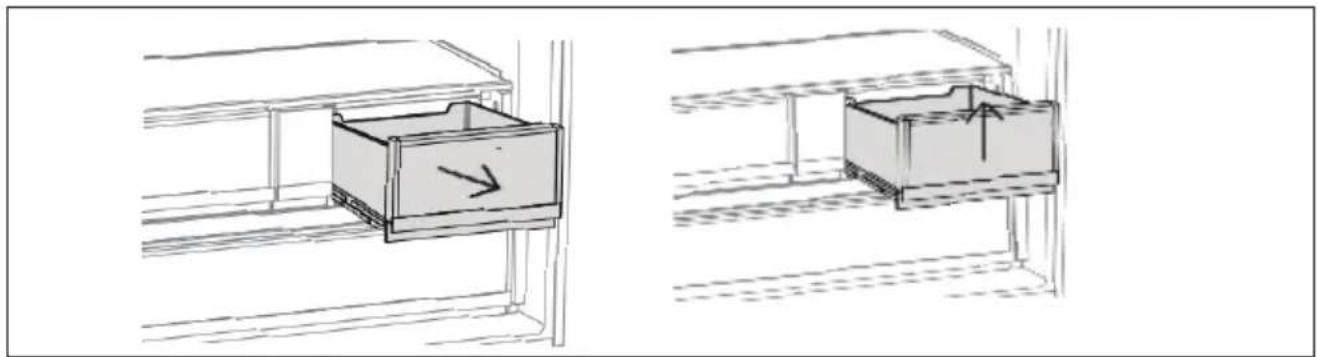

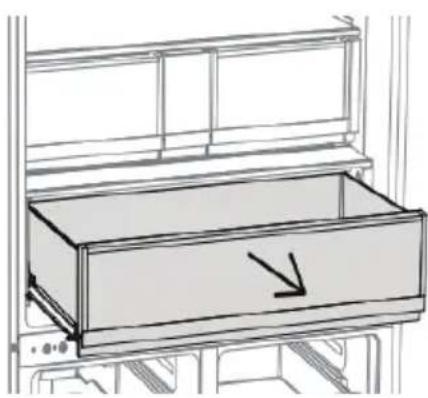

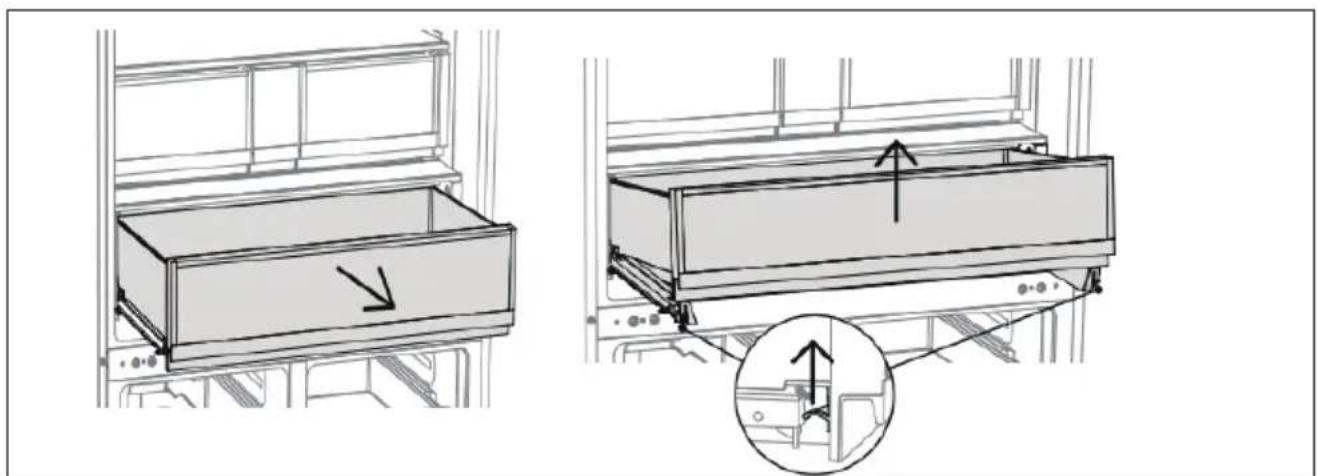

1. The height of the shelves can be adjusted to fit your storage needs.

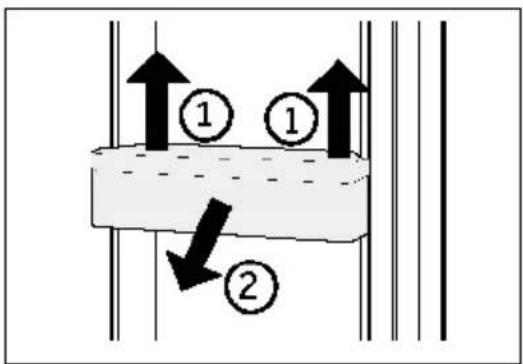

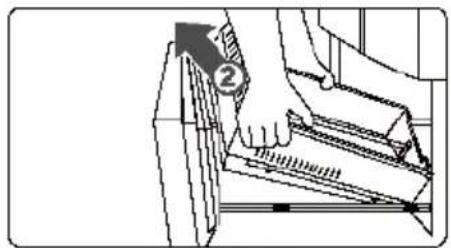

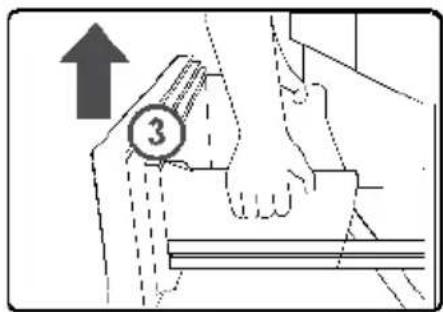

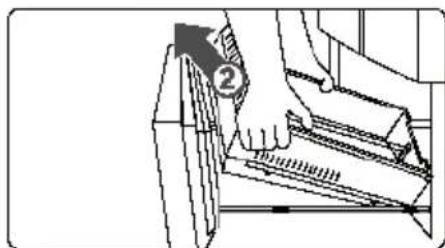

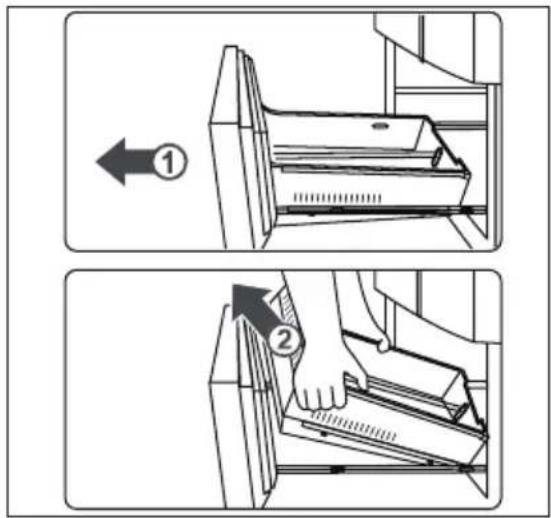

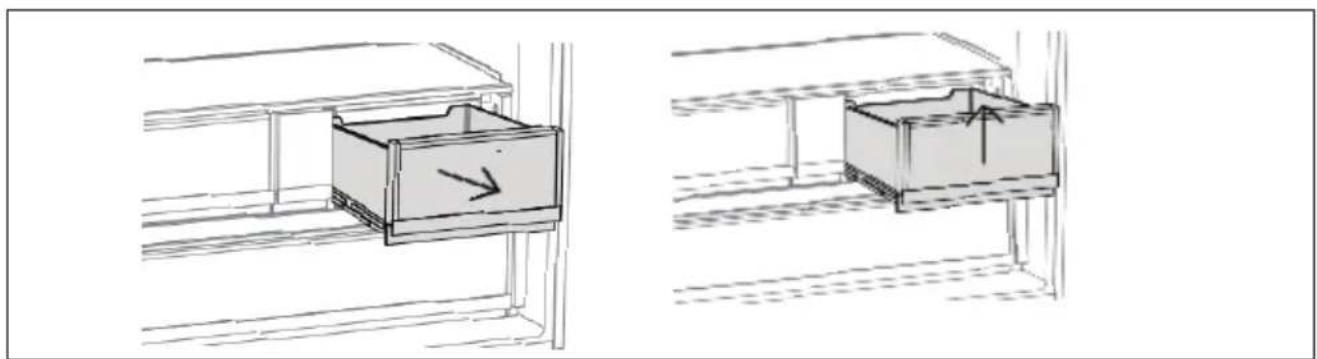

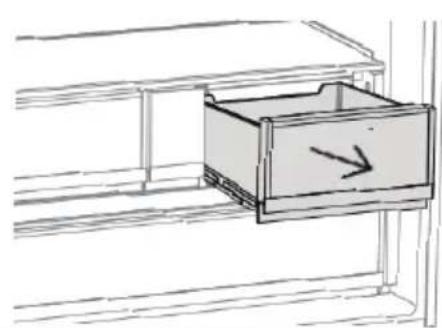

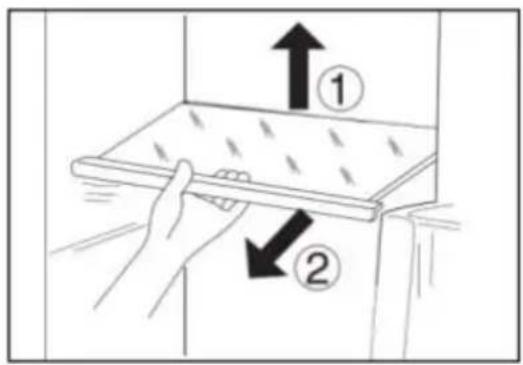

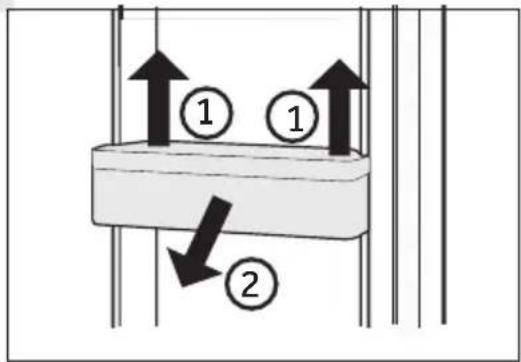

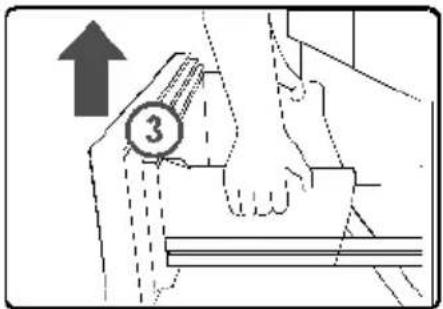

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

My Zone drawer

In this compartment the humidity level is lower than fridge compartment This drawer is suitable to store dry fruit and other dry food with low water content like butter, fats and oil or chocolate.

MYZONE|⑧

Humidity zone drawer

In this compartment the humidity level is higher than fridge compartment. It is controlled automatically by the system and is suitable to store fruits, vegetables, salads etc.

HUMIDITYZONE|0°

Fresh Box

Storage zone for fruit and vegetables to keep them fresh and healthy.

FRESHBOX | 🍴

NOTICE:

Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits such as potatoes, aubergines, beans, cucumbers, zucchini and to should not be stored in the Fresh box.

NOTICE

1. Do not remove the zones.

2. They maintain the humidity.

3. Cold-sensitive fruits like pineapple, avocado, bananas,
4. grapefruits are not recommended to be stored in these two drawers.

plastic cover inside

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a rectangular object, with numbered circles indicating positions.

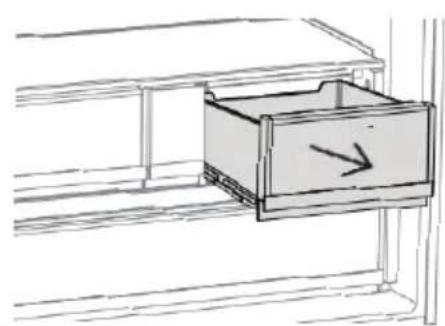

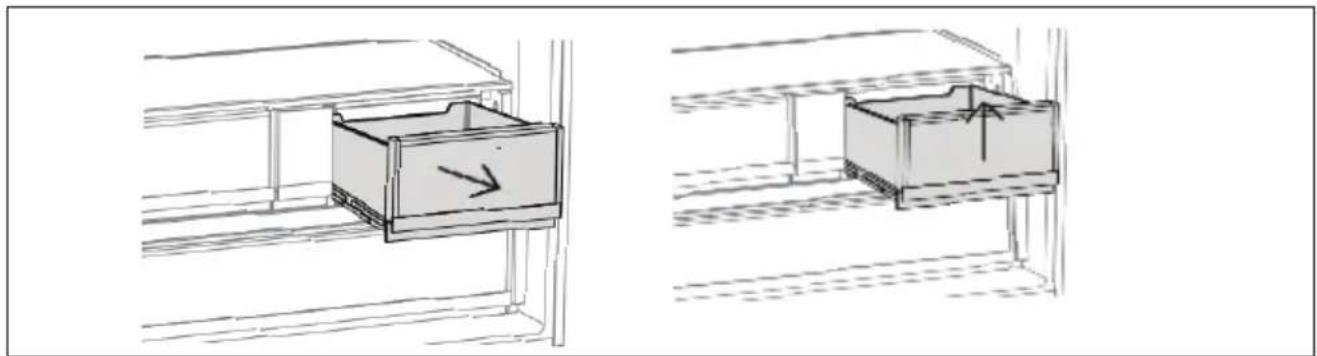

Removable Humidityzone/Myzone drawer

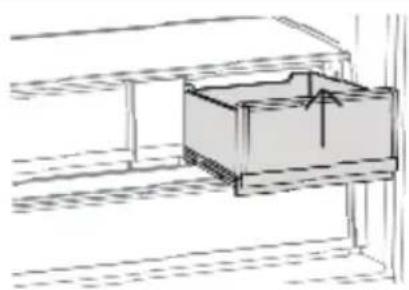

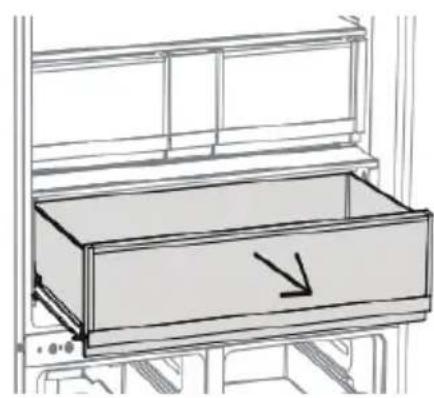

Open the refrigerator door to its maximum extent, pull out the drawer, and then lift the front end to remove it.

Two technical line drawings of a storage cabinet with arrows indicating direction (no text or symbols)

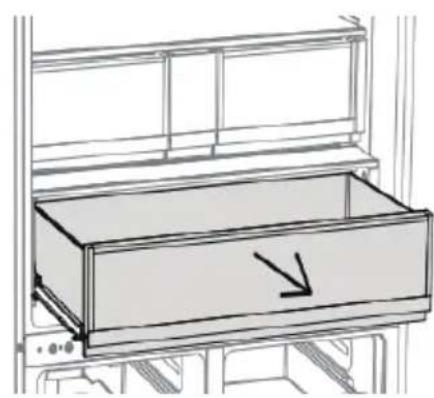

Removable Fresh Box

When removing the drawer, place both hands on the bottom sides of the drawer's front cover, press down on the latches, gently lift the front end of the drawer to detach it from the slide, and then lift the drawer diagonally upward to remove it.

Technical line drawing showing two views of a drawer with an arrow indicating direction, no text or symbols present.

Removable upper freezer drawer

1. Pull out to the upper freezer drawer to the maximum extent
2. Lift the drawer until it is separated from the support block. push it into the freezer and tilt it to take out.

In order to insert the drawer, the above steps are carried out in reverse order.

Diagram illustrating two steps of a printer or scanner operation, labeled with arrows and numbered annotations.

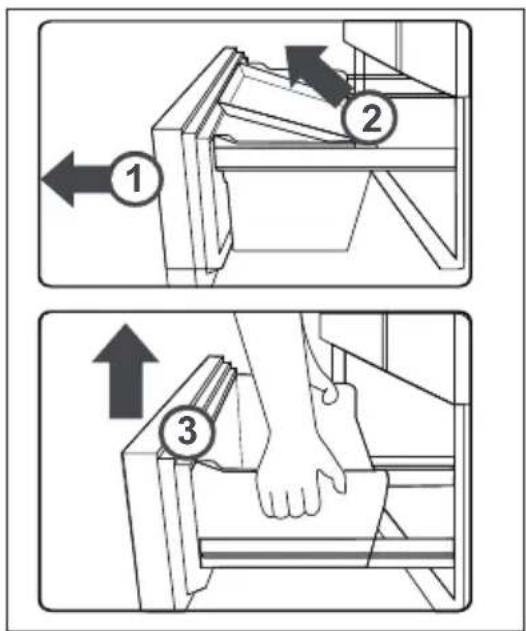

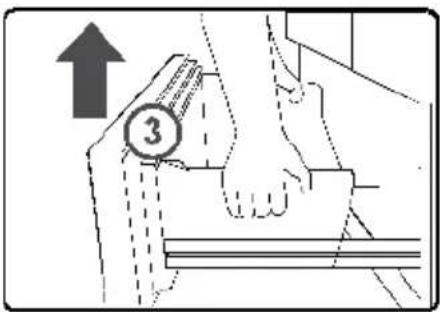

Removable lower freezer drawer

1. Pullout to the lowerfreezerdrawer to the maximum extent
2. Pull out the freezing tray to stop position, lift and remove.
3. Lift the drawer until it is separated from the support block. push it into the freezer and tilt it to take out.

In order to insert the drawer, the above steps are carried out in reverse order.

Technical diagram showing three-step assembly process with numbered steps and directional arrows indicating movement.

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.

Names of Ice Maker Parts

The automatic ice maker can be removed for cleaning and taken out when ice is not needed, leaving room for other frozen foods.

Ice Maker

Ice maker assembly Ice storage box

Water connection

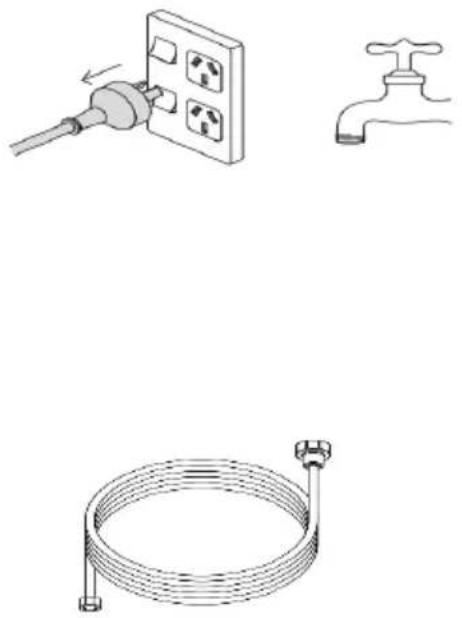

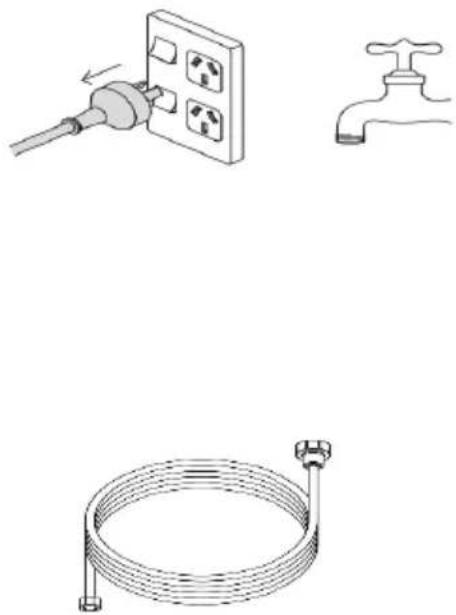

Ensure the refrigerator is NOTplugged into a power supply. Locate the isolation tap for cold waterconnection (tee and tap fi tting not supplied).

Illustration of a plug inserted into an electrical outlet with four switches, next to a faucet (no text or symbols)

Locate the water hose set to complete the water connection installation

Line drawing of a coiled cable with two connectors at both ends (no text or symbols)

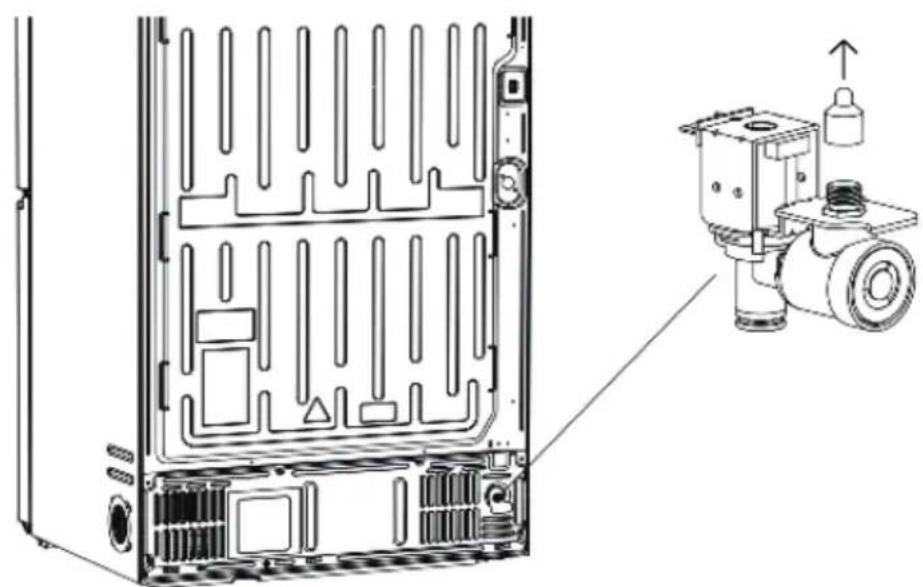

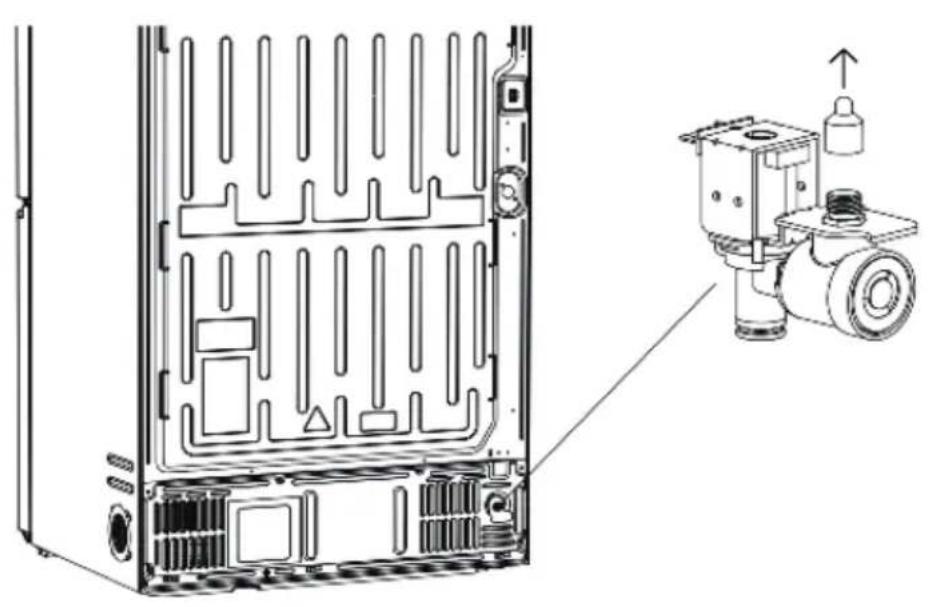

Remove cap from water inlet valve at the back of the refrigerator.

Technical line drawing of a server rack with internal components and an inset view of a mechanical device (no text or symbols)

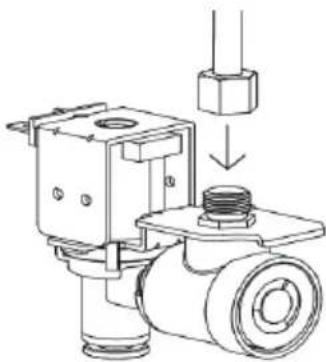

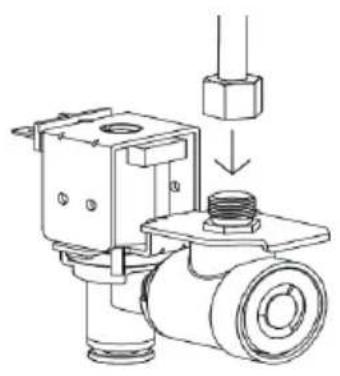

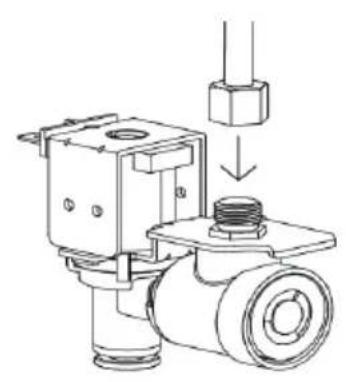

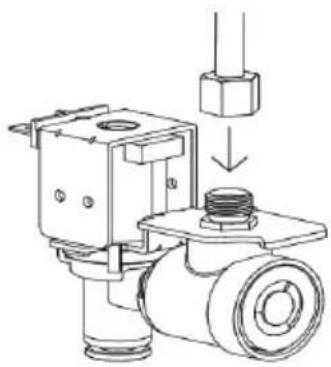

Connect one end of the water hose set to the water inlet valve.

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Fasten the water tap adaptor to the isolation tap. Take care not to overtighten the water tap adaptor.

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Take ice cubes

After making ice, use an ice shovel to take ice cubes.

Ice-making box Ice detection pole Ice scoop Ice storage box

NOTICE

If you have just started using it or it has been more than a week since the last use, the newly made ice cubes may be smelly or dusty, so the first made ice (about 8 ice cubes) recommend thrown away.

- If you have cleaned the water supply channel of the ice maker, the ice cubes made for the first time can also be used immediately.

Ice cube storage

The ice storage capacity of the ice box can be automatically confirmed by the ice detector. (In order to correctly determine the ice storage capacity, do not place the ice cubes flatly) After the storage reaches a certain amount, stop ice-making. Please confirm the amount of ice stored in the ice box. If there is too much ice, it will not be able to make ice, or it may affect the normal opening and closing of the door.

Cleaning Ice Box

Step 1:

Turn off the Ice-making function and open the upper freezer door.

Step 2:

Rotate the ice box fi xing knob to the left all the way, hold the handle on the front of the ice box outwards, and slowly

Step 3:

Turn the ice maker over, pull the white ice maker knob out, and then remove the ice maker.

Step 4:

Wash the ice box with water; do not use brushes or decontamination powders that may scratch the surface.

Step 5:

Install the ice box in the reverse order of removal. Push the ice maker into the drawer and push it to the bottom until you hear a "click", which indicates it is fully inserted. Turn the retaining knob back to the right to lock.

Fixed knob

Diagram of a printer or printer with directional arrows indicating movement (no text or symbols present)

Close-up of a kitchen sink with water flowing from a faucet (no visible text or symbols)

NOTICE

After freezing anything other than water, the ice maker should be cleaned in time before putting it back into the automatic ice maker.

• When cleaning the water storage box, use a soft sponge to wash it; do not use brush or decontamination powder. To remove stubborn stains, use diluted dishwashing detergent, but be sure to rinse with water. Do not use hard bristle brushes, wire brushes, abrasives (such as toothpaste, detergent powder, etc.), organic solvents (such as gasoline, thinner, acetone, alcohol, etc.), hot water, acid or alkali that can cause plastic cracking.
• The ice box assembly is not washable. If it gets wet, wipe it with a dry cloth. Otherwise, the Ice-making function will be damaged if water gets into the appliance. Do not add water to the ice box when installing the ice maker as the water is supplied automatically.

WARNING

Only fi ll potable water into the ice maker.

Ice Maker Q&A

Q1: Do not make ice?

Phenomenon	Do not make ice.	Phenomenon	The ice produced by the ice maker has a peculiar smell.
Reason	a. Water is not added to the water storage box.b. The water storage box is not inserted in place.c. The Ice-making assembly is not installed properly.d. The “Ice-Making” function is not turned on.	Reason	a. The water in the water storage box has not been replaced for a long time.b. Odorous water or beverages are poured into the water storage box.c. The ice cubes have been made and kept in the ice box for too long.
Solution	a. Add water to the water storage box.b. Insert the water storage box correctly in place.c. Push the ice maker assembly all the way in until the securing knob can be locked.d. Turn on the “Ice-making” function.	Solution	a. Change the water.b. Refer to “Cleaning and Maintenance of Ice Maker” for cleaning.c. Ice cubes should not be stored for a long time, or it will cause odor with other foods.

Q2: The amount of ice is small, the ice cubes are small or melted?

Phenomenon	The produced ice cubes are few, small and partially melting.	Phenomenon	a. Ice cubes agglomerate or differ in size from each other.b. Ice cubes are rounded.c. Ice cubes have protrusions.
Reason	a. The refrigerator door is opened and closed frequently or isn't closed tightly.b. The ice storage box is uneven or mixed with other things	Reason	a. The refrigerator is slanted.b. The ice cubes have been placed for too long.c. There are concave and convex water supply channels on the ice box.
Solution	a. Close the refrigerator door tightly, and try to open and close it as less frequently as possible.b. Use an ice shovel to flatten the ice cubes and remove the mixed foreign matter.	Solution	a. The feet can be adjusted properly to ensure the refrigerator is placed smoothly.b. Use ice cubes as soon as possible, or remake.c. This is normal and there is no need to worry.

Q3:The produced ice cubes are cloudy

Phenomenon	The ice cubes produced have white suspensions.
Reason	Ice is made with water that contains minerals.
Solution	This is normal and there is no need to worry.

Q4 The ice cubes have an odor?

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION).

Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.

▶ Functions like POWER-FREEZE consume more energy.

▶ Allow warm food to cool down before placing it in the appliance.

▶ Open the appliance door as little and as briefly as possible.

Do not overfill the appliance to avoid obstructing the air flow.

▶ Avoid air within the food packaging.

- Keep door seals clean so that the door always closes correctly.

▶ Defreeze frozen food in the fridge storage compartment.

The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
▶ In case of heating check the condition of frozen goods.

Simple line drawing of a hand washing a soap bubble over a sink, with no text or symbols present.

▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.
▶ 1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.

1. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.

2. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service

▶ Rinse and dry with soft cloth.

▶ Do not clean any of the parts of the appliance in a dishwasher.

▶ Allow at least 7 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Replaceable (LED only) light source by a professional.

This product contains a light source of energy efficiency class G.

Compartment Voltage Energy efficiency class Model
Fridge back lamp 12V G
Freezer 12V G
Fresh Box	12V G	HFW99F19ESSB
Handle lamp	12V G
Left door lamp	12V G

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holiday-function for the refrigerator:

▶ Take out the food.
▶ Unplug the power cord.
▶ Clean the appliance as described above.
- Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn

the

appliance

off

only

if

strictly

neces:

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

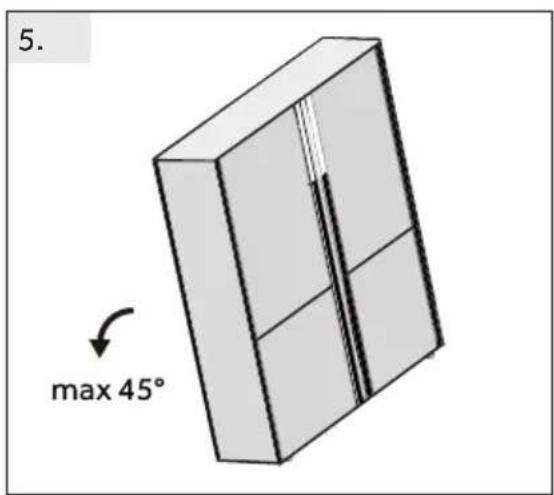

3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.

▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause	Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle	Connect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mis-matched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly..
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods before storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appliance.	The temperature is set too low.The Super Frz/Super Cool-function is activated or is running too long.	Reset the temperature.Switch off the Super Frz/Super Cool function
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumu-lates on the re-frigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.	Always pack the goods well.Close the door/drawer.Do not open the door/drawer too frequently.Clean the door/drawer gasket or replace them by new ones.Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	This is normal.
The appliance makes abnormal sounds.A slight sound is to be heard similar to that of flowing water.	The appliance is not located on level ground.The appliance touches some object around it.This is normal.	Adjust the feet to level the appliance.Remove objects around the appliance.
You will hear an alarm beep.	The fridge storage compartment door is open.	Close the door.
You will hear a faint hum.The interior lighting or cooling system does not work.	The anti-condensation system is workingMains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	This prevents condensation and is normalConnect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.
Display light up circularly, but do not feel cool.	It is in the demo mode.When	the display screen is unlocked, press "Zone" and click "Holiday" 5 times (within 5 seconds) to exit this mode.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country.

You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible.

▶ Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.

▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space recommendation

Recommended space (mm) when door is opened:

1.

W1 D1 W2 130° W4 W3

1.

W5 D2

(mm)
Width	W1 9	05
	W2 2	88
	W3	344
	W4 1	481
	W5	21
	W6	905
Depth	D1	1176
	D2	1141
	D3	745
Distance to wall	D4 1	00
Height (Fig.4)		1900

3.

D4 D3 W6

4. ≥10cm H ≥10cm ≥10cm

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

5. max 45°

The appliance should be placed on a flat and solid surface.

1. Tilt the refrigerator slightly backwards.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

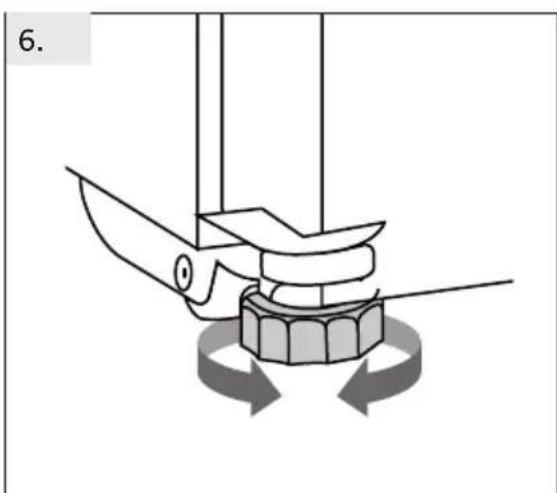

1. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least open properly.

NOTICE

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

For

used

Notice:

a

as

free

as

standing

built-in

appliance:

appliance

this

refrigerating

Geometric diagram of a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

1. The stability can be checked by alternately bump-ing on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

Fine tuning of the doors

If the doors are not in one level, this mismatch can be remedied by following:

Using adjustable foot/adjustable hinge

Rotate the adjustable foot or adjustable hinge according to the direction of arrow to turn up or down the foot. Adjustable hinges can be fine tuned with a 6mm Allen wrench. Contact after-sale service if needed.

Diagram of two identical mechanical components with curved supports and directional arrows, labeled 'A' (no text or symbols on the components themselves)

Using adjustment button

Rotate the adjustment button on top of the door.

Notice:

In

weight

the

of

future

stored

use

food.

of

re

refrigerator,

Then

please

doors

adjust

ur

2 h

Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.

▶ the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand Haier
Model name / identifier	HFW99F19ESSB
Category of the model	Refrigerator-freezer
Energy efficiency class	E
Annual energy consumption(kWh/year)(1) 363
Total volume(L) 690
Volume refrigerator(L) 436
Volume freezer(L) 254
Star rating
Frost-free system	Yes
Freezing capacity(kg/24h)	13
Climate rating(2)	SN-N-ST-T
Noise emission class and airborne acoustical noise emissions(db(A) re 1pW)	C(36)
Temperature rise time (h)	12
Ice making capacity	0.8 kg/24h
Type of appliance	freestanding

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C
Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C
Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C
Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency 220-240V ~/ 50Hz
Input current (A)	2
Main fuse (A)	15
Coolant R600a
Dimensions (H/W/D in mm)	1900 / 905 / 748

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or
▶ our European Call Service-Center (see listed phone numbers below) or
▶ the Service & Support area at www.haier.com where you can activate the service
▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES) 902 509 123
Haier Germany (DE) 0180 5 39 39	99	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT) 0820 001 205		• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Simple line drawing of a door with a checkmark and number 1, no text or symbols present

Architectural cross-section diagram of a multi-level building facade with curved structural elements (no text or labels)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force directions.

Etagères réglables

Architectural floor plan diagram showing room layouts and structural elements (no text or labels)

Diagram showing fluid flow with two labeled sections (① and ②) and directional arrows indicating movement or force.

Two technical line drawings of a storage cabinet with arrows indicating direction (no text or symbols)

Technical line drawing showing two views of a drawer with an arrow indicating direction, plus a magnified inset showing a detail of the drawer's interior structure (no text or symbols present)

Diagram illustrating two steps of a printer or scanner operation, labeled with arrows and numbered annotations.

Technical diagram showing three-step assembly process with numbered steps and directional arrows indicating movement.

La lumière

Ice maker assembly Ice storage box

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Ice-making box Ice detection pole Ice scoop Ice storage box

Fixed knob

Diagram of a printer or printer with directional arrows indicating flow or movement (no text or symbols present)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

Q1:		Q4
PhenomenonSolution		PhenomenonSolution
Q2:		Q5:
PhenomenonSolution		PhenomenonSolution
Q3:
PhenomenonSolution

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

4. ≥10cm H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Geometric diagram showing a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Diagram of two identical mechanical components with curved supports and directional arrows, labeled 'A' (no text or symbols on the components themselves)

Westgate House, Westgate, Ealing

Londres, W5 1YY

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Manuale utente

Frigorifero-congelatore

HFW99F19ESSB

Architectural floor plan showing room layouts with curved doorways (no text or labels)

Diagram illustrating two mechanical or structural states with directional arrows and numbered annotations

Ripiani regolabili

Architectural cross-section diagram of a two-story building facade with internal structural elements and two arrows indicating directions (no text or labels)

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Simple line drawing of a box with an arrow pointing downward, placed inside a shelf (no text or symbols)

Simple line drawing of a rectangular box placed inside a shelf, with no text or symbols present.

Line drawing of a drawer with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

Line drawing of a hand using a tool to cut or press a piece of paper (no text or symbols present)

Diagram illustrating a mechanical or structural process with labeled components 1 and 2, showing directional arrows and dashed lines indicating movement.

Diagram showing a hand holding a circular object labeled '3' with an upward arrow, likely illustrating a mechanical or structural process.

Illuminazione

Ice maker assembly Ice storage box

Illustration of a fire hose with a switch, a wall-mounted electrical outlet, and a faucet (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly (no text or labels)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or flow (no text or symbols)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

AVVISO

Line drawing of a hand washing a soap bubble over a sink, with no text or symbols present.

4. ≥10cm H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Pure geometric diagram of a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Diagram of two identical mechanical or architectural components with curved supports and circular elements, labeled 'A' (no text or symbols on the components themselves)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Benutzerhandbuch

ndbuch

Technical diagram of a refrigerator with numbered compartments and labeled dimensions A and B

A: Kühlfach

1 Türstrebe

Architectural cross-section diagram of a multi-level building facade with curved structural elements (no text or labels)

Diagram showing two labeled steps (① and ②) of a device or device with directional arrows indicating movement or force.

Mehrfach-Luftstrom

1. Die Plastikabdeckung in den beiden Fächern darf nicht entfernt werden.
2. They maintain the humidity.
3. Cold-sensitive fruits like pineapple, avocado, bananas,
4. grapefruits are not recommended to be stored in these two drawers.

Architectural floor plan showing room layouts and structural elements with two arrows pointing to specific areas (no text or labels)

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a rectangular object, with numbered circles inside.

Two technical line drawings of a storage cabinet with arrows indicating direction (no text or symbols)

Technical line drawing of a drawer with an arrow indicating direction, showing internal structure and assembly (no text or symbols)

Diagram illustrating two steps of a printer or scanner operation, labeled with arrows and numbered annotations.

Technical diagram showing three-step assembly process with numbered steps and directional arrows indicating movement.

Beleuchtung

Ice maker assembly Ice storage box

Wasseranschluss

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly (no text or labels)

Simple line drawing of a faucet with an arrow indicating rotation or movement (no text or symbols)

Ice-making box Ice detection pole Ice scoop Ice storage box

Fixed knob

Diagram of a printer or printer with directional arrows indicating flow or movement (no text or symbols present)

Black-and-white photo of a kitchen sink with water flowing from a faucet (no visible text or symbols)

Q1:
Q4

Q5:

Q2:

Q3:

Energiespartipps

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

4. ≥10cm H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Pure geometric diagram of a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Diagram of two identical mechanical components with curved supports and a central circular component labeled A (no text or symbols present)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Manual de usuario

Technical diagram of a refrigerator interior with numbered compartments and labeled dimensions A and B

Architectural cross-section diagram of a multi-level building facade with curved structural elements (no text or labels)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Estantes ajustables

Architectural floor plan diagram showing room layouts and structural elements with two arrows pointing to specific areas (no text or labels)

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a rectangular object, possibly illustrating a physical or engineering concept.

Two technical line drawings of a cabinet or storage unit with arrows indicating direction (no text or symbols present)

Technical illustration of a drawer with an arrow indicating direction, showing internal structure and assembly (no text or symbols)

Diagram illustrating two steps of a printer or scanner operation, labeled with arrows and numbered annotations.

Technical diagram showing three-step assembly process with numbered steps and directional arrows indicating movement.

La luz

Ice maker assembly Ice storage box

Conexión de agua

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Ice-making box Ice detection pole Ice scoop Ice storage box

Fixed knob

Diagram of a mechanical device with directional arrows indicating movement or flow (no text or symbols)

Black-and-white photo of a kitchen sink with water flowing from a faucet (no visible text or symbols)

Q1:		Q4 The ice cubes have an odor?
menon		menon
Q2:		Q5:
menon		menon
Q3:
menon

Simple line drawing of a hand cleaning a towel near a sink (no text or symbols)

4. ≥10cm H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Geometric diagram showing a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Diagram of two identical mechanical or architectural components with labeled section A, no text or symbols present

Westgate House, Westgate, Ealing

Londres, W5 1YY

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Manual d'usuari

Interior view of a modern refrigerator with open shelves and food items (no visible text or symbols)

Nevera-congelador

HFW99F19ESSB

Simple line drawing of a door with a checkmark symbol and label '1.' (no text or symbols on the door itself)

Technical line drawing of a cabinet or enclosure with four curved metal clamps arranged in a grid pattern (no text or symbols)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Flux d'aire múltiple

Architectural floor plan showing room layouts and structural elements with two arrows pointing to specific areas (no text or labels)

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a rectangular object, with numbered circles inside.

Line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Technical line drawing of a mechanical assembly or housing with no visible text or symbols

Line drawing of a drawer with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Calaix superior del congelador extraïble

Diagram illustrating two steps of a printer or scanner operation, labeled with arrows and numbered annotations.

Technical diagram showing three-step assembly process with numbered steps and directional arrows indicating movement.

Llum

Ice maker assembly Ice storage box

Dipòsit d'aigua

Illustration of a fire hose with a switch, a wall-mounted electrical outlet, and a faucet (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly (no text or labels)

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Agafar glaçons

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

AVÍS

Simple line drawing of a hand cleaning a window with a bowl nearby (no text or symbols)

4. ≥10cm H ≥10cm ≥10cm

Mechanical diagram showing a tool interacting with a hexagonal base and rotating arrows (no text or symbols)

Geometric diagram showing a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Diagram of two identical mechanical or architectural components with labeled section A, showing internal structure without any text or symbols.

Ús del botó d'ajust

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Interior view of a modern refrigerator with open shelves and food items (no visible text or symbols)

Lednička s mrazákem

HFW99F19ESSB

Architectural floor plan showing room layouts with curved doorways and structural elements (no text or labels)

Diagram illustrating two mechanical or structural states with directional arrows and numbered annotations

Nastavitelné police

Architectural cross-section diagram of a two-story building facade with structural elements and lighting fixtures (no text or symbols)

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Simple line drawing of a rectangular box placed inside a shelf, with no text or symbols present.

Line drawing of a drawer with an arrow pointing downward, no text or symbols present

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Technical diagram showing two steps of a mechanical device with numbered annotations indicating process flow.

Technical diagram illustrating three-step mechanical assembly or disassembly process with numbered annotations

Světlo

Ice maker assembly Ice storage box

Zásobník na vodu

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Diagram of a printer with arrows indicating motion or flow, no visible text or symbols

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

UPOZORNĚNÍ

Line drawing of a hand washing a soap bubble above a window, with a basin nearby (no text or symbols)

4. ≥10cm H ≥10cm ≥10cm

Prostor pro větrání

Mechanical assembly diagram showing a tool pressing a button with two curved arrows indicating rotational motion (no text or symbols)

Pure 3D geometric diagram showing a rectangular prism with dashed internal lines and directional arrows, no text or symbols present.

Diagram of two identical mechanical or architectural components with labeled section A, showing internal structure and directional arrows (no text or symbols beyond label)

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Εγχειρίδιο χρήστη

Ψυγειοκαταψύκτης

HFW99F19ESSB

Technical diagram of a refrigerator interior with numbered compartments and labeled dimensions A and B

A: Χώρος ψυγείου

Technical line drawing of a mechanical assembly with four curved components mounted on a base (no text or symbols)

Πολλαπλή ροή αέρα

Diagram illustrating two mechanical or electrical components with labeled parts and directional arrows, likely illustrating a process or assembly.

Ρυθμιζόμενα ράφια

Architectural cross-section diagram of a building facade with structural elements and arrows indicating components (no text or labels)

① ① ② a

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Simple line drawing of a rectangular box placed on a shelf, no text or symbols present

Line drawing of a drawer with an arrow pointing downward, no text or symbols present

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Diagram illustrating two steps of a refrigerator door opening process, labeled with arrows and numbered annotations.

Ice maker assembly Ice storage box

Δοχείο νερού

Illustration of a fire hose with a switch, a wall-mounted panel, and a faucet (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly (no text or labels)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Λήψη παγοκύβων

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

ΣΗΜΕΙΩΣΗ

Line drawing of a hand washing a soap bubble above a sink, with no text or symbols present.

4. ≥10cm H ≥10cm ≥10cm

Διατομή εξαερισμού

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

επίπεδο.

Pure geometric diagram of a 3D rectangular prism with arrows indicating direction, no text or symbols present

Diagram of two identical mechanical or structural components with labeled section A, showing internal structure and directional arrows (no text or symbols beyond label)

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Manual do Usuário

Refrigerador com congelador

HFW99F19ESSB

Technical diagram of a refrigerator with numbered compartments and labeled dimensions A and B

Tela desligada/ligada

Architectural floor plan showing room layouts with curved doorways and structural elements (no text or labels)

Diagram illustrating two labeled components (① and ②) with arrows indicating movement or force, likely from a physics or engineering context.

Architectural cross-section diagram of a building facade with structural elements and two arrows indicating directions (no text or labels)

Prateleiras das portas/suporte de garrafas amovíveis

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Simple line drawing of a rectangular box placed on a shelf, with no text or symbols present.

Line drawing of a drawer with an arrow pointing downward, no text or symbols present

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Diagram illustrating two steps of a door opening process, labeled ① and ②, with directional arrows indicating movement.

Ice maker assembly Ice storage box

Depósito de água

Illustration of a fire hose with a switch, a wall-mounted electrical outlet, and a faucet (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly (no text or labels)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Obter cubos de gelo

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

AVISO

Line drawing of a hand washing a soap bubble above a sink, with no text or symbols present.

Substituir as lâmpadas LED

AVISO!

H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Pure geometric diagram of a 3D rectangular prism with arrows indicating direction, no text or symbols present

Diagram of two identical mechanical or architectural components with labeled section A, showing internal structure without any text or symbols.

Westgate House, Westgate, Ealing

London, W5 1YY

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Instrukcja obsługi

Interior view of a modern refrigerator with open shelves and food items (no visible text or symbols)

Lodówka-zamrażarka

HFW99F19ESSB

Technical diagram of a refrigerator with numbered compartments and labeled dimensions A and B

A: Komora lodówki

1 Belka drzwiowa

Architectural floor plan showing room layouts with curved doorways and structural elements (no text or labels)

Diagram illustrating two mechanical or fluid flow directions with numbered annotations and directional arrows

Regulowane półki

Architectural cross-section diagram of a building facade with structural elements and arrows indicating components (no text or labels)

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Technical line drawing of a mechanical assembly or housing with no visible text or symbols

Line drawing of a drawer with an arrow pointing downward, no text or symbols present

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Technical diagram showing two steps of a mechanical device operation, labeled ① and ②, with directional arrows indicating movement.

Technical diagram illustrating three-step mechanical or structural assembly process with numbered annotations and directional arrows.

Światło

Ice maker assembly Ice storage box

Zbiornik na wodę

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

UWAGA

Line drawing of a hand washing a soap bubble over a sink, with no text or symbols present.

4. ≥10cm H ≥10cm ≥10cm

Mechanical diagram showing a tool interacting with a base, with two curved arrows indicating rotational motion (no text or symbols)

Pure 3D geometric diagram showing a rectangular prism with dashed internal lines and directional arrows, no text or symbols present.

Diagram of two identical mechanical or structural components with labeled section A, showing internal structure and directional arrows (no text or symbols beyond label)

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Manual de utilizare

Frigider-congelator

HFW99F19ESSB

Technical diagram of a refrigerator with numbered compartments and labeled dimensions A and B

A: Compartiment frigider

1 Grindă de uşă

Suport pentru

B: Compartiment congelator

19 Aparat automat de gheata

Architectural floor plan showing room layouts with curved doorways and structural elements (no text or labels)

Flux de aer multiplu

Diagram illustrating two labeled mechanical or structural components with directional arrows and numbered annotations

Rafturi ajustabile

Architectural cross-section diagram of a building facade with structural elements and arrows indicating directions (no text or labels)

Diagram showing fluid flow with two labeled sections (① and ②) and directional arrows indicating movement or force.

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Simple line drawing of a rectangular box placed on a shelf, no text or symbols present

Line drawing of a drawer with an arrow pointing downward, no text or symbols present

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Diagram showing two labeled components (1 and 2) interacting with a mechanical or structural component, with arrows indicating direction of movement.

Diagram illustrating a hand operating a tool with a numbered component labeled '3', showing motion and assembly steps.

Becul

Ice maker assembly Ice storage box

Rezervor de apă

Illustration of a fire hose with a switch, a wall-mounted panel, and a faucet (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly (no text or labels)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or flow (no text or symbols)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

OBSERVATIE

Line drawing of a hand washing a soap bubble above a sink, with no text or symbols present.

4. ≥10cm H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Pure geometric diagram of a 3D rectangular prism with arrows indicating direction, no text or symbols present

Diagram of two identical mechanical or structural components with labeled section A, showing internal structure and directional arrows (no text or symbols beyond label)

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Architectural floor plan showing room layouts with curved doorways and structural supports (no text or labels)

Diagram illustrating two directional arrows labeled ① and ②, pointing to a rectangular object with dashed lines and arrows indicating movement.

Регулируеми рафтове

Architectural cross-section diagram of a building facade with structural elements and arrows indicating components (no text or labels)

Line drawing of a box with an arrow pointing downward, placed inside a shelf (no text or symbols)

Simple line drawing of a rectangular box placed inside a container, with no text or symbols present.

Line drawing of a drawer with an arrow pointing downward, no text or symbols present

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

Line drawing of a hand using a tool to cut or press a piece of paper (no text or symbols present)

Diagram showing two labeled components (1 and 2) with arrows indicating movement or flow, likely illustrating a mechanical or structural process.

Diagram showing a hand pressing down on a surface with a numbered circle and upward arrow, likely illustrating a mechanical or safety procedure.

Осветление

Ice maker assembly Ice storage box

Резервоар за вода

Illustration of a fire hose with a switch, a wall-mounted electrical outlet, and a faucet (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly (no text or labels)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a kitchen sink with water flowing from a faucet (no visible text or symbols)

ЗАБЕЛЕЖКА

Line drawing of a hand cleaning a wall with a cloth and a basin (no text or symbols)

4. ≥10cm H ≥10cm ≥10cm

Mechanical assembly diagram showing a tool pressing a button with two curved arrows indicating rotation (no text or symbols)

Pure geometric diagram of a 3D rectangular prism with arrows indicating direction, no text or symbols present

Diagram of two identical mechanical or structural components with labeled section A, showing internal structure and directional arrows (no text or symbols beyond label)

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Interior view of a modern refrigerator with open shelves and food items (no visible text or symbols)

Technical diagram of a refrigerator with numbered compartments and labeled dimensions A and B

A: Hütörekesz

1 ajtógerenda

In AutoSet mode, the temperatures for refrigeration and freezing are respectively set at 5^ C and -18^ C. In this mode, the temperature of the refrigerating compartment and the freezing compartment cannot be adjusted. If the Super Cool, Super Freeze or Holiday function is set, the AutoSet function automatically closes and exits.

In the Auto Set function, the function of My Zone can be manually adjusted according to the needs.

4.7 Ünnepi funkció

Architectural floor plan showing room layouts with curved doorways and furniture (no text or labels)

Diagram illustrating two labeled mechanical or structural components with directional arrows and numbered annotations

Állítható polcok

Architectural cross-section diagram showing structural components with arrows indicating direction (no text or labels)

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Simple line drawing of a box with an arrow pointing downward, placed inside a shelf (no text or symbols)

Simple line drawing of a rectangular basin or container placed on a platform, with no text or symbols present.

Line drawing of a wooden drawer with a downward arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Ice maker assembly Ice storage box

Víztartály

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly (no text or labels)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Jégkockák kivétele

Diagram of a mechanical device with directional arrows indicating motion or flow (no text or symbols)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

MEGJEGYZÉS

Illustration of a hand cleaning a window with a washing machine (no text or symbols)

4. ≥10cm H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Pure geometric diagram of a 3D rectangular prism with arrows indicating direction, no text or symbols present

Diagram of two identical mechanical or architectural components with labeled section A, showing internal structure without any text or symbols.

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Technical diagram of a refrigerator with numbered compartments and labeled dimensions A and B

A: Koelkastcompartiment

Architectural floor plan showing room layouts with curved doorways and furniture (no text or labels)

Diagram illustrating two labeled components (① and ②) with arrows indicating movement or force, likely from a physics or engineering context.

Verstelbare planken

Architectural cross-section diagram showing structural components with arrows indicating direction (no text or labels)

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force in a container-like structure.

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Simple line drawing of a rectangular box placed inside a shelf, with no text or symbols present.

Line drawing of a drawer with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

Technical diagram showing two steps of a mechanical device with labeled arrows and directional arrows indicating movement.

Ice maker assembly Ice storage box

Waterreservoir

Illustration of a fire hose with a switch, a wall-mounted socket, and a faucet (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

IJsblokjes pakken

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a kitchen sink with water being poured into it, no visible text or symbols

LET OP

Line drawing of a hand washing a soap bubble above a sink, with no text or symbols present.

4. ≥10cm H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Pure geometric diagram of a 3D rectangular prism with arrows indicating direction, no text or symbols present

Diagram of two identical mechanical components with labeled section A, showing internal structure and alignment (no text or symbols beyond label)

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A

Haier

Interior view of a modern refrigerator with open shelves and food items (no visible text or symbols)

Chladnička s mrazničkou

HFW99F19ESSB

Simple line drawing of a door with a checkmark symbol and label '1.' (no text or symbols present)

A: Chladiaci priestor

1 Nosník dverí

Architectural floor plan showing four U-shaped structural elements mounted on a building facade (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram of a cabinet or enclosure with two arrows pointing to the front panel (no text or symbols present)

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system.

Two technical line drawings of a storage cabinet with arrows indicating direction (no text or symbols)

Technical line drawing showing two views of a drawer with an arrow indicating direction, plus a magnified inset showing a mechanical component (no text or symbols)

Diagram illustrating two steps of printer folding or filtering process, labeled with arrows and numbered annotations.

Vyberatel'ná spodná zásuvka mrazničky

Technical diagram showing three-step assembly process with numbered steps and directional arrows indicating movement.

Osvetlenie

Ice maker assembly Ice storage box

Nádržka na vodu

Illustration of a fire hose with a switch, a wall-mounted electrical outlet, and a faucet (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a faucet with an arrow indicating flow or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or flow (no text or symbols)

Close-up of a kitchen sink with water flowing from a pipe (no text or symbols visible)

OZNÁMENIE

Illustration of a hand cleaning a surface with a soap block and a basin (no text or symbols)

4. ≥10cm H ≥10cm ≥10cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

1. Nastavte nožičky do požadovanej úrovne.

Uistite sa, že vzdialenost od steny na strane pántov je aspoň ? ? mm, aby sa dvere správne otvárali.

OZNÁMENIE

Pure geometric diagram of a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Diagram of two identical mechanical or electrical components with labeled section A, showing internal structure and directional arrows (no text or symbols beyond label)

Abstract geometric composition with four gray angular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical lines and a central dot

0060537602F

2026 Version A
