USER MANUAL Brio 2000M T.I.P.

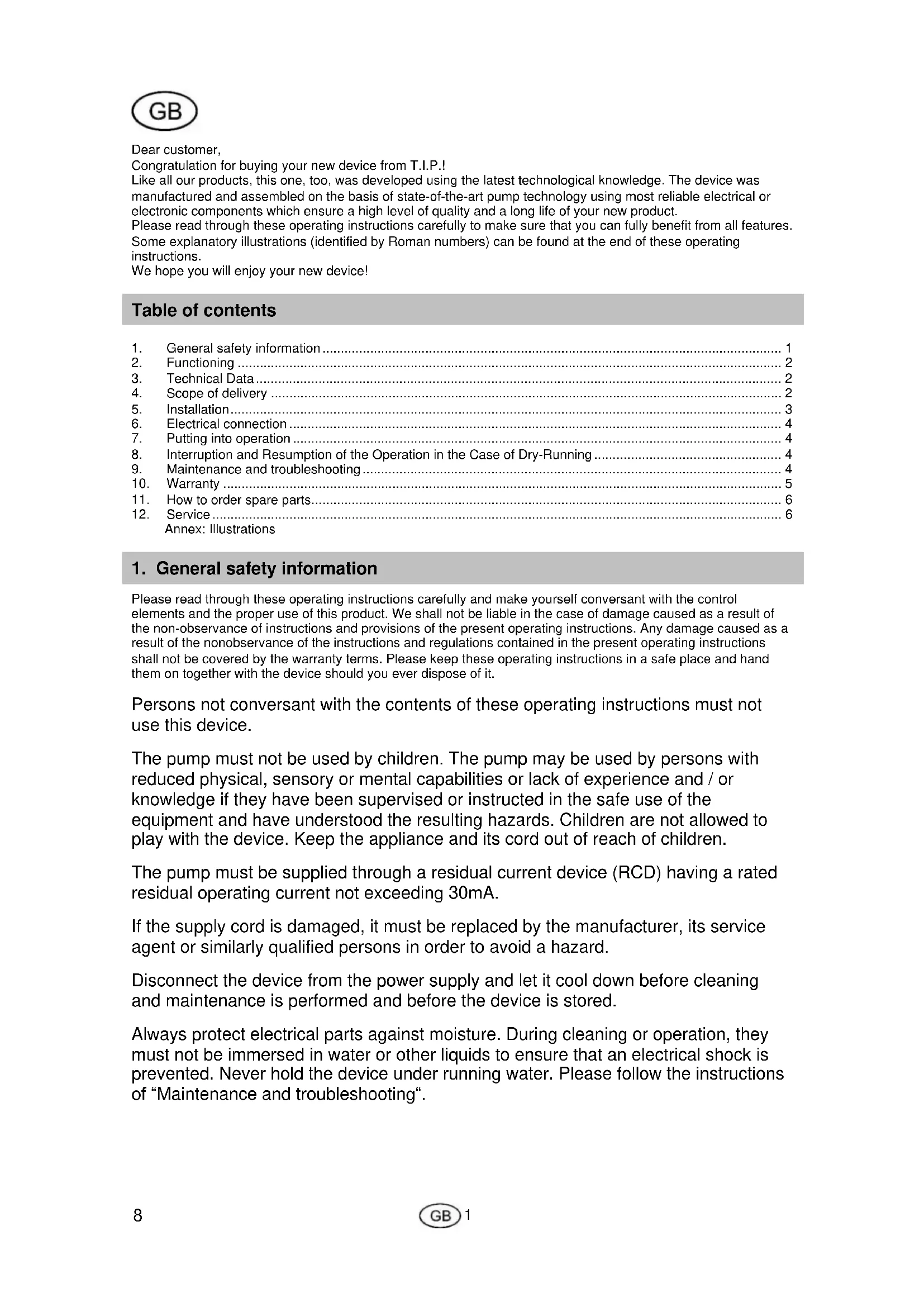

1. General safety information

Please read through these operating instructions carefully and make yourself conversant with the control elements and the proper use of this product. We shall not be liable in the case of damage caused as a result of the non-observance of instructions and provisions of the present operating instructions. Any damage caused as a result of the nonobservance of the instructions and regulations contained in the present operating instructions shall not be covered by the warranty terms. Please keep these operating instructions in a safe place and hand them on together with the device should you ever dispose of it. Persons not conversant with the contents of these operating instructions must not use this device. The pump must not be used by children. The pump may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they have been supervised or instructed in the safe use of the equipment and have understood the resulting hazards. Children are not allowed to play with the device. Keep the appliance and its cord out of reach of children. The pump must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Disconnect the device from the power supply and let it cool down before cleaning and maintenance is performed and before the device is stored. Always protect electrical parts against moisture. During cleaning or operation, they must not be immersed in water or other liquids to ensure that an electrical shock is prevented. Never hold the device under running water. Please follow the instructions of “Maintenance and troubleshooting“.

Notes and instructions with the following symbols require particular attention:

Any non-observance of these instructions involves the danger of bodily harm to people and/or damage to property.

Any non-observance of this instruction bears the risk of an electrical shock which may cause damage to persons or property.

Please inspect the device for damage occurred during transportation. In case of damage, the retailer has to be informed immediately, at the latest within 8 days after the date of purchase.

The Brio 2000 M electronic pump control allows the automation of any type of pressure pump that is capable of generating a pressure of more than 1.5 bar. Automation means that the liquid being discharged can be used just as though it would come out of the water mains and: by simply opening or closing water taps or other consumers. The Brio 2000 M provides an additional benefit in that it prevents the pump from damage by dry running, since the pump will cut out in the absence of water. As soon as the connection to electrical mains is established, the Brio 2000 M will activate the pump for approximately 15 seconds. The pump will cut in automatically as soon as a consumer is opened and causes the pressure within the pipe system to drop to the cut-in pressure of the Brio 2000 M. In contrast to pumps that are equipped with pressure vessels such as, for instance, domestic booster systems, the automatic cut-out of the pump will not occur upon the reaching of a specific cut-out pressure, but rather by the reduction of the flow rate down to minimum value as a result of the closing of consumers. In this process, the Brio 2000 M electronic pump control will delay cutting-out by 7 to 15 seconds. This method will decrease the cut-in/cut- out frequency of the pump at low flow rates and thus contribute to a sparing operation of the unit. This feature is also activated in the case of the pumps dry-running and thus protects the device efficiently from damage which may be caused by operation in the absence of water. The cut-in pressure and the pressure inside the pipe system can be checked using the built-in pressure gauge. When using the Brio 2000 M, the liquids to be discharged must not contain any solids since this may entail functional disturbances. If this cannot be excluded, please use an efficient prefilter at the intake area of the pump.

The unit is not suited to discharge saltwater, faeces, inflammable, etching, explosive or other hazardous liquids. Please observe the max. and min. temperatures of the liquids to be discharged stated in the technical data.

Model Brio 2000 M Mains voltage / frequency 230 V~ 50 Hz Max. current strength for connection socket 12 A Protection type IP65 Intake port

30.93 mm (1 “), female, rotating

33.25 mm (1 “), male

Max. operating pressure 10 bar Cut-in pressure setting range

Max. size of the solids being pumped 0 mm Min. fluid temperature 2 °C Max. fluid temperature (T max

55 °C Length of connection cable

4. Scope of delivery

The scope of the delivery of this product includes: One electronic pump control with a connection cord, one double nipple, one operating manual. Please verify that the scope of delivery is complete. Depending on the purpose of the application, additional accessories may be necessary (please refer to the chapters titled "Installation" and “How to order spare parts“).

If possible, keep the packing until the warranty period has expired. Please dispose of the packing materials in an environmental-friendly manner.

During the entire process of installation, the devices must not be connected to the electrical mains.

The pump, the Brio 2000 M electronic pump control and the entire collection system have to be protected from frost and weather influence.

When installing the unit, please make sure that the connection cable is not subjected to excessive pulling strain since this may cause damage to the electrical line and the electrical connector.

When the pump stops in normal operation, the pipe system is under pressure. Therefore, a consumer is to be opened prior to any intervention to make sure that the pressure will be relieved.

All connection lines have to be perfectly tight since leaking lines may affect the performance of the pump and cause considerable damage. Therefore, please use Teflon tape to seal the contact surfaces between the threaded sections of the lines and the connection with the pump. This use of sealing material such as Teflon tape is the only way to ensure an airtight assembly. Avoid when tightening screw excessive force that may cause damage. 5.2. Installation of the Electronic Pump Control The Brio 2000 M electronic pump control can be installed at any position between the pressure port or pressure line of the pump and the first consumer - for instance a water tap. However, it is recommended to install the unit in the close vicinity of or directly on the pressure port of the pump. When using the supplied double nipple the side of the double nipple provided with O-ring must be screwed into the pump. The double nipple without side O-ring is screwed into the rotatable coupling nut (8) of the pump control (FIG. VII). Check that the gasket is properly inserted into the nut. If the fitting is carried out properly, the pump control must not be turned by hand. When installing the Brio 2000 M electronic pump control, please make sure that the arrows on its cover lid and outgoing port point in the flowing direction of the liquid being discharged. Subsequently, the outlet port of the Brio 2000 M and consumer is to be connected to a suitable water pipe. If you are using a pump with a maximum pressure of more than 10 bar, you have to install an upstream pressure reducer which limits the max. operating pressure to 10 bar. To ensure the perfect running of the electronic pump control, the intake line of the pump is to be equipped with a check (or non-return) valve or a foot valve in order to maintain the pressure inside the water supply system after the pump cuts out. This applies also to the use of a deep-well or submersible pressure pump (fig. IV.). 5.3. Cut-in Pressure

Changing the preset cut-in pressure must only be done by qualified staff.

The difference between the cut-in pressure set on the Brio 2000 M and the maximum pressure of the pump must be higher than 0.6 bar.

The cut-in pressure of the Brio 2000 M electronic pump control was set to 1.5 bar in the factory. If this value is to be modified, the cover lid of the device has to be removed. To avoid any risk, this must only be done by qualified staff, for instance by a qualified plumber or electrical shop. The cut-in pressure is set using the screw provided at the inner flange. Rotating this screw in the direction of the plus sign (“+”) will increase the cut-in pressure, rotating the screw in the direction of the minus sign (“-“) will decrease it (fig. VI). Experience has shown that the preset value of 1.5 bar is ideally suited for most installations. However, a modification may become necessary in the following cases:

1. The “h” height difference between the Brio 2000 M electronic pump control and the highest consumer exceeds

2. The pump is working in flooded-suction mode which means that the intake pressure adds up to the max. pump

pressure. Please note that any modification of the setting will only influence the cut-in pressure of the pump. Increasing the pressure at the outlet point of the pumped liquid is not possible in this way.

6. Electrical connection

The unit is equipped with a mains connection cable and a mains plug. It must only be replaced by qualified staff to avoid any danger. Please do not use the mains connection cable to carry the pump, and do not use this cable to pull off the plug from the socket, either. Protect the mains connection cable and mains plug from heat, oil or sharp edges.

The values stated in the technical details have to correspond to the mains voltage. The person responsible for the installation has to make sure that the electrical connection is earthed in compliance with the applicable standards.

The electrical connection has to be equipped with a highly sensitive residual current circuit- breaker (FI switch): ∆ = 30 mA (DIN VDE 0100-739).

Only use an extension cable with a cable section (3 x 1.0 mm²) and rubber sheath which at least corresponds to that of the unit's own connection cable (see "Technical data", cable type) and which is labeled with the relevant abbreviation according to the VDE (German Association for Electrical, Electronic & Information Technologies). The mains plug and other connections must be splash proof.

The mains plug of the automatic control system connects directly to electrical mains through a suitably grounded (SCHUKO) mains socket which is to be installed properly. During operation, the green indicator light shows the presence of voltage within the system. The mains plug of the pump is to be connected to the socket of the Brio 2000 M.

7. Putting into operation

Please avoid any direct influence of moisture on the device (for instance when operating irrigators). Do not expose the unit to rain. Make sure there are no dripping connectors above the device. Do not use the device in wet or moist environments. Make sure that the device including any electrical plug connectors are installed in a flood-proof location.

Prior to putting the unit into operation, please fill the suction line and the pump casing completely with liquid. Plug the mains plugs of the pump into the socket of the Brio 2000 M. Then use a properly installed grounded (earthed) mains socket to connect the Brio 2000 M directly to mains. The green indicator lamp on the Brio 2000 M goes on to indicate the presence of voltage. Subsequently, switch the pump on. After the pump has cut out automatically, the highest-located consumer should be opened. As soon as the water is running smoothly, the process of putting into operation is completed. If no water is actually being discharged, please extend the time for putting the device into operation beyond the time span set in the electronic pump control. To do so, please keep the “START PUMP” key on the Brio 2000 M depressed until the priming process is completed and water is being discharged. If after approximately 1 minute this measure fails, too, please disconnect the Brio 2000 M from mains and repeat the steps described for putting into operation.

8. Interruption and Resumption of the Operation in the Case of Dry-Running

In the case of dry running / absence of water, the Brio 2000 M electronic pump control will ensure that the pump will cut out. In addition, the red “ERROR” indicator lamp will light up. This protective feature will prevent a the pump from cutting in automatically again. To resume operation, the “START PUMP” key of the electronic pump control has to be operated. Before that, make sure to remove the cause of the dry-running.

9. Maintenance and troubleshooting

Prior to carrying out any maintenance work, the devices must be separated from the electrical mains. If you fail to separate the unit from mains, there is a risk of an inadvertent start of the pump.

We decline any liability for damage caused by inappropriate repair attempts. Any damage caused by inappropriate repair attempts will avoid all warranty claims.

Regular maintenance and thorough care will reduce the danger of possible malfunction and contribute to an extension of the lifetime of your unit. If the pump is not in use over some extended period of time, both the devices and the entire system should be emptied using the devices provided for this purpose. Water left in the pump may freeze in case of frost and thus cause considerable damage. In the case of malfunction, you should first of all check whether it was caused by an operating error or some other reason which cannot be attributed to a defect of the device - for instance a power failure.

The list below shows some possible malfunctions of the device, possible causes and tips on their elimination. All the measures referred to may only be carried out with the pump being separated from the electrical mains. If you yourself feel unable to eliminate any of these malfunctions, please contact the customer service department or your point of sales. Any repair beyond the scope specified below must only be performed by qualified staff. Please bear in mind that all warranty claims will become void in the case of damage caused by inappropriate repair attempts, and that we decline any liability for any ensuing damage. MALFUNCTION POSSIBLE CAUSE ELIMINATION

1. The pump is not discharging

2. The electronic control system has been

installed against the flow direction of the liquid being pumped.

3. The priming process of the pump has not

4. The intake of the suction line is not

immersed in the liquid to be discharged.

1. Please use a device complying with GS

(German technical supervisory authority) to check for the presence of voltage (safety information to be observed!). Please verify the correct position of the plug. The presence of voltage will be indicated by the green “On” indicator lamp of the electronic pump control.

2. Modification of the assembly set-up so as

to make it compatible with the flowing direction of the liquid being pumped (please refer to section 5.2, installation of the Brio 2000 M electronic pump control).

3. Keep the „START PUMP“ key depressed -

maximum one minute - until the pump is discharging water evenly.

4. Please make sure that the intake of the

suction line is immersed in the liquid being pumped.

2. The pump cuts in and out too

1. Leaking ports and/or connection lines.

2. The suction line and/or on existing filters

3. Remove any kinks or similar disturbances

inside the connection lines.

4. Clogged foot valve.

1. Make sure that the connectors and

connection lines are tight.

2. Remove possible clogging.

3. Remove kinks or similar disturbances.

4. Remove possible congestion.

3. The pump stops as in case of

dry-running despite the presence of water.

1. Cut-in pressure is too high.

1. Instruct specialised staff to adapt the cut-in

pressure to the local requirements, then repeat putting into operation for the pump please refer to section 7, putting into operation).

4. The pump does not start

2. The difference in height between the

electronic pump control and the point of withdrawal, limited to max. 15 m by the preset value, has been exceeded.

3. Pump is defective.

4. The electronic pump control is defective.

3. Please contact the customer service

4. Please contact the customer service

5. The pump does not cut out

despite closed consumers.

1. Refer to section 2.1.

2. Electronic pump control is defective.

1. Refer to section 2.1.

2. Please contact the customer service

The present device was manufactured and inspected according to the latest methods. The seller warrants for faultless material and workmanship in accordance with the legal regulations of the country in which the device was purchased. The warranty period begins with the day of the purchase and is subject to the provisions below: Within the period of warranty, all defects which are to be attributable to defective materials or manufacturing will be eliminated free of charge. Any complaints are to be reported immediately upon their detection. The warranty claim becomes void in the case of interventions undertaken by the purchaser or by third parties. Damage resulting from improper handling or operation, incorrect setting-up or storage, inappropriate connection or installation or Acts of God or other external influences are excluded from warranty. Wearing parts are excluded from warranty. All parts were manufactured using maximum care and high-quality materials and are designed for a long lifecycle. It should be understood, however, that the wear and tear depends on the kind of use, the intensity of use and the internals of maintenance. Complying with the installation and maintenance information contained in the present operating instructions will therefore considerably contribute to a long lifecycle of these wearing parts. In case of complaints, we reserve the option of repairing or replacing the defective parts or replace the entire device. Replaced parts will pass into our property. Claims for liquidated damages are excluded unless they are caused by wilful acts or negligence on the side of the manufacturer.

The warranty does not provide for any claims beyond those referred to above. The warranty claim has to be evidenced by the purchaser in the form of the submission of the sales receipt. The present warranty commitment is valid in the country in which the device was purchased. Please note:

1. Should your device fail to function properly, please verify first whether an operating error or another cause is

present which cannot be attributed to a defect of the device.

2. In case you have to take or send in your defective device for repair, please be sure to enclose the following

documents: − Sales receipt (sales slip). − A description of the occurring defect (a description as accurate as possible will expedite the repair work).

3. In case you have to take or send in your defective device for repair, please remove any attached parts which

do not belong to the original condition of the device. If any attached parts of this kind should be missing upon the return of the device, we shall not be liable for them.

11. How to order spare parts

The fastest, most simple and cheapest way of ordering spare parts is through the internet. On our www.tip-pumpen.de website you will find a convenient spare part shop where you can order spare parts with just a couple of clicks. In addition, this is also the place where we publish comprehensive information and valuable tips on our products and accessories, introduce new devices and present current trends and innovations in the range of pump technology.

In the case of warranty claims or malfunction, please contact your point of sale. A current operating manual is available as required as a PDF file via e-mail: service@tip-pumpen.de.

For EC countries only Please do not dispose of electrical appliances in the regular domestic waste! According to the European Directive 2012/19/EU regarding waste electrical and electronic equipment and the implementation of that directive into national law, electrical devices have to be collected separately and disposed off in an environmental-suitable manner after the end of their life cycle. Should you have any questions, please contact your local waste disposal company.

3. De pomp is defect.

Functional parts / Details

Dry-running control indicator (red)

Adjustment screw (response pressure)

Mains voltage control indicator (green)
