USER MANUAL Sonicare ExpertClean 7300 HX9641 PHILIPS

PHILIPS SONICARE PHILIPS SONICARE clean sum health disruptive

PHILIPS SONICARE

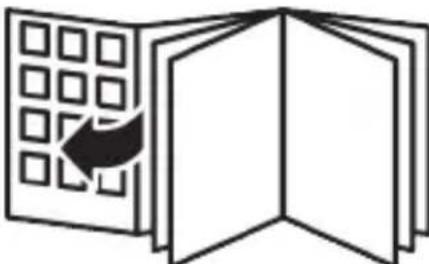

Illustration of stacked open documents with a grid pattern and a curved arrow pointing to one (no text or symbols)

English 6

Azərbaycanca 29

Čeština 54

Dansk 78

Deutsch 102

Eesti 129

Español 153

Français 178

Hrvatski 203

Italiano 228

Latviešu 253

Lietuviškai 276

Magyar 301

Nederlands 326

Norsk 351

O'zbek 374

Polski 399

Português 425

Română 450

Shqip 475

Slovenščina 500

Slovensky 523

Srpski 548

Suomi 572

Svenska 597

Türkmençe 620

Ελληνικά 644

Български 672

Кыргызча 699

Македонски 725

Русский 752

Точикй 781

Українська 808

Қазақша 834

Rwjtntu 859

Jusmygno 865 888

הכלה 916

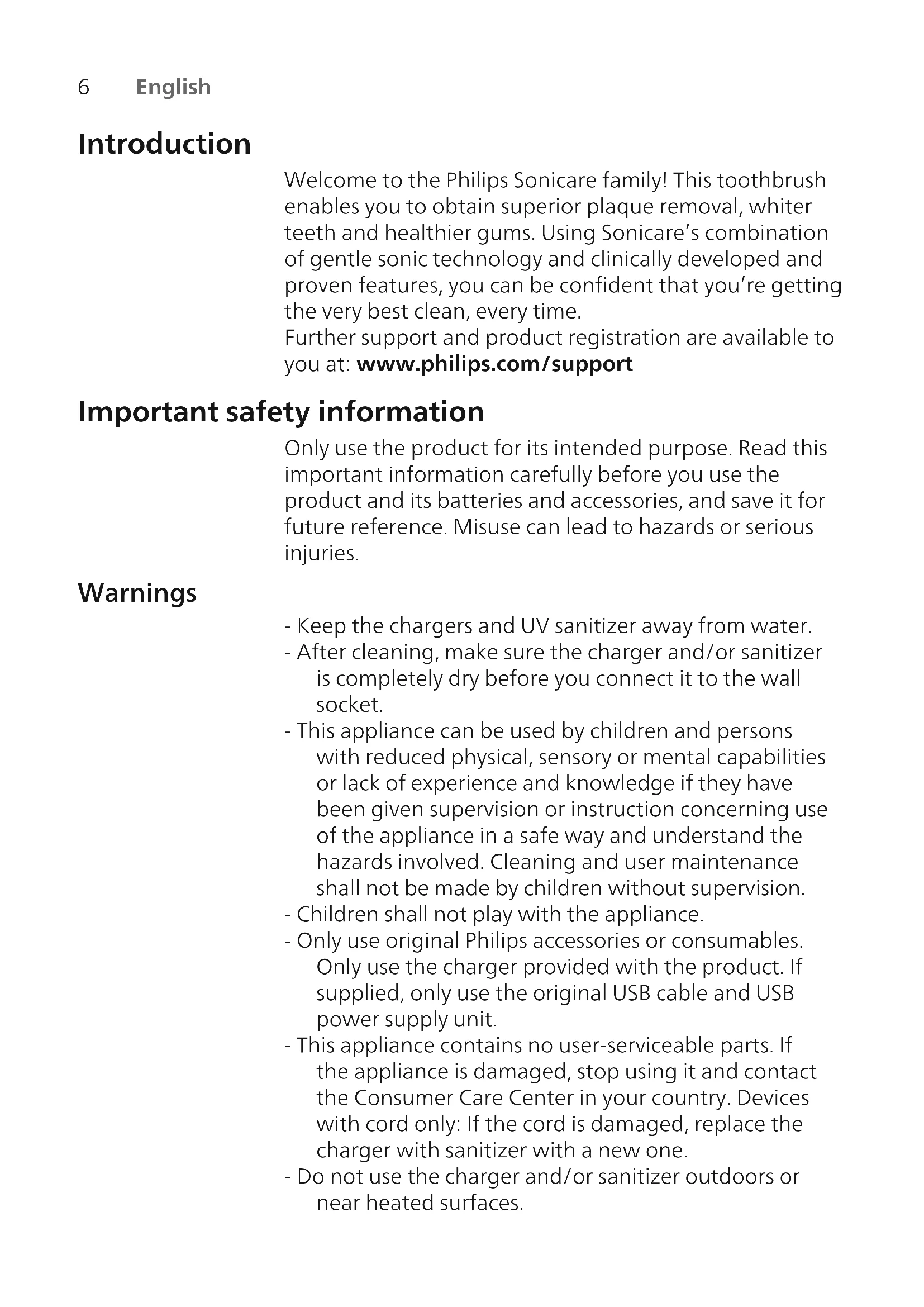

Introduction

Welcome to the Philips Sonicare family! This toothbrush enables you to obtain superior plaque removal, whiter teeth and healthier gums. Using Sonicare's combination of gentle sonic technology and clinically developed and proven features, you can be confident that you're getting the very best clean, every time.

Further support and product registration are available to you at: www.philips.com/support

Important safety information

Only use the product for its intended purpose. Read this important information carefully before you use the product and its batteries and accessories, and save it for future reference. Misuse can lead to hazards or serious injuries.

Warnings

• Keep the chargers and UV sanitizer away from water.
• After cleaning, make sure the charger and/or sanitizer is completely dry before you connect it to the wall socket.
• This appliance can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• Only use original Philips accessories or consumables. Only use the charger provided with the product. If supplied, only use the original USB cable and USB power supply unit.
• This appliance contains no user-serviceable parts. If the appliance is damaged, stop using it and contact the Consumer Care Center in your country. Devices with cord only: If the cord is damaged, replace the charger with sanitizer with a new one.

• Do not use the charger and/or sanitizer outdoors or near heated surfaces.

• Do not clean any part of the product in the dishwasher.

• This appliance has only been designed for cleaning teeth, gums and tongue.
• Keep the sanitizer out of the reach of children at all times.
• Stop using the sanitizer if the UV light bulb remains on when the door is open. UV light can be harmful to the human eye and skin.
• Only operate the sanitizer with the protective screen in place.
• Do not touch the UV sanitizer's UV light bulb when it is hot.
• Stop using a brush head with crushed or bent bristles. Replace the brush head every 3 months or sooner if signs of wear appear.
• Avoid direct contact with products that contain essential oils or coconut oil. Contact may result in bristles dislodging.
• Stop using the appliance and consult your dentist/doctor if excessive bleeding occurs after use, if bleeding continues to occur after 1 week of use or if you experience discomfort or pain.
• If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use this appliance.
• If you have a pacemaker or other implanted device, contact your doctor or the manufacturer of the implanted device prior to use.
• If you have medical concerns, consult your doctor before you use this appliance.
• This appliance is a personal care device and is not intended for use on multiple patients in a dental practice or institution.

Battery safety instructions

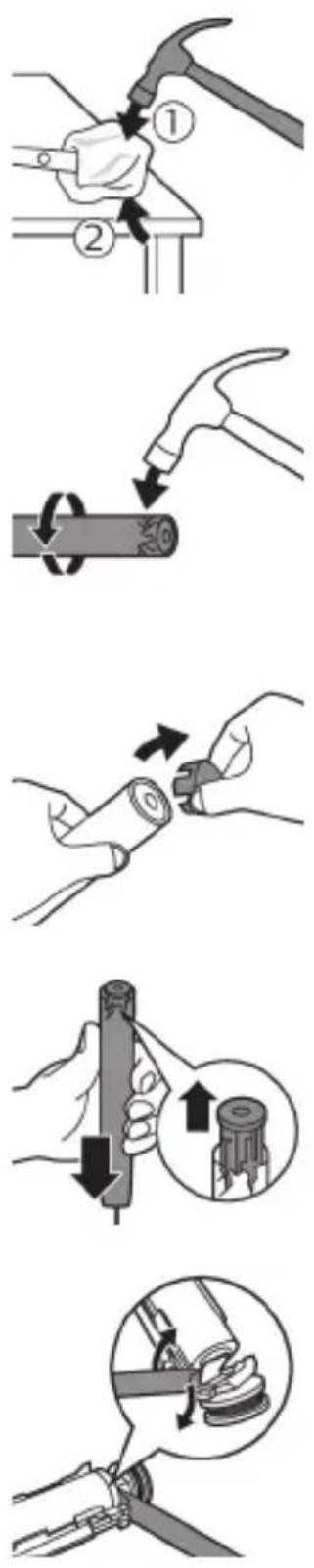

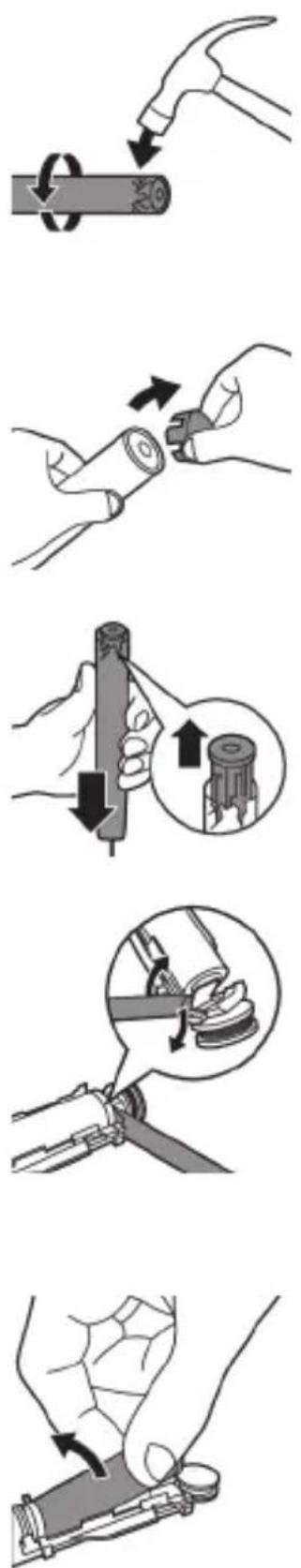

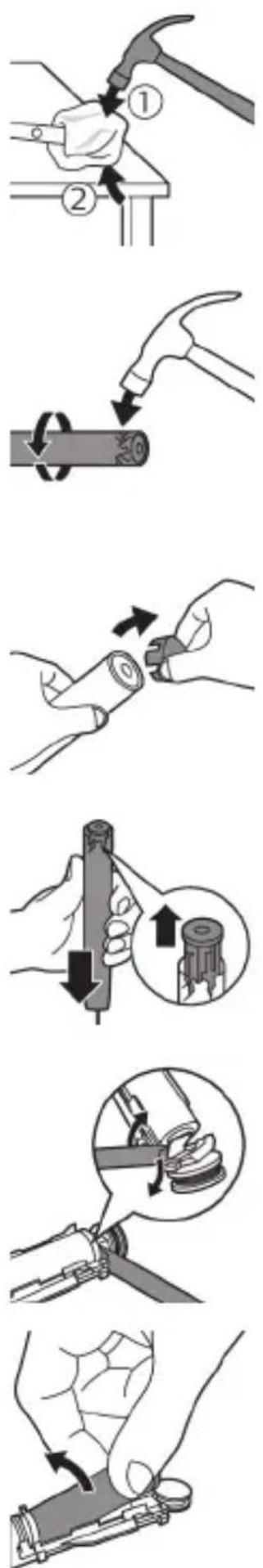

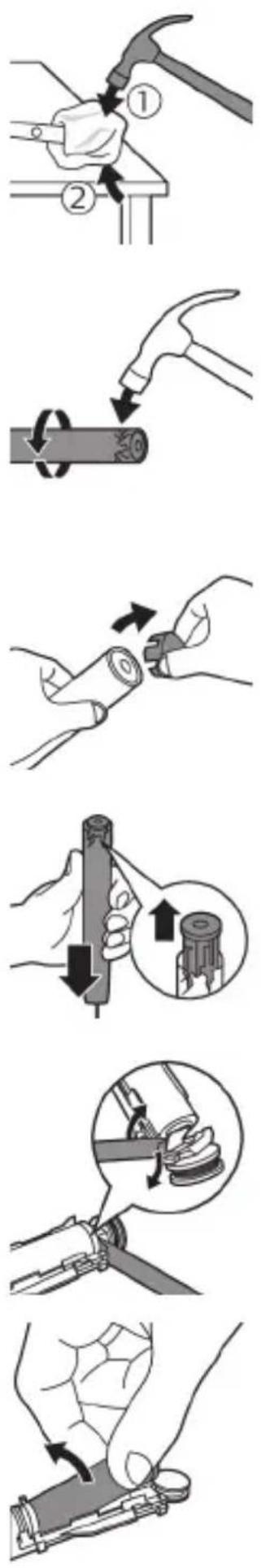

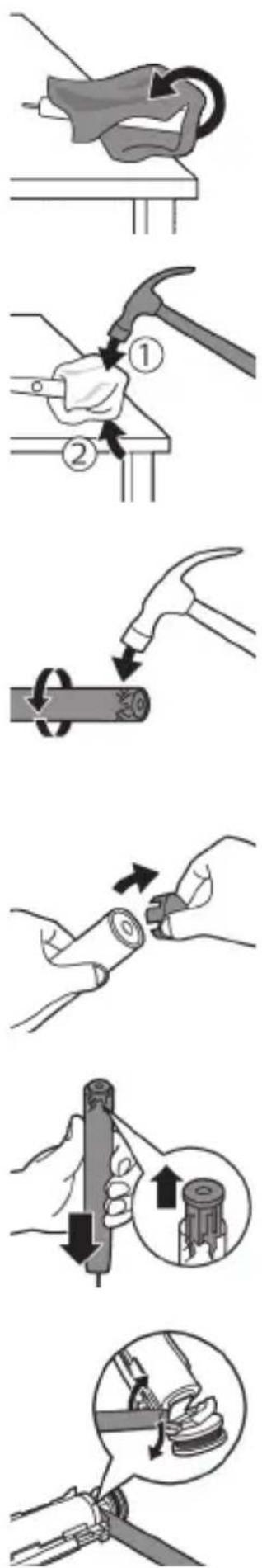

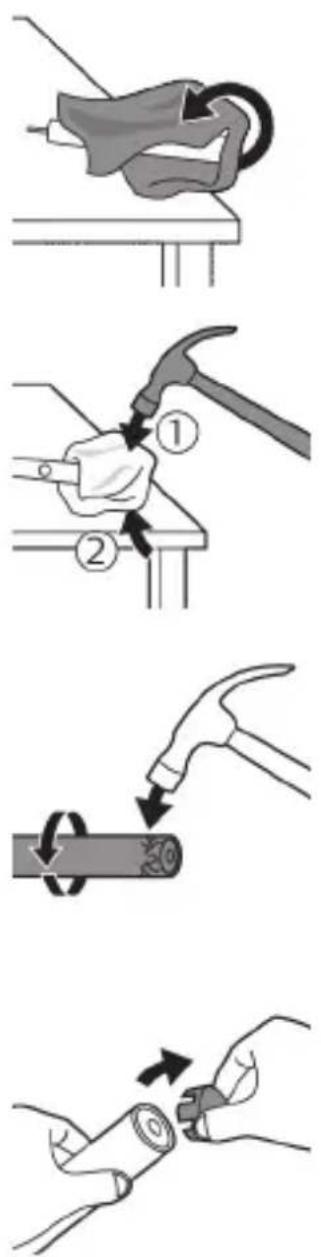

- This appliance contains batteries that are only to be removed by skilled persons

• Only use the product for its intended purpose. Read this information carefully before you use the product and its batteries and accessories, and save it for future reference. Misuse can lead to hazards or serious injuries. Accessories supplied may vary for different products.
• Only use original Philips accessories and consumables. Only use detachable supply unit TCBxxxx, HX6100, HX6110, HX6160 or WAAxxxx.
• Keep product and batteries away from fire and do not expose them to direct sunlight or high temperatures.
• If the product becomes abnormally hot or smelly, changes color or if charging takes longer than usual, stop using and charging the product and contact Philips.
• Do not place products and their batteries in microwave ovens or on induction cookers.
• Do not open, modify, pierce, damage or dismantle the product or battery to prevent batteries from heating up or releasing toxic or hazardous substances. Do not short-circuit, overcharge or reverse charge batteries.
• This appliance contains batteries that are non-replaceable. When the battery is at end of life, the appliance shall be properly disposed of, see section on recycling.
• If batteries are damaged or leaking, avoid contact with the skin or eyes. If this occurs, immediately rinse well with water and seek medical care.
• When you handle batteries, make sure that your hands, the product and the batteries are dry.

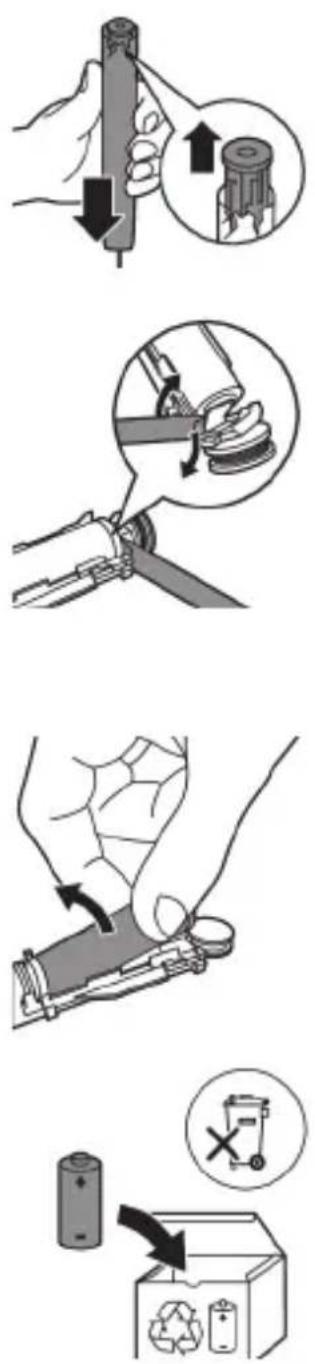

• To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal object (e.g. coins, hairpins, rings). Do not wrap batteries in aluminium foil. Tape battery terminals or put batteries in a plastic bag before you discard them.
• Charge and use the product at a temperature between 0 °C and 40 °C (32°F and 104°F).

Storage and transportation conditions

Temperature -10°C to 60°C (14 °F to 140 °F).

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Radio Equipment Directive

Hereby, Philips declares that electric toothbrushes with radio equipment type (Bluetooth, NFC) are in compliance with Directive 2014/53/EU.

• The Bluetooth radio frequency interface in applicable products operates at 2.4 GHz.
• The maximum output power by the Bluetooth appliance is 3 dBm.
• The NFC radio frequency interface in applicable products operates at 13.56 MHz.
• The maximum RF power transmitted by the appliance is 30.16 dBm.

The full text of the EU declaration of conformity is available at the following internet address:

www.philips.com/support

Note: The Features of different models may vary. Some models may not be equipped with Bluetooth or NFC.

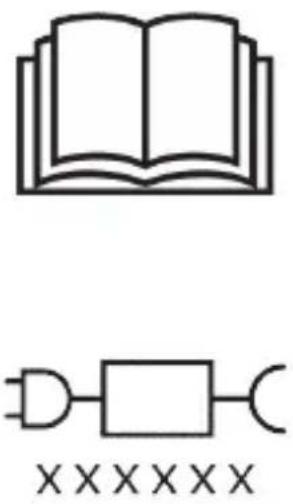

The following symbols may appear on the product: Read Operator's Manual.

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Detachable Power Supply Part: The "xxxxx" indicates the model number of the approved chargers to be used. (TCBxxxx, HX6100, HX6110, HX6160 or WAAxxxx)

Intended use

Sonicare ExpertClean power toothbrushes are intended to remove adherent plaque and food debris from the

teeth to reduce tooth decay and improve and maintain oral health. Sonicare ExpertClean power toothbrushes are intended for personal use. Use by children should be with adult supervision.

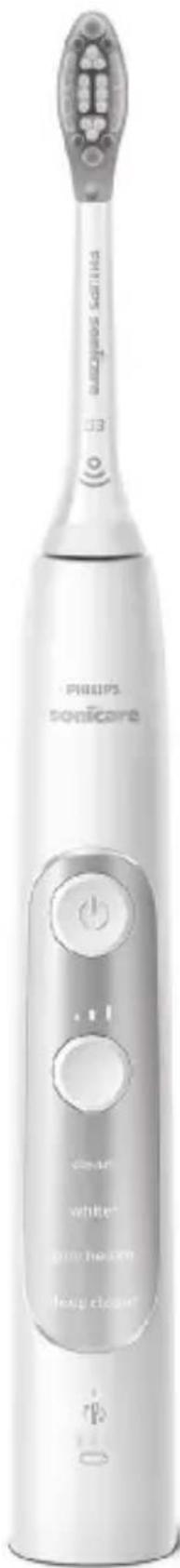

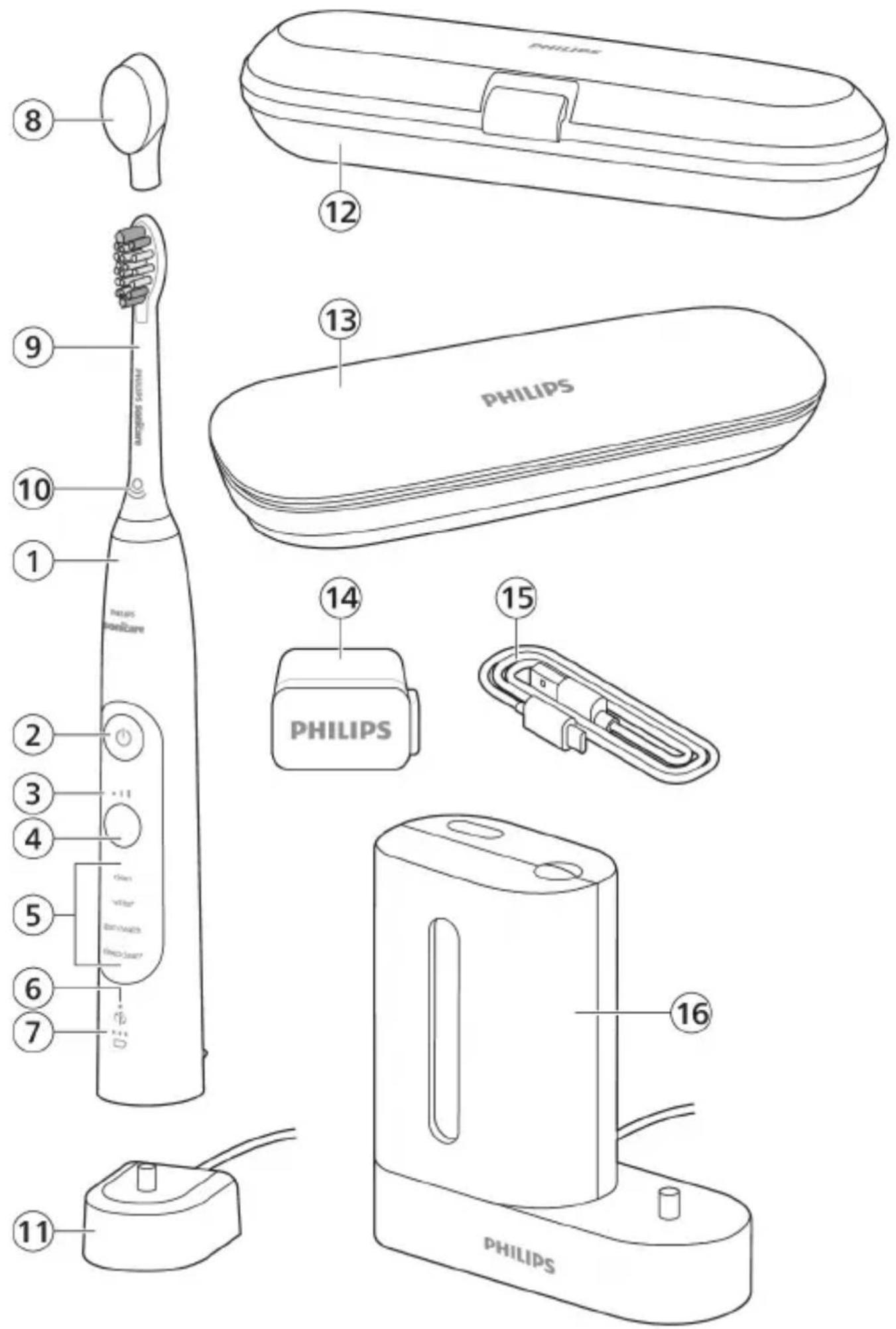

Your Philips Sonicare (Fig 1.)

1 Handle
2 Power on/off button
3 Intensity indicator
4 Mode/intensity button
5 Mode indicator
6 Brush Head Replacement Reminder
7 Battery indicator

Accessories:

8 Brush head cap
9 Smart brush head(s)
10 BrushSync symbol
11 Charging stand
12 Travel case
13 Charging travel case
14 USB-A wall adapter
15 USB-A cable
16 UV sanitizer and charger

Note: Accessories included may vary based on the model purchased.

Sonicare app - Getting started

The Sonicare app pairs with your toothbrush to provide you a connected experience. By connecting your toothbrush to your Sonicare app account, you will be able to:

• Track your brushing progress
• Receive personalized tips and actionable recommendations to improve your oral health
• Access the full range of benefits and receive ongoing upgrades

The app is compatible with a wide range of mobile devices.

To start using the Sonicare app:

1 Download the Sonicare app to your phone.

2 Ensure that Bluetooth for your device is turned on.
3 Pick up your toothbrush to ensure it is active (lights on).
4 Open the app and follow the steps.
5 Pair your toothbrush with the app.
6 Create your account via the app. Complete firmware update, if prompted, to access the latest improvements and features.
7 Brush regularly with your toothbrush connected to the app. When you regularly sync the toothbrush with the app, you will receive updates to help improve your oral healthcare.
8 Sync regularly.
9 Keep your phone close to your toothbrush for optimal data transfer.

To sync manually: Pair/connect your toothbrush with the app every two weeks to benefit from the app features/capabilities.

To sync automatically: Allow location permission while setting up the app. By allowing location permission, your phone knows when it is in the connection range of your toothbrush and can refresh your brushing data in the app to provide the latest insights and recommendations.

Note: Make sure your phone's Bluetooth is switched on when using the app so that your toothbrush can transfer and update your brushing data in the app. If you have questions about why your brushing data is collected, be sure to review the Sonicare Privacy Statement, available throughout the app setup process.

App features

Your Sonicare power toothbrush is equipped with smart sensors to provide you with feedback about your brushing habits, including:

• Daily brushing sessions
• Time spent during each brushing session
• Applied brushing pressure
• Personalized tips and actionable recommendations
• Brush head replacement reminder (based on actual use)

The Sonicare app collects the data provided by the smart sensors and tracks your brushing habits over time.

Getting started

Attaching the brush head

Illustration showing a hand brushing a tooth with a brush, and a close-up of a tooth being examined (no text or symbols present)

1 Align the brush head so the bristles point in the same direction as the front of the handle.

2 Firmly press the brush head down onto the metal shaft until it will not go any further.

Note: It is normal to see a slight gap between the brush head and the handle.

Using your Philips Sonicare toothbrush

If you are using your Sonicare toothbrush for the first time, it is normal to feel more vibration than when using a non-electric toothbrush. It is common for first-time users to apply too much pressure. Only apply gentle pressure and let the toothbrush do the brushing for you. Please follow the brushing instructions below for the best experience.

To help you transition to your new Sonicare power toothbrush, use a lower setting for the first 1-2 weeks then transition to a higher setting.

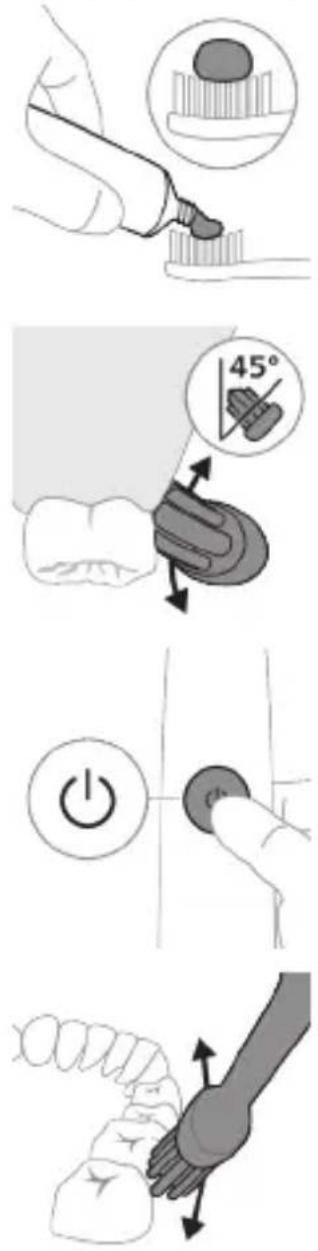

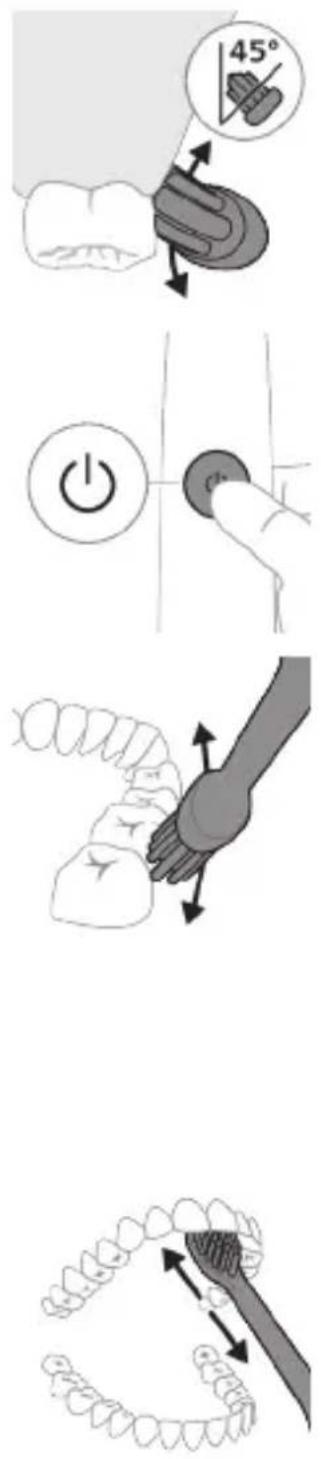

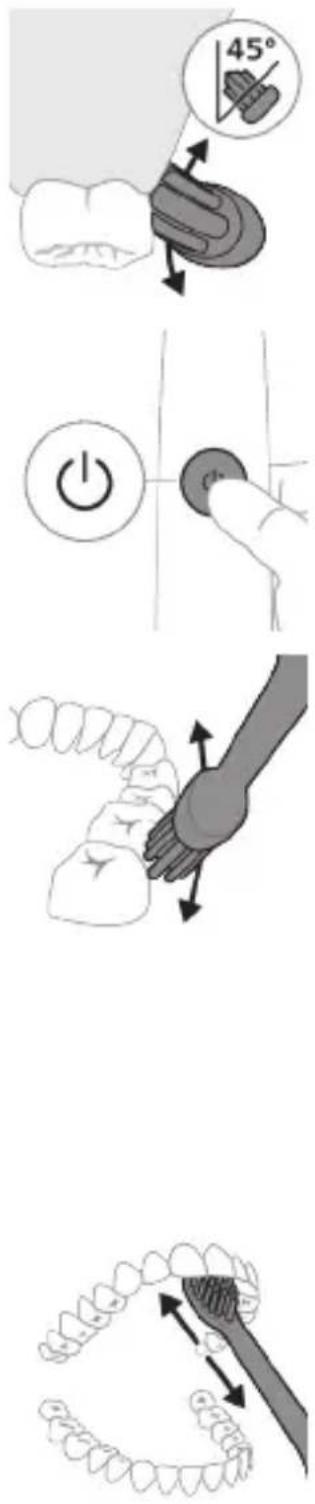

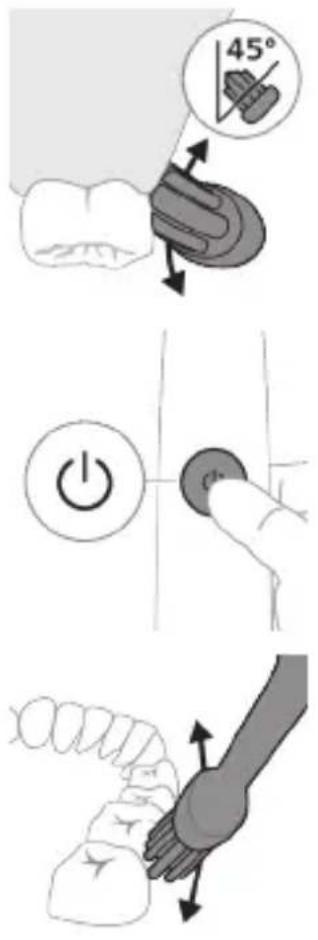

Brushing instructions

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a textured surface (no text or symbols present)

1 Wet the bristles and apply a small amount of toothpaste.

2 Place the toothbrush bristles against the teeth at a slight angle (45 degrees). Pressing firmly to make the bristles reach the gumline or slightly beneath the gumline.
Note: Keep the center of the brush in contact with the teeth at all times.

3 Press the power on/off button to switch on the Philips Sonicare.

4 Gently keep the bristles placed on the teeth and in the gumline. Brush your teeth with small back and forth motion so the bristles reach between the teeth. Continue this motion throughout your brushing cycle.

Note: The bristles should slightly flare. It is not recommended to scrub as you would with a manual toothbrush.

Note: If you apply too much pressure, you will be alerted by a change in vibration of the handle and the brush head replacement reminder flashing amber.

5 To clean the inside surfaces of the front teeth, tilt the brush handle semi-upright and make several vertical overlapping brushing strokes on each tooth.

6 After you have completed the brushing cycle, you can spend additional time brushing the chewing surfaces of your teeth and areas where staining occurs. You can also brush your tongue, with the toothbrush switched on or off, as you prefer.

Note: Your Philips Sonicare toothbrush is safe to use on braces (brush heads wear out sooner when used on braces) and dental restorations (fillings, crowns, veneers) if they are properly adhered and not compromised.

BrushPacer

Diagram showing dental arches with numbered labels for each tooth group

To make sure you brush evenly throughout the mouth, divide your mouth into 6 sections using the BrushPacer feature. The BrushPacer divides the brushing time into 6 equal segments and indicates when you should move to the next area. The segments are indicated with a brief pause in vibration. The toothbrush automatically stops at the end of the brushing session.

Note: Additional time may be added when you use the White+ or Gum Health modes.

Modes

clean white* gum health clean white*

Your power toothbrush is equipped with up to 4 different modes: Clean, Deep Clean+, Gum Health and White+ (specific models only).

Based on the smart brush head you use, the optimal mode and intensity will be selected automatically by the BrushSync technology.

To manually change the mode, press the mode/intensity button when the toothbrush is off. All brush heads work with each mode.

Clean and Deep Gum Health White+ Clean+

Benefit Plaque removal Plaque removal			Plaque and surface stains removal
		and gum massage
Recommended intensity level	High High High
Total brushing time	Clean: 2 minutesDeep Clean+: 3 minutes*	3 minutes and 20 seconds	2 minutes and 40 seconds

Clean and Deep Gum Health White+ Clean+

How to brush Clean: Brush each segment 20 seconds.

Brush each segment for 20 seconds,

Brush each segment for 20 seconds,

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human dentition with numbered labels indicating tooth positions and dental alignment

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Deep clean+: Brush each segment for 30 seconds.*

then brush segments 7,8,9 and 10 for 20 seconds each.

then brush segments 7 and 8 for 20 seconds each.

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with labeled parts ⑦ and ⑧, showing upper and lower teeth structures.

Illustration of a dental arch with a numbered callout (7) indicating a specific tooth position on the upper dental arch.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

⑨ ⑩

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

*Note: When brushing with the Philips Sonicare app in 'Deep Clean+' mode, the brushing time will be 2 minutes when connected to the app and 3 minutes when not connected to the app

Intensities

Your power toothbrush comes with 3 different intensity settings:

• low intensity (one bar)
• medium intensity (two bars)
• high intensity (three bars)

Simple diagram with three circles and a central oval, no text or symbols present

When attached to the handle, the smart brush head will automatically select the recommended intensity/ If you wish to change to a different intensity, you can do so by pressing the mode/intensity button while brushing. The intensity cannot be changed as long as the handle is powered off or paused.

BrushSync technology

Diagram showing a microphone with signal icon and speech bubble, likely illustrating wireless or audio signal detection.

BrushSync technology enables your brush head to communicate with your handle using a microchip. The symbol at the bottom of the brush head indicates that the brush head is equipped with this technology.

BrushSync technology enables:

• Brush head replacement reminder
• BrushSync mode pairing

Philips Sonicare offers a wide range of smart brush heads, equipped with BrushSync technology. To explore our full range of toothbrush brush heads, and find the brush head that is best for you, go to

www.philips.com/toothbrush-heads for more information.

Features

• Pressure Sensor Feedback
• BrushPacer
• SmarTimer
• EasyStart
• Brush Head Replacement Reminder
• Brush Head Mode Pairing

Pressure Sensor Feedback

Pure electrical circuit lines without any symbols

Your Sonicare toothbrush measures the pressure you apply while brushing, to protect your gums and teeth from damage.

If you apply excess pressure, the handle changes its vibration and the brush head replacement reminder light on the handle flashes amber until you reduce the pressure.

Note: Your product comes with the Pressure Sensor activated. To deactivate this feature (see 'Activating or deactivating features').

BrushPacer

The BrushPacer is an interval timer that helps you to brush evenly through the mouth by dividing your mouth into 6 sections.

SmarTimer

The SmarTimer indicates that your brushing cycle is complete by automatically switching off the toothbrush at the end of the brushing cycle. Dental professionals recommend brushing no less than 2 minutes twice a day.

Note: If you press the power on/off button after you started the brushing cycle, the toothbrush pauses. After a pause of 30 seconds, the SmarTimer resets.

EasyStart

This Philips Sonicare model comes with the EasyStart feature deactivated. The EasyStart feature gently increases the power over the first 14 brushings to help you get used to brushing with the Philips Sonicare. The EasyStart feature works with all modes.

Disclaimer

When the Philips Sonicare toothbrush is used in clinical studies, it must be used at high intensity with the handle fully charged and the EasyStart feature deactivated.

To activate EasyStart (see 'Activating or deactivating features').

Brush Head Replacement Reminder

Your Philips Sonicare is equipped with BrushSync technology that tracks the wear of your brush head.

Note: This feature only works with Philips Sonicare smart brush heads with BrushSync technology.

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

1 When you attach a new smart brush head for the first time, the handle recognizes that you have a Philips brush head with BrushSync technology and begins tracking brush head wear.
2 Over time, based on the pressure you apply and the total time the brush head has been used, the handle tracks brush head wear in order to determine the optimal time to replace your brush head. This feature guarantees the best cleaning and care of your teeth.
3 When the Brush Head Replacement Reminder indicator lights up amber, you should replace your brush head.

Note: All smart brush heads come with the brush head replacement reminder feature activated. To deactivate the brush head replacement reminder see 'Activating or deactivating features'.

Brush head mode pairing

Brush heads with BrushSync technology are equipped with a microchip which communicates with the handle and automatically pairs it with the recommended mode and intensity. Most brush heads with BrushSync technology will auto pair to Clean Mode. Brush heads with specific benefits will pair with the corresponding mode (when available), examples include:

• G3 Premium Gum Care: Gum Health Mode
• W3 Premium White or W(c) DiamondClean(compact): White+ Mode

Note: If you choose to change mode/intensity from the recommended setting, the brush head will remember the your chosen setting for future brushing sessions.

Activating or deactivating features

You can activate or deactivate the following features of your toothbrush:

• EasyStart
• Brush Head replacement reminder
• Pressure Sensor Feedback

Note: You can only activate or deactivate the brush head replacement reminder when a smart brush head is on the handle.

From handle:

Step 1: Place the handle on a plugged in charger/charging travel case.

Diagram showing a hand pressing a button on a cylindrical object with an 'Power' icon, likely illustrating a power switch or control mechanism.

Step 2: Press and hold power on/off button for:

EasyStart Brush Head Replacement Reminder Pressure Sensor Feedback

Up to 3 seconds Up to 5 seconds Up to 7 seconds

Step 3: Let go of the power on/off button when you hear:

1 beep 1 beep and then 1 beep, 2 beeps and then 3 beeps 2 beeps

Together with:

Simple diagram with a circular symbol and a vertical line, no text or labels present

If you see the left LED for the battery indicator flash green 2 times and hear 3 tones low to high, then the feature has been activated.

OR

Simple diagram with a circular symbol containing a minus sign and a small circle connected by lines (no text or labels)

If you see the left LED for the battery indicator flash amber 1 time and hear 3 tones high to low, then the feature has been deactivated.

UV sanitizer

Three-step diagram illustrating a tool application: adding a tool, adjusting a device, and inserting into a mechanical component (no text or symbols present)

Note: Accessories included may vary based on the model purchased.

With the UV sanitizer you can clean your brush head after every use.

Unplug the sanitizer, discontinue use and call Consumer Care if:

• The UV light bulb remains on when the door is open.
• The window is broken or missing from the sanitizer.
• The sanitizer gives off smoke or a burning smell while it is operating.

Note: UV light can be harmful to the human eye and skin. This device should be kept out of reach of children at all times.

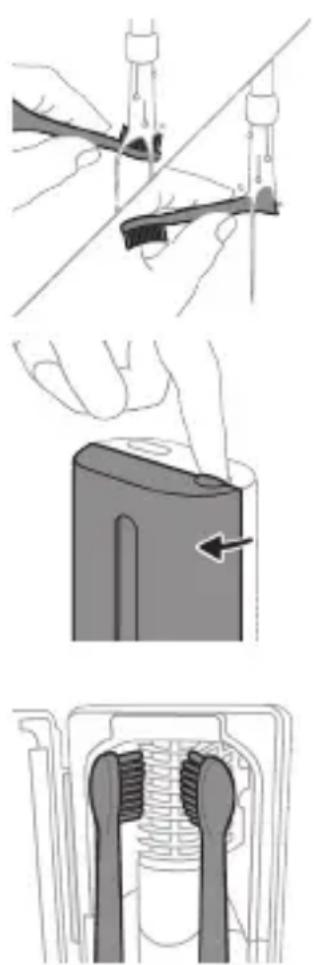

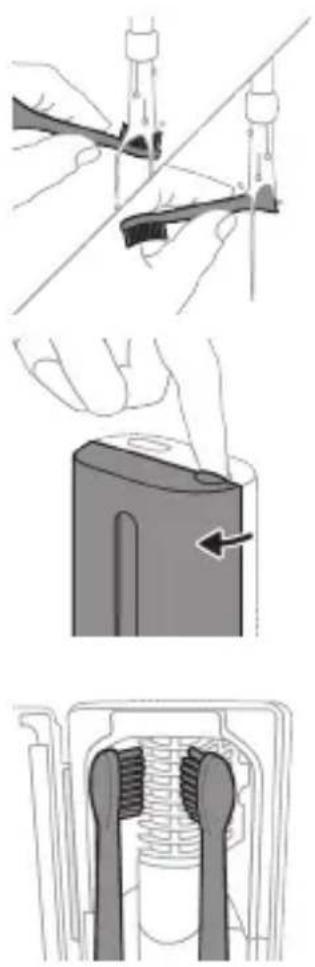

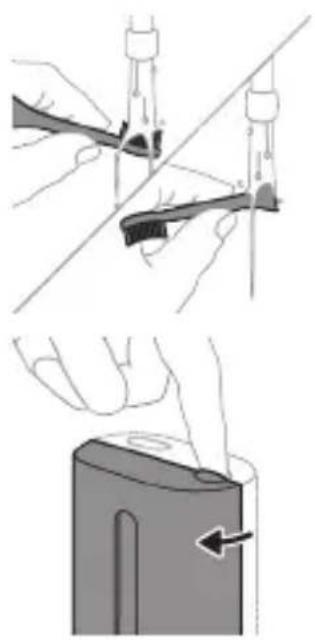

1 After brushing, rinse the brush head and shake off excess water.

Warning: Make sure that the brush head cap is not on the brush head when the brush head is being cleaned in the sanitizer.

2 Place your finger in the door recess on top of the sanitizer and pull open the door.

3 Place the brush head on one of the 2 pegs in the sanitizer with the bristles facing the light bulb.

Note: Only clean Philips Sonicare snap-on brush heads in the sanitizer.

Note: Do not clean Philips Sonicare for Kids brush heads in the sanitizer.

4 Make sure the sanitizer is plugged into a live outlet of appropriate voltage.

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

5 Close the door and press the green power on/off button once to select the UV clean cycle.

Note: you can only switch on the sanitizer if the door is properly closed.

Note: the sanitizer stops operating if you open the door during the sanitizer cycle.

Note: The sanitizer cycle takes approximately 10 minutes and then switches off automatically.

The sanitizer is in operation when the light glows through the window.

Charging and battery status

This Philips Sonicare toothbrush is designed to provide at least 28 brushing sessions, each session lasting 2 minutes (14 days if used twice per day) on a fully charged battery. The battery indicator shows the battery status when you complete the 2-minute brushing session, when you pause the toothbrush, or while it is charging.

Note: It can take up to 24 hours to fully charge the battery before first use, but you can use the Philips Sonicare toothbrush before it is fully charged.

Charging

Simple line drawing of a mechanical component with a star-shaped head and base, no text or symbols present.

Charging on charger or UV Sanitizer

1 Plug the charger or sanitizer into an electrical outlet.
2 Place the handle on the charger or sanitizer.

• The handle emits 2 short beeps to confirm that the handle is placed properly.
• The flashing light of the battery indicator shows that the toothbrush is charging.
• When the handle is fully charged on the charger, the battery indicator lights up green for 30 seconds and then switches off.

Charging with the travel case

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and a directional arrow (no text or symbols)

Note: Accessories included may vary based on the model purchased.

1 Insert the USB cable to the charging travel case.
2 Connect the attached USB cable to the 5V DC input power either from:
- The USB adapter provided.
- A UL-listed or certified to ANSI/UL 60950-1 personal computer's standard USB connector.
- A UL-listed or certified to ANSI/UL 60950-1 LPS power supply with USB output port.
- A UL-listed or certified 1310 Class 2 power supply.

Important: The wall adapter must be a safe extra low voltage source, compatible with the electrical ratings marked on the bottom of the device.

3 Place the handle in the charging travel case.

• The handle emits 2 short beeps to confirm that the handle is placed properly.
• The flashing light of the battery indicator shows that the toothbrush is charging.

4 The travel case will charge your toothbrush until your toothbrush is fully charged.

- When the handle is fully charged, the battery indicator lights up green for 30 seconds and then switches off.

Note: Charging the handle with the charging travel case may take longer than on the charger.

Battery status

Battery status (handle on plugged-in charger/charging travel case)

When the handle is placed on the charger or in the charging travel case, the battery indicator shows the battery level.

Battery status Number of flashing LEDs

LED color

Low 1 Flashing green

Partially full 2 Flashing green

Full 3 Flashing green until full,

then green for 30

seconds and then

switches off

Battery status (when handle is not on plugged-in charger/charging travel case)

When the toothbrush is awake, the battery indicator at the bottom of the handle shows the battery level.

Battery status Number of LEDs LED color

Full 3 Solid green
Partially full 2 Solid green
Low 1 Solid green
Empty 1 with beeps Flashes amber
	Note: To save energy, the battery indicator will switch off when not in use.
	Note: When the battery is completely empty, the toothbrush switches off. Place the toothbrush on the charger to charge it.
	Note: To keep the battery fully charged at all times, you may keep your toothbrush on the charger when not in use.

Cleaning

Toothbrush handle

Line drawing of a medical procedure involving a tool and tubing (no text or symbols)

1 Remove the brush head and rinse the metal shaft area with warm water. Make sure you remove any residual toothpaste.

Caution: Do not push on the rubber seal on the metal shaft with sharp objects, as this may cause damage.

2 Wipe the entire surface of the handle with a damp cloth.

Note: Do not tap the handle on the sink to remove excess water.

Brush head

Illustration of two hands holding a tool with a ruler and connecting rod (no text or symbols)

1 Rinse the brush head and bristles after each use.
2 Remove the brush head from the handle and rinse the brush head connection with warm water at least once a week. Rinse the travel cap as often as needed.

Charger

1 Unplug the charger before you clean it.
2 Wipe the surface of the charger with a damp cloth.

Travel case

Rinse with warm water and use a damp cloth to clean inside of travel case.

Charging travel case

1 Unplug the charging travel case before cleaning.
2 Use damp cloth to wipe the surface of the travel case.

UV Sanitizer

Warning: Do not immerse the sanitizer in water or rinse it under the faucet.

Warning: Do not clean the sanitizer when the UV light bulb is hot.

For optimal effectiveness, it is recommended to clean your sanitizer weekly.

Hand inserting a component into an electronic device (no text or symbols visible)

1 Unplug the sanitizer.
2 Pull the drip tray straight out. Rinse the drip tray and wipe it clean with a damp cloth.
3 Clean all interior surfaces with a damp cloth.
4 Remove the protective screen in front of the UV light bulb.

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

To remove the screen, grasp the edges next to the snaps, gently squeeze and pull out the protective screen.

5 Remove the UV light bulb.

To remove the light bulb, grasp it and pull it out of the metal clasp.

6 Clean the protective screen and the UV light bulb with a damp cloth.

7 Reinsert the UV light bulb.

To reinsert the light bulb, align the bottom of the light bulb with the metal clasp and push the bulb into the clasp.

8 Reinsert the protective screen.

To reinsert the screen, align the pegs on the screen with the slots on the reflective surface near the UV light bulb. Push the screen straight into the slots on the sanitizer.

9 Place the drip tray back in the UV sanitizer.

10 After cleaning, make sure the sanitizer is completely dry before you connect it to the mains.

Storage

If you are not going to use the product for an extended period of time, unplug it from the electrical outlet, clean it and store it in a cool and dry place away from direct sunlight.

Replacement

Replace Philips Sonicare brush heads every 3 months to achieve optimal results. Use only Philips Sonicare replacement brush heads.

Locating the model number

Look on the bottom of the Philips Sonicare toothbrush handle for the model number (HX9600)

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty exclusions

What is not covered under warranty:

• In mouth attachments including brush heads and nozzles.
• Damage caused by use of unauthorized replacement parts or unauthorized brush heads.
• Damage caused by misuse, abuse, neglect, alterations or unauthorized repair.
• Normal wear and tear, including chips, scratches, abrasions, discoloration or fading.
• UV light bulb.

Recycling

• This symbol means that electrical products and batteries shall not be disposed of with normal household waste.
• Follow your country's rules for the separate collection of electrical products and batteries.
• The UV light bulb of the sanitizer contains mercury. Do not throw the UV light bulb away with the normal household waste at the end of its life. Hand it in at an official collection point for recycling.

Removing the rechargeable battery

The built-in rechargeable battery must only be removed by a qualified professional when the appliance is discarded. Before removing the battery, make sure that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the appliance and when you dispose of the rechargeable battery. Be sure to protect your eyes, hands, fingers, and the surface on which you work.

When you handle batteries, make sure that your hands, the product and the batteries are dry.

To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal objects (e.g. coins,

hairpins, rings). Do not wrap batteries in aluminum foil. Tape battery terminals or put batteries in a plastic bag before you discard them.

To remove the rechargeable battery, you need a towel or cloth, a hammer and a flat-head (standard) screwdriver. Observe basic safety precautions when you follow the procedure outlined below.

1 To deplete the rechargeable battery of any charge, remove the handle from the charger, turn on the toothbrush and let it run until it stops. Repeat this step until you can no longer turn on the toothbrush.
2 Remove and discard the brush head. Cover the entire handle with a towel or cloth.

3 Hold the top of the handle with one hand and strike the handle housing 0.5 inch above the bottom end. Strike firmly with a hammer on all 4 sides to eject the end cap.

Note: You may have to hit on the end several times to break the internal snap connections.

4 Remove the end cap from the toothbrush handle. If the end cap does not release easily from the housing, repeat step 3 until the end cap is released.

5 Holding the handle upside down, press the shaft down on a hard surface. If the internal components do not easily release from the housing, repeat step 3 until the internal components are released.
6 Wedge the screwdriver between the battery and the black frame at the bottom of the internal components. Then pry the screwdriver away from the battery to break the bottom of the black frame.
7 Insert the screwdriver between the bottom of the battery and the black frame to break the metal tab connecting the battery to the green printed circuit board. This will release the bottom end of the battery from the frame.
8 Grab the battery and pull it away from the internal components to break the second metal battery tab.

Caution: Be aware of the sharp edges of the battery tabs so as to avoid injury to your fingers.

9 Cover the battery contacts with tape to prevent any electrical short from residual battery charge.

The rechargeable battery can now be recycled and the rest of the product discarded appropriately.

Note: Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Giriş

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration of a hand holding a toothbrush with a directional arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a textured surface (no text or symbols)

Diagram showing dental arches with numbered labels for each tooth group

clean white* gum health clean white*

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human dentition with numbered labels indicating tooth positions and dental alignment

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with labeled parts 7 and 8, showing upper and lower teeth structures.

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Pure electrical circuit lines without any symbols

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circular arrow and a small circle connected by a line, no text or symbols present.

Illustration showing two-step procedure: hand holding a tool, then applying adhesive to a device with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, next to a cylindrical device (no text or symbols)

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rods (no text or symbols)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram showing a hand using a hammer to press or install a piece, labeled with parts ① and ②.

Illustration of a hand hammering a cylindrical object with a circular arrow indicating rotation (no text or symbols)

Illustration of hands fastening a cylindrical object with a belt, no text or symbols present

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and an inset showing a magnified view of the object (no text or symbols)

Diagram of a mechanical tool interacting with a curved component, showing a circular inset view (no text or symbols)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled icons for disposal or reuse.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration showing a toothbrush applying material to a tooth with a circular mark, and a checkmark indicating the correct step (no text or symbols present)

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a small object (no text or symbols present)

Hand-drawn diagram showing a power button with an 'OK' icon and a circular button labeled 'OK'.

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

Diagram of dental arching with tooth structure and tool (no text or labels)

Diagram showing two dental arch models with numbered labels indicating different tooth positions or regions.

clean white* gum health clean white* gum health

Clean a Deep Clean+ Gum Health White+

Clean a Deep Clean+ Gum Health White+

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or dental positioning

Diagram of human dentition with numbered labels indicating tooth layers and dental structure

Diagram of human dentition with numbered labels indicating tooth positions and dental alignment

Diagram of human dentition with numbered labels indicating tooth layers and dental structure

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with numbered labels indicating specific tooth positions or regions.

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human dentition with numbered labels indicating specific dental positions or regions

Illustration of a human upper dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and two curved lines, no text or symbols present

Diagram of a microphone with signal icon and magnified view (no text or symbols)

Simple diagram with a circular icon containing a parking sign and an arrow pointing to a star symbol, connected by a line to a vertical bar (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Simple diagram with a circular symbol containing an internal arrow and a small circle connected by a line (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Illustration of a handheld electronic device with a curved cable and plug, no text or symbols present

Line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting wires (no text or symbols)

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled waste bins

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a toothbrush applying material to a tooth with a circular mark and a checkmark (no text or symbols)

Illustration of a hand applying a toothbrush to a tooth, with an inset showing a magnified view of the tooth (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a finger pointing to it, likely indicating a button or function.

Illustration of a hand holding a tool interacting with a segmented object (no text or symbols)

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Diagram showing dental arch structures with numbered labels for each component

clean white* gum health clean white* gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and speech bubble (no text or symbols)

Simple diagram with a circular symbol containing a vehicle and a starburst, connected to a vertical line with a small arrow (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a vertical line with a circle containing a letter 'n' (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circular symbol and a vertical line, no text or labels present

Illustration showing two-step cleaning procedure: hand holding tool, then using a brush to clean battery (no text or symbols)

Technical line drawings of a device with two black-and-white components, one showing internal structure and the other showing a handle (no text or symbols)

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting wires (no text or symbols)

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Simple line drawing of a mechanical component or tool with a curved handle and base, no text or symbols present.

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled icons for disposal or reuse.

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Pure electrical circuit lines without any symbols

Illustration showing a toothbrush applying material to a tooth with a sensor icon, and a checkmark indicating the correct procedure (no text or symbols present)

Illustration of a hand using a pipette to apply a substance, with an inset showing a magnified view of a sample (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button with a minus sign, connected by a line.

Illustration of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

Diagram showing dental tool interacting with teeth (no text or labels)

Diagram showing dental arches with numbered labels for different tooth positions or regions

clean white+ gum health clean white+ gum health

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a toothbrush with a sensor icon and a magnified view of its tip (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Diagram showing a circular icon with a traffic symbol and a labeled circle with 'n' pointing to it.

- G3 Premium Gum Care: Gum Health Putzprogramm

Diagram showing a hand pressing a button on a bottle with a power symbol nearby

Illustration of two hands using a tool to measure a mechanical component, with no visible text or symbols.

Hand holding a device with a circular arrow pointing to the handle (no text or symbols visible)

Diagram of a mechanical component with two protruding parts and internal structure (no text or symbols)

Line drawing of a hand holding a small object with a hole, no text or symbols present

Simple line drawing of a device with a starburst symbol above it, showing a button or connector (no text or symbols present)

Illustration of a handheld electronic device with a hand holding a cable, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to lift or stand (no text or symbols present)

Ladegerät

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured surface (no text or symbols visible)

Diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled waste bins

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tool placement (no text or labels)

Diagram illustrating dental archway segmentation with numbered labels for each segment

clean white* gum health clean white* gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a sensor icon and connection point (no text or symbols)

www.philips.com/toothbrush-heads.

Omadused

Simple diagram with a circular symbol containing a vehicle and a starburst shape connected to a vertical line with a small arrow (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a connected circle with a plus sign (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circle containing an internal rectangle and a small circle connected by a line (no text or symbols)

Illustration showing two-step procedure: adding a tool to a cable or cable with a handle, then using a device to close the cable (no text or symbols present)

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a plug, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with tissue manipulation (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rod (no text or symbols)

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled icons for disposal or reuse.

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration of a hand holding a toothbrush with a directional arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a magnified view of the tooth (no text or symbols present)

Diagram showing a power button and a hand holding a tool with directional arrows indicating movement or force.

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

BrushPacer

Diagram showing dental arches with numbered labels for different tooth positions or dental positioning

clean white* gum health clean white* gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a circular icon showing signal waves, no text or symbols present

Simple diagram with a circular icon containing a road sign and a starburst symbol, connected by a line to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

- W3 Premium White o W(c) DiamondClean(compact): Modo White+ (Blanqueado+)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' button (no text or symbols)

Simple diagram with a circular symbol and a small circle connected by lines, no text or labels present.

Simple diagram with a circular icon and a small circle connected by an arrow (no text or symbols)

Illustration of two hands using a tool to interact with a device, no text or symbols present

Three-step illustration showing a hand holding a device, then two views of a mechanical component with teeth and a base (no text or symbols)

Simple line drawing of a device with a starburst symbol above it, showing a button or connector (no text or symbols present)

Illustration of a handheld electric shaver with a hand holding the cable (no text or symbols)

Line drawing of a hand holding a pen over a bundle of noodles or noodles (no text or symbols)

Illustration of two hands using a tool to connect two objects, no text or symbols present

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a camera lens with a black arrow pointing to the lens area (no text or symbols present)

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and an inset showing a magnified view of the object (no text or symbols present)

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

Diagram illustrating a recycling process with battery, recycling symbol, and recycling bin, accompanied by a magnified circle showing a trash bin marked with an 'X'.

www.philips.com/support

Simple line drawing of an open book and a circuit symbol (no text or labels)

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a hand pointing to a circular button, likely indicating a control or action.

Illustration of a hand interacting with a segmented body, showing motion direction (no text or symbols)

Diagram showing dental alignment with a toothbrush and teeth, no text or symbols present

Diagram showing dental arches with numbered labels for orthodontic or dental alignment reference

clean white+ gum health clean white+ gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line drawing of a parking lot with a star-shaped circular symbol and a small star-like shape connected by a line (no text or symbols)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by an arrow (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Technical diagram showing four steps of a hairpin tool application: wire cutting, pressing a button, inserting a plug into a socket, and finally adjusting the base.

Simple line drawing of a device with a plug and cable, no text or symbols present

Illustration of a handheld electric toothbrush with a curved handle, no text or symbols present

Line drawing of a fork being inserted into a tube (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Hand inserting a component into a device housing (no text or symbols visible)

Hand holding a camera module with a black arrow pointing to the screen area (no text or symbols visible)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled components including a 'X' icon.

Simple line drawing of an open book with no text or symbols visible

Odvojiv dio jedinice za napajanje: „xxxxx” označava broj modela punjača odobrenih za uporabu. (TCBxxxx, HX6100, HX6110, HX6160 ili WAAxxxx)

Namjena

Električne četkice za zube Sonicare ExpertClean namijenjene su za uklanjanje naslaga i ostataka hrane sa zuba kako bi se smanjilo propadanje zuba te poboljšalo i održavalo oralno zdravlje. Električne četkice za zube Sonicare ExpertClean namijenjene su za osobnu uporabu. Djeca četkicu trebaju upotrebljavati uz nadzor odrasle osobe.

Vaš Philips Sonicare (Slika 1)

1 drška
2 gumb za uključivanje/isključivanje
3 indikator intenziteta
4 gumb za način rada / intenzitet
5 indikator načina rada
6 podsjetnik o zamjeni glave četkice.
7 Indikator baterije

Dodaci:

8 poklopac glave četkice
9 pametne glave četkice
10 simbol značajke BrushSync
11 postolje za punjenje
12 putna kutija
13 Putna kutija za punjenje
14 zidni USB-A prilagodnik
15 USB-A kabel
16 Uređaj za UV dezinfekciju i punjač

Napomena: priloženi dodaci mogu se razlikovati ovisno o kupljenom modelu.

Aplikacija Sonicare – početak

Aplikacija Sonicare uparuje se s vašom četkicom za zube kako bi vam omogućila povezivanje. Povezivanjem četkice za zube s vašim računom u aplikaciji Sonicare moći ćete:

Illustration showing a toothbrush applying material to a tooth with a circular mark and a checkmark (no text or symbols present)

Illustration of a hand using a pen to apply a product to a toothbrush, with an inset showing a textured surface (no text or symbols)

1 Smočite čekinje i nanesite malu količinu paste za zube.

45°

Hand-drawn diagram showing a power button with an 'Power' icon and a finger pointing to it, likely indicating a button or function.

Illustration of a hand holding a curved object with directional arrows indicating movement or force (no text or symbols)

Diagram showing dental tool interacting with teeth (no text or labels)

Diagram showing dental arch structures with numbered labels for different dental positions

clean white+ gum health clean white+ gum health

Da biste ručno promijenili način rada, pritisnite gumb za način rada / intenzitet dok je četkica za zube isključena. Sve glave četkice rade u svakom načinu rada.

Clean i Deep Gum Health White+ Clean+

Prednost uklanjanje naslaga		uklanjanje naslaga i masaža desni	uklanjanje naslaga i površinskih mrlja
Preporučena razina intenziteta	visoka visoka visoka
Ukupno vrijeme četkanja	Clean: 2 minuteDeep Clean+: 3 minute*	3 minute i 20 sekundi	2 minute i 40 sekundi

Clean i Deep Clean+ Gum Health White+

Kako četkati Clean: četkajte svaki segment20 sekundi.	Četkajte svaki segment20 sekundi,	Četkajte svaki segment20 sekundi,
Deep Clean+:četkajte svaki segment30 sekundi.*	a zatim segmente7,8,9 i 10 četkajte svakog po20 sekundi.	a zatim segmente7 i 8 četkajte svakog po20 sekundi.

*Napomena: pri četkanju uz aplikaciju Philips Sonicare u načinu rada Deep Clean+ vrijeme četkanja bit će 2 minute ako ste povezani s aplikacijom odnosno 3 minute ako niste povezani s aplikacijom.

Jačine

Vaša električna četkica za zube ima tri različite postavke intenziteta:

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and magnified view (no text or symbols)

Tehnologija BrushSync omogućava glavi četkice da komunicira s drškom s pomoću mikročipa. Šimbol na donjem dijelu glave četkice naznačuje da je glava četkice opremljena tom tehnologijom.

Tehnologija BrushSync omogućuje:

Pure electrical circuit lines without any symbols

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular symbol and a small circle connected by lines, no text or labels present.

Simple diagram with a circle containing an internal rectangle and a small circle connected by a line (no text or symbols)

Ako lijeva LED žaruljica indikatora baterije jednom zatreperi u narančastoj boji i oglase se tri zvučna signala od visokog do niskog, to znači da je značajka deaktivirana.

Illustration showing two-step cleaning procedure: hand holding tool, then using a device to clean or store (no text or symbols)

1 Nakon četkanja isperite glavu četkice i otresite višak vode.

Upozorenje: Pri čišćenju glave četkice u uređaju za dezinfekciju pazite da kapica glave četkice nije na četkici.

2 Stavite prst u utor za vratašca pri vrhu uređaja za dezinfekciju i otvorite vratašca.

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object on a cylindrical base (no text or symbols)

3 Stavite glavu četkice na jedan od dva nastavka u uređaju za dezinfekciju tako da vlakna budu okrenuta prema žarulji.

Simple line drawing of a device with a starburst symbol above it, showing a button or connector (no text or symbols present)

Punjenje na punjaču ili u uređaju za UV dezinfekciju

1 Priključite punjač ili uređaj za dezinfekciju u električnu utičnicu.
2 Postavite dršku na punjač ili uređaj za dezinfekciju.
- Drška će emitirati dva kratka zvučna signala kao potvrdu da je drška pravilno postavljena.
- Treperenje indikatora baterije pokazuje da se četkica puni.
- Kad je drška na punjaču potpuno napunjena, indikator baterije svijetli 30 sekundi u zelenoj boji prije nego što se isključi.

Diagram of a handheld electronic device with a curved handle and cable, showing internal components (no text or symbols)

Napomena: priloženi dodaci mogu se razlikovati ovisno o kupljenom modelu.

1 Umetnite USB kabel u putnu torbicu za punjenje.
2 Povežite umetnuti USB kabel s ulaznim napajanjem istosmjerne struje od 5 V iz:
- isporučenog USB prilagodnika
- standardnog USB priključka osobnog računala s UL oznakom ili certifikatom ANSI/UL 60950-1
- LPS napajanja s USB izlaznim priključkom s UL oznakom ili certifikatom ANSI/UL 60950-1
- napajanja klase 2 s oznakom UL ili certifikatom 1310.

Line drawing of a person holding a tool near a bundle of noodles (no text or symbols)

1 Odvojite glavu četkice i isperite metalnu osovinu toplom vodom. Pobrinite se da uklonite svu preostalu zubnu pastu.

Oprez: Nemojte koristiti oštre predmete za guranje gumene brtve na metalnu osovinu jer to može prouzročiti oštećenja.

2 Cijelu površinu drške obrišite vlažnom tkaninom.

Napomena: Nemojte lupkati drškom po umivaoniku kako biste uklonili višak vode.

Glava četkice

Illustration of two hands holding a rifle with a diagonal line above, no text or symbols present

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Da biste uklonili štitnik, uhvatite rubove štitnika pokraj nosača, nježno pritisnite i zatim izvucite štitnik.

5 Izvadite UV žarulju. Kako biste izvadili žarulju, primite ju i izvucite iz metalne kopče.
6 Štitnik i UV žarulju očistite vlažnom krpom.
7 Vratite UV žarulju na mjesto. Kako biste vratili žarulju, poravnajte dno žarulje s metalnom kopčom i gurnite žarulju u kopču.
8 Vratite štitnik na mjesto. Kako biste vratili štitnik, poravnajte klinove na štitniku s utorima na površini koja stvara odsjaj blizu UV žarulje. Gurnite štitnik izravno u utore na uređaju za dezinfekciju.
9 Stavite pladanj za ocjeđivanje natrag u uređaj za UV dezinfekciju.
10 Nakon čišćenja provjerite je li uređaj za dezinfekciju potpuno suh prije no što ga priključite na napajanje.

Pohrana

Diagram of a mechanical or electrical component with a curved arrow indicating motion (no text or symbols)

Diagram illustrating a recycling process with a battery, a recycling symbol, and an open box containing plastic waste.

Punjiva baterija se sada može reciklirati a ostatak proizvoda se može odbaciti na odgovarajući način.

Napomena: Aparat koji se više ne može koristiti nemojte odlagati s uobičajenim otpadom iz kućanstva, nego ga odnesite u predviđeno odlagalište na recikliranje. Time pomažete u očuvanju okoliša.

Introduzione

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a tool to apply a substance to a toothbrush, with an inset showing a magnified view of the tissue (no text or symbols present)

clean white* gum health clean white* gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram showing a microphone with signal icon and speech bubble, likely illustrating wireless or audio signal detection.

Simple line diagram showing a circular symbol with a traffic light icon and a starburst shape connected to a vertical line (no text or labels)

Diagram showing a hand pressing a button on a cylindrical object with a power symbol, likely illustrating a power switch or battery operation.

Simple diagram with a circle containing a white rectangle and a small circular element connected by a line (no text or symbols)

Simple diagram with a circle containing an 'EXIT' symbol and a small circle connected by a line (no text or labels)

Three-step diagram illustrating a mechanical assembly process: tool insertion, device pressing, and final assembled view (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands holding a tool with a pointed tip and a pointed tip, connected by a diagonal line (no text or symbols)

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled components including a recycling bin and a 'X' symbol.

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a toothbrush applying material to a tooth with a circular mark, and a checkmark indicating the correct step (no text or symbols present)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet and bar chart (no text or symbols)

1 Samitriniet sarus un uzklājiet mazliet zobu pastas.

45°

Hand-drawn diagram showing a power button with an icon and a finger pointing to a circular button, likely indicating a switch or control interface.

Illustration of a hand holding a curved object with directional arrows indicating movement or force (no text or symbols)

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

Diagram showing dental arches with numbered labels for orthodontic or dental alignment reference

clean white+ gum health clean white+ gum health

Simple diagram with three circles and a central oval, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular icon with a road symbol and a star-like shape connected by a line (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Diagram showing a hand pressing a button on a cylindrical object with an 'Power' icon, likely illustrating a power switch or control mechanism.

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with two protruding parts and internal structure (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to lift or adjust a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a camera module with a textured screen and arrow indicating compression (no text or symbols)

Diagram illustrating two steps of a hand tool application: adding a curved object to form a workpiece, then using a hammer to cut the workpiece.

Simple line drawing of an open book with no text or symbols visible

Illustration showing a hand brushing a tooth with a brush and arrow, and a close-up of the tooth being smoothed (no text or symbols)

Illustration showing four steps of a dental tool manipulation: tool tip, angle measurement, power button, and tool grip.

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Diagram showing dental arches with numbered labels for different tooth positions or dental positioning

clean white+ gum health clean white+ gum health

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human dentition with numbered labels indicating different dental positions or regions.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with labeled parts ⑦ and ⑧, showing upper and lower teeth structures.

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position, no text or symbols present.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

⑨ ⑩

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Pure electrical circuit lines without any symbols

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Illustration of two hands using a tool to lift or rotate a mechanical component, with no visible text or symbols.

Illustration of a hand pressing down on a device component with an arrow indicating the process (no text or symbols present)

Cross-sectional diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object on a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Ikrovimas naudojant ikroviklj arba UV nukenksminimo jrenginj

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Baterijos büsena

Line drawing of a person holding a pen over their tentacles (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a camera module with a textured screen and arrow indicating compression (no text or symbols)

Simple line drawing of a mechanical component or tool interacting with a surface (no text or symbols)

Illustration of a hand holding a small electronic component with an arrow indicating rotation (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled icons for recycling.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a magnified view of the product (no text or symbols present)

Diagram showing dental archway segmentation with numbered labels for each segment

clean white* gum health clean white* gum health

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and sensor symbol (no text or labels)

Pure electrical circuit lines without any symbols

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

Diagram showing a hand pressing a button on a cylindrical object with an 'Power' icon, likely illustrating a power switch or control mechanism.

Simple diagram with a circular symbol and a vertical line, no text or labels present

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Illustration of two hands using a tool to interact with a vertical line, no text or symbols present

Illustration of a hand pressing down on a device component with an arrow indicating left motion (no text or symbols)

Diagram of a mechanical or electrical component with two symmetrical components, no visible text or symbols

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Illustration of a handheld electric shaver with a hand holding the cable (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to connect two objects, with no visible text or symbols

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a hand holding a device with a black arrow indicating rotation (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled icons for recycling.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

website: www.philips.com/support

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a small object (no text or symbols present)

Diagram illustrating three-step medical procedure steps: eye manipulation, power button, and endoscopic view with 45° angle indicator.

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

Diagram showing dental arches with numbered labels for each tooth group

clean white+ gum health clean white+ gum health

Clean en Deep Gum Health White+ Clean+

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human dental arch with numbered labels indicating different tooth positions or dental regions.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Deep Clean+: poets elk segment 30 seconden lang.*

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with numbered labels indicating specific tooth positions or regions.

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper dental arch.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating specific dental positions or regions

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and magnified view (no text or symbols)

Simple line diagram showing a circular symbol with a vehicle icon and a star-like shape connected by a dot (no text or labels)

Simple line drawing of a hand pressing a button on a bottle, with a power button icon nearby (no text or symbols)

Simple diagram with a circle containing an internal symbol and a small arrow pointing to a vertical line (no text or labels)

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Illustration of two hands holding a tool with a pointed tip and a pointed tip, intersected by a diagonal line (no text or symbols)

Diagram showing a device with a starburst symbol and an arrow pointing to a small component, likely illustrating a process or setup.

Opladen op oplader of UV-reiniger

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Line drawing of a person holding a tool near a bundle of noodles (no text or symbols)

Illustration of two hands using a tool to lift or adjust a mechanical component (no text or symbols present)

Hand inserting a component into a device (no text or symbols visible)

Hand holding a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a cylindrical object with arrows indicating direction, and an inset showing a magnified view of the object (no text or symbols present)

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

Illustration of a hand holding a small electronic component with a black arrow indicating rotation (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled components including a 'X' icon.

Simple line drawing of an open book with no text or symbols visible

Diagram showing a hand brushing a tooth with a brush, and a close-up of the tooth being checked with a checkmark.

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a hand pointing to a circular button, likely indicating a button or function.

Illustration of a hand interacting with a segmented body, showing motion direction (no text or symbols)

Diagram of dental arching with tooth structure and tool (no text or labels)

Diagram showing dental arches with numbered labels for orthodontic or dental alignment reference

clean waste* gum health clean white* gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple diagram with a circular element and a small circle connected by an arrow (no text or symbols)

Simple diagram with a circle containing a minus sign and a small circle connected by a line (no text or symbols)

Illustration of a dental tool manipulation step showing tool positioning, cutting into a device (no text or symbols)

Simple line drawing of a device with an arrow pointing to a small component (no text or symbols)

Lading i lader eller UV-renser

1 Koble laderen eller renseren til et strømuttak.
2 Plasser håndtaket på laderen eller i renseren.
- Håndtaket avgir 2 korte pip for å bekrefte at håndtaket er riktig plassert.
- Det blinkende lyset på batteriindikatoren viser at tannbørsten lades.
- Når håndtaket er fulladet på laderen, lyser batteriindikatoren grønt i 30 sekunder og slår seg deretter av.

Illustration of a handheld electric toothbrush with a screwdriver inserted, showing no text or symbols.

Simple line drawing of a plant stem being inserted into a bulb (no text or symbols)

1 Ta av børstehodet, og skyll metallstangen i varmt vann. Pass på at du har fjernet alle tannkremrester.

Illustration of two hands holding a tool with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool interacting with a spring, showing a magnified view of the mechanism (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled components including a recycling bin and a 'X' symbol.

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

1 Cho'tka tuklari dastaning old qismi bilan bir xil yo'nalishda bo'lishi uchun cho'tka kallagini tekislang.

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

2 Cho'tka kallagini u boshqa kirmagunigacha metall valga qattiq bosing.

Izoh: Cho'tka kallagi va dasta orasida kichik tirqish ko'rinishi – normal holat.

Philips Sonicare tish pastangizdan foydalanish

Agar Sonicare tish pastasidan birinchi marta foydalanayotgan bo'lsangiz, elektr bo'Imagan tish cho'tkasidan foydalanishga qaraganda ko'proq tebranish sezish normal holat. Odatda birinchi marta foydalanayotgan foydalanuvchilar ortiqcha bosim beradi. Faqat yumshoq bosib bering va tish cho'tkasi siz uchun tozalashiga imkon bering. Eng yaxshi taassurot uchun tish tozalash ko'rsatmalariga amal qiling.

Yangi Sonicare motorli tish cho'tkasiga o'tishingizga yordam berish uchun ilk 1-2 hafta pastroq sozlamada foydalaning, keyin yuqoriroq sozlamaga o'ting.

Tish tozalash ko'rsatmalari

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a small object (no text or symbols present)

1 Cho'tkani namlang va unga kam miqdorda tish pastasi surting.

Diagram illustrating three-step medical procedure steps: eye manipulation, power button, and endoscopic view with 45° angle indicator.

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

2 Tish cho'tkasini tishlar qarshisida kichik (45 daraja) burchak ostida tuting. Cho'tkalar milk chizig'iga yoki uning tagiga yetishi uchun uni qattiq bosing.

Izoh: Cho'tka markazini tishlarga doimi to'liq tekkizib turing.

3 Philips Sonicare qurilmasini yoqish uchun yoqish/o'chirish tugmasini bosing.

4 Cho'tkani tishlar va milk chizig'iga yengil tutib turing. Cho'tkalar tishlar orasiga kirishi uchun cho'tka kallagini oldinga-orqaqa kichik harakatlar bilan tishlaringizni tozalang. Bu harakatlarni tish tozalash siklingiz yakunlangunga qadar bajaring.

Diagram showing dental arches with numbered labels for each tooth group

clean white* gum health clean white*

Motorli tish cho'tkangiz 4 tagacha turli rejim bilan jihozlangan: Clean, Deep Clean+, Gum Health va White+ (faqat alohida modellarda).

Siz ishlatayotgan aqli cho'tka kallagidan kelib chiqib, maqbul rejim va jadallik BrushSync texnologiyasi tomonidan avtomatik ravishda tanlanadi.

Bu rejimni oddiy usulda almashtirish uchun tish cho'tkasi o'chiq paytda rejim/jadallik tugmasini bosing. Barcha cho'tka kallaklari alohida rejim bilan ishlaydi.

Clean va Deep Gum Health White+ Clean+

Foydasi Qasmoqlarniketkazish		Qasmoqlarniketkazish vamilklarni uqalash	Qasmoqlarni va yuzadagidog’larniketkazish
Tavsiya etilganjadallik darajasi	Yuqori Yuqori Yuqori
Jami tishtozalash vaqti	Clean: 2 daqigaDeep Clean+: 3daqia*	3 daqiga va 20soniya	2 daqiga va 40soniya

Clean va Deep Clean+

Gum Health White+

Tozalash usuli Clean: Har bir segmentni 20 soniyadan tozalang.

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human dentition with numbered labels indicating different dental positions or regions.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Deep clean+: Har bir segmentni 30 soniyadan tozalang.*

7,8,9- va 10-segmentlarning har birini 20 soniyadan tozalang.

7- va 8- segmentlarning har birini 20 soniyadan tozalang.

Diagram of dental arch with numbered labels indicating different tooth positions or dental zones

Diagram of a dental arch with labeled parts 7 and 8, showing upper and lower teeth structures.

Illustration of a dental arch with a numbered callout (7) indicating a specific tooth position (no text or symbols beyond the number)

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

⑨ ⑩

Illustration of a human tooth with labeled number 8 (no text or symbols beyond the number)

*Izoh: Philips Sonicare ilovasi bilan "Deep Clean+" rejimida tozalaganingizda tish tozalash vaqti ilovaga ulanganda 2 daqiga va ilovaga ulanmaganda 3 daqiga vaqt oladi

Intensivlik

Motorli tish cho'tkangiz 3 turdagi jadallik sozlamalari bilan jihozlangan:

• past jadallik (bitta chiziq)
• o'rta jadallik (ikkita chiziq)
  -yuqori jadallik (uchta chiziq)

Simple diagram with three circles and a central oval, no text or symbols present

Dastaga biriktirilganida smart cho'tka kallagi tavsiya etilgan jadallikni avtomatik ravishda tanlaydi/ Agar boshqa jadallikka o'zgartirishni xohlasangiz, tish tozalash paytida rejim/jadallik tugmasini bosish orqali buni bajarishingiz mumkin. Dasta o'chirilgani yoki pauza qilingani uchun jadallikni o'zgartirish imkonsiz.

BrushSync texnologiyasi

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

BrushSync texnologiyasi cho'tka kallagining dasta bilan mikrochip orqali muloqot qilishiga yordam beradi.

Cho'tka kallagi ostidagi belgisi cho'tka kallagi ushbu texnologiya bilan jihozlanganini anglatadi.

BrushSync texnologiyasi quyidagilarni faollashtiradi:

• Cho'tka kallagini almashtirishni eslatish funksiyasi
• BrushSync rejimini jiftlash

Philips Sonicare BrushSync texnologiyasiga ega keng turdagi smart cho'tka kallaklarini taklif qiladi. Tish cho'tkasining cho'tka kallaklari to'liq ko'lami bilan tanishish va sizga eng mos keladigan cho'tka kallagini topish uchun www.philips.com/toothbrush-heads veb-saytiga kiring.

Funksiyalar

• Bosim sensori bildirgisi
• BrushPacer
• SmarTimer
• EasyStart
• Cho'tka kallagini almashtirishni eslatish funksiyasi
• Cho'tka kallagini juftlash rejimi

Simple diagram with a circular symbol containing a parking sign and an arrow pointing to a star-like shape (no text or labels)

Sonicare tish cho'tkangiz miklar va tishlaringiz shikastlanishining oldini olish uchun tish tozalash vaqtida qo'llangan bosimni o'Ichaydi.

Ortiqcha bosim qo'llasangiz, bosimni kamaytirmaguningizgacha dasta tebranishini o'zgartiradi va dastadagi cho'tka kallaklarini almashtirish eslatma chirog'i sariq rangda miltillaydi.

Izoh: Mahsulotingizda bosim sensori faol holatda taqdim etiladi. Bu funksiyani faolsizlantirish uchun (qarang "Funksiyalarni faollashtirish yoki faolsizlantirish").

BrushPacer

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Izoh: Bu funksiya BrushSync texnologiyasiga ega Philips Sonicare aqlli cho'tka kallaklari bilan ishlaydi.

1 Yangi smart cho'tka kallagini birinchi marta biriktirganingizda dasta sizda BrushSync texnologiyasiga ega Philips cho'tka borligini aniqlaydi va cho'tka kallagi eskirishini kuzatadi.
2 Vaqt o'tgani sari siz qo'llagan bosim va cho'tka ishlatilgan jami vaqtga qarab dasta cho'tka kallagingizni o'zgartirish uchun optimal vaqtni aniqlash maqsadida cho'tka kallagini kuzatadi. Bu funksiya tishlaringizni eng yaxshi tozalash va parvarishlashni kafolatlaydi.
3 Cho'tka kallagini almashtirish haqida eslatuvchi indikator sariq rangda yonganida cho'tka kallagingizni almashtirishingiz kerak.

Izoh: Barcha aqlli cho'tka kallaklari cho'tka kallaklarini almashtirishni eslatish funksiyasi yoqilgan holatda yetkaziladi. Cho'tka kallagini almashtirishni eslatish funksiyasini faolsizlantirish uchun qarang: "Funksiyalarni faollashtirish yoki faolsizlantirish".

Cho'tka kallagini juftlash rejimi

BrushSync texnologiyasiga ega cho'tka kallaklari, dasta bilan muloqot qiladigan hamda uni tavsiya qilingan rejim va jadallik bilan dastaga juftlaydigan mikrochip bilan jihozlangan. BrushSync texnologiyasiga ega ko'pchilik cho'tka kallaklari Clean rejimida avtomatik juftlanadi. Ma'lum afzalliklarga ega cho'tka kallaklari tegishli rejim bilan juftlanadi (mavjud bo'lganda), masalan:

• G3 Premium Gum Care: Gum Health rejimi
• W3 Premium White yoki W(c) DiamondClean (ixcham): White+ rejimi

Izoh: Agar tavsiya etilgan sozlamadan rejim/jadallikni o'zgartirishni tanlasangiz, cho'tka kallagi kelgusida tozalash seanslari uchun tanlagan sozlamangizni yodda saqlaydi.

Funksiyalarni faollashtirish yoki faolsizlantirish

Diagram showing a power button with an icon and a hand pointing to it, likely illustrating a control or operation step.

2-bosqich: Quyidagi uchun yoqish/o'chirish tugmasini bosib turing:

EasyStart Cho'tka kallagini almashtirishni eslatish funksiyasi

Simple diagram with a circle containing a minus sign and a small circle connected by a line (no text or symbols)

Agar batareya quvvati indikatori uchun chap LED yashil rangda 2 marta miltillaganini ko'rsangiz va 3 ta pastdan yuqoriga ohangni eshitsangiz, demak funksiya faollashtirilgan.

YOKI

Simple diagram with a circle containing an internal symbol and a small circle connected by a line (no text or labels)

Agar batareya quvvati indikatori uchun chap LED sariq rangda 1 marta miltillaganini ko'rsangiz va 3 ta yuqoridan pastga ohangni eshitsangiz, demak, funksiya faolsizlantirilgan.

Ultrabinafsha sanitayzer

Izoh: Qadoqdagi aksessuarlar xarid qilingan modelga garab farqlanishi mumkin.

Ultrabinafsha nur sanitayzeri bilan cho'tka kallagingizni har foydalanishda tozalashingiz mumkin.

Quyidagi holatlarda sanitayzerni uzing, foydalanishni to'xtating va Mijozlarga yordam xizmatiga telefon qiling:

• Ultrabinafsha chiroq eshik ochilganda ham yonib tursa.
• Oyna singan bo'lsa yoki sanitayzerda bo'lmasa.
• Sanitayzer ishlayotganida tutasa yoki undan kuygan hid kelsa.

Izoh: Ultrabinafsha nur odam ko'ziga va terisiga zararli bo'lishi mumkin. Bu qurilmani har doim bolalardan uzoqda tuting.

1 Tish tozalagandan keyin cho'tka kallagini chaying va ortiqcha suvni silkiting.

Illustration showing two-step cleaning procedure: hand holding tool, then using a brush to clean battery (no text or symbols)

Ogohlantirish: Cho'tka kallagi sanitayzerda tozalanayotganida cho'tka kallagi qopqog'i cho'tka kallagida emasligini tekshiring.

Diagram of a mechanical or electrical component with two vertical slots and internal structure (no text or symbols)

Line drawing of a hand holding a small object on a cylindrical base (no text or symbols)

3 Cho'tka kallagini sanitayzerdagi 2 ta ilgakdan biriga cho'tkalarini chiroqqa qaratgan holda joylang.

Izoh: Sanitayzerda faqat Philips Sonicare biriktiriladigan cho'tka kallaklarini tozalang.

Izoh: Sonicare for Kids cho'tka kallaklarini sanitayzerda tozalamang.

4 Sanitayer mos keladigan kuchlanishdagi rozetkaga ulanganini tekshiring.
5 Eshikni yoping va ultrabinafsha nur tozalash siklini tanlash uchun yashil quvvatni yoqish/o'chirish tugmasini bir marta bosing.

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

2 Dastani quvvatlagich yoki sanitayzerga joylang.

• Dasta quvvatlash moslamasiga to'g'ri o'rnatilganini tasdiqlash uchun 2 marta qisqa signal chaladi.
• Batareyaning miltillovchi indikatori tish cho'tkasi quvvatlanayotganini bildiradi.
• Quvvatlagichdagi dasta to'liq quvvatlansa, batareya indikatori 30 soniya yashil rangda yonadi va keyin o'chadi.

Sayohat g'ilofi bilan quvvatlash

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Izoh: Qadoqdagi aksessuarlar xarid qilingan modelga qarab farqlanishi mumkin.

1 USB kabelni sayohat quvvatlagich g'ilofiga kiriting.
2 Biriktirilgan USB kabelni quyidagi 5V kuchlanishli doimiy tokka ulang:

- Taqdim etiladigan USB adapter.

- UL bilan qayd etilgan yoki ANSI/UL 60950-1 bilan sertifikatlangan shaxsiy kompyuter USB konnektori.

- UL bilan qayd etilgan yoki ANSI/UL 60950-1 LPS bilan sertifikatlangan, USB chiqish portiga ega quvvat ta'minoti.

- UL bilan qayd etilgan yoki 1310 Toifa 2 bilan sertifikatlangan quvvat ta'minoti.

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

1 Cho'tka kallagini chiqarib oling va metall val atrofini iliq suv bilan yuving. Har qanday tish pastasi qoldig'ini tozalaganingizni tekshiring.

Ogohlantirish: Metall valdagi rezina zichlagichni o'tkir narsalar bilan bosmang, bu shikastlanishga olib kelishi mumkin.

2 Dastaning butun yuzasini nam mato bilan artib oling.

Izoh: Ortiqcha suvni yo'qotish uchun dastani rakovinaga urmang.

Cho'tka kallagi

Illustration of two hands using a tool to lift or lift a curved object, with no visible text or symbols.

1 Cho'tka kallagi va cho'tkani har foydalanishdan keyin yuving.
2 Cho'tka kallagini dastadan chiqarib oling va cho'tka kallagi ulanish qismini kamida haftada bir marta iliq suv bilan yuving. Sayohat qopqog'ini zarur bo'lgancha tez-tez yuvib tashlang.

Quvvatlash moslamasi

1 Tozalashdan avval, quvvatlagichni tarmoqdan uzing.
2 Quvvatlash moslamasining butun yuzasini nam mato bilan artib oling.

Sayohat g'ilofi

Iliq suv bilan yuving va sayohat g'ilofi ichini tozalash uchun nam matodan foydalaning.

Quvvatlash sayohat g'ilofi

1 Tozalashdan oldin sayohat quvvatlagich g'ilofini uzing.
2 Sayohat g'ilofi yuzasini artish uchun nam matodan foydalaning.

Ultrabinafsha sanitayzer

Ogohlantirish: Sanitayzerni suvga botirmang yoki jo'mrak ostida chaymang.

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Ogohlantirish: Sanitayzerning ultrabinafsha chirog'i issiqligida sanitayzerni tozalamang.

Optimal samaradorlik uchun sanitayzeringizni har hafta tozalash tavsiya etiladi.

1 Sanitayzerni tarmoqdan uzing.
2 Tomchi tomini to'g'riga tortib chiqaring. Tomchi novini chaying va uni nam mato bilan tozalab arting.
3 Barcha ichki yuzalarini nam mato bilan tozalang.
4 Ultrabinafsha chiroqdan himoya plyonkasini chiqarib oling.

Plyonkani chiqarib olish uchun qisqichlar yonidagi chetlaridan ushlab, himoya plyonkasini tortib oling.

5 Ultrabinafsha chiroqni chiqarib oling.
Chiroqni chiqarib olish uchun uni ushlang va metall qisqichdan tortib chiqaring.
6 Himoya plyonkasi va ultrabinafsha chiroqni nam mato bilan tozalang.
7 Ultrabinafsha chiroqni qayta kiriting.
Chiroqni qayta kiritish uchun chiroq quyi qismini metall qisqich bilan tekislang va chiroqni qisqichga itaring.
8 Himoya plyonkasini qayta kiriting.
Plyonkani qayta kiritish uchun plyonkadagi ilgaklarni ultrabinafsha chiroq yaqinidagi aks ettiruvchi yuzadagi uyalar bilan tekislang. Plyonkani to'g'ri sanitayzerdagii uyalarga itaring.
9 Tomchi novini ultrabinafsha nur sanitayeriga qayta joylang.
10 Tozalashdan keyin sanitayzer elektr tarmoqqa ulanishdan oldin to'liq quriganiga ishonch hosil qiling.

Xotira

Illustration of a hand holding a device with a black arrow indicating rotation (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and recycling bin, accompanied by an icon of a trash can.

7 Batareyani yashil bosma plata bilan ulab turadigan metall tilchani sindirish uchun otvertkani batareya osti va qora korpus orasiga kiriting. Bu batareyaning ostki uchini korpusdan chiqarib oladi.
8 Ikkinchi metall tilchani sindirish uchun batareyani oling va uni ichki qismlarga teskari tarafga torting.

Ogohlantirish: Barmog'ingizni tilib olmaslik uchun batareya tilchasining o'tkir qirralaridan ehtiyot bo'ling.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a hand brushing a tooth with a brush, and a close-up of the tooth being examined with a circular sensor (no text or symbols present)

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a close-up of a textured object (no text or symbols present)

Diagram showing dental arches with numbered labels for different tooth positions or dental positioning

clean white+ gum health clean white+ gum health

Simple diagram with three circles and a central oval, no text or symbols present

Simple line drawing of a microphone with a circular icon showing wireless signal (no text or symbols)

Simple line diagram showing a circular icon with a parking sign and a star-shaped symbol connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by an arrow (no text or labels)

Diagram showing a power button and a hand interacting with a cylindrical device, likely illustrating a control or operation process.

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and a directional arrow (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with a surgical instrument (no text or symbols present)

Illustration of hands using a tool to connect two objects, no text or symbols present

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a device with a black arrow indicating rotation (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and recycling bin, accompanied by a circled 'X' indicating no disposal.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a magnified view of the product (no text or symbols present)

Diagram showing a power button and a hand holding a tool, illustrating electrical or mechanical operation steps.

Diagram of dental arching with tooth structure and tool (no text or labels)

Diagram showing dental arches with numbered labels for each tooth group

clean white* gum health clean white* gum health

Clean e Deep Gum Health White+ Clean+

Clean e Deep Clean+ Gum Health White+

Simple diagram with three circles and two vertical lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line drawing of a gear and gear symbol with no text or labels

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

Diagram showing a hand pressing a button on a cylindrical object with an 'Power' icon, likely illustrating a power switch or control mechanism.

Simple diagram with a circular arrow and a small circle connected by a line, no text or symbols present.

Simple diagram with a circular icon and a vertical line, no text or symbols present

Illustration showing two-step cleaning procedure: hand holding tool, then using a device to clean battery (no text or symbols)

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, no text or symbols present

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Diagram of a handheld electronic device with a hand holding a plug, showing internal components and an arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a pen inserted into a bundle of noodles (no text or symbols)

Illustration of two hands using a tool to lift or stand, no text or symbols present

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Diagram showing a mechanical assembly with a magnified inset of a component being inserted (no text or symbols present)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and recycling bin labeled in English.

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a textured surface (no text or symbols)

Diagram showing dental arches with numbered labels for each tooth group

clean white* gum health clean white*

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line diagram showing a circular icon with a parking sign and a star-shaped connector (no text or symbols)

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

Diagram showing a hand pressing a button on a bottle with a power symbol, likely illustrating a power switch or battery operation.

Simple diagram with a circular symbol and a small circle connected by lines, no text or labels present.

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Three-step diagram illustrating a mechanical assembly process: tool insertion, component disassembly, and final assembly (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a device with a star-shaped component and a cable (no text or symbols)

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to lift or stand, with no visible text or symbols

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a textured internal component and a downward arrow indicating force or direction (no text or symbols)

Diagram of a mechanical or electrical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled components including a recycling bin and a 'X' symbol.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a tool to apply a product to a toothbrush, with an inset showing a textured surface (no text or symbols)

Diagram showing dental arches with numbered labels for each tooth group

clean white* gum health clean white*

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human dentition with numbered labels indicating tooth positions and dental alignment

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with labeled parts ⑦ and ⑧, showing upper and lower teeth structures.

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper dental arch.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating specific dental positions or regions

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and magnified view (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Diagram showing a power button with an icon and a hand holding a button, likely illustrating a power or current control mechanism.

Simple diagram with a circular symbol and a vertical line, no text or labels present

Simple diagram with a circle containing a white rectangle and a small circle connected by a line (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, no text or symbols present

Simple line drawing of a mechanical component with a base and arrow, no text or symbols present.

Diagram of a handheld electric toothbrush with a curved handle, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to connect two objects, no text or symbols present

Illustration of a hand inserting a device into a device housing (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Diagram showing a mechanical assembly with a magnified inset of a component being inserted (no text or symbols present)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and recycling bin labeled in English.

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a toothbrush applying material to a tooth with a circular mark, and a checkmark indicating the correct step (no text or symbols present)

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a hand pointing to a circular button, likely indicating a button or function.

3 Zobno ščetko Philips Sonicare vklopite tako, da pritisnete gumb za vklop/izklop.

Illustration of a hand interacting with a segmented body, showing motion direction (no text or symbols)

Diagram of dental arching with tooth structure and tool (no text or labels)

Diagram showing dental arches with numbered labels for orthodontic or dental alignment reference

clean white* gum health clean white* gum health

Clean in Deep Clean+ Gum Health White+

Clean in Deep Clean+ Gum Health White+

Simple diagram with three circles and a central oval, no text or symbols present

- visoka intenzivnost (tri črtice)

Diagram of a microphone with a sensor icon and signal symbol (no text or labels)

Simple diagram with a circular icon containing a parking sign and a starburst symbol, connected to a vertical line with a star (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

• G3 Premium Gum Care: Način Gum Health
• W3 Premium White ali W(c) DiamondClean(compact): Način White+

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Korak 2: Pritisnite in pridržite gumb za vklop/izklop:

Illustration of a medical procedure showing step-by-step steps in a procedure involving a tool, device, and tubing (no text or symbols present)

Simple line drawing of a mechanical component with a starburst symbol and a base, no text or symbols present.

Illustration of a handheld electronic device with a hand holding a cable, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with a bundle of tissue or filaments (no text or symbols present)

Illustration of two hands using a tool to lift or stand, no text or symbols present

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled components including a recycling bin and a 'X' symbol.

8 Baterijo primite in jo odmaknite od notranjih delov, da prelomite drugi kovinski jeziček baterije.

Opozorilo: Pazite, da si z ostrimi robovi jezičkov baterije ne poškodujete prstov.

9 Stike baterije prekrijte z lepilnim trakom, da preprečite kratek stik zaradi preostale napetosti v bateriji.

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a vertical structure with a checkmark (no text or symbols)

Illustration of a hand using a tool to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a button with a cursor pointing to it.

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

4 Jemne udržujte štetiny v polohe na zuboch a d'asnách. Zuby čistite krátkymi pohybmi dopredu a dozadu tak, aby štetiny dosahovali do priestorov medzi zubami. Tento pohyb opakujte počas celého čistiaceho cyklu.

Diagram of dental arching with tooth structure and tool (no text or labels)

Diagram showing dental arches with numbered labels for different tooth positions or dental positioning

clean white+ gum health clean white+ gum health

BrushSync automaticky vyberie optimálny režim a intenzitu.

Simple diagram with three circles and two curved lines, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a parking sign with directional arrows and a star-shaped symbol (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle, with a power button icon nearby (no text or symbols)

Simple diagram with a circular arrow and a small circle connected by a line, no text or symbols present.

Simple diagram with a circle containing an internal symbol and a small circle connected by lines, next to a vertical rectangle (no text or labels)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

5 Zatvorte dvierka a raz stlačte zelené tlačidlo zap./vyp., čím vyberiete čistiaci UV cyklus.

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Illustration of a handheld electronic device with a hand holding a cable, showing internal components and wiring (no text or symbols)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands using a tool to lift or stand (no text or symbols present)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a camera module with a black arrow pointing to the internal component (no text or symbols visible)

Illustration of a mechanical component with a curved arrow indicating motion (no text or symbols)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Diagram illustrating a recycling process with a battery, recycling symbol, and recycling bin, accompanied by a circled 'X' indicating no disposal.

Simple line drawing of an open book with no text or symbols visible

Pure electrical circuit lines without any symbols

Deo napajanja koji se može skinuti: Oznaka „xxxxx“ predstavlja broj modela odobrenih punjača koji bi trebalo da se koriste. (TCBxxxx, HX6100, HX6110, HX6160 ili WAAxxxx)

Namena

Električne četkice za zube Sonicare ExpertClean namenjene su za uklanjanje nakupljenog kamenca i ostataka hrane sa zuba u cilju sprečavanja karijesa i poboljšavanja oralnog zdravlja. Električne četkice za zube Sonicare ExpertClean namenjene su za ličnu upotrebu. Deca treba da koriste proizvod uz nadzor odraslih.

Philips Sonicare četkice za zube (slika 1)

1 Drška
2 Dugme za uključivanje/isključivanje
3 Indikator intenziteta
4 Dugme za režim/intenzitet
5 Indikator režima
6 Podsetnik za zamenu glave sa četkicom
7 Indikator baterije

Dodaci:

8 Poklopac glave četkice
9 Pametne glave četkice
10 Simbol tehnologije BrushSync
11 Postolje za punjenje
12 Putna torbica
13 Putna torbica za punjenje
14 USB-A zidni adapter
15 USB-A kabl
16 UV aparat za dezinfekciju i punjač

Napomena: Uključeni dodaci mogu da se razlikuju u zavisnosti od kupljenog modela.

Diagram showing a toothbrush applying material to a tooth with a circular mark and a checkmark indicating inspection or verification.

1 Poravnajte glavu četkice tako da su vlakna okrenuta u istom smeru kao i prednja strana drške.

2 Čvrsto pritisnite glavu četkice na metalnu osovinu do kraja.

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

1 Pokvasite vlakna i nanesite malu količinu paste za zube.

45°

2 Postavite vlakna četkice za zube na zube tako da budu pod blagim uglom (45 stepeni). Čvrsto pritisnite kako bi vlakna stigla do desni ili malo ispod desni.

Simple line drawing of a hand pressing a button on a power button (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

4 Nežno držite vlakna na zubima i desnima. Perite zube blagim pokretima unapred i unazad tako da vlakna mogu da dosegnu između zuba. Nastavite sa ovakvim pokretima tokom celog ciklusa pranja zuba.

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Diagram showing dental arches with numbered labels for orthodontic or dental alignment reference.

clean white* gum health clean white* gum health

Električna četkica za zube ima do 4 različita režima rada: Clean, Deep Clean+, Gum Health i White+ (samo određeni modeli).

Na osnovu pametne glave sa četkicom koju koristite, BrushSync tehnologija će automatski izabrati optimalan režim i intenzitet.

Da biste ručno promenili režim, pritisnite dugme za režim/intenzitet kad je četkica za zube isključena. Sve glave sa četkicom rade u svakom režimu.

Clean i Deep Clean+ Gum Health White+

Pogodnost Uklanjanje plaka Uklanjanje plaka i masaža desni			Uklanjanje plaka i mrlja sa površina
Preporučeni nivo intenziteta	Visoka Visoka Visoka
Ukupno vreme pranja zuba	Clean: 2 minuta Deep Clean+: 3 minuta*	3 minuta i 20 sekundi	2 minuta i 40 sekundi
Kako se pere Clean: perite svaki segment 20 sekundi.		perite svaki segment 20 sekundi,	perite svaki segment 20 sekundi,
	Deep Clean+: perite svaki segment 30 sekundi.*	a zatim perite segmente 7,8,9 i 10, svaki po 20 sekundi.	a zatim perite segmente 7 i 8, svaki po 20 sekundi.

Simple diagram with three circles and two vertical lines, no text or symbols present

Električna četkica za zube ima 3 različitih postavki za intenzitet:

• nizak intenzitet (jedna crta)
• srednji intenzitet (dve crte)
• visok intenzitet (tri crte)

Kada je prikačena na dršku, glava sa četkicom automatski izabira preporučeni intenzitet / Ako želite da promenite intenzitet, pritisnite dugme za režim/intenzitet dok perete zube. Intenzitet ne može da se promeni dok god je drška isključena ili je njen rad pauziran.

Tehnologija BrushSync

Illustration of a microphone with a sensor icon and signal symbol (no text or labels)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Ako prekomerno pritiskate, drška će promeniti vibraciju, lampica podsetnika za zamenu glave sa četkicom na drški će treptati žutonarandžastom bojom dok ne smanjite pritisak.

Napomena: Proizvod se isporučuje sa aktiviranim senzorom pritiska. Da biste deaktivirali ovu funkciju (pogledajte 'Aktiviranje ili deaktiviranje funkcija').

BrushPacer

Diagram showing a circular icon with 'P' and directional arrows connected to a labeled circle containing 'n'

Napomena: Sve pametne glave četkice imaju aktiviranu funkciju podsetnika za zamenu glave četkice. Da biste deaktivirali podsetnik za zamenu glave četkice, pogledajte odeljak „Aktiviranje ili deaktiviranje funkcija“.

Režim uparivanja glave sa četkicom

Glave sa četkicom sa BrushSync tehnologijom imaju mikročip koji komunicira sa drškom i automatski je uparuju sa preporučenim režimom i intenzitetom. Većina glava četkica sa BrushSync tehnologijom će se automatski upariti sa režimom Clean (Čišćenje). Glave sa četkicom sa određenim pogodnostima će se upariti sa odgovarajućim režimom (kada je dostupno), primeri obuhvataju: - G3 Premium Gum Care: Režim Gum Health - W3 Premium White ili W(c) DiamondClean(compact): Režim White+

Napomena: Ako odaberete da promenite režim/intenzitet u odnosu na preporučene postavke, glava sa četkicom će zapamtiti odabranu postavku za buduće sesije pranja zuba.

Aktiviranje ili deaktiviranje funkcija

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Simple diagram with a circular element and a small circle connected by lines, no text or symbols present.

Ako vidite da leva LED lampica indikatora baterije trepće zelenom bojom 2 puta i čujete 3 zvuka, od slabog do jakog, onda je funkcija aktivirana.

ILI

Simple diagram with a circular arrow and a small circle connected by a line, no text or symbols present.

Ako vidite da leva LED lampica indikatora baterije trepće žutonarandžasto 1 put i čujete 3 zvuka, od slabog do jakog, onda je funkcija deaktivirana.

Illustration showing two-step procedure: hand holding a tool, then applying a device to a surface (no text or symbols)

1 Nakon pranja zuba isperite glavu četkice i otresite višak vode.

Diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, resembling a device or tool (no text or symbols present)

3 Postavite glavu četkice na jedan od 2 klina u aparatu za dezinfekciju tako da vlakna budu okrenuta ka lampi.

Napomena: U uređaju za sanitizaciju čistite isključivo Phillips Sonicare glave četkice za lako postavljanje.

Napomena: nemojte da čistite glave četkice Philips Sonicare for Kids u aparatu za dezinfekciju.

4 Uređaj za sanitizaciju mora biti uključen u funkcionalnu utičnicu ili na odgovarajući napon.
5 Zatvorite poklopac i jedanput pritisnite zeleno dugme za uključivanje/isključivanje da biste izabrali ciklus UV čišćenja.

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Punjenje na punjaču ili na UV aparatu za dezinfekciju

Diagram of a handheld electronic device with a hand holding a plug, showing internal components and an arrow indicating motion (no text or symbols present)

Napomena: Uključeni dodaci mogu da se razlikuju u zavisnosti od kupljenog modela.

1 Umetnite USB kabl u putnu torbicu za punjenje.
2 Povežite priloženi USB kabl na ulazno napajanje jednosmernom strujom od 5 V sa:

- priloženim USB adapterom;

Line drawing of a hand holding a pen above a bundle of noodles (no text or symbols)

1 Uklonite glavu četkice i isperite oblast oko metalne osovine toplom vodom. Obavezno uklonite sve ostatke paste za zube.

Oprez: Nemojte da gurate gumenu zaptivku na metalnoj osovini oštrim predmetima pošto to može da dovede do oštećenja.

2 Čitavu površinu drške obrišite vlažnom krpom.

Napomena: Nemojte da udarate ručkom o sudoperu da biste uklonili višak vode.

Glava četkice

Illustration of two hands holding a rifle with a diagonal line above, no text or symbols present

Illustration of a hand inserting a component into a device (no text or symbols visible)

1 Isključite uređaj za sanitizaciju.
2 Izvucite posudu za sakupljanje tečnosti. Isperite posudu za sakupljanje tečnosti i obrišite je vlažnom krpom.
3 Očistite sve unutrašnje površine vlažnom krpom.
4 Uklonite zaštitnu foliju koja se nalazi ispred UV lampe.

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a mechanical component with a curved handle and rod, no text or symbols present

Diagram illustrating a recycling process with a battery, recycling symbol, and recycling bin, accompanied by a magnified circle showing a trash can.

9 Kontakte na bateriji zaštitite trakom kako preostali napon baterije ne bi prouzrokovao kratak spoj. Punjivu bateriju sada je moguće reciklirati, a ostatak proizvoda odložiti na odgovarajući način.

Napomena: Aparat koji se više ne može upotrebljavati nemojte da odlažete u kućni otpad, već ga predajte na zvaničnom prikupljalištu za reciklažu. Na taj način pomažete očuvanju životne sredine.

Johdanto

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration showing a hand brushing a tooth with a brush, and a close-up of a tooth being smoothed (no text or symbols)

Diagram illustrating three-step automotive safety system steps: tool tip, angle measurement, and power button

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tooth penetration (no text or labels)

Diagram showing dental arches with numbered labels for different tooth positions or regions

clean white* gum health clean white* gum health

Clean ja Deep Gum Health White+ Clean+

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with numbered labels indicating different tooth positions or regions.

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

⑨ ⑩

Illustration of a human tooth with teeth and jawbone, marked with number 8 (no text or symbols on the main subject)

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and sensor symbol (no text or labels)

Simple line diagram showing a circular icon with a parking sign and a star-shaped connector (no text or symbols)

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

Diagram showing a hand pressing a button on a cylindrical object with a power symbol, likely illustrating a power switch or battery operation.

Simple diagram with a circular element and a vertical line, no text or symbols present

Simple diagram with a circle containing an internal rectangle and a small circle connected by a line (no text or symbols)

Illustration showing two-step cleaning procedure: hand holding tool, then using a device to clean or adjust the component (no text or symbols present)

Diagram of a mechanical component with two symmetrical parts, no text or symbols present

Line drawing of a hand holding a small object with a hole, no text or symbols present

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands holding a tool with a connecting rod and weights (no text or symbols)

Illustration of a hand inserting a component into an electronic device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured section (no text or symbols visible)

Illustration of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Diagram illustrating a recycling process with battery, recycling symbol, and recycling bin labeled in English

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark and circular mark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a hand pointing to a circular button, likely indicating a control or action.

Illustration of a hand interacting with a segmented body, showing motion direction (no text or symbols)

Diagram showing dental alignment with a tooth and toothbrush (no text or labels)

Diagram showing dental arches with numbered labels for orthodontic or dental alignment

Simple diagram with three circles and two curved lines, no text or symbols present

- hög intensitet (tre staplar)

Diagram of a microphone with signal icon and speech bubble (no text or symbols)

Abstract geometric design with a star-like shape containing a central symbol and a small star-like shape beside it (no text or symbols present)

Simple diagram showing a circular icon with a traffic signal inside and a small circle connected to a vertical line (no text or symbols)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Simple diagram with a circular arrow and a small circle connected by a line, no text or symbols present.

Simple diagram with a battery symbol and a small circular element connected by a line (no text or labels)

Three-step diagram illustrating a mechanical assembly process: tool insertion, close-up of component, and final assembled view (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a device with a starburst symbol above it, showing a plug and cable (no text or symbols)

Illustration of a handheld electric shaver with a hand holding the cable (no text or symbols)

Line drawing of a hand holding a pen over a plant stem (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rod (no text or symbols)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and an inset showing a magnified view of the object (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Illustration of a hand holding a device with a circular button, no text or symbols present

Diagram illustrating a recycling process with battery, recycling symbol, and recycling bin labeled in English

www.philips.com/support

Simple line drawing of an open book and a circuit symbol (no text or labels)

Bellik: Dürli modelleriň ayratynlyklary dürlüçe bolup bilýär. Käbir modeller Bluetooth ýa-da NFC bilen enjamlaşdyrylmadyk bolup biler.

Illustration showing a hand brushing a tooth with a brush, and a close-up of the tooth being examined with a circular sensor (no text or symbols present)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

1 Gyllary öllään we üstüne azajyk diş pastasyny çalyň.

Diagram showing dental arches with numbered labels for each tooth group

clean white* gum health clean white*

Elektrikli diş çotgañyz 4 dürli tertip bilen enjamlaşdyrylandyr: Clean, Deep Clean+, Gum Health we White+ (diñe belli bir modellerde).

Ulanýan akylly nasadkaňyza baglylykda, optimal tertip we ýygjamlyk BrushSync tehnologiýasy tarapyndan awtomatik saýlanylar.

Clean we Deep Gum Health White+ Clean+

Yeňillik Daş aýrymak Daş aýrymak wediş eti massažy			Daş we üst tegmiller aýrymak
Maslahat berilýan ýygjamlyk derejesi	Ýokary Ÿokary Ÿokary
Jemi çotgalama wagty	Clean: 2 minutDeep Clean+: 3 minut*	3 minut we 20 sekunt	2 minut we 40 sekunt

Clean we Deep Gum Health White+ Clean+

Çotgalaýys usuly

Clean: Her segmenti 20 sekunt çotgalaň.

Her segmenti 20 sekunt çotgalaň,

Her segmenti 20 sekunt çotgalaň,

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human dentition with numbered labels indicating tooth layers and dental structure

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human dental arch with numbered labels indicating different tooth positions or regions

Deep Clean+: Her segmenti 30 sekunt çotgalaň.*

soňra segment 7,8,9 bilen 10-iň her birini 20 sekunt çotgalaň.

soňra segment 7 bilen 8-iň her birini 20 sekunt çotgalaň.

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with labeled parts 7 and 8, showing upper and lower teeth structures.

Illustration of a dental arch with a numbered callout (7) indicating the upper part of the arch.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

⑩ ⑨

Illustration of a human tooth with labeled point 8 (no text or symbols beyond the number)

*Bellik: "Deep Clean+" tertibinde Philips Sonicare programmasy bilen çotgalaýarkaňyz, programma birigen bolsa, çotgalama wagty 2 minut, programma birikmedik bolsa, 3 minut dowam eder

Ýygjamlyklar

Elektrikli diş çotgaňyz 3 dürli ýygjamlyk sazlamasy bilen gelýär:

Simple diagram with three circles and a central oval, no text or symbols present

Tutawaja dakylgy wagty, akylly nasadka maslahat berilýän ýygjamlygy awtomatik sayılar/ Başga bir ýygjamlyga üýtgetmek isleseňiz, çotgalap durkaňyz, şeýtmek üçin tertip/ýygjamlyk düwmesini basyp bilersiňiz. Tutawaç öçük ýa-da ságindirilgi wagty, ýygjamlygy üýtgedip bolmaýar.

Diagram of a microphone with signal icon and sensor symbol (no text or labels)

Simple line diagram showing a circular icon with a traffic sign and a star symbol connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic sign and a small circle connected by a line (no text or symbols)

• G3 Premium Gum Care: Gum Health tertibi
• W3 Premium White ya-da W(c)

DiamondClean(compact): White+ tertibi

Diagram showing a hand pressing a button on a cylindrical object with an 'Power' icon, likely illustrating a power switch or control mechanism.

Simple diagram with a circular element and a vertical line, no text or symbols present

Simple diagram with a circle containing a minus sign and a small dot connected by lines (no text or symbols)

Illustration of two hands using a tool to measure a mechanical component, with no visible text or symbols.

Illustration of a hand pressing down on a cylindrical device with an arrow indicating the process (no text or symbols present)

Diagram of two toothbrushes inside a mechanical component (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

5 Gapagy yapyň we ultramelewşe arassaçylyk döwresini saylamak üçin açýan/öçüryän düwmäni bir gezek basyň.

Bellik: dezinfektory diñe gapagy talabalaýyk ýapyk wagty işledip bilersiňiz.

Bellik: dezinfektor döwresiniň dowamynda gapagy açsaňyz, dezinfektor işlemegini togtadar.

Bellik: Dezinfektoryň döwresi takmynan 10 minuda çekýär we soňra awtomatik öçýär.

Simple line drawing of a device with a star-shaped label and an arrow pointing to a small component (no text or symbols)

Zarýadnikde ýa-da ultramelewše dezinfektorda zarád bermek

Illustration of a handheld electric toothbrush with a curved handle, no text or symbols present

Line drawing of a fork being inserted into a tubular structure (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting wires (no text or symbols)

1 Her ulanyşdan soň nasadkany we gyllary ýuwup durlaň.
2 Azyndan hepdede bir gezek nasadkany tutawaçdan aýryp, nasadkanyň birikmesini ýyly suw bilen ýuwup durlaň. Syýahat gapagyny näçe ýygylykda zerur bolsa ýuwup durlaň.

Zarýadnik

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Three-step diagram illustrating a mechanical process: pressing a tool, adding a hammer, and rolling a cylindrical object.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Pure electrical circuit lines without any symbols

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Medical or dental procedure steps showing power button, tooth manipulation, and tooth alignment with arrows indicating movement.

Diagram showing dental archway segmentation with numbered labels for each segment

clean white* gum health clean white* gum health

Clean kai Deep Gum Health White+ Clean+

Clean kai Deep Gum Health White+ Clean+

Simple diagram with three circles and a central oval, no text or symbols present

Simple line drawing of a microphone with a circular icon showing signal waves (no text or symbols)

Simple line diagram showing a circular icon with a road sign and a starburst symbol connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic signal inside and a vertical line with a small circle at the end (no text or symbols)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Illustration of two hands holding a tool with a diagonal line crossing through them (no text or symbols)

Illustration of a hand pressing down on a device component with an arrow indicating left motion (no text or symbols)

Cross-sectional diagram of a mechanical component with two protruding parts (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a device with a label and arrow pointing to a small component (no text or symbols present)

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and an arrow indicating motion (no text or symbols present)

Line drawing of a medical procedure involving an incision or needle inserted into a tubular structure (no text or symbols present)

Illustration of two hands using a tool to connect two objects, no text or symbols present

Hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component or tool with no visible text or symbols

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled components including a recycling bin and a 'X' symbol.

Simple line drawing of an open book and a circuit symbol (no text or labels)

Illustration showing a hand brushing a tooth with a brush, and a close-up of the tooth being examined with a checkmark (no text or symbols present)

Illustration of a hand using a pen to apply a sample on a surface, with an inset showing a droplet and bar chart (no text or symbols)

Hand-drawn diagram showing a power button with an icon and a hand pointing to a circular button, likely indicating a control or operation step.

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

Diagram of dental arching technique showing tooth arrangement and tool placement (no text or labels)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

clean white+ gum health clean white+ gum health

Clean и Deep Gum Health White+ Clean+

Clean и Deep Gum Health White+ Clean+

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human dental arch with numbered labels indicating different tooth positions or dental regions.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Deep clean+: Четкайте всеки сегмент за 30 секунди.*

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of a dental arch with labeled parts 7 and 8, showing upper and lower teeth structures.

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Diagram of human dentition with numbered labels pointing to specific teeth positions

Diagram of human teeth with numbered labels indicating specific dental positions or regions

Illustration of a human tooth with dental arch and jawbone (no text or symbols)

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line diagram showing a circular icon with a road sign and a starburst symbol connected to a vertical line (no text or labels)

Diagram showing a power button and a hand holding a battery, likely illustrating a power switch or battery operation.

Simple diagram with a circle containing an internal symbol and a small circle connected by a line (no text or labels)

Simple diagram with a circle containing an 'X' and a small circle connected by a line (no text or symbols)

Illustration of two hands holding a tool with a pointed tip and a pointed tip, intersected by a diagonal line (no text or symbols)

Illustration of a hand pressing down on a device component with an arrow indicating left motion (no text or symbols)

Cross-sectional diagram of a mechanical component with internal channels and textured surfaces (no text or symbols)

Line drawing of a hand holding a small object with a hole, resembling a device or tool (no text or symbols present)

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Diagram of a handheld electric shaver with a cable, showing internal components and wiring (no text or symbols)

Line drawing of a hand holding a pen over a bundle of noodles (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, no text or symbols present

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured section (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and an inset showing a magnified view of the object (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Diagram illustrating a recycling process with battery, recycling symbol, and trash bin icon

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a hand brushing a tooth with a brush, and a close-up of the tooth being smoothed (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a hand pointing to a circular button, likely indicating a button or function.

Illustration of a human hand holding a curved object, with arrows indicating movement or force direction (no text or symbols)

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

Diagram showing dental arches with numbered labels for orthodontic or dental alignment

clean white+ gum health clean white+ gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with signal icon and base, no text or symbols present

Simple line diagram showing a circular symbol with a parking sign and a starburst shape connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

2-кадам: Күйгүзүү/өчүрүү баскычын коё бербей басып туруңуз:

Simple diagram with a circular icon and a small circle connected by lines, no text or symbols present.

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Illustration of two hands using a tool to measure a mechanical component, with no visible text or symbols.

Hand holding a device with a circular arrow pointing to the handle (no text or symbols visible)

2 Манжаңызды санитайзердин эшигинин оюгуна салып, эшикти тартып ачыңыз.

Diagram of a mechanical component with two protruding parts and internal structure (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, no text or symbols present

Simple line drawing of a mechanical component with a base and arrow, no text or symbols present.

Illustration of a handheld electric toothbrush with a curved handle, no text or symbols present

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of two hands holding a tool with a pointed tool, no text or symbols present

Hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Diagram illustrating two steps of a hand tool application: adding a curved object to form a workpiece, then using a hammer to press a piece into a workpiece.

Diagram illustrating a recycling process with a battery, a recycling symbol, and a trash bin, accompanied by a magnified circle showing a 'X' symbol.

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an 'OK' icon and a hand pointing to a circular button labeled 'C'.

Illustration of a hand holding a segmented object with directional arrows indicating movement (no text or symbols)

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Diagram showing dental arch structures with numbered labels for each component

clean white+ gum health clean white+ gum health

Simple diagram with three circles and two curved lines, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

Simple diagram with a circular symbol containing a minus sign and a small circle connected by a line (no text or labels)

Illustration of two hands using a tool to connect two objects, no text or symbols present

Illustration of a hand pressing down on a device component with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical component with two protruding parts, no visible text or symbols

Line drawing of a hand holding a small object on a cylindrical device (no text or symbols)

Simple line drawing of a device with a starburst symbol above it, no text or symbols present.

Illustration of a handheld electronic device with a hand holding a connector (no text or symbols visible)

Line drawing of a person holding an object with a pen, no text or symbols present

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Diagram of a mechanical or electrical component with a curved pipe and base, no visible text or symbols

Diagram showing a hand using a hammer to press or install a piece, labeled with parts ① and ②.

Illustration of a hammer striking a cylindrical object with a circular arrow indicating rotation (no text or symbols)

Illustration of hands fastening a cylindrical object with a belt, no text or symbols present

Illustration of a hand holding a pen with an arrow indicating force or direction, and a magnified inset showing the same pen tip (no text or symbols present)

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

Illustration of a hand holding a device with a circular component, no text or symbols present

Diagram illustrating a recycling process with a battery, recycling symbol, and recycling bin, accompanied by a circle indicating a trash bin.

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration showing a hand brushing a tooth with a brush, and a close-up of a tooth being examined (no text or symbols present)

Illustration of a hand using a tool to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

Diagram illustrating three-step dental procedure steps: tip angle measurement, power button, and finger placement.

Diagram of dental arching technique showing tooth arrangement and tooth penetration (no text or labels)

Diagram showing dental arches with numbered labels for orthodontic alignment or repair instructions

clean white+ gum health clean white+

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of dental arch with numbered labels indicating different tooth positions or dental positioning

Diagram of a dental arch with labeled parts ⑦ and ⑧, showing upper and lower teeth structures.

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

G ⑨ ⑩

Illustration of a human tooth with segmented teeth and a circled number 8 (no text or symbols)

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple diagram with a circular icon containing a road sign and a starburst symbol, connected by a line to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic signal and a small circle connected to a vertical line (no text or symbols)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple line drawing of a device with a star-shaped label and an arrow pointing to a small component (no text or symbols)

Illustration of a handheld electronic device with a hand holding it, showing internal components and a cable (no text or symbols)

Line drawing of a fork with a knife inserted, no text or symbols present

Illustration of hands using a tool to connect two objects, no text or symbols present

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating three-step hairpin tool application: cutting, hammering, and rolling a cylindrical object.

Illustration of hands holding a cylindrical object with an arrow indicating rotation (no text or symbols)

Diagram illustrating a hand holding a pen with arrows indicating force application, accompanied by an inset showing the same pen tip.

Mechanical assembly diagram showing a clamping tool interacting with a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Diagram illustrating a recycling process with battery, recycling symbol, and recycling bin labeled in English

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Кисми чудошавандаи таъминоти барк: «xxxxх» раками намунавии баркпуркунандахоеро, ки бояд истифода шавад, нишон медихад. (TCBxxxx, HX6100, HX6110, HX6160 ё WAAxxxx)

Illustration showing a hand brushing a tooth with a brush and a close-up of the tooth being smoothed (no text or symbols)

Illustration of a hand using a tool to apply a product to a textured surface, with an inset showing a magnified view of a circular object (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'C' pointing to it.

3 Барои фаъол кардани «Philips Sonicare» тугмаи фаъол/хомўшро пахш кунед.

Illustration of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

4 Лифхои чўткаро болои дандонхо ва дар хати милки дандонхо ба таври дуруст чойгир кунед. Дандонхои худро бо харакатхои хурди пасу пеш тоза кунед, то ки лифхои чўтка байни дандонхо гузарад. Ин харакатро дар тамоми давраи дандоншўии худ идома дихед.

Diagram illustrating dental tool application on upper teeth with magnified view of tooth structure

Шарх: Мўйякхои чўтка бояд каме васеъ шаванд. Тавсия дода намешавад, ки шумо дандонхоро мисли бо чўткаи дандоншуии дасти тоза кунед.

Diagram showing dental arches with numbered labels for different tooth positions or measurements

clean white+ gum health clean white+ gum health

Чуткаи дандоншўии шумо бо то 4 речаи шиддати гуногун таўмин шудааст: «Clean», «Deep Clean+», «Gum Health» ва «White+» (танхо моделхои мушаххас).

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a starburst shape connected to a vertical line (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by a line (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power symbol (no text or labels)

Illustration of two hands holding a rifle with ropes and weights, no text or symbols present

Illustration of a hand pressing down on a device component with an arrow indicating the left side (no text or symbols present)

Cross-sectional diagram of a mechanical component with two symmetrical slots and internal channels (no text or symbols)

Line drawing of a hand holding a small object with a pointed tip, no text or symbols present

Simple line drawing of a mechanical component with a star-shaped head and a base, no text or symbols present.

Illustration of a handheld electric shaver with a hand holding the cable (no text or symbols)

Line drawing of a hand holding a pen over a bundle of noodles or tubers (no text or symbols)

Illustration of two hands holding a tool with a ruler and connecting rods (no text or symbols)

Illustration of a hand inserting a device into a device housing (no text or symbols visible)

1 Чудо кардани тамизкунанда.
2 Табакчаро барои катрахо рост кашида бароред. Табакчаро барои катрахо бо об шўед ва бо матои нам тоза кунед.
3 Хамаи сатххои дохилиро бо матои нам тоза кунед.
4 Экрани мухофизатиро пеш аз чароғи UV чудо кунед.

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

Illustration of a hand holding a cylindrical object with arrows indicating force direction, and a magnified inset showing the same object (no text or symbols present)

5 Дастакро чаппа нигох дошта, холигиро ба сатхи сахт зер кунед. Агар чузъхои дохили ба осонй аз корпус озод нашаванд, кадами 3-ро то он даме, ки чузъхои дохили озод карда шаванд, такрор кунед.

Diagram of a mechanical assembly with a magnified inset showing a rotating component (no text or symbols)

6 Мурваттобакро байни батарея ва чахорчубаи сиёх, дар поёни чузъхои дохилй пайваст кунед. Сипас, мурваттобро аз батарея боло бардошта, поёни чахорчубаи сиёхро кушоед.

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and recycling bin labeled in English.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a tool to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'P', connected to a vertical line.

Illustration of a hand holding a segmented object with directional arrows indicating movement or force (no text or symbols)

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

Diagram showing dental arch structures with numbered labels for different dental positions

clean white+ gum health clean white+ gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

Diagram of a microphone with a circular icon showing signal waves (no text or symbols)

Simple diagram with a circular icon containing a road sign and a starburst symbol, connected to a vertical line with a starburst (no text or labels)

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by an arrow (no text or labels)

Simple line drawing of a hand pressing a button on a bottle with a power button (no text or symbols)

Simple diagram with a circle containing a minus sign and a small circle connected by a line (no text or symbols)

Simple diagram with a circular icon containing a white rectangle and a small circle connected by a line (no text or symbols)

Three-step diagram illustrating a mechanical assembly process: tool insertion, close-up of component, and final assembled view (no text or symbols)

Line drawing of a hand holding a small object with a hole, resembling a device or tool (no text or symbols present)

Simple line drawing of a device with a button and cable, no text or symbols present

Diagram of a handheld electronic device with a curved cable and connector (no text or symbols)

Line drawing of a hand holding a pen over a bundle of noodles (no text or symbols)

Illustration of two hands using a tool to lift or stand (no text or symbols present)

Hand inserting a component into a device (no text or symbols visible)

Hand holding a mechanical component with a downward arrow indicating a force or direction (no text or symbols present)

Diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled waste bins

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

Illustration showing a hand brushing a tooth with a brush, and a close-up of a tooth being smoothed (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

clean white* gum health clean white*

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with a sensor icon and connection point (no text or symbols)

Simple line diagram showing a circular symbol with a road sign and a star-shaped connector (no text or labels)

Diagram showing a power button and a valve mechanism with Chinese label 'a'

Simple diagram with a circular symbol and a vertical line, no text or labels present

Simple diagram with a circle containing a white rectangle and a small circle connected by a line (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, no text or symbols present

Simple line drawing of a mechanical component with a starburst symbol and a base, no text or symbols present.

Illustration of a handheld electric toothbrush with a screwdriver inserted, no text or symbols present

Line drawing of a medical procedure showing a tool interacting with an anatomical structure (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and a black arrow pointing to it (no text or symbols)

Diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, no text or symbols present

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled waste bins

Simple line drawing of an open book with no text or symbols visible

XXXXXX

ETUynwutuguwu hwunuh uuu. «xxxxxx»-n gnjg 5 unwju hwuunwinuwd jhgpwqnnhzutnh uunntih hwuwnp, nnp wtpnp 5 oqnwnqnnduh: (TCBxxxx, HX6100, HX6110, HX6160 yuuWAAxxxx)

Lwwinnwlywjhù oqinwqnndniú

Sonicare ExpertClean wunwùutŋn úwpntŋni tʃltynnwlywù hunqwùwlyutŋn ùwwhuwinttuulwò tǔ yniunwlyuud wunwùuwwhwnŋ u uùünwjhù uùwgnnnñutŋn wunwùutnhg htnwgutŋni hwúwn, hùzǔ oqùniú t ǜuìwqtgǔti wunwùutnh ywnhtún l pwntliwulti lywiú wwhwlywùti ptnwùh hunnzh wnnnŋɔnɪpəjnɪn: Sonicare ExpertClean 2wnph tʃltynnwlywù wunwúh hunqwùwlyutŋn ùwwhuwinttuulwò tǔ wùàuwlywù oqunwqnndúwù hwúwn: tʃnthuwutŋh ynnúhg oqunwqnndɔniún wṭún p ʃlhùh útδωhwwluylutŋh vtænwhulynnηnɪpəjwù útæpn:

2tn Philips Sonicare-n (Uy. 1.)

2tnpnj hwuwdwutni hwuwn.

2niqwulntp/lywwuwlygtp wunwuh hunqwüwyn hwultylwoh htun wútǔ tŋlni 2wpwən útyì' hwultylwoh hwnlynipajniùutnhg/hùwnwulnnipajniùutnhg oqnultjni hwúwn:

Uqinnuun ytnwny hwuwdwutni hwuwn.

Illustration showing a hand brushing a tooth with a brush, and a close-up of a tooth being examined (no text or symbols present)

1 hunquwuh qihuhyn hwulwwuntgntp wjuwbu, nn uwhqhyutnu ninnylwod jhutu unjù ninnnnjawup, hus pruwuh nhuwgh lnnup:

2 Uśnīn utnútāp hunqwùwlyh qīhuhln ʿutnplu ʿutinwnŋwlywǔ lħutnh útɕ, uħūzlu wjǔ lħwùq wnùh: ʿ Uzbek ʿ hunqwùwlyh qīhuhlyh u pnùwlyh úħglu ʿhnpn wǔgph wn½wjníəjnìùn ʿunnúwɪl ʿs:

2tn Philips Sonicare wunwutph hunqwuwgh oqunwqndnlnp

tpti wnwghù wùqwú tþ oqunwqnδnú ðtn Sonicare wnwúh hunqwùwln, wultih 2wn jænæng qquln ünpuwl ß hwiútuwinwð nε ßtlynnwlywù hunqwùwlyh htún: lnnúwl ß, tnp wnwghù wùqwú oqunwqnδnñútnŋ zwiuhg 2wn tǔ utnúniú qnδwnpnniú: Uhwjù yhnwntrp ünɪnp utnúniú ß ranyl nultp, nnwtuqh wunwúh hunqwùwln ðtn yhnhuwntü úwpnh: hünnniú túp htinutí uinnnu útnlywjwgulwð hunqwùwlyhg oqunyltini gnigniútphù` lwulwqnijù wnŋniúpūtn uunwùwlni hwúwn:

Uǔgniún àtn ñnn Sonicare ʒltlynnwlywù wunwúh hunqwùwlyhù ht2nwgútni hwiúwn wnwghù 1-2 2wpwprw núpawgpniú oqinwqnndótp wultih gwòn ywnqwulnnniú, wjùnihtuni wùgtp wultih pwnàn ywnqwulnnúwù:

Uwpnúwù hnwhwùqùtn

1 陰ngtp hunqwùwlyh úwqhúutnn u útngntp wunwúh úwðnilyh phz pwiùwlníjniú:

2 Umwúh hunqwùwlyh úwqhúutpn nptp wunwuútph unw nnn2 wùljuwù unwly (45 wuunhǎwù): Uúnín utnútp, nnwtuqh úwqhúutpn hwuútu jùntph tqnwaqóhu yuwí nnuwúhg útnpu:

L2niù Uúpnnq dwúwùwly hunqwùwlyh ytāunpnùn wwhtp wunwùutph htún 2yhuìwù útg:

3 Utnútp hnuwúph úhwguśwú/wǔgwùnúwú ynǎwūŋ Philips Sonicare-n úhwguśtlni hwuśwn:

4 Urpntu wuhtp hunqwùwlyh úwqtnú winwuśutnh ynw intwnwnnluwó u lúntnh tqnwaðniú: Uwpntp winwuśuttn pārəuwlyh htun ni wnwg 2wndniuśutnnu, npwtuqh hunqwùwlyh úwqhúuttn hwuùtú winwuśutnhú: Čwnniówutp wju 2wndniún ótn úwpnuśwú yhnih wúpnng núpawgpniú:

L2niù hunqwùwlyh úwqhúuttnn wgtuŋp ʒ úh ʊhnpn lwijuwùwù: hunphnnnn zh unnuíniú winnwùuttnn úwpnti l wjuwytu, hùzwtu ünnip yúwpntbhp unluŋnwlywù winnwúh hunqwùwlynq:

L2niù 2wihwqwug útó áu2niú qnnðwnntjni ntwpniu yuunwùwp qqni2wgniu' yuhnhuh pnüwuh rænængn, u hunqwùwuh qihuhuh uhnhúwù hh2tgúwù jniuwjhù gnighyn yuhuh pawnpāti ntūnhù qnyùnu:

Diagram showing dental alignment with a toothbrush and tooth arrangement (no text or labels)

5 Urquh winwutph utnuh uwltnunjputn uwpntni hwuwn petptp hunqwuwlyh pnuwyn yhuwninh nhnpnu l u uh pwuh ninnwhwjug uwpnn 2wndnutn ywnwntp jninwpwuyin winwuh qnw:
6 Uwpntni yhniu wuwpuntinig htinn ywnn np lnwgnighs dwuwuwly hwinlywgutl winwutinh dwunn uwltpntuuttn np uwptniu u wju hwinluwodtphu, nnuntn wnwgwuniu 5 powulnnniu: ywnn np uwu uwpnti ltqniu` hunqwuwyn wwhtinu uhwguwd ywi wugwnud, huzwbu uwhpunnnniu np:

^12 niú 2tn Philips Sonicare wunwúh hunqwùwʊŋ wùlúnwùq 5 wunwútph pntlytunutph (hunqwùwʊŋ qíhuḥn 2niún 5 úw2yniú pntlytunutph ynw) u wunwútph 5tnwlywùqùnn hwnúwnwùputph (ignùniúutn, 2wwhýutn, 5túhnutn) oqnuwqnòúwù ntwρniú, tṛat ħnwùp wwwn2wǎ tǔ oqnuwqnòu niú u ztǔ huwhunu niú:

BrushPacer

Diagram showing dental archway segmentation with numbered labels for each segment

clean white* gum health clean white* gum health

yātnwùn lùnùnnuìtù oùn huúwì nàd hún lù hùntùuhúlníjniùn:

ntdhuŋ àtnpnu ynhutni hwiwn hunqwùwlyu wùgwinluwð dwúwùwly utnútp ntdhu/hùntiùuhlnipjwi u lynawlyn: Fnnn hunqwùwlyutnh qihuhlútnu w2huiunniu tǔ jninwpwùyjnin ntdhúnj:

Clean & Deep Gum Health White+ Clean+

Unwutlnjniu	Unwufuwwnhhtwngniu	Unwufuwwnhhtwngniu luünth utnuniu	Unwufuwwnhlu wyltnunjphpdtnh htnwngiu
huntuhynj-wwwwnghunnwnhawwn	Fwnan Fwnan Fwnan
qnwuwgtni pwnhwunn dwuwwlyn	Clean (Uwpnni).2 nnwtDeep Clean+`3 nnwt*	3 nnwt, 20 lwwnljuwu	2 nnwt, 40 lwwnljuwu
	Clean U Deep Clean+	Gum Health White+
hùwǒu hūnquùwǔlǐ	Clean (Uwpnniú).3nīnwpuwùyīnín hwnuìwǒn hunquùwǔlýtpr 20 uwjnlyjwiù:	3nīnwpuwùyīnín hwnuìwǒn hunquùwǔlýtpr 20 uwjnlyjwiù,	3nīnwpuwùyīnín hwnuìwǒn hunquùwǔlýtpr 20 uwjnlyjwiù,
	Deep clean+`3nīnwpuwùyīnín hwnuìwǒn hunquùwǔlýtpr 30 uwjnlyjwiù:*	wwwǔ hunquùwǔlýtpr 7,8,9-pn l u 10-pn hwnuìwǒutpnn` jnīnwpuwùyīnín n 20 uwjnlyjwiù:	wwwǔ hunquùwǔlýtpr 7-pn l u 8-pn hwnuìwǒutpnn` jnīnwpuwùyīnín n 20 uwjnlyjwiù:

*L2nu§ Philips Sonicare hwultyluwδnul «Deep Clean+» ntdhúnul hunqwùwyltihu` hunqwùwlyúwù dwúwúwln lhywquh 2 nnwṭ, tnp úhwgulwò § hwultyluwδhù, hul, tnp úhwgulwò § hwultyluwδhù` 3 nnwṭ

hùntùuhǔnīpāwǔ wùnhǎwùtǔn

Etiyunnwlywu hunqwùwlyu niúh hùntüuhúnjiəjwi 3 unwnptin ywnqwùnnniú.

• gwδη hùntǔu huìnǐjǐu (útǔ qhδ)
• uħghù hùntùuħuħniŋniù (tŋlni qħδ)

Simple diagram with three circles and two vertical lines, no text or symbols present

- pwnàn hùntùuhúlníajniù (tptp qhd) Pnùwlyhù ygulwǒ jhùtǐnì nǎwpniú hūtiwgh hunqwùwlyh qìhuìyù wùnnúwùn yānwùnú nǔunníú t hwúwwwùnwùwù hùntùuhúlníajniùn/ tpt gwùlywùniú tṛp yhnhtī hùntùuhúlníajniùn, ywnnn ŋw wùtǐ huuqwùwyltǐnì nǔpawgpniú ntdʒu/hùntùuhúlníajniù ynǎwlyn utnútǐní úhqngnu: hùntùuhúlníajniùn zh ywnnn yhnhtl, tnp pnùwlyu wùgwùnluwǒ t ywiú nǎwnwntīgulwǒ t:

BrushSync unthuünqhw

Diagram of a microphone with signal icon and connection point (no text or symbols)

BrushSync unthuünqhwù àtn hunqwùwlyh qlhuhlyhù pniyl 5 unwihu hwnnnnwlgutl prùwlyh htun uhlynnzhwh oqūnijəjwiúp: lunqwùwlyh qlhuhlyh uunnphù hwnuŋwðniú qniùlnn ½wùn gnig 5 unwihu, nn hunqwùwlyh qlhuhlyu wwwhnyluwò 5 wju unthuünqhwjnú: BrushSync unthuünqhwù wwwhnulniú 5. - lunqwùwlyh qlhuhlyh yhnhuwnhùuwù hh2tgniú - BrushSync ntādhúh qniqwulnnniú Philips Sonicare-ü wizwgwynliú 5 BrushSync ( lunqwùwlyhUhúpnnüwgniú) unthuünqhwjnú hutlwgh hunqwùwlyh qlhuhlyutnh lwjù untuwlywùh: lunqwùwlyutnh qlhuhlyutnh útn wúpnng untuwlywùniú δwiùnpawiuwini u àtbq wútiuwhwuwwwnuwuhwiú qlhuhlyn qniútini u jnwgnighs untntlynijəjniùutnh hwúwn wjgtitp www.philips.com/toothbrush-heads:

9nnδwnnɪpəʊtn

• ฐวุผน utùunngh wnàwqwùp
• BrushPacer
• SmarTimer
• EasyStart
• lunqwùwlyh qìhuìyh ǔnhuònhuúwù hǎtāgniú
• lunqwùwuh qihuhuh ntādhūh qniqwwlnnniū

Simple line diagram showing a circular icon with a road sign and a starburst symbol connected to a vertical line (no text or labels)

tptz wuhhg wultl a2niú qnnównntp, wuw pnüwlyh panrngn yhhnhuh, hul hunqwüwwyh qihuhyh yhnhuwnhüüwü hh2tgüwü lniuwwjhu gnighyn lpawnrah pnüwlyh ynw ntinhü lnijunü' uħùzu züuqwqtgutp a2niún:

• G3 Premium Gum Care' Gum Health nǚdhu
• W3 Premium White lquú W(c) DiamondClean (lúnúwúwún)‘ White+ nǚdhu

L2niù 'tpat nnn2tp yhnhutl ntdhún/hùntùuhúlniəjniùn hunnhnnn unnu̱nn lwwnwʊlnnniūhg, hunqwùwʊh qihuhʊn yhh2h 2tn lynnúhg nùnnu̱wɔd lwwnwʊlnnniūn htunwqw w2huwɪnw2ŋgwùutph hwiūwn:

Ulnhluwgutl ywi wwwwnlnhluwgutl qnnδwnnjuεuttn

2tn wunwuh hunqwuwlyh ynw 7nip lwwnn tpr wlnhluwgutl ywu wwwwwlnhluwgutl htunljwl qnndwnnijrəutnp`

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Pwjl 2. Utnútp u utnúwð wwhtp úhwguwù/wǔgwùnúwù ynǎwlyn.

	EasyStart lunquùwùhqìhuìyhùnhùwnhùúwùhh2tigniú	òu2úwù utùunnhwnàwqwùp
	Uhùzì 3ùwjnljjuwùunlùnnnípajwúp	Uhùzì 5 Vwjjnljjuwùunlùnnnípajwúp
	↓ ↓ ↓
	Pwjjl 3. Fwug pànntip hnuwùph úhwguówù/wùgwùnúwùlynǎwùŋ, tnp lutp.
	1 wqnwiù2wù 1 wqnwiù2wù,wwμw 2wqnwiù2wù	1 wqnwiù2wù, 2wqnwiù2wù, www 3wqnwiù2wù
	↓ ↓ ↓
	hùswuìu ǔwù
	bptú ùwnunlyngh lhgph àwhu LED gnighzn 2 wùqwú puwnrǎhywùwz ľnijunū l u lutp 3 wqnwiù2wù` gwónhg úhùzì puàn,wwμw qnnòwnnýpàu wlunhúwgulwò ξ:
	4UU
	bptú ùwnunlyngh lhgph àwhu LED gnighzn 1 wùqwú puwnrǎhtīnhù ľnijunū l u lutp 3 wqnwiù2wù` pwàngh úhùzì gwón,wwμw qnnòwnnýpàu wluwhylnhúwgulwò ξ:

NHU whunwhwihz

L2niu 3tunn nnwufwnnynn wputuniwnuttn ywnnn tui unwnptnulti quiuwó uinntihg ywhuulwó:

Three-step diagram showing a tool interacting with a device, a close-up of the device's internal structure, and a final view of a mechanical component (no text or symbols present)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a device with a button and cable, no text or symbols present

2 Enuwyn untwnntp ihgpwulnnhsh ywwu whunwhwuhsh ynw:

• Επιωμη 2 Υωπά ωηνωύ2ωμί τραπικυή, ḥυση Ηωυνωυνιμί τ, ηη επιωμη ωωυν2ωμά Υθηωνημ υτηωηνημώδ τ:
• Uwnunlungh gnighzh jawnann lnjuŋ gnjg 5 unwihu, nn wnuwuh hunqwùwyn lhgpwulnnuǐniú 5:
• 6np lhgpwulnnhshù uhwgulwò pnùwluì wúpnnqniējwiúp lhgpwulnnuḥ, uwnunlyngh gnighsīn 30 lwwjnljiwùh nùpəwgpniú lyuwruiḥ lyuwruiṣ lnujunū, wwmw lyuwrguinuḥ:

Lhgpwlnnniún āwúhnnnwlqwù wwnjwùny

Diagram of a handheld electronic device with a hand holding a cable, showing internal components and a directional arrow (no text or symbols)

L2niu 3bunn unnuwwnpnnn wputuniwnutpn lwwnn tui unwnptnulti qiuulwod uhnhthg lwhuulwod:

1 Stnwnntp USB distinguinun ihgpwulnnuwu awuihnnnwlywu wwwunjwh ubg:
2 Чулишд USB 伍ынінін уhwжтір 5V 33 үнініпріжні hqnnіріжнір hnuwùphù үшні.
- 3tun unwuwwnnlwδ USB hwnufwnhzhg:
- UL uinnwnwnntphu hwiwwwnwnwhwnn lwwf ANSI/UL 60950-1-nu lwwtwnwguwd wudwwlywu hwiwwwnqzh uinnwnwnn USB uhwlghs:
- UL uunwùnwnpùtnhù hwiúwwuwinwuḥuwūnn lyuú ANSI/UL 60950-1-nú lyuútnwgulwó USB tīpwjhu úhwgpnu LPS tīlqunnwùnigniú:
- UL uinnwnwnutphu hwuwwnwnwhwunn ywwu ywwtnwguw 1310 2-nn nwh hltynnnwnunigni:

4wnplnn 5. Twnh hwnuwnhyn wtunp 5 lhuh wuulnwua zwhwqwug gwdn lwnuwi uwnpjnin, nnp hwufwuntntih wtunp 5 lhuh uwnph utnpuh uwnuni u2uud 5tlyunnwlywui hwnwzwnhtnh htun:

3 Stnwnntp pnùwln jhgpwqnnúwù āwúzhnnŋwlywù wjuinjwùh útg:

Line drawing of a fork being inserted into a tube (no text or symbols)

1 3twngntp hunqwùwlyh qjhuhyn u lywgtp utunwnwlywù lhutrh hwnuwrðn unwp gnnu: 3wúnqultp, nn httnwgntl tp wunwúh úwðníyh úuwgnnnútnp:

2qn12wgniu' Uh hntp ntunhut luhpn unin wnwnlywutpnu ntguh jhutnh utg, puuh nn wju lwwnn t hwuqtgutl yuwuuwoph:

2 Frzùwùh wúpnnq úwlytntun úwpntp hùnùwù qnnòu wǒdpnu:

^1 2ni‘ Uh hwnlwdtp pnüwlnyl luygwwnwuhü’ wultinnn gninn htnwgutjni hwúwn:

hunquwuh qihuh

Illustration of hands using a tool to connect two objects, one holding a brush and the other holding a tool (no text or symbols present)

1 3nɪnwpwɪsɪŋn oqunwɑnnɒniʊhg htunn lʊwɡtɪp hunqwɪwwlyh qɪhʊhʊn u ʊwəqhʊtɪŋn:
2 3tizwqntp hunqwùwlyh qlnihn pnzuwlyhg u wnzulwqu 2wpwnen útyi luywtp hunqwùwlyh qluhyn inwp qnnu: Luywtp āwuíhhnnnwlywù ywhwnhşu wjúpwù hwăwhu, nnpwù wùhnwdtizun 5:

Lhgpwulnnhz

1 Uguwntp Ihgpwunnhyn` uwhupwu wju uwpntln:
2 Lhgpwqnnhhsh uwwytntun uwpntp hunuwwu qnndwlwdpnu:

Δωυήηημηλωμι ωωυημι

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand holding a device with a textured internal component and an arrow indicating direction (no text or symbols)

Eynwùn htnwǔgǔlnì hwiúwn prùtp lynph δwjntnn, unpnntù utnútp u nninu hwiùtp www2nnwwùhş Eynwùn:

5 3twngntp niynnwúwùni2wlywqnju lnjuh lwúwn: Lwúwn hwútni hwúwn pnutp wju u nninu pw2tp útunwnjw onwuhg:
6 Uwpntp www2nnwwuhz hynwun u niynnwuwuni2wlywqnju injuh lwuwn hunuuul 2nnnu:
7 Unhg untwnntp niunnwùwùni2wlywqnju Injuh luwup: Luwup Unhg untwnnttni hwiwn luwuh utnpluh uwnh hwiwwuntgntp utinwnwlju onwuh utg u luwup untp onwuh utg:
8 Unhg untwnntp ww2nwwuhz lynwn: Lynwn unhg untwnntni hwuwn lynwn lgnnnutnp hwluwwntgntp niunnwuiwunizwlywnjü injuh lwuwh uun qnuyn wnunwgnnn uwlntntuh wugptnh htun: 3ntp Lynwn ninhn whunwhwuhsh wugptnh utg:
9 ЧWWЯHЛШЯНЬУ УЛУНИТЫНЬ УНРНЬ ГНТЫ ЧЛУНРНЬИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИЗИз
10 Uwpntinig htunn, hwünqutp, nn whunwhwuhxn Ihnuhù znn 5, uwhupwu wju hnuwuph lwntnhù uhwugutln:

اللهمني

tpt stp wwnnwnunlniú tŋlywn dwúwùwú oqunwqnδtú uwnpn, wǔgwntp wjù hìyùnnwùnigúwù lwnnwlyhg, úwpntp wjù l u wwwhtp qnú l u znn untənniú' wnluh nínhh ǎwn2wqwjraútnhg htnni:

Φnħuħnħħnħ

Φnhuwnhùtp Philips Sonicare ḥunqwùwʊŋh q̥hʊhʊ̥u̥tn̥u wú̥t̥u 3 wú̥hʊŋ ú̥t̥u` oʊŋnhú̥wʊl wɒŋŋni̥u̥p̥u̥tn̥ wʊŋwhnʊ̥t̥ɪn̥ hʊwú̥wn: Oqunwqqnpòtp u̥hʊw̥u Philips Sonicare-h ʊhnhuwnhùu̥lnn q̥hʊhʊ̥u̥t̥ɪŋ̥n:

hùwǒu qúnǔl únntāh huúwūn

Luwjtp Philips Sonicare wunwuh hunqwùwlyh pnùwlyh utnpluh uwwuni` uŋntgh hwúwnŋ qinùtʃni hwúwn (HX9600)

Enw2hhp u wgw4gniu

Stntlynipajniùutnh yuwú w2wlygúwù hwiúwn wjgtitp www.philips.com/support 50n yuwú lwwnnwgtp uh2wqqwjhù tnw2huhph rətnrəhyn:

tnu2uhph pfugwnljejnluutn

Ku zh utwnniu wju tnu2hupn`

• Ftnwùh qìhuànghnùtnh útg, útnwnjwl hunqwùwùh qìhuhyùtnn u zhnnwúyùtnn:
• 2wnnnuulw# wwwhtuinwuiwutnh ywu hunqwuiwlyh qihuhyh oqinwqnnduwi u htunluwupnu wnwgwgw# yiuwuuttn:
• Uhuwl oqunwqnndúwù, ʒwnw2whúwù, wùntuúwù, ʒnhnhunijənìùtɪŋ h yuwí ʒwnunnùluwð ʊtɪnwùnnquúwù htnluwúpnú ˌwjuinǎwnúluwð ʊtūwwún:
• Unünnwlywiü üw2üwödnipajniü, ütünwnjwiLshwtn, ptnöüwödpütn, pwjpwjniü, qniüwwpəwihniü lwwü üwpniü:
• Θιμημωύμινι2μλωρημίνιμυή μωύμ:

Чтпшу2wlyniu

• Uw ǔz wù wǔ yīn lǐ, nǐ ǐtǔ yīnn wǔ yìu uānp wǔ lǐnn wǔ tǔ nǐ u ǔw nǔ yīng wǔ tǔ zǔ yìu yìnn pāw hǎn wǔ gǔ tǐ un yīnn wǔ yìu ǐtǔ gǔ wǔ yìh jù wǔ p h hūn ú hòu hù:
• 3tunutp 5tlynnwlywù uwnpwulnnniúutnh l u uwnlnyngútph pauihnuwgúwù ytnwptnjwi làtn tŋynniú nünniúluwó ywùnúutnhù:
• Uhunwhwùhsh niunnwúwùni2wlywqnjù lnjuh lwúwn wwnniúwlniú t uünhly: Uh pawhnúwgntp niunnwúwùni2wlywqnjù lnjuh lwúwn unynnwlywù ytǔgwnwjhù wnph htún, tnp wjù wnntú pawhnúwgúwù hwuwn t: 3wùàutp wjù yttnwú2wlyúwù ww2nnùwlywù hwuwpúwù ytūnniú:

dtnwihgpwwlnnn uwnunlngh htnwgutin

Utŋluwrnnigulwð utŋnuhgpwwlnnunn uwnunlngn wltunp t htnwguh uhwju uwwuwwqhunwgulwð wùdəh ynnhg, tnp uwnpn pwwhulniú t: Uwnunlngn hwutinig wn2w g hwúnqultp, nn uwnunlngn jhnuhú lhgpwwwhulwð t:

Uwnpn fwgtini qnnδhpùtnh htun w2huwuntihu u ʊtnwihgpwuynnuunn uwnunyngn pəwihtihu uwhuwàtnùtp wùlunwùqnipējwiù pnlnn wùhnwdt2un ùwwhuwqqni2wlywiù uħongùtnn: Uüwwujúwi ùww2unwμwùtp ðtn wṣptnn, ðtnptnn, úwnuttnn u ùwyltntun, nnh ʊnw w2huwinniú tp:

Uwnunlngutph htun qnnδ niùtùwìhu hwúnqultp, nn δtn δtntptnp, uwnpwulnpniún u úwnunlngutnp znn tù:

3tnwgutinig htunn uwnunlngutph wwwnwhwlywù ywnǎ uhwgniúhg huniwwuhtnì hwiúwn qtnò wwwtp uwnunlngutpn utunwnwlywù wnwnlywutph htun 2yhniúhg (ophùwly' utunwnwnnwutp, uwwqwlwutp, úwnnwùhutn): Uh yhwəwrtp uwnunlngutpn wyniúhut yhwjwrheptnh utg: ρwihtinig wnwq yhwəwrtp uwnunlngh untnúhùwlutpn ywuí úwnunlngutpn nntp gtin\$wùh unnwnwlyh utg:

^4 tŋwɪhgpwʊlnnʊlnn ʊwnʊlnŋɡn htnwɡʊtɪni hwiʊwn ^4 təq hwnljuwʊlnn ɛ unphɛ hyuː ljunn, ʊnɪpə ʊ hwnə qɪhʊnʊ (uɪnwʊŋwpɪn) wɪnniunwlywhwù: ʔwhwʊwɪtp wɪluːnwaʊqnɪəjwiː hhuːluwlywɪ ʊwwhʊwqqni2wlywù ʊhɒngʊtɪpn, tɔnp htnʊlniː tɔp uunnəlu ʊzʊlωd nɪrəwgwljuwnqħu:

1 4tnw1hgpwwunnunn uwnunyngh jhgpn uwwnntni hwuwn htnwgntp pnuwyn jhgpwwnnhzhg, uhwgntp wunwuh hunqwuwyn u panjl unutp wju w2huwinh' uħușlu ywuq wnutin: 4nlyutp wju pwjln, uħușlu wjluu slywnnnwüwp uhwgutl wunwuh hunqwuwyn:

2 3twnwqntp u pawhtp hunqwùwwlyh qihuhyn: Uúpnng pniwwlyn chwyltp unphşnu lywu lynnnnu:

3 Prùwùh ʊtɪnlu ûh ɒtɪpnu ʊwwhtp u hwnuŋwɒtpr prùwùh wwnjʊwùhù ʊtɪnpuh tqnhg 0,5 ŋnjuý pwnànniəjwiǔ ʊnw: Nidtn hwnuŋwɒtpr únipǎnu lpninn 4 ʊnnútnhg` tqngh ʊwwhwnhʒn ŋnniu hwùtəni hwúwn:

^12 niù 3ùwnwùnn 5' uunhwùwǒ jhùtp úh puùh wùqwú hwnylwǒtǐ dōwjnhù ǔtnphù pnùwlywìh úhwgniuśutnī huqtīnì huuáiàn:

4 3tnwqntp tqn h ywhwnhzn wunwuh hunqwùwuh pnùwuhg: tpt tqn h ywhwnhzn ht2nnipjwúp zh wqwnulniś wwwunjwùhg, lynyutp pwjl 3-n úhùsü tqn h ywhwnhzn nninu qw:

5 Fruwyn qihuhuwyn wwhtinu' jhutn utnplu utnutp lyn2un uwwytinunjah ynw: trat utnphu pwnwnnhzutnp ht2unnipwup stu wqwnunniu wwwunjuhg, ynlyutp pwjl 3-n uhuslu utnphu pwnwnnhzutnp nninu qwù:

6 Stnwnntp wunninwlywhwùn úwnunlngh u ul 2ngwùwlyh úhqu útnphù pwnwnnhşutph útnpluniú: Ujùnihtuniu qqniznptü htrzwgntp wunninwlywhwùn úwnunlnghg` ul 2ngwùwlyh útnpluh hwnulwòn lynunttini hwúwn:

Illustration of a hand holding a device with a circular button, showing a mechanical component (no text or symbols)

Diagram illustrating a recycling process with a battery, a recycling symbol, and a trash bin, accompanied by a magnified circle showing a 'X' symbol.

7 Stnwnntp wunniuwlywhwùn úwnunlyngh útnpuh u ulu 2ngwùwlyh úhqlu` lynuntbìni útünwnwlywù útnnhnn, nnp úhwgùniú t úwnunlyngn lywùws unwwuuwlħu: Uw lywùgwinh úwnunlyngh útnpuh tqnq 2ngwùwlyhg:
8 Frùtp úwnunlyngn u htɪzwgntp wju útnphù pwnwnnhʒutnhg, nnwtuqh lynuntp úwnunlyngh tŋynnnn útunwnjw útnhhnn:

2qn12wgniu 2qn12wgtp uwnunlyngh utnnhnutph unin tqntngh, npwtuqh huniwwuhtp uwnutph u'uwuuulwdputngh:

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

XXXXXX

∂mblubuqun gμgμdφmmdmddsmszgjdgμn

Illustration of a hand holding a toothbrush with a downward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a circular mark and a checkmark (no text or symbols)

Illustration of a hand using a pipette to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

Diagram showing dental arch structures with numbered labels for each component

clean white* gum health clean white* gum health

Simple diagram with three circles and two vertical lines, no text or symbols present

zònqnnb چمjdфмтავMN Bulgaria 3 Uzbekoosub3s nbΦg6bn3mònl 3smsdʒfmn syl3s:

Diagram of a toothbrush with a sensor icon and a magnified view of its tip (no text or symbols)

Simple line diagram showing a circular symbol with a gear and directional arrow, connected to a vertical line with a star-like shape (no text or labels)

mg3g6n Sonicare-nb jdnmnl bsgmbn 8mdzbl 8g6mmsu, mmdgmbsy b4g6qnlsu nyj6jdo nodnbzni, mg3g6 jdnmgdnls uo mhdnmgdnl uosn5gdnluzs6 qslus3s3o. ng ygmo4g0 g6mmsu zsdmny6jdo, lubgmyrn dgn3zmnu zndnsznsu uo lubgmyrn8j msz3ni dgn3zmnu bsmyrs unbojds yjm3n2gmso d5sd, lubsd 8g6mmsu sm dgsd3n5jdo.

Simple diagram showing a circular icon with a traffic symbol and a vertical line with a dot (no text or labels)

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

65079 2: 05590000 05 85079000 85079000/85079000 100000 30 30 30 30 30 30 30 30

	EasyStart 5s8m0n0n0ns3s3n0gsdm3zmn0dglu6bj0dglu6bj0s	8g6mmn0 dgrg5bjo0n0lglblmm0
	3 6s3s4cg 5 6s3s4cg 7 6s3s4cg
	↓ ↓ ↓
	6s0ntn 3: sydʒnn bgm n hsm0zs/gsdmm0zn onmssbl, hm2s gungmbj0m:
	1 lng6smn 1 lng6smn qos dgtd0g3 jno03 2 lng6smn	1 lng6smn, 2 lng6smn qos dgtd0g3 jno03 3 lng6smn
	↓ ↓ ↓
	gm0n0n:
	my gmnbbszm, hmdd sfsfmpgnl dsbn6bg0mn ldsmfgb6s dbsmjlu smlug0ymn bsmyhs 2-tgm ddbsbgo sundyndqos qos gungmbj0m 3 fmbbl, hmddmn ydsmsmn fmbnc0s6 qsdmnlu3g6 hsdmnbl, dsdn6, dsbslnsm0g0mn gusjphnym0g0mn.
	sb
	my bgpszm, hmdd sfsfmpgnl dsh3g6bg0mn ldsmfgb6s dbsmjlu smlug0ymn bsmyhs 1-bgm sundyndqos fdsmfnlugfnsq os gungmbj0m 3 fmbbl, hmddmn ydsmsmn fmbnc0s6 qsdmnlu3g6 hsdmnbl, dsdn6, dsbslnsm0g0mn gsonndgmn.

UV სანიტათეური

Illustration of two hands holding a tool with a pointed tip and a pointed tip, intersected by a diagonal line (no text or symbols)

Illustration of a hand pressing down on a device component with an arrow indicating the left side (no text or symbols present)

Cross-sectional diagram of a mechanical component with two symmetrical slots and textured surfaces (no text or symbols)

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Simple line drawing of a mechanical component with a starburst symbol above it, no text or symbols present.

Illustration of a handheld electronic device with a hand holding a plug, showing internal components and wiring (no text or symbols)

odds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Funds Fund

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to tie a pair of objects (no text or symbols present)

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured interior (no text or symbols visible)

odds funds may be able to pay a money for the following:

∂muzumfghosq oudy63sqn dshsmgnu sdmluymgdoq ousgfnmogdssn 3nmlusbmzn sb fgnmm, hgybn qo s dmygymosznsbn (lhybcomfuymn) lsmbubbn. 8jdmn sm6jmnnn 3mmguymn dglmugndnls, dnngm on lngmobngnbl j3jdmn dnomugdymn dnmnansqn 8mdjdn.

Diagram illustrating two steps of a tool application: adding a component to a tool and using a hammer to press or adjust the tool.

Diagram illustrating a recycling process with a battery, recycling symbol, and labeled waste bins

sān lā dādāng gā bāsdāng dāgān sā dān sān tāgān sān qān dāy bāzun dāy mīn lāqōsāy dāzjò, 3hāmāy jīn lāqōn hābān nā bān mīn jān yībān gāpūn yu mīn lān sān bān sān qān bān jān zān 320n.

www.philips.com/support

Simple line drawing of an open book and a circuit symbol (no text or labels)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration showing four-step dental procedure steps: tool insertion, angle measurement, power switch, and end-to-end angle adjustment.

Diagram of dental arching technique showing tooth arrangement and tool placement (no text or labels)

Diagram showing dental arches with numbered labels for orthodontic or dental alignment reference.

clean white* gum health clean white* gum health

+White Gum Health Deep -I Clean

+Clean

Deep Clean+: 3 *πιγτ

בִרָה אַרְשׁוֹת הֶל

+White Gum Health Deep -I Clean

+Clean

Diagram of dental arch with numbered labels indicating different tooth positions or dental positioning

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Diagram of human dental arch with numbered labels indicating different tooth positions or dental positioning.

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Illustration of a dental arch with a numbered marker (7) indicating a specific tooth position on the upper teeth (no text or symbols beyond the number)

Diagram of a dental arch with numbered labels indicating specific tooth positions or regions.

Diagram of dental arch with numbered labels indicating different tooth positions or regions

Illustration of a dental arch with teeth and jawbone, marked with number 8 (no text or symbols on the arch itself)

9 10

Diagram of human teeth with numbered labels indicating dental alignment or segmentation

Philips Sonicare כְרָהִיַעֹאָהִיַעֹאָהִיַעֹאָהִיַעֹאָהִיַעֹאָהִיַעֹאָהִיַעֹאָהִיַעֹאָהִיַעֹאָה 3-1 כְרָהִיַעֹאָהִיַעֹאָהִיַעֹאָהִיַעֹאָהִיַעֹאָה +Deep Clean

הכלהה

תָרִיּוֹת הַלְהּ

Simple diagram with three circles and a central oval, no text or symbols present

Diagram of a microphone with signal icon and connection point (no text or symbols)

BrushSync הַרְׁבָה

.7017 www.philips.com/toothbrush-heads

תְבָרִי

-γη7 11

-Brush

-Smar

-EasyS

-ΝΥΗ

-ΝΥΗ

Simple line diagram showing a circular icon with a road sign and a starburst symbol connected to a vertical line (no text or labels)

בִרְשָׁה בַרְשָׁה

Diagram showing a circular traffic sign with directional arrows and a small circle labeled 'n' connected by a line.

Simple line drawing of a hand pressing a button on a cylindrical object with an 'Power' icon (no text or symbols)

Simple diagram with a circular icon and a small circle connected by lines, no text or symbols present.

IN

Simple diagram with a circular arrow and a small circle connected by a line (no text or symbols)

UV χυρη

Technical diagram illustrating three-step hairpin tool application: holding a brush, opening a device, and inserting a toothbrush into a device.

Diagram showing a device with a starburst symbol and an arrow pointing to a small component, likely indicating a process or operation.

Illustration of a handheld electric shaver with a hand holding the blade (no text or symbols)

1 2 -הִרְפָה -הִרְפָה -הִרְפָה

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

un

.הכלההוּרָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָהִיַעְבָה

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Hand holding a device with a black arrow pointing to a textured section (no text or symbols visible)

:הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

-.D'D'

-IX □

Diagram illustrating two steps of a tool application: adding a component to a tool and using a hammer to press or adjust the tool.

Illustration of a hand hammering a cylindrical object with a circular arrow indicating rotation (no text or symbols)

Illustration of hands holding a battery with an arrow indicating rotation (no text or symbols)

www.philips.com/Sonicare

©2022 Koninklijke Philips N.V. (KPNV). All rights reserved. Philips and the Philips shield are trademarks of KPNV. Sonicare and the Sonicare logo are trademarks of Philips Oral Healthcare, LLC and/or KPNV.

300007790502 (02/12/2022)
