Product Type	Rechargeable Sonic Toothbrush
Model	Sonicare DiamondClean HX9307
Brand	Philips
Dimensions (handle)	Approx. 10.5 x 1.5 x 1.5 inches (26.7 x 3.8 x 3.8 cm)
Weight (handle)	Approx. 4.9 oz (139 g)
Power Source	Rechargeable Li-ion battery, 100-240 V AC adapter
Charging Time	24 hours for full charge
Battery Life	Up to 3 weeks (twice daily 2-minute brushings)
Brushing Modes	Clean, White, Sensitive, Gum Care, Deep Clean
Timer	Quadpacer (4 intervals of 30 sec) with beep and pause
Speed	Up to 31,000 brush strokes per minute
Pressure Sensor	No (but light pressure recommended)
Easy-Start Feature	Gradual power increase over first 14 brushings (activatable/deactivatable)
Travel Case	Included charging travel case (USB charging compatible)
Charger Compatibility	Only with this model; not compatible with previous Sonicare models
Cleaning	Wipe handle with soft cloth; charger glass top-rack dishwasher safe; do not immerse
Water Resistance	IPX7 (handle) - safe for shower use
Brush Head Replacement	Every 3 months for optimal performance (not included in warranty)
Warranty	2 years from date of purchase (excluding brush heads and wear/tear)
Safety Compliance	Complies with electromagnetic device safety standards; safe for pacemaker users with caution
Package Contents	Toothbrush handle, brush head, charger glass, charging base, travel case, USB wall adapter, USB cable, hygienic travel cap

Frequently Asked Questions - Sonicare Diamondclean HX9307 PHILIPS

How long does it take to fully charge the Philips Sonicare DiamondClean HX9307?

The first charge takes 24 hours. After that, a full charge provides up to 3 weeks of use with twice-daily 2-minute brushings.

What brushing modes are available?

Five modes: Clean (standard plaque removal, 2 min), White (2 min whitening + 30 sec polish), Sensitive (gentle, 2 min), Gum Care (Clean + 1 min gum massage, 3 min), and Deep Clean (3 min alternating clean and massage).

How do I activate or deactivate the Easy-Start feature?

Place the handle on the plugged-in charger. Press and hold the power button for 2 seconds. One beep means Easy-Start is deactivated; two beeps means it is reactivated. Clinical studies are performed with Easy-Start off.

Can I use the toothbrush in the shower?

Yes, the handle is water-resistant (IPX7) and safe for shower use. However, the charger and travel case should be kept away from water.

How often should I replace the brush head?

Replace every 3 months or sooner if bristles become frayed. Brush heads are not covered under the 2-year warranty.

What does the Quadpacer timer do?

The Quadpacer divides brushing into 4 intervals of 30 seconds, with a short beep and pause to remind you to move to the next section of your mouth.

How do I clean the charger glass?

The charger glass is top-rack dishwasher safe. Do not clean the handle, brush heads, or charger base in the dishwasher. Wipe the handle with a soft cloth and mild soap.

Can I use the toothbrush if I have a pacemaker or other implant?

This product complies with electromagnetic safety standards. However, if you have a pacemaker, consult your physician or device manufacturer before use. Maintain a safe distance if possible.

What is the warranty on the Sonicare DiamondClean HX9307?

Philips offers a 2-year warranty from the date of purchase covering defects in materials and workmanship. Exclusions include brush heads, damage from misuse, normal wear, and unauthorized repairs.

How do I dispose of the toothbrush at the end of its life?

Do not throw it in household waste. Remove the battery (see manual for instructions) and recycle the product at an official collection point. Dispose of the battery separately at a battery collection point.

USER MANUAL Sonicare Diamondclean HX9307 PHILIPS

DiamondClean Deep clean edition

Rechargeable sonic toothbrush

フィリップ スソニッケアー

ダイヤモンドクリーン

ディー プクリー エ ディション

充電式電動歯ブラシ

HX9304/08,HX9314/08,HX9305/08,

HX931 5/08,HX9306/08,HX9316/08,

HX9307/08,HX9317/08,HX9309/08,

HX931908

取扱説明書

保証書付

Guidance in English 21\~33

●保 証

保証とアフターサービス 35

仕様 36

無料修理規定 38

保証書 ...... 最終ページ

2

必ずお守り ください

ご使用の前に必ず取扱説明書をよくお読

Illustration of a hand using a screwdriver to apply a black arrow to a nail, no text or symbols present

Line drawing of a toothbrush with a black arrow indicating direction (no text or symbols)

Diagram showing a cable connector inserted into a wall-mounted socket, with an arrow indicating direction (no text or symbols present)

Diagram of a door with an arrow pointing to a toothbrush inside a cabinet (no text or symbols)

6

充電の仕方

この製品は通常24時間充電です。

満充電で約3週間使用できます。

(1日2回、2分間使用した場合)

Diagram showing a plug connected to a U-shaped cable with a starburst symbol (no text or labels)

注意

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

充電表示

充電催促表示

Illustration of a toothbrush applying gum tissue to teeth (no text or symbols)

Simple line drawing of a pipette dispensing liquid into a container (no text or symbols)

Illustration of dental arches and teeth (no text or symbols)

歯の表側

Illustration of a toothbrush brushing teeth with dental crowns (no text or symbols)

奥歯の裏側

ヒント

Illustration of a hand holding a tooth with an arrow pointing upward (no text or symbols)

14

Simple line drawing of a tool tip with a droplet, no text or symbols present

Hand holding a battery with a switch and arrow indicating downward motion (no text or symbols)

To reduce the risk of electrocution:

• Always place and store the charger at a safe distance from water.
• Unplug the charger immediately if it falls into water.
• Never use a charger with a damaged cord or plug.

WARNINGS

To reduce the risk of burns, electrocution, fire or physical injury:

• Do Not use attachments other than those recommended by the manufacturer.
• Do Not plug the charger into an outlet with a voltage other than specified on the bottom of the charger. This product is designed to operate within a range of 100 to 240 volts. Voltage converters Do Not warrant voltage compatibility.
• Never force the plug into an outlet; if the plug does not easily fit into the outlet, discontinue use.
• Discontinue use if the product appears damaged in any way (brush head, handle, charger).
  • Do not use the charger if it has dropped into water.
• Keep the cord away from heated surfaces.
  • Do not use the charger outdoors.

• This product contains no user-serviceable parts. Refer to "Warranty and Service" if the appliance no longer works properly or needs repair.

• Use this appliance only for its intended use as described in this document or as recommended by your dental professional.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Sonicare is a personal care device and is not intended for use on multiple patients in a dental office or institution.
• Use UL Listed computer, USB Hub, or USB duplex receptacle when charging the toothbrush handle in the travel case.
• When using a computer to recharge the toothbrush handle, the computer should be located away from sources of water (i.e. sink or tub) so as to avoid electrical shock.

22

MEDICAL WARNINGS

• Consult your dental professional before you use this product if you have had oral or gum surgery in the previous 2 months.
• Contact your dental professional if excessive bleeding occurs after using this product or bleeding continues to occur after 1 week of use.
• Discontinue use of this product and contact a physician/dentist if discomfort or pain is experienced.
• This product complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device, contact your physician or the device manufacturer prior to use.
• Consult your physician if you have other medical concerns.

Electromagnetic fields (EMF)

This Philips product has been tested and is compliant with safety standards for electromagnetic devices. If handled properly and according to the instructions in this user manual, the product is safe to use.

SAVE THESE INSTRUCTIONS

A Brush head
B Handle with ergonomic shape
C Recessed power on/off button
D Hidden brushing mode display
E Charge indicator
F Hygienic travel cap

G Charger glass
H Charging base
I Charging travel case
J USB wall adapter
K USB cord

24

3 BEFORE FIRST USE

Charge Sonicare - Charge for 24 hours before first use. Charge indicator flashes green until fully charged. Rapid yellow flashing indicates charge is extremely low (fewer than 3 uses left). Your Sonicare has been designed to last up to 3 weeks on a single charge. Refer to “Traveling with your Sonicare” for additional charging methods.

The charger is designed to properly charge only one (1) handle at a time. Do not place metallic objects in the charger glass as handle charging may be affected and may cause the charger to overheat.

This charger is not compatible with previous models of Sonicare.

4 USING YOUR SONICARE

Brush - Gently move the brush head slowly across the teeth in a small back and forth motion so the longer bristles reach between your teeth. Do not scrub like a manual toothbrush. Apply light pressure to maximize Sonicare's effectiveness and let the Sonicare do the brushing for you.

The Quadpacer is an interval timer that has a short beep and pause to remind you to brush the 4 sections of your mouth. Depending on the brushing mode you have selected, the Quadpacer beeps at different intervals during the brushing cycle.

Clean The ultimate in plaque removal (Standard mode).

White 2 minutes of whitening mode to remove surface stains and 30 seconds to brighten and polish your front teeth.

Sensitive Extra gentle mode for sensitive teeth and gums.

Gum care Complete mode combines Clean mode with an additional minute to gently stimulate and massage gums to improve gum health.

Deep Clean Provides an invigorating 3 minutes of alternating cleaning and massaging to deliver an exceptionally clean experience.

Illustration of a hand pouring liquid into a pipe with a droplet on the surface (no text or symbols)

Illustration of a hand using a tool to clean tooth with a brush (no text or symbols)

Clean	→ 2 min.
White	→ 2:30 min
Sensitive	→ 2 min.
Gum care	→ 3 min.
Deep Clean	→ 3 min.

5 GETTING USED TO YOUR SONICARE

Easy-start - The Sonicare may feel ticklish upon first use. To help you ease into the Sonicare experience, the Easy-start feature will gradually increase the sonic power over the first 14 brushings. Brushing must last at least 1 minute to properly advance through this ramp-up cycle.

Easy-start may be deactivated - Place the handle in the plugged-in charger (either charging base or travel case) - Push and hold the on/off button for 2 seconds; 1 beep indicates the Easy-start feature has been deactivated; 2 beeps indicate the feature has been reactivated.

Clinical studies are performed with the Sonicare fully charged and the Easy-start feature deactivated.

6

TRAVELING WITH YOUR SONICARE

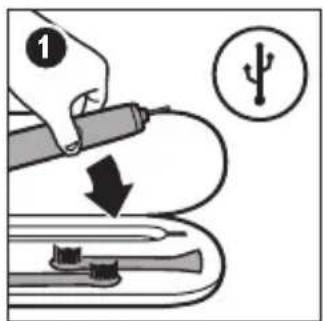

Charge via wall outlet - Place the handle in the charging travel case, plug the USB cord into the travel plug, and plug into an electrical outlet. The charge indicator on the handle flashes green until fully charged.

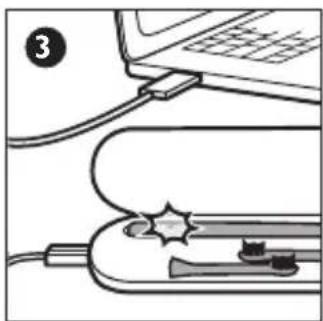

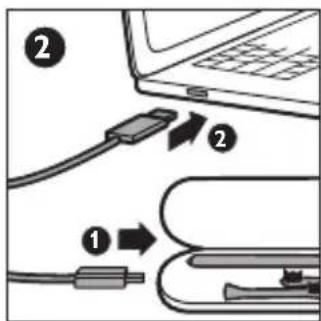

Charge via USB - Remove the USB cord from the travel plug, and insert the USB plug into any USB port. Use Only Philips USB wall adapter and USB cable provided.

Use Only UL Listed devices as an alternate method of charging the toothbrush handle in the travel case (i.e. UL listed Computer, USB Hub). This charger is not compatible with previous models of Sonicare.

Diagram of a device with cables and a switch, no visible text or symbols

29

7 CLEANING YOUR SONICARE

Cleaning - Clean the Sonicare periodically. Wipe down and rinse the entire surface with a soft cloth and mild soap, if desired. Do not use sharp objects to clean. Do not clean brush heads, handle, charging base, or travel charger in the dishwasher. Charger glass is top rack dishwasher safe.

30

8 STORING YOUR SONICARE

Storing - If the Sonicare will not be used for an extended period of time, unplug the charger, clean the product, and store it in a cool, dry place away from direct sunlight.

9

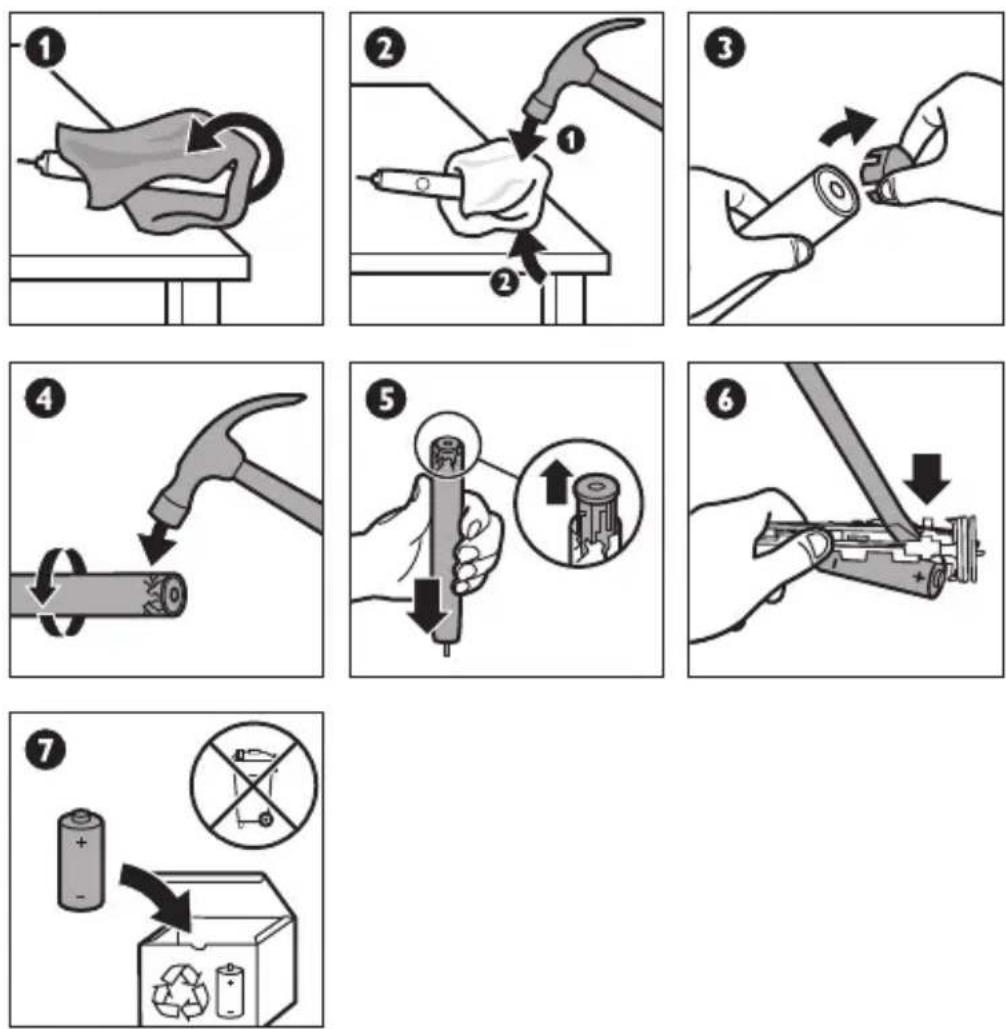

PRODUCT LIFE

Please note this process is not reversible - Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. Dispose of the battery at an official collection point for batteries. By doing this, you help to preserve the environment.

Only remove the battery at the end of the product's life - Doing so earlier will destroy the product. Observe basic safety precautions.

To separate the batteries from the housing case: Place the handle on a solid surface and lightly tap the housing one inch from the bottom edge with a hammer. Rotate the handle 90 degrees, and repeat until bottom cap separates from the handle.

32

10

SUPPORT

www.philips.com/support

LOCATING THE MODEL NUMBER

Look on the bottom of the unit for the model number.

WARRANTY AND SERVICE

Philips warrants its products for 2 years after the date of purchase.

Defects due to faulty materials and workmanship will be repaired or replaced at Philips' expense provided that convincing proof of purchase in the qualifying period is provided.

WARRANTY EXCLUSIONS

What is not covered under the two-year warranty:

• Brush heads
• Damage caused by misuse, abuse, neglect, alterations or unauthorized repair
• Normal wear and tear, including chips, scratches, abrasions, discoloration or fading

IMPLIED WARRANTIES

ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THE EXPRESS WARRANTIES SET FORTH ABOVE. IN SOME STATES LIMITATIONS ON DURATION OF IMPLIED WARRANTIES DO NOT APPLY.

LIMITATION OF REMEDIES

IN NO EVENT SHALL PHILIPS OR ANY OF ITS AFFILIATED OR SUBSIDIARY COMPANIES BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, LOSS OF SAVINGS OR REVENUE; LOSS OF PROFIT; LOSS OF USE; THE CLAIMS OF THIRD PARTIES INCLUDING, WITHOUT LIMITATION, DENTISTS AND DENTAL HYGIENISTS; AND COST OF ANY SUBSTITUTE EQUIPMENT OR SERVICES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.

DiamondCleanDeepcleanedition_A6_CS6_0830.indd 34 16/08/30 12:5

保証と アフターサービス

Philips Oral Healthcare, LLC.

22100 Bothell Everett Hwy Bothell, WA 98021 U.S.A.

Phone:[phone]

Philips Oral Healthcare, LLC.

22100 Bothell Everett Hwy

Bothell, WA 98021 U.S.A.

日本販売代理店

小泉成器株式会社

Pure geometric lines forming an L-shape with no text or symbols

37

DiamondCleanDeepcleanedition_A6_CS6_0830.indd 37 16/08/30 12:5

無料修理規定

〈無料修理規定〉

4235.021.1520.2(12/16)
