USER MANUAL BHSM166 BLACK & DECKER

ENGLISH (Original instructions)

u Do not leave the appliance connected to an electrical outlet when not in use. u Never pull the power lead to disconnect the appliance from the socket. Keep the appliance lead away from heat, oil and sharp edges. u Do not handle steam cleaner with wet hands. u Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or expose cord to heated surfaces. u Do not use appliance in an enclosed spacelledwithvapourgivenoffby oil-base paint thinner, some mothproongsubstances,ammable dust, or other explosive or toxic vapours. u Checkthetypeofoorwiththe manufacturer. u Do not use on leather, wax polished furnitureoroors,syntheticfabrics, velvet or other delicate, steam sensitive materials.

Warning! Do not use on unsealed wood or unsealed laminateoors.Onsurfacesthat have been treated with wax or somenowaxoors,thesheen may be removed by the heat and steam action. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions fromtheoormanufacturer. Intended use Your BLACK+DECKER FSMH1321,BHSM166DSM, BHSM168D, BHSM168DSM, BHSM168U, BHSM169DSM, BHSM1610DSM, BHSM1615DSM, BHSM1615DSG,BHSM1615DAM steam mop has been designed for sanitising and cleaning sealed hardwood, sealed laminate, linoleum, vinyl,ceramictile,stoneandmarbleoors.Thisapplianceisintended for indoor household use only. Safety Instructions Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below mayresultinelectricshock,re and/or serious injury.

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce theriskofre,electricshock, personal injury and material damage. u The intended use is described in this manual. u The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury. u Retain this manual for future reference. Using your appliance u Do not direct steam at people, animals, electrical appliances or electrical outlets. u Do not expose to rain.u Do not immerse the appliance in water.u Do not leave the applianceunattended.8 ENGLISH (Original instructions) u Never put descaling, aromatic, alcoholic or detergent products into the steam cleaner, as this may damage it or make it unsafe for use. u If the home circuit breaker activates while using the steam function, discontinue product use immediately and contact the customer support centre. (Beware of the risk of electrical shock.) u The appliance emits very hot steam to sanitize the area of use. This means that the steam head, cleaning pads and carpet attachment get very hot during use. Caution! Always wear suitable shoes when using your steam mop and when changing the accessories on your steam mop. Do not wear slippers or open toed footwear. u The lid may become hot during use. u Steam may escape from the appliance during use. Care should be taken when using this appliance.DONOTtouchanyparts which may become hot during use. u Switch the appliance off and return the handle to the upright position before removing the water tank. u If steam is observed escaping from the body of the hand held steam cleaner, switch off and disconnect the unit from the mains supply, allow to cool. Contact your nearest authorised repair agent. Do not continue to use the appliance. After use u Unplug the appliance and allow to cool before cleaning. u When not in use, the appliance should be stored in a dry place. u Children should not have access to stored appliances. Inspection and repairs u Unplug the appliance and allow to cool before performing any maintenance or repairs. u Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation. u Regularly check the power lead for damage. u Do not use the appliance if any part is damaged or defective. u Have any damaged or defective parts repaired or replaced by an authorized repair agent. u Never attempt to remove or replace anypartsotherthanthosespeciedin this manual. Safety of others u This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.9 ENGLISH (Original instructions) u Children should be supervised to ensure that they do not play with the appliance. u The plug must be removed from the socket-outlet before cleaning or maintaining the appliance. u The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens. u The appliance shall not be left unattended while it is connected to the supply mains. u The appliance is not to be used if it has been dropped, if there are visible signs of damage or it is leaking. u Keep the appliance out of reach of children when it is energized or cooling down. u Never point or direct the mitt at yourself or any other person. u Care should be taken when using the appliance due to the emission of steam u Unplugtheapplianceduringllingand cleaning. u The fabric steamer must not be left unattended while it is connected to the supply mains. u The fabric steamer is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking. u keep the fabric steamer and its cord out of reach of children less than 8 years of age when it is energized or cooling down. Residual risks Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc. Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include: u Injuries caused by touching any moving parts. u Injuries caused by touching any hot parts. u Injuries caused when changing any parts or accessories. u Injuries caused by prolonged use of the appliance. When using any appliance for prolonged periods ensure you take regular breaks. Electrical safety

Warning! Warning! This product must be earthed. Always check that the power supply corresponds to the voltage on the rating plate. Power plugs must match the outlet. Never modify the plug in any way. Unmodiedplugsandmatchingoutlets will reduce risk of electric shock u If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.10 ENGLISH (Original instructions) Extension cables & Class 1 product u A 3-core cable must be used as your appliance is earthed and of Class 1 construction. u Always use an approved extension cable suitable for the power input of this appliance (see technical data). Up to 30m of 1.50mm

extension cable can be used without loss of product performance. Before use, inspect the extension cable for signs of damage, wear and ageing. Replace the extension cable if damaged or defective. When using a cable reel, always unwind the cable completely. Labels on appliance The following pictograms along with the date code are shown on the appliance. CAUTION! Hot Steam Water dripping when used upside down Steam escapes from all sides Do not leave unsuper- vised with young children Hand wash only CAUTION! Hot surface Features This appliance includes some or all of the following features.

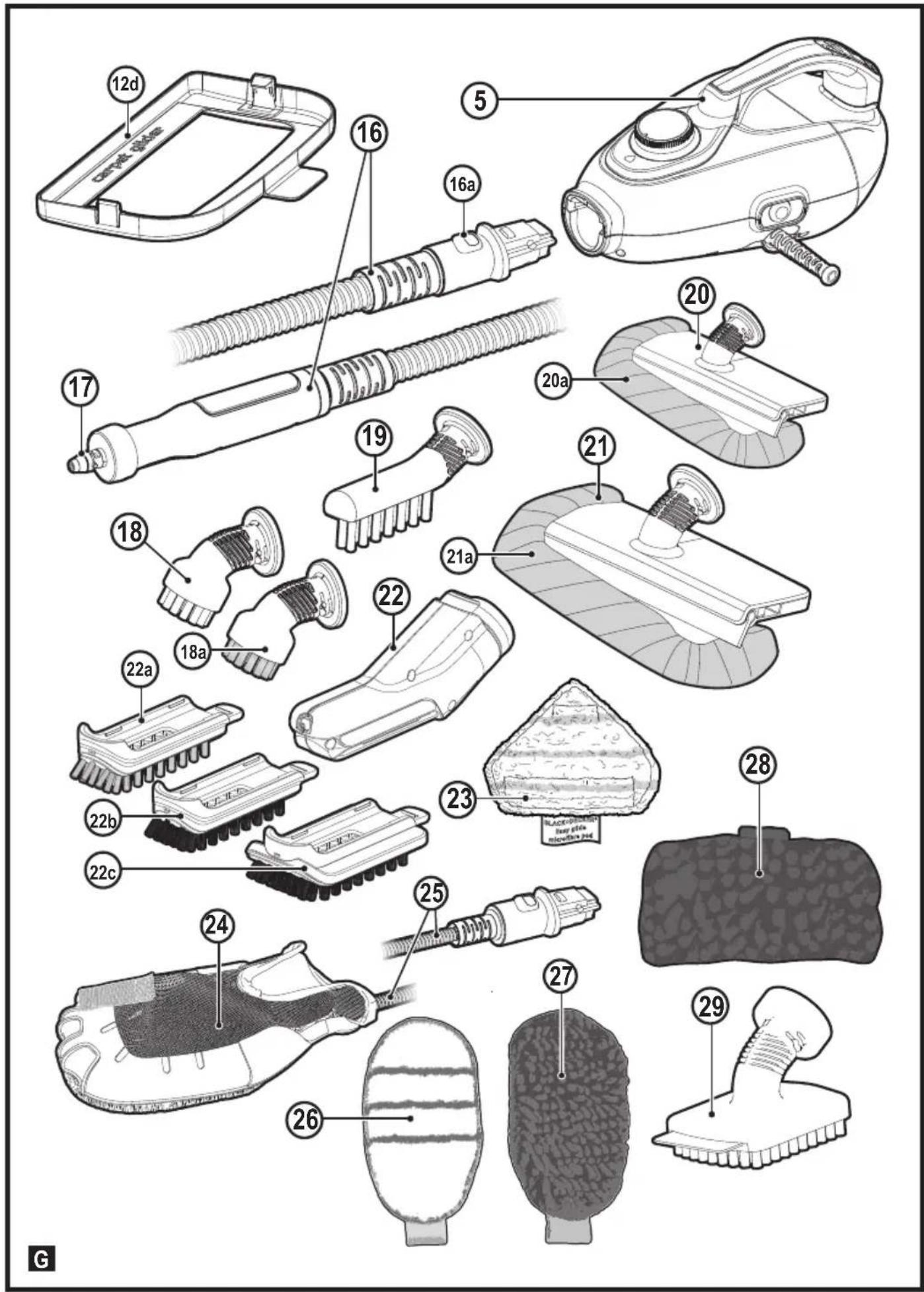

3. Hand held steam unit handle

5. Hand held steam unit

10. Hand held steam unit release button

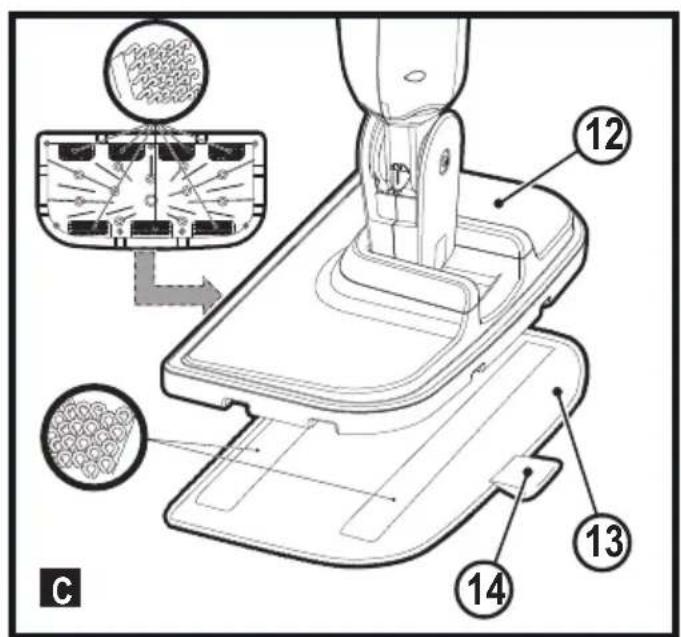

12. Floor cleaning head

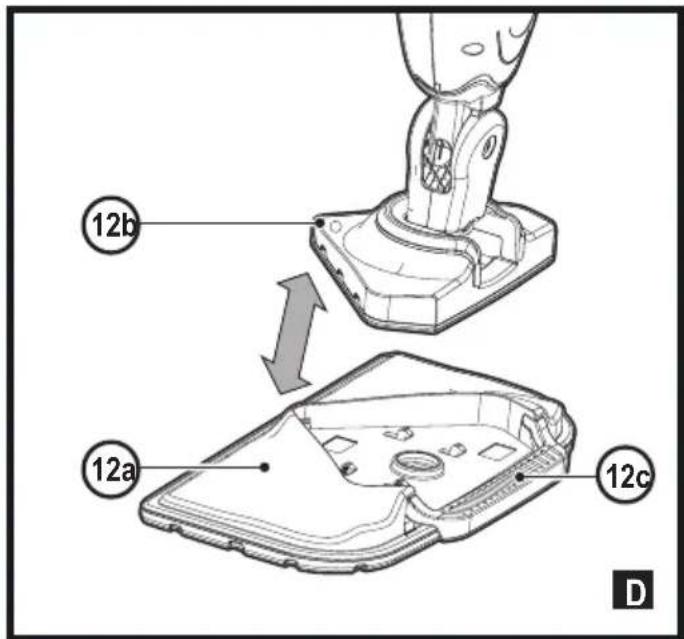

12a. Floor cleaning head with lift-out delta section 12b. Delta head 12c. Steam head removal tab 12d. Carpet glider (for use on carpets)

13. Floor cleaning pad

(for use on hard to remove stains) 18a. Angle brush (wire brush)

(for use on tiles / grout)

20. Squeegee accessory

(for use on shower screens / glass / mirrors / clothing / upholstery) 20a. Squeegee sock

21. Large squeegee accessory

(for use on shower screens / glass / mirrors / clothing / upholstery) 21a. Large squeegee sock

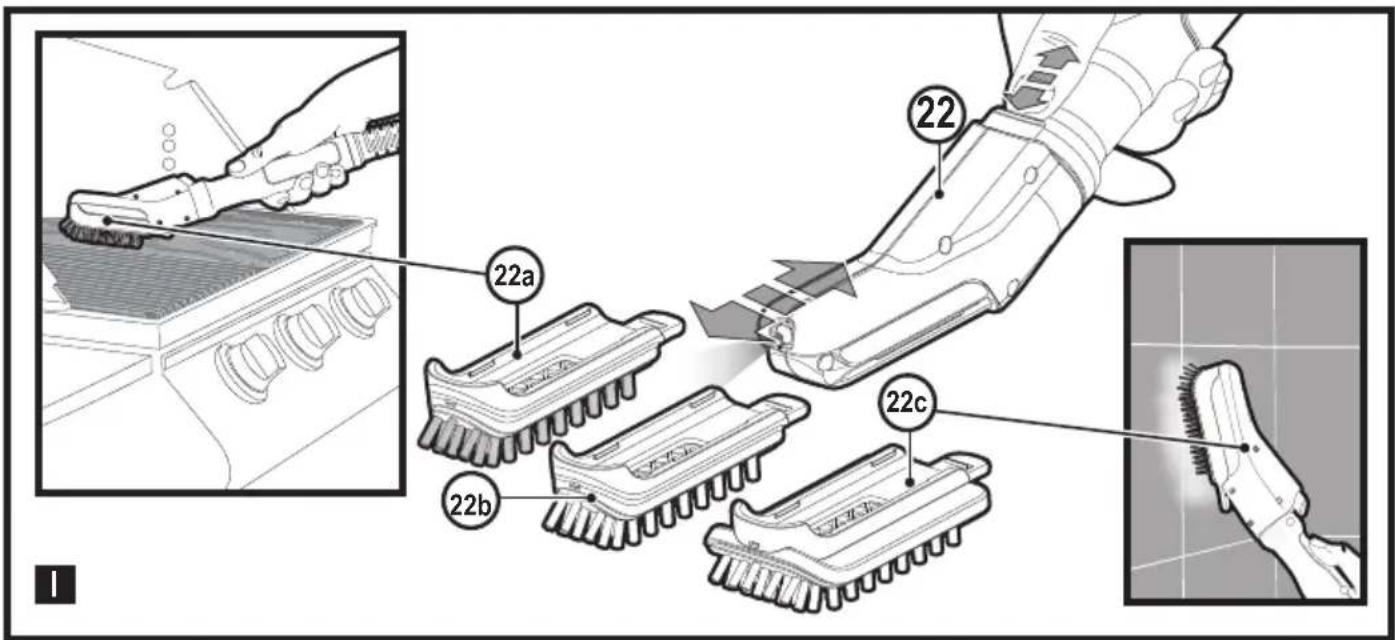

22. Steam burst brush unit

22a. Steam burst wire brush ( for use on BBQ / ovens) 22b. Steam burst brush ( for use on BBQ / ovens / oven hobs / taps / grout) 22c. Steam burst wide brush (for use on larger work surfaces)

29. Large brush with built-in scraper11

ENGLISH (Original instructions) Conguration

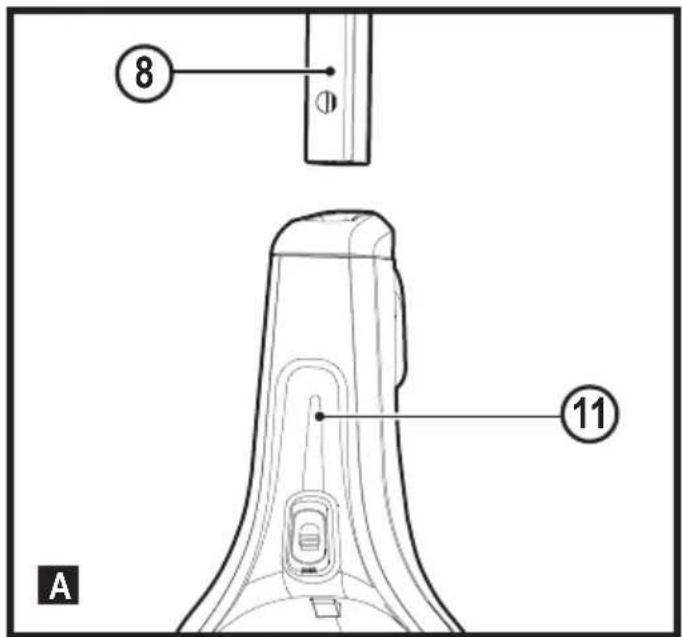

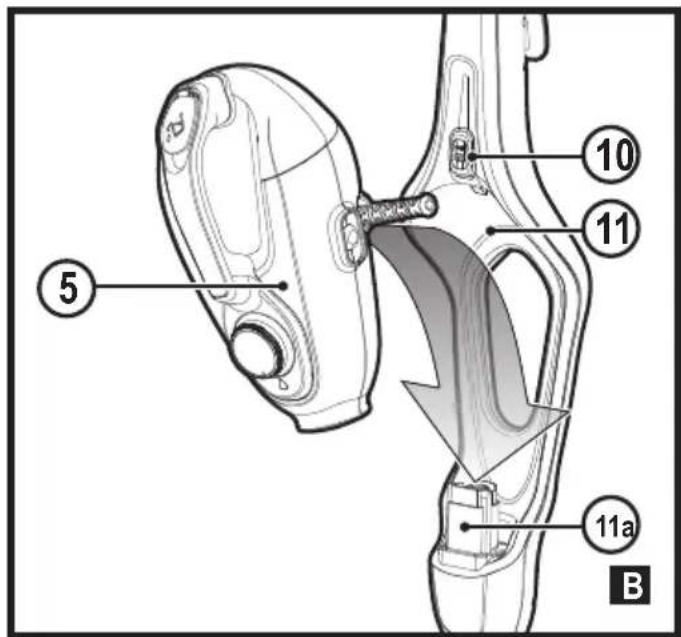

Warning! Before attempting any of the following instructions, make sure that the appliance is switched off and unplugged and the appliance is cold and does not contain any water. Attaching the handle (Fig. A) u Slide the bottom end of the handle (8) into the top end of the steam mop body (11) until it clicks into place. Attaching the hand held steam cleaner (Fig. B) u Holding the back of the steam mop body (11) push the handheldsteamcleaner(5)rmlyintothesteammop body (11) making sure it sits correctly over the interface (11a) and clicks securely into place. Removing the hand held steam cleaner (Fig. B) u Push the release button (10) on the main body (11) and lift the hand held steam cleaner (5) off the interface (11a) and away from the main body (11). Attaching a cleaning pad (Fig. C) Replacement cleaning pads are available from your BLACK+DECKER dealer :- (cat no. FSMP20-XJ). u Placeacleaningpad(13)ontheoorwiththevelcro'loop' side facing up. u Lightly press the steam mop down onto the cleaning pad (13). Note: Thisunitmaybesuppliedwithastandardoorcleaning head (12) or a steam burst cleaning head (12a). In either case usetheseinstructionstotacleaningpad. Caution! Never leave the steam mop in one spot on any surface for any period of time. Always place the steam mop with the handle (8) supported in the upright position when stationary and make sure the steam mop is turned off when not in use. Removing a cleaning pad Caution! Always wear suitable shoes when changing the cleaning pad on your steam mop. Do not wear slippers or open toed footwear. u Return the handle (8) to the upright position and turn the steammop'OFF'. u Wait until the steam mop cools down (approximately 5 minutes). u Lift the steam mop away from the cleaning pad freeing it from the velcro fastening. Caution! Never leave the steam mop in one spot on any surface for any period of time. Always place the steam mop with the handle (8) supported in the upright position when stationary and make sure the steam mop is turned off when not in use. Filling the water tank (Fig. O) Note! Fill the water tank with clean tap water (Do not use any additives or chemicals). Note! In areas of hard water, the use of de-ionised water is recommended. u Openthellercap(4)byippingitup. u Fill the water tank with water (Do not use any additives or chemicals). Warning!Whenlling,detachfrommainunitandmaintainin a horizontal position. Warning! Your water tank has a 0.5 litre capacity. Do not over llthetank. u Closethellercap(4). Note! Ensurethellercapisrmlysecured.12 ENGLISH (Original instructions) Attaching the carpet glider (12d) (For use on carpets only) u Placethecarpetglider(12d)ontheoor. u Attachacleaningpadtotheoorcleaninghead(12,12a) u Lightly press the steam mop down onto the carpet glider (12d) until it clicks into place. Caution! Never leave the steam mop in one spot on any surface for any period of time. Always place the steam mop with the handle (8) supported in the upright position when stationary and make sure the steam mop is turned off when not in use. Removing the carpet glider Caution! Always wear suitable shoes when changing the carpet glider on your steam mop. Do not wear slippers or open toed footwear. u Return the handle (8) to the upright position and turn the steammop'OFF'. u Wait until the steam mop cools down (approximately 5 minutes). u Place the front of your shoe onto the carpet glider removal tabandpressdownrmly. u Lift the steam mop up and off the carpet glider. Caution! Never leave the steam mop in one spot on any surface for any period of time. Always place the steam mop with the handle (8) supported in the upright position when stationary and make sure the steam mop is turned off when not in use. The Delta Head (Fig. D) This steam mop incorporates a built-in delta head which enables you to access tight corners and narrow spaces. Caution! Always wear suitable shoes when accessing the delta head on your steam mop. Do not wear slippers or open-toed footwear. u Turnthesteam-mopto‘OFF’ u Waituntilthesteam-mopcoolsdown(approximatelyve minutes). u Place the front of your shoe onto the steam head removal tab (12c) and press down gently. u Lift the delta head (12b) up off the steam head (12a) u Fit the delta head cleaning pad to the bottom of the delta head. Note:Removethecleaningpadbeforerettingthedelta head to the steam head. u TorefittheDeltahead,placethetipoftheDeltaheadinto thesteamheadthenpressdownfirmlyensuringthatthe Delta head clicks into place. Attaching the hose and accessories to the hand held steam cleaner (Fig. G - M) Warning! Inspect the seal between the connection point on the hand held steam cleaner (5) and the steam hose (16) before each use. If the seal malfunctions or is damaged, please contact your nearest authorised repair agent. Do not use the appliance. Attaching the hose u Press the steam hose release button (16a) on the steam hose (16). u Connect the steam hose (16) to the hand held steam cleaner (5) and release the steam hose release button (16a) making sure it clicks into place. Important! Ensure that the steam hose (16) is securely connected to the hand held steam cleaner (5). If steam escapesfromthejoint,thehoseisincorrectlytted.Switchoff, allowtheunittocoolthenremoveandretthehose. Attaching accessories (Fig H) u Align the lugs on the steam nozzle (17) with the recesses on the accessory. u Press the accessory onto the steam nozzle (17) and twist anti-clockwise until the accessory clicks into place. Important! All accessories, apart from the SteaMitt

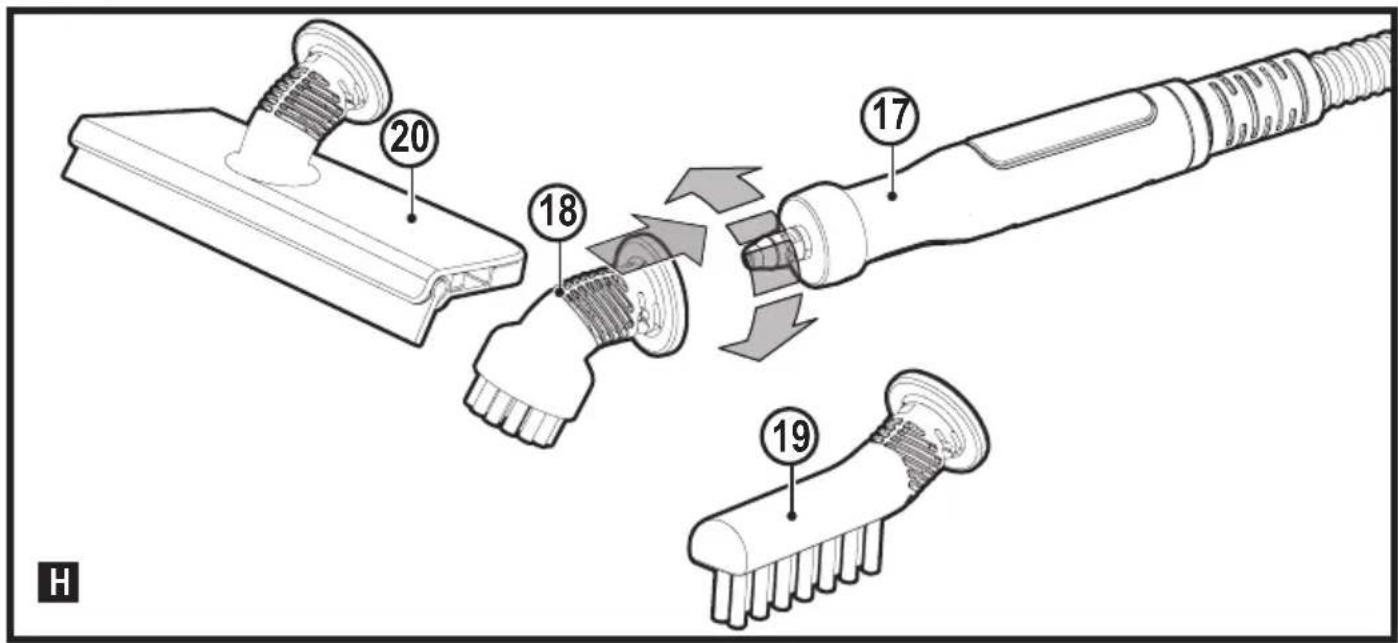

(24) which has its own hose and connector (25), must be attached to the steam hose (16) for use. Removing the hose and accessories Warning! The steam hose (16), Steam nozzle (17) and accessories become hot during use. Allow the unit and all accessories to cool before attempting to remove. Removing an accessory u Twist the accessory clockwise then pull away from the hose (16). Removing the hose u Press the steam hose release button (16a) on the steam hose (16) and pull away from the hand held steam unit. SteaMitt

has been designed for sanitising and cleaning tiles, work tops, kitchen surfaces and bathroom surfaces. This appliance is intended for indoor household use only. Attaching the SteaMitt

hose to the hand held steam unit Warning! Inspect the seal on the steam nozzle and hose before each use. If the seal is missing or damaged then please contact your nearest authorised repair agent.13 ENGLISH (Original instructions) Do not use the appliance. Inspect the seal on the SteaMitt

and hose If the seal is missing, damaged or any steam is escaping then please contact your nearest authorised repair agent. Do not use the appliance. Ensure there is no blockage or impedence in the SteaMitt

hose or attachment hose. If any are detected then please contact your nearest authorised repair agent. Do not use the appliance. Fitting a cleaning pad to the SteaMitt

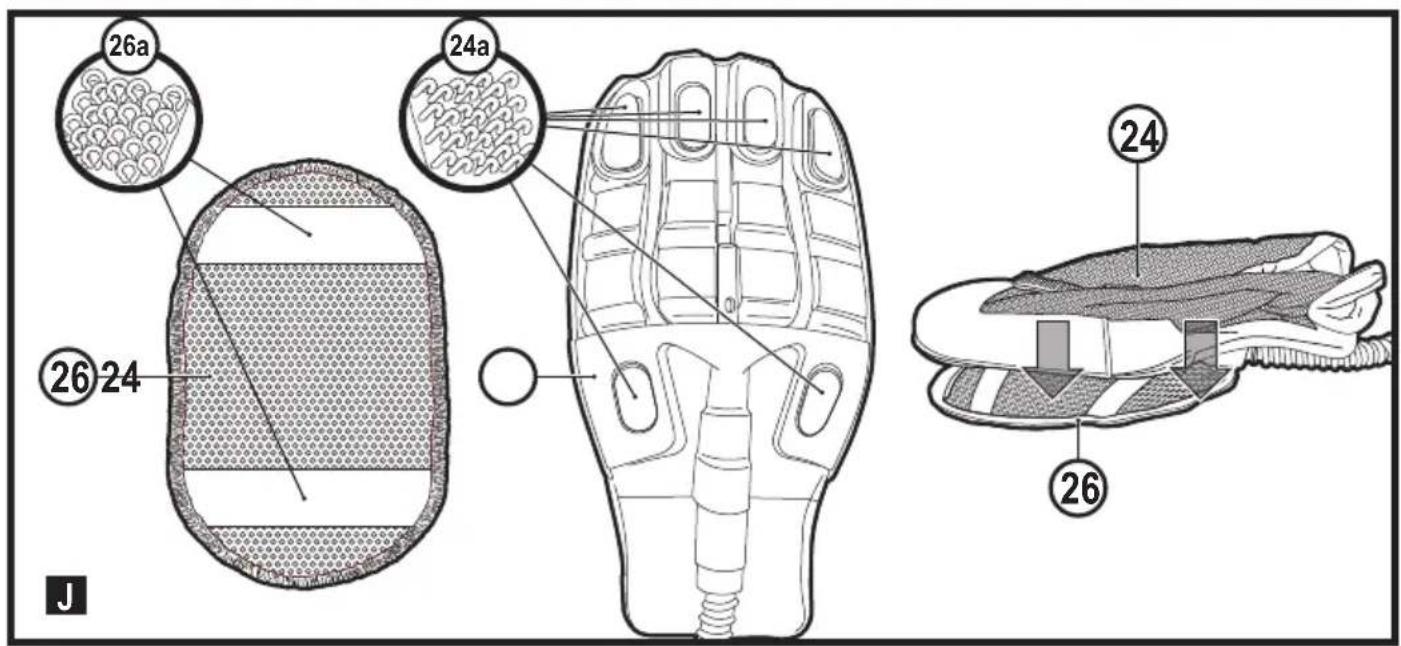

(Fig. J) Warning! Ensure there is no blockage or impedence in the steam release vents If any are detected then please contact your nearest authorised repair agent. Do not use the appliance. u Fit the cleaning pad (26) to the SteaMitt

(24).Pressdownrmly. Warning! The SteaMitt

accommodates 4 types of cleaning pads of varying thickness. Scouring pad (for use on tough stains and non delicate surfaces), Bathroom pad (for use on taps and other moulded bathroom surfaces), Standard pad (for use on all larger surfaces) and Polishing pad (for use on delicate surfaces).

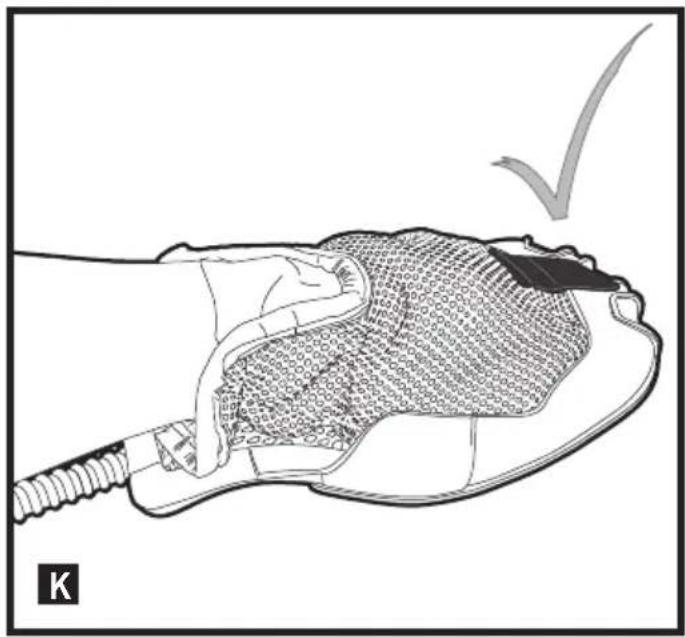

, with your hand inside the protective glove. Warning! Never attempt to use the SteaMitt

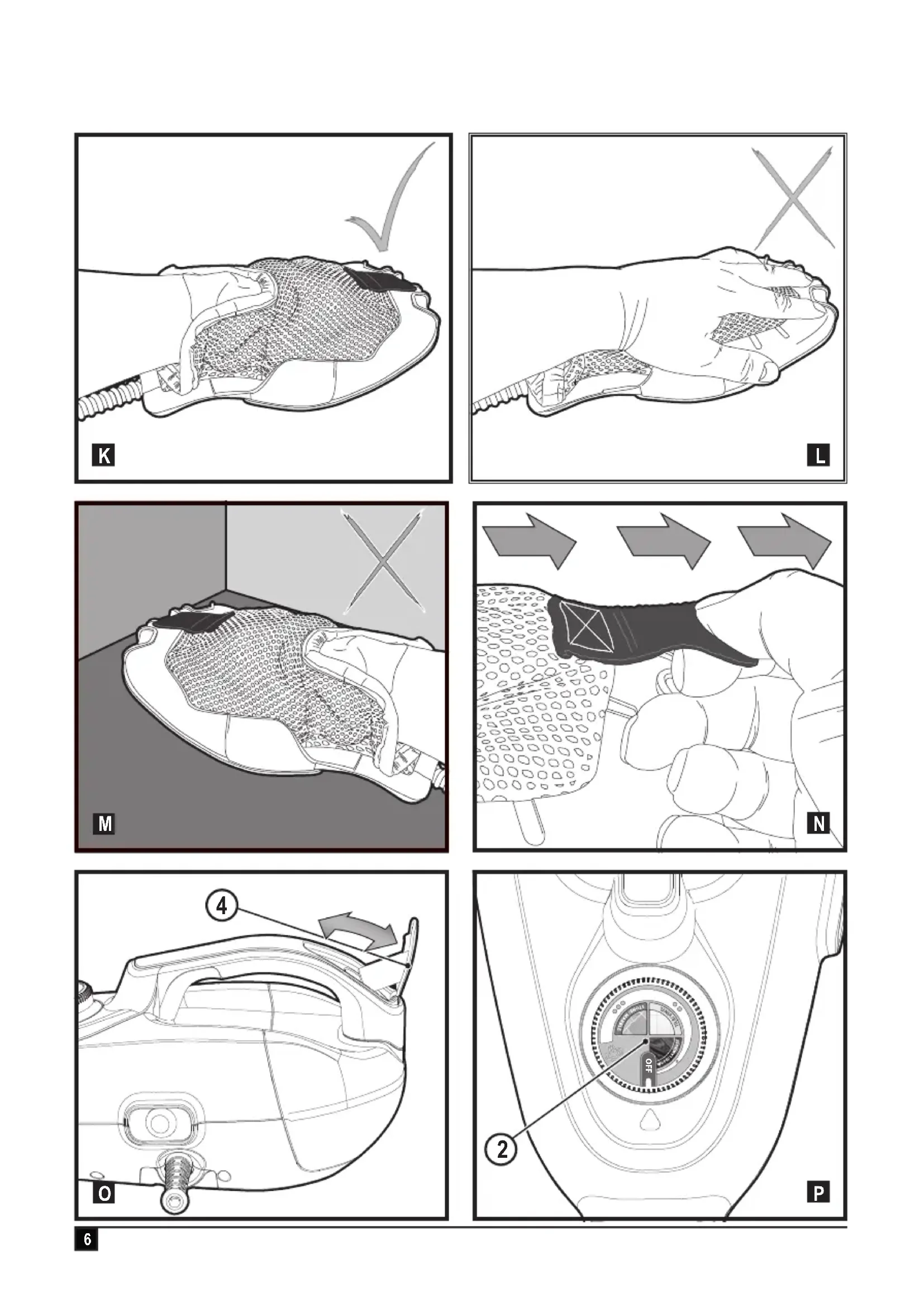

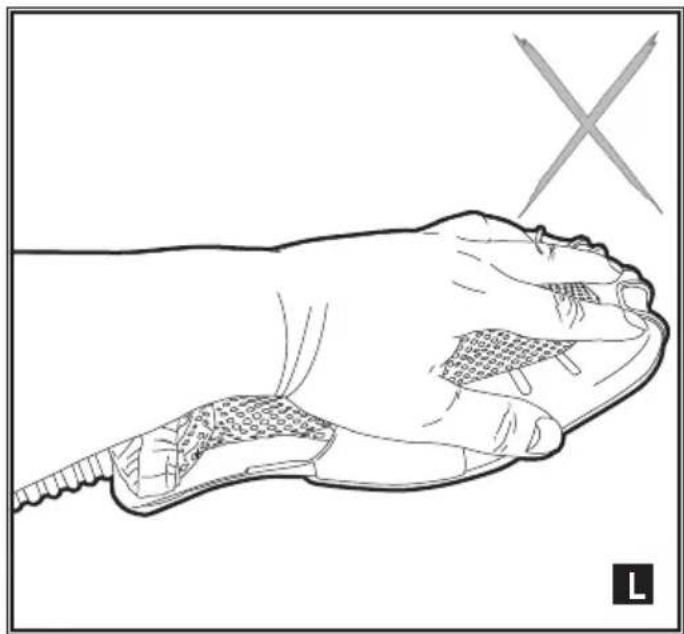

gripping it externally as shown in figure L. This will result in scalding.

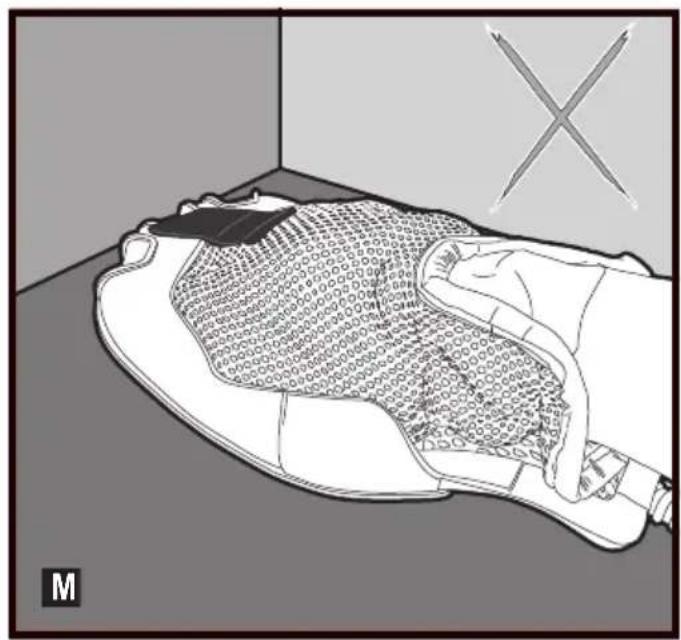

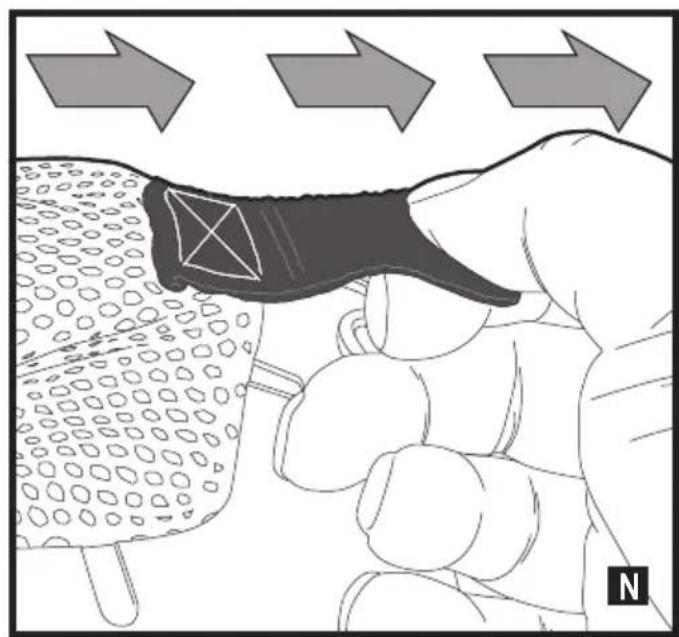

in tight corners asshowninfigureM. Warning! Should a problem occur during use, use the quick release tab to quickly remove the SteaMitt

on cold glass, such as windows as damage may be caused by the sudden change in temperature. Warning! Never point or direct the mitt at yourself or any other person. Note: Variable steam dial is disconnected when the SteaMitt

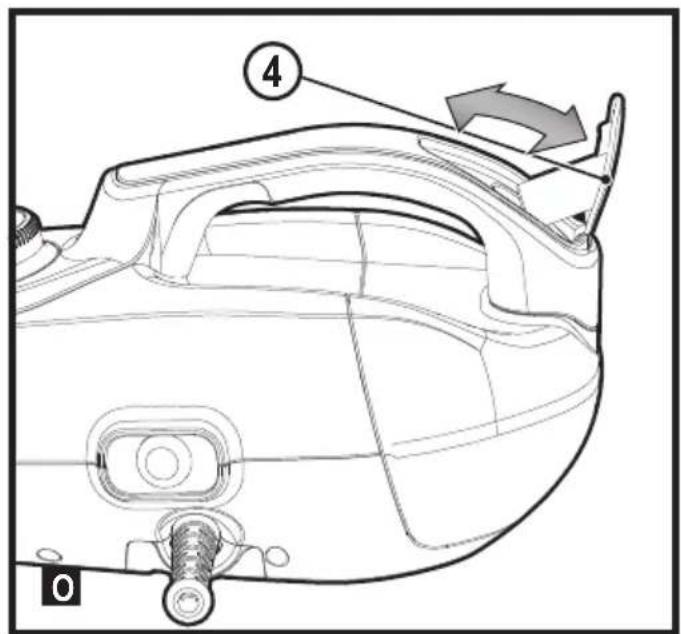

isttedandsubsequentlytheowofsteamis limited. Use Important! This unit will kill 99.9% of bacteria and germs when used in accordance with the instructions in this manual andwiththemicrobrepadsttedandacontinuousruntime of 90 seconds. Switching on and off u Toswitchtheapplianceon,presstheON/Offswitch(1). It takes approximately 20 seconds for the steam mop to heat up. u Toswitchtheapplianceoff,presstheON/Offswitch(1). Note: always have your hand inside the SteaMitt

before you press the steam button. Caution! Never leave the steam mop in one spot on any surface for any period of time. Always place the steam mop with the handle (8) supported in the upright position when stationary and make sure the steam mop is turned off when not in use. Caution! Always empty the steam mop after use. Note! Whenrstlledorafterrunningdry,itcantakeupto45 seconds for steam to be produced. Autoselect

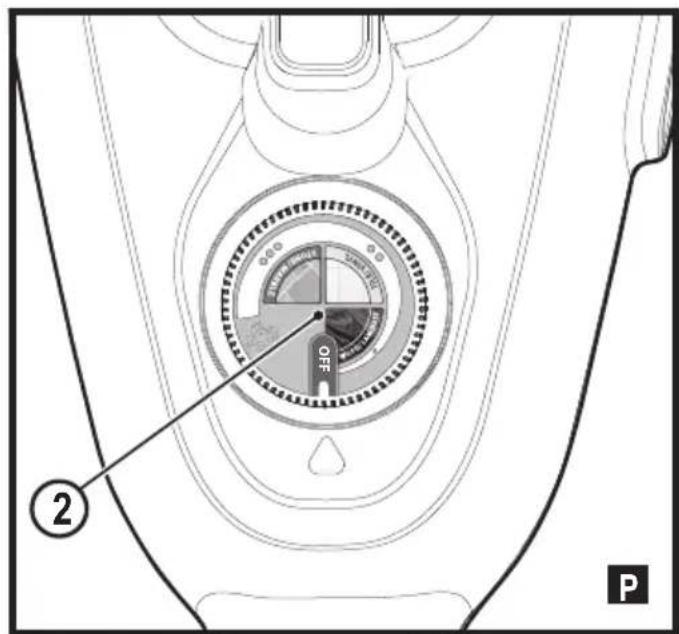

dial (2) which shows various cleaning applications. They are used to select the correct operating mode for your particular cleaning operation. Using Autoselect

, choose from one of the following applications by turning the Autoselect

dial (2) until the required setting is selected. Setting Mop Hand held Wood/Laminate Lowsteamow

The steam mop will select the correct volume of steam required for your particular cleaning operation. Note: Always check you are using the correct setting before using your steam mop. Hints for optimum use General Caution:Neverusethesteammopwithoutrstattachinga cleaning pad. u Alwaysvacuumorsweeptheoorbeforeusingthesteam mop. u The easiest way to use the appliance is to tilt the handle to a 45º angle and clean slowly, covering a small area at a time. u Use water only with no additives or chemicals with your steam mop. To remove stubborn stains from vinyl or linoleumoors,youcanpre-treatwithamilddetergent and some water before using the steam mop.14 ENGLISH (Original instructions) Steam Cleaning with the mop u Fit hand held steam cleaner (5) to the steam mop body (11) u Placeacleaningpad(13)onthefloorwiththevelcro'loop' side facing up. u Lightly press the steam mop down onto the cleaning pad (13). u Connect the steam mop to the mains. u PresstheON/OFFbutton(1).Ittakesapproximately20 seconds for the steam mop to heat up. u Turn the Autoselect

dial (2) until the required setting is reached. After a few seconds steam will start to come out of the steam head. Note!Whenrstlledorafterrunningdry,itcantakeupto45 seconds for steam to be produced. u It takes a few seconds for steam to enter the cleaning pad. The steam mop will now glide easily over the surface to be sanitized/cleaned. u Push and pull the steam mop slowly across the surface to thoroughly steam clean each section. u Whenyouhavenishedusingthesteammop,return the handle (8) to the upright position, making sure that it issupportedandturnit'OFF'.Waituntilthesteammop coolsdown(approximatelyveminutes). Caution! It is important to monitor the water level in the watertank.Torellthewatertankandcontinuetosanitize/ clean stand the mop upright making sure that the handle is supportedandturnthesteammop'OFF'.Unplugtheunitfrom theelectricalwalloutlet,andrellthewatertank. Caution! Never leave the steam mop in one spot on any surface for any period of time. Always place the steam mop with the handle (8) supported in the upright position when stationary and make sure the steam mop is turned off when not in use. Carpet refreshing u Placeacleaningpad(13)ontheoorwiththe'loop'side facing up. u lightly press the steam mop down onto the cleaning pad. u Placethecarpetglider(12d)ontheoor. u Lightly press the steam mop down onto the carpet glider until it clicks into place. u Connect the steam mop to the mains.

PresstheON/OFFbutton(1).Ittakesapproximately20 seconds for the steam mop to heat up. Turn the Autoselect

dial (2) to the Wood/Laminate setting. Push and pull the steam mop slowly across the carpet to thoroughly refresh each section. Whenyouhavenishedusingthesteammop,returnthe handle(8)totheuprightpositionandturntheunitOFF. Waituntilthesteammopcoolsdown(approximatelyve minutes). After use u Turn the Autoselect

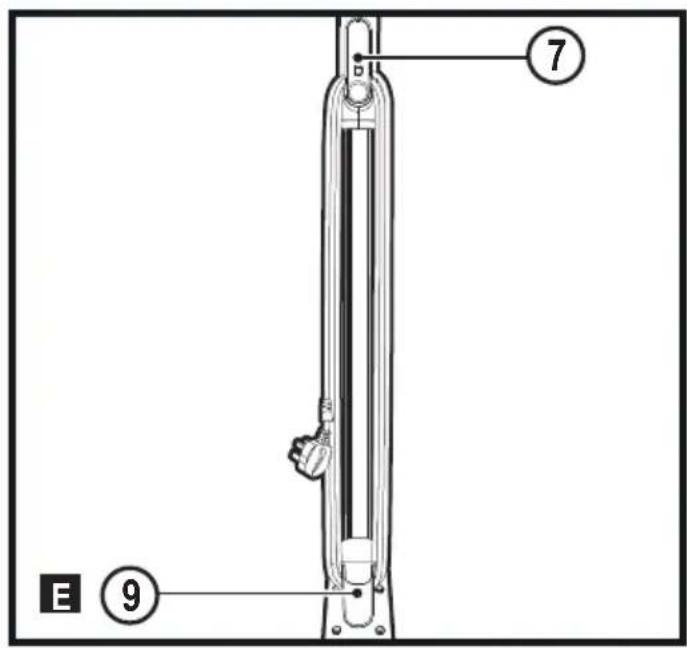

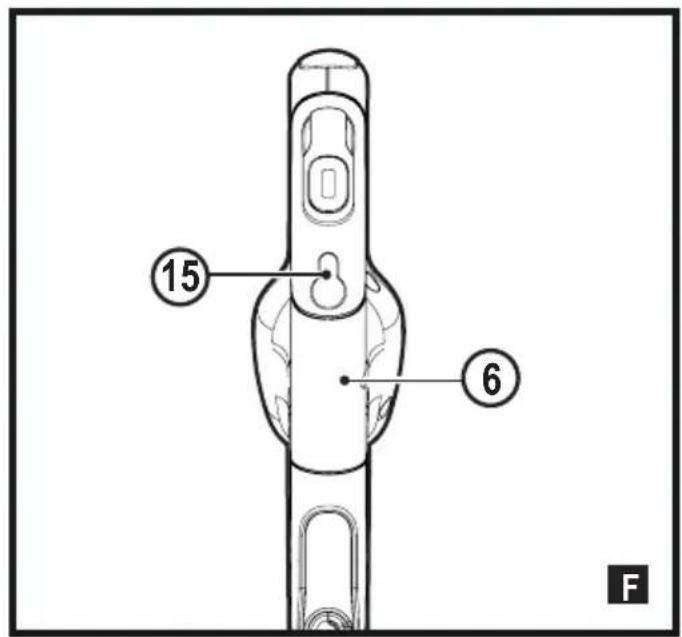

dial(2)totheOFFposition. u Wait until the steam mop cools down. u Unplug the steam mop from the electrical wall outlet. u Empty the water tank. u remove the cleaning pad (13) and wash it ready for next use (take care to follow the wash care instructions printed on the cleaning pad). u Wrap the supply cable around the cable tidy hooks (7 and 9). u There is a hanging bracket (15) built into the hand grip (6) which allows your steam mop to be hung from a suitable hook on the wall. Always ensure that your wall hook is capable of supporting the weight of the steam mop safely. u The handle also includes a rubber stopper which allows your steam mop to be rested safely against a vertical surface. Hand held steam cleaning Warning! Unit will not produce steam unless it is connected to themainbody(11)orthesteamhose(16)istted. Warning!Onlyuseinahorizontalposition. u Attach the required accessory. u Connect the hand held steam cleaner to the mains. u PresstheON/OFFbutton(1).Ittakesapproximately20 seconds for the steam mop to heat up. u Turn the Autoselect

dial (2) until the required setting is reached. After a few seconds steam will start to come out of the steam head. Note!Whenrstlledorafterrunningdry,itcantakeupto45 seconds for steam to be produced. u Whenyouhavenishedusingthehandheldsteam cleaner turn the Autoselect

dial(2)totheOFFposition. TurntheunitOFFbypressingtheON/OFFbutton(1)and disconnect from the mains supply. Wait until the unit cools downbeforestoring(approximatelyveminutes). Accessories The performance of your appliance depends on the accessory used. BLACK+DECKER accessories are engineered to high quality standards and designed to enhance the performance of your appliance. By using these accessories you will get the very best from your equipment. Technical Data Voltage Power Tank CapacityHeat-up time Cable length Weight

W ml secs m kg FSMH1321 230 1600 500 ≤20 6 2.7BHSM168D 230 1600 500 ≤20 6 2.8BHSM168U 230 1600 500 ≤20 6 2.8BHSM166DSM 230 1600 500 ≤20 6 2.8BHSM1615DSM 230 1600 500 ≤20 7 2.915 (Übersetzung der ursprünglichen Anweisungen) DEUTSCH ENGLISH (Original instructions) u For stubborn marks you can use a mild solution of soap and water to dampen your cloth. Care of the cleaning pads Wash care instructions - Pads can be washed at 60°C. Do not use fabric conditioner. Allow to dry fully before re-use. Caution! Follow the cleaning instructions printed on the label of the cleaning pad. Mains plug replacement (U.K. & Ireland only) Ifanewmainsplugneedstobetted: u Safely dispose of the old plug.u Connect the brown lead to the live terminal in the new plug. u Connect the blue lead to the neutral terminal.u Connect the green/yellow lead to the earth terminal. Warning!Followthettinginstructionssuppliedwithgood quality plugs. Recommended fuse: 13A. Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com Guarantee Black&Deckeriscondentofthequalityofitsproductsand offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area. To claim on the guarantee, the claim must be in accordance with Black&Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Black&Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or bycontactingyourlocalBlack&Deckerofceattheaddress indicated in this manual. Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers. BHSM1615DAM 230 1600 500 ≤20 7 2.9BHSM1615DSG 230 1600 500 ≤20 8 2.9BHSM168DSM 230 1600 500 ≤20 8 2.9BHSM169DSM 230 1600 500 ≤20 8 2.9BHSM1610DSM 230 1600 500 ≤20 8 2.9 Troubleshooting If your appliance seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your local BLACK+DECKER repair agent. Problem Step Possible solution The steam mop is not turning on

1. Check the unit is plugged in at the wall

2. Check the unit is switched on using the

3. Check the fuse in the plug.

The steam mop is not producing steam

4. The steam mop will only produce steam if

the hand held steam cleaner (5) is correctly docked into the main body (11) or the steam hose is tted or the Autoselect

5. Check that the water tank is full. Note:

Whenrstlledorafterrunningdryitcan take up to 45 seconds for steam to be produced.

6. Check steps 1, then 2, then 3

The steam mop stops producing steam during use

7. Check steps 4, then 5, then 3

The steam mop is producing too much steam during use

dial (2) anti-clockwise to reduce the amount of steam being produced The steam mop is producing too little steam during use

dial (2) clockwise to increase the amount of steam being produced No steam is being produced from the hand held steam cleaner

10. Check that the Autoselect

dial (2) is at the ON position

11. Check steps 5, then 1, then 2, then 3

The hand held steam cleaner is producing too little steam during use

dial (2) clockwise to increase the amount of steam being produced

The hand held steam cleaner is producing too much steam during use

dial (2) anti-clockwise to reduce the amount of steam being produced The accessories keep falling off the unit

15. Refer to the assembly chapter for correct

tting instructions of all parts and accessories Steam is escaping from unexpected areas of the unit

16. Refer to the assembly chapter for correct

tting instructions of all parts and accessories Where can I get further information/ accessories

17. www.blackanddecker.co.uk/steammop

www.blackanddecker.ie/steammop Maintenance and cleaning Your BLACK+DECKER corded appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper appliance care and regular cleaning. Warning! Before performing any maintenance or cleaning on corded appliances switch off and unplug the appliance. u Wipe your appliance over using a soft damp cloth.16 (Übersetzung der ursprünglichen Anweisungen) DEUTSCH Verwendungszweck Ihr BLACK+DECKER
