Product Type	Steam Mop
Brand	Black & Decker
Model	FSM1616 / BDS1616R
Power	1600 W
Voltage	230 V AC
Water Tank Capacity	350 ml
Weight	2.3 kg
Heat-Up Time	Approximately 15 seconds
Steam Production Time	Up to 45 seconds after first fill or running dry
Bacteria Kill Rate	99.9% with continuous 90-second run and microfiber pad
Variable Steam Settings	3 settings: Wood/Laminate, Tile/Vinyl, Stone/Marble
Floor Types	Sealed hardwood, sealed laminate, linoleum, vinyl, ceramic tile, stone, marble
Accessories Included	Delta head for corners, microfiber cleaning pads (standard and delta)
Safety Features	Auto shut-off when upright, cool-down period before pad change, hot steam warning
Cable Storage	Bottom and top cable tidy hooks
Wall Mountable	Yes, with hanging bracket in hand grip
Water Type Recommended	Clean tap water; de-ionised water for hard water areas
Cleaning Pad Material	Microfiber with hook-and-loop attachment
Replacement Pad Part Numbers	Standard: FSMP20-XJ; Delta: FSMP30-XJ
Intended Use	Indoor household floor cleaning only
Dimensions (Approximate)	Not specified, but typical steam mop size (approx. 120 cm height)

Frequently Asked Questions - FSM1616 BLACK & DECKER

What types of floors can I use the Black & Decker FSM1616 steam mop on?

The FSM1616 is designed for sealed hardwood, sealed laminate, linoleum, vinyl, ceramic tile, stone, and marble floors. Do not use on unsealed wood or carpet.

Does the steam mop kill bacteria and germs?

Yes, when used according to instructions with a microfiber pad and a continuous run time of 90 seconds, it kills 99.9% of bacteria and germs.

How do I fill the water tank?

Remove the water tank, unscrew the filter cap counterclockwise, fill with clean tap water up to 350 ml (do not overfill), screw the cap back on clockwise, and reattach the tank firmly.

Can I use chemical cleaners or additives in the water tank?

No, do not use any chemical cleaners or additives. Only use clean tap water or de-ionised water if you have hard water.

How long does it take for the steam mop to heat up?

It takes approximately 15 seconds to heat up. After first fill or if the tank runs dry, it may take up to 45 seconds for steam to appear.

How do I adjust the steam output?

Use the thumb wheel (10) on the handle grip to select among three settings: Wood/Laminate (low), Tile/Vinyl (medium), Stone/Marble (high).

How do I attach or remove the cleaning pad?

To attach, place the pad on the floor with the loop side up and press the steam mop down onto it. To remove, let the mop cool for 5 minutes, then lift the mop off the pad. Always wear suitable shoes when changing pads.

What is the delta head used for?

The delta head (5a) is a built-in smaller head that allows you to clean tight corners and narrow gaps. To access it, press down on the removal tab with your shoe and lift the delta head off.

How do I store the steam mop after use?

Turn off and unplug the mop, empty the water tank, wash the cleaning pad, and clip the supply cord around the cable tidy hooks. You can also hang the mop on a wall hook using the hanging bracket (10a).

What should I do if the steam mop is not producing steam?

Check that the water tank is full and correctly fitted, the steam button is ON, and the unit is plugged in. If still not working, check the fuse in the plug. For first use or after running dry, wait up to 45 seconds for steam.

USER MANUAL FSM1616 BLACK & DECKER

www.blackanddecker.co.uk

FSM1616

BDS1616R

Intended use

Your BLACK+DECKER™ FSM1616 and BDS1616R steam mop has been designed for sanitising and cleaning sealed hardwood, sealed laminate, linoleum, vinyl, ceramic tile, stone and marble floors. This appliance is intended for indoor household use only.

Safety Instructions

Warning! Read all Safety, Maintenance, Service' manual carefully before operating this appliance. Read all of this manual carefully before operating this appliance.

Safety of others

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
• The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

• The appliance shall not be left unattended while it is connected to the supply mains;

• The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking;

• keep the appliance out of reach of children when it is energized or cooling down.

Labels on appliance

The following pictograms along with the date code are shown on the appliance.

CAUTION Hot Steam

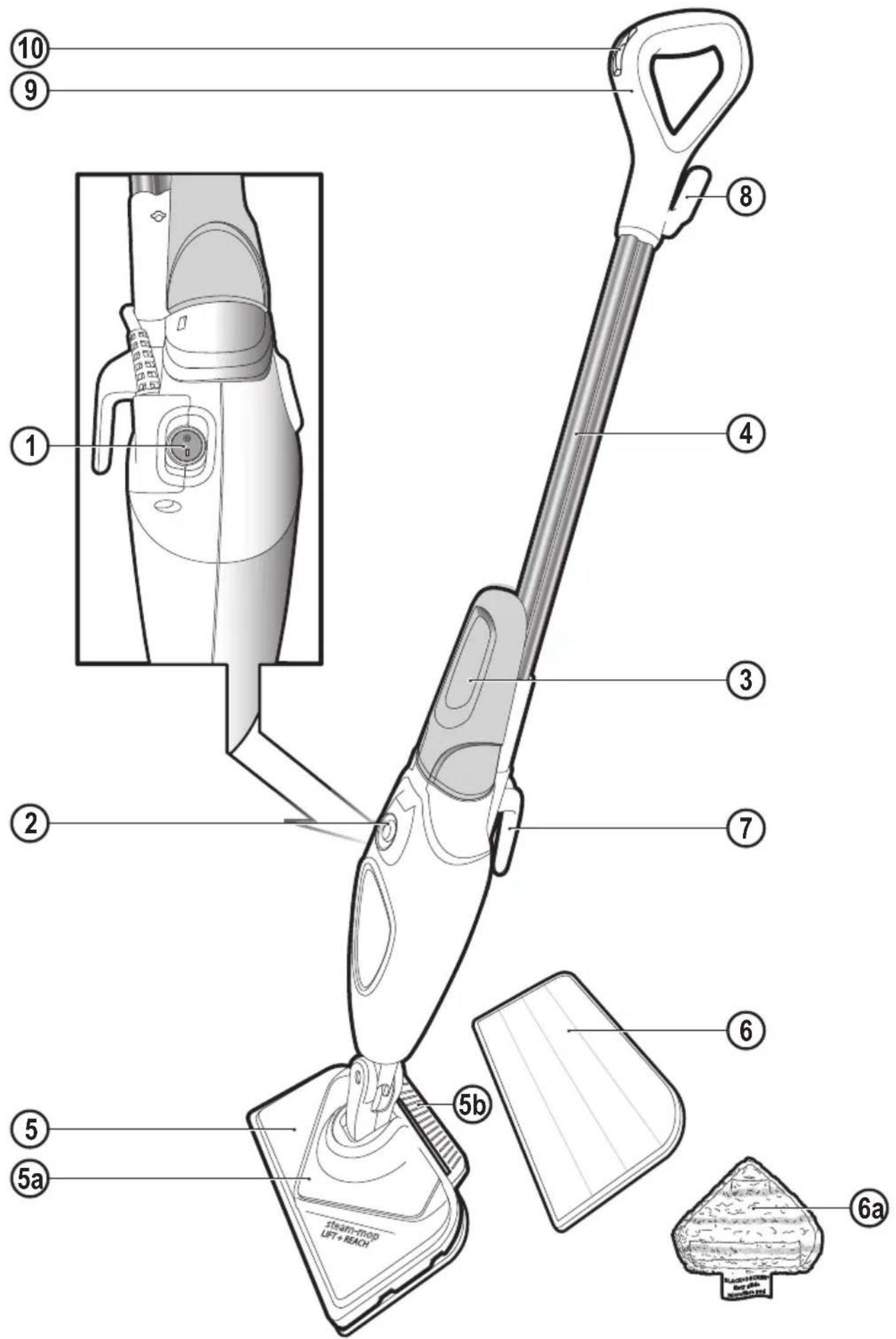

Features

1. On/off switch
2. Steam operate button
3. Removable water tank
4. Handle
5. Steam Head
   5a. Delta floor head
6. Steam head cleaning pad
   6a. Delta head cleaning pad
7. Bottom cable tidy hook
8. Top cable swiveling tidy hook
9. Grip
10. Variable steam operation thumb wheel
    10a. Hanging bracket

Assembly

Warning! Before attempting any of the following instructions, make sure that the appliance is switched off and unplugged and the appliance is cold and does not contain any water.

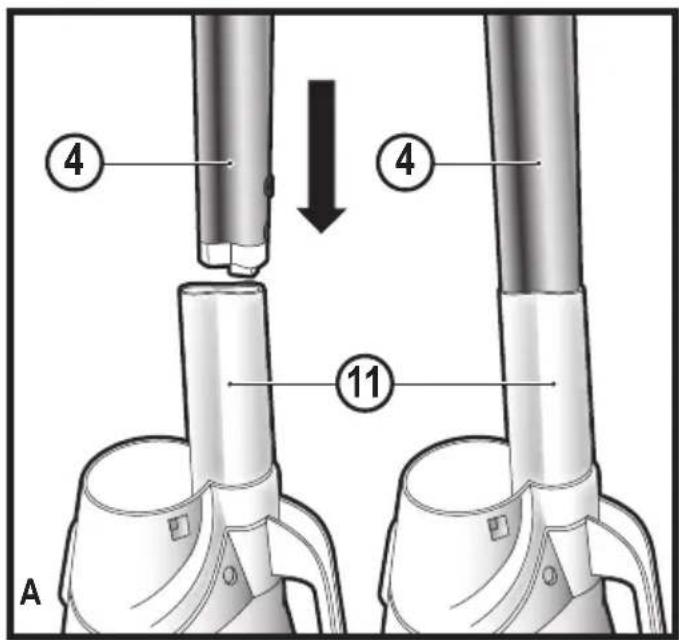

Attaching the handle (Fig. A)

• Slide the bottom end of the handle (4) into the top end of the stem mop body (11) until it clicks into place. The arrow on the handle (4) should be aligned with the top of the steam mop body (11).

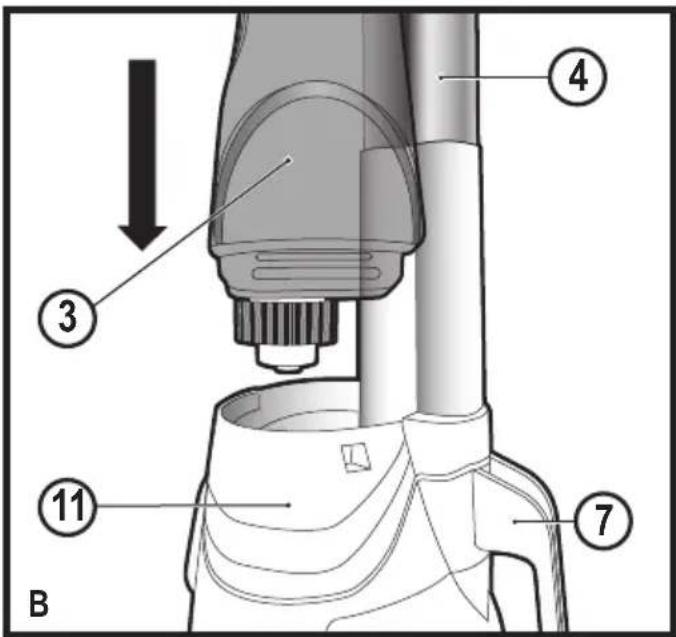

Attaching the water tank (Fig. B)

◆ Slide the water tank (3) into the steam mop body (11), ensure that the water tank is firmly seated.

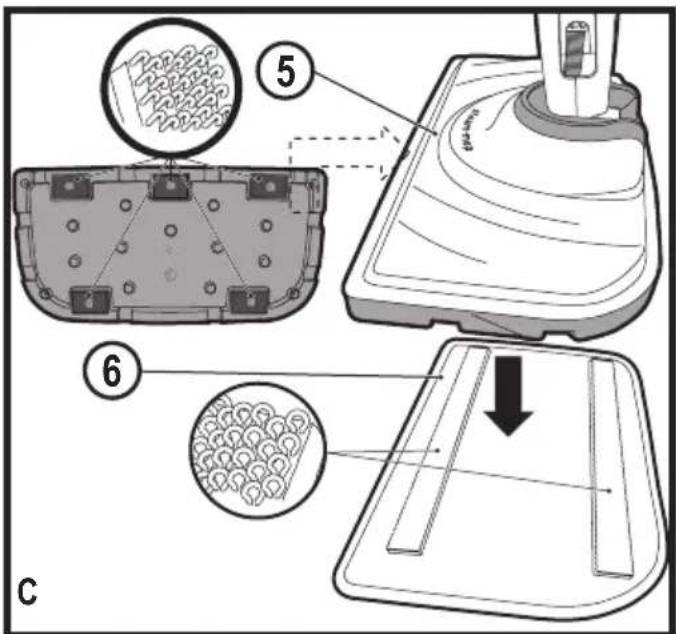

Attaching a cleaning pad (Fig. C)

Replacement cleaning pads are available from your BLACK+DECKER dealer :- (cat no. FSMP20-XJ).

Delta cleaning pads :- (cat no. FSMP30-XJ).

◆ Place a cleaning pad (6) on the floor with the velcro 'loop' side facing up.
◆ Lightly press the steam mop down onto the cleaning pad (6).

Caution: Always place your steam mop with the handle (4) supported in the upright position when stationary and make sure the steam mop is turned off when not in use.

Removing a cleaning pad

Caution! Always wear suitable shoes when changing the cleaning pad on your steam mop. Do not wear slippers or open toed footwear.

• Return the handle (4) to the upright position and turn the steam mop 'OFF'.
  ◆ Wait until the steam mop cools down (approximately 5 minutes).
  ◆ Lift the steam mop away from the cleaning pad freeing it from the velcro fastening.

Caution! Always place your steam mop with the handle (4) supported in the upright position when stationary and make sure the steam mop is turned off when not in use.

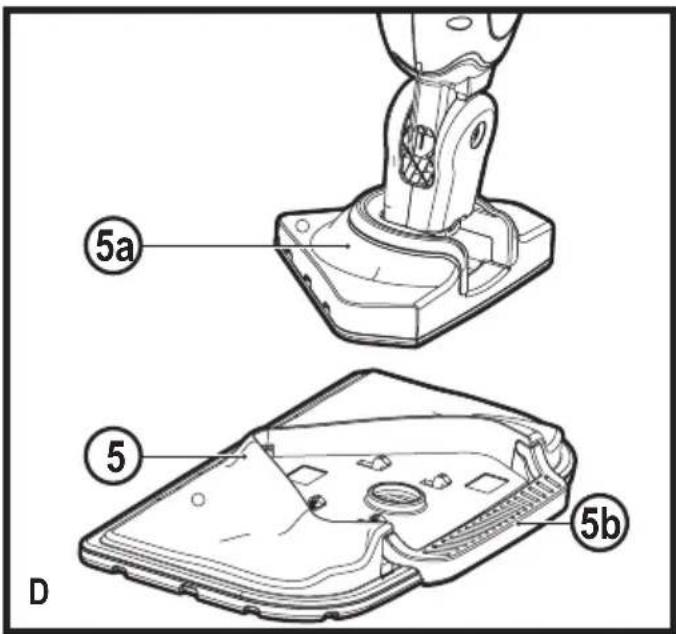

The Delta Head (Fig. D)

This Steam Mop incorporates a built in delta head which enables you to access into tight corners and narrow gaps.

Caution! Always wear suitable shoes when accessing the delta head on your steam mop. Do not wear slippers or open toed footwear.

• Return the handle (4) to the upright position and turn the steam mop 'OFF'.
  ◆ Wait until it cools down (approximately five minutes).
  ◆ Place the front of your shoe onto the steam head removal tab (5b) and press down gently.
  ◆ Lift the delta head (5a) up off the steam head (5).
  ◆ Fit the delta head cleaning pad (6a) to the bottom of the delta head.

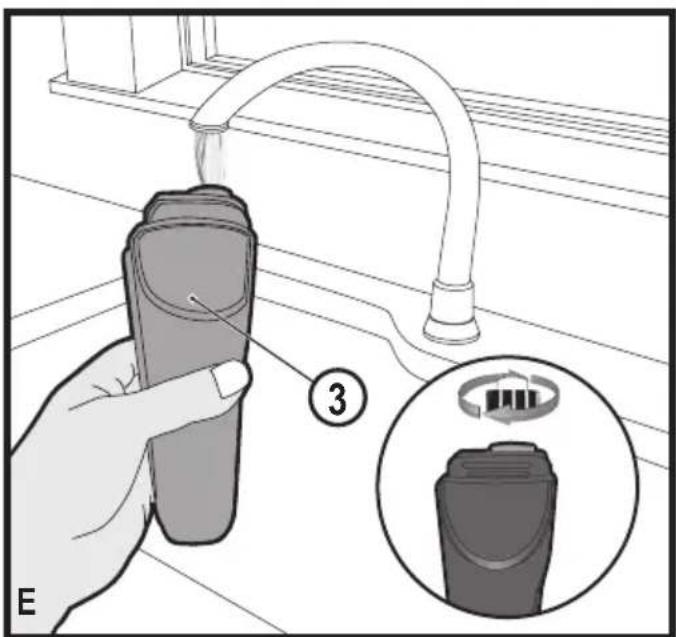

Filling the water tank (Fig. E)

The water tank on your steam mop is removable for convenient and easy filling.

Note! Fill the water tank with clean tap water.

Note! In areas of hard water, the use of de-ionised water is recommended.

◆ Remove the water tank (3).
◆ Remove the filter cap by unscrewing in an anti-clockwise direction.
◆ Fill the water tank (3) with water.

Warning! Your water tank has a 350ml capacity. Do not over fill the tank.

◆ Replace the filter cap by screwing in a clockwise direction.
◆ Re-fit the water tank (3).

Note! Ensure the filter cap is firmly secured.

Note! Do not use chemical cleaners with your steam mop water tank.

Use

Important! This unit will kill 99.9% of bacteria and germs when used in accordance with the instructions in this manual and with the micro fibre pad fitted and a continuous run time of 90 seconds.

Switching on and off

• To switch the appliance on, press the ON/Off button (1). It takes approximately 15 seconds for the steam mop to heat up.
  ◆ Press the steam operation button (2). This will operate the pump and the unit will begin to produce steam.
• To stop steam generation, turn the steam operation button (2) to off. This will maintain power to the boiler for quicker start up.
  ◆ To switch the appliance off, press the ON/Off button (1).

Caution! Never leave the steam mop in one spot on any surface for any period of time. Always place the steam mop with the handle (4) supported in the upright position when stationary and make sure the steam mop is turned off when not in use.

Caution! Always empty the steam mop after use.

Note! When first filled or after running dry, it can take up to 45 seconds for steam to be produced.

Variable Steam operation

The unit is equipped with a variable steam operation controlled by the thumb wheel (10) located on the handle grip (9). This allows for 3 different surface settings.

The variable steam settings are:

Wood / Laminate

Tile / Vinyl

Stone / Marble

Hints for optimum use

General

Caution: Never use the steam mop without first attaching a cleaning pad.

ENGLISH

(Original instructions)

◆ Always vacuum or sweep the floor before using the steam mop.
- The easiest way to use the appliance is to tilt the handle to a 45° angle and clean slowly, covering a small area at a time.
Do not use chemical cleaners with your steam mop. To remove stubborn stains from vinyl or linoleum floors, you can pre-treat with a mild detergent and some water before using the steam mop.

Steam Cleaning

◆ Place a cleaning pad (6) on the floor with the velcro 'loop' side facing up.
◆ Lightly press the steam mop down onto the cleaning pad (6).
◆ Connect the steam mop to the mains.
◆ Press the ON/OFF button (1). It takes approximately 15 seconds for the steam mop to heat up.
◆ Press the steam operate button (2). After a few seconds, steam will start to come out of the steam head.

Note! When first filled or after running dry, it can take up to 45 seconds for steam to be produced.

• It takes a few seconds for steam to enter the cleaning pad. The steam mop will now glide easily over the surface to be sanitized/cleaned.
  ◆ Push and pull the steam mop slowly across the surface to thoroughly steam clean each section.
  When you have finished using the steam mop, return the handle (4) to the upright position, making sure that it is supported and turn it 'OFF'. Wait until the steam mop cools down (approximately five minutes).

Caution! It is important to monitor the water level in the water tank (3). To refill the water tank and continue to sanitize/clean stand the mop upright making sure that the handle is supported and turn the steam mop 'OFF'. Unplug the unit from the electrical wall outlet, remove and refill the water tank (3).

Caution! Never leave the steam mop in one spot on any surface for any period of time. Always place the steam mop with the handle (4) supported in the upright position when stationary and make sure the steam mop is turned off when not in use.

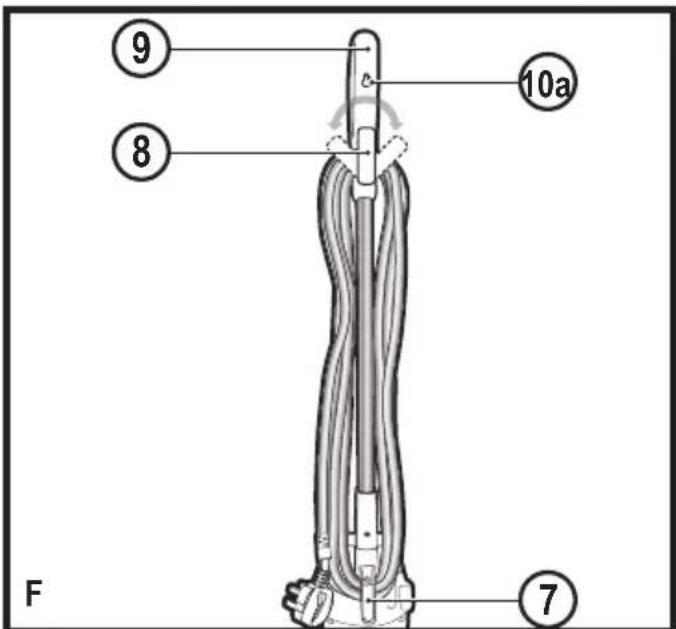

After use (Fig. F)

• Turn the steam mop 'OFF'. turn the steam operation button (2) to off and then press the ON/OFF button (1).
  ◆ Wait until the steam mop cools down.
  ◆ Unplug the steam mop from the electrical wall outlet.
  ◆ Empty the water tank.
• remove the cleaning pad (6) and wash it ready for next use.
  ◆ Clip the supply cable around the cable tidy hooks (7 and 8)

- There is a hanging bracket (10a) built into the hand grip (9) which allows your steam mop to be hung from a suitable hook on the wall. Always ensure that your wall hook is capable of supporting the weight of the steam mop safely.

Technical Data

		FM1616(Type 1)	BDS1616R(Type 1)
Voltage V	ac	230 230
Power W 1600	1600
Tank Capacity	ml 350	350
Weight kg 2.3	2.3

Troubleshooting

If your appliance seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your local BLACK+DECKER repair agent.

Problem Step Possible solution
The steam mop is not turning on	1. Check the unit is	plugged in at the wall socket.
	2. Check the unit is	switched on using the ON/OFF switch (1)
	3. Check the fuse in the	plug.
The steam mop is not producing steam	4. Check the water tank	(3) is full and correctly fitted.NOTE: When first filled or after running dry it can take up to 45 seconds for steam to be produced.
	5. Check the steam	generation button is in the ON position.
The steam mop is producing too much steam during use.	6. The steam mop has 3	settings. Vary thumbwheel control dial (10) to reduce the amount of steam being produced.
The steam mop is producing too little steam during use.	7. The steam mop has 3	settings. Vary thumbwheel control dial (10) to increase the amount of steam being produced.
The steam mop stops producing steam during use	8. Check step 1, then 2,	then 3.
The steam mop stops producing too little steam during use	9. Check step 4, then 2,	then 3
The steam mop is producing too little steam during use	10. Check step 4
Where can I get further information/ accessories for my steam mop	11. Refer to the assembly	chapter of the manual for correct fitting of parts and accessories.
