USER MANUAL Pure 830c HSM

White paper box with a digital display and black tray, no visible text or symbols on the main body

Pure 830

BETRIEBSANLEITUNG

OPERATING INSTRUCTIONS

NOTICE D'UTILISATION

MANUALE OPERATIVO

INSTRUCCIONES DE SERVICIO

english: Paper shredder HSM Pure 830 10

Interior view of a room with ceiling-mounted appliances and two upward-pointing arrows indicating directions (no text or symbols)

White paper printer with a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with colorful patterns on a white surface, no visible text or symbols.

Close-up of a white electronic device with a black horizontal bar and red cushion, placed on a metallic base (no visible text or symbols)

Hinweis:

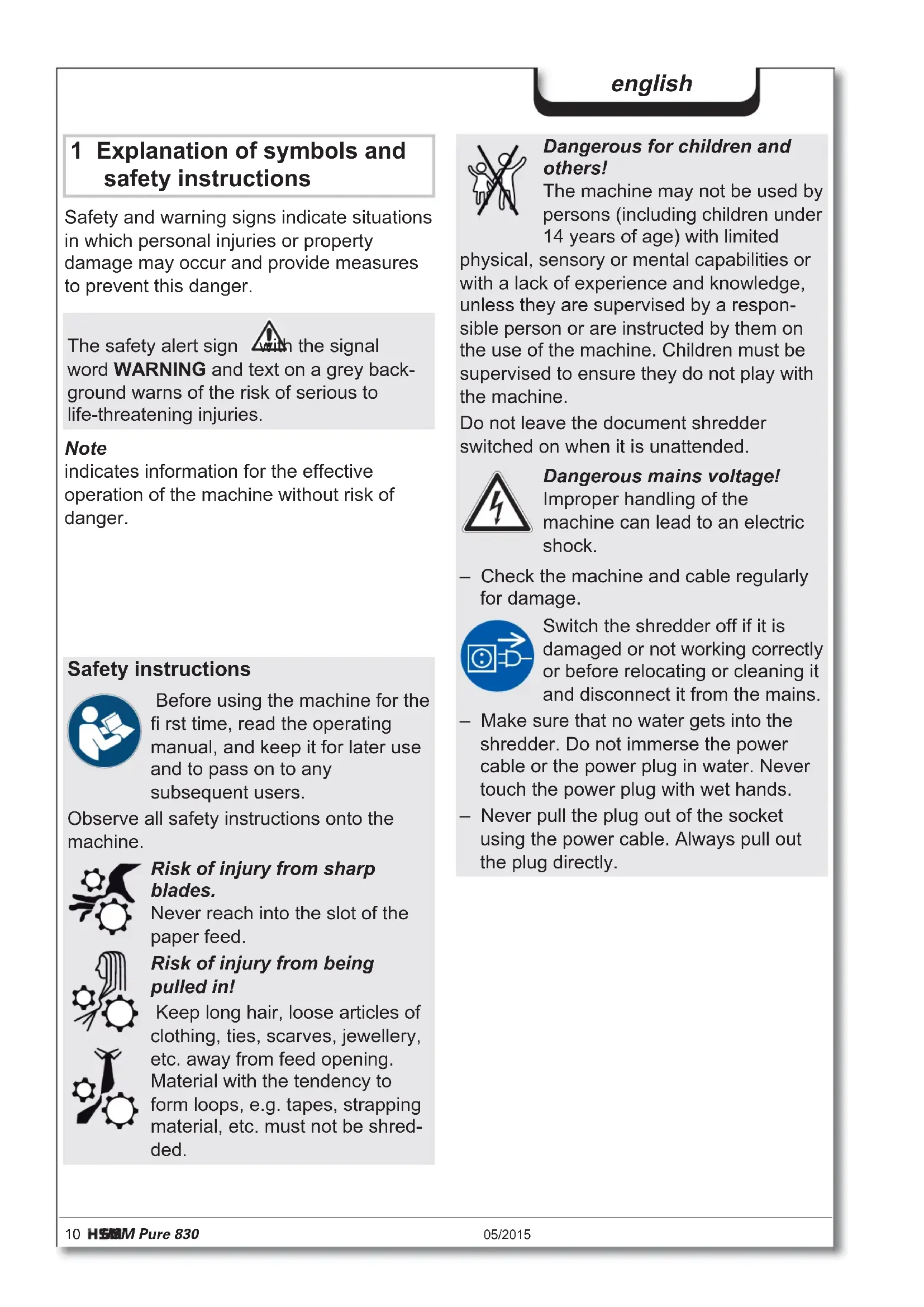

1 Explanation of symbols and safety instructions

Safety and warning signs indicate situations in which personal injuries or property damage may occur and provide measures to prevent this danger.

The safety alert sign

word WARNING and text on a grey back-ground warns of the risk of serious to life-threatening injuries.

Note

indicates information for the effective operation of the machine without risk of danger.

Safety instructions

Before using the machine for the first time, read the operating manual, and keep it for later use and to pass on to any subsequent users.

Observe all safety instructions onto the machine.

Risk of injury from sharp blades.

Never reach into the slot of the paper feed.

Risk of injury from being pulled in!

Keep long hair, loose articles of clothing, ties, scarves, jewellery, etc. away from feed opening. Material with the tendency to form loops, e.g. tapes, strapping material, etc. must not be shredded.

Dangerous for children and others!

The machine may not be used by persons (including children under 14 years of age) with limited

physical, sensory or mental capabilities or with a lack of experience and knowledge, unless they are supervised by a responsible person or are instructed by them on the use of the machine. Children must be supervised to ensure they do not play with the machine.

Do not leave the document shredder switched on when it is unattended.

Dangerous mains voltage!

Improper handling of the machine can lead to an electric shock.

- Check the machine and cable regularly for damage.

Switch the shredder off if it is damaged or not working correctly or before relocating or cleaning it and disconnect it from the mains.

- Make sure that no water gets into the shredder. Do not immerse the power cable or the power plug in water. Never touch the power plug with wet hands.

- Never pull the plug out of the socket using the power cable. Always pull out the plug directly.

2 Proper use, warranty

The document shredder is intended for shredding paper and small quantities of CDs/DVDs and credit cards or store cards. Its sturdy drive mechanism is not damaged by paper clips and staples.

The warranty period for the document shredder is 2 years. There is a special warranty for the HSM solid steel cutting rollers in the document shredder, which is provided independently of the guarantee, and remains valid for the entire service life of the machine (HSM Lifetime Warranty). This warranty and guarantee exclude wear and damage caused by improper handling or actions taken by third parties.

HSM guarantees the delivery of spare parts for up to 10 years after the production of this model has been discontinued.

3 Overview

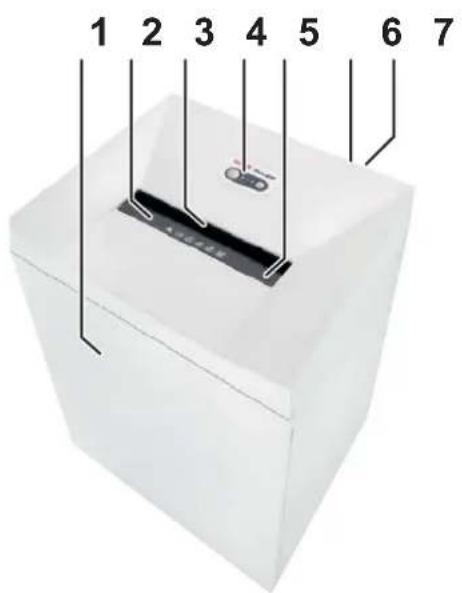

1 2 3 4 5 6 7

1 Door
2 Safety instructions
3 Light barrier
4 Operating and display unit
5 Safety element
6 Name plate
7 Mains switch

Operating and display elements

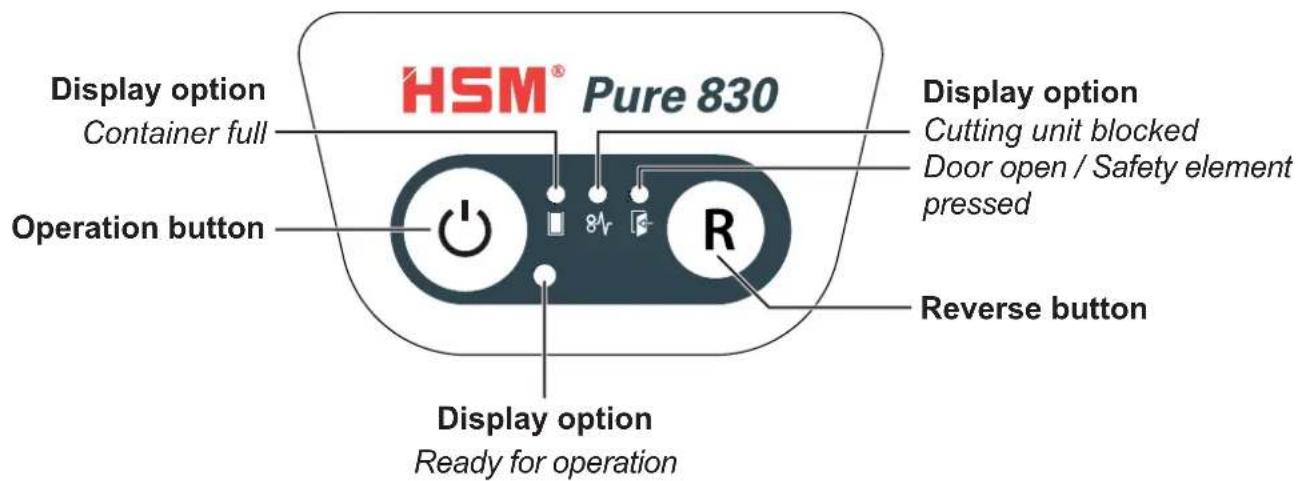

HSM® Pure 830 Display option Container full Operation button Display option Cutting unit blocked Door open / Safety element pressed Reverse button Display option Ready for operation

4 Initial start-up

WARNING

Dangerous mains voltage!

Improper handling of the machine can lead to an electric shock.

• Only use the machine in a dry room indoors. Never operate the machine in damp rooms or in the rain.
• Keep the machine, the plug and cable away from open fire and hot surfaces. The ventilation slots must not be blocked or covered and there must be at least 5 cm space between the shredder and any wall or furniture.
• Make sure that the power plug is easily accessible.
• Before you insert the power plug, make sure that the voltage and frequency of your power supply comply with the information on the name plate.

Interior view of a cabinet or enclosure with two upward-pointing arrows pointing to the opening (no text or symbols visible)

• Before starting up the machine for the first time, open the door and remove the two wing nuts of the transport locks from the base plate under the cutting unit.
• Connect the power cable provided to the back of the document shredder and plug the power supply into a properly installed socket.

5 Operation

Switching on the shredder

• Set mains switch at rear of paper shredder to "I".
• Press the operation button.
  The "Ready for operation" indicator lights up.

Shredding paper

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

• Feed the paper into the centre of the paper slot. The light barrier starts the cutting unit automatically. Therefore, with thin paper strips, make sure the light barrier detects them.
  Three seconds after the light barrier in the paper feed opening is free again, the cutting unit is switched off automatically and the shredder switches to standby.

Shredding CDs

WARNING Danger of injury by splinters!

Depending on the type of material, splinters can fly out of the cutting unit while shredding CDs and injure your eyes.

- For this reason, wear protective goggles.

Close-up of a CD or DVD disc placed on a flat surface, with no visible text or symbols.

- Feed in just one CD/DVD in the middle of the feed opening.

White and red electronic device with a black horizontal bar, placed on a gray surface (no visible text or symbols)

Note:

To completely separate the materials shredded, you can insert the CD bag supplied.

Shredding credit cards and store cards

- Insert credit card in centre of the feed opening. Dispose of the shredded material and the waste paper separately.

Switching off the shredder

• Press the operation button.
  The "Ready for operation" indicator goes out.
• Set mains switch at rear of paper shredder to "0".

Other function modes

- Permanent mode

Function: Cutting unit runs continuously. If no material is fed in within a period of 2 minutes, the cutting unit shuts down and the shredder switches to standby.

Start: Press the operation button for three seconds.

Premature cancellation: Press the operation button.

- Stand-by mode

Function: Two minutes after the last paper feed operation, all consumers that are not required are switched off automatically. The „Ready for operation“ indicator fl ashes briefly at regular intervals.

The shredder starts automatically when paper is fed in.

6 Troubleshooting

Note:

The safety element is fitted with contact protection. The document shredder switches off if you press the safety element during the shredding process.

Display Problem Measure
Continuous lamp	Paper jam	You have fed in too much paper.➢ The cutting unit runs in reverse for a few seconds and pushes the paper back out again.If necessary, press the reverse button “R” to remove the stack of paper.Take half the stack of paper.Feed the paper in portions.
	Overload	The motor was overloaded. Let the shredder cool down for approx. 15 – 20 mins. before using it again.
Flashing light	General fault displays	A fault has occurred while shedding paper.Pull the paper out of the slot to clear the light barrier.
[DS44]	Shredded material container full	Empty the shredded material container.Note:If you press the reverse button briefly before removing the container, part of the material is pulled back into the cutting apparatus and does not fall inside the document shredder.
	Door open	Close the front door.
	Safety element pressed	Do not press the safety element.

7 Cleaning and maintenance 8 Disposal / Recycling

WARNING
Dangerous mains voltage!

Improper handling of the machine can lead to an electric shock.

Switch the shredder off before relocating or cleaning it and disconnect the mains plug.

Service work which requires the housing covers to be removed may only be carried out by HSM Customer Service and service technicians of our contractual partners. See page 160 for our customer service addresses.

Clean the document shredder only with a soft cloth and a mild soap-water solution. However, no water must enter the equipment.

DON'T FORGET

Cross cut only:

Oil the cutting unit when cutting performance decreases or the device becomes noisy, or every

time you empty the waste container. Only use HSM special lubricating oil for the cutting unit to do this:

• Spray the special cutting unit oil through the paper feed along the entire width of the cutting shafts.
• Let the cutting unit run in the permanent mode for about 10 seconds without any paper.

▶ Paper dust and particles are shaken off.

Electrical and electronic old devices contain a variety of valuable materials, but also hazardous substances which were required for function and safety. Incorrect disposal or handling can be dangerous to your health and the environment. Never dispose of old devices in the household waste. Observe the current applicable regulations and use the collection points for returning and recycling electric and electronic devices. Dispose of all the packaging materials also in an environmentally-responsible way.

9 Scope of delivery

• Paper shredder in carton packing
• Power supply cable
- 5 Bags for shredded material
- 1 CD bag
• Special cutting block oil 50 ml (cross cut)
- Operating instructions

Acces so ries

• 10 waste bags, order no. 1.442.995.110
• Special cutting block oil 250 ml order No.: 1.235.997.403

See page 160 for our customer service addresses.

10 Technical data

Cutting type Strip cut Cross cut
Cut size (mm) 3.9 4.5 x 30
Security level DIN 66399 P-2, O-2, T-2, E-2 P-4, O-3, T-4, E-3, F-1
Cutting capacity * (sheets), A4 80 g/m ^2 70 ^2	40 - 4245 - 47g/m	31 - 3337 - 39
Weight	67.0 kg	72.0 kg
Cutting speed	110 mm/s
Intake width	330 mm
Power supply	230 V, 50 Hz	120 V, 60 Hz220 V, 60 Hz
Power consumption with max. number of sheets	2 100 W
Operating mode	Continuous operation
Ambient conditions in operation:TemperatureRelative humidityHeight above sea-level (MSL)	-10°C to +25°Cmax. 90%, without condensationmax. 2,000 m
Size W x D x H (mm)	579 x 548 x 954
Shredded material container volume	150 l
Sound pressure level emissions(Idle running/ load)	60 - 62 dB(A) / 65 - 69 dB(A)

* The maximum number of sheets (DIN A4, 70 g/m² or 80 g/m²), fed lengthways, which can be cut in one cycle. The performance data is determined when the motor is cold and the cutting device is freshly oiled. A weaker mains voltage or a different mains frequency to the one specified could result in less sheet capacity and increased noise during operation. The sheet capacity can vary depending on the structure and properties of the paper and on the way it enters.

This document shredder meets the applicable harmonisation legislation of the European Union:

• Low Voltage directive 2006/95/EU
• EMC directive 2004/108/EU
• RoHS directive 2011/65/EU

The EU declaration of conformity can be requested from the manufacturer.

Interior view of a cabinet or enclosure with two upward-pointing arrows pointing to the ceiling (no text or symbols visible)

White printer with a downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with a colorful lens, placed on a flat surface (no visible text or symbols)

White and red electronic device with a black horizontal bar on top (no visible text or symbols)

Remarque :

Interior view of a cabinet or enclosure with two upward-pointing arrows pointing to the ceiling (no text or symbols visible)

White printer with a paper slot and a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with an H&M Pore 630 logo, placed on a black rectangular base (no readable text beyond branding)

Close-up of a white industrial machine with a red cloth underneath (no visible text or symbols)

Nota:

Interior view of a cabinet or enclosure with two upward-pointing arrows pointing to the ceiling (no text or symbols visible)

White printer with a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with a reflective surface, placed on a flat surface (no visible text or symbols)

White and red electronic device with a black horizontal bar on top (no visible text or symbols)

Nota:

Interior view of a cabinet or enclosure with two black arrows pointing to a central opening (no text or symbols visible)

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

Close-up of a CD or DVD disc with a visible logo and control buttons, no readable text or symbols on the disc itself.

Close-up of a white industrial machine with a red cloth underneath (no visible text or symbols)

Observação:

Interior view of a cabinet or rack unit with two black arrows pointing to the front panel (no text or symbols visible)

White printer with a downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with a colorful reflective surface, placed on a black tray (no visible text or symbols)

Close-up of a white industrial machine with a red cushioned base (no visible text or symbols)

Aanwijzing:

Interior view of a cabinet or enclosure with two arrows pointing to a component (no text or symbols visible)

White printer with a paper slot and a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with a colorful reflective surface, placed on a black rectangular base (no visible text or symbols)

Close-up of a white industrial machine with a red cushioned base (no visible text or symbols)

Bemærk:

Interior view of a cabinet or enclosure with two black arrows pointing to the ceiling and a central opening (no text or symbols visible)

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

Close-up of a CD or DVD disc with a colorful reflective surface, placed on a flat surface (no visible text or symbols)

White industrial machine with red cloth placed on a gray base (no visible text or symbols)

Märk:

Interior view of a ceiling-mounted cabinet or enclosure with two black arrows pointing to the opening (no text or symbols visible)

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

Close-up of a CD or DVD disc on a black surface, with no visible text or symbols.

Close-up of a white industrial machine with a black horizontal bar and red fabric underneath (no visible text or symbols)

Vihje:

Interior view of a room with a ceiling fixture and two upward-pointing arrows pointing to the ceiling (no text or symbols visible)

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

Close-up of a white paper printer with a red cushion underneath (no visible text or symbols)

Merk:

Interior view of a cabinet or enclosure with two arrows pointing to the ceiling opening (no text or symbols visible)

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

Close-up of a CD or DVD disc with a visible logo and control buttons, placed on a flat surface (no readable text or symbols)

White industrial machine with red cushioned base, no visible text or symbols

Wskazówka:

Interior view of a cabinet or enclosure with two black arrows pointing to the front panel (no text or symbols visible)

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

Close-up of a CD or DVD disc with a red label reading 'H201M - Pono 839' on its surface, placed on a white surface (no other text or symbols visible)

White and red industrial machine with a black horizontal bar, no visible text or symbols

Poznámka:

Interior view of a cabinet or enclosure with two arrows pointing to a central opening (no text or symbols visible)

White printer with a paper slot and a black downward arrow indicating compression or disassembly (no text or symbols visible)

• Prived'te papier do stredu štrbiny pre papier. Svetelná závora automaticky spustí rezací mechanizmus. Preto pri úzkych pásoch papiera dbajte, aby tieto mohla svetelná závora zachytit'.
  Cca 3 s potom, čo je otvor na prisun papiera opät volný, sa skartovačka automaticky vypne a uvedie sa do stavu prevádzkovej pohotovosti.

slovensky

Rozdrvenie CD diskov

VÝSTRAHA

Nebezpečenstvo zranenia úlomkami!

Interior view of a cabinet or cabinet with two upward-pointing arrows pointing to a central opening (no text or symbols visible)

White printer with a paper slot and a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with visible lens and screen, no text or symbols present

- Sisestage CD-d/DVD purustisse sisestusava keskelt.

Close-up of a white electronic device with a red cushioned base, no visible text or symbols

Märkus:

Interior view of a cabinet or enclosure with two arrows pointing to the front panel (no text or symbols visible)

White printer with a downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with a visible logo and control panel (no readable text or symbols)

White industrial machine with red cushioned base, no visible text or symbols

Указание:

Interior view of a double door with a recessed opening and two upward-pointing arrows pointing to the ceiling (no text or symbols visible)

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

Close-up of a CD or DVD disc with a red 'H IBM' logo on its side, placed on a white surface (no readable text or symbols on the disc itself)

Close-up of a white and red electronic device with a black horizontal bar, placed on a metallic base (no visible text or symbols)

Nasvet:

Interior view of a cabinet or enclosure with two upward-pointing arrows pointing to the ceiling (no text or symbols visible)

White printer with a paper feeding into a slot, showing a black downward arrow (no text or symbols visible)

Close-up of a CD or DVD disc on a screen, with no visible text or symbols on the disc itself.

White and red electronic device with a black horizontal bar on top (no visible text or symbols)

Megjegyzés:

Interior view of a cabinet or enclosure with two upward-pointing arrows pointing to the ceiling (no text or symbols visible)

White printer with a paper slot and a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with a H2M port indicator (no readable text or symbols on the disc itself)

Close-up of a white paper printer with a red cushion underneath (no visible text or symbols)

Indicatie:

Interior view of a cabinet or enclosure with two black arrows pointing to a dark opening (no text or symbols visible)

White printer with a paper slot and a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with a red 'WESM Pure 830' label, placed on a black surface (no other text or symbols visible)

White industrial machine with red cloth placed inside, no visible text or symbols

Указание:

Interior view of a cabinet or enclosure with two black arrows pointing to a central opening (no text or symbols visible)

White printer with a paper slot and a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with visible internal color bands, placed on a white surface (no text or symbols)

White industrial machine with red cushioned base, no visible text or symbols

Υποδειξη:

Interior view of a cabinet or enclosure with two black arrows pointing to the front panel (no text or symbols visible)

White printer with a paper slot and a black downward arrow indicating compression or disassembly (no text or symbols visible)

Close-up of a CD or DVD disc with a red 'WESM Pure 830' label, placed on a black surface (no other text or symbols visible)

Close-up of a white industrial machine with a red cloth underneath (no visible text or symbols)

Not:

88699 Frickingen / Germany

Tel. [phone]

Fax [phone]

[e-mail]

www.hsm.eu

HSM (UK) Ltd.

14 Attwood Road / Zone 1

Burntwood Business Park

Burntwood · Staffordshire

WS7 3GJ

United Kingdom

Tel. [phone]

Fax [phone]

[e-mail]

www.hsm.eu

HSM of America LLC

419 Boot Road

Downingtown, PA 19335

USA

Tel. [phone]

[phone]

Fax [phone]

[e-mail]

[e-mail]

www.hsm.us

HSM Polska SP. z o.o.

ul. Emaliowa 28

02-295 Warszawa

Poland

Tel. [phone]

Fax [phone]

[e-mail]

www.hsm.eu

HSM France SAS

Parc de Genève

240, Rue Ferdinand Perrier

69800 Saint-Priest

France

Tél. [phone]

Fax [phone]

[e-mail]

www.hsm.eu
