USER MANUAL D51823 DEWALT

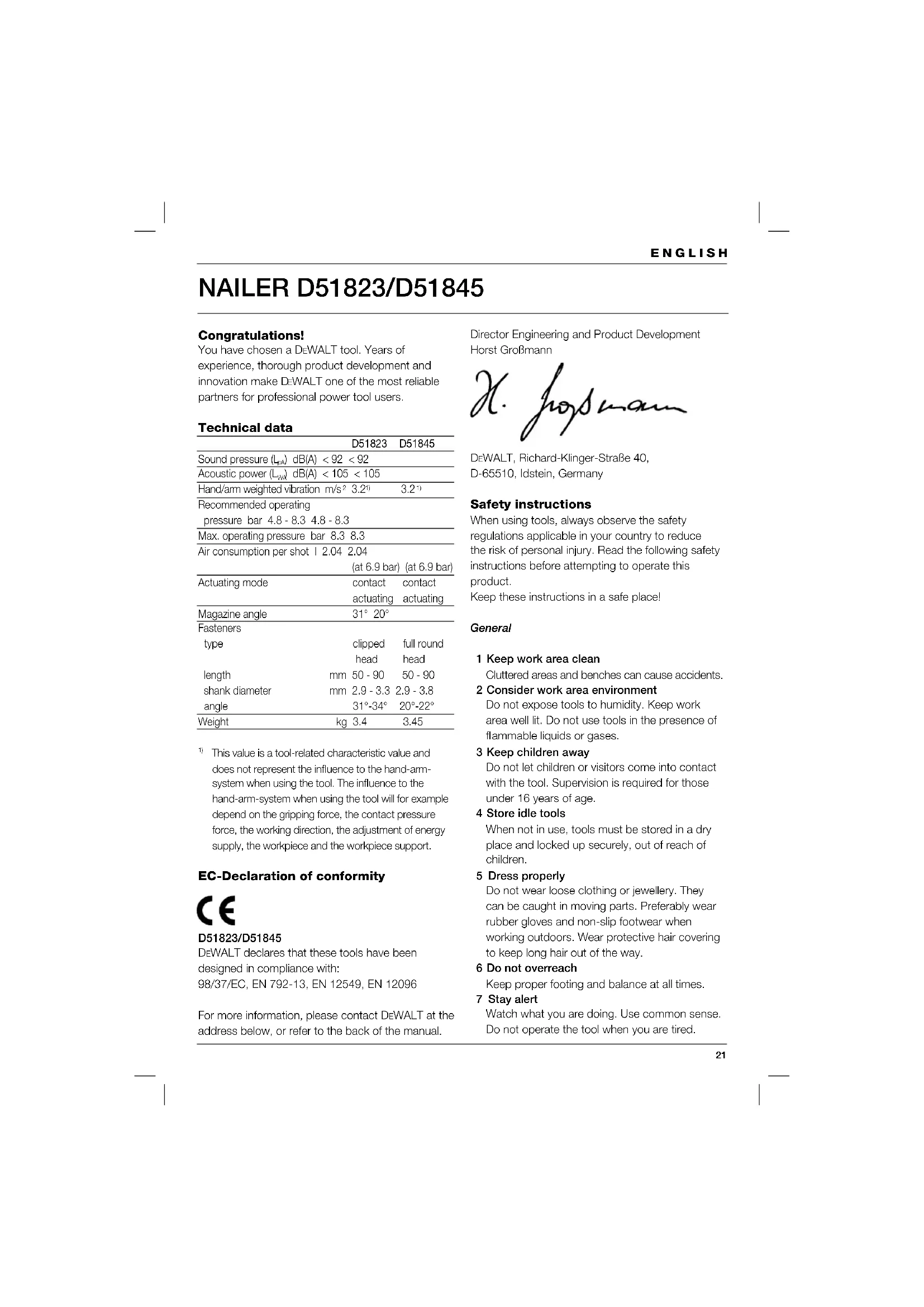

Congratulations! You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make D EWALT one of the most reliable partners for professional power tool users. Technical data D51823 D51845 Sound pressure (L

Recommended operating pressure bar 4.8 - 8.3 4.8 - 8.3 Max. operating pressure bar 8.3 8.3 Air consumption per shot l 2.04 2.04 (at 6.9 bar) (at 6.9 bar) Actuating mode contact contact actuating actuating Magazine angle 31° 20° Fasteners type clipped full round head head length mm 50 - 90 50 - 90 shank diameter mm 2.9 - 3.3 2.9 - 3.8 angle 31°-34° 20°-22° Weight kg 3.4 3.45

This value is a tool-related characteristic value and does not represent the infl uence to the hand-arm- system when using the tool. The infl uence to the hand-arm-system when using the tool will for example depend on the gripping force, the contact pressure force, the working direction, the adjustment of energy supply, the workpiece and the workpiece support. EC-Declaration of conformity D51823/D51845 DEWALT declares that these tools have been designed in compliance with: 98/37/EC, EN 792-13, EN 12549, EN 12096 For more information, please contact DEWALT at the address below, or refer to the back of the manual. Director Engineering and Product Development Horst Großmann DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Germany Safety instructions When using tools, always observe the safety regulations applicable in your country to reduce the risk of personal injury. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place! General 1 Keep work area clean Cluttered areas and benches can cause accidents. 2 Consider work area environment Do not expose tools to humidity. Keep work area well lit. Do not use tools in the presence of fl ammable liquids or gases. 3 Keep children away Do not let children or visitors come into contact with the tool. Supervision is required for those under 16 years of age. 4 Store idle tools When not in use, tools must be stored in a dry place and locked up securely, out of reach of children. 5 Dress properly Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way. 6 Do not overreach Keep proper footing and balance at all times. 7 Stay alert Watch what you are doing. Use common sense. Do not operate the tool when you are tired.22 ENGLISH 8 Use appropriate tool The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended. Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury. 9 Maintain tools with care Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Keep all controls dry, clean and free from oil and grease. 10 Check for damaged parts Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed. 11 Have your tool repaired by an authorized

EWALT repair agent This tool is in accordance with the relevant safety regulations. To avoid danger, tools must only be repaired by qualifi ed technicians. Additional safety instructions for pneumatic nailers

• Always wear safety glasses.

• Always wear ear protection.

• Only use fasteners of the type specifi ed in the manual.

• Do not use any stands for mounting the tool to a support.

• Never use the tool for any other purpose than specifi ed in this manual.

• Prior to each operation check that the safety and triggering mechanism is functioning properly and that all nuts and bolts are tight.

• Use quick-action couplings for connection to the compressed air system. The non-sealable nipple must be fi tted to the tool in such a way that no compressed air remains in the tool after disconnection.

• Always use clean, dry compressed air. Do not use oxygen or combustible gases as an energy source for this tool.

• Only connect this tool to an air supply where the maximum allowable pressure of the tool cannot be exceeded by more than 10%. In case of higher pressures, a pressure reducing valve including a downstream safety valve shall be built into the compressed air supply.

• Only use hoses with a rating exceeding the maximum operating pressure of the tool.

• Before transporting the tool, disconnect it from the compressed air system, especially where ladders are used or where unusual physical posture is adopted while moving.

• Disconnect the tool from the air supply when it is not in use.

• Avoid weakening or damaging the tool, for example by: - punching or engraving - modifi cations not authorised by the manufacturer - guiding against templates made of hard material such as steel - dropping or pushing across the fl oor - applying excessive force of any kind

• Do not use the equipment as a hammer.

• Never point any operational fastener driving tool at yourself or at any other person.

• While working, hold the tool in such a way that no injuries can be caused to the head or to the body in the event of a possible recoil due to a disruption in the energy supply or hard areas within the workpiece.

• Never actuate the fastener driving tool into free space.

• In the work area, carry the tool at the workplace using only one handle, and never with the trigger actuated.

• Consider the conditions in the work area. Fasteners can penetrate thin workpieces or slip off corners and edges of the workpiece, and thus put people at risk.

• Do not drive fasteners close to the edge of the workpiece.

• Do not drive fasteners on top of other fasteners.

• Only use spare parts specifi ed by the manufacturer or his authorised agents.23 ENGLISH

• Have repairs carried out only by the manufacturer or authorised agents having due regard to the information given in the manual and using the appropriate tools and equipment.

• Do not disassemble or block any parts of the fastener driving tool such as the safety yoke.

• Have the tool serviced properly and at regular intervals. The following pictograms are shown on the tool: Pneumatic tool with safety yoke. Do not use on a ladder. Compatible nail angles. Maximum number of nails in magazine. Nail diameter. Nail length. Max. operating pressure. Nail type: full round head. Nail type: clipped head. Package contents The package contains: 1 Nailer 1 Sequential action trigger 1 Pair of safety glasses 1 Instruction manual

• Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation. Description (fi g. A) Your nailer D51823/D51845 has been designed for driving fasteners into wooden workpieces. 1 Trigger/lock-off switch 2 Air fi tting 3 Contact trip 4 Magazine Assembly and adjustment Trigger selection These tools are assembled with a bump action trigger. A sequential action trigger is also included with the original packaging. For defi nitions of “bump action” and “sequential action”, see below. - The grey trigger with a single nail printed on the side is the sequential action trigger. Installation of this kit causes the tool to function in sequential action mode. - The black trigger with three nails printed on the side is the bump action trigger. Installation of this kit causes the tool to function in bump action mode. Removing the trigger (fi g. B)

• Disconnect the airline from the tool.

• Remove all nails from the magazine.

• Select the appropriate trigger.

• Insert the trigger assembly into the trigger cavity, ensuring that the trigger spring (8) is properly seated.

• Ensure that the contact trip guide (9) is pushed fully upward so that it is fl ush with the tool housing and aligned with the housing holes (10).

• Insert the dowel pin (6) through the tool frame, contact trip guide and trigger assembly.

• Push the rubber grommet (5) onto the end of the dowel pin.24 ENGLISH Air fi tting (fi g. A) These tools have a standard 3/8" pipe thread for the air fi tting (2). The tool is assembled with a 3/8" to 1/4" adapter installed in the end cap.

• Wrap the male end of the fi tting with Tefl on tape to prevent air leaks.

• To install a 1/4" fi tting, screw the fi tting into the 3/8" to 1/4" adapter in the end cap and tighten fi rmly.

• To install a 3/8" fi tting, remove the 3/8" to 1/4" adapter, if present. Screw the fi tting into the end cap and tighten fi rmly. Instructions for use Always observe the safety instructions and applicable regulations. Preparing the tool (fi g. C)

• Drain all condensation from the air compressor tanks and hoses.

• Lubricate the tool. See “Maintenance”.

• Remove all nails from the magazine.

• Lock the nail pusher (11) in the back position.

• Check if the contact trip (3) and nail pusher (11) can move freely. Do not use the tool if the contact trip or nail pusher cannot move freely.

• Check that the pressure of the air supply is below the maximum recommended operating pressure.

• Connect the air hose to the fi tting on the tool.

• Check for audible leaks around valves and gaskets.

• Set the air pressure to the minimum recommended operating pressure. Never use a tool that leaks or has damaged parts. Cold weather operation When operating tools at temperatures below freezing:

• Keep the tool as warm as possible before use.

• Disconnect the airline from the tool.

• Put 10 to 15 drops of D EWALT pneumatic tool oil (or winter-weight pneumatic oil containing ethylene glycol) into the air inlet.

• Set the air pressure to a maximum of 5.5 bar.

• Connect the air hose to the fi tting on the tool.

• Load nails into the magazine as described below.

• Actuate the tool 5 or 6 times into scrap lumber to lubricate the o-rings.

• Increase the air pressure to the normal operating level.

• Use the tool in the normal manner. Hot weather operation The tool should operate normally. Avoid the heat of direct sunlight to avoid damage to the bumpers, o-rings, and other rubber parts. Loading the tool (fi g. C) Always disconnect the tool from the air supply before loading fasteners.

• Lock the nail pusher (11) in the back position.

• Select an appropriate collated nail stick. See “Technical data”.

• Insert collated nail stick (s) into the loading slot on top of the magazine.

• Unlatch the nail pusher by pulling rearward and carefully slide the nail pusher forward to press against the nails. Actuating the tool (fi g. D) These tools are equipped with a trigger/lock-off switch (1). When rotated to the right, this switch prevents the tool from actuating. When the switch is centred, the tool will be fully operational. The tool can be operated using one of two modes: sequential action mode or bump action mode. The trigger installed on the tool determines the mode of actuation. Sequential action mode The sequential action mode is used for intermittent nailing when very careful and accurate placement is desired.

• Fit the grey trigger as described above.

• Push the contact trip against the work surface.

• Pull the trigger to actuate the tool. Each trigger pull with the contact trip pushed against the work surface will drive one nail.25 ENGLISH Bump action The bump action mode is used for rapid nailing on fl at, stationary surfaces.

• Fit the black trigger as described above.

• To drive a single nail: Operate the tool as described for sequential action.

• To drive several nails: Pull the trigger fi rst, and then push the contact trip repeatedly against the work surface. Do not keep the trigger depressed when the tool is not in use. Keep the trigger lock-off switch rotated to the right to prevent accidental actuation when the tool is not in use. Dry fi re lockout To protect the tool from damage, these tools are equipped with a dry fi re lockout. The dry fi re lockout prevents the tool from actuating when the magazine is nearly empty. When approximately 4 or 5 nails remain in the magazine and the tool ceases to operate, follow the loading instructions to load sticks of collated nails. See “Loading the tool”. Clearing a jammed nail (fi g. E) If a nail becomes jammed in the nosepiece, follow these instructions to remove the nail:

• Disconnect the airline from the tool.

• Lock the trigger with the trigger lock-off switch.

• Remove all nails from the magazine.

• Flip up the cam latch (12).

• Push and hold the cam latch fi rmly inward as shown by the arrow (13) until the narrow portion of the latch pin (14) is exposed.

• At the same time, slide the magazine (4) rearward as shown by the arrow (15) to expose the bent nail.

• Remove the bent nail, using pliers if necessary.

• If the driver blade is in the down position, push the driver blade upward using a screwdriver.

• If the nail cannot be removed with the magazine retracted to the fi rst stop, remove the magazine from the tool entirely. This can be accomplished by holding the cam latch (12) fi rmly inward while pulling the magazine rearward until it separates from the tool.

• To reattach the magazine, insert the latch pin (14) into the magazine bracket, align the front end of the magazine with the nosepiece pegs (16), push inward on the cam latch (12) and slide the magazine onto the tool.

• Slide the magazine forward to the fully closed position.

• Press the cam latch (12) into the locked position.

• Connect the air hose to the fi tting on the tool.

• Load nails into the magazine. See “Loading the tool”. If nails become jammed in the nosepiece frequently, have the tool serviced by an authorised D EWALT service centre. Depth Setting (fi g. F) To reduce risk of serious injury from accidental actuation when attempting to adjust depth, ALWAYS:

• Disconnect air supply.

• Avoid contact with trigger during adjustments. The depth that the nails are driven can be adjusted using the depth adjustment on the nosepiece of the tool.

• To reduce the depth, press the unlock button (17) in. Slide the contact trip (3) down. Press the lock button (18) to secure contact trip.

• To increase the depth, press the unlock button (17) in. Slide the contact trip (3) upward to the extent desired. Press the lock button (18) to secure contact trip. Belt/rafter hook These tools have an integrated belt/rafter hook. The hook can be rotated to either side of the tool and can be folded out of the way when not in use. To remove the belt/rafter hook:

• Remove the air hose from the fi tting on the tool.

• Use pliers or a wrench to remove the nut for the belt/rafter hook from the end cap of the tool.

• Remove the belt/rafter hook, washer and detent spring.26 ENGLISH Maintenance Your DEWALT tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends on proper tool care and regular cleaning. Perform the following maintenance operations every day: Lubricate tool with 10-15 drops of DEWALT pneumatic tool oil

• Insert drops into the air fi tting on the end cap of the tool. Drain all condensation from the air compressor tanks and hoses

• Open petcocks or other drain valves on the compressor tanks.

• Allow any accumulated water to drain from hoses. Clean magazine, pusher, and contact trip mechanism

• Clean by blowing with compressed air. Ensure that all fasteners on the tool are tight and undamaged

• Tighten loose fasteners using the appropriate tool. Troubleshooting If your tool seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your repair agent. Tool does not work

• Check the air supply.

• If the temperature is low, warm the tool up. Tool has insuffi cient power

• Check the air supply.

• Check if the air exhaust is clear.

• Lubricate the tool. Top cap leaks air

• Tighten the cap screws. Tool skips nails

• Check the air supply.

• Clean the magazine and nosepiece.

• Check that the magazine latch is holding the magazine fi rmly. Fasteners jam in tool

• Make sure only to use fasteners of the type specifi ed.

• Check that the magazine latch is holding the magazine fi rmly.

• Tighten the nosepiece screws. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

EWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf. You can check the location of your nearest authorised repair agent by contacting your local

EWALT offi ce at the address indicated in this27 manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com. Unwanted tools and the environment Take your tool to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way. ENGLISH GUARANTEE
