USER MANUAL SUWL51 SONY

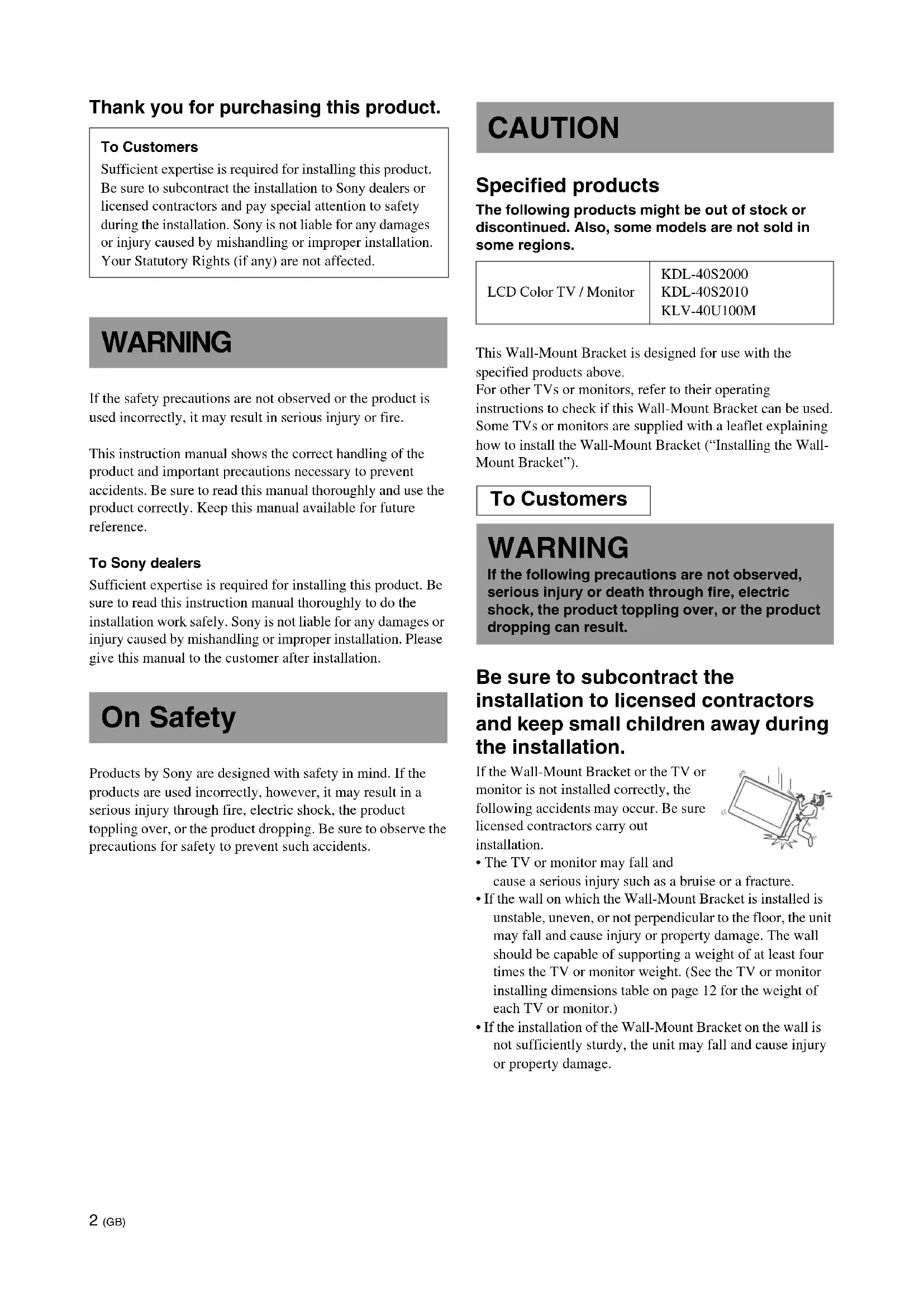

To Customers and Sony Dealers 2-652-380-11 (1) SU-WL51 © 2005 Sony Corporation2 (GB) SU-WL51 2-652-380-11(1) Thank you for purchasing this product. If the safety precautions are not observed or the product is used incorrectly, it may result in serious injury or fire. This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference. To Sony dealers Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation. Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents. Specified products The following products might be out of stock or discontinued. Also, some models are not sold in some regions. This Wall-Mount Bracket is designed for use with the specified products above. For other TVs or monitors, refer to their operating instructions to check if this Wall-Mount Bracket can be used. Some TVs or monitors are supplied with a leaflet explaining how to install the Wall-Mount Bracket (“Installing the Wall- Mount Bracket”). Be sure to subcontract the installation to licensed contractors and keep small children away during the installation. If the Wall-Mount Bracket or the TV or monitor is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

• The TV or monitor may fall and cause a serious injury such as a bruise or a fracture.

• If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least four times the TV or monitor weight. (See the TV or monitor installing dimensions table on page 12 for the weight of each TV or monitor.)

• If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage. To Customers Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation. Your Statutory Rights (if any) are not affected. WARNING On Safety CAUTION LCD Color TV / Monitor KDL-40S2000 KDL-40S2010

WARNING If the following precautions are not observed, serious injury or death through fire, electric shock, the product toppling over, or the product dropping can result. To Customers 01GB01COV.book Page 2 Tuesday, December 20, 2005 4:59 PM3 (GB) SU-WL51 2-652-380-11(1) Be sure to subcontract moving or dismounting of the TV or monitor to licensed contractors. If persons other than licensed contractors transport or dismount the TV or monitor, it may fall and cause injury or property damage. Be sure that two or more persons carry or dismount the TV or monitor. Do not spill liquid of any kind on the TV or monitor. If you allow the TV or monitor to get wet, this may result in a fire or an electric shock. Do not remove screws, etc., after mounting the TV or monitor. If you do so, the TV or monitor may fall and cause injury or property damage. Do not disassemble or make alterations to the parts of the Wall- Mount Bracket. If you do so, the Wall-Mount Bracket may fall and cause injury or property damage. Do not mount any equipment other than the specified product. This Wall-Mount Bracket is designed for the use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage. Do not cover the ventilation holes of the TV or monitor. If you cover the ventilation hole (with a cloth, etc.), heat may build up inside and cause fire. Do not apply any load other than the TV or monitor on the Wall-Mount Bracket. If you do so, the TV or monitor may fall and cause injury or property damage. Do not lean on or hang from the TV or monitor. Do not lean on or hang from the TV or monitor as it may fall on you and cause serious injury. Do not expose the TV or monitor to rain or moisture. It may cause a fire or an electric shock. Never place the TV or monitor in hot, humid or excessively dusty places, or in the place where the TV or monitor is subjected to mechanical vibrations. If you do so, it may cause a fire or an electric shock. Keep flammable objects or open flames (e.g., candles) away from the TV or monitor. To prevent a fire, keep flammable objects or open flames (e.g., candles) away from the TV or monitor.

English 01GB01COV.book Page 3 Tuesday, December 20, 2005 4:59 PM4 (GB) SU-WL51 2-652-380-11(1) Do not install the Wall-Mount Bracket on wall surfaces where the corners or the sides of the TV or monitor protrude away from the wall surface. Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or the sides of the TV or monitor protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV or monitor, it may cause injury or property damage. Do not handle the product with excessive force during cleaning or maintenance. Do not apply excessive force on the topside of the TV or monitor. If you do so, the TV or monitor may fall and cause injury or property damage. Do not install the TV or monitor over or under an air-conditioner. If the TV or monitor is exposed to water leaks or air current from an air-conditioner for a long time, it may cause a fire, an electric shock or a malfunction of the TV or monitor.

• If you use the TV or monitor installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV or monitor may become discolored or the wallpaper may come unstuck, depending on the material of the wall.

• If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.

• If you have routed 300-ohm feeder cables behind the wall, we recommend that you change them to 75-ohm coaxial cables. If it is necessary to continue to use 300-ohm feeder cables, be sure there is sufficient space available between the TV or monitor and the feeder cables behind the wall before installing. Consult your licensed contractor regarding an appropriate location (free from radio noise, etc.) before installing. Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual. If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely, using four or more M8 (or equivalent) screws. Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual. If any of the screws are loose or fall out, the TV or monitor may fall, and cause bodily injury to someone or damage to the TV or monitor. CAUTION If the following precautions are not observed, injury or property damage may occur. Precautions Installing the Wall-Mount Bracket WARNING to Customers Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. To Sony Dealers The following instructions are for Sony Dealers only. Be sure to read safety precautions described above and pay special attention to safety during the installation, maintenance and checking of this product. Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV or monitor may fall, and cause bodily injury to someone or damage to the TV or monitor. To Sony Dealers 01GB01COV.book Page 4 Tuesday, December 20, 2005 4:59 PM5 (GB) SU-WL51 2-652-380-11(1) Be sure to tighten the screws securely in the designated position. If you fail to do so, the TV or monitor may fall, and cause bodily injury to someone or damage to the TV or monitor. Be careful not to subject the TV or monitor to shock during installation. If the TV or monitor is exposed to shock, it may fall or break apart. This may cause injury. Be sure to install the TV or monitor on a wall that is both perpendicular and flat. If you fail to do so, the TV or monitor may fall and cause injury. After proper installation of the TV or monitor, secure the cables properly. If people or objects get tangled with cables, this may result in injury or damage to the TV or monitor. Do not allow the AC power cord or the connecting cable to be pinched. If the AC power cord or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock. Be careful not to hurt your hands or fingers during the installation. Be careful not to hurt your hands or fingers when installing the Wall-Mount Bracket or the TV or monitor. The screws needed to secure the Wall-Mount Bracket to the wall are not supplied. Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket. Before installation If you intend to install a TV or monitor that is not specified on page 2, be sure to refer to the leaflet “Installing the Wall-Mount Bracket” supplied with your TV or monitor. Step 1: Checking the parts required for the installation

Prepare four or more M8 or equivalent screws (not supplied) and a screwdriver. Select screws suitable for the material of the wall.

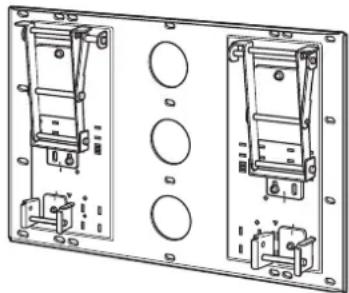

Unpack the carton and check to see that all the following items are included. Plate Unit (1)Mounting Hook Unit (2)Paper Template (1)Screw (+B6 × L20) (2)Screw (+PSW5 × L16) (6)Hook (4) 01GB01COV.book Page 5 Tuesday, December 20, 2005 4:59 PM6 (GB) SU-WL51 2-652-380-11(1) Step 2: Deciding on the installation location

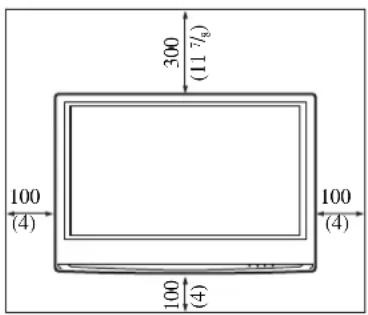

Referring to the TV or monitor installing dimensions table on page 12 and placing the supplied paper template on a perpendicular and flat wall, decide on the installation location. Allow for suitable clearance between the TV or monitor and the ceiling and protruding parts of the wall as shown below. Note If you intend to route the cables in the wall, make a hole in the wall to insert the cables. The position for the cable hole is shown in the diagram on page 13.

Referring to the diagram on page 13, determine the positions of the screws for installing the plate unit. If you intend to route the cables in the wall, also determine the position of the cable hole and bore a hole in the wall. Unit: mm (inches)

WARNING The wall that the TV or monitor will be installed on should be able to support a weight of at least four times that of the TV or monitor (page 12). Make sure of the strength of the wall the TV or monitor will be installed on. Reinforce the wall sufficiently, if necessary. Step 3: Installing the Plate Unit on the wall

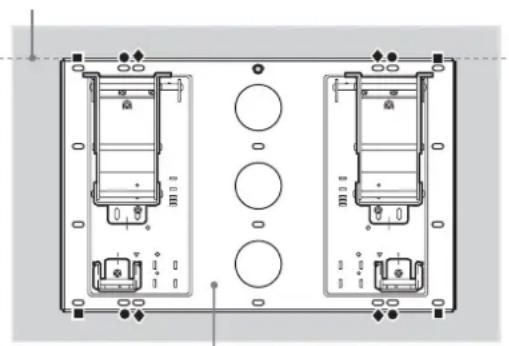

Secure the Plate Unit to the wall using four or more M8 or equivalent screws (not supplied). Select at least four screw holes with the same mark shown in the diagram below, and tighten the screws securely so that they will not become loose. Align the unit so that it is exactly level.Plate Unit WARNING

• The screws used in this procedure are not supplied.

• Select screws suitable for the material and the structure of the wall.

• If the Plate Unit cannot be attached securely enough, use additional screws.

• Be sure to confirm that the Plate Unit is securely attached to the wall. 01GB01COV.book Page 6 Tuesday, December 20, 2005 4:59 PM7 (GB) SU-WL51 2-652-380-11(1)

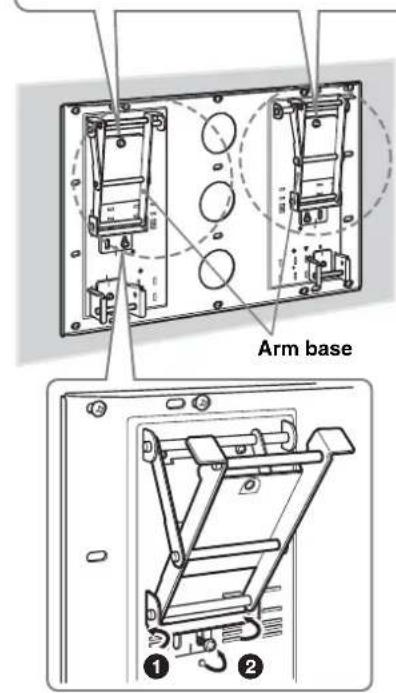

Adjust the angle of the arms. When installing the TV or monitor perpendicularly (0 degrees), adjustment of the arm angle (procedures 1 and 2 below) is not necessary. Make sure that each arm base is screwed in securely. 1 Remove the screws from the top and bottom centre of the both arm bases. Then choose the notch corresponding to the desired angle (5, 10, 15 or 20 degrees) and fit each arm base to them. If you are installing the KLV-40U100M, do not choose the notch for 20 degrees. 2 Firmly secure each arm base using the screws removed in the above procedure 1. Notes• Be sure to adjust the angles of the right and left arms to the same angle.• Be careful not to pinch your fingers when adjusting the angle of the arms.• When using an electric screwdriver, set the torque setting to approximately 2 N·m {20 Kgf·cm}.• Make sure that the two arm bases are screwed in securely.Notes on the adjustment angles

• When installing TV or monitor models other than those specified on page 2 (depending on the model's size and dimensions, etc.), the adjustment angles listed (0, 5, 10, 15, 20 degrees) for the arms may be limited.

• For the available adjustment angles of the arms when installing TV or monitor models other than those specified on page 2, refer to the operating instructions or the leaflet (“Installing the Wall- Mount Bracket”) supplied with the TV or monitor.

• 0 degrees: Leave the white screws tightened as they are.• Other than 0 degrees: Remove the white screws.Arm base

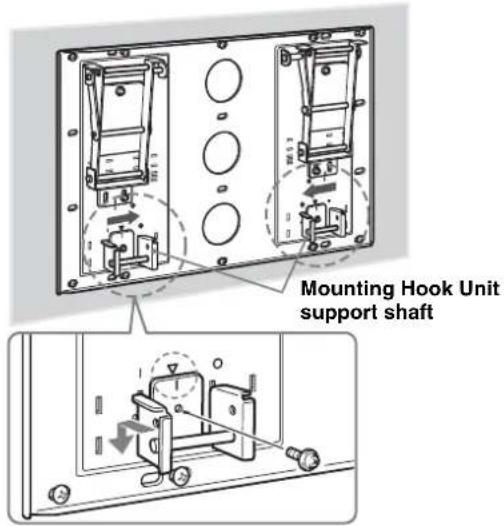

Change the position of the Mounting Hook Unit support shafts. 1 Remove the screws securing the both left and right Mounting Hook Unit support shafts, and then move the Mounting Hook Unit support shafts to the inner position. Make sure the marks on the both Mounting Hook Unit support shafts align with the F marks on the plate unit. 2 Secure the Mounting Hook Unit support shafts using the screws from procedure 1. Notes

• When using an electric screwdriver, set the torque setting to approximately 2 N·m {20 Kgf·cm}.

• Make sure that the two Mounting Hook Unit support shafts are screwed in securely. Mounting Hook Unit support shaft 01GB01COV.book Page 7 Tuesday, December 20, 2005 4:59 PM8 (GB) SU-WL51 2-652-380-11(1) The procedure differs depending on the TV or monitor. Apply the procedure appropriate for the TV or monitor you are installing.

If you intend to install a TV or monitor that is not specified on above, be sure to refer to the leaflet “Installing the Wall- Mount Bracket” supplied with your TV or monitor. Step 4: Preparing for the installation of the TV or monitor

Remove the screws from the rear side of the TV or monitor.

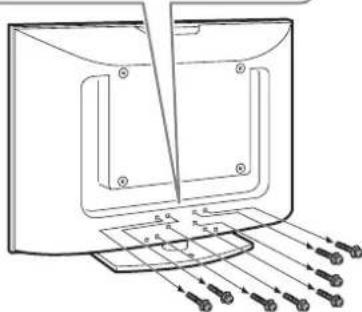

Remove the eight screws from these eight holes in the rear side of the monitor.

Detach the Table-Top Stand from the TV or monitor.

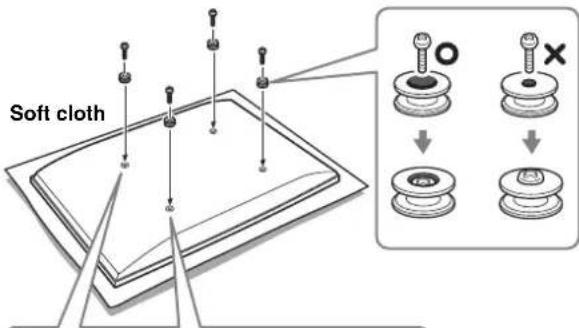

Attach the supplied four hooks on the rear side of the TV or monitor. Place the TV or monitor with its screen facing down on a stable cloth-covered work surface. Attach the supplied four hooks with the four supplied screws (+PSW5 × L16). Notes• When using an electric screwdriver, set the torque setting to approximately 2 N·m {20 Kgf·cm}.• Be sure not to use any screws other than the supplied ones (+PSW5 × L16) when attaching the hooks.Soft clothAlign the hook with the circle on the rear side of the TV or monitor. 01GB01COV.book Page 8 Tuesday, December 20, 2005 4:59 PM9 (GB) SU-WL51 2-652-380-11(1) If you intend to install a TV or monitor that is not specified on page 2, be sure to refer to the leaflet “Installing the Wall- Mount Bracket” supplied with your TV or monitor. Step 5: Installing the TV or monitor on the Plate Unit WARNING Be sure to complete the installation before connecting the AC power cord to the wall outlet. If you allow the AC power cord to be pinched under or between pieces of equipment, this may result in a short circuit or an electric shock. Be careful not to stumble over the AC power cord or the TV or monitor, as you may hurt yourself.

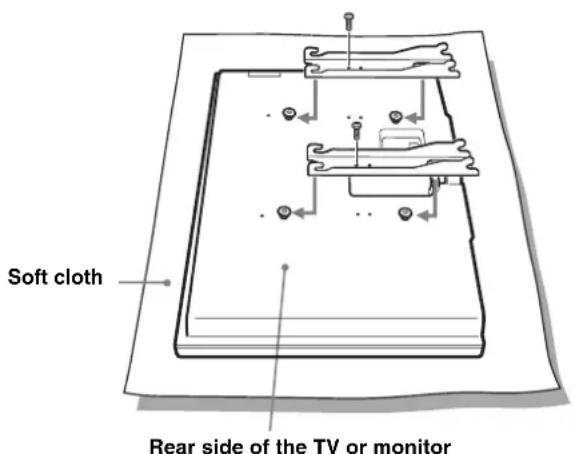

Attach the Mounting Hook Units on the hooks on the rear side of the TV or monitor. Then slide the Mounting Hook Units, as illustrated below, and secure them using the supplied screws (+PSW5 × L16). Note Be sure not to use any screws other than the supplied ones (+PSW5 × L16) when securing the Mounting Hook Units. Rear side of the TV or monitorSoft cloth

Connect the AC power cord and the connecting cable(s) supplied with the TV or monitor to the TV or monitor. Connect the AC power cord and the connecting cable(s) to the connectors on the rear side of the TV or monitor. For details on connecting the AC power cord and the connecting cable(s), refer to the instruction manual of the TV or monitor. When you route the cord and the cable in the wall, feed them through the bored hole (page 13). Notes

• You cannot connect the cables to the TV or monitor after installing it on the Plate Unit.

• Subcontract the cable routing in the wall to licensed contractors. (Continued) 01GB01COV.book Page 9 Tuesday, December 20, 2005 4:59 PM10 (GB) SU-WL51 2-652-380-11(1) Step 5: Installing the TV or monitor on the Plate Unit (Continued)

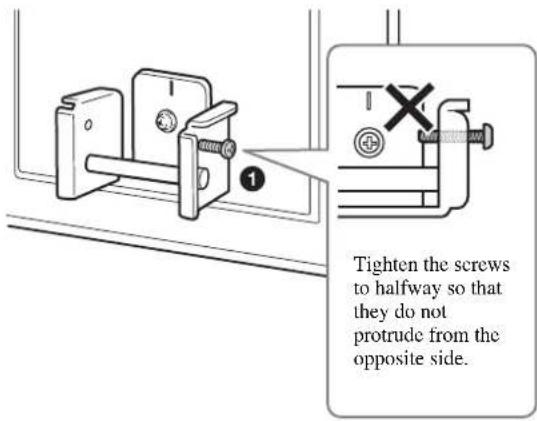

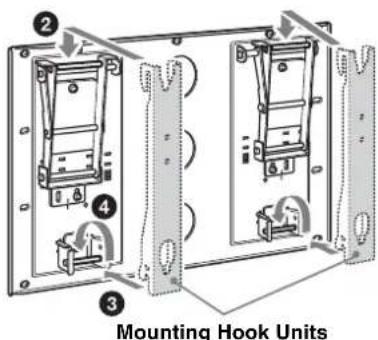

Install the TV or monitor onto the Plate Unit. 1 Insert the screws (+B6×L20, supplied) into the screw holes on the outer left and right sides of the Mounting Hook Unit support shafts, and tighten them temporarily. Note If the temporarily attached screws protrude inside the Mounting Hook Unit support shafts, the lower hooks of the Mounting Hook Unit cannot be fitted in (procedure 4). 2 Hitch the upper hooks of the two Mounting Hook Units on to the support shafts of the arms. 3 Place the lower hooks of the two Mounting Hook Units so that they touch the front side of the Mounting Hook Unit support shafts. 4 Slightly push the TV or monitor toward the Plate Unit and upward, to hitch the lower hooks of the two Mounting Hook Units to the Mounting Hook Unit support shafts. 5 Confirm the eight hooks are firmly hooked on the four shafts on the Plate Unit. Tighten the screws to halfway so that they do not protrude from the opposite side.Mounting Hook Units 6 Firmly tighten the securing screws screwed in temporarily in procedure 1. WARNING Be sure to tighten both left and right securing screws firmly. If you fail to do so, the TV or monitor may fall when it is pushed upward and cause injury. Confirming the completion of the installation Check the following points.

• The eight hooks of the Mounting Hook Units are firmly hooked on the four shafts of the Plate Unit.

• The cord and the cable are not twisted or pinched.

• The two securing screws on the Mounting Hook Unit are securely tightened. WARNING Incomplete installation may cause the product falling and result in injury or product damage. Also, improper placement of the AC power cord, etc., may cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety. 01GB01COV.book Page 10 Tuesday, December 20, 2005 4:59 PM11 (GB) SU-WL51 2-652-380-11(1) Design and specifications are subject to change without notice. When removing the TV or monitor

Unplug the AC power cord from the wall outlet.

Remove the two securing screws on the right and left Mounting Hook Unit support shafts.

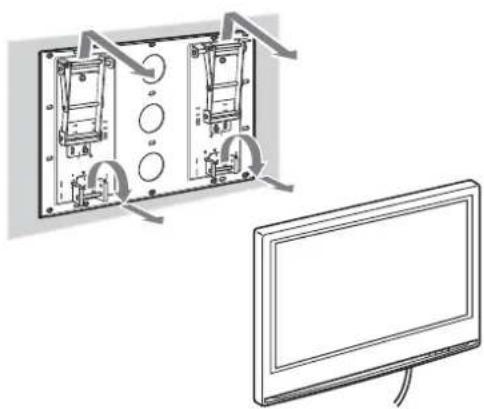

Be sure that two or more persons hold the TV or monitor and slide it upward to remove the TV or monitor. To Sony Dealers WARNING

• Be sure that two or more persons hold the TV or monitor when carrying it.

• Be careful not to allow the cord and cables to get hung up when removing the TV or monitor.

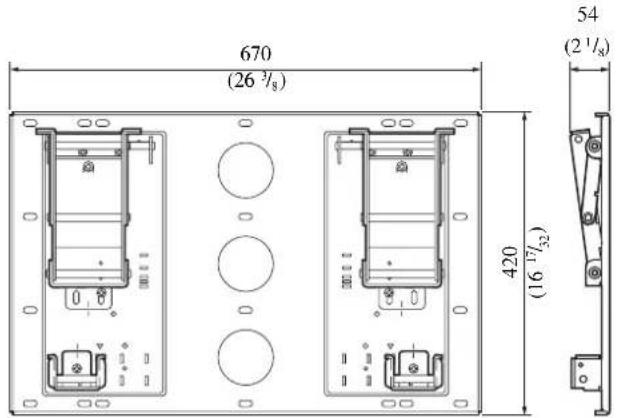

• Be careful not to hurt your hands or fingers when removing the TV or monitor. Specifications Plate UnitMounting Hook Unit

Unit: mm (inches)Weight: 9.5 kg (21 lb) (16

Figures in the above table may differ slightly depending on the installation.

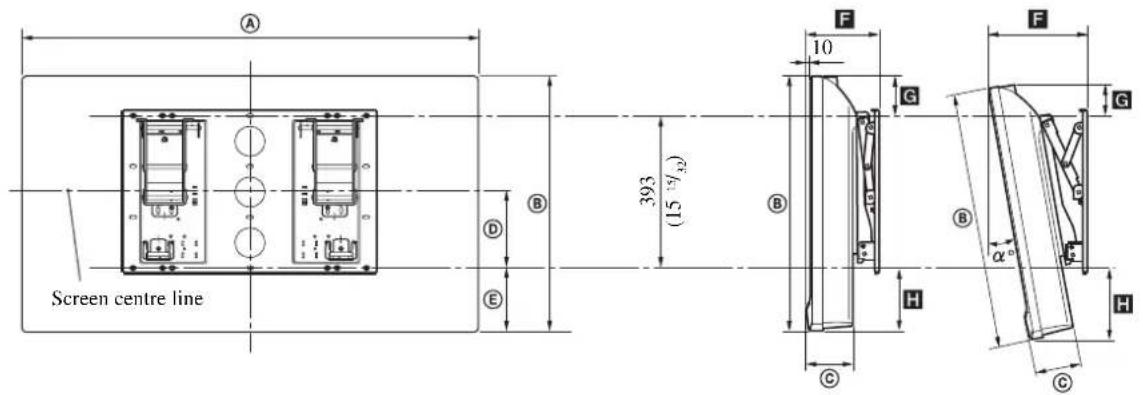

• The wall that the TV or monitor will be installed on should be capable of supporting a weight of at least four times that of the TV or monitor. Display Model Display Dimensions (0º) Unit: mm (inches) Length for each mounting angle Unit: mm (inches) Weight A B C D E Mounting angle

installation location. If you intend to install a TV or monitor that is not specified on page 2, be sure to refer to the leaflet “Installing the Wall-Mount Bracket” supplied with your TV or monitor.

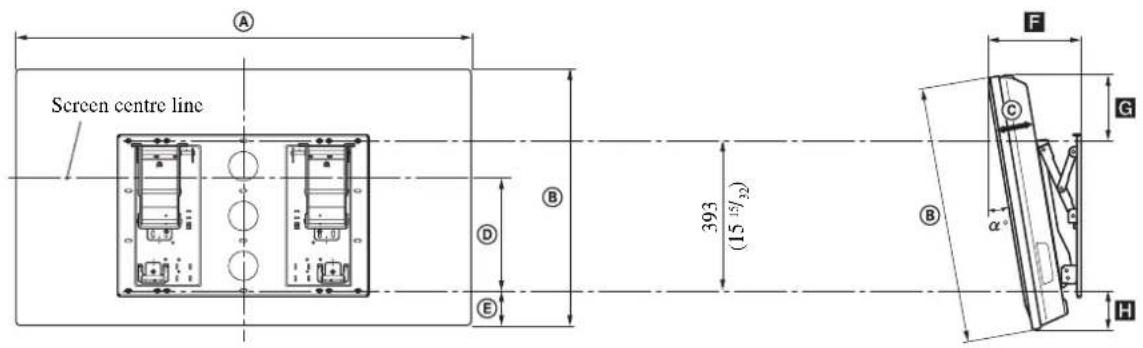

KDL-40S2000/KDL-40S2010

Screen centre line Screen centre line

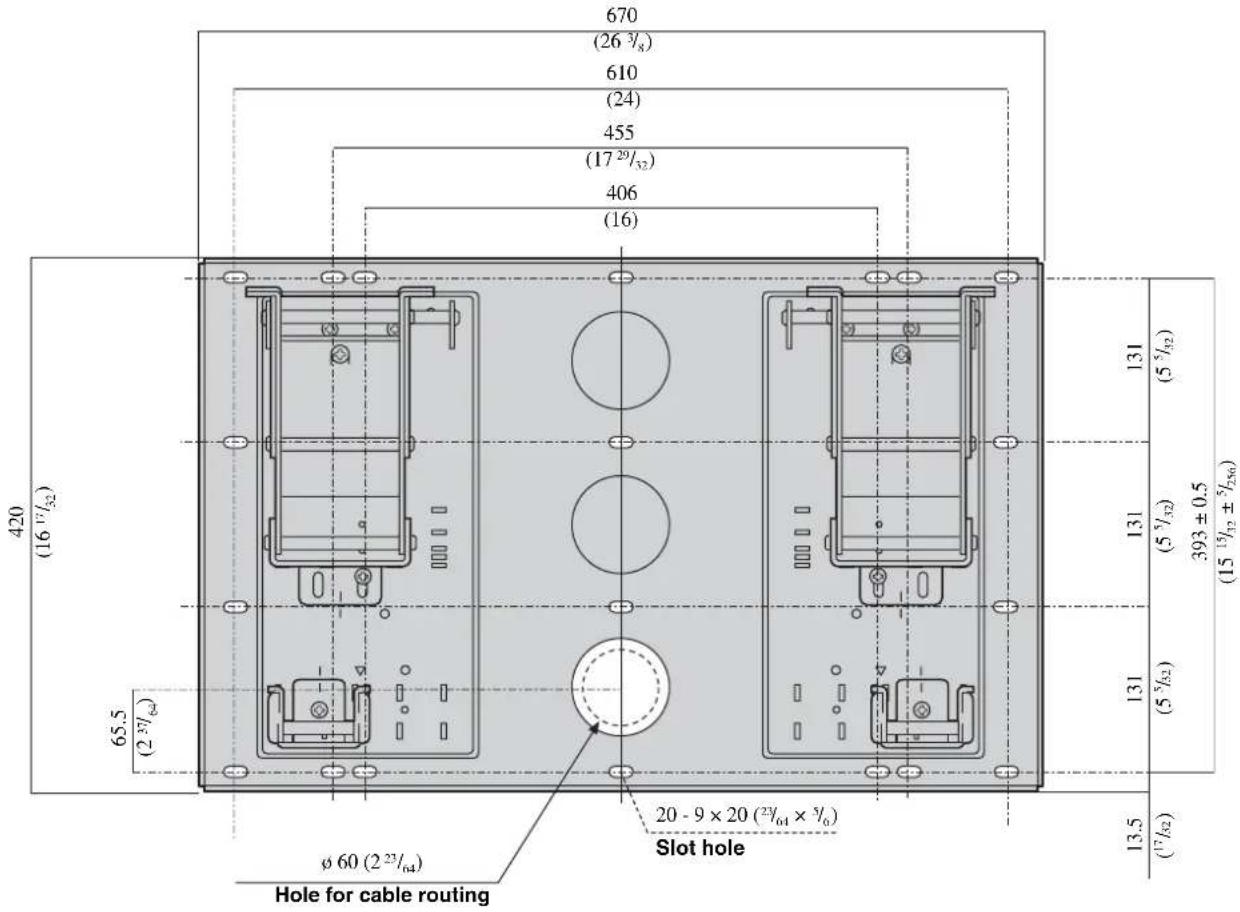

01GB01COV.book Page 12 Tuesday, December 20, 2005 4:59 PM13 (GB) SU-WL51 2-652-380-11(1) Wall processing dimensions diagram Unit: mm (inches) Hole for cable routing Slot hole 393 ± 0.5 (15

13,5SU-WL51 2-652-380-11(1) 01GB01COV.book Page 14 Tuesday, December 20, 2005 4:59 PMSU-WL51 2-652-380-11(1) 01GB01COV.book Page 15 Tuesday, December 20, 2005 4:59 PMSU-WL51 2-652-380-11(1) Printed in Japan http://www.sony.net/ 01GB01COV.book Page 14 Tuesday, December 20, 2005 4:59 PM
