| Product type | Protective guard for angle grinder |
| Brand | Metabo |
| Model | CED 125 Plus |
| Maximum wheel diameter | 125 mm (5") |
| Maximum wheel thickness | 6 mm (1/4") |
| Compatible wheel type | Diamond cutting wheel |
| Extraction connection | Hose Ø 35 mm (class M vacuum cleaner) |
| Usage | Cutting and grooving of mineral materials (concrete, masonry) |
| Attachment | For Metabo angle grinders (series W..., T..., etc. from 2008) |
| Additional handle | Included, mountable left or right |
| Depth adjustment | Clamping screw |
| Compatible guide rail | Metabo guide rail (ref. 6.31213) |
| Weight | Approximately 0.8 kg |
| Material | Reinforced plastic and metal |
| Maintenance | Regularly clean ventilation openings, check condition of parts before each use |
| Repairability | Repair by qualified personnel with original Metabo parts |
| Environmental protection | Recycling according to national regulations |
Frequently Asked Questions - CED 125 Plus METABO
User questions about CED 125 Plus METABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Polisher in PDF format for free! Find your manual CED 125 Plus - METABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CED 125 Plus by METABO.
USER MANUAL CED 125 Plus METABO
CED 125 CED 125 Plus
de Originalbetriebsanleitung 3
en Original instructions 9
fr Notice originale 14
nl Originele gebruikershandleiding 20
it Istruzioni originali 25
es Manual original 31
pt Manual de instruções original 37
sv Originalbruksanvisning 43
fi Alkuperainen kayttoohje 48
no Original bruksanvisning 53
da Original brugsanvisning 58
pl Oryginalna instrukcja obstugi 63
el Ppwtotuno o8nywv Aetoupyiac 69
hu Eredeti hasznalatiutasitas 75
ru OpnHnHaJIbHoe pyKOBOdCTBO nO 80 KcNpyatau 80

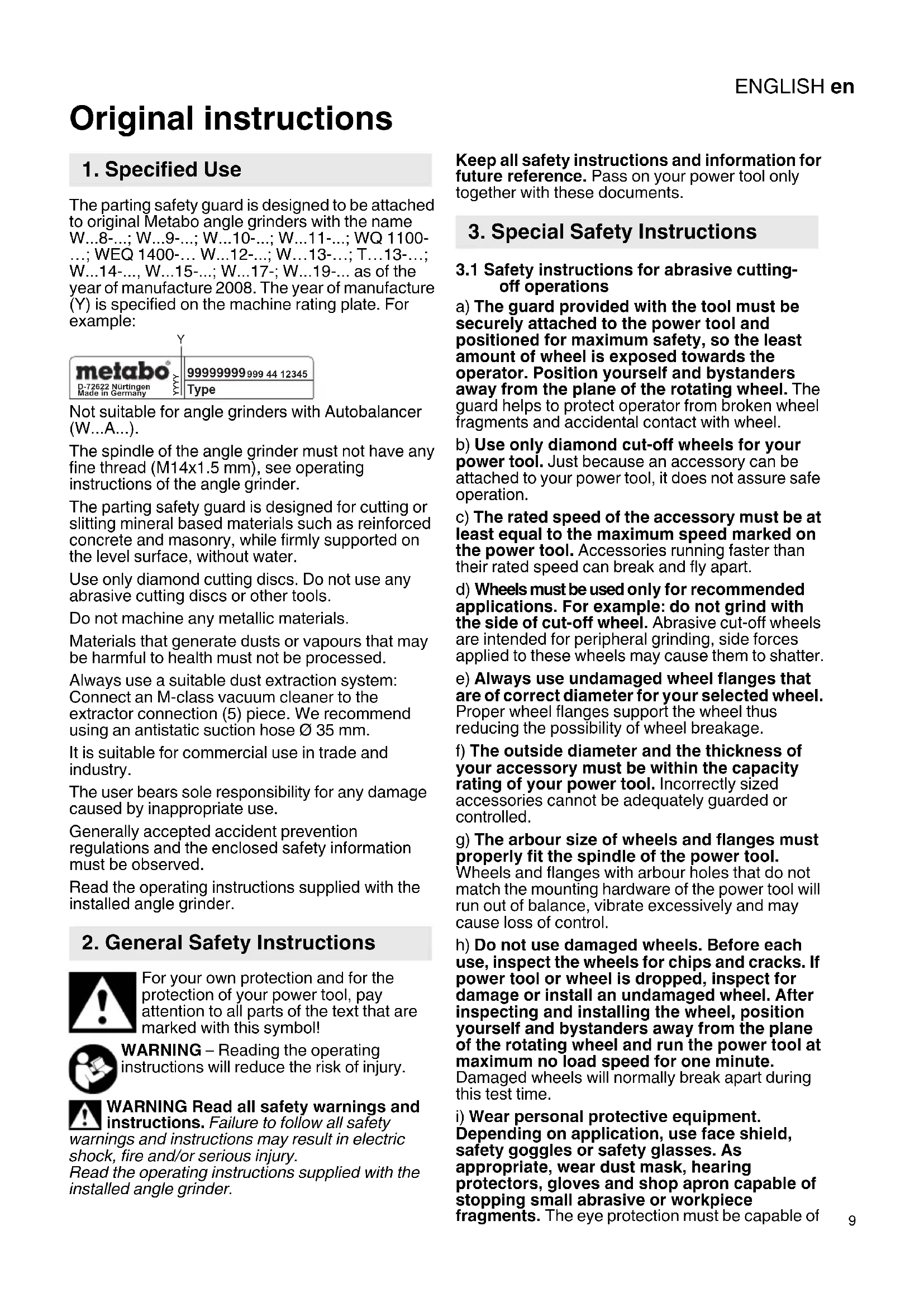

Original instructions
1. Specified Use
The parting safety guard is designed to be attached to original Metabo angle grinders with the name W...8-.;W...9-.;W...10-.;W...11-.;WQ 1100- .WEQ 1400-.W...12-.;W...13-.T...13- . W...14-.,W...15-.;W...17-.;W...19-.as of the year of manufacture 2008. The year of manufacture (Y) is specified on the machine rating plate. For example:
Not suitable for angle grinders with Autobalancer (W...A...).
The spindle of the angle grinder must not have any fine thread (M14x1.5 mm), see operating instructions of the angle grinder.
The parting safety guard is designed for cutting or slitting mineral based materials such as reinforced concrete and masonry, while firmly supported on the level surface, without water.
Use only diamond cutting discs. Do not use any abrasive cutting discs or other tools.
Do not machine any metallic materials.
Materials that generate dusts or vapours that may be harmful to health must not be processed.
Always use a suitable dust extraction system: Connect an M-class vacuum cleaner to the extractor connection (5) piece. We recommend using an antistatic suction hose 35mm .
It is suitable for commercial use in trade and industry.
The user bears sole responsibility for any damage caused by inappropriate use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.
Read the operating instructions supplied with the installed angle grinder.
2. General Safety Instructions
For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol!
WARNING - Reading the operating instructions will reduce the risk of injury.
WARNING Read all safety warnings and instructions. Failure to follow all safety
warnings and instructions may result in electric shock, fire and/or serious injury.
Read the operating instructions supplied with the installed angle grinder.
Keep all safety instructions and information for future reference. Pass on your power tool only together with these documents.
3. Special Safety Instructions
3.1 Safety instructions for abrasive cuttingoff operations
a) The guard provided with the tool must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. Position yourself and bystanders away from the plane of the rotating wheel. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel.
b) Use only diamond cut-off wheels for your power tool. Just because an accessory can be attached to your power tool, it does not assure safe operation.
c) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct diameter for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage.
f) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
g) The arbour size of wheels and flanges must properly fit the spindle of the power tool. Wheels and flanges with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
h) Do not use damaged wheels. Before each use, inspect the wheels for chips and cracks. If power tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute. Damaged wheels will normally break apart during this test time.
i) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of
ENGLISHen
stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
j) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken wheel may fly away and cause injury beyond immediate area of operation.
k) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
1) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning wheel.
m) Never lay the power tool down until the accessory has come to a complete stop. The spinning wheel may grab the surface and pull the power tool out of your control.
n) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
o) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
p) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
q) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
3.2 Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging causes rapid stalling of the rotating wheel which in turn causes the uncontrolled power tool to be forced in the direction opposite of the wheel's rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary
handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in line with the rotating wheel. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain, woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10mm or toothed saw blade. Such blades create frequent kickback and loss of control.
f) Do not "jam" the wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
g) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
h) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
i) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
j) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
3.3 Additional Safety Instructions:
WARNING - Always wear protective goggles.
Wear a suitable dust protection mask.
Use only diamond cut-off wheels. Only genuine spare parts may be used.
Do not use bonded discs.
Wear ear protectors.
Use elastic cushioning layers if they have been supplied with the grinding media and if required.
Observe the specifications of the accessory manufacturer! Protect the accessories from grease and physical impact.
Accessories must be stored and handled with care in accordance with the manufacturer's instructions.
The workpiece must lay flat and be secured against slipping, e.g. using clamps. Large workpieces must be sufficiently supported.
Damaged, eccentric or vibrating tools must not be used.
Ensure that the spot where you wish to work is free of power cables, gas lines or water pipes (e.g. using a metal detector).
Avoid damage to gas or water pipes, electrical cables and load-bearing walls (static).
Pull the plug out of the socket before making any adjustments, converting or servicing the machine.
Read the operating instructions supplied with the installed angle grinder.
A damaged or cracked additional handle must be replaced. Never operate a machine with a defective additional handle.
Prior to each use, check if there are parts missing, worn, broken, torn or damaged. Do not use defective or incomplete guard.
Reducing dust exposure:
WARNING - Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
- Lead from lead-based paints,
- Crystalline silica from bricks and cement and other masonry products, and
- Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
This also applies to dust from other materials such as some timber types (like oak or beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory diseases. Do not let dust enter the body.
Observe the relevant guidelines and national regulations for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal).
Collect the particles generated at the source, avoid deposits in the surrounding area.
Use suitable accessories for special work. In this way, fewer particles enter the environment in an uncontrolled manner.
Use a suitable extraction unit.
Reduce dust exposure with the following measures:
- do not direct the escaping particles and the exhaust air stream at yourself or nearby persons or on dust deposits,
- use an extraction unit and/or air purifiers,
- ensure good ventilation of the workplace and keep clean using a vacuum cleaner. Sweeping or blowing stirs up dust.
- Vacuum or wash the protective clothing. Do not blow, beat or brush.

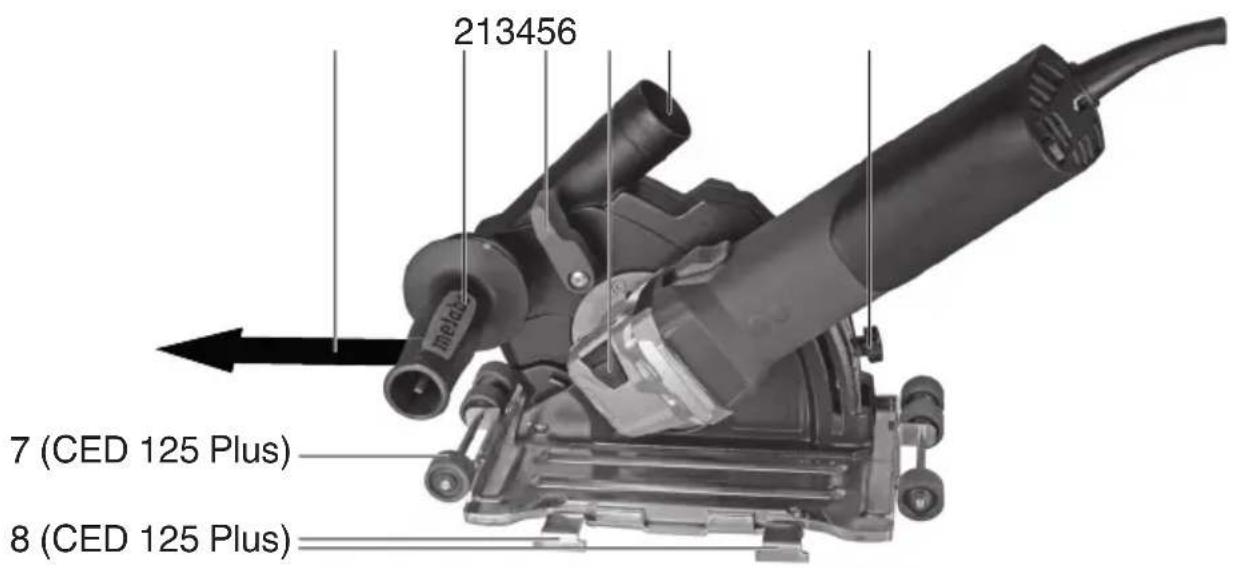

4. Overview
See page 2.
1 Push machine only in direction of arrow
2 Side handle (of the angle grinder) *
3 Unlocking lever
4 Spindle locking button (of the angle grinder) *
5 Extractor connection piece
6 Clamping screw (cutting depth limitation)
7 Castors (only for CED 125 Plus ) *
8 Guide rail adapter for attachment to the Metabo guide rail (only for CED 125 Plus) *
9 Guard (complete)
10 Slider (for dismantling the guard)
1 Base part
2 Guard
13 Lever (of the angle grinder) *
14 Clamping screw
15 2-hole spanner
16 2-hole adjusting nut
17 Diamond cutting disc *
18 Spacer sleeve
19 Support flange (of the angle grinder) *
20 Spindle (of the angle grinder) *
- not in scope of delivery/ depends on equipment
5. Commissioning

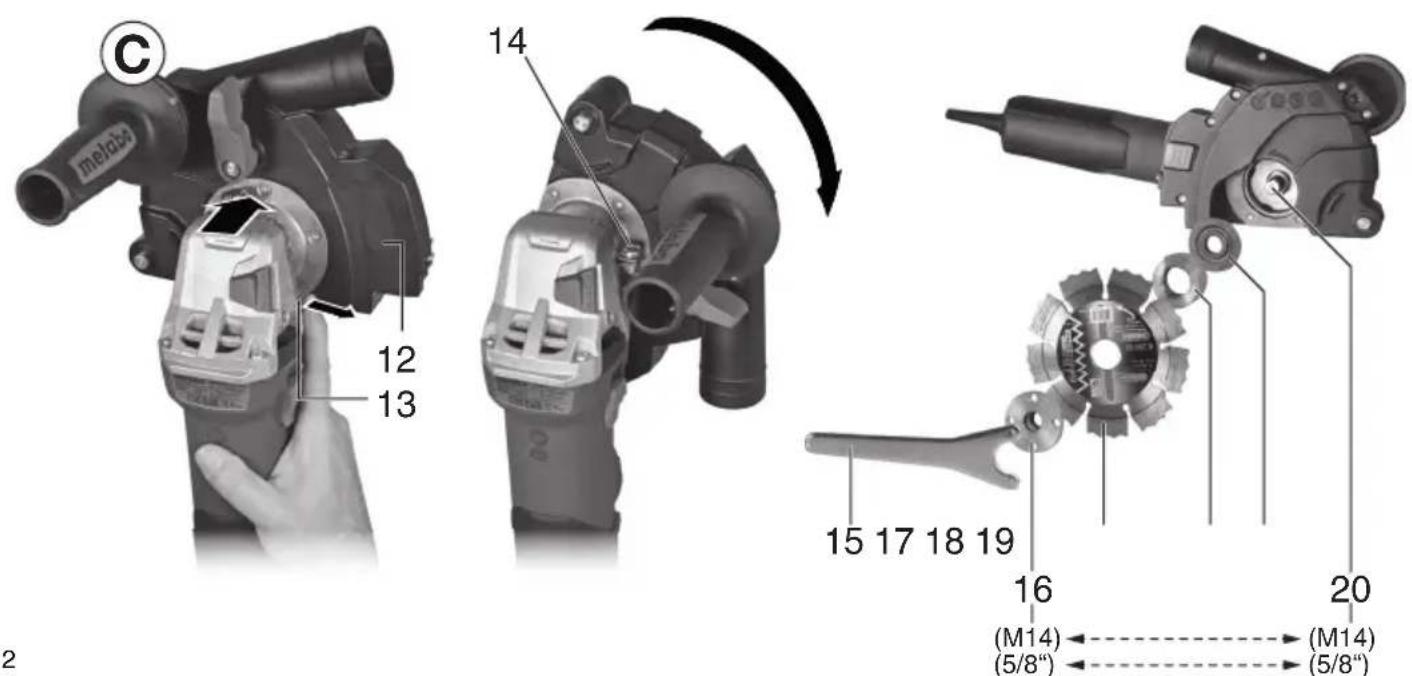

5.1 Attachguard at the angle grinder
See page 2, fig. C.
- Dismantle extraction guard (12) and base part (11) as described in chapter 6.1.
- Push and hold the lever (13). Attach the angle grinder in the shown position to the extraction guard (12).
- Release the lever and turn the extraction guard until the lever (13) engages.
- Make sure that the guard is placed securely: The lever must engage and you should not be able to turn the extraction guard.
- Tighten the clamping screw (14) if required.
- Assemble guard (12) and base part (11) as described in chapter 6.1.
- Attach the side handle (2). See Section 5.2
ENGLISHen
(Disassemble in reverse order.)
5.2 Attaching the additional handle
Always work with the additional handle (2) attached!
- Remove side handle (2) from the angle grinder and screw in firmly on the left or right side of the extraction guard (12).
5.3 Attaching the dust extraction
Always use a suitable dust extraction system: Connect an M-class vacuum cleaner to the actor connection (5) piece.
For optimal dust extraction, use the connecting sleeve 6.30796.
We recommend using an antistatic suction hose 35mm
6. Attaching the accessory
Prior to any conversion work: Pull the mains plug from the socket. The machine must be switched off and the spindle at a standstill.
6.1 Attaching the diamond cutting disc

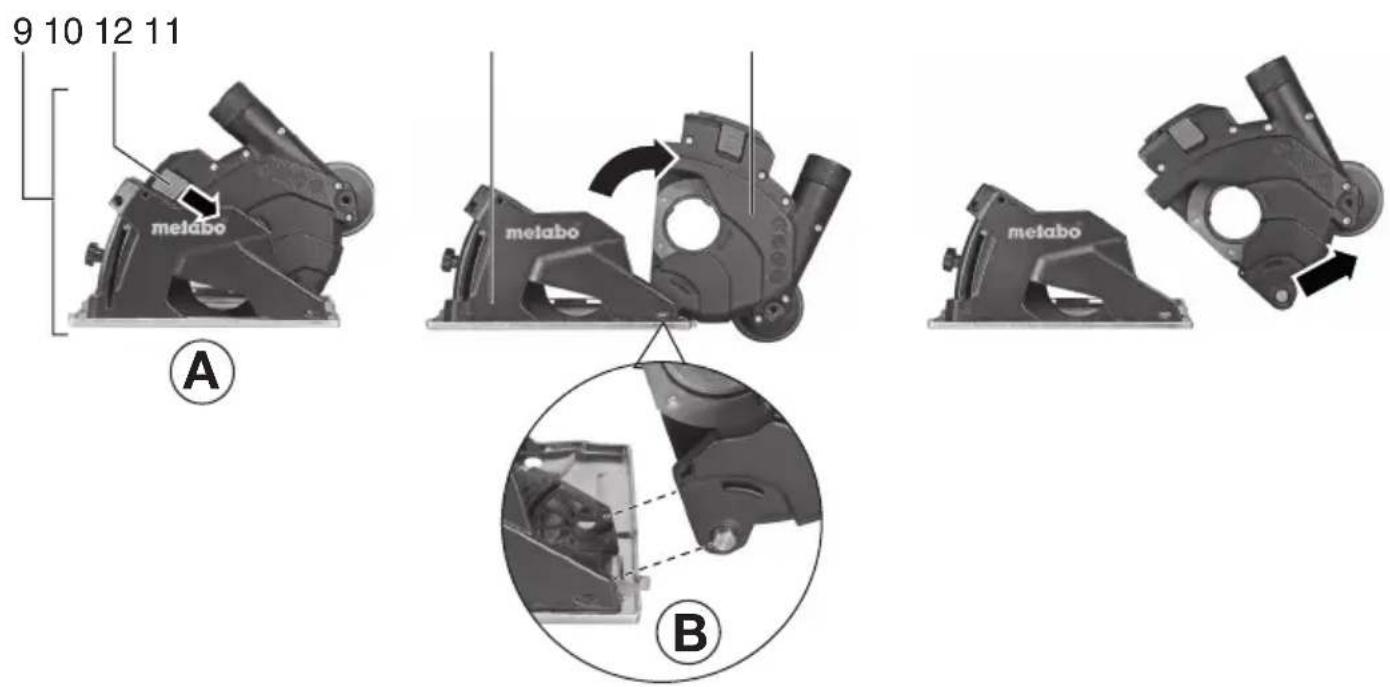

Dismantle the extraction guard (12) and base part (11)
See page 2, fig. A.
- Push slider (10) in the direction of the arrow and tilt extraction guard (12) as shown in the direction of the arrow.
- The extraction guard (12) can be removed from the base part (11) in the shown position.
Attach the diamond cutting disc at the angle grinder.
- Press in the spindle locking button (4) and turn the spindle (20) until the spindle locking button engages noticeably.
- Fit the support flange (19) (scope of delivery of the angle grinder) on the spindle. The flange should not turn on the locked spindle when properly attached.
- Fit the spacer sleeve (18) on the support flange (19).
- Put the diamond cutting disc (17) on the spacer sleeve (18). Make sure the direction of rotation is correct. The direction of rotation is indicated by arrows on the saw blade and extraction guard.
- Ensure that the clamping nut with two holes (16) and the spindle (20) of the angle grinder match: Lettering on the clamping nut with two holes and thread size on the angle grinder's rating plate have to match (M14 / 5/8").
- Screw on two-hole adjustment nut (16).
- Push spindle locking button (4) and keep pressed.
- Firmly tighten the two-hole adjustment nut (16) using a two-hole spanner (15).
Assemble extraction guard (12) and base part (11)
- See page 2, fig. B. Insert the 2 bolts of the
extraction hood (12) as shown in theguides of the base part (11).
12.Swivel the extraction guard (12) and base part (11) into each other until the slider (10) engages and both parts are connected to each other.
13. Check for secure connection.
7. Use
Always hold the tool by the main handle and side handle (2), using both hands.
- Set required cutting depth:
Loosen the clamping screw (6) and set the required cutting depth at the scale, tighten clamping screw (6) again. - Place the guard with the base part (11) on the workpiece.
- Switch on machine and wait until the full speed has been reached.
- Turn the locking lever (3). Slowly guide the machine downwards to the stop: the diamond cutting disc penetrates deeply into the material.
- Pull/push machine only in direction of the arrow (1) (work in reverse rotation). Otherwise there is the danger of the machine kicking back from the cut out of control. Guide the machine evenly at a speed suitable for the material being processed.
- Once the channel is complete, switch off the tool and hold it steady until the diamond cutting disc comes to a stop. Never attempt to remove the cutting disc from the cut while the wheel is in motion otherwise kickback may occur.
- Guide the machine upwards until the stop: the locking lever (3) engages.
- Put machine aside.
Note: For special applications, the guard can also be used without base part (11). The removal and fitting of the base part is described in chapter 6.1.
8. Maintenance
Prior to each use, check if there are parts missing, worn, broken, torn or damaged. Do not use defective or incomplete guard.
9. Accessories
Use only genuine Metabo accessories.
Use only accessories which fulfil the requirements and specifications listed in these operating instructions.
Do not use any segmented diamond cutting discs with segment slits >10mm . If using
segmented diamond cutting discs, only a negative segment cutting angle is permitted.
CED 125 Plus is suitable for work with the Metabo guide rail (6.31213).
The maximum permitted thickness of the diamond cutting disc is 3mm (1 / 8^ )
Before initial use:
- Loosen the screw of the guide rail adapter (8).
-
Place the machine on the guide rail 6.31213.
-
Move the guide rail adapter and adjust the play.
- Tighten the screws of the guide rail adapter again (8).
For a complete range of accessories, see www.metabo.com or the catalogue.
10. Repairs
Always have your guard repaired by qualified personnel only using genuine spare parts.
This will ensure that the safety of the guard is maintained.
Contact your local Metabo representative if you have Metabo guards requiring repairs. For addresses see www.metabo.com.
You can download a list of spare parts from www.metabo.com.
11. Environmental Protection
Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.
To protect the environment, do not dispose of power tools with household waste. Observe national regulations on separated collection
and recycling of disused machines, packaging and accessories.
12. Technical Specifications
The maximum diameter of the diamond cutting disc is 125mm (5").
The maximum permitted thickness of the diamond cutting disc is 6mm (1 / 4^ )
Do not use any segmented diamond cutting discs with segment slits >10mm . If using
segmented diamond cutting discs, only a negative segment cutting angle is permitted.
Notice originale
D-72622 Nürting Made in Germany
99999999 999 44 12345
Type
Reservedelsestiner kan downloads pa www.metabo.com.
D-72622 Nürtingen Made in Germany
99999999 999 44 12345
Type
He npedHa3NaeHOnIyrIIOBbIX IINIOBOBaJIbHbIX MaunH c aBTO6aIahCnPOM (W...A...).
UHnHdJIb yrIIOB0 WJINΦOBAJIbHOJ MaUNHKn He DoJIkeH NMeTb MeIKyO pe3b6y (M14x1,5 MM), CM. pKOBODCTBO NO 3KcNJaTauHi yrIIOB0 WJINΦOBAJIbHOJ MaUNHKn.
3aunTHbIK KOxHdIa6pa3HBHO pe3Kn
npedHa3NaueH dIe Bblpe3aHnI nn Ipope3aHnI
na3OB BMHePaIbHbIX MaTePnIaX, HAnpIMep, B
KeJe3o6eToHE n KaMeHHbIX KlaIaKax, C NIOThbIM
PpInerahnEM K OCHOBe, 6e3 IcNoJIb3OBAHnR
BObl.
HcnoJb3OBAtB NCKIIOUHTeJIbHO aIma3HbI OTe3HO Kpyr. He npIMeHrTb OTpe3HO WnHΦOBaJIbHbI Kpyr IIN dpyrne pa6oYne IHCTpyMeHTbl.
He 6pa6aTbIbTaB MeTaJIInuecknE MaTePnaJIbI.
He onyckaetc o6pa6oTKa MaTePnaIOB, BbIeJIIOx ONaCHbI dJIra 3DOpOBbI NbIb Nn Napbl.
NcnoJb3OBaTb TOJbKO C NOJXODAUM BbITAKHBIM yCTPOINCTBOM: NODCOEINHHTb K BbITAHOMy naTpby6ky (5) nbIeOCO dIy ydaJIeHn IblI IN KlaCCa M. MbI peKomeHdyem NCNOJb3OBaTb aHTNCtATnueckn BCacbIBaUoIuI WlaH 0 35 MM.
IpeHa3HaueH IJI npofoecchoHaJIbHOI npOMblJeHHOrIO nCNoJIb3OBAHnI.
3a yuep6, BO3HnKnn B pe3yIbTaTe NCIOJIb3OBAHnA He No Ha3HaueHnO, OTBETCTBeHHoCTb Hecet TOJIbKO NOLb3OBaTeJIb.
Heo6xOIMO c06IIOdaTb 6oUe npHrTbIe npaBnA
TexHKn 6e3oNaChOcTn, a TaKHe yKa3aHnA,
npuBeDeHHbIE B DaHHOM pyKOBoDCTBe.
Heo6xOIMO CJIeIOBaTb pyKOBOIDCTBY NO 3KcIpyaTaUH NcNoJIb3yEmoYrJIOBOu WInΦOBaJIbHO MaunHHKn.
2. 06uhe yha3aHnno texHnke 6e3oNaChOCTn
ДяВашewco6ctBvHNo6e3OnacHOCTn 3aUHTbI 3JeKTPoHnCTpyMeHTa OT NOBpeJckdHm Co6JIoDaIte yKa3aHnA, OTMeueHHbIe DaHHbIM CmBOJOM!
PNEyPENHEHNE!BueJAXCHINKeHnR nCKa TpaBMPOBaHnI pOHTte DaHHoe pyKOBOCTBO NO 3KcNllyaTaun.
PNEyPENKDEHNE! PnOuTte Bce HNCTpykunnyka3aHnno TExNHKe
6e3onacHocTn. HeBbINOJIHeHne npNBeDeHHbIX HNKe INHCTpyKcH N yKa3aHn NO TexHke 6e3oNaChOCTn MOHET npNBecTn K NopAKeHIO 3JIeKTpyueCKHM TOKOM, BO3HKnHOBeHIO NOHa pa H/INN K N OJyEHNIO TJKeIbIX TpaBM. Heo6xOIMO CJIeOBAbTy pKOBODCTBy nO 3KcIIyatauN IcNoJIb3YeMoY rIIOBOI WlNFOBaJIbHOH MaWInHHN.
CoxpaHnte BCE HNCTpyKcHn yHa3aHnna NO TexHNke 6e3oNaChOCTn dIy6yduero Blaedbua. IpeepaBaIte 3JeKTPoINHCTpymeHT CLeDyUoEMy BlaDeIbuy ToIbKO BMeCTe C 3TNMI DOkUMeHTaMn.
3. Oco6bIe yka3aHnI NO TexHHKe 6e30nacHOCTN
3.1 Yka3aHnno TeXnHe 6e3OnaCHOCTn dIra a6pa3NBHO-OTpe3HbIX MaunH
a) 3aunthbH KOHy 3JeHTponHCTpymeHTa CLeedyet 6e30nacHO HaedeTb N TaHIM O6pa3OM OTperylnpoBaTb, YTO6bl ObecneuHb MAHCmAlbHyIO 6e30nacHOCTb, T.e.TaH, YTO6bl CO CTOpOHb IOlb3OBaTeJI OTHpbIToH OCTaJACb MHHMaJIbHO BO3MOHHa YAcTB WlNΦOBAJbHorO Kpyra. Bam HaxoJaUMcR NO6Ln3OCTN IIOJAM Heo6xOJMo DEpHaTbcr 3a npedJamn PLOCKOCTN BpaauOJeroCg WlNΦOBAJbHorO Kpyra. 3aunthbH KOHy CnyKHT DIA 3aunthbIOI NOB3OBaTeJIOT O6LOMKOB IN ClyuAHIHO KOHTaKTa CO WlNΦOBAJbHbIM Kpyrom.
b) HcnoJb3yIte dJa BaWero 3JIeKtponHCTpyMeHTa TOJbKO aJIMa3HbIE OTpe3HbIe Kpyr. OJHO JINuB HaJeKHOe KpeJIeHHe npHaJdJIeKHOCTn Ha 3JIeKtponHCTpyMeHTe He rapaHTnpye THaJeKHOJ 3KcNlyaTaUIn HHCTpyMeHTa.
c)ДonyuctmaячacToTaBpaueHnpa6oery HNCTpyMeHTa DOJIHHa 6bITb He HnHex MaKcHMaJIbHOu YAcTOTbI BpaueHn, yKa3aHHoHa 3JeKTPoHNCTpyMeHTe.
PnHaJLeKHOCTN,CKOpOCTbBpaUeHnKOTOpbIX npeBbIaetDOnyCTHMoe3HaueHHe,MOrYT cIOMaTbCn OTJeTeTB CTOPOHy.
d) A6pa3NBbIe IHCTpyMeHTbI DOJHHbI NCNoJIb3OBaTbCra CTPORo NO Ha3NaueHIO. HanpIMep: HNKOrda He npOBoNTe WJNΦOBaHne 6OKOBn NOBepXHOCTbIO
OTpe3Horo Kpyra. OTpe3HbIe KpyrnpedHa3HaueHbI DnA CHrTna MaTePnala KpOMKoH Kpyra. BokOBoe CInIOBoe BO3dEiCTBne Ha OTpe3HOKpyr MoKeT pa3pyWHTb erO.
e) Bcerda nCnoJb3yIte nCnpaBnbl 3aHmHOn ΦlaHeu, erO pa3Mep nΦopMa DOJIHHbI COOTBETCTBOBaTb Bbl6paHHOMy a6pa3NBHomY Kpyr. IOnxOJaUne FJIaHcbl npedCTaBIAIO T cO60I ONOpY dIra ab6pa3NHBoro Kpyra n TEM CaMbIM CHINKaIOT ONaCHOCTb erO pa3JlOMa.
f) HapyньдиametриToiluHa pa6oeryo HHCTpymeHTa DOJHHa COOTBeTCTBOBaTb pa3MepHBIM DaHHbIM 3JeKTHPOHHCTpymeHTa. HeB03MOxHO o6ecneuHTb 3KpaHnpOBaHne i KOHTpoJIb pa6OuHX HHCTpymeHTOB C HeBepHO paccHTaHHbIMn napameTpamn.
g) A6pa3nBbIe KpyrN nФlaHcbldoJHHbI TOUHO COOTBeTcTBOBaTb 7nnHdJIIO 3JIeHTpOHnHCTpymeHTa. Pa6Oue INHCTpymeHTbl, KOtOpbIe He NODxOaT ToUHO K IINHDeJIHO, BpaAOTcH HepaBHomePHO, CNlbHO BVbPnpuyOT mOry T npuBecTn K NOtepe KOHTPOJIa.
h) He nCnoJb3yIte NOBpeHdEHHbIe
a6pa3NBbIe Kpyr. Npeed KaKdbIM
HCNoJIb3OBaHNHeM a6pa3NBbIX KpyROB
npOBepaIte Hx HaHaJIuYne cHOLOB N TpeUHN.
Pn NaDeHn 3JeKtpONHCTpymEnTA HN
ShnΦOBAJIbHO rKpyra npOBepbTe Hx Ha
HaJIuYne NOBpeJdeHn HN HCNoJIb3yIte
HeNOBpeJdeHbI a6pa3NBbI b Kpyr. EcIn Bbl
npOBepHn I yCTaHOBnIa6pa3NBbI b Kpyr, TO Bam N HaxOJaUMc N6JIb3OCTN IIOJAM
Heo6XoDmO depKaTbcS 3a NpeDeJamN
PiocKoCTN BpaAioUceroa 6pa3NBHO
kpyra n pOBepNTb Pn6Op B TeueHne MInHyTbI
Ha MaKcMaJIbHO ChOpocTN BpaSeHn.
NoBpeJdeHHbIe a6pa3NBbIe Kpyr O6blHo
lOMaIoTcBO BpeM TaKOH npOBepHn.
i) NcnoJb3yIte CpeCTBa HndHBdyaJIbHOH 3aunTbI. B 3aBnCnMoCTN OT BnDa BblNOJHReMOpa60TbI NCNoJb3yIte MaChy IJr NOJHOH 3aunTbI IINu, CpeCTBa IJr 3aunTbI rA3 IINr 3aunTHbIe OCHN. IJr 3aunTbI OT MeJINx YactNu a6pa3NBHOr OHTpyMeHTa MATEpHaJa HaDeBaIte PecnnpaTOP, 3aunTHbIe HayuHNK, 3aunTHbIe NepaTHN INcneuaJBHbI PhapTuK. 3aunUaTe rA3aOT OTJeTaIOuNX IOCTOPOHHX PpeDMTOB pRr BblOJHeHH pa3InuHbIX pa60r. PecnnpaTOPbI r 3aunTHbIe MACKn DOJXHbI OTfNtPoBBiBaTB PbIb, BO3NHkaUoYIO BO BpEmra pa60TbI. DInTeJIbHOe BO3deIcTBVe rPOMKOrO Wyma MoKeT npNBecTN K notepe clyxa.
j) CneIte 3a Tem, yTo6bI dpyrHe IIOHn HaxoDnIncb Ha 6e30nacHom pacCTOHHN OT BaWero pa6oeryo MecTa. KaHdbiYeNoBek, BXoJusn B pa6ouyu 3Ony, O6a3an HaDeBaTb CpeCDtBa HNDNBdyaIbHON 3aunTbl. OTJeTaHOUe OCHOJI 3aOTOBHn HIn O6lOMKn pa6oHx INcTpymeHTOB MoY THaHECTn TpaBMy DaJke 3a npedeJamn pa6oey 3Onbl.
k)Пи ВьЮЛнЕнп pa6OT B6ЛЗИСКрБТОйnpOBODH ИИ сTeBOrO habeЯCAMORO
HHTpymeHaepnHe HHTpymeTToIbHO 3a
H0JIPOBaHHbIE NOBepxHOCTN. KOnTaKT C
HaxOJUIMNCIoN HaipJKeHNEM IpoBOdAMN
MOKET TaKHe NocTabtB IOd HaipJKeHne
MeTaNueckNe Yactn np6opa N npVBecTn K
NOPaKeHNIO 3JeKTPnuEeCKHM TOKOM.
I) DepeHnTe cTeBOH Ka6eB nOdaJIbwe OT BpaUaOuJeroCpa6oOero HNCTpyMeNTa.B Cnyae NOTepn KOHTpOJIra NaI INHCTpyMeHTOM OH MOKeT Nepepe3aTb IIN 3aTAYb CeTeBOH Ka6eB, pRn 3TOM BaUN pyKN MOrYT nonaCTb B 3Ony BpaUeHnA pa6oOero HNCTpyMeHTa.
m) HnKOrda He KnaIaHTe 3JeHTpOHHCTpyMeHT Do nOJIHO octAHOBKn pa6oeryo HHCTpyMeHTaBpaUoUncraPabOuyu INHCTpyMeHT MOKeT KOCHyTBcRA NOBepxHOCTN, B pe3yIbTaTe Yero BO3MOJHa NOTepRA KOHTPOJIHa d 3JeKTPOINHCTpyMeHTOM.
n) He BHKIOUaTe 3JIeKTPoHnHCTpyMeHT BO BpeM erO nepeHoCN. Bo3MOJHO nonaDaHne BaWei OJeKDbI BO BpaAuaOuNc pa6OuH INHCTpyMeHT, B pe3yJbTaTe Yero Bbl MoKeTe IOnyuHTb TpaBMy.
o) Perylaepno OunaaTe BeHTnlaHNoHbIe ⅢeH3JeKtpOnHCTpyMeHa. BeHTnlaTOp DInrataJIa 3aTgINBaET NbIb B KopNyc, a 6OJIbWoE CKONJIeHne MetaJIuYeCKoN PbIiN COnpJKeHc O nAChOCTbIO BO3DeIeCTBnA 3JeKTPnueCKOrTOHa.
p) He nCnoJb3yIte 3JeKtPOnHCTpyMeHT B6Jn3N IeRKOBCnJIaMeHRAUxxCa MaTePnaIOB. NcKpbI MOrTy Bbl3BaTb BOCnJIaMeHHeNe 3TNX MaTePnaIOB.
q) He nCnoB3yIte pa6OuNe nHCTpyMeHTbl, KOtOpbIe Tpe6bIOT nCNoB3OBaHNr OXlaJdIoUeJ HNDKoCTn. NcNoB3OBaHNe BObl nINn HOnO OXlaJdaIOSeJ HNDKoCTn MoKeT pNBeCTn K yDapY 3JIeKTPnueCKnM TOkOM.
3.2 OToaHa n COOTBeTCTByIOuIe yHa3aHnA No TexHNHe 6e3ONaCHOCTn
OTdau npedctabIeT c6oH HeOHNdaHHyIO peakuBpe3yIbTaTe 3aueIeHn IIN 3aKlnHBaHn BpaAioUeOcA abpa3NBHO Kpyra. 3aueIeHne IIN 6loKnPOBka BeyT K BHe3aHNO OCTaHOBKe BpaAioUeOcR pa6oHr INCTpymeHTa. H3-3a npOTnbONIOJHO HAnpaBLeHn BpaSeHn pa6oHr INCTpymeHTa B MeCTe 6loKnPOBkn IpONCXODNT HEKOHTpOJIpyEmoe DvNKeHne 3JeKTPoINHCTpymeHTa.
EcIn, HApnMep, a6pa3HBHbKpyr cenIeTcnn 3aeJaET B 3aOTOBKe, KpOMKa Kpyra 3actpeBaet, IN B pe3yIbTaTe 3TOrO Kpyr MoJcET 6bOMNTbcra IN N Bbl3BaTb OTdauy. BcJeCTBne 3TOrO a6pa3HBHbIKpyr DvNKeTcHa ONepaTopa IN IN B PnOTIBONIOJXHom HAnPaJIeHN, B 3aBNCIMOCTN OT HApRaBJIeHn BpaUeHnKpyra B MeCte 3aKInHbAHn. Ppi 3Tom a6pa3HBHbIKpyr MoJcET pa3lOMNTbcra.
OTdya ABJETc CJIeCTBHeM HeIpaBnIbHOH NHeymenO 3KcNlyaTauu 3JeKTPOHnCTpyMeHTa. Ee MoXHo n36eKaTb npu Co6IODeHn OnHCaHHbIX HnKe Mep npedocTopoHooCTn.
PYCCHNru
a) HpeHNO DepeHnTe 3JeKTHpOHnCTpyMeHT B pykax n 3aIMnTe TaHyIO No3nIO, YTO6bl Bbl MORnn npOTnBOeJCTBOBaTb CnIe OTdaH. Ppi HAIuHN BCerDa NcNoJIb3yIte DOONHnTeJIbHYIO pYKoTHy, JIA TOrO YTO6bl MAKcImaJIbHO KOHTPOJnPoBAtb CNly OTdaH. HIN peAKTNBHbIM MOMENT pR pa3rOHe. Ppi CO6JIIODeHmMEp IpeOCTOpOJNHOCTn Bbl CMOKeTe ynpabJIaTb OTdAeH IN peAKTNBBIMn CnJIaMn.
b) HNkorda He depKHTe CBOU pyky B6Jn3n BpaaouxxCra paOuynx HHCTpyMeHToB. PpN OTdAue BO3MOKeH KOHTaKT paOoyero INHCTpyMeHtAc BaWe pyKoI.
c) He cToIe B 3OHe nepeH n 3a BpaauoUHMcA OTpe3HbIM Kpyrom. HanpaBLeHne DnKHeHn 3JIeKTPOINHCTpymEHTa npn OTdAye IpOTNBONIOJIOHO DnKHeHn o6pa3HBHO Kpyra B MecTe 3aKJIINHBAHn.
d) Oco6eHNO OCTOpOHHo pa6oTaIe B o6laCTn yrLoB, octpbIX KpOMOK n T. n. He donyckaIte OTcKaHNBaHnN nn 3aKlnHHBaHnN pa6oUHX HHCTpyMeHTOB B 3arOTobke. BpaauOnnCra pa6oHn HnCTpymEHT CKIOHeN K 3aKlnHHBaHnN npn pa6oTe B o6laCTn yrLoB, octpbIX KpOMOK nn npn OTcKaHNBaHnN. 3TO BB13bIbAeT nOtePio KOHTPOJI NNI OTdaCy.
e) He nCnoJb3yIte ueHoe nn 3y64aToe noIOTHO, a TaHKe CeRMHeTnPoBaHHbI anMa3hbl DNCK C npope3mN uHpHNoH 6oJIee 10 MM. IIOO6HbIe pa6OuH eNcTpymeHTbI qACTo Bbl3bIBaOT OTdauY nn NtepKoHTpoJa HaI 3JeKTPoHNCTpyMeHToM.
f)ИЗбeraиTe 3aЖиMa OTpe3HOrO Kpyra ИпсLПшСOM 60ьшОRo DAБЛeHЯnpнЖиMa. He BBINOLHЯnte CnIshHom rIy6OHe pa3pe3bl.перрузka OTpe3HOrO Kpyra npBODHT K erопер�ANРЯжHIO N pepeKOCam ИпЗakLINHBAHIO, YTO yBEJIuHuaBaeT BepoTHOCTbOTdauNII NOLOMKn a6pa3HBHOrO MaTePnAJa.
g) B clyuae 3aHnma OTpe3Horo Kpyra Hn npn nepepbBe B pa6ote OTHIOUHTe HNCTpymENT n NOepKHTe erO B pyNe DO NOLHO OCTaHOBKn BpaauoJceroC Kpyra. HnKOrda He NbITaHTecb N3BLey DBNHcyuNCr OTpe3HO Knpyr N3 npONla, TaK KaK 3TO MOHeT Bbl3BaTb OTdauy. OnpeJeIte n ycTaHnTe npuHy 3aKlnHHaHnY.
h) He BnIouaIte 3JIeKTPoHnCTpymeHT, ecn OH HaxoHITcB O6pa6aTbIBaEMOJ DeTaIIH. Chauala daIte OTpe3HOMy Kpyr Hy6paTb NOHyIO YactOTy BpaUeHHN, ToIbKO NocJe 3TOrO OCTOpOHNo npOJHaIte pe3Hy. B IpOTINBHOM Clyuae Kpyr MoKeT 3aKlnHITb, OTCHOHTb I3 3aROTOBHN INN Bbl3BaTb OTdauY.
i)ДЯ CHINHEHNA PNUCA OTDAU N Bpe3yIbTaTe 3aKInHnBaHHA OTpe3HOrO Kpyra npu 06pa6OTHe pINT H 3aROTOBOK 6oJbWoRo pa3Mepa NOBEdHTe NOd HNX ONOpY. 3aROTOBKN 6oJIbWOrO pa3Mepa MOrT pOroHyTbcN IOd DeIcTBnEM CO6CTBeHHOrO Beca. IOD 3aROTOBHy CLEdyET NODBeCTN ONOpblc DByX CTOpOH, a IMeHHO B6IIN3n pe3a N KpOMKn.
j) BydTe OcOBeHNO OCTOpOHbI npn Bblpe3aHHN HnB CcyueCTByIOuNX CteHax NJI DpyrHX He npocMaTpnaeMbix 3OHax.
Iorpykaembno Otpe3HO Knpy MoKeT Bbl3BaTb OTdaCy npn pa3pe3aHnn Ra30- N BOOnpOBOIOB, 3JIeKTPnueCkNX PPOBOIOB INN HbIX O6beKTOB.
3.3 DoonHHTeJbHbIe yka3aHnno TExHHKe 6e3OnaCHOCTN:
PPEyPENHEHNE!Bcerda Hocnte 3aunthbte OUKN.
HaedeBaIte COOTBETCTByIOuIpecnnpaTOp.
NcnoJb3yIte NCHIOUHTeBHO aIma3HbIOTpe3HO Kpyr. 3anpeuaetcNcNOJb3OBA Tb HeCKoJIbKO aIma3HbIXOTpe3HbIX KpyroB.
He nCnoJIb3yIe ⅢJHΦOBAJIbHbIe KpyrN C a6pa3HBOM Ha CBra3Ke.
IcnoJb3yIte cpeIcTBA 3aunTbI opraHOB cnlyxa.
Pn Heo6xoJIMOCTHN cNoJIb3yIte 3JIaCTuHbIe npOKlaDKN,ecNI OHNI NOCTaBJIOTcBMeCTe C INHCTpyMeHTOM.
Co6IIOaIte yka3aHnHa 13roTOBHTeJI CMeHHbIX INCTpyMeHTOB IIN npHaIaeKHOCTe! BepeRITe CMeHHbIE INCTpyMeHTbl OT ydaPob N KOHTaKTa C HnpamN cMa3KaMn!
XpaHnTb H npIMeHrTa pa6Oue HnCTpyMeHTbl Heo6xOdmo aHHypaTHo N B COOTBETCTBnC PnpEINsCaHnMn PpON3BOIDTeJI.
3arotobky HxKHO npOuHO 3aKeHNTb H 3aΦHKcnpoBaTb OT cDnRHa, HAnpHMeP, C NOMOsbIO 3aKHMhBx npncocO6leHn. KpyHbIe 3arotOBKn DOJIHHbI HmTeB DoCTaTOUHyO ONOpY.
PnmuHenne NOBpeKdEHHbIX, DeOpMnpoBaHHbIX NIN Bn6pnpuyOuX INcTpyMeHToB 3anpeueNo.
Y6eIHTecbBTOM,TOB TOM MeCTe,Te 6ydyT npOn3BOIDtbcra pa6oTbI,He npoxOJr JHHN 3JIeKTo-, BOIO- n Ra3OCHa6xHn (HaNPmep, C NOMOu bIO MeTaIIONcKaTeJI).
He donyuchaiTe noBpeKdEHHra30- nIN BOIOnpoBOIDOB, IINH NJIeKTPponHTaHnI IN HeCyuixxCTeH.
Ipeed npoBeHnem KaKnx-1n60 HacTpoeK, nepeocHaueHnna nn pa6O Tn TexO6cnyKnBaHnIO n3BLeKaInTe CeTeByIO BnKy N3 pO3eTKN.
Heo6xOIMO cIeIOBaTb pyKOBOIDCTBY NO 3KcNpyaTaun HCNoJb3yEmoYrNOBOU 7nΦOBaHbHO MaunHHK.
IobpeKdennha nnnoTpeckKaBwaacra
DonoJIHnTeJbHaR pyKOaTKa NOJeKHT 3aMeHe. He
NCNoJb3yIte 3JeKTPoHHCTpyMeHc DeΦeKTHoH
DonoJIHnTeJbHOH pyKOaTKoH.
Ipeed KaKdbim npimeHeHnem npOBepraTe OTCyTCTBne DeTaJe, HauNue He3HOca, NOLOMKn, TpeuH n NobpeKeJdeHn. He nCnoJIb3yJte
HeNCnPaBbI HJIH HeKOMJIeKTHbI 3aUHTbI KOJx.
CHINHEHNE nbIeBOH Harpy3KN:
PNEyPENPEXHEHNE 一nblb,
06pa3OBaBwaCBye3yIbTaTe ⅦnΦOBK
HaKaHOn 6yMaRoI, paCnINiBaHHa, IInΦOBKn, CBepHeHNa IpyrNx BnIOB pa6OT, CopeKHT XIMnuecknBeUeCTBa, BbI3bBAIOuIne paK, BPOXDeHHbIe DeΦeKTbI INI pyrNc NOBpeJdeHnpePnpOdyKTNBHO CnCTEmbl. PpImepbl TaKnx XIMnueckNX BeUeCTB:
- CBNHHeu B KpaCke C COdepKaHHem CBNHua,
-MHepaJIbHaI NbJIb CO CToPOnTeJIbHOrO KInpNnUa, cEmeHTa N Dpyrnx BeuectB KInpNnHOr KlaAKn, a TaKKe - МьшьгИхрOMИЗхIMNueeCHNобpa6OtaHHoIДpeBecHbl.
CTeNeHb pNcKa 3aBNCHT OT TORO, KaK YacTo Bbl BBINOJIHReTe 3OT BnD pa60T. YTO6bl yMeHbIHTb BO3DeIcTBnE XIMNueCKNX BeIeCTB: pa6oTaIe B NOMEuEHnX C DOCTaTOUHO BEHTUNIaIeN I yTBepJKeHHbIM JINHbIM 3aUHTbIM ChapRKeHNEm, HAnpImep, peCnnpaTOP, pa3pa6oTaHHbI CNEuaJIbHO IJRAΦINbTpauIN MKNPOCKONueCKNX YaCTNu.
3TO TaKHe KacaetcNbIINOTdpyrNX MaTePnaIOB, HAnpIMep, HeKOToPbIX BnOBo DEpeBa (dpeBeChaNbIb dy6a nn 6yHa), MetaIIa, ac6ecTa. dpyrNe N3BeCTHbIe 3a6oJIeBAHHN — 3TO, HApIMep, aJIeprHueCHe peAkuu, 3a6oJIeBAHHN dIbIXaTeNbHbIX nyTei. He donyckaiTe nonaDaHHN PbIIN BHyTp bOpraHn3Ma.
Co6IIOJaTe DnpeKTHBbl, OTHOcAunecr K BaHIM YCLOBnM, H NaUHOHaJIbHbIe IpeDnIscAHN, BKIOUaY o6pa6aTbIbAembI MaTePnAI, NepCOHaJI, BApNaHTbI npImeHeHn I MeCTO pOBeDeHn pa6oT (HaNPmEp, nIoJKeHn OB OxpAne Tpyd a nn 06 yTnIn3aun).
Obecneyte ydaJIeHne o6pa3yUOxNcYacTnU, He donyckaIte o6pa3oBaHnO TIOJKeHnB OKpykaIoUeM npoctpaHCTBe.
IJIa CneuHaBbIX pa6oT HcNoJb3yIte NOxOJaUyIO OChAcTHy. 3TO IO3BOJNT COKpaTHTb KOJIueCTBO YaactN, HeKOHTPOJnpyeMo Bbl6paCbBaemBX B OKpyKaIOU cyEу.
IcnoJb3yIte noDxOJaUe yCTpoiCtBO ydaJIeHnIbIIN.
Дяумehbшени NBileBOH Harpy3kn:
-He HapabIaIe BbIbpaCbIbAemIe I3 HNCTpyMeHTa YactnUcBi NOTpa6oTaHHbI BO3dyX Ha Ce6ra, HaxOJaIuNXcR prdOM JIODeI INH Na CKONJIeHrI PbIIN;
- INCNoJIb3yIte BbITJHKHOe yCTpOcTBO H/HIN BO3dYXOOHcTHeJIb;
- xopoio npoBepTpaBaepebOee MeTo n COePKeHTe eRO B YNCTOTE C NOMOuIO PbIIEcOCA. POnMeTaHne HnnpOyBkA ToJbKO NOHNMaET PbIbB BO3dyX.
-06pa6aTbIBaIte nbIeCOCOM nHn CTnpaIte 3aunTHyIO OdeJy. He npOdyBaIte OdeJy BO3dYxOM, He BbIbNAIte n He CMeTaIte C Hee PbIb.
4. 0630p
CM. cTp. 2.
1 NepemeaTb MaHnHKy TOnbKO nO HaprabHeNIO CTpeJIKN
2 DOnOpHnTeIbHa pyKoTka (yIIOBOI WJINΦOBaIbHOm MaINHHK)
3PbIurpa36IOKInpOBKn
4 KhoNka CToNopa UHHnHdEa (yrgloBou UINFOBaJIbHOm MaUNHKn)
5 BbITJHKHOI naTpy60K
6 3aKIMHOB BnHT (OrpaHnueHne rIy6nHbpe3a)
7 XoIOBbIe POJIHKn (ToJIbKO Ha CED 125 Plus) *
8 AdaTep HnpaBIAOx uH nH yCTaHOBKn HnpaBIAOeIuHbI Metabo (ToIbKO Ha CED 125 Plus) *
9 3aunTHbIKoKHyx (BC6ope)
10 Ⅲn6ep (dIpa36opKn 3aunTHoro KoKxya)
1 OchOBaHne
2BbITaHHoKoHx
3 Pbyar (yrloBOH IINIPOBaIbHOI MaIHKN)
43aKIMHbI BHT
15 DByXHTNTOBbI KJIIOU
16 3aKHMHa raHa cDbymr OTBepCTnMn
17 AIma3HbI OTpE3HO Knpy
18 PacnopHa BTyIHa
9 POndepKnBaIOuN OJlaHeU (yrgloBOI WJINΦOBaJIbHOIMaUNHKN)
20 1IINHdJIb (yIIOBOI IINΦOBAJIbHOI MaIINHKn)
- He BXODHT B KOMPJIeKT NOCTaBKN / B 3aBNCIMOCTN OT KOMPJIeKTAUIN
Pa6oTaIteToIbKOcYcTaHOBLeHHOJ DOnOIHNTeJIbHOpyKoTkoH (2)!
PYCCKHru
- OTKpyTNTb DoONHHTeJIbHyO pyKoIrKy (2) c yrIIOBOI IINΦOBaJIbHOIMaUHHN IN pNkpyTNTb C JIeBOI INI INpaBOI CTOpOHbI BbITJHKHO KOJyxa (12).
5.3 YcTaHOBb BbITaHHoro yCtpoiCTBa
NcnoJb30BaTb TObKo C NOxOJaUM BBITJHHbIM yCTpOietBOM: NOcOeINHHTb K BbITJHHOMy naTp6ky (5) nbIeoc dIy ydaJIeHn Ibln Klaacca M.
Дя ONТИМАЛБНОЕ ПОИЗБODИТЕЛБHOCTN BCACIBAHINICNOJIb3yIte COeINHITeJIbHyIO MyfTy 6.30796.
Mb peKOMeHdyem HcNoJb3ObaTb aHTnCTaTneckn BCacbIBaUoui NlaHR 35 MM.
6. установна paбочero nHCTpyměnta
Ipeep npoBeHnem Bcex pa60T no IpeheHaJaKe BbIHMaJTe BnHy n3 po3eTHN. HCTpyMeHTdoJIKeH HaxOaNTbC8B BbIKIOueHHOM COCTOAHNN, a 1nnHdJIb doJIKeH 6bITb HeNoDBnKHBIM.
6.1 YctaHOBka aJMa3HOrO OTepe3HOro Kpyra
Pa360pHa BbITaHHoro Koxyxa (12) n OCHOBaHn (11)
CM. cTp. 2, pnc. A.
- CdBnHyTb Wn6ep (10) no HnpaBHeHIO CTpeIKN I NOBepHyTb BbITJHKHO KOKyX (12), KaK NOKa3aHO No HnpaBHeHIO CTpeJIKN.
- BbITaHHoKoHx (12) MoKeT 6bItb ChrT C OCHOBAHn (11) B nOKa3aHHOM NOLOKeHN.
YcTaHOBntb aIma3HbI OTpe3HOJ Kpyr Ha yrIOByIO wInΦOBaJIbHyIO MaunHHy.
- HaKaTb KHOnKy cTOnopa WnHHdeJra (4) n npOBepHyTB WnHHdeJb (20) do OuyTMoH fHKcaqnn cTOnOPHOH KHOHKn.
- YcTaHOBnTb OOnOpHbI ΦlaHeU (19) (Osbem NOCTaBKn yrIIOBOI uINΦOBaJIbHOJ MaUNHKN) Ha uINHDeJIb. ΦlaHeU yCTaHOBJIeH npaBnJIbHO, ecn OH He npobopauhBaETcH Na UNHDeJIe.
- YcTaHOBnTb pacnOpHyIO BTyIky (18) Ha onOpHbI ΦlaHeu (19).
- YcTaHOBnTb aIma3HbI OTpe3HOJ Kpyr (17) Ha pacnOpHyo BTyJKy (18).PpOBepnTb npaBnIbHoCTb HAppaBHeHra BpaSeHHa. HanpaBHeHne BpaSeHHa yKa3aHO CTpeJIkaMn Ha aIma3HOM OTpe3HOM Kpyre N BbITKHHOM KOxHyxe.
- Heo6xOIMO y6eIHTbcB TOM, YTO CTJHKHraKa C DByMn OTBepCTnMn (16) n IuHNHeJIb (20) yrIOBOI uINFOBaJIbHO MauHHbI NOxOaT Dpyr K dpyr: HaDnncb Ha CTJHKHO raKe C DByMn OTBepCTnMn N yKa3aHnN PO pe3b6e Ha fnpMeHHo T a6JIuKc Ye rIIOBoI uINFOBaJIbHO MauHHbI DOJIHKHbI COBNaDaTb (M14 Jn6o 5/8").
- OTKpyTb 3aHIMHyTo raHy c DByMa OTBepCTnAm (16).
- HaxaTb KhoNky cToNopa WnHdEa (4) n
ydepKnBaTb eeB 3TOM NOJIOKeHHN.
10.Kpenko 3aTaryt b3aHmHyro raHy c DByMa OTBepCTnMn (16) C NOMOuBIO DByXwTHoTOBOrO KIOUa (15).
C6opKa BbITaHHoro KOxHyxa (12) N OCHOBaHna (11)
11.CM. cTp. 2, pnc. B. BCTaBntb 2 60JTa BBITKHO KOKHyxa (12) B HApPaBnIOUne OCHOBaHn (11), KaN NOKa3aHo Ha pncyHke.
12.CdBnHyb BbITaHNO KoxyX (12) n OCHOBaHne (11) do fHKcaun uN6epa (10) n coeHNHeHn oBeNX Detalei.
13.Поверпь Наджноctь-coeINHeHЯ.
7. 3Kcnpnyatazaia
Bcerda BeDte yrIobyu IJINFOBaIbHyIO MaunHky DByM pyKaMn 3a OCHOHyO N DOONHTeBHyO pyKoTky (2).
- PeryIinpoBka Heo6xOJHMoN rJy6nHbI fpe3epoBaHHa:
Ocna6Hb 3aKHMHOB BVHT (6) n OtperyI npOBaTb NO IkaJIe Ha Heo6XoIMyIO rIy6Hy fpe3epoBaHnA,CHOBa 3aTMyTb 3aKHMHOB BVHT (6). - YcTaHOBnTB 3aunTHbI KOKyxC OCHOBaHHeM (11)Ha 3arOTOBky.
- BhInouHbMaunHHky NnoOJdaTb do
DOCTINKHeH NOLHOY YAcTOTbI BpaueHnA. - HaaTb pbUar pa36IOKIpOBKn (3).MeIeHHO BECTn MaunHky Bn3 Do yNopa: aIma3HbI OTpe3HO Knpyr BXoNTB MaTePnaI.
- Перема Ть Мшн К TOьн NO Нарравли COтрели (1) / Tяну； (paBOTaT b BO BCTpeHOM DBNKeHIN).Иначe Инстум ent MOжET HeOЖиданho BBICKOHt b иЗ npОпILA.CleДуET paBOTaTb c yмepEHON ПОДач, COOTBEТСВИОЧ OBpaBaTbIBAEMOMy MaTePnAly.
- NocIe TOrO, KaK na3 6yJeT rToOB, BbIKIOuHTb H NOdepKaTb MaunHky, NOKa aJMa3HbIOTpe3HOH Kpyr He OCTaHOBHTcH. HnHorda He nbITaHTecb H3BLeuey DBNKUncra JAMa3HbI OTpe3HOH Kpyr H3 npONHa, TaK KaK 3TO MOKeT Bb13BaTb OTdauY.
- Bectn MaunHky BBepx Do ynpa: pbiar pa36loKupOBk (3) fncnyetc.
- OTLOJHKt b MaunHky B CTOPOHy.
Yka3aHHe: dIra OcO6bIX ClyuAeB IpIMHeHnRA TaKHe MOKHO NcNoJIb3OBaTb 3aUHTbI KOKyX 6e3 OCHOBaHn (11). ChrTne n yCTaHOBKa OCHOBaHn ONiCaHO B rJaBe 6.1.
8. TexHnuechoe o6cIyJHHBaHne
Ipepe KaHdbim npImeHHeM npOBepaTe OTCyTCTBne Detalei, HAnuue n3HoCa, NOpOMKn, Tpeunn N NobpeKdenn. He NCNoJIb3yUte HeNCnpabHbIn IIN HeKOMNJIeKTHbIn 3aUnTHbIn KOxYX.
9. Пинадлжноctn
IcnoJb3yInTe TOLbKO opnHnHaJIbHbIe npHaJdEHHocTn Metabo.
NcnoJb3yIte TOLbKO Te npHaJaJIeKHOCTN, KOToPbIe OTBeUaOT Tpe6ObaHnM nnapaMeTpam, NepeuNCJIeHHbIM B DaHHOM pyKOBOdCTBe NO 3KcNlyaTaun.
He nCnoJb3OBAtB cerMeHTnpOBaHHbIe aIma3HbIe OTpe3HbIe Kpyrnc npope3rMn
10 MM. Пи ИСПОЛБЗOBAHИ NCEМЕHTИРОВАHHbIX aIIMa3HbIX OTpE3HbIX KpyROB DOIpyCKaETCЯ NCHIQUHTeJIbHO OTPuCaTeJIbHbI N CErmENTHbI yROL pe3aHnA.

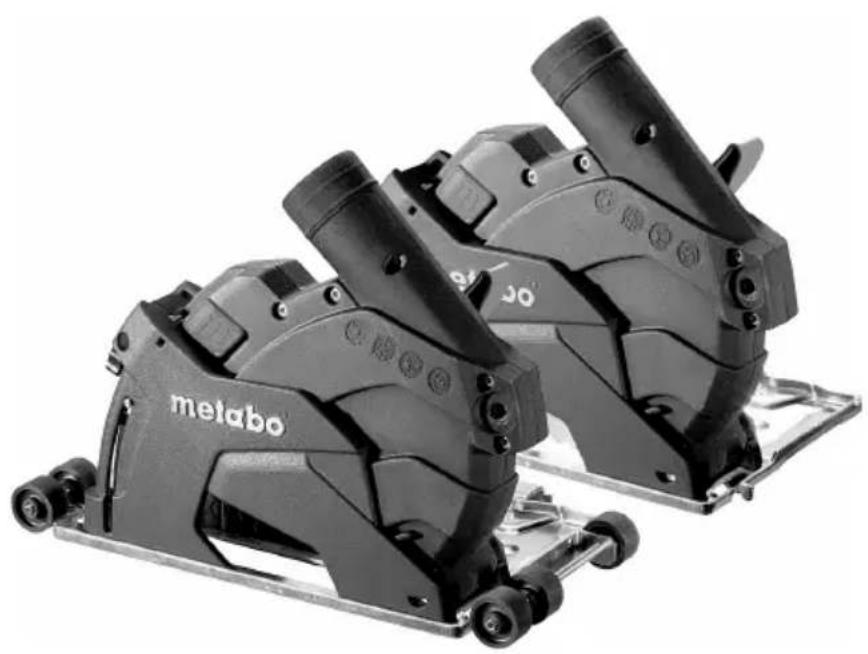

MoDéJB CED 125 Plus noDxOaNT dIЯ pa6oTbIC HappaBIAJIOUeI shHOn Metabo, № 3aKa3a 6.31213.
MaKcImaJIbHO DoNyCTMma ToIuHa aIIMa3HOrO OTpe3HOrO Kpyra COCTaJIaReT 3MM(1/8").
IpeepnepBbIM HcNoJb3OBAHHeM:
- Ocna6ntb BnHtbl aanTepa HappaBnOuix uHH (8).
- YCTaHOBNTb MaUNHky Ha HappaIIOUOyIO UHNHy 6.31213.
CdbnHytb aadantep HappaBnaHoux uHH nTaKIM 6pb3OM OTpepylnpoBaTb 3a3Op. - CHOBA 3aTaNHyTb BnHTbl aJaANTepa HAnpaBIAUxuX uH (8).
Pporpammy npnHaJneKHOCTe CM. Ha caIte www.metabo.com nII N KaTalore.
10. PemoHT
IopyuTe peMOHT 3aUHTHO KOKHyxa TOLbKO KBAHnΦuNPOBaHHOMy nepcoHaJy.
CnHcN 3aNaChbIX YacTei MoXHo cKaHaTb C caYTa www.metabo.com.
11. 3auntata okpyhaioe cpebl
Co6IIOdaIte HaunOHaJIbHbIe npaBnla yTIN3aUN IN nepepa60TKN OTCnyKHBWero IHCTpyMeHTA, yNaKOBOK IN pInHaJdEeHXoCTeN.
HOMHnTe 66 oxpaHe OKpyKaHOSe CpeDbI: He BbI6paCbIbAaTe 3JIeKTPoIHcTpyMeHTbI BMeCTe C 6bITOBbIM Mycopom. CJeNyTe HaunOHaJIbHbIM npabINam NO pa3dJIbHOJ yTNII3aUHN I nepepa6OTKe OTClyHXNBUX 3JIeKTPoIHcTpyMeHTOB, yNaKOBHn I npHaIaeXHOCTeN.
12. TexHnueckne xapaKTepeNCTHHN
MaKcHMaJIbHO DOnycTmbld nAmeTp aIma3HOrO OTpe3HOrO Kpyra coCTabJrEeT 125 MM (5").
MaKcImaJIbHo DOnyCTHMaT ToIuHa aJMa3HOrO OTe3HOrO Kpyra CoCTaBnAeT 6 MM (1/4").
He nCnoB3OBAtB cerMeHTnpOBaHHbI aIma3HbI oTpe3HbI kpyrnc npope3rMn
10 MM. Пи ИСПОЛБЗОВАнИ NCEМЕHTИРОВАНБИ X aIIMa3HbIX OTpE3HbIX KpyROB DOnyCKaETCЯ NCHIQUHTeJIbHO OTPuCaTeJIbHbI N CErmENTHbI yROLpe3aHnA.
