Introduction

Product description

The product is a pedestrian-controlled rotary lawn mower. The grass is collected in a grass catcher. Remove the grass catcher to get rear discharge of the grass. Attach a mulch kit (accessory) to cut the grass into fertilizer.

Product overview LC 141iV / LC 141i

Intended use

Use the product to cut grass. Do not use the product for other tasks.

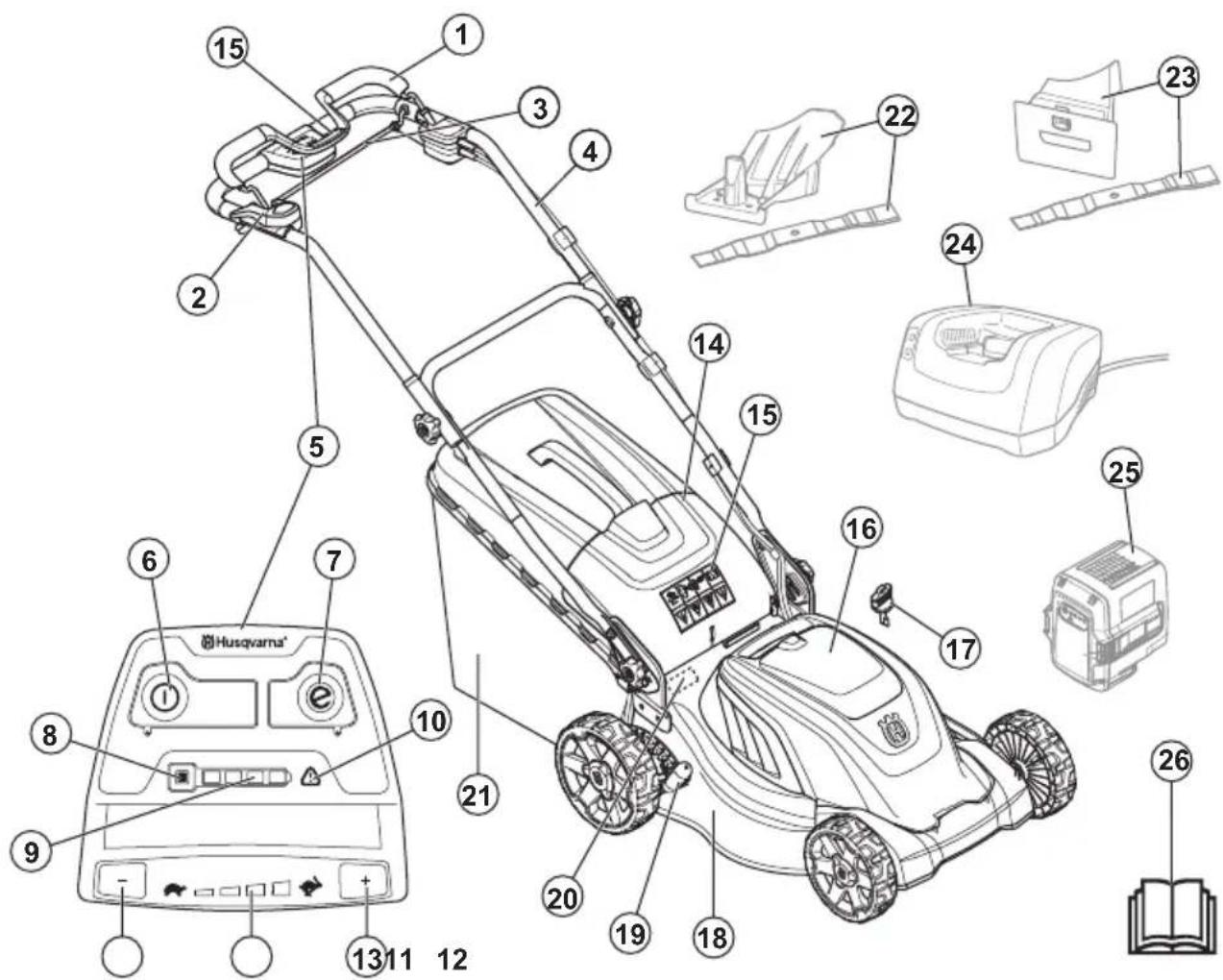

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

1. Motor brake handle
2. Start inhibitor
3. Drive bail (LC 141iV)

4. Handle / handlebar

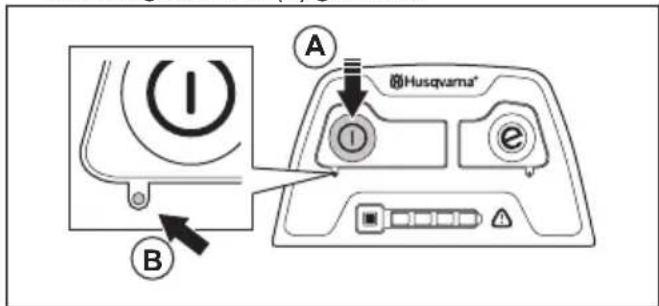

5. Control panel

6. ON/OFF button
7. SavE button

8. Battery indicator button

9. Battery charge indicator

10. Warning indicator (ERROR LED)

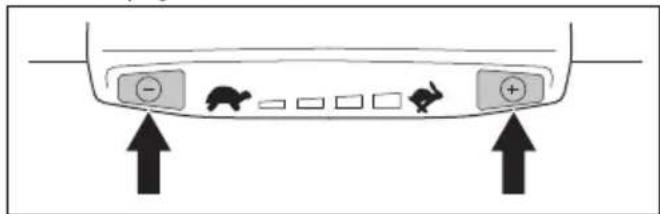

11. Decrease speed button (LC 141iV)
12. Speed level indicator (LC 141iV)
13. Increase speed button (LC 141iV)
14. Rear cover
15. Symbols
16. Battery lid

17. Safety key

18. Cutting cover

19. Cutting height lever
20. Rating plate

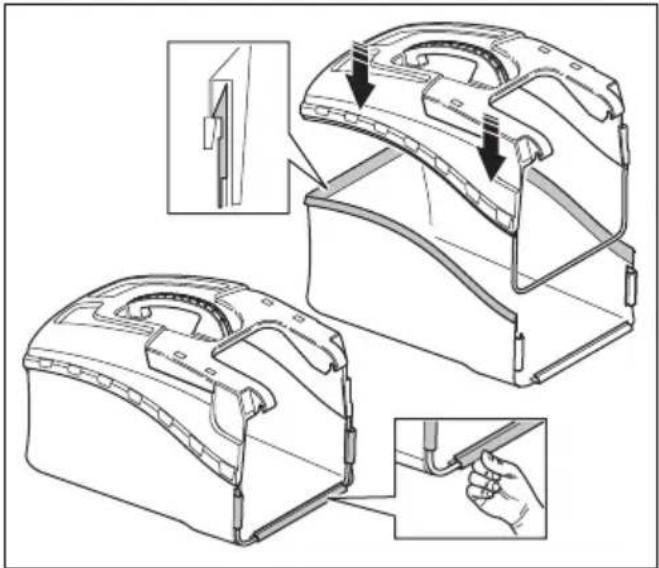

21. Grass catcher
22. Mulch kit (Accessory for LC 141iV)
23. Mulch kit (Accessory for LC 141i)

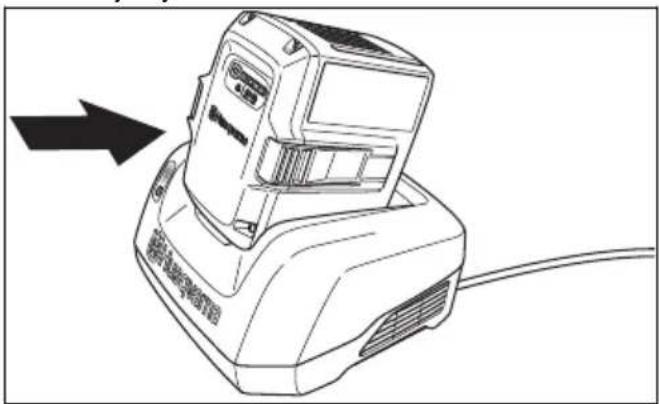

24. Battery charger (Accessory)
25. Battery (Accessory)
26. Operator's manual

Product overview LC 141C

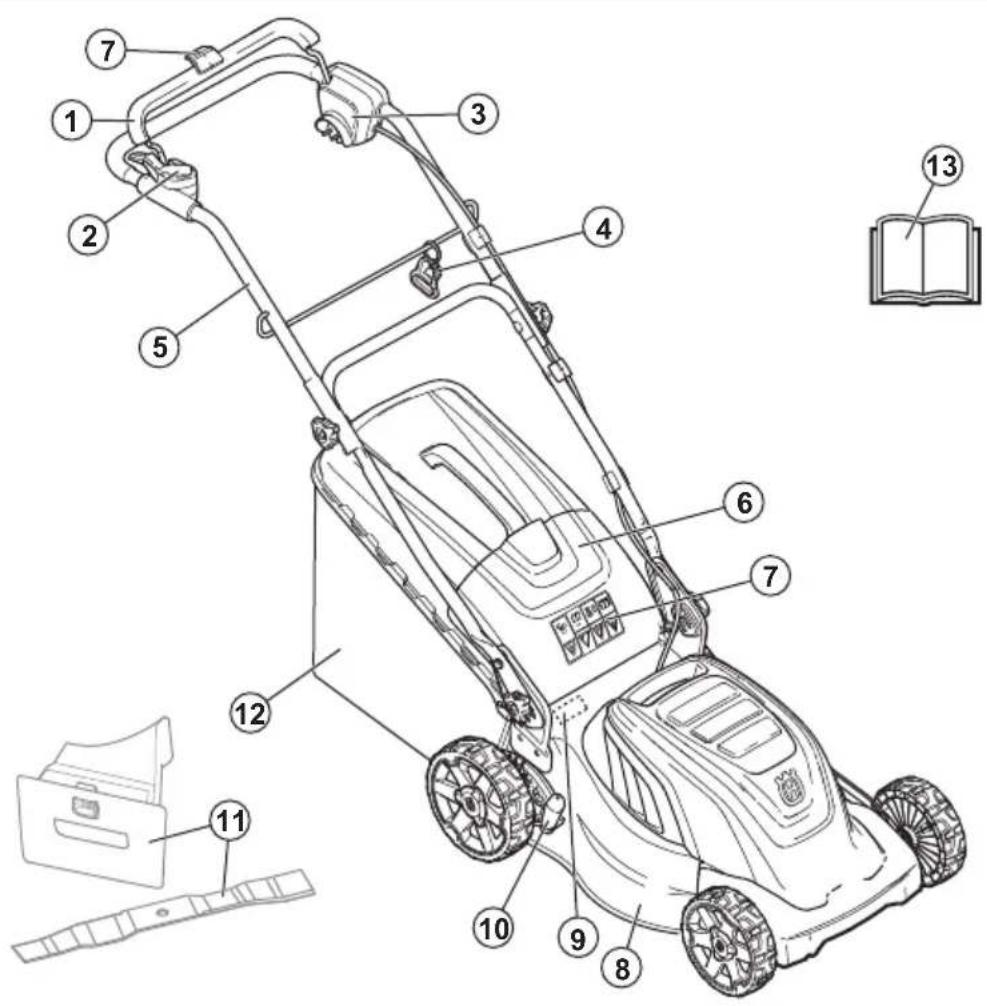

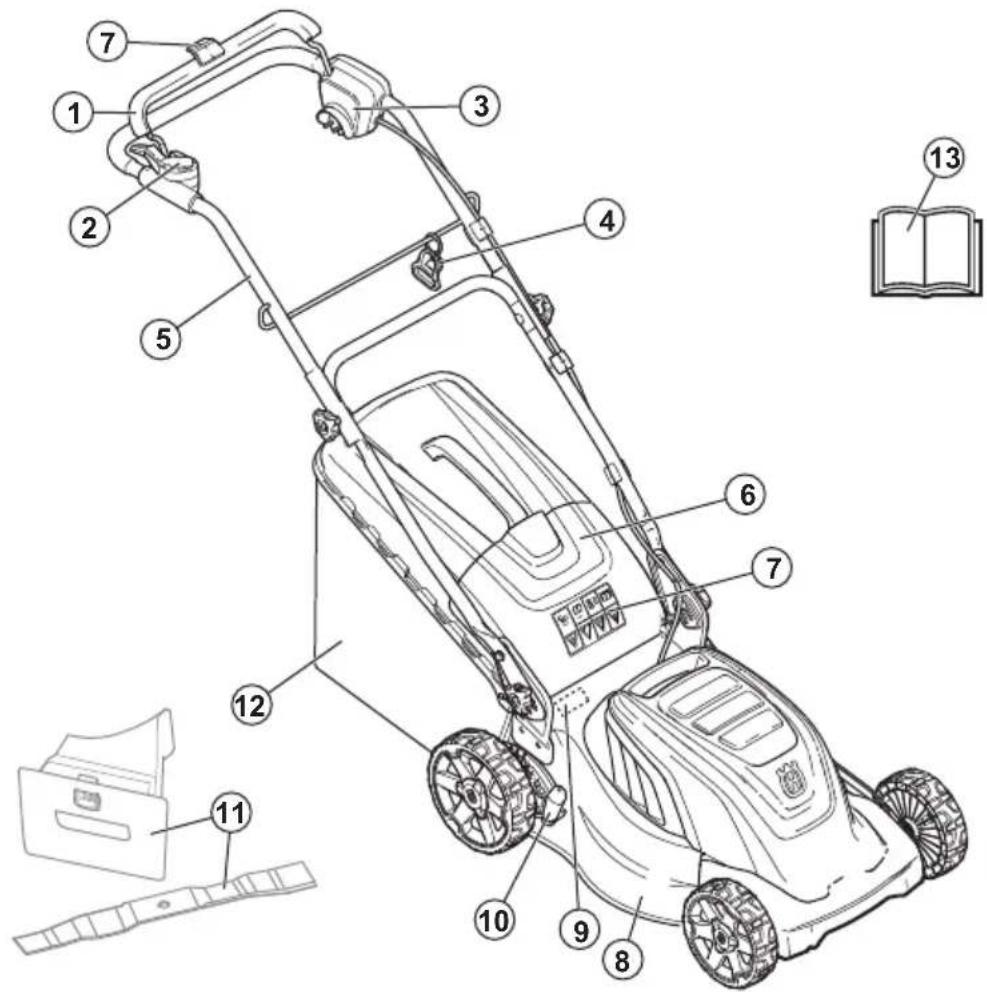

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

1. Motor brake handle
2. Start inhibitor
3. Power cord socket
4. Power cord holder
5. Handle / handlebar
6. Rear cover
7. Symbols
8. Cutting cover
9. Rating plate
10. Cutting height lever

11. Mulch plug (Accessory)

12. Grass catcher

13. Operator's manual

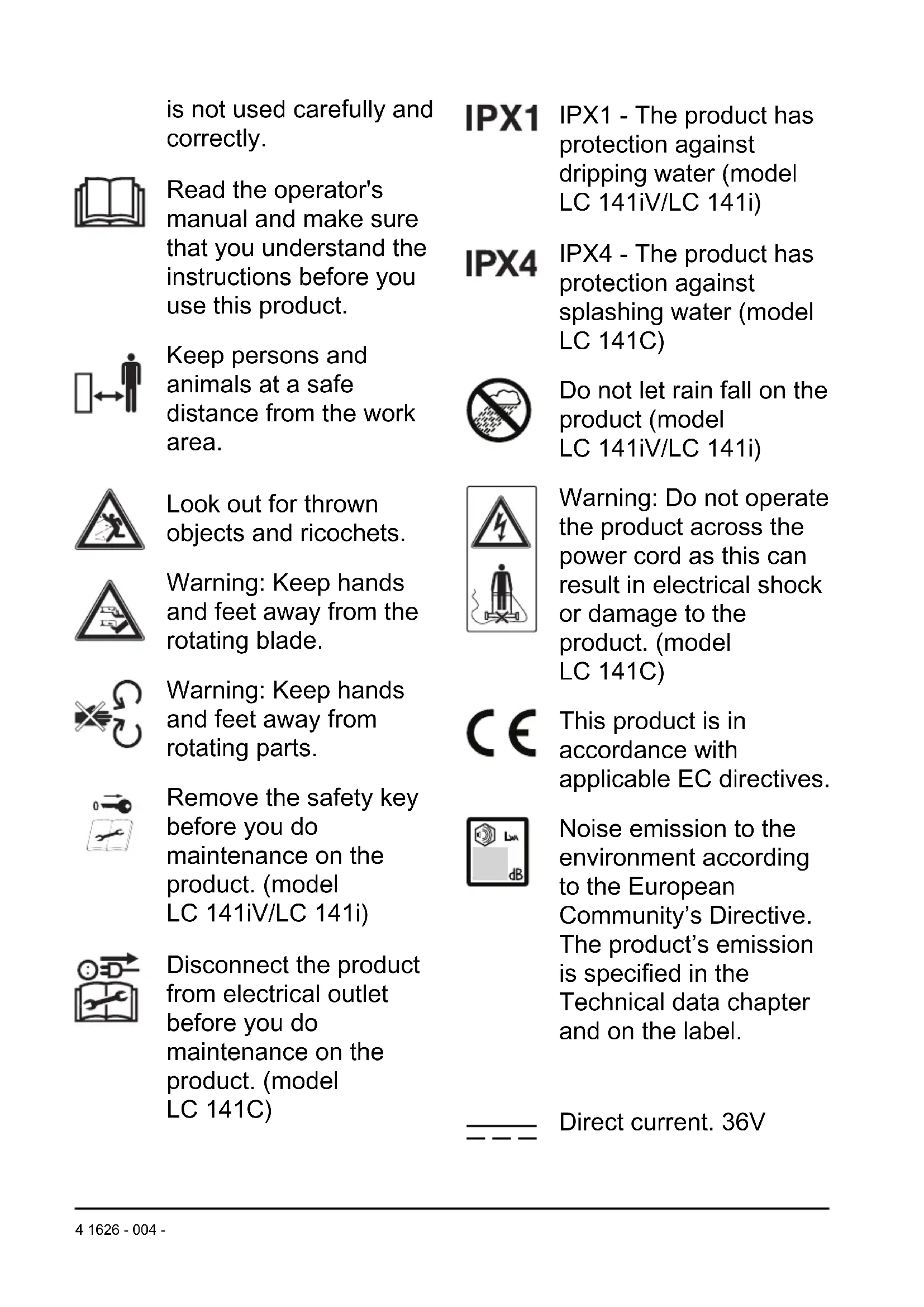

Symbols on the product

Injury or death can occur to the operator or bystanders if the product

is not used carefully and correctly.

Read the operator's manual and make sure that you understand the instructions before you use this product.

Keep persons and animals at a safe distance from the work area.

Look out for thrown objects and ricochets.

Warning: Keep hands and feet away from the rotating blade.

Warning: Keep hands and feet away from rotating parts.

Remove the safety key before you do maintenance on the product. (model LC 141iV/LC 141i)

Disconnect the product from electrical outlet before you do maintenance on the product. (model LC 141C)

IPX1

IPX1 - The product has protection against dripping water (model LC 141iV/LC 141i)

IPX4

IPX4 - The product has protection against splashing water (model LC 141C)

Do not let rain fall on the product (model LC 141iV/LC 141i)

Warning: Do not operate the product across the power cord as this can result in electrical shock or damage to the product. (model LC 141C)

CE

This product is in accordance with applicable EC directives.

Noise emission to the environment according to the European Community's Directive. The product's emission is specified in the Technical data chapter and on the label.

Direct current. 36V

Double insulation.

Diagram showing two waste sorting methods with recycling symbol and crossed-out bins, indicating no disposal or recycling.

Recycle this product at a recycling location for electrical and electronic equipment. (Applies to Europe only)

Start procedure for model LC 141iV/ LC 141i: push ON/OFF button, loosen start inhibitor, push motor brake handle down.

Start procedure for model LC 141C: loosen start inhibitor, push motor brake handle down.

Release motor brake handle to stop.

Slow

Fast

Scannable code

Note: Other symbols/decals on the product refer to certification requirements for some markets.

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is dangerous if used incorrectly or if you are not careful. Injury or death can occur if you do not obey the safety instructions.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.
• Always be careful and use your common sense. If you are not sure how to operate the product in a special situation, stop and speak to your Husqvarna dealer before you continue.

• Keep in mind that the operator will be held responsible for accidents that involve other persons or their property.

• Keep the product clean. Make sure that you can clearly read signs and decals.

• Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator
• Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must be there at all times.
• Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine. This has a negative effect on your vision, alertness, coordination and judgment.
• Do not use the product if it is defective.
• Do not change this product or use it if it is possible that it has been changed by others.

Work area safety

WARNING: Read the warning instructions that follow before you use the product.

- Remove objects such as branches, twigs and stones

from the work area before you use the product.

• Objects that hit against the cutting equipment can eject and cause damage to persons and objects. Keep bystanders and animals at a safe distance from the product.
• Never use the product in bad weather such as fog, rain, strong winds, intense cold and risk of lightning. To use the product in bad weather or in moist or wet locations is tiring. Bad weather can cause dangerous conditions, such as slippery surfaces.
• Look out for persons, objects and situations that can prevent safe operation of the product.
• Look out for obstacles, such as roots, stones, twigs, pits and ditches. Long grass can hide obstacles.
• To cut grass on slopes can be dangerous. Do not mow excessively steep slopes. Do not use the product on ground that slopes more than 15°
• Exercise extreme caution when changing direction on slopes. Operate the product across the face of slopes. Do not move up and down.

- Be careful when you go near hidden corners and objects that prevent a clear view.

Work safety

WARNING: Read the warning instructions that follow before you use the product.

• Use this product to cut grass lawns only. It is not permitted to use it for other tasks.
• Use personal protective equipment. Refer to Personal protective equipment on page 8.
• Make sure that you know how to stop the motor quickly in an emergency.
• Do not operate the product in rain or wet conditions. The risk of electrical shock increases if water enters the product.
• Do not operate the product unless the blade and all covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.
• Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the motor shaft. A bent axle causes heavy vibration

and a very high risk that the blade becomes loose.

• If the blade hits an object or if vibrations occur, stop the product immediately. Stop the motor, turn the safety key to 0 and remove the battery (model LC 141iV and LC 141i) or disconnect the power cord (model LC 141C). Examine the product for damages. Repair damages or let an authorised service agent do the repair.
• Never attach the motor brake handle permanently to the handle when the motor is started.
• Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.
  • Always stay behind the product when you operate it.
• Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands and feet away from the rotating blades.
• Do not tilt the product when the motor is started.
• Be careful when you pull the product rearward.
• Never lift up the product when the motor is started. If you

must lift the product, first stop the motor, turn the safety key to 0 and remove the battery (model LC 141iV and LC 141i) or disconnect the power cord (model LC 141C).

• Do not walk rearward when you operate the product.
• Stop the motor when you move across areas without grass, for example paths made of gravel, stone and asphalt.
• Do not run with the product when the motor is started. Always walk when you operate the product.
• Stop the motor before you change the cutting height. Never make adjustments with the motor started.
• Never let the product stay out of view with the motor started. Stop the motor and make sure that the cutting equipment does not rotate.

Safety instructions for operation

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

- Personal protective equipment cannot fully prevent injury but

it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.

• Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.
  • Use heavy, long pants.
• Use protective gloves when necessary, for example when you attach, examine or clean the cutting equipment.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent.

To do a check of the cutting cover

The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.
- Examine the cutting cover to make sure that there are no damages such as cracks.

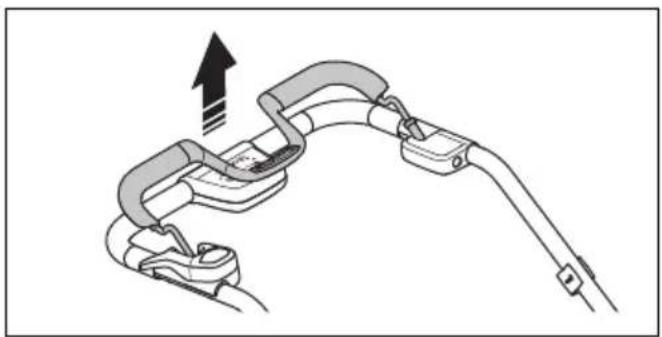

Motor brake handle

The motor brake handle stops the motor. When the motor brake handle is released, the motor stops.

To do a check of the motor brake, start the motor and then release the motor brake handle. If the motor does not stop in 3 seconds, let an approved Husqvarna service agent adjust the motor brake.

Diagram of a cable clamp or connector assembly with an upward arrow indicating motion (no text or symbols present)

Safety key (models LC 141iV and LC 141i)

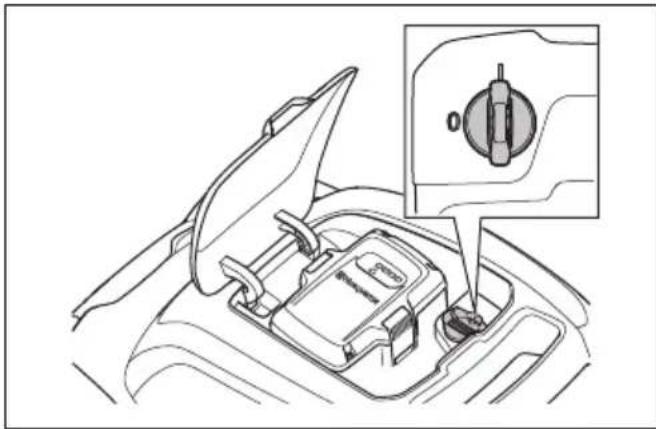

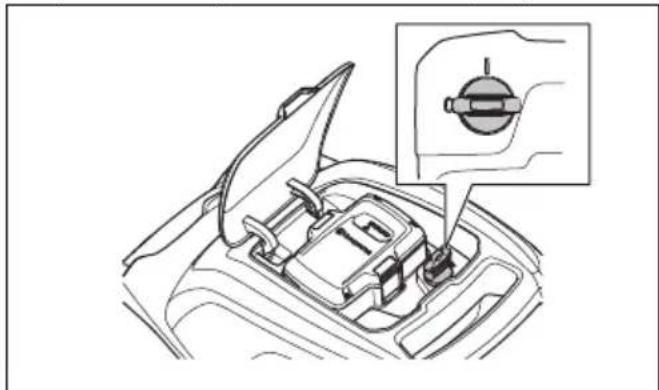

The safety key is below the battery lid. The safety key connects the battery that supplies the motor with power.

• Start and stop the motor to do a check of the safety key.
• If the safety key functions correctly, the motor only starts when the key is in position 1.

Technical line drawing of a car engine compartment with a close-up inset showing a dial (no text or symbols)

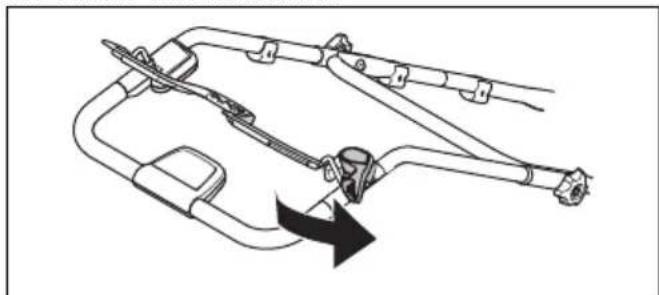

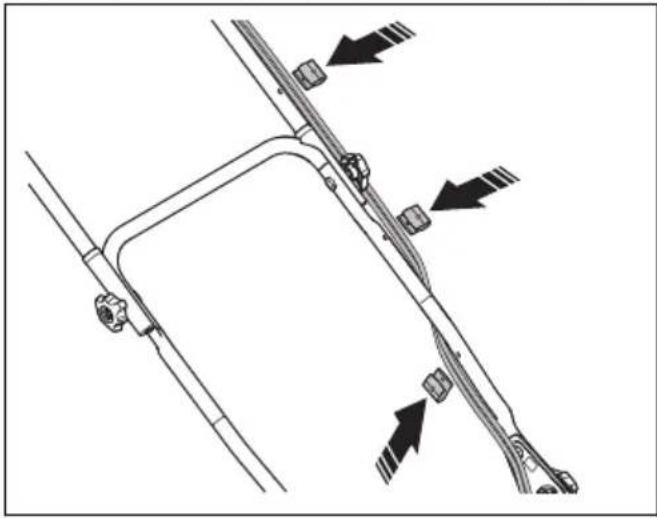

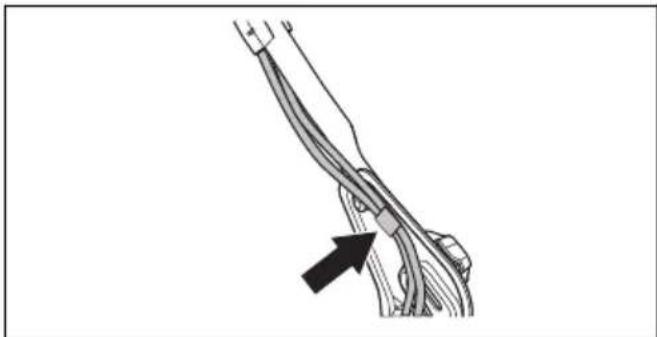

To examine the start inhibitor

Do a check of the start inhibitor to make sure that it prevents operation of the motor.

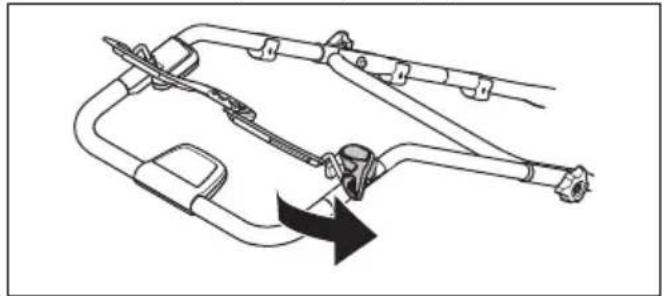

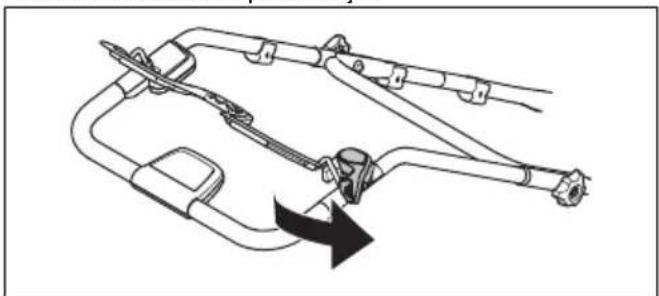

1. Push the motor brake handle in the direction of the handlebar. The start inhibitor stops the movement.
2. Push the start inhibitor out.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Release the start inhibitor and make sure that it goes back to its initial position.

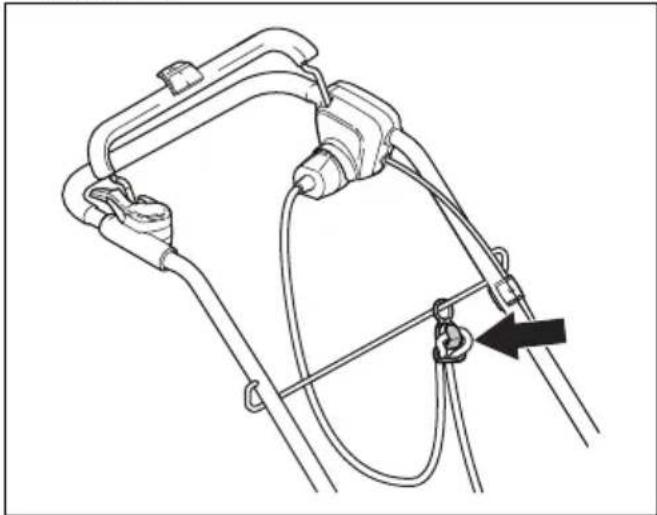

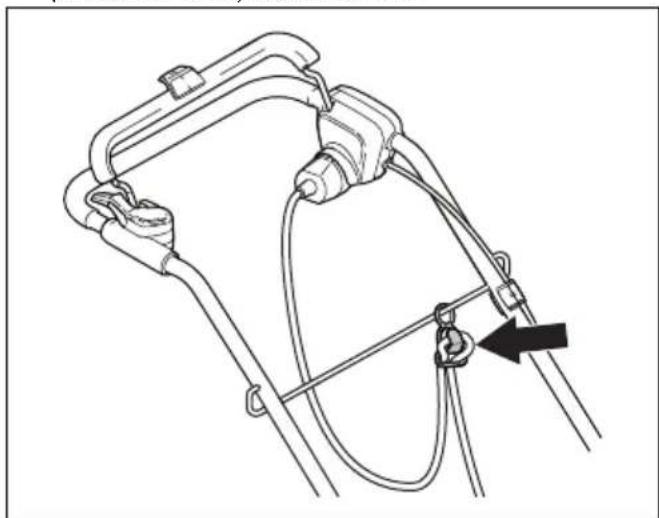

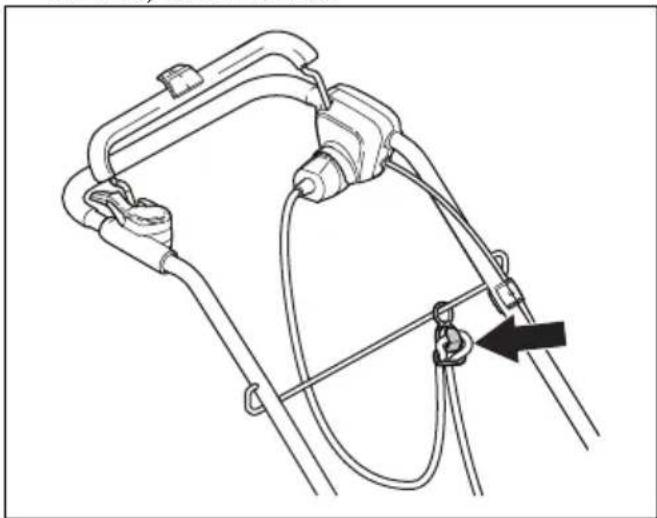

To use the power cord holder (model LC 141C)

The power cord holder decreases the strain on the power socket and the power cord. The power cord holder also decreases the risk that you fall.

1. Bend the power cord to a small loop.
2. Put the loop in to the hole in the power cord holder.

3. Put the loop around the hook.

4. Pull the power cord to tighten the loop around the hook.

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Battery safety

WARNING: Read the warning instructions that follow before you use the product.

- Use Husqvarna rechargeable batteries as a power supply for related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.

- Do not use non-rechargeable batteries.

- Risk of electrical shock. Do not connect the battery terminals to keys, coins, screws or other metal. This can cause a short circuit of the battery.

- Do not put objects into the air slots of the battery.

- Keep the battery away from sunlight, heat or open flame. The battery can explode and

cause burns and/or chemical burns.

• Keep the battery away from rain and wet conditions.
• Keep the battery away from microwaves and high pressure.
• Do not try to disassemble or break the battery.
• If the battery leaks, do not let the liquid touch your body or eyes. If you have touched the liquid, clean the area with a large quantity of water and get medical aid.
• Use the battery in temperatures between -10^ C and 40^ C .
• Do not clean the battery or the battery charger with water.
  See To clean the battery and the battery charger on page 21.
• Do not use a defective or damaged battery.
• Keep batteries in storage away from metal objects such as nails, coins, jewellery.

Battery charger safety

WARNING: Read the warning instructions that follow before you use the product.

• Use the QC battery chargers to charge Husqvarna replacement batteries only.
• Risk of electrical shock or short circuit. Do not put objects into the air slots of the charger. Do not try to disassemble the battery charger. Do not connect the charger terminals to metal objects. Use an approved mains socket.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.
• Regularly make sure that the power cord of the battery charger is not damaged and that there are no cracks in it.
• Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the plug. Do not pull the power cord.
• Keep the power cord and extension cables away from

water, oil and sharp edges. Make sure that the cable is not pinched in doors, fences or equivalent. It can cause the charger to become energized.

• Do not clean the battery charger with water.
• The battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the battery charger in a safe way and understand the hazards involved. Children shall not play with the battery charger. Cleaning and user maintenance shall not be made by children without supervision.
• Do not charge non-rechargeable batteries in the battery charger.
• Do not use the battery charger near flammable materials or materials that can cause corrosion. Do not cover the battery charger. Pull out the plug to the battery charger if there is smoke or fire.
• Do not use a defective or damaged battery charger.

- Only charge the battery indoors in a room with good airflow and away from sunlight. Do not charge the battery in wet conditions.

Power cord safety

For model LC 141C.

• The use of a Residual Current Device (R.C.D.) with a tripping current of not more than 30mA is recommended. Even with an R.D.C. installed, 100% safety cannot be guaranteed and safe work procedures must be obeyed at all times. Do a check of your R.C.D. each time you use it.
• Immediately disconnect from the mains if the power cord is cut or the insulation is damaged.
• Do not touch a cut or damaged power cord until the electrical supply is disconnected.
• Do not repair a cut or damaged power cord. Replace it with a new one.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• For model LC 141iV, LC 141i: To prevent accidental start during maintenance, turn the safety key to 0 and remove the

battery. Wait at minimum 5 seconds before you start the maintenance.

• For model LC 141C: To prevent accidental start during maintenance, disconnect the power cord.
• Do the maintenance work correctly to increase the lifetime of the product and decrease the risk of accidents. Let an approved service agent do the professional repairs. Speak to your nearest service agent for more information.
• Only do the maintenance work written in this operator's manual. More extensive work must be done by an approved service agent.
• Put on heavy duty gloves when you use the cutting equipment. The blade is very sharp and cuts can easily occur.
• Keep the cutting edges sharp and clean for the best and safest performance.
• Let your service agent regularly examine the product and make necessary adjustments and repairs.
• Replace damaged, worn or broken parts.
• Obey the instructions for how to change accessories. Only

use accessories from the manufacturer.

- When not in operation, keep the product, battery and battery charger apart in a dry,

indoor and locked area. Make sure that children and persons that are not approved cannot get access to the product, battery or battery charger.

Assembly

Introduction

WARNING: Before you assemble the product, read the safety chapter.

WARNING: For model LC 141iV, LC 141i: To prevent accidental start during assembly, turn the safety key to 0, remove the battery and wait at minimum 5 seconds.

For model LC 141C: To prevent accidental start during assembly, disconnect the power cord.

To assemble the handle

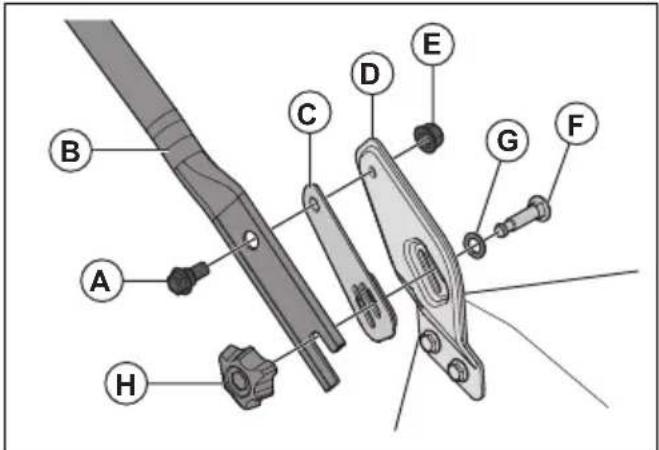

1. Push the screw (A) through the handle (B), the plastic washer (C) and the handle support bracket (D).

Technical diagram of a mechanical assembly with labeled parts A through H

1. Tighten the nut (E) fully.

2. Push the screw (F) through the washer (G) and the handle support bracket.

3. Tighten the knob (H) fully.

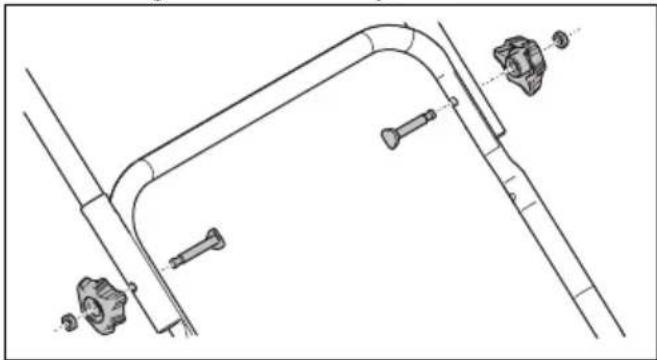

4. Align the holes in the handlebar with the holes in the lower handle and attach the screws, washers and knobs. Tighten the knobs fully.

Technical line drawing of a pipe elbow joint with bolts and mounting bracket (no text or symbols)

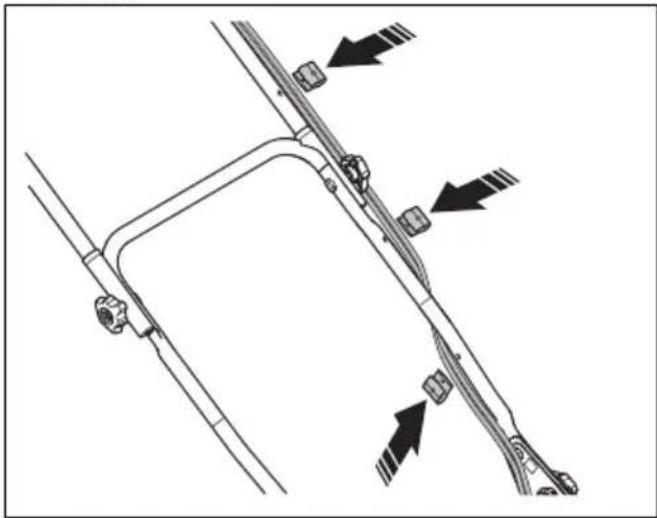

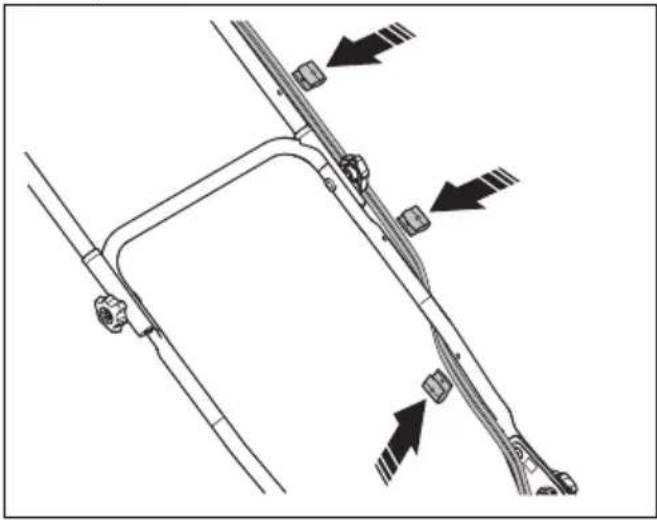

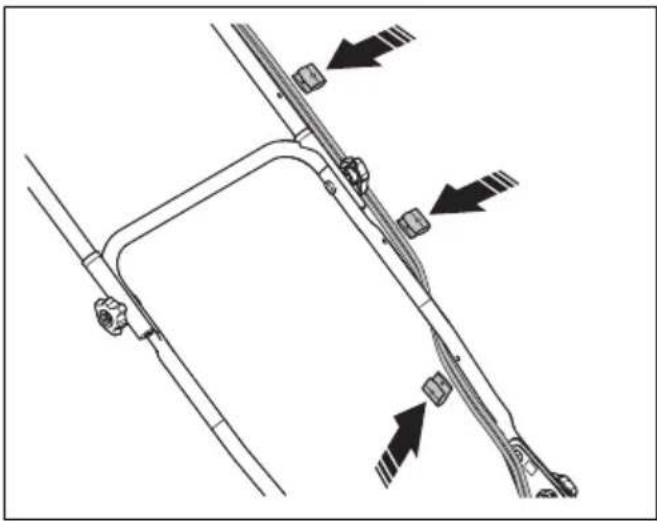

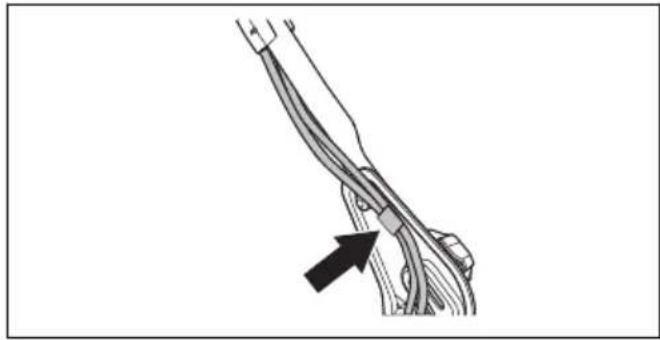

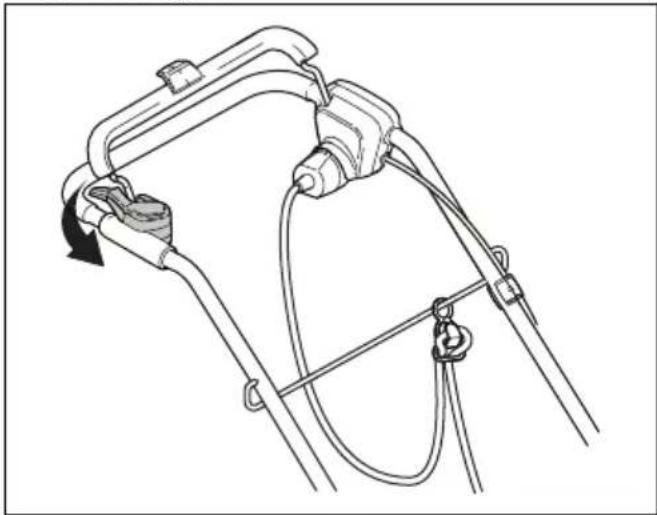

1. Attach the cables to the handle with the cable holders.

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Note: Make sure that the tension in the cables is not too high. A too high tension can cause damage to the cable if the handle is folded to transport position.

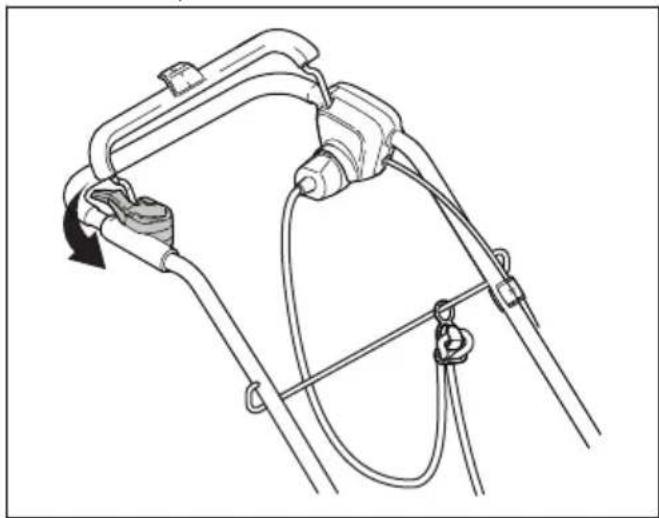

1. Put the cables around the hook at the bottom of the handle.

Diagram of a mechanical or electrical component with a black arrow pointing to a section (no text or symbols present)

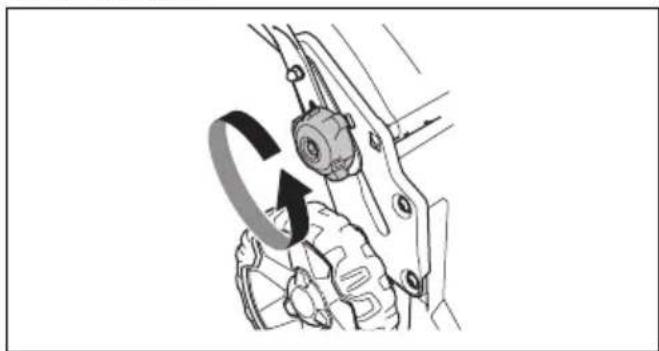

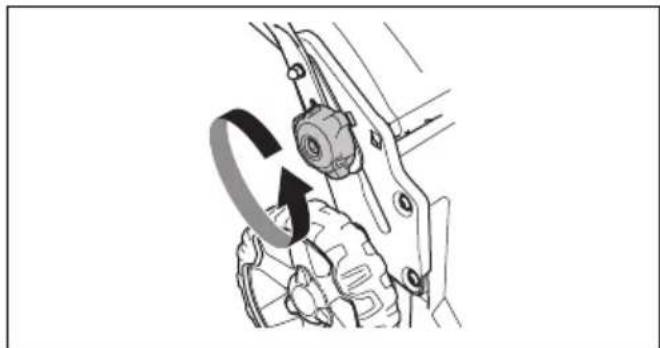

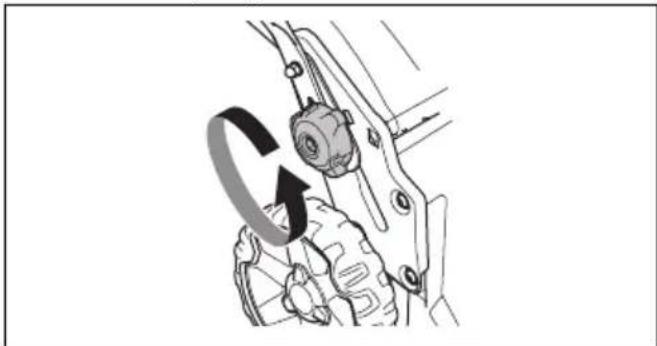

To adjust the handle height

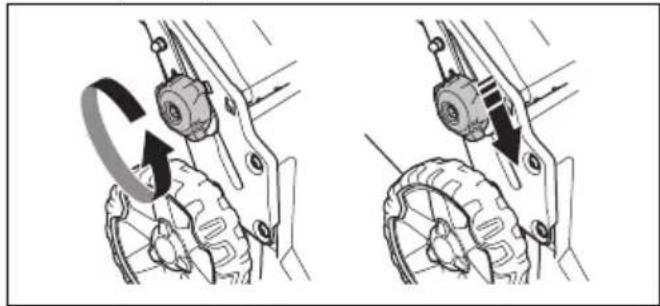

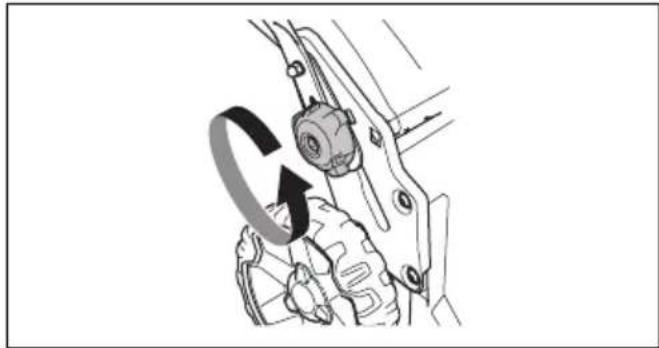

1. Loosen the lower knobs.

Mechanical assembly diagram showing a hand holding a gear with a rotating component (no text or symbols)

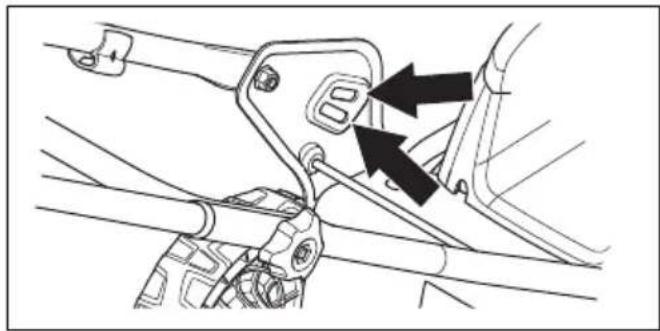

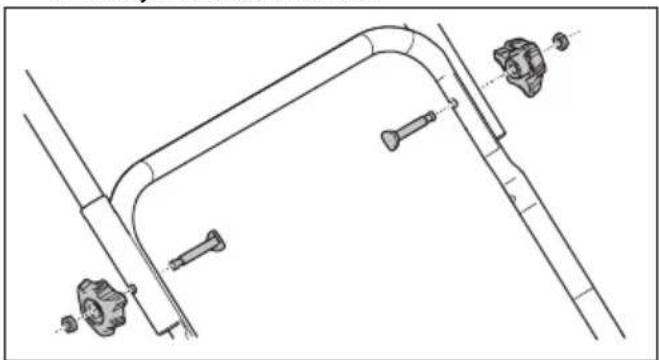

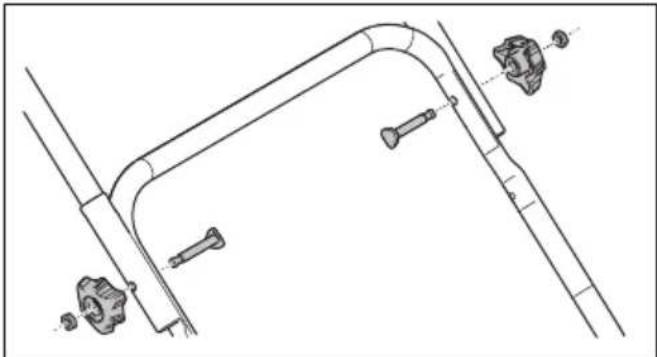

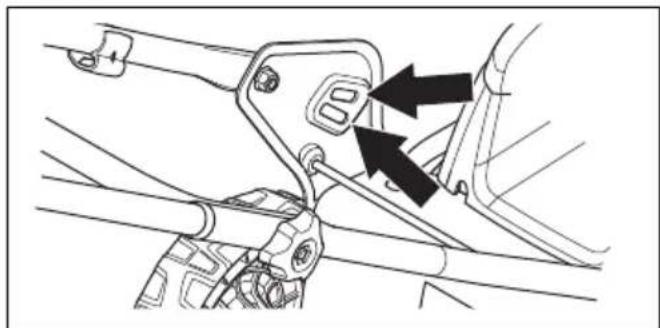

1. Remove the knob, washer, and screw on the left and the right side.

2. The handle can be set to 2 different heights. Put the screw in one of the 2 holes on the left and the right side.

Technical line drawing of a mechanical assembly with two black arrows pointing to specific components (no text or symbols present)

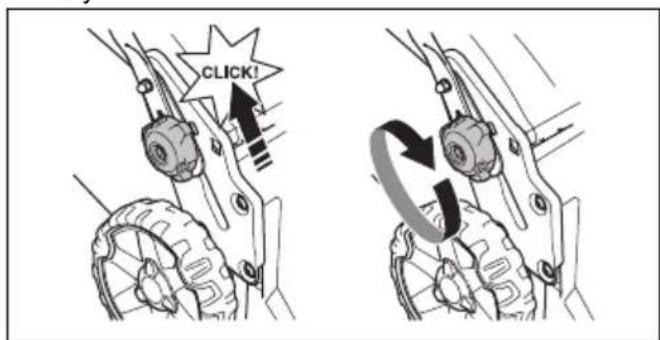

1. Attach the screws, washers and knobs.

2. Move the knobs up in the direction of the handle until they stop and you hear a click. Tighten the knobs fully.

CLICK!

To assemble the grass catcher

1. Push the 2 transportation covers out and down.

Technical diagram showing mechanical assembly with arrows indicating movement or force (no text or symbols)

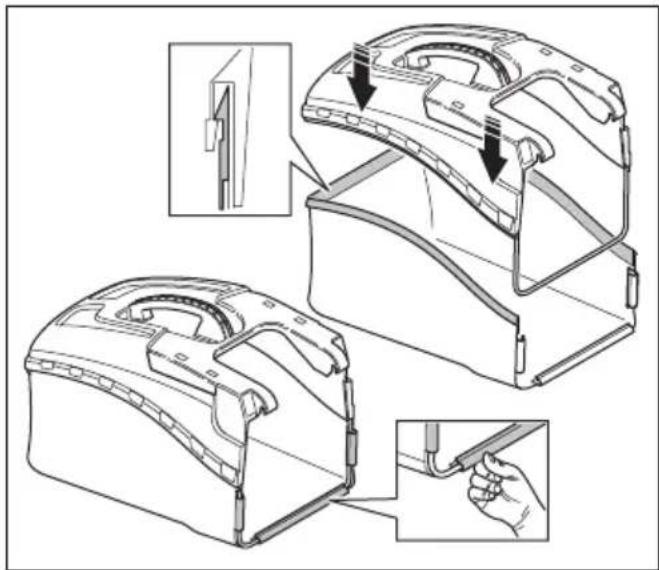

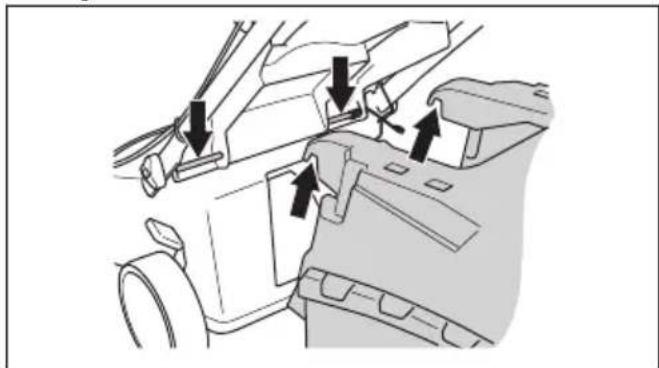

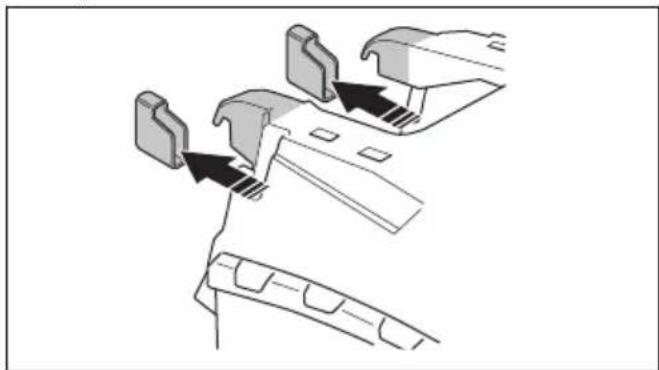

1. Put the top part of the grass catcher onto the lower part of the grass catcher. Attach the grass catcher frame with the clips.

Technical illustration of a mechanical device with three views: top view, front view, and side view (no text or symbols present)

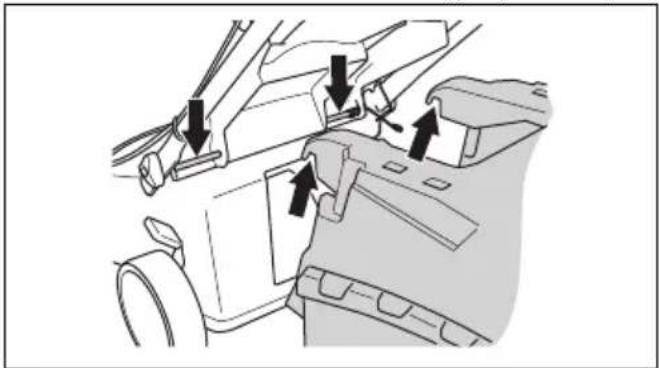

1. Lift the rear cover.

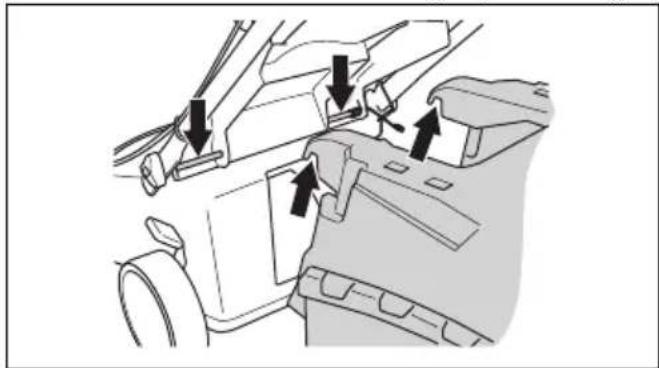

2. Attach the hooks on the grass catcher to the top edge of the chassis.

Mechanical assembly diagram showing directional arrows and components (no text or symbols)

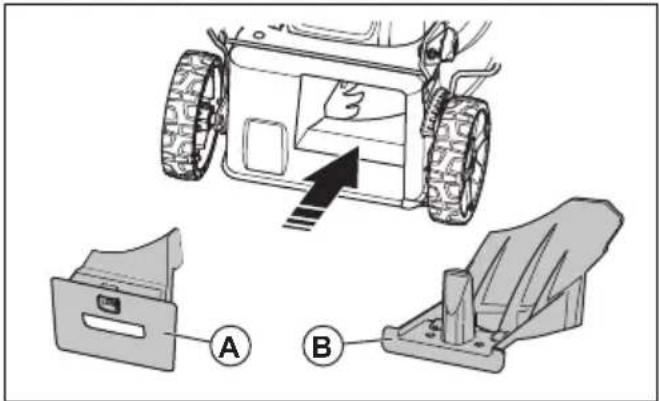

To assemble the mulching-kit

1. Lift up the rear cover and remove the grass catcher.

2. Put the mulch plug into the grass discharge channel. The mulch plug of type A is for LC 141i and LC 141C. Type B is for LC 141iV.

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

1. Close the rear cover.

2. Replace the blade with the Combi blade, see To remove and replace the blade on page 21.

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

Husqvarna Connect

Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product:

• Extended product information.
• Information about, and help with, product parts and servicing.

To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your mobile device.
2. Register in the Husqvarna Connect app.
3. Do the instruction steps in the Husqvarna Connect app to connect and register the product.

To set the product in operation position

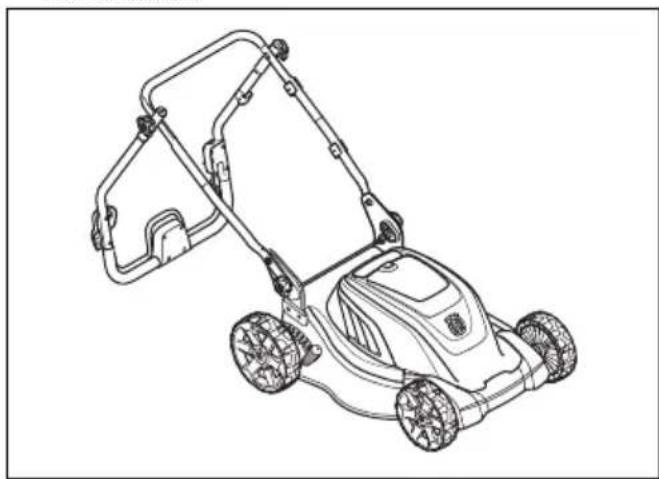

If the handle is put in transport and storage position (see To set the product in transport position on page 23), do the procedure that follows to put the handle in operation position.

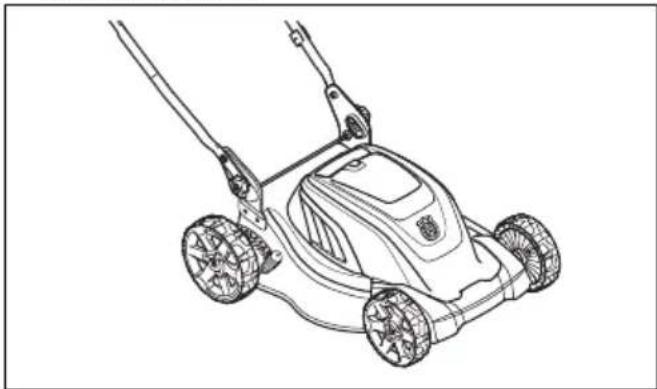

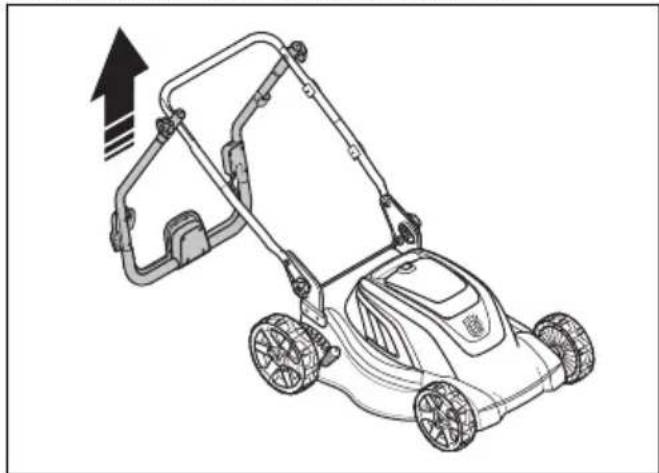

1. Lift the handle until the lower handle locks into operation position.

Line drawing of a lawn mower with three wheels and handle (no text or symbols)

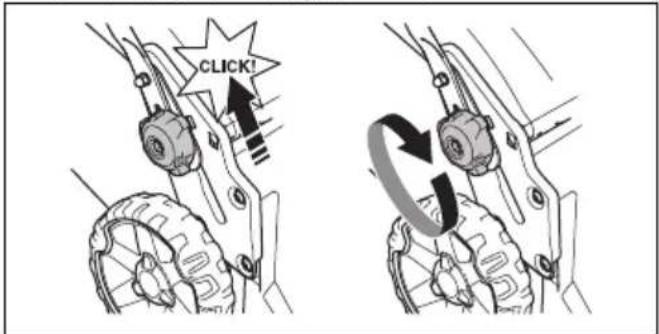

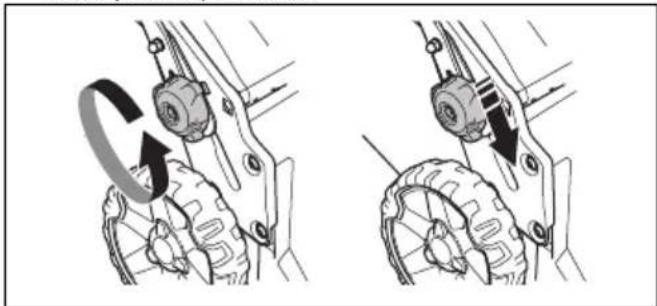

1. Move the lower knobs up in the direction of the handle until they stop and you hear a click.

CLICK!

1. Tighten the knobs.

2. Lift the upper handle and tighten the knobs.

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

To set the cutting height

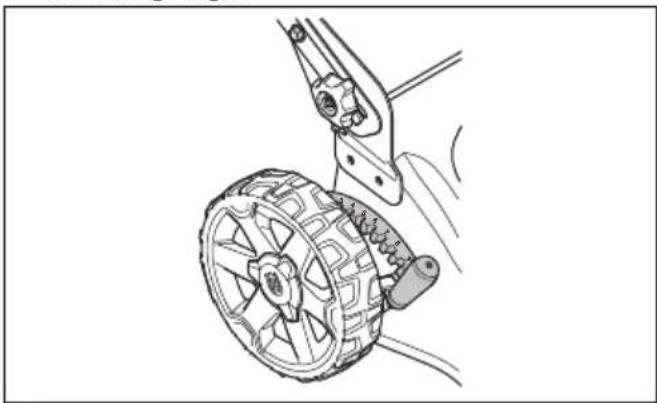

1. Move the cutting height lever rearward to increase the cutting height.
2. Move the cutting height lever forward to decrease the cutting height.

Technical line drawing of a mechanical device with a wheel and attached bracket (no text or symbols)

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level.

Battery

WARNING: Before you use the battery, you must read and understand the safety chapter. You must also read and understand the operator's manual for the battery and the battery charger.

Battery status

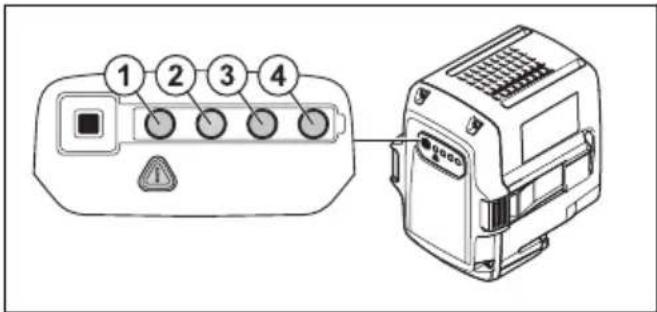

The display shows the remaining battery capacity and if there are problems with the battery. The battery capacity is shown for 5 seconds after the product is switched off or the battery indicator button is pressed. The warning

symbol on the battery is on when an error has occurred. See Battery on page 22.

Diagram showing a device with four labeled buttons and a warning symbol pointing to the right panel.

LED lights Battery status
All LEDs are lit Fully charged (75-100%)
LED 1, LED 2, LED 3 are lit	The battery is 50%-75% charged
LED 1, LED 2 are lit The battery is 25%-50% charged
LED 1 is lit The battery is 0%-25% charged.
LED 1 flashes The battery is empty.Charge the battery.

To charge the battery

Charge the battery before the first use. The battery is only 30% charged when supplied to the customer.

Note: The battery charger must be connected to the voltage and frequency specified on the rating plate.

The battery does not charge if the battery temperature is above 50^ C. The battery charger decreases the temperature of the battery before it starts to charge.

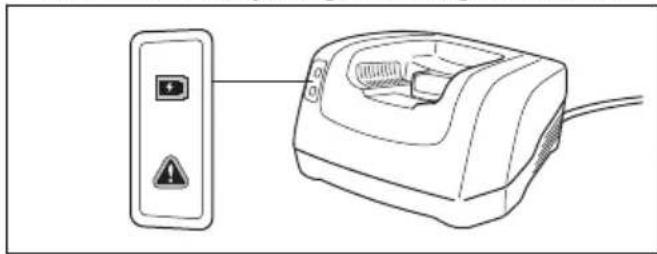

1. Connect one end of the power cord for the battery charger into the socket of the battery charger.
2. Connect the other end of the power cord for the battery charger in an grounded mains socket. The LED on the battery charger flashes green one time.

Line drawing of a device with a warning symbol and a wall-mounted device connected to its side (no text or labels)

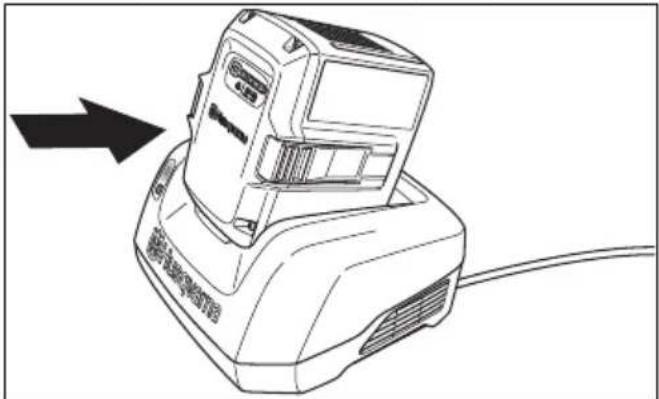

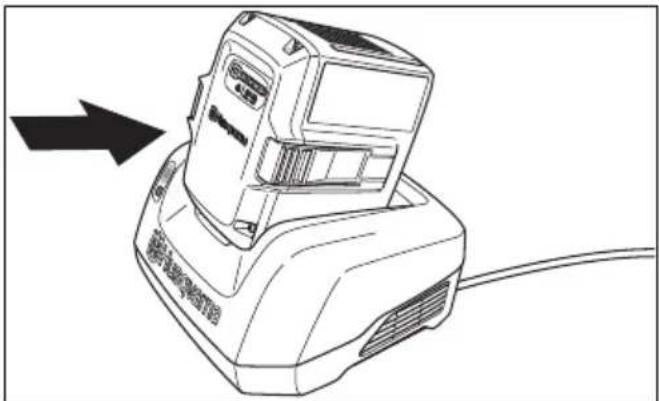

1. Put the battery in the battery charger. The green light on the charger comes on when the battery is correctly connected to the battery charger.

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. When all LEDs on the battery have come on the battery is fully charged. Charge the battery for maximum 24 hours.
2. To disconnect the battery charger from the mains socket, pull the plug, not the power cord.
3. Remove the battery from the battery charger.

Battery charging status

A Husqvarna Li-ion battery can be charged or used at all charging levels. The battery is not damaged. A fully charged battery will not decrease its charge when the battery is left in the charger.

LED display	Charging status
LED 1 flashes 0%-25%
LED 1 is lit, LED 2 flashes	25%-50%
LED 1, LED 2 are lit, LED 3 flashes	50%-75%
LED 1, LED 2, LED 3 are lit, LED 4 flashes	75%-100%
LED 1, LED 2, LED 3, LED 4 are lit	Fully charged

To operate LC 141iV and LC 141i

To start the product

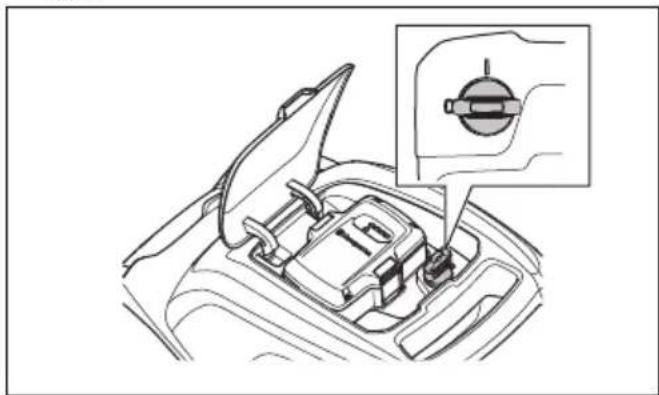

1. Put a charged battery in the battery compartment.

2. Turn the safety key to 1.

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

1. Stay behind the product.

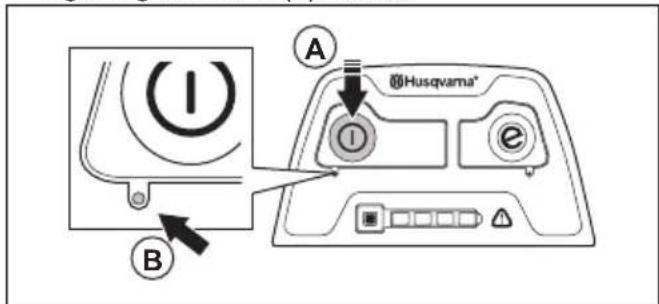

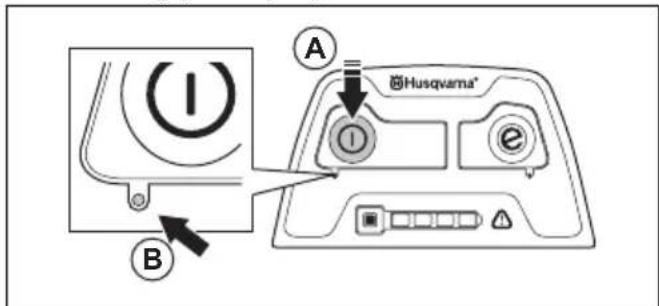

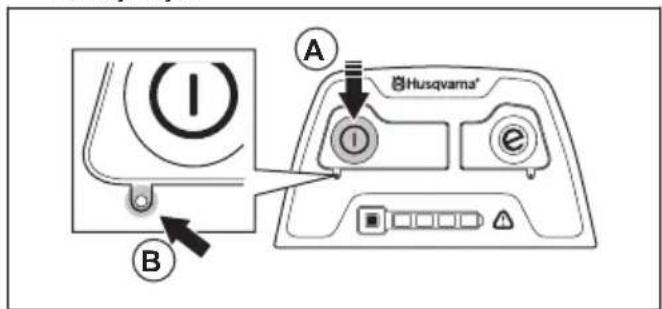

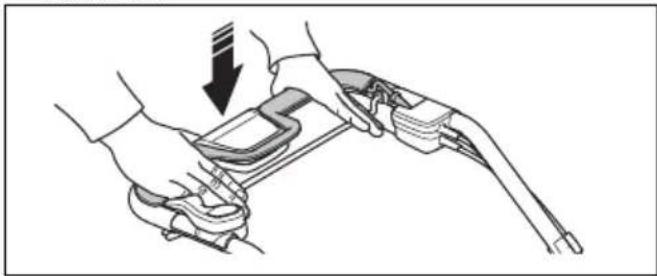

2. Press the ON/OFF button (A) on the control panel and the green LED (B) comes on.

A Husqvarna* B

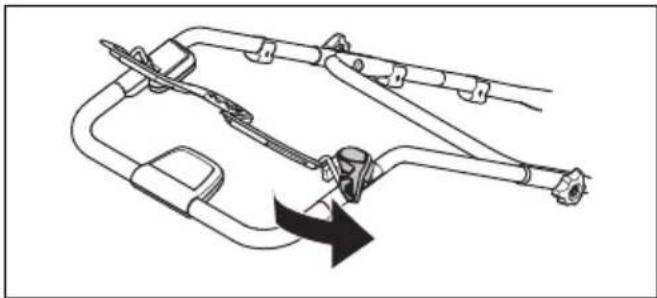

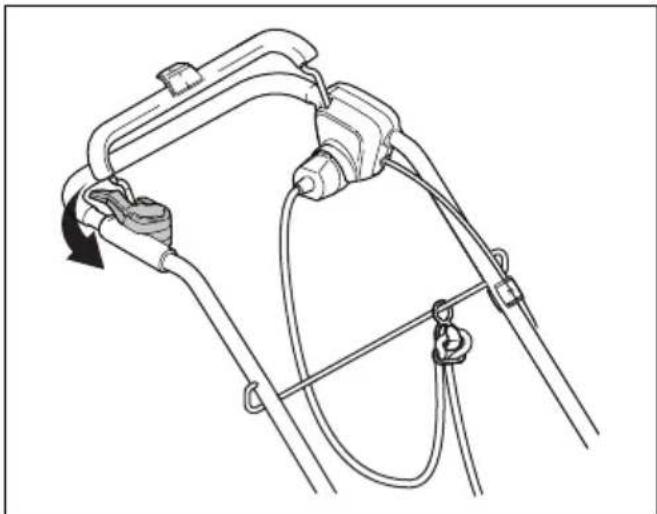

1. Loosen the start inhibitor.

Technical line drawing of a mechanical assembly with no visible text or symbols

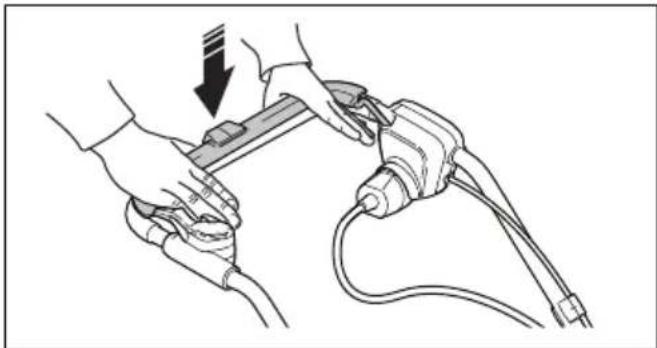

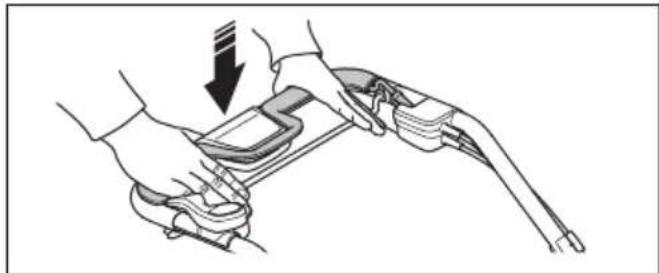

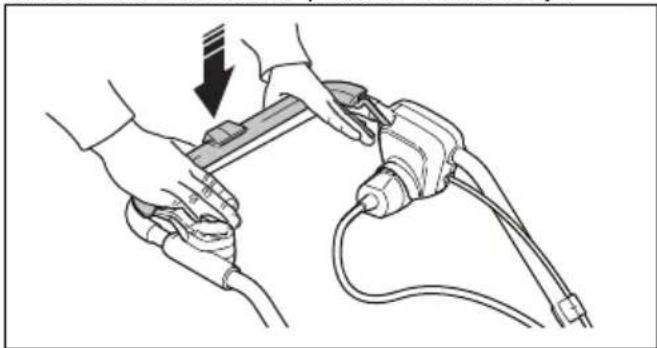

1. Push the motor brake handle in the direction of the handlebar.

Illustration of hands using a handheld device to adjust or install a device (no text or symbols visible)

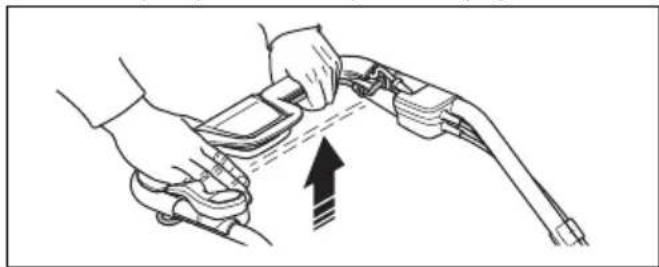

To use the drive on the wheels

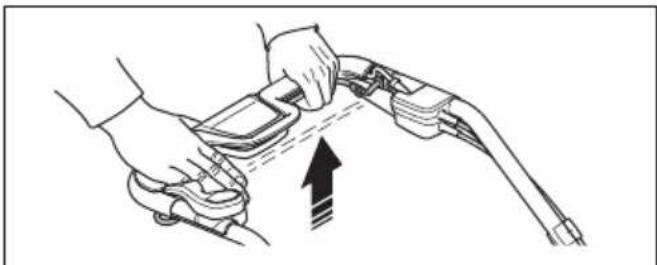

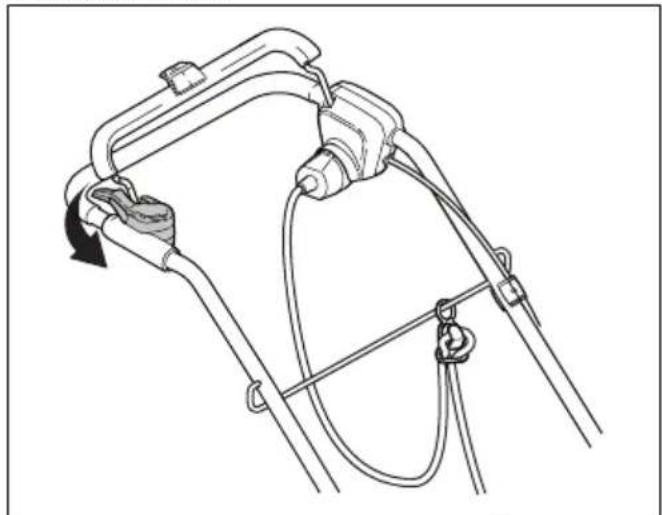

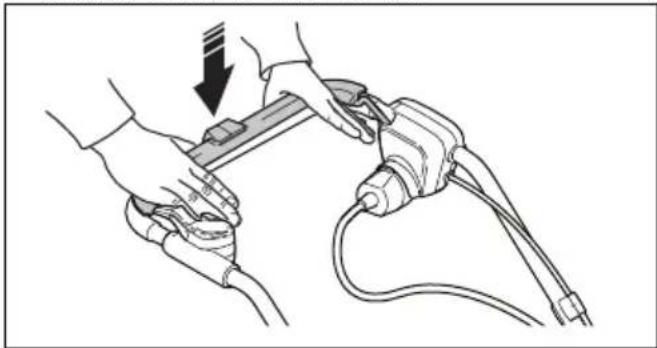

- Model LC 141iV. Pull the drive bail in the direction of the handlebar to start the drive.

Line drawing of a hand holding a device with an arrow indicating motion (no text or symbols)

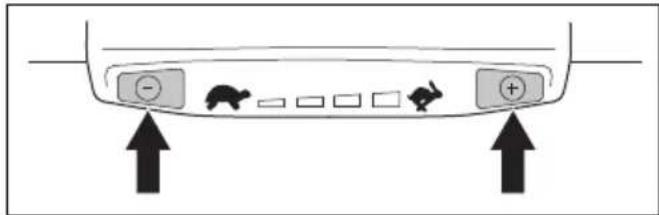

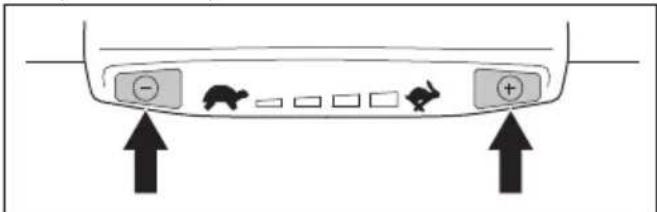

- Press + and - on the control panel to set the drive speed in 4 steps.

Diagram showing a container with labeled buttons and icons, indicating a process or control mechanism.

- Release the drive bail to disengage the drive, for example when you go near an obstacle.

To use the SavE function

The product has a battery saving function (SavE) that gives longer operation time.

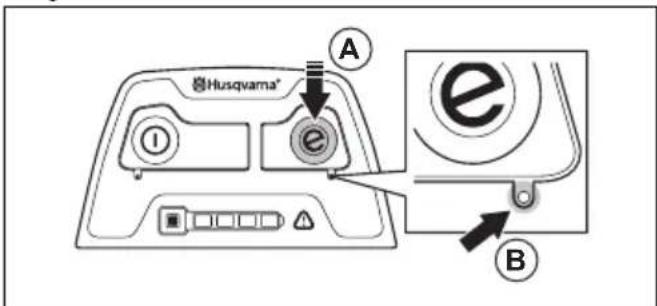

1. Press the SavE button (A) to start the function. The green LED comes on.

Husqvarma* A e B

1. Press the SavE button again to stop the function. The green LED (B) goes out.

The SavE function stops automatically if the ground conditions make it necessary to have a higher output. The SavE function starts automatically when the ground conditions lets it.

High load function

When the product cuts long or wet grass, the motor automatically increases rpm. The motor goes back to standard mode when high load is not necessary.

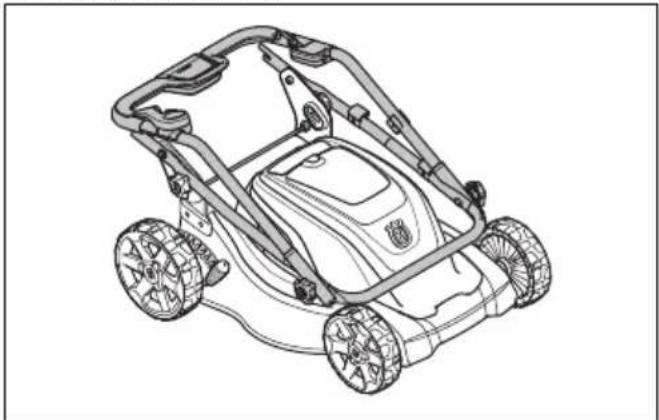

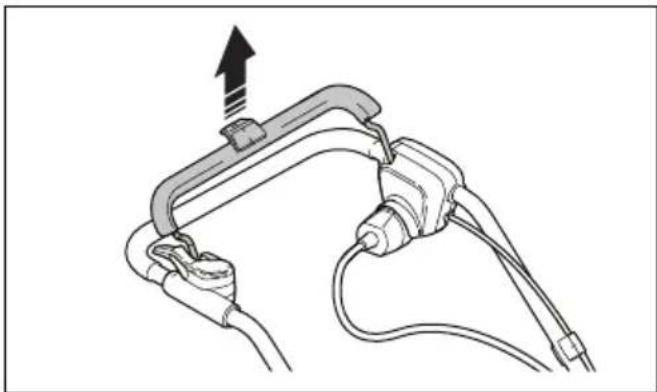

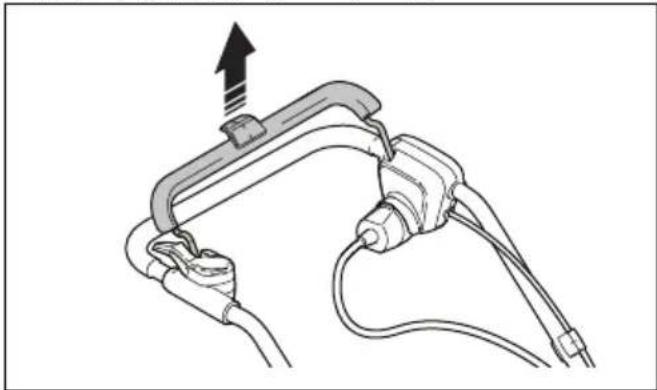

To stop the product

The product stops automatically if you do not operate it for 10 minutes. Always turn the safety key to 0 before you let the product out of view.

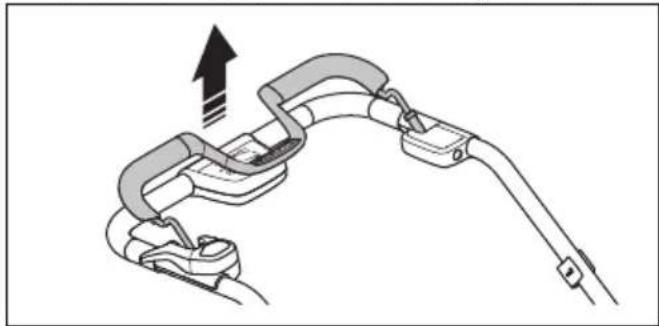

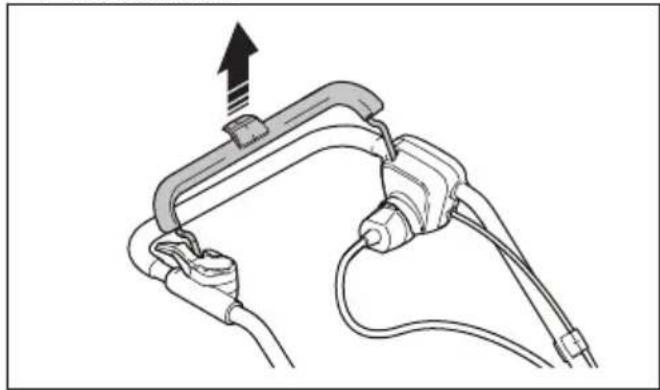

1. Release the motor brake handle to stop the motor.

Diagram of a car seatbelt with an upward arrow indicating motion (no text or symbols)

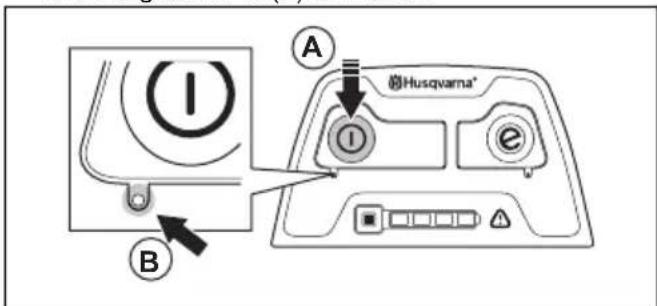

1. Press the ON/OFF button (A) on the control panel and the green LED (B) goes out.

A ©Husqvarma* B

1. Open the battery lid and turn the safety key to 0.

Technical line drawing of a car gear shift lever assembly (no text or symbols)

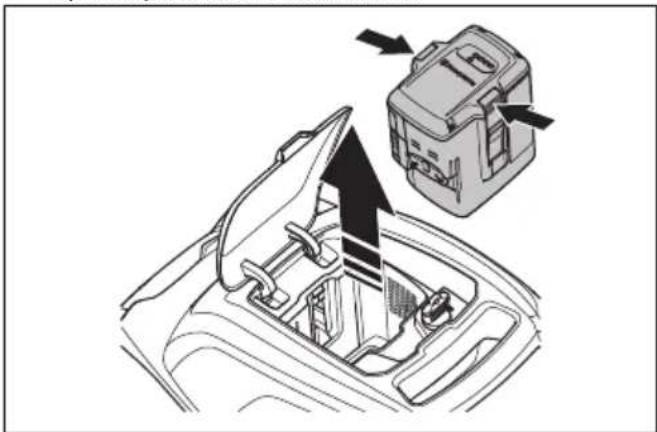

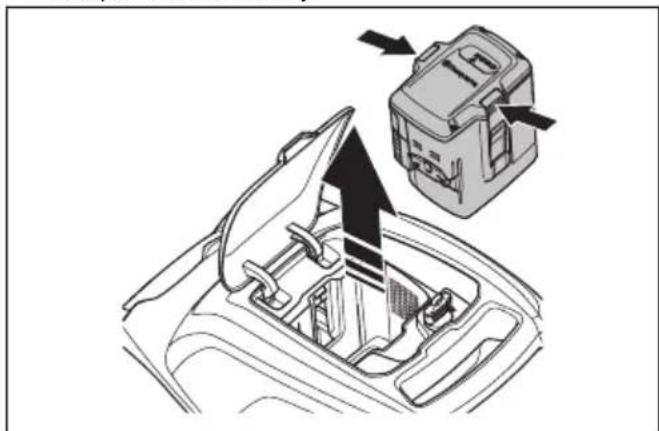

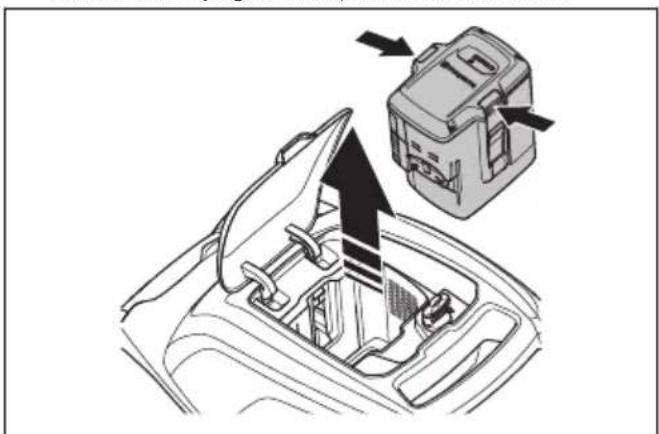

1. To remove the battery, press the 2 release buttons and pull out the battery.

Diagram of a car interior showing a gear shift mechanism with a device box and directional arrows (no text or symbols)

1. Charge the battery if it is weak. For more information, see To charge the battery on page 16.

To operate LC 141C

To select an approved cable (LC 141C)

Note: For the UK market, use only the 16M extension cable that comes with the product. For all other markets, refer to the information below.

If extension cables are used, these must comply with the minimum cross-sections in the table below:

Voltage Cable	length	Cross sec-tion
220-240V/ 50Hz Up to 20 m	1.5 mm	^2
220-240V/ 50Hz 20–50 m	2.5 mm	^2

• Mains cables and extension cables are available from your local approved service agent for Husqvarna outdoor products.
• Only use extension cables specifically designed for outdoor use and which conform to one of the following specifications: Ordinary rubber (60245 IEC 53), Ordinary PVC (60227 IEC 53) or Ordinary PCP (60245 IEC 57)
• If the cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

To start the product

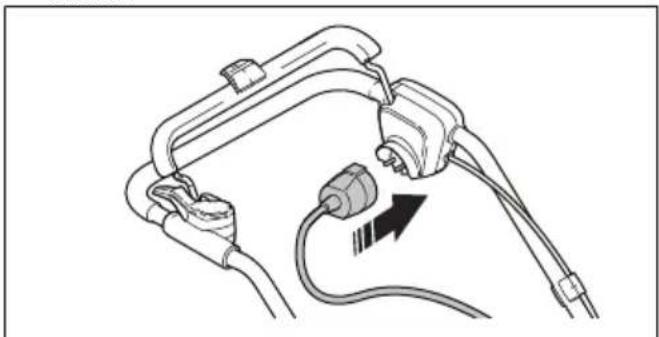

1. Connect a power cord to the socket below the handle.

Diagram of a plug-in connector with cable and plug, showing internal components and wiring (no text or labels)

1. Put the power cord in the power cord holder. Refer to To use the power cord holder (model LC 141C) on page 9.

Line drawing of a mechanical device with rope and hook, no text or symbols present

1. Stay behind the product.
2. Loosen the start inhibitor.

Line drawing of a mechanical device with attached cables and a directional arrow (no text or symbols)

1. Push the motor brake handle in the direction of the handlebar.

Illustration of hands operating a handheld device with a black arrow indicating downward motion (no text or symbols)

To stop the product

1. Release the motor brake handle to stop the motor.

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

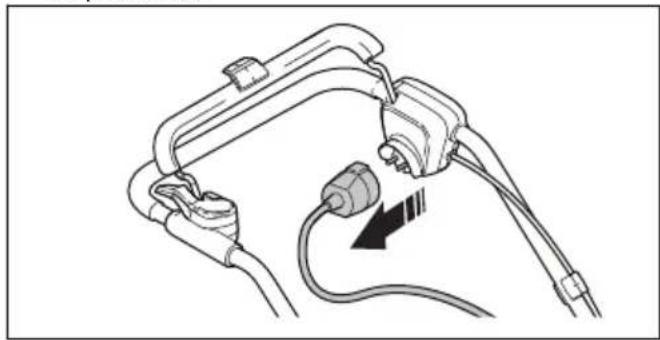

1. Disconnect the power cord from the mains and then from the product.

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

CAUTION: Pull the plug straight out. Do not pull the power cord.

To get a good result

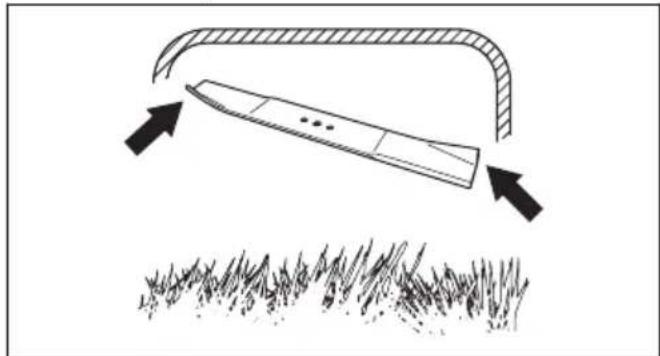

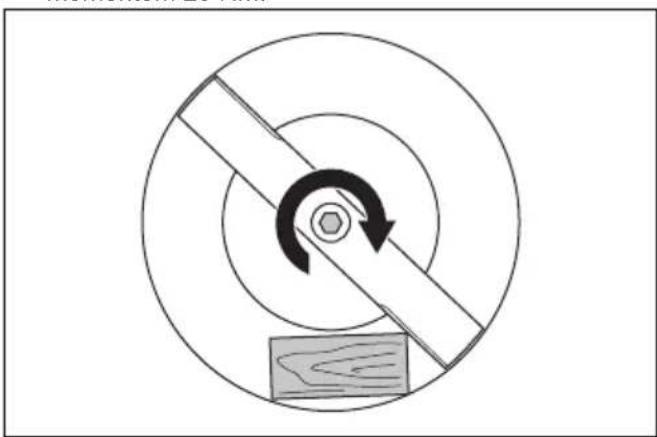

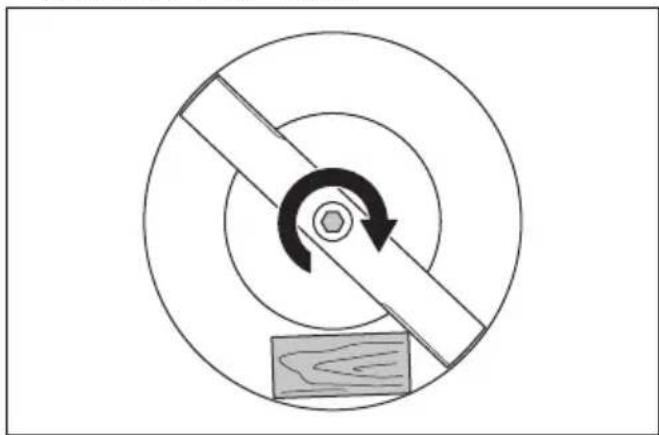

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.
- Do not cut more than 13 of the length of the grass. Cut first with the cutting height set high. Examine the result and lower the cutting height to an applicable level. If the grass is very long, drive slowly and cut 2 times if necessary.
- Cut in different directions each time to prevent stripes in the lawn.

Maintenance

Introduction

WARNING: Before you do maintenance, you must read and understand the safety chapter.

For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing. If your dealer is not a

service agent, speak to them for information about the nearest service agent.

Maintenance schedule

The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily.

For maintenance identified with *, refer to Safety devices on the product on page 9

LC 141iV, LC 141i and LC 141C	Each use	Monthly	Each season
Do a general inspection. X
Clean the product. X
Do a check of the start inhibitor *. X
Make sure that the safety devices on the product are not defective *. X
Examine the cutting equipment. X
Examine the cutting cover *. X
Do a check of the motor brake handle *. X
LC 141iV and LC 141i only	Each use	Monthly	Each season
Make sure that the ON/OFF button operates correctly and is not defective. X
Examine the battery for damage. X
Do a check of the battery charge. X
Make sure that the release buttons on the battery operates correctly and that the battery locks into the product.	X
Examine the battery charger for damage and make sure that it operates correctly.		X
Examine the connections between the battery and the product. Also examine the connection between the battery and the battery charger.			X

To do a general inspection

• Make sure that the nuts and screws on the product are tightened.
• Make sure that the cables on the product are not in a position where they can get damaged.

To clean the product

• Clean plastic parts with a clean and dry cloth.
• Do not use water to clean the product. Water can enter the battery or the motor and cause short circuit or damage to the product.
• Do not use a high pressure washer to clean the product.
• Do not flush water directly on the motor.
• Use a brush to remove leaves, grass and dirt.

To clean the battery and the battery charger

CAUTION: Do not clean the battery or the battery charger with water.

• Make sure that the battery and the battery charger are clean and dry before you put the battery into the battery charger.
• Clean the battery terminals with compressed air or use a soft and dry cloth.
• Clean the surfaces of the battery and the battery charger with a soft and dry cloth.

To examine the cutting equipment

WARNING: For models LC 141iV and LC 141i: To prevent accidental start, turn the safety key to 0, remove the battery and wait at minimum 5 seconds.

For model LC 141C: To prevent accidental start, disconnect the power cord.

WARNING: Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or cracks. Always replace a damaged cutting equipment.
2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced.

To remove and replace the blade

1. Lock the blade with a block of wood.

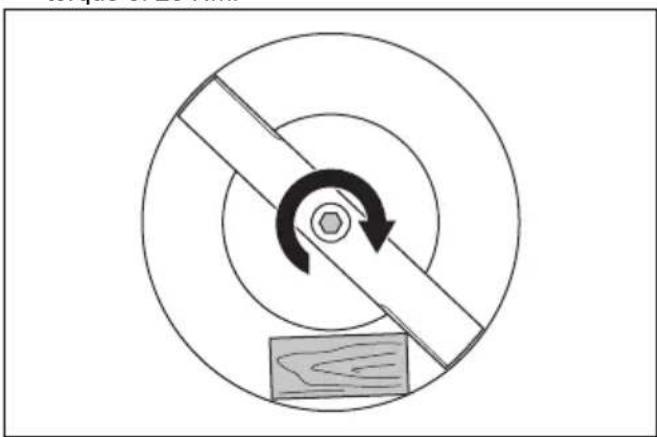

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

1. Remove the blade bolt.
2. Remove the blade.
3. Examine the blade support and blade bolt to see if there are damages.

4. Examine the motor shaft to make sure that it is not bent.

5. When you attach the new blade, point the angled ends of the blade in the direction of the cutting cover.

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

1. Make sure that the blade is aligned with the center of the motor shaft.

2. Lock the blade with a block of wood. Attach the spring washer and tighten the bolt and washer with a torque of 20 Nm.

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

1. Pull the blade around by hand and make sure that it turns freely.

WARNING: Use heavy duty gloves. The blade is very sharp and cuts can easily occur.

1. Start the product to do a test of the blade. If the blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory.

Troubleshooting

Battery

LED on the battery Cause	Solution
The green LED flashes.	The battery voltage is low. Charge the battery.	To charge the battery on page 16.
The error LED flashes.	The battery is weak. Charge the battery.	Refer to on page 16.
	The temperature in the work environment is too high or too low.	Use the battery in temperatures between -10°C and 40°C.
	Overvoltage. Make sure that the mains	voltage is the same as on the rating plate on the product.
		Remove the battery from the battery charger. Wait 5 seconds and try again to charge the battery. If the problem continues, speak to an approved service agent.
The error LED is on. The	cell difference too much (1V). Speak to	an approved service agent.

Battery charger

LED on the battery charger	Cause Solution
The error LED flash-es.	The temperature in the work en-vironment is too high or too low.	Use the battery charger in temperatures between 5°C and 40°C.
The error LED is on. S	peak to an approved service agent.

Control panel

For problems, other than those in this section, speak to your service agent.

Keypad Possible faults Possible action
Error LED flashes The motor	motor is overloaded Increase the cutting height. See To set the cutting height on page 16.
	The motor speed drops too much, and the motor stops
	The motor control is too hot Stop the motor and wait until it has become cool
	The blade is blocked To prevent accidental start turn the safety key to 0, remove the battery and wait a minimum 5 seconds. Make sure that the blade can rotate freely. If the problem continues, speak to an authorised service agent
	Battery error or no signal from battery	Put the battery in the product correctly and examine the battery connector. If the error LED on the battery flashes, see Battery on page 22.
The product stops The battery	battery is weak Charge the battery. See	To charge the battery on page 16.
	Battery connector failure Examine the battery connector

Transportation, storage and disposal

To set the product in transport position

1. Remove the grass catcher (if installed).

2. Loosen the knobs on the upper handle and fold the handle down.

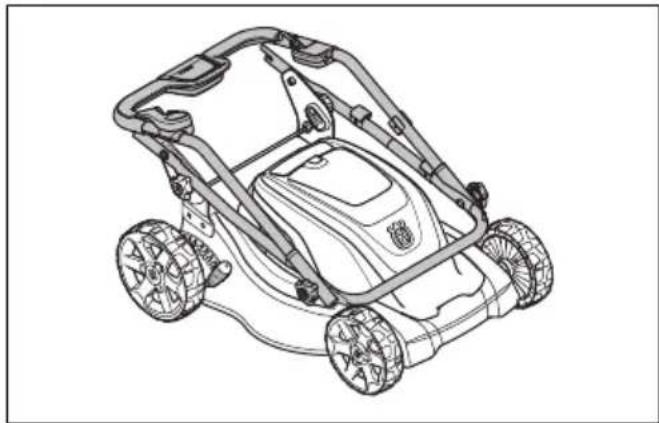

Line drawing of a lawn mower with open handle and wheels (no text or symbols)

1. Loosen the lower knobs.
2. Move the knobs to the lower end of the grooves on the left and the right side of the product.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Fold the handle forward.


Line drawing of a lawn mower with three wheels and handlebars (no text or symbols)

Transportation

• The Dangerous Goods Legislation requirements apply to the contained Li-ion batteries.
• For commercial transports special requirements on package and labels must be obeyed.
  • Make sure that you obey the regulations for dangerous material when you prepare the product for transport. Local regulations can apply.
  • Always remove the battery for transport.
• Put tape on the battery connectors and make sure that the battery cannot move around during transport.
• Attach the product during transport.

Storage

• Always remove the battery for storage.

• To prevent accidents, make sure that the battery is not connected to the product during storage.
- Keep the battery charger in a closed and dry space.
- Keep the battery and the battery charger in a dry space where there is no moisture or frost.
- Disconnect the battery from the battery charger during storage.
- Do not keep the battery where static electricity can occur. Do not keep the battery in a metal box.
- Keep the battery where the temperature is between 5^ and 25^ and out of sunlight.
- Keep the battery charger where the temperature is between 5°C and 45°C and out of sunlight.
• Make sure that the battery is charged to 30% - 50% before you put it in storage for long periods.
- Keep the product, battery and battery charger in a locked area out of reach for children and not approved persons.
- Clean the product and do a complete servicing before you put the product in storage for a long time.

Disposal

Symbols on the product or the packaging of the product indicate that this product cannot be handled as domestic waste. It must be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product. For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Technical data

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 1
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions 2
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels 3
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels 4
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70
Cutting width, cm	41 41
Blade, article number	Collect - 5011716-01	Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36 1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36 1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36 2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Technical data LC 141C

	LC 141C
Motor
Motor type Series AC Motor
Motor speed – Nominal, rpm 3200
Power	1800 W
Power source	Corded electric
Power cable (included for the UK market only)
Cable type	16M extension cord
Weight, kg 1.6
Weight
Weight, kg 20.4
Noise emissions5
Sound power level, measured dB (A)	93
Sound power level, guaranteed LWA dB (A)	95
Sound levels6
Sound pressure level at the operators ear, dB (A) 85
Vibration levels7
Handle, m/s2	2.0
Cutting
Cutting height, mm 25–70
Cutting width, cm 41
Blade, Article number Collect	5011716-01
Bagger capacity, litre 50

EC Declaration of Conformity

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declares that the lawn mowers Husqvarna LC 141iV and LC 141i from serial number 2018XXXXXXX and onwards and Husqvarna LC 141C from serial number 2015XXXXXXX, comply with the requirements of the COUNCIL'S DIRECTIVE:

• of June 8, 2011 on the "restriction of use of certain hazardous substances" 2011/65/EU
  • of May 17, 2006 "relating to machinery" 2006/42/EC
• of February 26, 2014 "relating to electromagnetic compatibility" 2014/30/EU
• of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC

For information relating to noise emissions, refer to the Technical data chapter.

The following standards have been applied for the certification of Husqvarna LC 141iV and LC 141i: IEC 60335-2-77:2002, IEC 60335-1:2010+A1:2013, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62233:2008

The following standards have been applied for the certification of Husqvarna LC 141C: EN 60335-1:2012+A11:2014, EN 60335-2-77:2010, EN 62233:2008, EN 55014-1:2017+A11, EN 55014-2:2015, EN 61000-3-2:2019, EN 61000-3-11:2019

Notified body: 0404, RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala has performed conformity assessment according to Annex VI of Directive 2000/14/EC.

Huskvarna, 2020-10-13

$$ \Delta_ {2} d u $$

Claes Losdal, Development Manager/Garden Products (Authorized representative for Husqvarna AB and responsible for technical documentation.)

Съдържание

Въведение.... 29

Безопасност....33

Монтаж....42

Операция.... 44

Поддръжка....50

Labeled diagram of a Husevarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a cable clamp mechanism with directional arrow indicating motion (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and fasteners (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Anatomical illustration of a human foot and arm with a black arrow pointing to the arm (no text or labels present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or symbols)

Mechanical assembly diagram showing a bracket with two arrows indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical illustration of a mechanical device with three views: top, side, and bottom (no text or symbols present)

Mechanical assembly diagram showing directional arrows and component layout (no text or symbols)

Technical diagram showing a vehicle's rear door, front panel, and side-mounted bracket with labeled parts A and B

Line drawing of a lawn mower with three wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring mechanism (no text or symbols)

Line drawing of a device with a D button and warning symbol, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a handheld device to adjust or install a device (no text or symbols visible)

Illustration of hands performing a manual task on a device, with an upward arrow indicating motion (no text or symbols present)

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp mechanism with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

Diagram of a car interior showing a device with an arrow pointing to the dashboard (no text or symbols present)

Diagram of a car hood with attached cable and plug, showing a black arrow indicating a component (no text or symbols present)

Line drawing of a mechanical device with rope and cable (no text or symbols)

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Illustration of hands operating a mechanical device with a downward arrow indicating force or change (no text or symbols present)

Спиране на продукта

Diagram of a mechanical device with attached wires and a directional arrow indicating motion (no text or symbols)

Diagram of a medical or laboratory setup with tubing and a central connector, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with visible wheels and roof brackets (no text or symbols)

Транспортиране

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Технически данни

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 8
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 9
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels ^10
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^11
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type Battery		capacity, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36	1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36	1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36	2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36	2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36	4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240	50–60	330
QC500	Husqvarna	100–240	50–60	500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a cable clamp or connector assembly with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting fixtures (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical or biological structure with a black arrow pointing to a specific part (no text or symbols present)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical linkage diagram showing two black arrows pointing to a joint component (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical illustration of a mechanical device with three views: top view, side view, and bottom view showing internal components (no text or symbols)

Diagram of a vehicle's internal components with arrows indicating movement or assembly (no text or symbols present)

Technical diagram showing a vehicle's front view with labeled parts A and B, including a directional arrow and mechanical components.

Line drawing of a lawn mower with three wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached bracket (no text or symbols)

Diagram showing a device with four labeled buttons and a warning symbol pointing to the right panel.

Line drawing of a device with a warning symbol and a connected panel (no text or labels)

Line drawing of a power supply unit with a black arrow pointing to its side (no text or symbols present)

Provoz modelu LC 141iV a LC 141i

Spuštění výrobku

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with a lever and adjustment arrow (no text or symbols)

Illustration of hands using a handheld device to adjust or install a component, with no visible text or symbols.

Použití pohonu kol

Illustration of hands using a device to interact with a cable or connector (no text or symbols present)

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a car seatbelt with a belt and cable, showing a double belt being inserted (no text or symbols present)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Diagram of a car interior showing a switch and a device casing with directional arrows (no text or symbols)

Provoz modelu LC 141C

Diagram of a car hood with attached cable and plug, showing a black arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or cable device, with no visible text or symbols.

Zastavení výrobku

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical gear or pulley system with rotational arrow and base block (no text or symbols)

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Line drawing of a lawn mower with two wheels and handlebars (no text or symbols)

Přeprava

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or non-recyclable disposal.

Technické údaje

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 15
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 16
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels 17
Sound pressure level at the operators ear, dB (A)	83	83
Vibration levels 18
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70

^15 For best results and performance the Husqvarna battery BLi200 is recommended.
^16 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
^17 Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB (A).
^18 Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s^2 .

	LC 141iV LC 141i
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36 1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36 1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36 2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240 50–60	330
QC500	Husqvarna	100–240 50–60	500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two waste sorting bins with recycling symbols and a recycling symbol in the first bin.

Aflever produktet på en genbrugsstation for elektrisk og elektronisk udstyr. (Gælder kun Europa)

Startprocedure for model LC 141iV/ LC 141i: Tryk på ON/OFF-knappen, løsn startspærren, tryk motor-bremsehåndtaget ned.

Startprocedure for model LC 141C: Løsn startspærren, tryk

motorbremsehåndtaget ned.

Slip motorbremsehåndtaget for at stoppe.

Langsomt

Hurtigt

Kode, der kan scannes

Diagram of a car seatbelt with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Batterisikkerhed

ADVARSEL: Læs

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

Technical line drawing of a mechanical bracket assembly with directional arrows indicating movement (no text or symbols)

Anatomical illustration of a human foot and arm with a black arrow pointing to a specific area (no text or labels present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Mechanical assembly diagram showing a bracket with two arrows indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring, no text or symbols present

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Illustration of hands holding a device with an upward arrow indicating motion (no text or symbols)

Diagram showing a container with labeled buttons and icons, indicating a process or control system with arrows pointing to the bottom.

Diagram of a mechanical clamp or connector assembly with directional arrows indicating movement (no text or symbols)

1. Tryk på ON/OFF-knappen (A) på betjeningspanelet, og den grønne LED (B) slukkes.

A Husqvarma* B

Technical line drawing of a car's front seat assembly with a close-up inset showing the internal component (no text or symbols)

Diagram of a car interior showing a gear shift mechanism and a box with directional arrows (no text or symbols)

Diagram of a car electrical plug with wires and a valve, showing no text or symbols

1. Anbring netledningen i netledningsholderen. Se Sådan bruges netledningsholderen (model LC 141C) på side 94.

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with attached cables and a handle (no text or symbols)

Line drawing of hands operating a handheld device with a black arrow indicating downward motion (no text or symbols)

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a medical or laboratory setup with tubing and a central connector, no visible text or symbols

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a blade cutting through a curved structure with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with visible wheels and handlebars (no text or symbols)

Transport

Diagram showing two crossed recycling bins with a recycling symbol, likely indicating waste management restrictions.

Tekniske data
Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 22
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 23
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels 24
Sound pressure level at the operators ear, dB (A)	83	83
Vibration levels 25
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70

22 For best results and performance the Husqvarna battery BLi200 is recommended.

23 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.

24 Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB (A).

25 Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s ^4 .

	LC 141iV LC 141i
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36 1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36 1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36 2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240 50–60	330
QC500	Husqvarna	100–240 50–60	500

Tekniske data LC 141C

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a car seatbelt device with an arrow indicating upward motion (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with a curved pipe and lever mechanism, no text or symbols present

Line drawing of a mechanical device with wires and a black arrow indicating a connection point (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and a valve (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical linkage or cable assembly with a black arrow pointing to a component (no text or symbols present)

Mechanical assembly diagram showing a hand turning a gear with a rotating component (no text or symbols)

Mechanical linkage diagram showing two black arrows pointing to a joint or component (no text or symbols present)

Technical diagram showing mechanical component assembly with arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows and components (no text or labels)

Technical diagram showing a vehicle's rear suspension system with labeled components A and B

Line drawing of a lawn mower with three wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached bracket (no text or symbols)

Diagram showing a device with numbered components and an external labeled device with warning symbol

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Line drawing of hands holding a device with an upward arrow indicating motion (no text or symbols)

Diagram showing a container with labeled buttons and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Diagram of a car gear shift lever with a box and directional arrow indicating motion (no text or symbols)

Line drawing of a plug-in connector with cable and plug, showing internal wiring and a directional arrow (no text or symbols)

Line drawing of a mechanical device with rope and cable (no text or symbols)

Line drawing of a mechanical device with attached cables and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or cable device (no text or symbols present)

Diagram of a mechanical device with attached wires and a directional arrow (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a black arrow indicating direction (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with visible wheels and handlebars (no text or symbols)

Transport

Diagram showing two crossed recycling bins with a recycling symbol and no text or labels

Technische Angaben

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^29
Type of battery	Husqvarna Battery Series	Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions30
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels31
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels32
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	Lithium-ion	ty, Ah	Voltage, V Weight	lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
BLi300	Husqvarna	Lithium-ion	9.4	36	4.1/1.9

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husqvarna lawn mower system with numbered components and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a cable clamp device with an arrow indicating motion (no text or symbols present)

Technical line drawing of a car gear shift lever with inset showing the gear shift (no text or symbols)

Diagram of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with ropes and a black arrow indicating a knot (no text or symbols)

Ασφάλεια μπαταρίας

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

Technical line drawing of a mechanical bracket assembly with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or biological structure with a black arrow pointing to a specific part (no text or symbols present)

Mechanical assembly diagram showing a gear and cam mechanism with no visible text or symbols

Mechanical assembly diagram showing a bracket with two black arrows pointing to specific components (no text or labels present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top view, front view, and side view (no text or symbols present)

Mechanical assembly diagram showing directional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring (no text or symbols)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of hands performing a manual task on a device, with an upward arrow indicating motion (no text or symbols present)

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car's front compartment with a magnified inset showing a component detail (no text or symbols)

Diagram of a car interior showing a door, seatbelt, and device with directional arrows (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a directional arrow (no text or symbols)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a directional arrow (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade cutting through a curved structure with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with four wheels and handlebars (no text or symbols)

Μεταφορά

Diagram showing two crossed-out waste bins with recycling symbols, indicating no disposal or reuse.

Τεχνικά στοιχεία

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 36
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 37
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels38
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels39
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type Battery		capacity, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36	1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36	1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36	2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36	2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36	4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240	50–60	330
QC500	Husqvarna	100–240	50–60	500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a cable clamp mechanism with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and a hanging hook, no text or symbols present

Labeled diagram of a mechanical assembly with numbered parts A through H

Technical line drawing of a pipe clamp assembly with mounting flanges and bolts (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical linkage or cable assembly with a black arrow pointing to a component (no text or symbols present)

Para regular la altura del manillar

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Technical line drawing of a mechanical linkage assembly with two black arrows indicating movement or force directions (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical housing component with three views and arrows indicating assembly steps (no text or symbols present)

Mechanical assembly diagram showing directional arrows and component layout (no text or symbols)

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Line drawing of a device with a warning symbol and a connected cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Line drawing of a car interior showing a switch and gear shift (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Line drawing of hands using a tool to adjust or install a device, with an arrow indicating the process (no text or symbols present)

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car intake manifold with a magnified inset showing the internal component (no text or symbols)

Diagram of a car interior showing a shift lever and a box with directional arrows (no text or symbols)

Diagram of a medical or laboratory setup with tubing and a central connector (no text or symbols)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Line drawing of hands operating a handheld device with cable and plug (no text or symbols)

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a medical or laboratory setup with tubing and a central connector, no visible text or symbols

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with visible wheels and handlebars (no text or symbols)

Transporte

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Datos técnicos

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 43
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions 44
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels 45
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels 46
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries	Brand	Type	Battery capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
Approved batteries Brand Type	Battery capacity		city, Ah	Voltage, V Weight	lb/kg
BLi300	Husqvarna	Lithium-ion 9.4	36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Ohutuslüliti (mudelid LC 141iV ja LC 141i)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with a black arrow indicating direction (no text or symbols present)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Aku ohutus

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a cable or cable connector with a black arrow pointing to a component (no text or symbols present)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical linkage diagram showing two black arrows pointing to a joint or bracket (no text or symbols present)

Technical diagram showing mechanical component assembly with arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top view, front view, and side view (no text or symbols present)

Mechanical assembly diagram showing bracket and mounting components with directional arrows (no text or labels)

Multšimiskomplekti kokkupanek

Technical diagram showing a vehicle's rear suspension system with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with three wheels and handle (no text or symbols)

Line drawing of a lawn mower with a handle and wheels, showing no text or symbols

Mechanical diagram showing a wheel and connecting rod assembly (no text or symbols)

Diagram showing a device with four labeled buttons connected to a device labeled '1-4', including warning symbols and a warning label.

Line drawing of a device with warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Technical line drawing of a car gear shift lever with inset showing the gear component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a handheld device to adjust or install a device (no text or symbols visible)

Veo kasutamine ratastel

Illustration of hands using a device to lift a cable or cable (no text or symbols present)

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a car suspension system with rope and cable, showing mechanical components and motion direction (no text or labels)

Technical line drawing of a car's side gear assembly with a magnified inset showing the internal component (no text or symbols)

Diagram of a car interior showing a gear shift and a device with directional arrows (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a directional arrow (no text or symbols)

1. Pange toitekaabel toitekaabli hoidikusse. Vt jaotist Toitekaabli hoidiku kasutamine (mudel LC 141C) Ik 208.

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with attached cables and a handle (no text or symbols)

Line drawing of hands operating a handheld device with cable, no text or symbols present

Seadme seiskamine

1. Mootori seiskamiseks vabastage mootori pidurikäepide.

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a medical device with attached tubing and a black arrow indicating direction (no text or symbols)

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with visible wheels and handlebars (no text or symbols)

Transportimine

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Tehnilised andmed

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 50
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 51
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels52
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels53
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight	lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36	1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36	1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36	2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36	2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36	4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240	50–60	330
QC500	Husqvarna	100–240	50–60	500

Tehnilised andmed LC 141C

Labeled diagram of a Husevarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a car seatbelt with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with wires and connectors, no text or symbols present

Akkuturvallisuus

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and a screw (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical or biological structure with a black arrow pointing to a specific part (no text or symbols present)

Mechanical assembly diagram showing a gear and mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical linkage diagram showing two black arrows pointing to a joint or component (no text or symbols present)

Technical diagram showing mechanical components with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, side, and bottom (no text or symbols present)

Mechanical assembly diagram showing directional arrows and components (no text or labels)

Technical diagram showing a vehicle's rear suspension system with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a wheel and attached bracket (no text or symbols)

Diagram showing a device with numbered components and an external labeled device, likely illustrating a control or status setup.

Line drawing of a device with a warning symbol and a wall-mounted switch (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands holding a device with a downward arrow indicating a process (no text or symbols)

Illustration of hands using a device to adjust or install a component, with an upward arrow indicating motion (no text or symbols present)

Diagram showing a container with labeled buttons and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp mechanism with directional arrow indicating motion (no text or symbols)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Diagram of a car gear shift lever with a device box and directional arrow (no text or symbols)

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with attached cables and a hanging hook (no text or symbols)

Illustration of hands operating a cable or connector with a downward arrow indicating motion (no text or symbols present)

Diagram of a medical device with attached tubing and a directional arrow (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a black arrow indicating direction (no text or symbols)

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Diagram showing a blade cutting through a curved structure with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Taita kahva eteen.

Line drawing of a lawn mower with three wheels and handlebars (no text or symbols)

Kuljettaminen

Diagram showing two crossed-out waste bins with recycling symbols, indicating no disposal or reuse.

Hävittäminen

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 57
Type of battery	Husqvarna Battery Series	Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^58
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^59
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^60
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36
BLi100	Husqvarna	Lithium-ion	2.6	36
BLi20	Husqvarna	Lithium-ion	4.0	36
BLi200	Husqvarna	Lithium-ion	5.2	36
BLi30	Husqvarna	Lithium-ion	7.5	36
BLi300	Husqvarna	Lithium-ion	9.4	36

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Tekniset tiedot LC 141C

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Attention : projections et ricochets.

Diagram of a car seatbelt with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a car engine compartment with a dial indicator (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with wires and connectors, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting fixtures (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Anatomical illustration of a human hand and wrist with a black arrow pointing to a specific area (no text or labels present)

Mechanical assembly diagram showing a gear and cam mechanism (no text or symbols)

Mechanical linkage diagram showing two black arrows pointing to a component between two beams (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows and components (no text or labels)

Technical diagram showing a vehicle's rear view with labeled parts A and B, including a directional arrow and component details.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring mechanism (no text or symbols)

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols on the device itself)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a handheld device to adjust or install a device (no text or symbols visible)

Illustration of hands using a handheld device to interact with a plug, showing mechanical components and a black upward arrow (no text or symbols)

Diagram showing a container with labeled symbols including a mouse, fish, and directional arrows indicating movement or flow.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view (no text or symbols)

Diagram showing a car interior with a gear shift and a small gear box, no text or symbols present

Diagram of a car hood with attached electrical plug and cable, showing a black arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

Line drawing of a mechanical device with attached cables and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Diagram of a mechanical device with attached wires and a directional arrow indicating motion (no text or symbols)

Diagram of a medical device with attached tubing and cable, showing a directional arrow (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with four wheels and handlebars (no text or symbols)

Transport

Diagram showing two crossed-out bins with recycling symbols, indicating no waste or non-recyclable disposal.

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 64
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions 65
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels 66
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels 67
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries	Brand	Type	Battery capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9

64 For best results and performance the Husqvarna battery BLi200 is recommended.
65 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
66 Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB (A).
67 Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s ^2 .

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight	lb/kg
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

1. Ručica kočnice motora
2. Blokada pokretanja
3. Poluga pogona (LC 141iV)

4. Ručka / šipka

5. Upravljačka ploča

6. Gumb za UKLJUČIVANJE / ISKLJUČIVANJE
7. Gumb savE

8. Gumb indikatora baterije

9. Indikator napunjenosti baterije

10. Indikator upozorenja (LED DIODA ZA POGREŠKU)
11. Gumb za smanjenje brzine (LC 141iV)
12. Indikator razine broja okretaja (LC 141iV)
13. Gumb za povećanje brzine (LC 141iV)
14. Stražnji poklopac
15. Znakovi
16. Poklopac baterije

17. Sigurnosni ključ

18. Pokrov noža

19. Poluga za visinu rezanja
20. Natpisna pločica
21. Sakupljač trave
22. Komplet za sječku (dodatna oprema za LC 141iV)
23. Komplet za sječku (dodatna oprema za LC 141i)
24. Punjač baterije (dodatna oprema)
25. Baterija (dodatna oprema)
26. Korisnički priručnik

Pregled proizvoda LC 141C

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

1. Ručica motorne kočnice
2. Blokada pokretanja
3. Utičnica za električni kabel
4. Držač električnog kabela
5. Ručka / šipka
6. Stražnji poklopac
7. Znakovi
8. Pokrov noža
9. Natpisna pločica
10. Poluga za visinu rezanja

11. Priključak za sječku (dodatna oprema)

12. Sakupljač trave

13. Korisnički priručnik

Simboli na proizvodu

Ako se proizvod ne upotrebljava pažljivo i sigurno, može doći do ozljede ili smrti

Diagram showing two waste sorting bins with recycling symbols and a recycling symbol in the first bin.

Reciklirajte ovaj proizvod u reciklažnom dvorištu za električnu i elektroničku opremu. (Pri- mjenjuje se sa- mo na Europu)

Postupak po- kretanja za mo- del LC 141iV/ LC 141i: pritis- nite gumb za UKLJUČIVA- NJE/ISKLJUČI- VANJE, otpu- stite blokadu pokretanja i pri- tisnite ručicu motorne kočni- ce.

Postupak pokretanja za model LC 141C: otpustite blokadu pokretanja i pritisnite ručicu motorne kočnice.

Za zaustavljanje otpustite ručicu motorne kočnice.

Polako

Brzo

Diagram of a car seatbelt clamping mechanism showing rope routing and lifting force (no text or symbols)

Sigurnosni ključ (modeli LC 141iV i LC 141i)

Sigurnosni ključ nalazi se ispod poklopca baterije. Sigurnosni ključ priključuje bateriju koja napaja motor.

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Pregled blokade pokretanja

Diagram of a mechanical assembly with a curved pipe and lever mechanism, showing no text or symbols.

Line drawing of a mechanical device with wires and a black arrow indicating a connection point (no text or symbols)

Sigurnost baterije

UPOZORENJE: Prije upotrebe proizvoda pročitajte upozoravajuće upute u nastavku.

• Upotrebljavajte punjive baterije tvrtke Husqvarna samo za napajanje odgovarajućih proizvoda tvrtke Husqvarna. Bateriju nemojte upotrebljavati za napajanje drugih proizvoda jer postoji opasnost od ozljeda.

• Nemojte koristiti baterije koje nisu punjive.

• Opasnost od strujnog udara. Polove baterije nemojte spajati s ključevima, kovanicama, vijcima ili drugim metalom. Tako može doći do kratkog spoja baterije.

• Nemojte umetati predmete u zračne utore baterije.
• Bateriju zaštitite od sunčeve svjetlosti, vrućine i otvorenog plamena. Baterija može eksplodirati i uzrokovati opekline i/ili kemijske opekline.
• Zaštitite bateriju od kiše i mokrih uvjeta.
• Zaštitite bateriju od mikrovalova i visokog tlaka.
• Bateriju nemojte rastavljati ili razbijati.
• Ako baterija počne propuštati, nemojte dopustiti da vam tekućina dospije na kožu ili u oči. Ako ste dodirnuli tekućinu, očistite to mjesto velikom količinom vode i zatražite medicinsku pomoć.
• Bateriju upotrebljavajte u rasponu temperatura od -10 °C i 40 °C.

• Bateriju ili punjač baterije nikada nemojte čistiti vodom. Pogledajte Za čišćenje baterije i punjača baterija na stranici 301.

• Nemojte upotrebljavati neispravnu ili oštećenu bateriju.

• Baterije skladištite dalje od metalnih predmeta poput čavala, kovanica i nakita.

Sigurnost punjača baterije

UPOZORENJE: Prije upotrebe proizvoda pročitajte upozoravajuće upute u nastavku.

Technical diagram of a mechanical assembly with labeled parts A through H

1. Potpuno zategnite maticu (E).
2. Gurnite vijak (F) kroz podlošku (G) i potporni nosač ručke.

3. Zategnite kotačić (H) do kraja.

4. Otvore na upravljaču poravnajte s otvorima na donjoj ručki i umetnite vijke, podloške i kotačiće. Kotačiće zategnite do kraja.

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

1. Spojite kabele na ručku uz pomoć držača kabela.

Technical line drawing of a mechanical bracket assembly with directional arrows indicating movement (no text or symbols)

Napomena: Kabeli ne smiju biti previše zategnuti. Prevelika zategnutost može izazvati oštećenja kabela ako se ručica preklopi u položaj za transport.

1. Stavite kabele oko kuke na dnu ručke.

Anatomical illustration of a human foot and arm with a black arrow pointing to a specific muscle or ligament (no text or labels present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

1. Uklonite kotačić, podlošku i vijak s lijeve i s desne strane.

2. Ručku možete postaviti na 2 različite visine. Stavite vijak u jedan od 2 provrta s lijeve i s desne strane.

Mechanical assembly diagram showing a bracket with arrows indicating force or movement (no text or symbols present)

1. Ugradite vijke, podloške i kotačiće.

2. Pomičite kotačiće gore u smjeru ručke dok se ne zaustave uz škljocaj. Kotačiće zategnite do kraja.

CLICK!

Za montažu sakupljača trave

1. Gurnite 2 poklopca za transport prema van i prema dolje.

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

1. Podignite stražnji poklopac.
2. Pričvrstite kuke na hvataču trave za gornji rub šasije.

Diagram of a vehicle's internal components with arrows indicating movement or assembly (no text or symbols present)

Za montažu kompleta za usitnjavanje

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

1. Zatvorite stražnji poklopac.
2. Zamijenite nož kombiniranim nožem, pogledajte Uklanjanje i zamjena noža na stranici 302.

Rad

Uvod

UPOZORENJE: Prije rada s proizvodom morate pročitati i usvojiti poglavlje o sigurnosti.

Husqvarna Connect

Husqvarna Connect besplatna je aplikacija za mobilni uređaj. Aplikacija Husqvarna Connect pruža vam dodatne funkcije za proizvod Husqvarna.

Line drawing of a lawn mower with four wheels and extended handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Line drawing of a vehicle's wheel and suspension mechanism (no text or symbols)

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

1. Postavite bateriju u punjač baterije. Ako je baterija pravilno priključena na punjač baterije, na punjaču se uključuje zeleni indikator.

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols on the device itself)

1. Kada na bateriji svijetle svi LED indikatori, baterija je potpuno napunjena. Bateriju punite najdulje 24 sata.
2. Za odspajanje punjača baterije od mrežne utičnice povucite priključak, ne kabel.
3. Izvadite bateriju iz punjača baterije.

Status punjača baterije

Litij-ionsku bateriju tvrtke Husqvarna možete puniti ili upotrebljavati pri bilo kojoj razini napunjenosti. Baterija nije oštećena. Potpuno napunjena baterija neće se prazniti kada je ostavite u punjaču.

LED zaslon	Stanje punjenja
Indikator LED 1 treperi 0%	-25%
Svijetli indikator LED 1, indikator LED 2 treperi	25% – 50%
Svijetle indikatori LED 1, LED 2, indikator LED 3 treperi	50% – 75%
Svijetle indikatori LED 1, LED 2, LED 3, indikator LED 4 treperi	75% – 100%
Svijetle indikatori LED 1, LED 2, LED 3 i LED 4	Potpuno napunjena

Za rad s LC 141iV i LC 141i

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with a curved pipe and lever mechanism, no text or symbols present

Illustration of hands using a tool to adjust or install a device, showing a downward arrow (no text or symbols present)

Upotreba pogona na kotačima

Illustration of hands using a device to adjust or install a component, with an upward arrow indicating motion (no text or symbols present)

- Pritisnite + i - na upravljačkoj ploči za postavljanje brzine pogona u 4 koraka.

Diagram showing a container with labeled boxes and arrows indicating direction, possibly representing a process or system with symbols like '−', '−', and '+'.

Diagram of a car seatbelt device with a belt switch and cable, showing no text or symbols

1. Na upravljačkoj ploči pritisnite gumb za UKLJUČIVANJE/ISKLJUČIVANJE (A) i zeleni LED indikator (B) se isključujete.

A Husqvarma* B

1. Otvorite poklopac baterije i okrenite sigurnosni ključ na 0.

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

1. Za uklanjanje baterije pritisnite 2 gumba za otpuštanje i izvadite bateriju.

Diagram of a car interior showing a steering wheel and a gear shift device (no text or symbols)

1. Zamijenite slabu bateriju. Više informacija potražite u Zamjena baterije na stranici 297.

Rad sa LC 141C

Odabir odobrenog kabela (LC 141C)

Napomena: Za proizvode koji se koriste u UK koristite isključivo produžni kabel 16M koji se isporučuje s proizvodom. Provjerite informacije u nastavku za sva ostala tržišta.

Ako koristite produžne kabele, oni moraju zadovoljavati minimalne poprečne presjeke iz tablice u nastavku:

Napon	Duljina ka-bela	Poprečni presjek
220 – 240 V / 50 Hz Do 20 m	1,5 mm	^2
220 – 240 V / 50Hz 20 – 50 m	2,5 mm	^2

• Mrežni i produžni kabeli dostupni su kod lokalnog ovlaštenog servisera za proizvode za korištenje na otvorenom tvrtke Husqvarna.
• Koristite isključivo produžne kabele posebno oblikovane za korištenje na otvorenom i koji ispunjavaju sljedeće specifikacije: Obična guma (60245 IEC 53), obični PVC (60227 IEC 53) ili obični PCP (60245 IEC 57)
• Oštećeni kabel obavezno zamjenjuje proizvođač, serviser ili kvalificirano osoblje kako bi se izbjegla opasnost.

Diagram of a car electrical plug with wires and a valve, showing no text or symbols

1. Postavite kabel napajanja u držač kabela napajanja. Pogledajte Uporaba držača kabela napajanja (model LC 141C) na stranici 290.

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

1. Stanite iza proizvoda.

2. Otpustite blokadu pokretanja.

Line drawing of a mechanical device with attached cables and a handle (no text or symbols)

Line drawing of hands operating a handheld device with a black arrow indicating downward motion (no text or symbols)

Zaustavljanje proizvoda

1. Otpustite ručicom kočnice motora kako biste zaustavili motor.

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

1. Kabel napajanja prvo odspojite od mreže, a potom i od proizvoda.

Diagram of a car hood with attached plug and cable, showing a directional arrow (no text or symbols)

OPREZ: Priključak povlačite ravno prema van. Nemojte povlačiti kabel za napajanje.

Za dobar ishod

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

1. Nož mora biti poravnat sa središtem vratila motora.
2. Blokirajte nož drvenim blokom. Pričvrstite elastični rasječeni prsten i zategnite vijak i podlošku na zatezni moment od 20 Nm.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

1. Otpustite donje vijke.

2. Pomaknite kotačiće u donji dio utora na lijevoj i desnoj strani proizvoda.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with visible wheels and frame structure (no text or symbols)

Prijevoz

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or reuse.

Tehnički podaci
Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 71
Type of battery Husqvarna Battery Series Husqvarna B	Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 72
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels 73
Sound pressure level at the operators ear, dB (A)	83	83
Vibration levels 74
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70

71 For best results and performance the Husqvarna battery BLi200 is recommended.

72 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.

73 Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB (A).

74 Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s ^2 .

	LC 141iV LC 141i
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36 1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36 1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36 2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240 50–60	330
QC500	Husqvarna	100–240 50–60	500

Tehnički podaci LC 141C

	LC 141C
Motor
Vrsta motora	Serijski izmjenični motor
Broj okretaja motora – nazivni, o/min	3200
Snaga	1800 W
Izvor napajanja	Električni kabel
Kabel napajanja (samo za tržište u UK)
Tip kabela	Produžni kabel 16M
Težina, kg	1,6
Težina
Težina, kg	20,4
Emisije buke75
Razina jačine zvuka, mjerena u dB (A) 93
Razina jačine zvuka, zajamčena L_WA dB (A) 95
Razine buke76
Razine tlaka zvuka na uhu rukovatelja, dB (A) 85
Razine vibracije77
Ručka, m/s2	2,0
Rezanje
Visina rezanja, mm 25 – 70
Širina rezanja, cm 41
Nož, kataloški broj Skupljanje	5011716-01
Kapacitet vreće za travu, litra 50

EZ izjava o sukladnosti

Husqvarna AB, SE-561 82 Huskvarna, Švedska, tel: [phone], izjavljuje da su kosilice Husqvarna LC 141iV i LC 141i od serijskog broja 2018XXXXXXX nadalje i Husqvarna LC 141C od serijskog broja 2015XXXXXXX nadalje sukladne zahtjevima DIREKTIVE VIJEĆA:

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a car seatbelt device with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a car engine compartment with a close-up inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

Technical line drawing of a mechanical bracket assembly with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a black arrow pointing to a section (no text or symbols present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Mechanical assembly diagram showing a bracket with two black arrows pointing to specific components (no text or labels present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows and components (no text or labels)

Technical diagram showing a vehicle's rear suspension system with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and a handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring, no text or symbols present

Line drawing of a device with a warning symbol and a connected electrical outlet (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device, with no visible text or symbols

Illustration of hands using a device to adjust or install a component, with an upward arrow indicating motion (no text or symbols present)

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a car seatbelt with a belt and cable, showing a directional arrow (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view (no text or symbols)

Diagram of a car interior showing a steering wheel and a rear gear shift device (no text or symbols)

Line drawing of a car hood with attached cable and plug, showing a black arrow indicating a component (no text or symbols)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with attached cables and connectors (no text or symbols)

Line drawing of hands operating a handheld device with a black arrow indicating downward motion (no text or symbols)

A termék leállítása

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a handheld device with cable and plug, showing a directional arrow indicating movement (no text or symbols present)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical gear system with a rotating shaft and wooden base (no text or symbols)

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with four wheels and handlebars (no text or symbols)

Szállítás

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Műszaki adatok

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery^78
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions^79
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed L_WA dB (A) 89 89
Sound levels^80
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels^81
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries	Brand	Type	Battery capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
Approved batteries Brand Type	Battery capacity		city, Ah	Voltage, V Weight	lb/kg
BLi300	Husqvarna	Lithium-ion 9.4	36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a cable clamp mechanism with an arrow indicating direction (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with rope and hook, no text or symbols present

Sicurezza batterie

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a mechanical pipe assembly with bolts and fasteners (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical linkage or cable assembly with a black arrow pointing to a specific component (no text or symbols present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Mechanical assembly diagram showing a bracket with two black arrows pointing to specific components (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, side, and bottom (no text or symbols present)

Mechanical assembly diagram showing directional arrows and component placement (no text or symbols)

Technical diagram showing a vehicle's rear suspension system with labeled components A and B

Line drawing of a lawn mower with three wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring mechanism (no text or symbols)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its side panel (no text or symbols present)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a handheld device to adjust or install a device (no text or symbols visible)

Line drawing of hands holding a device with an upward arrow indicating motion (no text or symbols)

Diagram showing a container with labeled buttons and icons, indicating a process or control mechanism.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Diagram of a car gear shift lever system with a box and directional arrow indicating motion (no text or symbols)

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

Line drawing of a mechanical device with rope and hook, no text or symbols present

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of hands holding a device with a black arrow indicating force or motion (no text or symbols)

Diagram of a mechanical device with attached wires and a directional arrow (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a black arrow indicating direction (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with four wheels and handlebars (no text or symbols)

Trasporto

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or non-recyclable disposal.

Dati tecnici

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 85
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 86
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels 87
Sound pressure level at the operators ear, dB (A)	83	83
Vibration levels 88
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70

85 For best results and performance the Husqvarna battery BLi200 is recommended.
86 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
87 Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB (A).
88 Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s ^2 .

	LC 141iV LC 141i
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36 1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36 1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36 2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240 50–60	330
QC500	Husqvarna	100–240 50–60	500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

始動抑制装置の点検

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a cable harness with rope and hook, no text or symbols present

バッテリーの安全

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe clamp assembly with mounting holes and bolts (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical or electrical component with a black arrow pointing to a section (no text or symbols present)

ハンドルの高さの調節方法

1. 下側ノブを緩めます。

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Mechanical assembly diagram showing a lever mechanism with two black arrows indicating motion direction (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, side, and bottom (no text or symbols present)

Diagram of a car interior showing structural components and directional arrows (no text or labels)

マルチングキットの組み付け方法

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

刈高の設定方法

Technical line drawing of a car wheel assembly with suspension components (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

ドライブホイールの使用方法

Illustration of hands connecting a device to a cable with an upward arrow indicating motion (no text or symbols)

Diagram showing a container with labeled boxes and arrows indicating direction, possibly representing a process or system with symbols like circles, squares, and arrows.

Diagram of a car seatbelt device with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view (no text or symbols)

Diagram of a car interior showing a gear shift mechanism and a box with directional arrows (no text or symbols)

Line drawing of a medical device with attached tubing and cable, showing a black arrow indicating a specific component (no text or symbols present)

Line drawing of a mechanical device with rope and hook, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

本製品を停止するには

Diagram of a medical device with attached tubing and a directional arrow (no text or symbols)

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a curved structure with arrows pointing to a rectangular object, no text or symbols present

Handwritten Chinese characters in a stylized, brush-stroke style

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

バッテリー

Line drawing of a lawn mower with open handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear or worm mechanism (no text or labels)

1. ハンドルを前側に折り畳みます。

Line drawing of a lawn mower with three wheels and open hood (no text or symbols)

搬送

Diagram showing two crossed recycling bins with a recycling symbol and no text or labels

主要諸元

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 92
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions 93
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels 94
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels 95
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery		capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
BLi300	Husqvarna	Lithium-ion	9.4	36	4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

LC 141C の主要諸元

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a car seatbelt with a belt and cable, showing a directional arrow (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with a directional arrow indicating motion (no text or symbols present)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

Technical line drawing of a mechanical assembly with arrows indicating motion or force directions (no text or symbols)

Diagram of a mechanical or biological structure with a black arrow pointing to a specific part (no text or symbols present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Mechanical assembly diagram showing linkage components with arrows indicating movement (no text or labels)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical illustration of a mechanical device with three views: top view, side view, and bottom view (no text or symbols present)

Diagram of a vehicle's internal components with arrows indicating movement or assembly (no text or symbols present)

Technical diagram showing a vehicle's front view with labeled parts A and B, including a directional arrow and mechanical components.

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Diagram showing a device panel with four labeled buttons and an output box, illustrating a process or control interface.

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of a car interior showing a switch and gear shift (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with an arrow indicating upward motion (no text or symbols)

Diagram showing a container with labeled buttons and icons, indicating a process or operation with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car's front seat assembly with a magnified inset showing the internal component (no text or symbols)

Diagram of a car interior showing a gear shift mechanism with a box and directional arrows (no text or symbols)

Diagram of a handheld device with cable and plug, showing a black arrow indicating a specific component (no text or symbols present)

Line drawing of a mechanical device with rope and cable (no text or symbols)

Line drawing of a mechanical device with attached cables and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Gaminio sustabdymas

Diagram of a medical device with attached tubing and a directional arrow (no text or symbols)

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

1. Ranka pasukite peilj ir patikrinkite, ar jis laisvai sukasi.

Line drawing of a lawn mower with open handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with visible wheels and handlebars (no text or symbols)

Transportavimas

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Techniniai duomenys

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery99
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions100
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels ^101
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^102
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight	lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36	1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36	1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36	2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36	2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36	4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240	50–60	330
QC500	Husqvarna	100–240	50–60	500

Labeled diagram of a Hsuqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two waste sorting methods with recycling symbol and no text labels

Diagram of a cable clamp mechanism with an arrow indicating direction (no text or symbols present)

Technical line drawing of a car engine compartment with a close-up inset showing a dial (no text or symbols)

Diagram of a mechanical assembly with a curved pipe and lever mechanism, no text or symbols present

Line drawing of a mechanical device with rope and clamping rope (no text or symbols)

Labeled diagram of a mechanical assembly with numbered components A through H

Technical line drawing of a pipe elbow joint with mounting flanges and bolts (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Anatomical illustration of a human hand and forearm with a black arrow pointing to the wrist area (no text or labels present)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with two arrows indicating motion direction (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a vehicle's front view with labeled parts A and B, including a directional arrow and mechanical components.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring (no text or symbols)

Line drawing of a device with a warning symbol and cable, no text or labels present

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of hands using a handheld device to interact with a device, showing mechanical components and a directional arrow (no text or symbols)

Diagram showing a container with labeled buttons and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a car climbing rope with a lock and cable, showing motion direction (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

1. Lai iznemtu akumulatoru, nospiediet abas atbrivošanas pogas un iznemiet akumulatoru.

Diagram showing a car interior with a device and directional arrow, no text or symbols present

Diagram of a plug-in connector with cable and plug, showing internal components and wiring (no text or labels)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Line drawing of hands operating a cable or connector with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical device with attached cable and clamping mechanism (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a black arrow indicating direction (no text or symbols)

IEVÉROJIET: Velciet

kontaktdakšu taisni. Nevelciet aiz strāvas vada.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with attached frame (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with four wheels and handlebars (no text or symbols)

Transportēšana

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Tehniskie dati
Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^106
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^107
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^108
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^109
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity, Ah			Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
BLi300	Husqvarna	Lithium-ion	9.4	36	4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Tehniskie dati: LC 141C

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two waste sorting methods with recycling symbols and no text labels

Diagram of a cable clamp mechanism with an arrow indicating direction (no text or symbols present)

Veiligheidssleutel (modellen LC 141iV en LC 141i)

Technical line drawing of a car intake manifold with a close-up inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with rope and cable (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe clamp assembly with bolts and fasteners (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Anatomical illustration of a human leg with a black arrow pointing to a specific area (no text or labels present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Technical line drawing of a mechanical linkage assembly with two black arrows indicating movement or force directions (no text or symbols present)

Technical diagram showing mechanical components with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical component with three views: top, side, and bottom (no text or symbols present)

Mechanical assembly diagram showing directional arrows and component placement (no text or symbols)

Mulchkit monteren

Technical diagram showing a vehicle's rear suspension system with labeled components A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a wheel and attached bracket (no text or symbols)

Line drawing of a device with a warning symbol and a connected electrical outlet (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

LED-display Laadstatus
LED 1 knippert 0%-25%
Led 1 brandt, led 2 knippert	25%-50%
Led 1 en led 2 branden, led 3 knippert	50%-75%
Led 1, led 2 en led 3 branden, led 4 knippert	75%-100%
Led 1, led 2, led 3, led 4 branden	Volledig opgeladen

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Line drawing of hands performing a cable or cable clamp operation with a black arrow indicating direction (no text or symbols)

Diagram showing a container with labeled buttons and icons, indicating a process or operation with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with an arrow indicating direction (no text or symbols present)

Technical line drawing of a car's side seat assembly with a magnified inset showing the wheel (no text or symbols)

Diagram of a car interior showing a gear shift mechanism and a box with directional arrows (no text or symbols)

Diagram of a medical or laboratory setup with tubing and a device, no visible text or symbols

Line drawing of a mechanical device with rope and cable (no text or symbols)

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Line drawing of hands operating a cable or connector with a downward arrow indicating motion (no text or symbols)

Product stoppen

1. Laat de remhendel van de motor los om de motor te stoppen.

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a medical or electrical device with attached wires and a central connector (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above a textured ground surface (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with four wheels and handlebars (no text or symbols)

Transport

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Technische gegevens

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 113
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 114
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels ^115
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^116
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight	lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36	1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36	1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36	2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36	2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36	4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240	50–60	330
QC500	Husqvarna	100–240	50–60	500

Labeled diagram of a Husqvarna lawn mower system with numbered components and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two waste sorting bins with recycling symbols and a recycling symbol in the first bin.

Startprosedyre for modell LC 141C: løsne startsperren, skyv

Diagram of a car seatbelt clamping mechanism showing rope routing and lifting force (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with wires and a black arrow indicating a connection point (no text or symbols)

Batterisikkerhet

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe assembly with bolts and a bracket (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Merk: Kontroller at kablene ikke er strammet for hardt. Hvis kablene er for hardt strammet, kan dette føre til skade på kabelen hvis håndtaket felles ned i transportstilling.

Diagram of a mechanical linkage or cable assembly with a black arrow pointing to a component (no text or symbols present)

Mechanical assembly diagram showing a hand holding a component with a circular arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a bracket with two arrows indicating connection points (no text or symbols present)

Technical diagram showing mechanical component assembly with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with three views: top, side, and bottom (no text or symbols present)

Mechanical assembly diagram showing directional arrows and components (no text or labels)

Slik monterer du finfordelingssettet

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

1. Lukk det bakre dekselet.

2. Skift ut kniven med kombikniven. Se Ta av og skifte kniv på side 495.

Drift

Innledning

ADVARSEL: Før du bruker produktet, må du lese og forstå kapittelet om sikkerhet.

Husqvarna Connect

Husqvarna Connect er en kostnadsfri app for mobilenheten din. Husqvarna Connect-appen gir utvidede funksjoner for Husqvarna-produktet ditt:

Line drawing of a lawn mower with three wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a wheel and attached components (no text or symbols)

Diagram showing a device panel with numbered labels pointing to its internal components, including a warning icon and a labeled device.

LED-lamper Batteristatus
Alle LED-indikatorer lyser	Fullt ladet (75–100 %)
LED 1, LED 2, LED 3 ly-ser.	Batteriet er 50–75 % la-det.
LED 1, LED 2 lyser. Batteriet	er 25–50 % la-det.
LED 1 lyser. Batteriet er 0–	25 % ladet.
LED 1 blinker Batteriet er ut	ladet. Ladbatteriet.

Line drawing of a device with a warning symbol and connection point (no text or labels)

1. Sett batteriet i batteriladeren. Den grønne lampen på laderen tennes när batteriet er riktig koblet til laderen.

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. Når alle LED-indikatorene på batteriet lyser, er batteriet fulladet. Lad batteriet i maks. 24 timer.
2. For å koble laderen fra stikkontakten må du dra i selve støpselet, ikke i ledningen.
3. Fjern batteriet fra batteriladeren.

Batteriladestatus

Et Husqvarna Li-ionbatteri kan lades eller brukes ved et hvilket som helst ladenivå. Batteriet blir ikke skadet. Et fulladet batteris ladenivå reduseres ikke när batteriet blir stående i laderen.

LED-display	Ladestatus
LED 1 blinker 0–25 %
LED 1 lyser, LED 2 blinker	25–50 %
LED 1, LED 2 lyser, LED 3 blinker	50–75 %
LED 1, LED 2, LED 3 ly-ser, LED 4 blinker	75–100 %
Lampe 1, lampe 2, lampe 3 og lampe 4 tennes	Fulladet

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

1. Stå bak produktet.
2. Trykk på PÅ/AV-knappen (A) på kontrollpanelet, så tennes den grønne LED-indikatoren (B).

A Husqvarna* B

1. Løsne startsperren.

Diagram of a mechanical assembly with no visible text or symbols

Illustration of hands using a handheld device to interact with a device (no text or symbols visible)

Bruke hjuldriften

Illustration of hands using a tool to adjust or install a device, with an arrow indicating the process (no text or symbols present)

Diagram showing a container with labeled buttons and icons, indicating a process or operation with arrows pointing to the bottom.

Diagram of a car climbing rope with a valve, showing mechanical components and motion direction (no text or symbols)

1. Trykk på PÅ/AV-knappen (A) på kontrollpanelet, så slukker den grønne LED-indikatoren (B).

A Husqvarma* B

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Diagram of a car gear shift lever system with a device inset showing the component (no text or symbols present)

Diagram of a medical or electrical device with attached wires and a plug, showing no text or symbols.

1. Sett strømledningen i strømledningsholderen. Se Slik bruker du strømledningsholderen (modell LC 141C) på side 484.

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

1. Stå bak produktet.

2. Løsne startsperren.

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Line drawing of hands operating a handheld device with a cable, no text or symbols present

Diagram of a mechanical device with attached cable and clamping mechanism (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a directional arrow (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Vipp håndtaket forover.

Line drawing of a lawn mower with wheels and handlebars (no text or symbols)

Transport

Diagram showing two crossed bins with recycling symbols, indicating no waste or reuse in the waste bin system.

Tekniske data

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^120
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^121
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^122
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^123
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity, Ah			Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
BLi300	Husqvarna	Lithium-ion	9.4	36	4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Tekniske data LC 141C

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car headset with a close-up inset showing a dial (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and fasteners (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or biological structure with a black arrow pointing to a specific part (no text or symbols present)

Mechanical assembly diagram showing a gear and mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical linkage diagram showing two black arrows pointing to a joint detail (no text or symbols present)

Technical diagram of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows and components (no text or labels)

Technical diagram showing a vehicle's rear suspension system with labeled components A and B

• Extended product information.
• Information about, and help with, product parts and servicing.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with open hood and wheels, showing mechanical components and motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and clamping device (no text or symbols)

Diagram showing a device with numbered components and an external labeled device, likely illustrating a control or status setup.

Line drawing of a device with a control panel and warning symbol, connected to an electrical outlet (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Line drawing of hands holding a device with an upward arrow indicating motion (no text or symbols)

Diagram showing a container with labeled boxes and arrows indicating flow or movement, featuring icons for animals and symbols.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Diagram of a car interior showing a gear shift and a device casing with arrows indicating motion (no text or symbols)

Diagram of a medical or electrical device with wires and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with attached cables and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or cable device, with no visible text or symbols.

Zatrzymywanie

Diagram of a mechanical device with attached wires and a directional arrow (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a black arrow indicating direction (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a tool interacting with a curved surface, with arrows indicating direction (no text or symbols)

Handwritten Chinese characters in a stylized, brush-stroke style

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with four wheels and open hood (no text or symbols)

Transport

Diagram showing two waste sorting bins with a recycling symbol and crossed-out bins, indicating no disposal or recycling.

Dane techniczne

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 127
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45	45
Noise emissions 128
Sound power level, measured dB (A) 88	88
Sound power level, guaranteed LWA dB (A)	89	89
Sound levels 129
Sound pressure level at the operators ear, dB (A)	83	83
Vibration levels 130
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70

127 For best results and performance the Husqvarna battery BLi200 is recommended.
128 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
129 Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB (A).
130 Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s ^2 .

	LC 141iV LC 141i
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36 1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36 1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36 2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240 50–60	330
QC500	Husqvarna	100–240 50–60	500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a mechanical device with a lever and connecting components, showing motion direction (no text or symbols)

Chave de segurança (modelos LC 141iV e LC 141i)

Technical line drawing of a car intake manifold with a close-up inset showing a circular component (no text or symbols)

Verificar o inibidor de arranque

Verifique o inibidor de arranque para se certificar de que este impede o funcionamento do motor.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a cable harness with rope and hook, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and fixtures (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical linkage or cable assembly with a black arrow pointing to a component (no text or symbols present)

Mechanical assembly diagram showing a gear and mechanical component with no visible text or symbols

Technical line drawing of a mechanical linkage assembly with arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, side, and bottom (no text or symbols present)

Diagram of a vehicle's internal components with arrows indicating movement or force (no text or symbols present)

Technical diagram showing a vehicle's rear view with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Para definir a altura de corte

Technical line drawing of a mechanical device with a wheel and attached bracket (no text or symbols)

Diagram showing a device with four labeled buttons and a connector, likely illustrating a control or status setup.

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the dial (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with an arrow indicating motion (no text or symbols present)

Diagram showing a container with labeled buttons and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Diagram of a car gear shift lever with a box and directional arrow indicating motion (no text or symbols)

Diagram of a medical or electrical device with wires and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with attached cables and a handle (no text or symbols)

Line drawing of hands operating a cable or connector with a downward arrow indicating compression (no text or symbols)

Diagram of a mechanical device with attached wires and a directional arrow indicating motion (no text or symbols)

Diagram of a medical or laboratory device with attached tubing and a central connector (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with three wheels and handlebars (no text or symbols)

Transporte

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^134
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^135
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^136
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^137
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries	Brand	Type	Battery capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
Approved batteries Brand Type	Battery capacity	-	ty, Ah	Voltage, V Weight	lb/kg
BLi300	Husqvarna	Lithium-ion 9.4	36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husevarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a car seatbelt device with an arrow indicating upward motion (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Siguranța bateriei

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical or electrical component with a black arrow pointing to a section (no text or symbols present)

Mechanical assembly diagram showing a hand turning a gear with a rotating component (no text or symbols)

Mechanical assembly diagram showing linkage components with arrows indicating movement (no text or labels)

Mechanical assembly diagram showing a bracket with mounting holes and fasteners (no text or symbols)

Technical line drawing of a mechanical device with three views: top view, front view, and side view (no text or symbols present)

Mechanical assembly diagram showing directional arrows and components (no text or labels)

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and attached components (no text or symbols)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands performing a cable or cable clamp operation with an upward arrow indicating motion (no text or symbols)

Diagram showing a container with labeled buttons and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a car interior showing a gear shift mechanism and a compact device (no text or symbols)

Diagram of a medical or electrical device with wires and connectors, no text or symbols present

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

Line drawing of a mechanical device with attached cables and a handle (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Oprirea produsului

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a medical or laboratory device with attached tubing and a central connector (no text or symbols)

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with four wheels and handlebars (no text or symbols)

Transportul

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or reuse.

Date tehnice

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^141
Type of battery	Husqvarna Battery Series	Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^142
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^143
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^144
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	-	ty, Ah	Voltage, V Weight	lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
BLi300	Husqvarna	Lithium-ion	9.4	36	4.1/1.9

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240	50–60	330
Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC500	Husqvarna	100–240 50–60 500

Date tehnice LC 141C

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two crossed bins with recycling symbols and a recycling symbol, likely illustrating waste management or recycling rules.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

Technical line drawing of a mechanical bracket assembly with directional arrows indicating movement (no text or symbols)

Anatomical illustration of a human hand and wrist with a black arrow pointing to a specific muscle or ligament (no text or labels present)

Mechanical assembly diagram showing a gear mechanism with a rotating component (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with two black arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Diagram of a vehicle's internal components with arrows indicating movement or assembly (no text or symbols present)

Technical diagram showing a vehicle's rear door mechanism with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and levers (no text or symbols)

Diagram showing a device panel with four labeled buttons and a connected device, likely illustrating a control or status setup.

Line drawing of a device with a switch and warning symbol, connected to an electrical outlet (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing a circular component (no text or symbols)

Diagram of a mechanical assembly with a curved pipe and lever mechanism, no text or symbols present

Illustration of hands using a tool to adjust or install a device, showing a downward arrow (no text or symbols present)

Line drawing of hands using a handheld device to interact with a device, showing a black upward arrow indicating motion (no text or symbols present)

Diagram showing a container with animal icons and directional arrows, likely illustrating a process or system with positive and negative indicators.

Diagram of a cable clamp or connector assembly with an arrow indicating direction (no text or symbols present)

Technical line drawing of a car's side panel with a magnified inset showing a component detail (no text or symbols)

Diagram of a car interior showing a gear shift mechanism with an open gear and a box (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a directional arrow (no text or symbols)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Остановка изделия

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a directional arrow (no text or symbols)

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with rotating components (no text or labels)

Line drawing of a lawn mower with three wheels and handlebars (no text or symbols)

Транспортировка

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^148
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^149
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^150
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^151
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number	Collect - 5011716-01	Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries	Brand	Type	Battery capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2

Approved batteries Brand Type Battery		capacity, Ah	Voltage, V Weight, lb/kg
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a car seatbelt device with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Kontrola poistky naštartovania

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Bezpečnost' batérie

Technical diagram of a mechanical assembly with labeled parts A through H

1. Maticu (E) utiahnite na doraz.
2. Zatlačte skrutku (F) cez podložku (G) a opornú podperu rukoväti.
3. Gombík (H) utiahnite na doraz.
4. Zarovnajte otvory na rukoväti s otvormi na spodnej rukoväti a upevnite skrutky, podložky a gombíky. Gombíky utiahnite na doraz.

Technical line drawing of a pipe elbow joint with mounting fixtures (no text or symbols)

1. Pomocou držiakov na káble pripevnite káble k rukoväti.

Technical line drawing of a mechanical bracket assembly with directional arrows indicating movement (no text or symbols)

Anatomical illustration of a human arm joint with a black arrow indicating a specific area (no text or labels present)

Mechanical assembly diagram showing a hand turning a gear with a rotating arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with two black arrows pointing to specific components (no text or symbols present)

Technical diagram showing mechanical component assembly with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows and component layout (no text or symbols)

Technical diagram showing a vehicle's rear view with labeled parts A and B, including a directional arrow and mechanical components.

Line drawing of a lawn mower with grass blades and a flat blade (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and clamping mechanism (no text or symbols)

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. Ked' svietia všetky indikátory LED na batérii, batéria je plne nabitá. Batériu nabíjajte maximálne 24 hodín.

2. Pri odpájaní nabíjačky batérií od siet'ovej zásuvky t'ahajte za zástrčku, nie za šnúru.

3. Vyberte batériu z nabíjačky batérii.

Stav nabíjania batérie

Technical line drawing of a car intake manifold with a close-up inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Illustration of hands using a device to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car intake manifold with a magnified inset showing a component detail (no text or symbols)

Diagram of a car gear shift mechanism showing the blade and gear assembly (no text or labels)

Obsluha modelu LC 141C

Diagram of a hand holding a connector with cable and plug, showing a directional arrow (no text or symbols)

1. Vložte napájací kábel do držiaka napájacieho kábla. Pozrite si čast' Použivanie držiaka napájacieho kábla (model LC 141C) na strane 629.

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Line drawing of hands using a tool to adjust cable or plug, with no text or symbols present

Vypnutie výrobku

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a medical or electrical device with wires and connectors, no text or symbols present

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Skopte držadlo dopredu.

Line drawing of a lawn mower with visible wheels and handlebars (no text or symbols)

Preprava

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Technické údaje
Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 155
Type of battery	Husqvarna Battery Series	Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77	77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^156
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^157
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^158
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre 50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight	lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36
BLi100	Husqvarna	Lithium-ion	2.6	36
BLi20	Husqvarna	Lithium-ion	4.0	36
BLi200	Husqvarna	Lithium-ion	5.2	36
BLi30	Husqvarna	Lithium-ion	7.5	36
BLi300	Husqvarna	Lithium-ion	9.4	36

Approved chargers for the specified batteries,	Brand	Input voltage, V	Frequency, Hz	Power, W
QC80	Husqvarna	100–240	50–60	80
QC80F	Husqvarna	12	0	80
QC250	Husqvarna	220-240	50	250
QC330	Husqvarna	100–240	50–60	330
Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two waste sorting methods with recycling symbols and crossed-out bins

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Varnostni ključ (modela LC 141iV in LC 141i)

Technical line drawing of a car intake manifold with a close-up inset showing the dial (no text or symbols)

Za pregled blokade vžiga

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Varna uporaba baterije

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and mounting fixtures (no text or symbols)

1. S priloženimi veznimi elementi pletenice pritrdite na ročaj.

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical linkage or cable assembly with a black arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a gear mechanism with a rotating component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

1. Zgornji del zbiralnika za travo namestite na spodnji del zbiralnika za travo. Okvir zbiralnika za travo pritrdite z jezički.

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows and component labels (no text or symbols)

Technical diagram showing a vehicle's rear wheel assembly with labeled parts A and B, including a directional arrow indicating movement.

1. Zaprite zadnji pokrov.
2. Rezilo zamenjajte z rezilom Combi, glejte Odstranitev in zamenjava rezila na strani 667.

Delovanje

Uvod

OPOZORILO: Pred uporabo izdelka morate prebrati in razumeti poglavje o varnosti.

Husqvarna Connect

Line drawing of a lawn mower with four wheels and extended handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Line drawing of a vehicle's wheel and suspension system (no text or symbols)

Line drawing of a wall-mounted device connected to a control panel with warning symbol (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its side panel (no text or symbols present)

Uporaba LC 141iV in LC 141i

Zagon izdelka

Technical line drawing of a car interior showing a switch and gear mechanism (no text or symbols)

Diagram of a mechanical assembly with no visible text or symbols

1. Ročico motorne zavore potisnite v smer ročaja.

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

O uporabi pogona koles

Illustration of hands using a device to adjust or install a cable or cable connector (no text or symbols present)

Diagram showing a container with labeled buttons and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a car seatbelt device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view (no text or symbols)

Diagram of a car interior showing a gear shift mechanism and a device with directional arrows (no text or symbols)

Diagram of a medical or laboratory setup with tubing and connectors, no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

1. Ročico motorne zavore potisnite v smer ročaja.

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Izklop izdelka

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

POZOR: Vtič povlecite naravnost iz vtičnice. Nikoli ne vlecite za napajalni kabel.

Kako doseči dober rezultat

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. Odstranite vijak rezila.
2. Odstranite rezilo.
3. Preverite, ali sta nosilec in vijak rezila poškodovana.

4. Preverite motorno gred in se prepričajte, da ni zvita.

5. Ko pritrdite novo rezilo, usmerite nagnjene strani rezila v smer pokrova rezila.

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

1. Prepričajte se, da je rezilo poravnano s središčem motorne gredi.

2. Rezilo blokirajte z leseno klado. Namestite vzmetno podložko in zategnite vijak in podložko z zateznim momentom 20 Nm.

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

1. Ročno zavrtite rezilo in se prepričajte, da se prosto obrača.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with visible wheels and frame structure (no text or symbols)

Prevoz

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Tehnični podatki

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^162
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^163
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^164
Sound pressure level at the operators ear, dB (A)	83 83
Vibration levels ^165
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70
Cutting width, cm	41 41
Blade, article number	Collect - 5011716-01	Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries Brand Type	Battery capacity	ty, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36 1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36 1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36 2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

1. Ručica kočnice motora
2. Inhibitor pokretanja
3. Pogonska osovina (LC 141iV)

4. Ručka/upravljač

5. Kontrolna tabla

6. Dugme za uključivanje/isključivanje (ON/OFF)
7. Dugme SavE

8. Dugme indikatora akumulatora

9. Indikator punjenja akumulatora

10. Indikator upozorenja (LED lampica greške)
11. Dugme za smanjenje brzine (LC 141iV)
12. Indikator nivoa brzine (LC 141iV)
13. Dugme za povećanje brzine (LC 141iV)
14. Zadnji poklopac
15. Simboli
16. Poklopac akumulatora

17. Bezbednosni ključ

18. Poklopac košenja

19. Poluga visine košenja
20. Nazivna pločica
21. Hvatač trave
22. Komplet za usitnjavanje (dodatak za LC 141iV)
23. Komplet za usitnjavanje (dodatak za LC 141i)
24. Punjač akumulatora (oprema)
25. Akumulator (oprema)
26. Korisničko uputstvo

Pregled proizvoda LC 141C

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

(model LC 141iV/LC 141i)

IPX4 – Proizvod ima zaštitu od prskanja vode (model LC 141C)

Diagram of a car seatbelt connector with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Provera inhibitora pokretanja

Izvršite proveru inhibitora pokretanja kako biste se uverili da sprečava rad motora.

1. Pritisnite ručicu kočnice motora u smeru upravljača. Inhibitor pokretanja zaustavlja kretanje.

2. Pritisnite inhibitor pokretanja ka spolja.

Diagram of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

1. Postavite kablove na ručku sa držačima kablova.

Technical line drawing of a mechanical bracket assembly with directional arrows indicating movement (no text or symbols)

Napomena: Uverite se da zategnutost kablova nije prevelika. Prevelika zategnutost može izazvati oštećenje kabla ako se ručka savije u položaj za transport.

1. Postavite kablove oko kuke na dnu ručke.

Anatomical illustration of a human foot and arm with a black arrow pointing to a specific area (no text or labels present)

Podešavanje visine ručke

1. Olabavite donju dugmad.

Mechanical assembly diagram showing a hand turning a gear with a rotating knob (no text or symbols)

1. Uklonite dugme, podlošku i zavrtanj na levoj i desnoj strani.

2. Ručka se može postaviti u 2 različite visine. Postavite zavrtanj u jedan od 2 otvora na levoj i desnoj strani.

Technical line drawing of a mechanical assembly with two black arrows pointing to specific components (no text or symbols present)

1. Postavite zavrtnje, podloške i dugmad.

2. Pomerite dugmad nagore u smeru ručke dok se ne zaustave i ne čujete klik zvuk. Potpuno zategnite dugmad.

CLICK!

Sklapanje hvatača trave

1. Pritisnite 2 poklopca za transport ka spolja i nadole.

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

1. Postavite gornji deo hvatača trave na donji deo hvatača trave. Pričvrstite okvir hvatača trave spojnicama.

Technical line drawing of a mechanical device with three views: top, side, and bottom (no text or symbols present)

1. Podignite zadnji poklopac.

2. Postavite kuke na hvatač trave do gornje ivice šasije.

Mechanical assembly diagram showing directional arrows and components (no text or labels)

Technical diagram showing a vehicle's rearview assembly with labeled parts A and B, including a directional arrow indicating movement.

1. Zatvorite zadnji poklopac.
2. Zamenite sečivo Combi sečivom, pogledajte Uklanjanje i zamena sečiva na stranici 695.

Rukovanje

Uvod

Line drawing of a lawn mower with four wheels and a handle (no text or symbols)

1. Pomerite donju dugmad nagore u smeru ručke dok se ne zaustave i ne čujete klik zvuk.

CLICK!

1. Zategnite dugmad.
2. Podignite gornju ručku i zategnite dugmad.

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring mechanism (no text or symbols)

Diagram showing a device panel with four labeled buttons and an external device, illustrating a process or connection.

LED lampice Status akumulatora
Sve LED lampice svetle Potpuno napunjeno (75-100%)
LED br. 1, LED br. 2, LED br. 3 svetle	Akumulator je 50%-75% napunjen
LED br. 1, LED br. 2 svet-le	Akumulator je 25%-50% napunjen
LED br. 1 svetli Akumulator	je 0%-25% napunjen.
LED br. 1 trepće Akumulator	je prazan. Na-punite akumulator.

Punjenje akumulatora

Napunite akumulator pre prvog korišćenja. Akumulator je samo 30% napunjen prilikom isporuke kupcu.

Line drawing of a device with a D button and warning symbol connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. Akumulator je potpuno napunjen kada na njemu svetle sve LED lampice. Punite akumulator najviše 24 sata.
2. Da biste iskopčali punjač akumulatora iz mrežne utičnice, povucite utikač, a ne kabl za napajanje.
3. Izvadite akumulator iz punjača akumulatora.

Status punjenja akumulatora

Husqvarna litijum-jonski akumulator se može puniti ili koristiti na svim nivoima punjenja. Akumulator nije oštećen. Potpuno napunjen akumulator neće smanjiti punjenje kada je akumulator ostavljen na punjaču.

LED displej	Status punjenja
LED br. 1 trepće 0%-25%
LED br. 1 svetli, LED br. 2 trepće	25%-50%
LED br. 1, LED br. 2 svet-le, LED br. 3 trepće	50%-75%
LED br. 1, LED br. 2, LED br. 3 svetle, LED br. 4 trepće	75%-100%
LED br. 1, LED br. 2, LED br. 3, LED br. 4 svetle	Potpuno napunjeno

Rad sa LC 141iV i LC 141i

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

1. Stanite iza proizvoda.

2. Pritisnite dugme za uključivanje/isključivanje (ON/OFF) (A) na kontrolnoj tabli i zelena LED lampica (B) se uključuje.

A Husqvarma* B

1. Olabavite inhibitor pokretanja.

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Korišćenje pogona na točkićima

- Model LC 141iV. Povucite pogonsku osovinu u smeru upravljača da bi se pokrenuo pogon.

Line drawing of a person adjusting a device with an upward arrow (no text or symbols)

- Pritisnite + i - na kontrolnoj tabli da biste postavili brzinu u 4 koraka.

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

- Otpustite pogonsku osovinu da biste deaktivirali pogon, na primer, kada se nalazite blizu prepreke.

Korišćenje funkcije SavE

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing a component detail (no text or symbols)

1. Da biste uklonili akumulator, pritisnite 2 dugmeta za otpuštanje i izvucite akumulator.

Diagram of a car interior showing a shift lever and a box with arrows indicating motion (no text or symbols)

1. Napunite akumulator ako je prazan. Za više informacija, pogledajte Punjenje akumulatora na stranici 690.

Rad sa LC 141C

Izbor odobrenog kabla (LC 141C)

Napomena: Za tržište Velike Britanije, koristite samo produžni kabl 16M koji se isporučuje sa proizvodom. Za sva ostala tržišta, pogledajte informacije u nastavku.

Ako koristite produžne kablove, moraju biti saglasni sa minimalnim poprečnim presecima navedenim u tablici ispod:

Napon Dužina ka-	bla	Poprečni presek
220-240 V/50 Hz Do 20 m	1,5 mm	2
220-240 V/50 Hz 20–50 m	2,5 mm	2

Diagram of a cable connector with a plug and cable assembly, showing a directional arrow (no text or symbols)

1. Stavite kabl za napajanje u držač kabla za napajanje. Pogledajte Korišćenje držača kabla za napajanje (model LC 141C) na stranici 683.

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

1. Stanite iza proizvoda.
2. Olabavite inhibitor pokretanja.

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Line drawing of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Zaustavljanje proizvoda

1. Otpustite ručicu kočnice motora da biste zaustavili motor.

Diagram of a device with attached cable and connector, showing a directional arrow (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a black arrow indicating direction (no text or symbols)

OPREZ: Izvucite utikač. Ne vucite kabl za napajanje.

Za dobre rezultate

• Uvek koristite oštro sečivo. Tupo sečivo daje neujednačeni rezultat i pokošena površina trave postaje žuta. Oštro sečivo takođe koristi manje energije nego tupo sečivo.
• Nemojte kositi više od 13 dužine trave. Prvo kosite sa visokom visinom košenja. Pregledajte rezultat i spustite visinu košenja na prihvatljivi nivo. Ako je trava zaista visoka, vozite polako i kosite dvaput ako bude potrebno.
• Kosite u različitim smerovima svaki put da biste izbegli pruge na travnjaku.

Održavanje

Uvod

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

1. Uklonite vijak sečiva.

2. Uklonite sečivo.

3. Pregledajte nosač sečiva i vijak sečiva kako biste videli postoje li oštećenja.
4. Pregledajte osovinu motora kako biste se uverili da nije savijena.
5. Kada postavite novo sečivo, usmerite savijene krajeve sečiva u smeru poklopca košenja.

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

1. Pobrinite se da je sečivo poravnato sa sredinom osovine motora.
2. Blokirajte sečivo pomoću komada drveta. Postavite opružnu podlošku i zategnite vijak i podlošku na moment pritezanja od 20 Nm.

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, featuring a wooden block and a cross-section view (no text or symbols)

1. Povucite sečivo rukom da biste proverili da li se slobodno okreće.

Line drawing of a lawn mower with handle and wheels (no text or symbols)

1. Olabavite donju dugmad.

2. Pomerite dugmad u donji kraj žlebova na levoj i desnoj strani proizvoda.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Sklopite ručku unapred.


Line drawing of a lawn mower with three wheels and handlebars (no text or symbols)

Transport

• Zahtevi u pogledu transporta opasnih materija primenjuju se na sadržane litijum-jonske akumulatore.
• Za komercijalni transport moraju se poštovati posebni zahtevi koji su navedeni na pakovanju i nalepnicama.
• Pobrinite se da se pridržavate propisa za transport opasnih materija prilikom pripreme proizvoda za transport. Lokalni propisi se mogu primenjivati.
• Uvek uklonite akumulator pre transporta.
• Stavite traku na konektore akumulatora i uverite se da se akumulator ne može pomerati tokom transporta.
  • Fiksirajte proizvod tokom transporta.

Skladištenje

• Uvek uklonite akumulator pre skladištenja.
• Kako bi se sprečili nesrećni slučajevi, uverite se da akumulator nije povezan na proizvod tokom skladištenja.
• Držite punjač akumulatora u zatvorenom i suvom prostoru.
• Držite akumulator i punjač akumulatora u suvom prostoru gde nema vlage ili mraza.
• Iskopčajte akumulator sa punjača akumulatora tokom skladištenja.
• Ne čuvajte akumulator na mestima gde može doći do statičkog pražnjenja. Ne čuvajte akumulator u metalnoj kutiji.
• Čuvajte akumulator na mestu gde je temperatura između 5 °C i 25 °C i van direktne sunčeve svetlosti.

• Čuvajte punjač akumulatora na mestu gde je temperatura između 5 °C i 45 °C i van direktne sunčeve svetlosti.

• Pobrinite se da je akumulator napunjen na 30% - 50% pre skladištenja na duži vremenski period.

• Čuvajte proizvod, akumulator i punjač akumulatora na zaključanom mestu izvan domašaja dece i neovlašćenih osoba.
• Očistite proizvod i izvršite kompletno servisiranje pre nego što uskladištite proizvod na duži vremenski period.

Odlaganje

Simboli na proizvodu ili njegovom pakovanju ukazuju na to da se ovim proizvodom ne može rukovati kao otpadom iz domaćinstva. On se mora odneti u odgovarajući reciklažni pogon za obnavljanje električne i elektronske opreme.

Diagram showing two waste sorting bins with crossed-out recycling symbols, indicating no disposal or recycling.

Tehnički podaci

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^169
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^170
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^171
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^172
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries	Brand	Type	Battery capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9
Approved batteries Brand Type	Battery capacity	-	ty, Ah	Voltage, V Weight	lb/kg
BLi300	Husqvarna	Lithium-ion 9.4	36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Tehnički podaci LC 141C

	LC 141C
Motor
Tip motora Serija AC motora
Brzina motora – nominalna, o/min 3200
Snaga	1800 W
Izvor napajanja	Električna energija preko kabla
Kabl za napajanje (uključen samo za tržište Velike Britanije)
Tip kabla	16M produžni kabl
Težina, kg	1,6
Težina
Težina, kg	20,4
Emisija buke 173
Nivo zvučne snage, mereno dB (A)	93
Nivo zvučne snage, garantovano L_WA dB (A) 95
Nivoi zvuka 174
Nivo zvučnog pritiska na uho rukovaoca, dB (A)	85
Nivoi vibracije 175
Ručka, m/s2	2,0
Košenje
Visina košenja, mm 25–70
Širina košenja, cm 41
Nož, broj artikla Sakupljanje	5011716-01
Kapacitet vreće za sakupljanje trave, litri 50

EZ deklaracija o usaglašenosti

Husqvarna AB, SE-561 82 Huskvarna, Švedska, tel: [phone], izjavljuje da su kosačice Husqvarna LC 141iV i LC 141i od serijskog broja 2018XXXXXXX i nadalje i Husqvarna LC 141C od serijskog broja 2015XXXXXXX i nadalje, usaglašene sa zahtevima DIREKTIVE VEĆA:

• od 8. juna 2011., o „ograničenju upotrebe određenih opasnih supstanci“ 2011/65/EU
• od 17. maja 2006., „u vezi sa mašinerijom“ 2006/42/EZ
• od 26. februara 2014, „koja se odnosi na elektromagnetnu kompatibilnost“ 2014/30/EU
• od 8. maja 2000, „koja se odnosi na emisije buke u okruženju“ 2000/14/EZ

Za informacije o emisiji buke, pogledajte poglavlje Tehnički podaci.

Primenjeni su sledeći standardi za sertifikate proizvoda Husqvarna LC 141iV i LC 141i: IEC 60335-2-77:2002, IEC 60335-1:2010+A1:2013, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62233:2008

Primenjeni su sledeći standardi za sertifikate proizvoda Husqvarna LC 141C: EN 60335-1:2012+A11:2014, EN 60335-2-77:2010, EN 62233:2008, EN 55014-1:2017+A11, EN 55014-2:2015, EN 61000-3-2:2019, EN 61000-3-11:2019

Ovlašćeno telo: 0404, RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala je obavilo ocenjivanje usaglašenosi u skladu sa Aneksom VI direktive 2000/14/EC.

Huskvarna, 2020-10-13

$$ \Delta \cdot 2 m $$

Claes Losdal, menadžer razvoja / baštenski proizvodi (ovlašćeni predstavnik kompanije Husqvarna AB i odgovorna osoba za tehničku dokumentaciju.)

Innehåll

Introduktion....703

Säkerhet....706

Montering....714

Drift....716

Underhåll....721

Felsökning....723

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a car seatbelt with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with wires and connectors, no text or symbols present

Batterisäkerhet

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and a bracket (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical or electrical component with a black arrow pointing to a section (no text or symbols present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or symbols)

Mechanical assembly diagram showing linkage components with arrows indicating movement (no text or labels)

Technical diagram showing mechanical assembly with arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical housing component with three views and arrows indicating assembly steps (no text or symbols present)

Mechanical assembly diagram showing directional arrows and component layout (no text or symbols)

Montera mulchingsats

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and clamping mechanism (no text or symbols)

Diagram showing a device with four labeled buttons and a warning symbol pointing to the right panel.

Line drawing of a device with a D button and warning symbol connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its side (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Diagram of a mechanical assembly with a lever and adjustment arrow (no text or symbols)

Illustration of hands using a handheld device to interact with a tool, showing a downward arrow indicating motion (no text or symbols present)

Illustration of hands using a device to adjust or install a cable or cable connector (no text or symbols present)

Diagram showing a container with labeled boxes and arrows indicating movement or process, featuring icons for animals and symbols.

Diagram of a car seatbelt with a belt and cable, showing a directional arrow (no text or symbols)

Technical line drawing of a car gear shift lever assembly (no text or symbols)

Diagram of a car interior showing a steering wheel and a device with directional arrows (no text or symbols)

Diagram of a medical or laboratory setup with tubing and connectors, no visible text or symbols

Line drawing of a mechanical device with rope and hook, no text or symbols present

1. Stå bakom produkten.

2. Lossa startspärren.

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Stänga av produkten

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden base (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Line drawing of a lawn mower with handle and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Vik handtaget framåt.


Line drawing of a lawn mower with three wheels and handlebars (no text or symbols)

Transport

Diagram showing two crossed bins with a recycling symbol and no text labels

Tekniska data

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output - max. kW 0.8 0.8
Motor output - Nominal, kW 0.55 0.55
Drive motor
Motor output - Nominal, kW 0.25 NA
Self walk speed, km/h 3.0-4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 176
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions 177
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels 178
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels 179
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm 25-70 25-70
Cutting width, cm	41 41
Blade, article number	Collect - 5011716-01	Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries	Brand	Type	Battery capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8

176 For best results and performance the Husqvarna battery BLi200 is recommended.
177 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
178 Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB (A).
179 Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s ^2 .

Approved batteries Brand Type Battery capacity			ty, Ah	Voltage, V Weight, lb/kg
BLi100	Husqvarna	Lithium-ion 2.6 36	1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36	2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36	2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36	4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Tekniska data LC 141C

Labeled diagram of a Husqvarna lawn mower system with numbered components and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two waste sorting methods with recycling symbol and no text labels

Diagram of a car seatbelt clamping mechanism showing rope routing and lifting force (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Akü güvenliği

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

Technical line drawing of a mechanical bracket assembly with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a black arrow pointing to a section (no text or symbols present)

Mechanical assembly diagram showing a gear and cam mechanism (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Mechanical assembly diagram showing directional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a vehicle's rear view with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and a handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring, no text or symbols present

Line drawing of a device with a warning symbol and a control panel connected to it (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Illustration of hands using a device to adjust or install a cable, with an upward arrow indicating motion (no text or symbols present)

Diagram showing a container with labeled buttons and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable harness with a belt and cable, showing rope routing and a directional arrow (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view (no text or symbols)

Diagram of a car gear shift lever system with a device and directional arrow (no text or symbols)

Diagram of a medical or laboratory setup with tubing and connectors, no visible text or symbols

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or plug, with no visible text or symbols.

Ürünü durdurma

Diagram of a mechanical device with attached wires and a directional arrow indicating motion (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a directional arrow (no text or symbols)

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with three wheels and handlebars (no text or symbols)

Taşıma

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or non-recyclable disposal.

Teknik veriler

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^183
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^184
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^185
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^186
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70
Cutting width, cm	41 41
Blade, article number	Collect - 5011716-01	Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries Brand Type	Battery capacity		city, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36	1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36	1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36	2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36	2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36	4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Teknik veriler LC 141C

Labeled diagram of a Husevarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two crossed recycling bins with a recycling symbol and a battery, indicating waste sorting or recycling process.

Diagram of a cable clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with rope and hook, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with mounting hardware (no text or symbols)

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Diagram of a mechanical or electrical component with a black arrow pointing to a section (no text or symbols present)

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Mechanical linkage diagram showing two black arrows pointing to a joint component (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Technical illustration of a mechanical device with three views: top, side, and bottom (no text or symbols present)

Mechanical assembly diagram showing directional arrows and component layout (no text or symbols)

Technical diagram showing a vehicle's rear door assembly with labeled parts A and B, including a directional arrow indicating movement.

Line drawing of a lawn mower with four wheels and handle (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a wheel and spring (no text or symbols)

Line drawing of a device with a wall-mounted switch and warning symbol, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing the internal component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand holding a small device with an arrow indicating motion or force (no text or symbols)

Diagram showing a container with labeled boxes and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a mechanical clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a car headset with a close-up inset showing a mechanical component (no text or symbols)

Diagram of a car interior showing a steering wheel and a cargo box with directional arrows indicating movement (no text or symbols)

Diagram of a car hood with attached cable and plug, showing a black arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical device with rope and cable (no text or symbols)

Line drawing of a mechanical device with attached cables and connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a cable or connector, with no visible text or symbols.

Зупинка виробу

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical device with attached wires and a central connector (no text or symbols)

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with wheels and frame structure (no text or symbols)

Транспортування

Diagram showing two crossed-out recycling bins with a recycling symbol and no text labels

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery ^190
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions ^191
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels ^192
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels ^193
Handle, m/s ^2	2.0 2.0
Cutting
Cutting height, mm 25–70 25–70
Cutting width, cm 41 41
Blade, article number Collect - 5011716-01 Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries	Brand	Type	Battery capacity, Ah	Voltage, V	Weight, lb/kg
BLi10	Husqvarna	Lithium-ion	2.0	36	1.8/0.8
BLi100	Husqvarna	Lithium-ion	2.6	36	1.9/0.8
BLi20	Husqvarna	Lithium-ion	4.0	36	2.7/1.2
BLi200	Husqvarna	Lithium-ion	5.2	36	2.8/1.3
BLi30	Husqvarna	Lithium-ion	7.5	36	4.2/1.9

Approved batteries Brand Type Battery		capacity, Ah	Voltage, V Weight	lb/kg
BLi300	Husqvarna	Lithium-ion 9.4 36	4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

Labeled diagram of a Husqvarna lawn mower system with numbered parts and control panel

Labeled diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram showing two crossed bins with recycling symbol and no text labels

Diagram of a car seatbelt device with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a car intake manifold with a close-up inset showing internal components (no text or symbols)

检查启动禁止器

检查启动禁止器，确保它能防止电机运转。

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with attached cables and a black arrow indicating a connection point (no text or symbols)

电池安全

Technical diagram of a mechanical assembly with labeled parts A through H

Technical line drawing of a pipe elbow joint with bolts and mounting fixtures (no text or symbols)

1. 通过电缆夹将电缆固定到手柄上。

Technical line drawing of a mechanical linkage or bracket assembly with directional arrows indicating movement (no text or symbols present)

Anatomical illustration of a human leg with visible bones and a black arrow pointing to a specific area (no text or labels present)

调节手柄高度

1. 松开下部旋钮。

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical bracket assembly with two black arrows indicating specific components (no text or symbols present)

Technical line drawing of mechanical components with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with three views: top, front, and side (no text or symbols present)

Diagram of a vehicle's internal components with arrows indicating movement or assembly (no text or symbols present)

安装地面覆盖套件

Technical diagram showing a vehicle's rear view with labeled parts A and B, including a directional arrow and component details.

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Line drawing of a lawn mower with an upward arrow indicating motion (no text or symbols)

设置修剪高度

Technical line drawing of a mechanical assembly with a wheel and spring mechanism (no text or symbols)

Diagram showing a device with four labeled buttons connected to a rack-mounted device, indicating status or status.

Line drawing of a device with a warning symbol and a control panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of a car interior with a gear shift and a circular component inset (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

1. 朝手柄杆方向推动电机制动手柄。

Illustration of hands using a handheld device to interact with a tool, showing a downward arrow indicating motion (no text or symbols present)

使用车轮上的驱动装置

Illustration of hands using a device to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram showing a container with labeled buttons and icons, indicating a process or system with arrows pointing to the bottom.

Diagram of a cable clamp or connector assembly with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a car intake manifold with a magnified inset showing the internal component (no text or symbols)

Diagram of a car gear shift mechanism showing the blade and gear assembly (no text or symbols)

Diagram of a plug-in connector with cable and plug, showing internal components and wiring (no text or labels)

Line drawing of a mechanical device with hoses and connectors, no text or symbols present

1. 站在本产品后面。

2. 松开启动禁止器。

Line drawing of a mechanical device with attached cables and connectors (no text or symbols)

1. 朝手柄杆 方向推动电机制动手柄。

Line drawing of hands operating a cable or connector with a downward arrow indicating motion (no text or symbols)

关停产品

1. 松开电机制动手柄以停止电机运转。

Diagram of a medical device with attached tubing and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical device with wires and connectors, showing a directional arrow indicating movement (no text or symbols present)

小心：将插头直接拔出。切勿拽拉电源线。

为获得良好的作业效果

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

1. 用手拉住刀片旋转，确保刀片转动自如。

Line drawing of a lawn mower with open lid and wheels (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. 向前折叠手柄。

Line drawing of a lawn mower with visible wheels and frame structure (no text or symbols)

运输

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

技术参数

Technical data LC 141iV, LC 141i

	LC 141iV LC 141i
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed – SavE, rpm 2700 2700
Motor speed – Nominal, rpm 3100 3100
Motor speed – High load, rpm 3700 3700
Motor output – max. kW 0.8 0.8
Motor output – Nominal, kW 0.55 0.55
Drive motor
Motor output – Nominal, kW 0.25 NA
Self walk speed, km/h 3.0–4.5 NA
Speed adjustment levels 4 NA
Weight
Weight without battery, kg	21.5	18.6
Battery 197
Type of battery Husqvarna Battery Series Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 5.2 Ah battery (BLi200).	77 77
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (BLi200).	45 45
Noise emissions 198
Sound power level, measured dB (A) 88 88
Sound power level, guaranteed LWA dB (A) 89 89
Sound levels 199
Sound pressure level at the operators ear, dB (A) 83 83
Vibration levels 200
Handle, m/s2	2.0 2.0
Cutting
Cutting height, mm	25–70	25–70
Cutting width, cm	41 41
Blade, article number	Collect - 5011716-01	Collect - 5011716-01
Bagger capacity, litre	50 50

Approved batteries Brand Type Battery		capacity, Ah	Voltage, V Weight, lb/kg
BLi10	Husqvarna	Lithium-ion 2.0 36 1.8/0.8
BLi100	Husqvarna	Lithium-ion 2.6 36 1.9/0.8
BLi20	Husqvarna	Lithium-ion 4.0 36 2.7/1.2
BLi200	Husqvarna	Lithium-ion 5.2 36 2.8/1.3
BLi30	Husqvarna	Lithium-ion 7.5 36 4.2/1.9
BLi300	Husqvarna	Lithium-ion 9.4 36 4.1/1.9

Approved chargers for the specified batteries,	Brand Input voltage,	V Frequency, Hz Power, W
QC80	Husqvarna	100–240 50–60 80
QC80F	Husqvarna	12 0 80
QC250	Husqvarna	220-240 50 250
QC330	Husqvarna	100–240 50–60 330
QC500	Husqvarna	100–240 50–60 500

技术资料 LC 141C

Black and white barcode image with vertical lines and a small number '1' at the bottom
