USER MANUAL DCC018 DEWALT

WARNUNG:BERSTGEFAHR.

• Do not operate inflator in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inflator creates sparks which may ignite the dust orfumes.

• Keep children and bystanders away while operating an inflator. Distractions can cause you to losecontrol.

• When operating the inflator, the inflator must be placed on a stable surface. Since the vibration produced by the inflator may cause it to "walk," do not operate on a high shelf or other surface. Operate at ground or bench levelonly. Electrical Safety

• Inflator plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) inflators. Unmodified plugs and matching outlets will reduce risk of electricshock.

• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded.

• Do not expose inflator/external power supply to rain or wet conditions. Water entering an inflator/external power supply will increase the risk of electricshock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the inflator/external power supply. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock.

• If operating an inflator/external power supply in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electricshock.

• To prevent hazards, leave the replacement of damaged power cables strictly to the manufacturer or a qualified electrician. There is a risk of electric shock! Personal Safety

• Stay alert, watch what you are doing and use common sense when operating an inflator. Do not use an inflator while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating an inflator may result in serious personalinjury.

• Always wear ear protection when operating theinflator.

• Safety goggles should be worn when using the inflator in order to protect the eyes against any foreign bodies lifted by the jet ofair.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in movingparts.

• Do not open the body casing. There are no user serviceable partsinside. Congratulations! You have chosen a DeWALT tool. Years of experience, thorough product development and innovation make DeWALT one of the most reliable partners for professional power toolusers. Technical Data DCC018 Input (battery pack) V

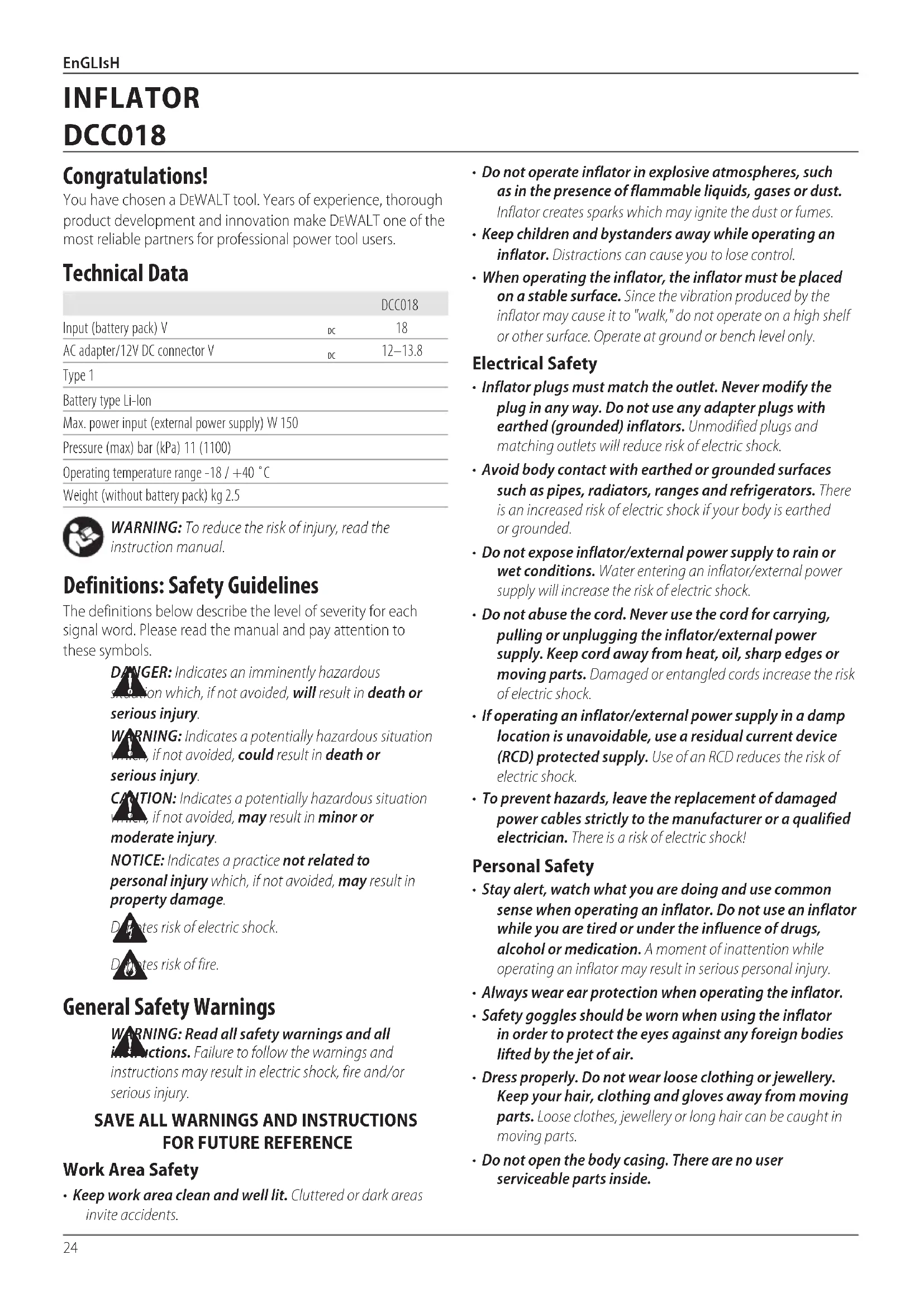

AC adapter/12V DC connector V

WARNING: To reduce the risk of injury, read the

instructionmanual. Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to thesesymbols.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

Denotes risk of electricshock.

Denotes risk offire. General Safety Warnings

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. English (original instructions) INFLATOR DCC01825 EnGLIsH Service

• Have your inflator serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the inflator ismaintained.

• The compressed air from your inflator is not safe for breathing. Never inhale air from your inflator or from a breathing device connected to theinflator.

• Too much air pressure causes a hazardous risk of bursting. Check the manufacturer’s maximum pressure rating for objects beinginflated.

• Do not leave inflator running unattended. It could burst tyres or other items.

• Use a calibrated air gauge to check the tyres pressure before each use and while inflating tyres; see the tyre sidewall for the correct tyrepressure.

• Do not modify or attempt to repair. Never drill into, weld, or make any modifications to the inflator or its attachments.

• Operate only with the accessories included or air handling parts acceptable for not less than 11 bar. The use of any accessory not recommended for use with this tool could behazardous.

• Never “horseplay”. High pressure air is dangerous. Don’t direct air-flow at yourself orothers.

• Never direct the jet of air towards persons, animals, or yourbody.

• Never direct the jet of air towards yourself in anymanner.

WARNING: RISK OF FIRE. Inflator can become hot during

use. Allow inflator to cool 30 minutes before storingaway.

battery, ensure that the inflator is operating on a flat surface with the screen facingupward. Batteries Chargers/Charge Times (Minutes) Cat #

Weight Batteries Chargers/Charge Times (Minutes) Cat # V

• Do not use the inflator if the switch does not turn it on and off. An inflator that cannot be controlled with the switch is dangerous and must berepaired.

• Directly after inflating tyres, check the pressure with a suitable pressure gauge, for example at your fillingstation.

• Always use the handle when moving theinflator.

• Store idle inflator out of the reach of children and do not allow persons unfamiliar with the inflator or these instructions to operate the inflator. Inflators are dangerous in the hands of untrainedusers.

• Maintain inflators. Check for misalignment or bending of pressurized parts, breakage of parts and any other condition that may affect the operation. If damaged, have the inflator repaired before use. Many accidents are caused by poorly maintainedtools.

• For your own safety you must only use the accessories and additional units listed in the operating instructions or recommended or specified by the manufacturer. The use of accessories other than those recommended in the operating instructions or catalog may place your personal safety atrisk. Battery Use and Care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack.

• Use inflator only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire.

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns.26 ENGLISH

LIQUID CRYSTAL DISPLAY FLUID

(FIRST AID MEASURES) If liquid crystal comes in contact with your skin:

• Wash area off completely with plenty of water. Remove contaminatedclothing. If liquid crystal gets into your eye:

• Flush the affected eye with clean water and then seek medicalattention. If liquid crystal is swallowed:

• Flush your mouth thoroughly with water. Drink large quantities of water and induce vomiting. Then seek medicalattention. Residual Risks In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Impairment ofhearing.

• Risk of personal injury due to flyingparticles.

• Risk of burns due to accessories becoming hot duringoperation. Electrical Safety The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of yourmains. Your DeWALT charger is double insulated in accordance with EN60335; therefore no earth wire isrequired. If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DeWALT serviceorganisation. Mains Plug Replacement (U.K. & Ireland Only) If a new mains plug needs to be fitted:

• Safely dispose of the oldplug.

• Connect the brown lead to the live terminal in theplug.

• Connect the blue lead to the neutralterminal.

WARNING: No connection is to be made to the

earthterminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3A. Using an Extension Cable An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1mm

; the maximum length is30m. When using a cable reel, always unwind the cablecompletely.

SAVE THESE INSTRUCTIONS

Chargers DeWALT chargers require no adjustment and are designed to be as easy as possible tooperate. Important Safety Instructions for All Battery Chargers SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (refer to TechnicalData).

• Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using batterypack.

WARNING: Shock hazard. Do not allow any liquid to get

WARNING: We recommend the use of a residual current

device with a residual current rating of 30mA orless.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable batteries. Other types of batteries may burst causing personal injury anddamage.

CAUTION: Children should be supervised to ensure that they do not play with theappliance. NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose charger to rain orsnow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk ofdamage to electric plug andcord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire,electric shock, orelectrocution.

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate charger with damaged cord or plug— have them replacedimmediately.27 ENGLISH

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised servicecentre.

• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• In case of damaged power supply cord the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent anyhazard.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect two chargerstogether.

• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger. Charging a Battery (Fig. A)

1. Plug the charger into an appropriate outlet before inserting

into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly indicating that the charging process hasstarted.

3. The completion of charge will be indicated by the red

light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button

on the batterypack. NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before firstuse. Charger Operation Refer to the indicators below for the charge status of the batterypack. Charge Indicators Charging Fully Charged Hot/Cold Pack Delay*

• The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the chargingprocedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing tolight. NOTE: This could also mean a problem with acharger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorised servicecentre. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery packwarms. The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of thecharger. Electronic Protection System XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deepdischarge. The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fullycharged. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4mm long with a screw head diameter of 7–9mm, screwed into wood to an optimal depth leaving approximately 5.5mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Battery Packs Important Safety Instructions for All Battery Packs When ordering replacement battery packs, be sure to include catalogue number andvoltage. The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging proceduresoutlined.

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust orfumes.

• Never force battery pack into charger. Do not modify battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personalinjury.

• Charge the battery packs only in DeWALTchargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40 ˚C (104 ˚F) (such as outside sheds or metal buildings in summer).

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persists, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be flammable

if exposed to spark orflame.

WARNING: Never attempt to open the battery pack for

any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre forrecycling.

WARNING: Fire hazard. Do not store or carry the

battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys,etc.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. Transportation

WARNING: Fire hazard. Transporting batteries can

possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a shortcircuit. DeWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests andCriteria. In most instances, shipping a DeWALT battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100 Watt Hours (Wh) will require being shipped as fully regulated Class 9. All lithium-ion batteries have the Watt Hour rating marked on the pack. Furthermore, due to regulation complexities, DeWALT does not recommend air shipping lithium-ion battery packs alone regardless of Watt Hour rating. Shipments of tools with batteries (combo kits) can be air shipped as excepted if the Watt Hour rating of the battery pack is no greater than 100Whr. Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentationrequirements. The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer’s responsibility to ensure that its activities comply with the applicableregulations. Transporting the FLEXVOLT

Battery The DeWALT FLEXVOLT

battery has two modes: Use andTransport. Use Mode: When the FLEXVOLT

battery stands alone or is in a DeWALT 18V product, it will operate as an 18V battery. When the FLEXVOLT

battery is in a 54V or a 108V (two 54V batteries) product, it will operate as a 54Vbattery. Transport Mode: When the cap is attached to the FLEXVOLT

battery, the battery is in Transport mode. Keep the cap for shipping. When in Transport mode, strings of cells are electrically disconnected within the pack resulting in 3 batteries with a lower Watt hour (Wh) rating as compared to 1 battery with a higher Watt hour rating. This increased quantity of 3 batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries. For example, the Transport Wh rating might indicate 3x36 Wh, meaning 3 batteries of 36 Wh each. The Use Wh rating might indicate 108Wh (1battery implied). Example of Use and Transport Label Marking29 EnGLIsH Storage Recommendations

1. The best storage place is one that is cool and dry away

from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not inuse.

2. For long storage, it is recommended to store a fully charged

battery pack in a cool, dry place out of the charger for optimalresults. nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged beforeuse. Labels on Charger and Battery Pack In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the following pictographs: Read instruction manual beforeuse. See Technical Data for chargingtime. Do not probe with conductiveobjects. Do not charge damaged batterypacks. Do not expose to water. Have defective cords replacedimmediately. Charge only between 4 ˚C and 40 ˚C. Only for indooruse. Discard the battery pack with due care for theenvironment. Charge DeWALT battery packs only with designated DeWALT chargers. Charging battery packs other than the designated DeWALT batteries with a DeWALT charger may make them burst or lead to other dangeroussituations. Do not incinerate the batterypack. USE (without transport cap). Example: Wh rating indicates 108 Wh (1 battery with 108 Wh). TRANSPORT (with built-in transport cap). Example: Wh rating indicates 3 x 36 Wh (3batteries of 36 Wh). Battery Type The DCC018 operates on an 18 volt batterypack. These battery packs may be used: DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB546, DCB547. Refer to Technical Data for moreinformation. Package Contents The package contains: 1 DCC018 Inflator 1 Li-Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1 models) 2 Li-Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2 models) 3 Li-Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3 models) 1 Instruction manual nOTE: Battery packs, chargers and kitboxes are not included with N models. Battery packs and chargers are not included with NT models. Bmodels include Bluetooth® batterypacks. nOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DeWALT is under license. Other trademarks and trade names are those of their respectiveowners.

• Check for damage to the tool, parts or accessories which may have occurred duringtransport.

• Take the time to thoroughly read and understand this manual prior tooperation. Markings on Tool The following pictograms are shown on the tool: Read instruction manual beforeuse. Visible radiation. Do not stare intolight. Do not expose to rain or highhumidity. Do not leaveunattended. Date Code Position (Fig.A) The production date code

consists of a 4-digit year followed by a 2-digit week and is extended by a 2-digit factorycode.2018 Description (Fig. A)

WARNING: Never modify the inflator/external power

supply or any part of it. Damage or personal injury couldresult.

Pressure adjustment knob

Battery release button

High-pressure tapered nozzle

Inflator needle30 ENGLISH

Presta valve adapter

12V DC vehicle connector and cord

External power connector (12V DC or ACadapter)

Date code Intended Use Your DeWALT inflator is designed to be used cordless, in most vehicles, from the standard 12V DC socket or by the DeWALT 13.8V external power supply to inflate car and bike tyres, balls, rafts, air mattresses and swimming pool floats, etc. This product is intended for professional useonly. DO NOT use under wet conditions or in the presence of flammable liquids orgases. DO NOT operate the inflator in a paint sprayarea. This inflator is a professional powertool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons withoutsupervision.

• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with thisproduct.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack or external power supply before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury.

WARNING: Use only DeWALT battery packs andchargers.

Inserting and Removing the Battery Pack from the Tool (Fig. A) NOTE: Make sure your battery pack

is fullycharged. To install the battery pack

into the inflator, align the battery pack with the rails inside inflator's battery port and slide it into the port until the battery pack is firmly seated and ensure that it does notdisengage. To remove the battery pack from the inflator, press the release button

and firmly pull the battery pack out of the battery port. Insert it into the charger as described in the charger section of thismanual. Fuel Gauge Battery Packs (Fig. A) Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the batterypack. To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication. Hose and Accessory Storage (Fig. A) 12V DC Vehicle Connector and Cord

• The 12V DC vehicle connector

can be stored inside the storage compartment on the side of theinflator. High-Pressure Hose

• The high-pressure hose

is located on a storage channel on the side of the unit. Wrap the high-pressure hose inside the channel and secure in the two clips. High-Volume Hose

• The high-volume hose

is located on a storage channel on the side of the unit. Wrap the high-volume hose inside the channel and secure in the two clips. Accessories

are stored in snap clips located on the side of theinflator. Fitting the Accessories (Fig. A) The high-volume hose

comes fitted with a standard tapered nozzle

The high-pressure hose

can be fitted with the following attachments which can be found on the side storage compartment panel:

• an inflator needle valve

• a high-pressure tapered nozzle

• a Presta valve adapter

NOTE: Make sure each of these adapters are firmly locked in place before turning the on theinflator. Fitting the High-Volume Hose (Fig. B)

• Remove the high-volume hose

from its storagelocation.

• Line up the notches of the hose with the nubs

of the high volume pump outlet/inflation port

. Then, slide the hose on and twist counter-clockwise tosecure.

• To remove, twist the hose clockwise and slide hoseoff. Many inflatables have an internal flap that prevents air loss during inflation, especially air mattresses. Unless this flap is displaced by the nozzle the inflatable will not inflate. Push the nozzle firmly into the valve to make sure that you push this flap out of theway. LED Worklight (Fig. A) An LED worklight

is located on the handle of the inflator. To turn the worklight on, first power the unit by pressing the power switch

on the front of the inflator. The inflator will turn off after two minutes of idle time, including the light. To turn the worklight off, press the light switch

again. NOTE: The light will not time out until the entire unit timesout.31 ENGLISH OPERATION Use an ANSI Certified Tire Pressure Gauge to check all tires' pressure after each use of the inflator and before using thevehicle. Instructions for Use

WARNING: Always observe the safety instructions and

applicableregulations.

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack or external power supply before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury. Switching On (Fig. A)

WARNING: Risk of Bursting. Do not leave unit running

unattended. Over inflation of tyres and other items could result in serious injury and propertydamage. NOTE: When power is supplied to the inflator by 12V vehicle connector, 18V battery or an external power supply (optional accessory), the LCD display will remain on for approximately 2minutes before the display shuts off/goes into sleep mode. This occurs when the unit is not operating. To wake up the system, press the power switch

. At this time the LCD will turn on and the inflator is ready foruse. Before switching your inflator on, decide which power source you will be using; a 18V battery pack

, the12V DC vehicle connector

, or an external power supply (optional accessory), and connect them using the following instructions. You can then press the AC/DC power switch

located on the front of theunit. Powering with an 18V Battery Pack To use the 18V battery pack, refer to Inserting and Removing the BatteryPack. Powering with the 12V DC Vehicle Connector To use the 12V DC vehicle connector

, connect it to your vehicle's 12V DC accessorysocket. Always fully extend the 12VDC cord before eachuse. Your vehicle's accessory socket must be rated for at least12A. Powering with an External Power Supply (Fig. C)

WARNING: Use only the external power supply

recommended for this product. Use of any other external power supply could damage the inflator or powersupply. To use an external power supply, attach the DC output cord from the external power supply to the external power supply connector

on the side of the unit, then plug the 220V–240V AC cord end into the wall outlet or an appropriate-sized extension cord that is plugged into a wall outlet. Always fully extend the cord before eachuse. To Inflate/Deflate Using High-Volume (Fig.A, B) The high-volume hose is meant to be used for objects that hold large amounts of air, such as air mattresses, rafts, and swimming poolfloats. NOTE: The high-volume mode DOES NOT have an auto shut- offfeature. To Inflate

1. Remove the high-volume hose

from it's storage channel. Attach the high-volume hose to the high-volume outlet/ inflation port

as described in the Fitting the High- Volume Hosesection.

, or its tapered nozzle

into the object beinginflated.

4. Then press the pressure mode switch. You will see the

inflator/deflator symbol in the pressure setting/mode display

To Deflate Follow steps 1 through 6 in section To Inflate above, but attach the high-volume hose to the inlet/deflation port

WARNING: Risk of Bursting. Excessive air pressure may

cause a hazardous risk of bursting or personal injury. Check the manufacturer's maximum pressure rating for items beinginflated.

WARNING: Replacing the high-pressure hose must be

done by a DeWALT serviceorganisation. The high-pressure hose

is meant to be used for objects that need more air pressure, such as tyres andbasketballs.

1. Remove the high-pressure hose

from its storagechannel.

2. Attach a nozzle as described in the Fitting the Accessories

section. Attach the chuck to the tyre stem to inflate a tyre, or attach an accessory to inflate a ball or otherinflatable.

3. Attach or insert the nozzle into the object beinginflated.

will only show inflation pressures when the inflator is in high-pressuremode. NOTE: To switch between units, press and hold the inflation mode switch

and the LED light switch

while rotating the pressure adjustment knob

5. Rotate the pressure adjustment knob

to set the desiredpressure.

7. To stop the inflator at any time, press the inflation start/pause

8. When the item to be inflated has reached the preset value,

the unit will automatically turnoff. nOTE: You may notice the actual pressure reading may drop after a couple of seconds. This isnormal. nOTE: If the power switch

is turned off, all settings will be lost and will need to be reentered. This is a safety feature to prevent the risk of items OVERINFLATING. Using the Inflator as a Pressure Gauge

CAUTION: Verify the pressure with a suitable pressure gauge; for example, at your filling station.

1. Connect the high-volume hose

to the item to bechecked.

will display the item'spressure. MAINTENANCE Your DeWALT inflator has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning.

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack or external power supply before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury. Repairs The charger, battery pack and external power supply are notserviceable. If the inflator will not turn on, check the battery, all connections, and the fuse in the 12V DC vehicle connector

. The inflator display will show an error code under certain conditions. Refer to the Troubleshooting Error Codeschart. Storage Recommendations Store the inflator indoors. The best storage place is one that is cool and dry, away from direct sunlight and excess heat orcold. Cleaning

WARNING: Blow dirt and dust out of the main housing

with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing thisprocedure.

WARNING: Never use solvents or other harsh chemicals

for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Optional Accessories

WARNING: Since accessories, other than those offered

by DeWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT recommended accessories should be used with thisproduct. Consult your dealer for further information on the appropriateaccessories. Protecting the Environment Products/batteries are recyclable, but if marked with the crossed-out bin, they must not be disposed of with normal householdwaste. Run the batteries down completely and separate them, and separate any light sources from the product if possible. It is the user's responsibility to delete personal data from the product. Then take the waste to an official waste collection center or a participating retailer who will often accept it free of charge. Packaging should be discarded based on the marked material code. Operating and safety instructions should only be discarded once the applicable product is no longer inuse. Please check with your local community/municipality for waste management guidance. For further information, visit www.2helpU.com and scan the above QRcode. Rechargeable Battery Pack This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from thetool.

• Li-Ion cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed ofproperly.33 EnGLIsH TROUBLEsHOOTInG ERROR CODEs Error Code Meaning Solution LoP Vehicle or external power supply voltage too low or too high Vehicle power – Turn vehicle engine on to increase voltage External power supply –Replace power supply bLo 18 V battery discharged Charge or replace battery bAt 18 V battery temperature too low or too high Allow battery to rest and return to room temperature Er S Pressure sensor fault Contact a DeWALT authorised service centre. OL Pump current too high Check for restrictions in hose and connections. If error persists, contact a DeWALT authorised service centre. OP Pressure exceeded 11 bar Check for restrictions in hose and connections34 EsPañOL Seguridad en la zona de trabajo

BEWAAR ALLE WAARSCHUWINGEN

VEILIGHEIDSWAARSCHUWINGEN VOOR UW

WAARSCHUWING:EXPLOSIEGEVAAR.

• Alinhe as ranhuras da mangueira com as saliências
