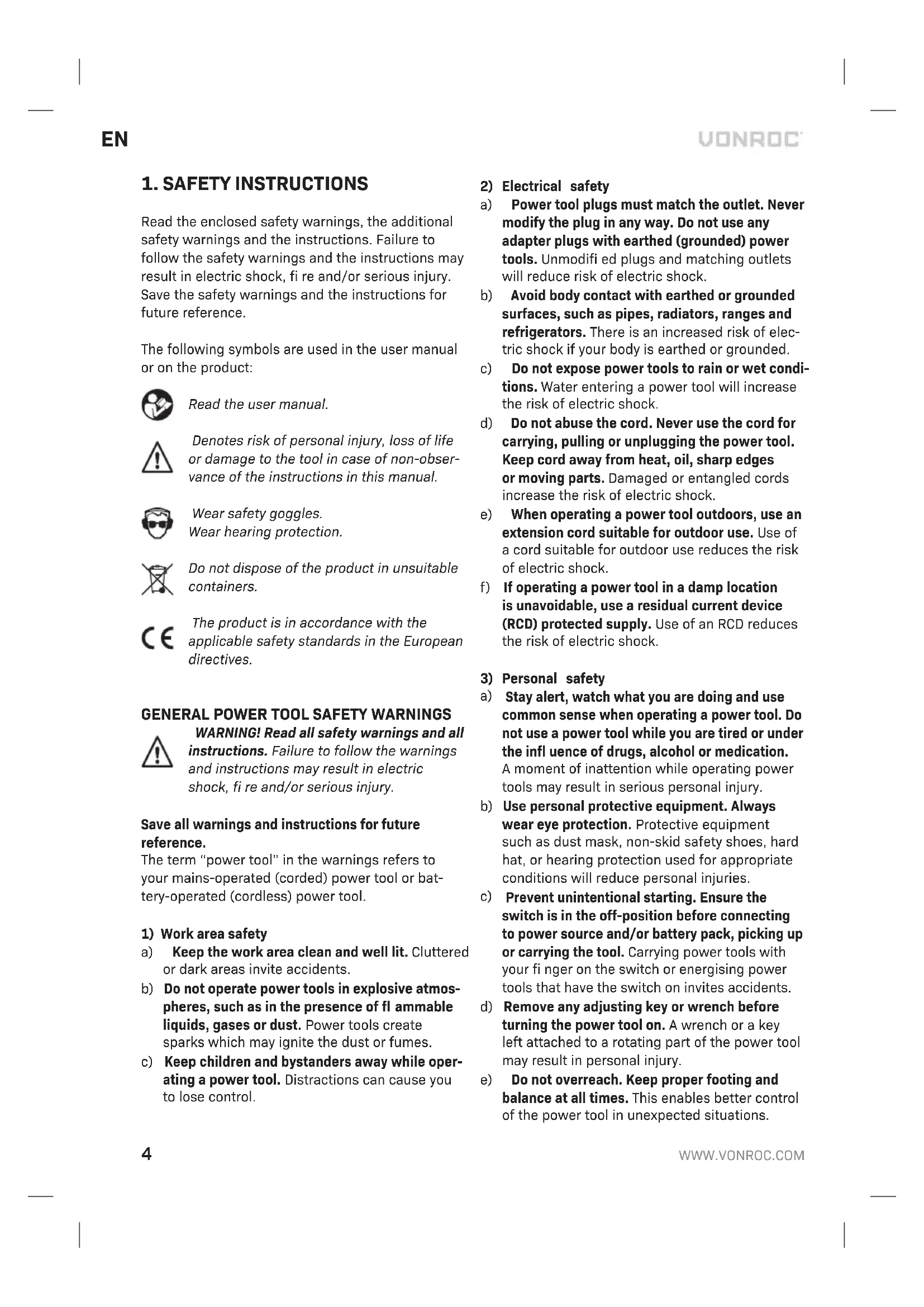

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Wear safety goggles. Wear hearing protection.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack.
b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY WARNINGS FOR JIG SAWS

• Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
• Keep hands away from the sawing range. Do not reach under the workpiece. Contact with the saw blade can lead to injuries.
• Apply the machine to the workpiece only when switched on. Otherwise there is danger of kick-back when the cutting tool jams in the workpiece.
• Pay attention that the base plate rests securely on the material while sawing. A jammed saw blade can break or lead to kickback.
• When the cut is completed, switch off the machine and then pull the saw blade out of the cut only after it has come to a standstill. In this manner you can avoid kickback and can place down the machine securely.
• Use only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break, negatively influence the cut, or lead to kickback.
• Do not brake the saw blade to a stop by applyi side pressure after switching off. The saw blade can be damaged, break or cause kickback.
• Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fi re and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.
• Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.

2. MACHINE INFORMATION

Intended use

The machine is intended for sawing wood, metal, plastics, ceramics, rubber, etc. to any required size and in any required shape, while keeping the base-plate resting firmly on the workpiece. A suitable saw blade must always be used.

TECHNICAL SPECIFICATIONS

Model No. JS503AC
Voltage 230-240V~
Frequency 50Hz
No load speed 0-3000/min
Max. saw capacity wood 0° 65mm
Max. saw capacity steel 0° 6mm
Weight 1.85 kg
Sound pressure level L_ A	95 dB(A), K=3dB(A)
Sound power level L_WA	96 dB(A), K=3dB(A)
Vibration ‘sawing sheet metal’	10.08 m/s ^2 K=1.5 m/s ^2
Vibration ‘sawing plywood’	9.19 m/s ^2 K=1.5 m/s ^2

gVibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned:

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may signifi cantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DESCRIPTION

The numbers in the text refer to the diagrams on page 2 and 3.

1. On/off switch
2. Dust blower switch

3. Main handle

4. Auxiliary handle

5. Speed adjustment wheel

6. Pendulum action switch

7. Scale for bevel angle

8. Vacuum cleaner adapter

9. Baseplate

10. Guide roller

11. Clamping lever

12. Bolts for parallel guide

13. Hex key

14. Chuck

15. Saw blade

16. Bolt for baseplate

17. Parallel guide

18. Cutting mark

3. ASSEMBLY

Replacing the saw blade (Fig. A, B)

When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade.

Only use saw blades that correspond with the characteristic data given in the operating instructions.

Mounting the saw blade

Make sure the blade holder is free of material debris (such as splinters of wood or metal).

1. Turn the clamping lever (11) as far to the left as possible and hold it in this position.
2. Insert the saw blade in the chuck (14). Check that the saw blade is securely fixed and that the teeth are pointing in the cutting direction.
3. Let go of the clamping lever. Check whether the back of the saw blade is positioned in the centre of the guide roller (10). Make sure to use the right sawblade for the corresponding material. Included with the machine is a coarse sawblade for wood and a fine sawblade for metal and plastics.

Removing the saw blade

1. Turn the clamping lever (11) as far to the left as possible and hold it in this position.
2. Remove the saw blade from the chuck (14).
3. Let go of the clamping lever.

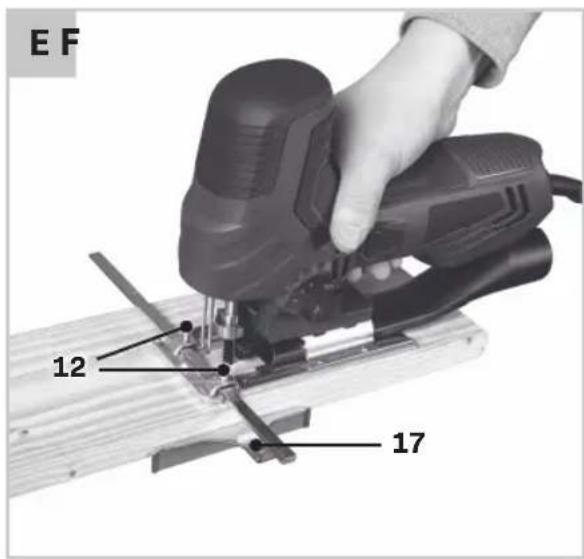

Attaching the parallel guide (Fig. C)

1. Loosen the bolts (12).
2. Mount the parallel guide (17) onto the baseplate (9).
3. Set the desired cutting width using the scale on the parallel guide (17) and the cutting mark on the baseplate (9). The cutting mark (18) indicates the position of the saw blade.
4. Tighten the bolts (12).

4. OPERATION

Switching on and off (Fig. A)

• To switch the machine on, push the switch forward and press the On/off switch (1).
• To switch the machine off, release the On/off switch (1).

Setting the speed (Fig. A)

The speed adjustment wheel (5) is used for setting the speed. The ideal speed depends on the profile and the teeth of the saw blade and on the material to be worked.

Do not set the speed during use.

- Turn the speed adjustment wheel (5) to the required position.

• For hard materials, use a saw blade with fine teeth and select a lower speed.
• For soft materials, use a saw blade with coarse teeth and select a higher speed.

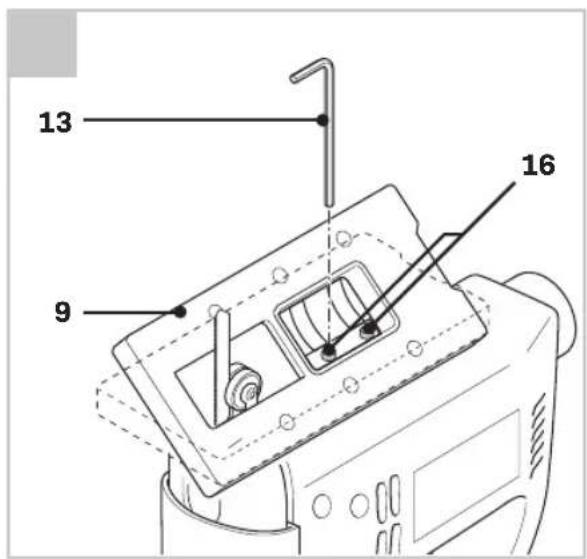

Adjusting the bevel angle (Fig. A, D)

1. Loosen the bolts (16), using the hex key (13).
2. Adjust the baseplate (9) to the desired position (0^ - 45^) . The sawing angle (bevel) can be read on the scale (7).
3. Tighten the bolts (16), using the hex key (13). It is possible to store the hex key onto the machine, as shown on Fig. A.

Adjusting the pendulum action (Fig. A)

The pendulum action switch (6) is used to set the way in which the teeth of the saw blade grip the material. The pendulum action switch can be set to 4 positions:

0 - No pendulum action
1 - Small pendulum action
2 - Medium pendulum action
3 - Large pendulum action

The required pendulum action can be determined by practical testing, although the following instructions can be observed:

• Soft material (wood, plastics etc.): set the pendulum to level II or III. For a finer and cleaner saw cut, use pendulum level 0 or 1.
• Thin material, use pendulum level 0.
• Hard material (hardwood, steel etc.): set the pendulum to level 0.
• Curves: set pendulum to level 0.

Dust extraction (Fig. E)

- Connect the hose of a vacuum cleaner to the dust extraction adapter (8).

Note: the dust blow function must be de-activated when using a vacuum cleaner.

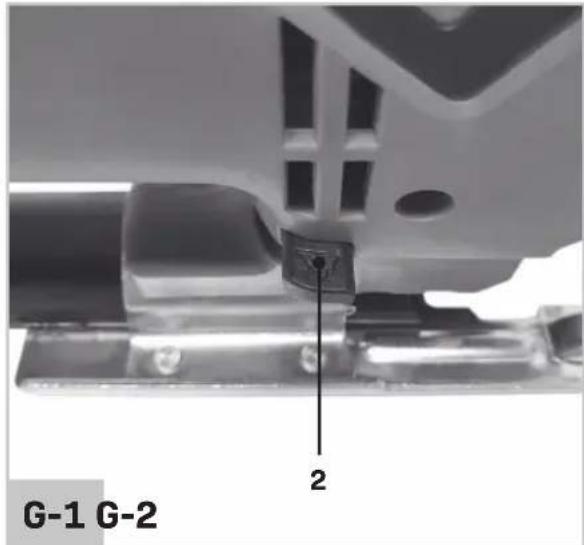

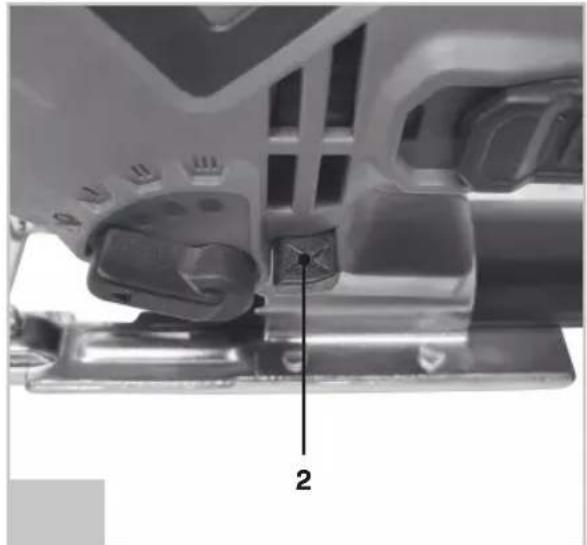

Dust blow function (Fig. G)

The cutting line can be kept clear of chips and debris by using the dust blow function.

• To activate the dust blow function, move the dust blower switch (2) to the right, as shown on figure G1.
• To de-activate the dust blow function, move the dust blower switch (2) to the left, as shown on figure G2.

Optimum use

• Clamp the workpiece. Use a clamping device for small workpieces.
• Draw a line to define the direction in which to guide the saw blade.
• Firmly hold the machine by the grip.
• Set the sawing speed.
• Set the mitre angle.
• Switch on the machine.
• Wait until the machine has reached full speed.
• Place the saw shoe on the workpiece.
• Slowly move the machine along the pre-drawn line, firmly pressing the saw shoe against the workpiece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fi tness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
