USER MANUAL FreeSpace FS2P BOSE

Installation Guide. 2

Guia de instalacion 7

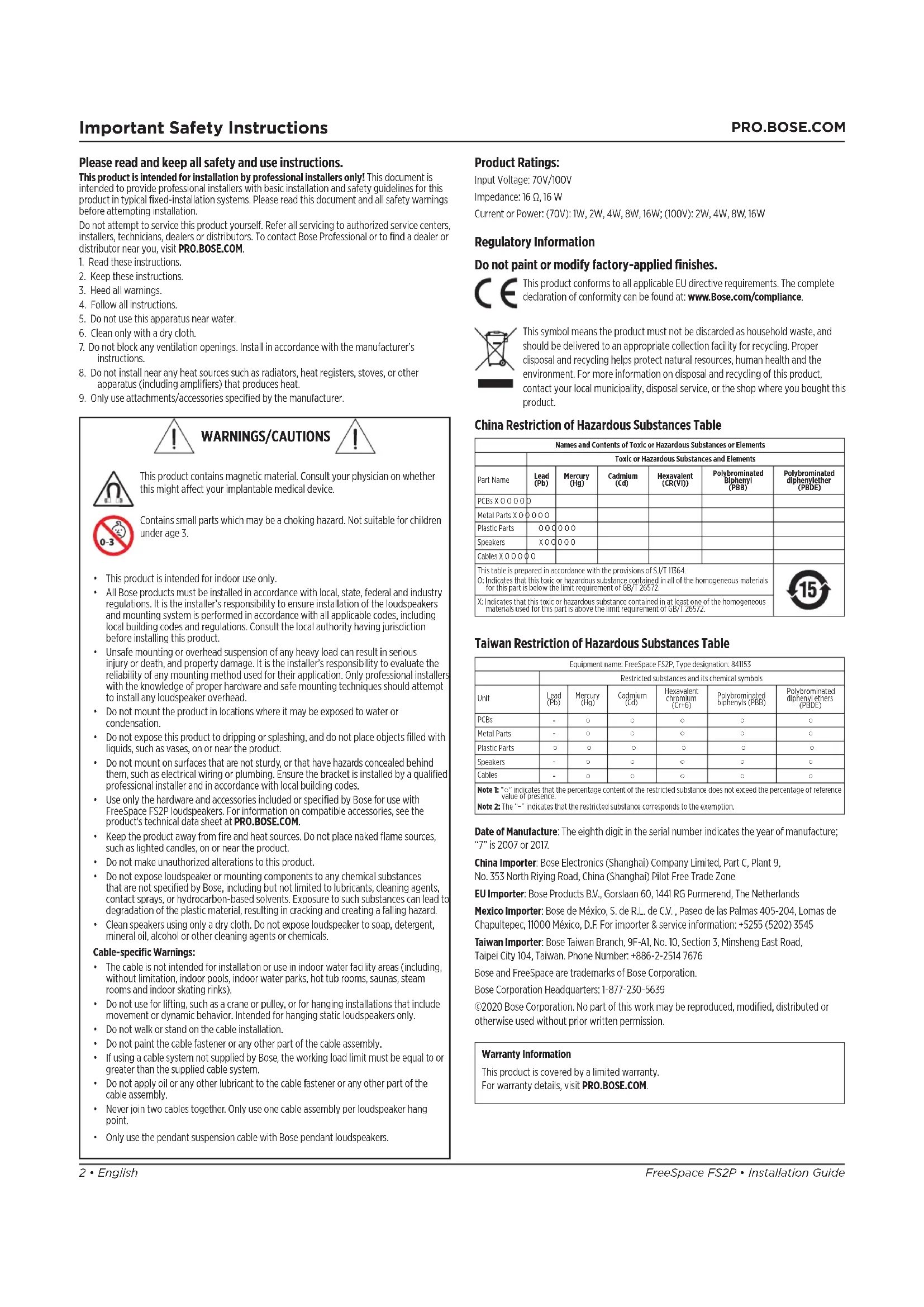

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

WARNING/CAUTIONS

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product is intended for indoor use only.
- All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
- Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
- Do not mount the product in locations where it may be exposed to water or condensation.
- Do not expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.
- Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.
- Use only the hardware and accessories included or specified by Bose for use with FreeSpace FS2P loudspeakers. For information on compatible accessories, see the product's technical data sheet at PRO.BOSE.COM.
- Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
Do not make unauthorized alterations to this product.
- Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
- Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Cable-specificWarnings:

• The cable is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not use for lifting, such as a crane or pulley, or for hanging installations that include movement or dynamic behavior. Intended for hanging static loudspeakers only.
• Do not walk or stand on the cable installation.
• Do not paint the cable fastener or any other part of the cable assembly.
• If using a cable system not supplied by Bose, the working load limit must be equal to or greater than the supplied cable system.
• Do not apply oil or any other lubricant to the cable fastener or any other part of the cable assembly.
• Never join two cables together. Only use one cable assembly per loudspeaker hang point.
  Only use the pendant suspension cable with Bose pendant loudspeakers.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 16 Ω, 16 W

Current or Power: (70V): 1W, 2W, 4W, 8W, 16W; (100V): 2W, 4W, 8W, 16W

Regulatory Information

Do not paint or modify factory-applied finishes.

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead(Pb)	Mercury(Hg)	Cadmium(Cd)	Hexavalent(CR(VI))	PolybrominatedBiphenyl(PBB)	Polybrominateddiphenylether(PBDE)
PCBs X 0 0 0 0 0	0
Metal Parts X 0 0 0 0	0 0 0 0
Plastic Parts	0 0 0 0	0 0 0
Speakers	X 0 0 0	0 0 0
Cables X 0 0 0 0 0
This table is prepared in accordance with the provisions of SJ/T 11364. O: indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.						15
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: FreeSpace FS2P, Type designation: 841153
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyls others (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Mexico Importer. Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. For importer & service information: [phone]

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose and FreeSpace are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2020 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit PRO.BOSE.COM

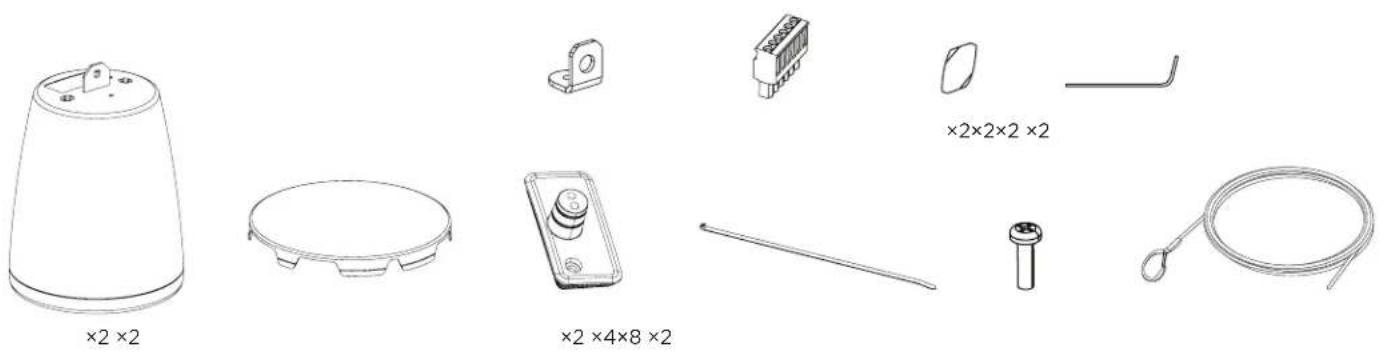

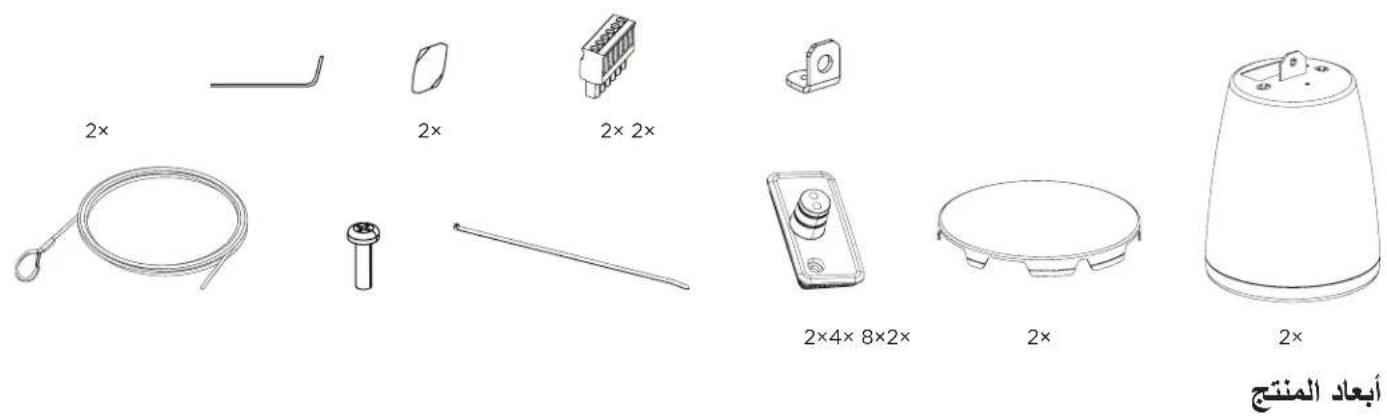

Package Contents

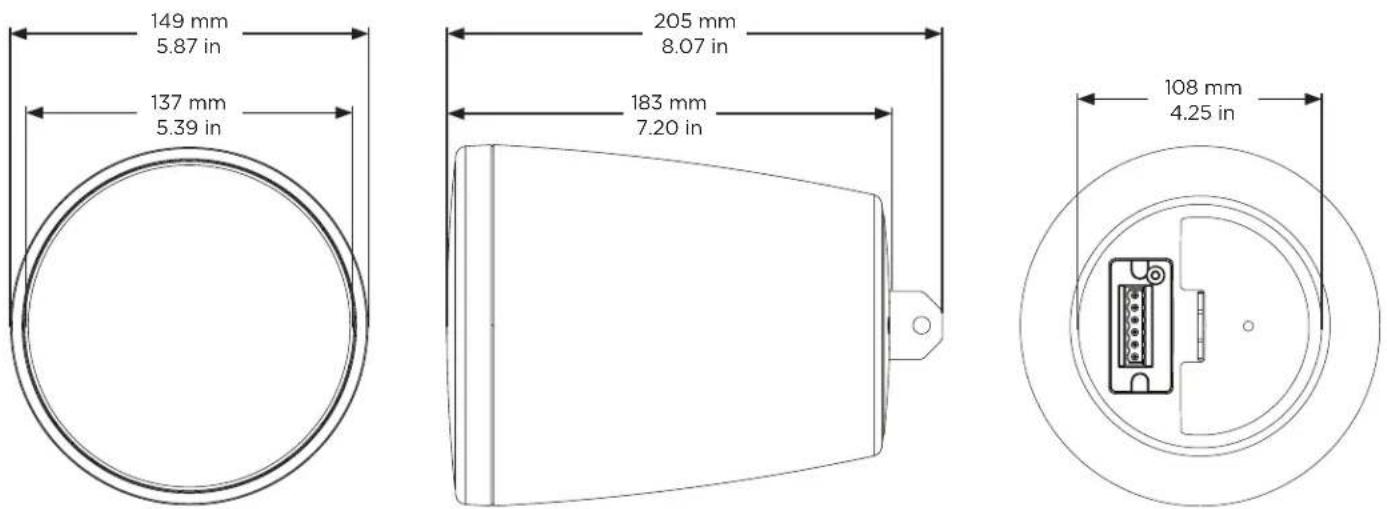

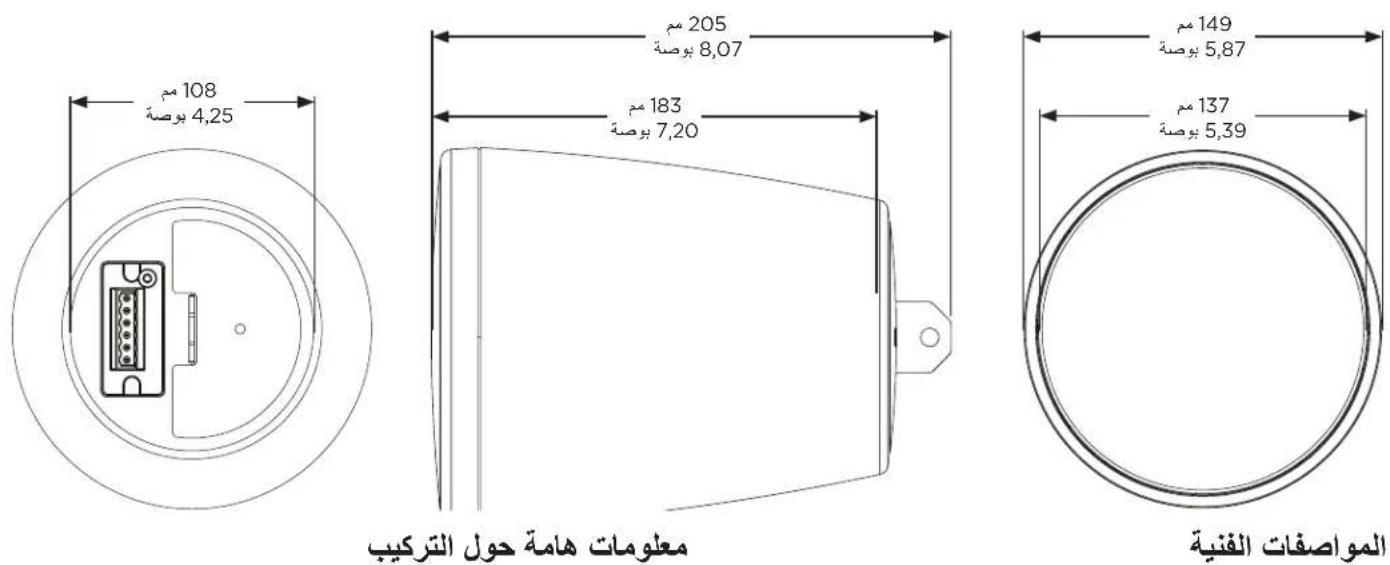

Product Dimensions

Technical Specifications

For additional specifications, see the FreeSpace FS2P technical data sheet at PRO.BOSE.COM. For EN 54-24 specifications (including required external EQ), see the FreeSpace FS2P EN 54-24 certified ratings (AM857610 Rev. 00) at PRO.BOSE.COM.

Physical
Product Dimensions Grille diameter: 137 mm (5.39 in)
	Enclosure diameter: 149 mm (5.87 in)
	Depth: 205 mm (8.07 in)
Cable Dimensions Length: 4.57 m	(15.00 ft)
	Diameter: 2 mm (0.08 in)
Max Load (Safe Working Load)¹	45.36 kg (100.0 lb)
Net Weight, Loudspeaker with grille (single)	1.47 kg (3.25 lb)
Shipping Weight (pair) 4.06 kg (8.95 lb)
Environmental Indoor Only

1. Always use the cable within its stated Safe Working Load. The included suspension cable has a Safe Working Load of 100 lbs.

Important Installation Information

Before installing the loudspeaker, review Important Safety Instructions on page 2.

For fire and evacuation notification applications, environmental rated to IP21C per EN 54-24.

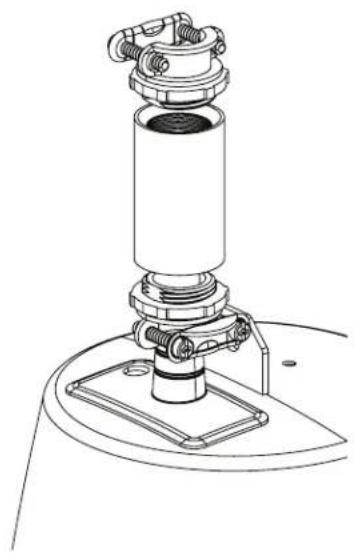

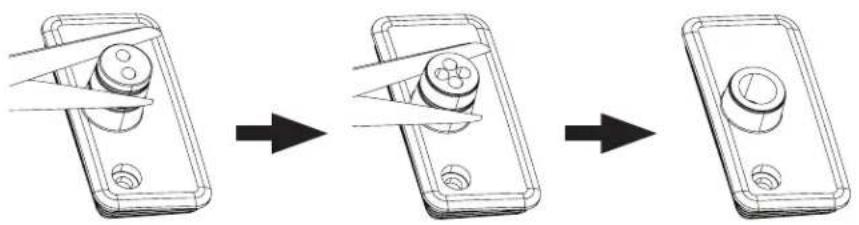

Preparing the Input Cover

The input cover is designed for three different wiring scenarios. To change the configuration of the input cover to support your wiring scenario, cut along the perforation on the rubber conduit. Use one 12 -inch to 12 -inch threaded coupling and two 38 -inch trade size conduit fittings for 12 -inch knockouts (see diagram to the right).

CAUTION: Do not use the wide open wiring scenario when installing the input cover with a flexible conduit.

Note: It is the installer's responsibility to seal against water ingress into the Euroblock connector. Use outdoor or marine-grade silicone to seal all wiring connections to ensure a tight seal.

Note: Flexible conduits and couplings must be UL Listed, suitable for the application, and installed in accordance with the local authorities having jurisdiction.

Single In In and Out Wide Open

Wiring the Loudspeaker

Wire Gauge

The FreeSpace FS2P loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

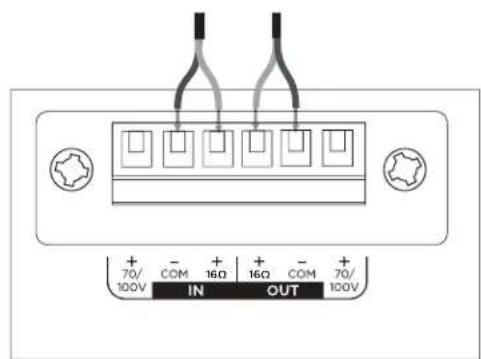

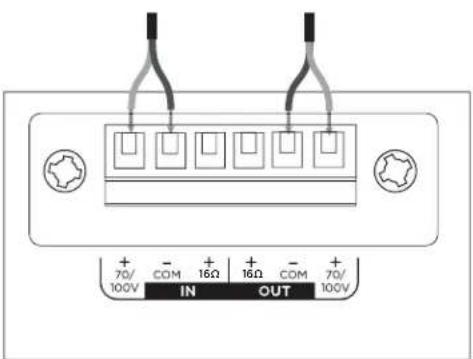

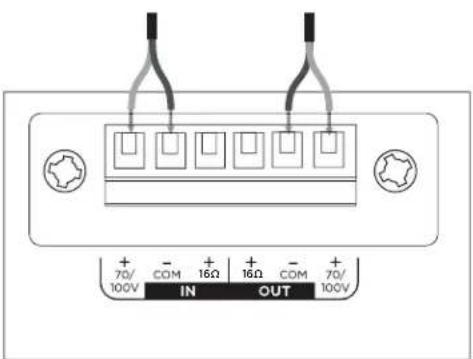

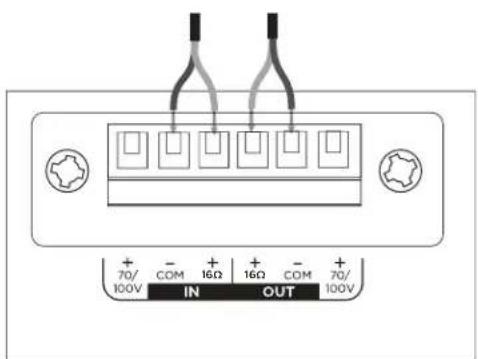

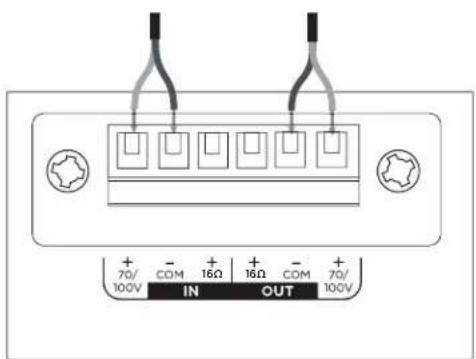

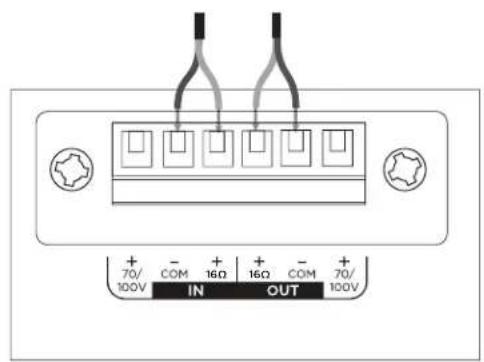

Connection Diagrams

Expose six millimeters (1/4 inch) of bare wire to attach to the terminals.

Note: The loudspeaker is not rated for use with a rigid conduit. The loudspeaker is suitable for a flexible conduit or wiring connection only.

Note: Wiring method must be in accordance with:

In Canada, CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32;

In the United States, The National Electrical Code, NFPA 70, and the National Fire Alarm and Signaling Code, NFPA 72.

70/100V 16Ω

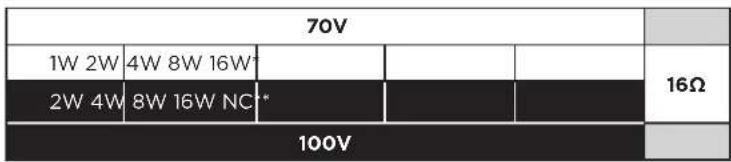

Loudspeaker Settings

Factory default
* NC: No Connection (do not use)

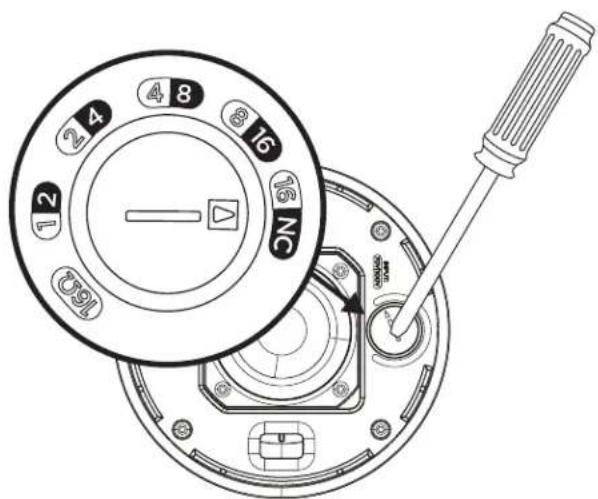

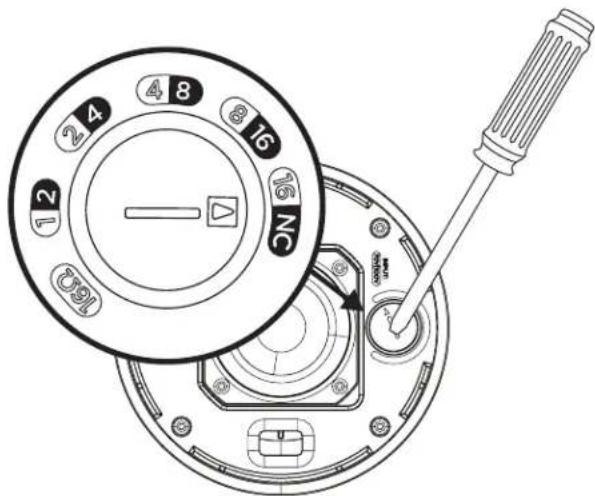

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

Preparing the Installation

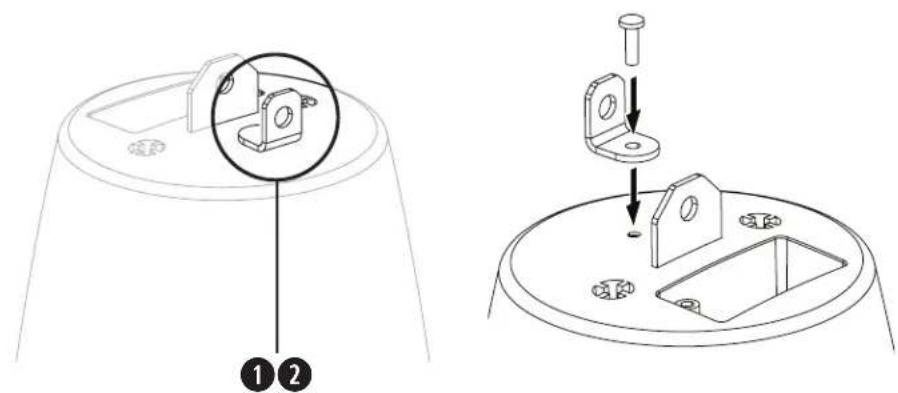

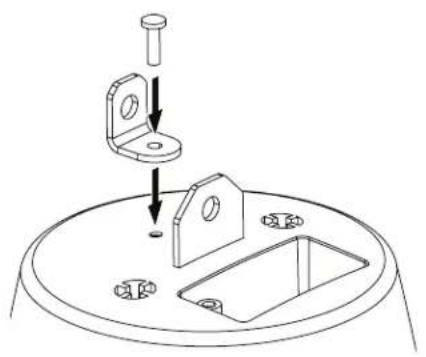

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

Bose recommends using (1) a safety wire or (2) a safety cable as a secondary securing mechanism (not included). See the diagram to the right for safety attachment points.

Follow the manufacturer's instructions for any secondary securing mechanism implemented.

Mounting the Loudspeaker

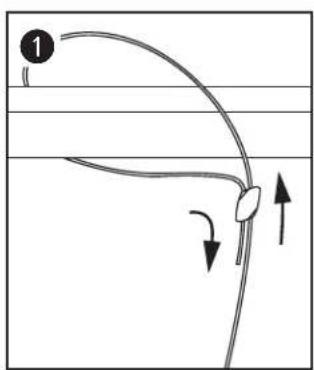

1. Insert the included suspension cable through the cable fastener and wrap the cable around a support structure; secure the cable using the cable fastener. Note: Arrows on the cable fastener indicate the cable direction. A. To loosen the cable, insert the fastener tool into the release hole and adjust the cable.
2. Secure the cable clip to the loudspeaker suspension cable attachment point.
3. Pull the loose end of the suspension cable to adjust the loudspeaker to the desired height. Once you've reached the desired loudspeaker height, cut away any excess cable. Note: Trim any frayed filaments with wire cutters after cutting to length.

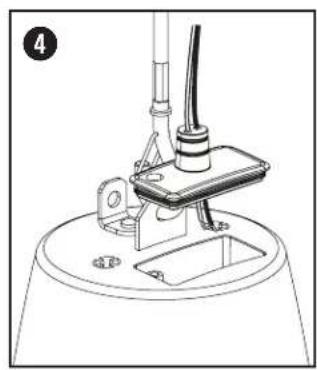

4. Insert the loudspeaker wiring through the rubber conduit of the input cover (see Preparing the Input Cover on page 4).

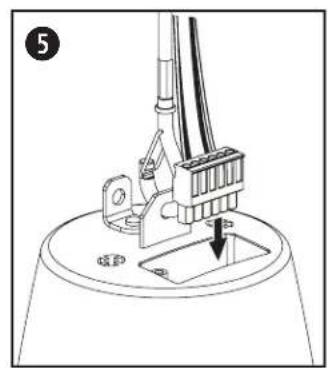

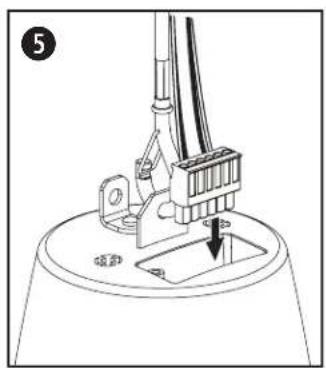

5. Wire the connector and insert the connector into the loudspeaker. For wiring information, see Wiring the Loudspeaker on page 4.

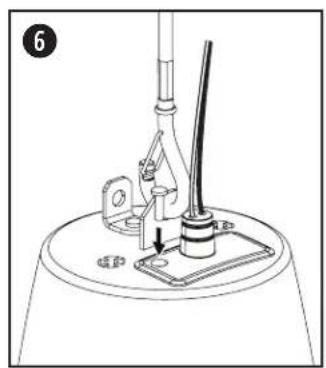

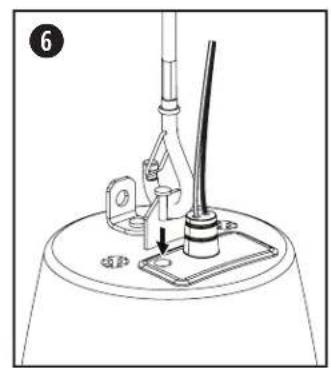

6. Place the input cover over the connector and press it firmly against the loudspeaker to create a tight seal. Secure the input cover using the input cover screw.
7. Use the included cable ties to secure the wiring to the suspension cable.

Note: Before attaching the grille, adjust the loudspeaker tap settings to the appropriate setting for the installation. See Loudspeaker Settings on page 4.

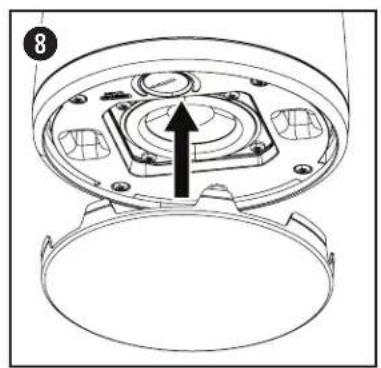

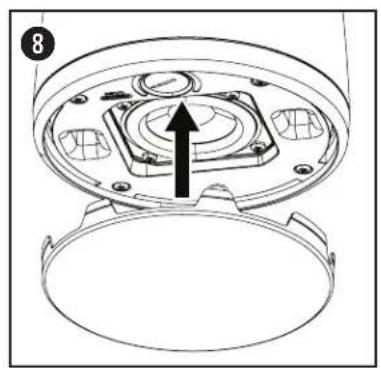

8. Line up the grille with the inside of the loudspeaker enclosure so that the two smallest grille tabs are on either side of the tap switch. Push the grille on the loudspeaker until it is secured into place. If necessary, push the grille tabs inward to properly fit into the loudspeaker enclosure.

Removing the Grille

Insert a small tool (no larger than 1.5 millimeters in diameter) through the grille perforation at the edge of the grille and pull to disengage the grille.

CAUTION: Do not use a screwdriver to pry the grille from the enclosure. This could result in damage to the loudspeaker.

Safety and Regulatory Compliance

The Bose FreeSpace FS2P loudspeaker has passed testing and complies with the following specifications and uses:

Listed to ANSI/UL 1480-2016, CAN/ULC-S541

Fire Protective Signaling Use - UL Category UUMW/UUMW7, File Number S 3241. Control Number 42S9.

Not for use with DC-supervised systems.

Suitable for use indoors in dry locations.

EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

Environmental: Type A (indoor applications)

Suitable for installation using Class 1, Class 2, or Class 3 wiring methods in accordance with NFPA 70, National Electric Code, 2002, Article 640.

Suitable for use with fire alarm circuit wiring methods in accordance with NFPA 70, National Electric Code, 2002, Article 760.

NFPA 70, National Electric Code, 2002, Article 300-22 (c).

NFPA 90-A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.10.2.6.5.

EMC Directive 89/336/EEC and Article 10 (1) of the directive, EN50081-1 and EN50082-1 as signified by the CE mark.

The FreeSpace FS2P loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems:

British Standard Code of Practice BS 5839, Part 8, when used with the ceramic terminal block and thermal fuse.

Tested to IEC60268-5.

Nominal Coverage Angle (per UL 1480) Vertical: 120^ / 60^ at -3dB ; 150^ / 30^ at -6dB

Horizontal: 110^ / 70^ at -3dB ; 140^ / 40^ at -6dB

UL Sensitivity Wattage Tap Sound Pressure Level dBA at 3.1 meters (10 feet):

Wattage CAN/ULC-S541 Canada
Tap 70 V 100 V
1 W 78.0 dBA —
2 W 80.3 dBA 80.1 dBA
4 W 82.9 dBA 82.6 dBA
8 W 85.4 dBA 85.2 dBA
16 W 87.2 dBA 87.1 dBA
16 Ω	86.7 dBA —

Wattage ANSI/UL 1480-2016 United States
Tap	70 V	100 V
1 W 72.4 dBA	—
2 W	75.1 dBA	75.0 dBA
4 W	77.8 dBA	77.6 dBA
8 W	80.4 dBA	80.1 dBA
16 W	82.7 dBA	82.6 dBA
16 Ω	83.0 dBA	—

SPLs given are per the UL 1480 specified reporting method.

Frequency response:

Fire alarm (UL): 95 Hz to 17000 Hz

CE 2531

Bose Corporation 100 The Mountain Rd, Framingham, MA 01701 20 DOP 434849-7

EN 54-24: 2008 Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings FreeSpace FS2P Provided options: Type A For DOP 434849-7, see pro.Bose.com/FS2PDOP_UK

70 V
1 W 2 W	4 W 8 W 16	W*			16 Ω
2 W 4 W	8 W 16 W	C**
100 V

** NC: Sin conexión (no utilizar)* Predeterminado de fált

Importateur pour la Chine: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Canada - CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32;

70 V
1 W 2 W	4 W 8 W 16	W*		16 Ω
2 W 4 W	8 W 16 W	N C**
100 V

NFPA 70, National Electric Code, 2002, article 300-22 (c).

Importeur aus China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Potenze: (70 V): 1W, 2W, 4W, 8W, 16W; (100 V): 2W, 4W, 8W, 16W

Importatore per la Cna: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

In Canada, CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32.

Negli Stati Uniti, National Electrical Code, NFPA 70, e National Fire Alarm and Signaling Code, NFPA 72.

70/100V 16Ω

Importeur In China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Mexico: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. Gevevens importeur en service-informatie: [phone]

Importeur In Taiwan: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefoonnummer: [phone]

In Canada: CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32

In de VS: National Electrical Code, NFPA 70 en National Fire Alarm and Signaling Code, NFPA 72.

70/100V 16Ω

Luidsprekerinstallingen

70 V
1 W 2 W	4 W 8 W 16	W*			16 Ω
2 W 4 W	8 W 16 W	C**
100 V

• Fabrieksinstalling

EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

NFPA 70, National Electric Code, 2002, article 300-22 (c).

NFPA 90-A, 2002, Installation of Air Conditioning and Ventilation Systems, paragraaf 4.3.10.2.6.5.

Strumller effect: (70 V): 1W, 2W, 4W, 8W, 16W; (100 V): 2W, 4W, 8W, 16W

Canada, CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32;

I USA, The National Electrical Code, NFPA 70, og National Fire Alarm and Signaling Code, NFPA 72.

70/100V 16Ω

70 V
1 W 2 W	4 W 8 W 16	W*		16Ω
2 W 4 W	8 W 16 W	N C**
100 V

Importer na terenie Chin: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer na terenie UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holandia

Importer na terenle Meksyku: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. W celu uzyskania informaci o importerze i uslugach: [phone]

Importer na terenie Tajwanu: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Numer Telefon: [phone]

Bose i FreeSpace sq znakami towardwymi firmy Bose Corporation.

Siedziba glowna firmy Bose Corporation: 1-877-230-5639

70 V
1 W 2 W	4 W 8 W 16	W*		16 Ω
2 W 4 W	8 W 16 W	N C**
100 V

www.Bose.com/compliance

Do not paint or modify factory-applied finishes.

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおる輸入元：BoseProductsB.V.,Gorslaan60,144RGurmerend,TheNetherlands

MEXICO

204, Lomas de Chapultepec, 11000 Mexico, D.F.輸入元およさロト情報：[phone]

台湾におたし输入元：BoseTaiwan Branch,9F-A1,No.10,Section3,Minsheng East Road

Taipei City 104, Taiwan. Phone Number: [phone]

Bose Corporation Headquarters: 1-877-230-5639

注：「F」L 15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.

单一入力 入力おはみ出力開口

SUV一力一の配線

ケーフルゲジ

EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

環境方式：A屋内用途）

Bose Jaaal 1 aalal Caiol Gao Pssy

PRO.BOSE.COM 1e 2a 3d 4d 5d 6d 7d 8d 9d 10d 11d 12d 13d 14d 15d 16d 17d 18d 19d 20d 21d 22d 23d 24d 25d 26d 27d 28d 29d 30d 31d 32d 33d 34d 35d 36d 37d 38d 39d 40d 41d 42d 43d 44d 45d 46d 47d 48d 49d

Bose 52

gall gall gall gall gall gall gall gall

Jusie 11111111111111111111111111111111111111111

J 1. www.Bose.com/compliance:

aaii i aie aiiaai i 1000000000000000000000000000000000000000000000000000000000000000

2007 7" p 111

Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353:North Rijing Road, China (Shanghai) Pilot Free Trade Zone

RG Purmerend, The 1441,60 Bose Products B.V., Gorslaan: Netherlands

Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas: dssal .de Chapultepec, 11000 Mexico, D.F 3545 (5202) 5255+

Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City, Taiwan

. Bose Corporation 45 FreeSpace, Bose 1-877-230-5639: Bose

Bose Corporation 2020 shall

jiaai jia 1

1.2

PRO.BOSE.COM 1

g

57 1

FreeSpace FS2P 24-54 EN 24-54 PRO.BOSE.COM.
PRO.BOSE.COM (00.Rev AM857610)

24-54 EN IP21C yip (x) yj jy

Single Inln and OutWide

G

（204 14 18 18 FreeSpace FS2P

16

100/70

Jaggi Cibbs

j（4/1）

y

y

B

sKl yjy jyCSA C22.1,

a 1

32

y

JFPA

.72NFPA

	الله 70
الله 16	*1,16	↓↓,8	↓↓,4	↓↓,2	↓↓,1
	**NC	↓↓,16	↓↓,8	↓↓,4	↓↓,2
	الله 100

（）J：NC

aaii aaii

1

Jaaa y g jy dai aai

#

Jalal 1

y 10000000000000000000000000000000000000000000000000000000000000

JIS JIS (2) jI JI 1) Bose

4

AaHcuii baii aei

auii i 1

gall sAs

Jss s 1s

A

2

a 3

y

(59)

Jus Jus Cua Jus Jusall Jus Jusall Jus Jus

59 1

Jlal 102e y pssu Jilai 102e cui kai, kai jai ci uall kai lai baiu, lai gai dai Jilai oiae

J 7

59 1

g 1

gall 1

i j

CE EN50082-1,EN50081-1 1089/336/EEC (EMC)

Aa a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

y j 8 5839 BS

.1EC60268-5

6-30/150 3-60/120 (1480UL)

6-40/140 3-70/110

CAN/ULC-S541		ΔJLCS ΔJLCS ΔJLCS
100	70	ΔJLCS ΔJLCS ΔJLCS
-	A 78.0	ΔJL1
A 80.1	A 80.3	ΔJL2
A 82.6	A 82.9	ΔJL4
A 85.2	A 85.4	ΔJL8
A 87.1	A 87.2	ΔJL16
-	A 86.7	ΔJL16

.1480 UL 5

1

17 95 (UL)
