Product Type	Professional Speaker
Brand	Bose
Model	DesignMax DM3SE
Dimensions (H x W x D)	232 x 154 x 156 mm
Net Weight (single)	2.8 kg
Gross Weight (pair)	7.2 kg
Input Voltage	70 V / 100 V
Impedance	8 Ω
Power (70 V)	3 W / 6 W / 12 W / 25 W
Power (100 V)	6 W / 12 W / 25 W
Use	Indoor and outdoor (damp environments)
Mounting Options	Wall bracket included, adjustable angle 0° to 45°
Optional Accessories	Bi-pivot bracket DMSBRKT, ceiling mount CMBS2, pole mount, etc.
Connector Type	4-pin Euroblock
Compatible Cable	18 to 14 AWG
Grille	Removable, rotatable logo
Safety	Professional installation, safety cable (M6 screw)
Maintenance	Clean with a dry cloth only
Warranty	Limited warranty (see website)
Compliance	UL 1480A, IEC 60268-5, EU, UKCA
Repairability	Refer to an authorized professional

Frequently Asked Questions - DesignMax DM3SE BOSE

How to install the wall bracket?

Mark the drilling locations, drill two holes and fix the bracket with M5 or size 10 screws (not provided). Ensure that at least one fixing point is in a load-bearing structure. Then attach the speaker to the bracket and adjust the tilt angle (0°, 15°, 30° or 45°). Lock the tabs and insert the locking forks.

Which power to choose for 70V or 100V lines?

The DesignMax DM3SE speaker offers several transformer tap settings: for 70V, you can choose 3W, 6W, 12W or 25W; for 100V, the options are 6W, 12W or 25W. Use a flathead screwdriver to turn the tap and select the desired power.

Can I use this speaker outdoors?

Yes, the DesignMax DM3SE is designed for outdoor use in damp environments. It is supplied with a weather-resistant input cover. Ensure to properly seal the Euroblock connector when installing outdoors.

How to rotate the Bose logo?

The Bose logo can be rotated to align with the speaker orientation. Press the button on the back of the grille with one hand, then rotate the logo with the other hand clockwise or counterclockwise. Do not pinch the button inward unless you want to remove the logo.

What type of cable to use?

The DesignMax DM3SE is designed for cables from 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²). Strip wires to 6 mm (1/4 in) to connect to Euroblock terminals. The speaker is not suitable for rigid conduit, only flexible conduit or direct wiring.

How to clean the speaker?

Clean only with a dry cloth. Do not use soap, detergent, mineral oil, alcohol or other chemical agents. Do not expose the speaker to lubricants, contact sprays or hydrocarbon-based solvents, as this may degrade the plastic.

Which accessories are available for mounting?

In addition to the included wall bracket, you can optionally use: the bi-pivot bracket DMSBRKT (indoor only), the ceiling mount CMBS2 (indoor), the pan & tilt bracket and the pole mount. See the data sheet on BoseProfessional.com for more details.

How to wire the Euroblock connector?

Remove the connector from the speaker. Route wires through the center opening of the bracket (or through the bottom of the protective cover for outdoor). Strip wires to 6 mm, insert them into the appropriate terminals (+, -/COM, etc.) and tighten the screws. See the connection diagram in the manual for 70V/100V and 8Ω configurations.

How to adjust the tilt angle?

After attaching the speaker to the bracket, unlock the locking tabs, tilt the speaker to the desired angle (0°, 15°, 30° or 45°), then lock the tabs. Be sure to support the speaker's weight during operation. Then push in the locking forks to secure the angle.

What to do if there is a problem with the speaker?

Do not attempt to repair the speaker yourself. Refer any maintenance to a service center, installer or reseller authorized by Bose Professional. See the limited warranty at BoseProfessional.com/Warranty and contact support via the website.

USER MANUAL DesignMax DM3SE BOSE

Two black Bose-branded audio speakers displayed side by side, no visible text or symbols on the devices themselves.

DesignMax DM3SE

Surface-mount Loudspeaker

Installation Guide....2

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit BoseProfessional.com.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
7. Only use attachments/accessories specified by the manufacturer.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• It is the responsibility of the installer to use a support system which has sufficient wind load strength to comply with the applicable codes and standards.
• All Bose Professional products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
• This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.
• Use only the hardware and accessories included or specified by Bose Professional for use with DesignMax DM3SE loudspeakers. Hardware for securing the loudspeaker to the mounting surface is not supplied. For information on compatible accessories, see the product's technical data sheet at BoseProfessional.com.
• Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
• The DesignMax DM3SE wall-mounting bracket is only for use with model DM3SE.
• Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose Professional, including but not limited to lubricants, cleaning agents, contact sprays, or other hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
• Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 8 Ω, 25 W

Current or Power: (70V): 3W, 6W, 12W, 25W; (100V): 6W, 12W, 25W

Regulatory Information

CE This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

UK CA This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X O O O	O O
Metal Parts X O	O O O O
Plastic Parts O	O O O O O
Speakers X O O	O O O
Cables X O O O	O O
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: DesignMax DM3SE, Type designation: 829712
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (CH3)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs - ○ ○	○		○	○
Metal Parts - ○ ○		○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.Note 2: The “-” Indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

EU Importer: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | UK Importer: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Japan Importer: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australia Importer: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | China Importer: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Mexico Importer: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | UAE Importer: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose is a trademark of Bose Corporation.

DesignMax is a trademark of Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

©2024 Transom Post OpCo LLC. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit BoseProfessional.com/Warranty.

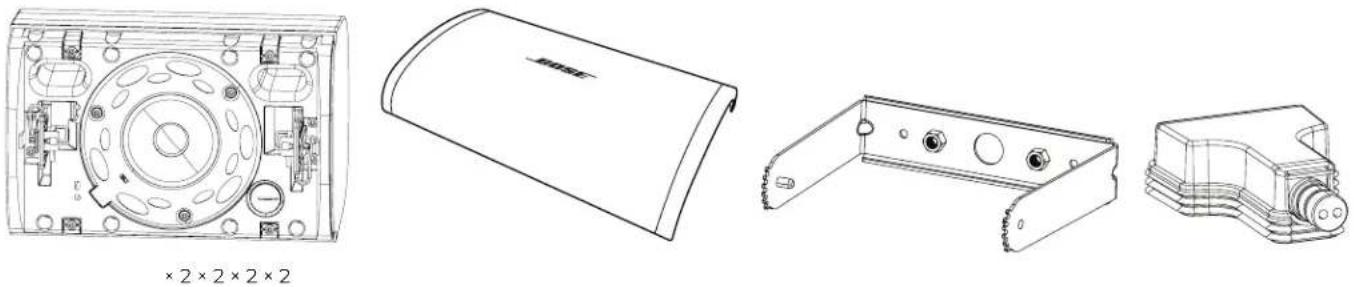

Package Contents

×2×2×2×2

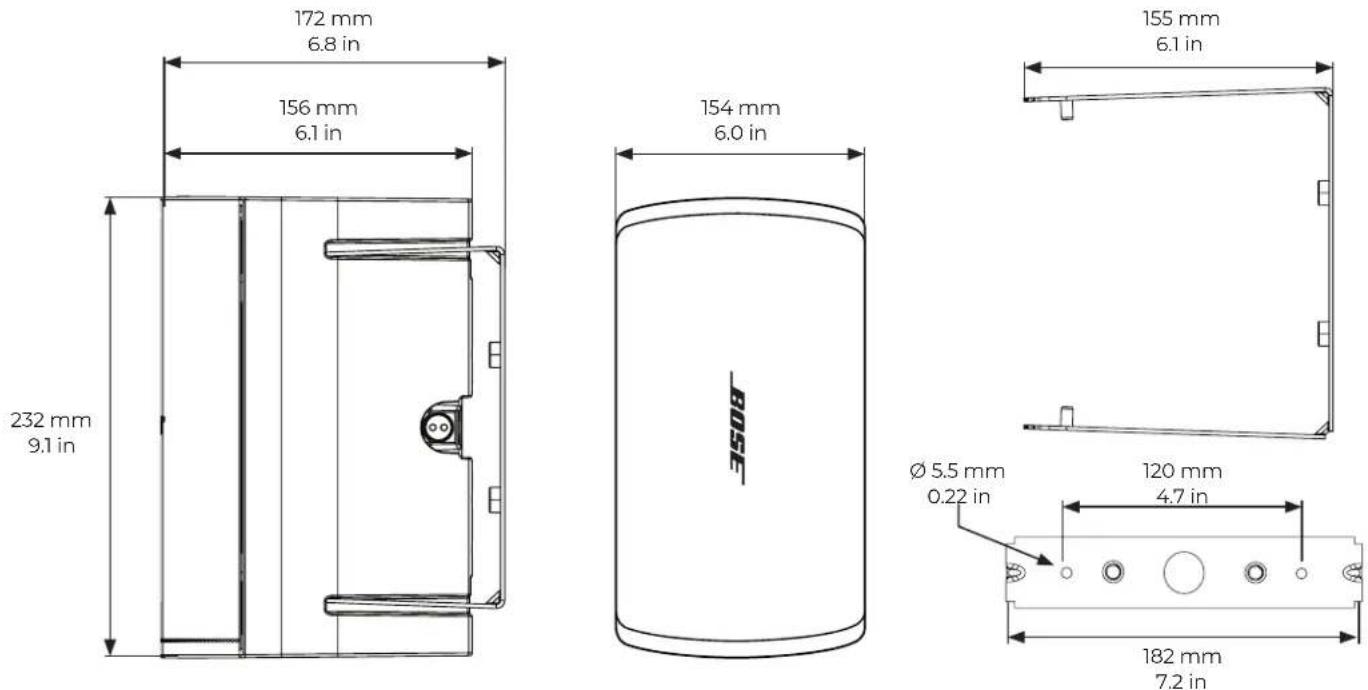

Product Dimensions

Technical Specifications

For additional specifications, see the DesignMax DM3SE technical data sheet at BoseProfessional.com.

Physical
Product Dimensions Height: 232 mm (9.13 in)
	Width: 154 mm (6.06 in)
	Depth: 156 mm (6.12 in)
Net Weight, Loudspeaker with grille and bracket (single)	2.8 kg (6.1 lb)
Shipping Weight (pair) 7.2 kg (16.0 lb)

Important Installation Information

It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.

It is the responsibility of the installer to ensure the safety of the loudspeaker installation. Failure to properly install the loudspeaker could result in damage, injury, or death.

This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).

The hardware for securing the loudspeaker to the mounting surface is not supplied. Consult a building professional for the proper mounting hardware before installing the loudspeaker.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.

Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.

Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose Professional, including but not limited to lubricants, cleaning agents, contact sprays, or other hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.

Installation Options

1

2

3

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

4

Line drawing of a mechanical device with a conical top and base (no text or symbols)

5

Technical line drawing of a mechanical assembly with a cylindrical body and two vertical connectors (no text or symbols)

Installation Options and Accessories

① Mounting bracket (included)
② DMSBRKT pan-and-tilt bracket (optional; for indoors only)
③ Surface-Mount Pan and Tilt Bracket (optional)
④ CMBS2 ceiling-mount bracket (optional; for indoors only)
⑤ Pole Mount Bracket (optional)

Single In In and Out Wide Open

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

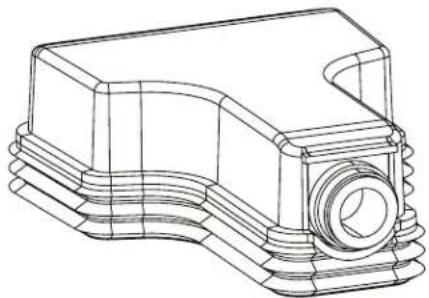

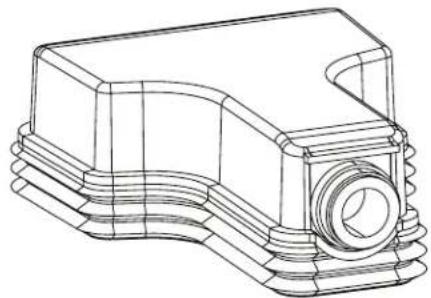

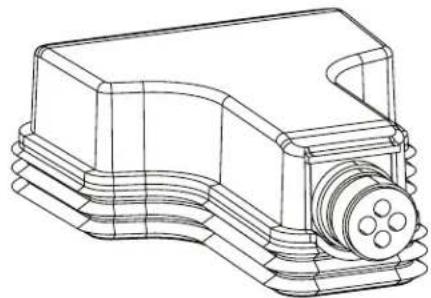

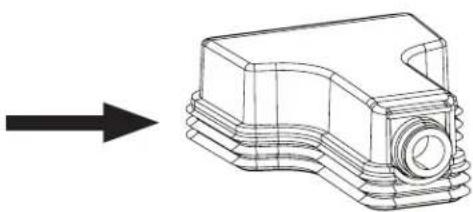

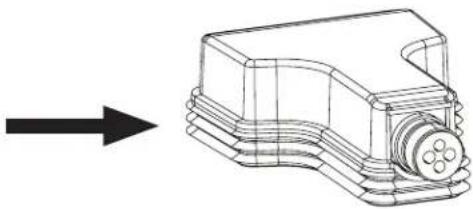

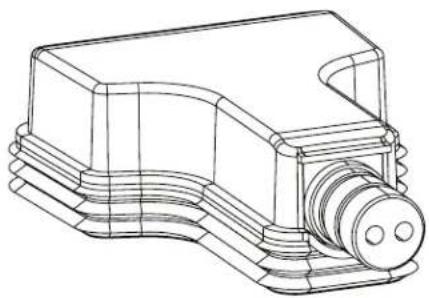

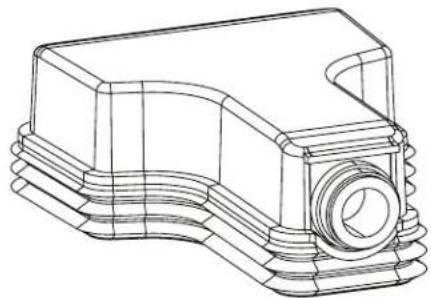

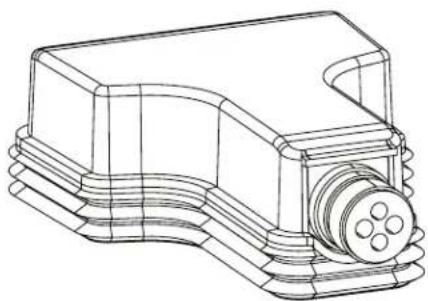

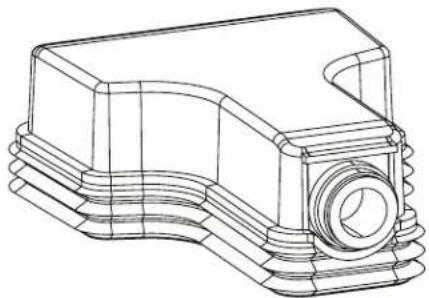

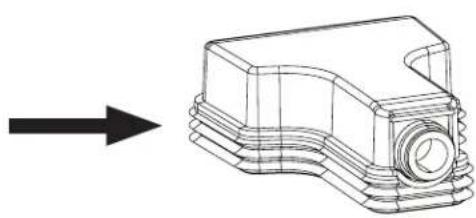

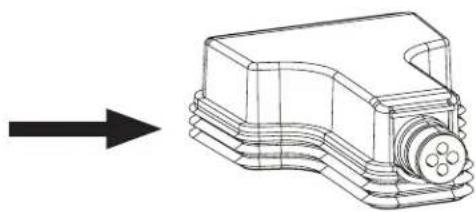

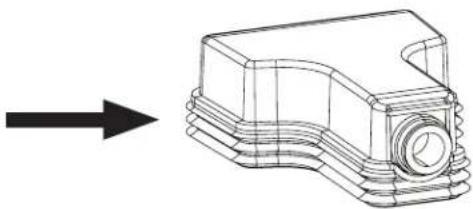

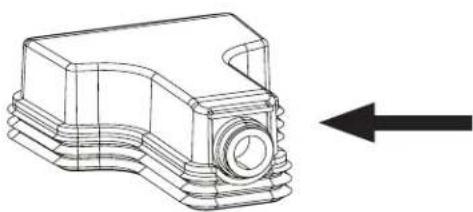

Preparing the Weather-resistant Input Cover

The weather-resistant input cover is designed for three different wiring scenarios (see above). To change the configuration of the input cover to support your wiring scenario, cut along the perforation on the rubber conduit.

Note: Indoor-only applications do not require use of the input cover.

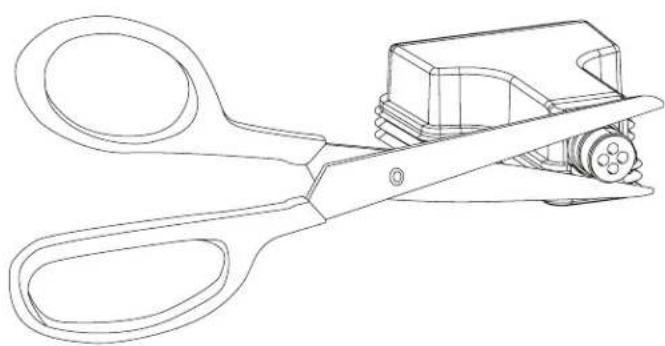

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Note: If installing the loudspeaker with the rubber conduit facing upward, it is the installer's responsibility to seal against water ingress into the Euroblock connector.

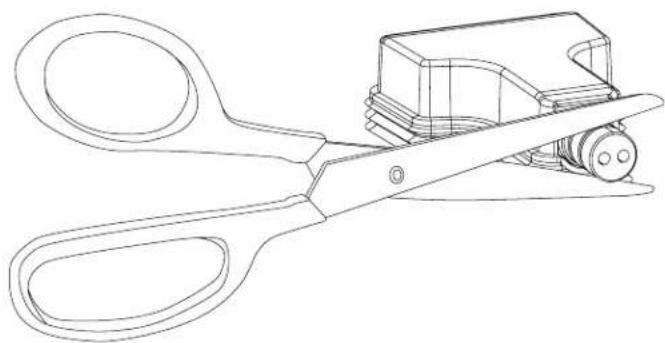

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Note: If using the wide open rubber conduit configuration, it is the installer's responsibility to seal against water ingress into the Euroblock connector.

Wiring the Loudspeaker

Wire Gauge

The DesignMax DM3SE loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

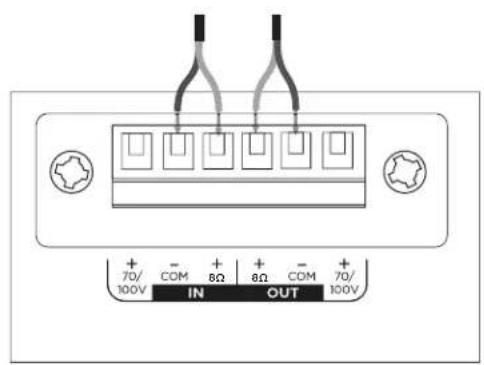

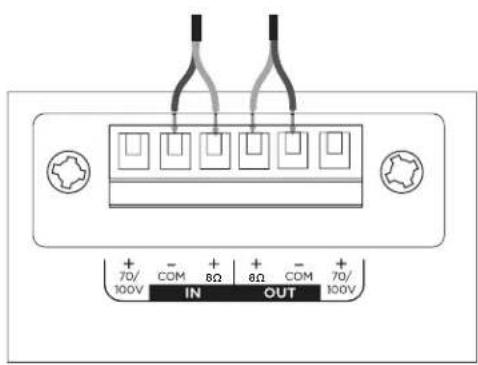

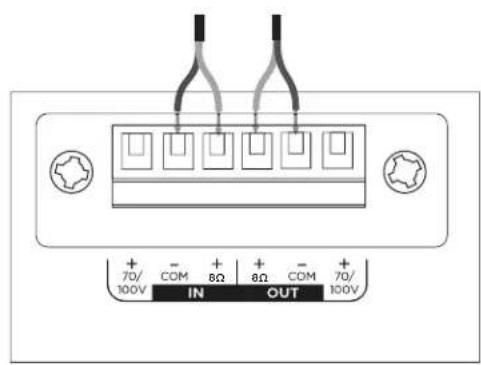

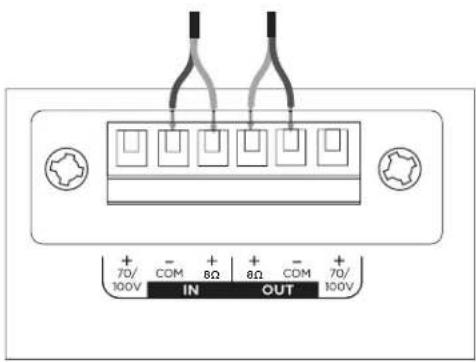

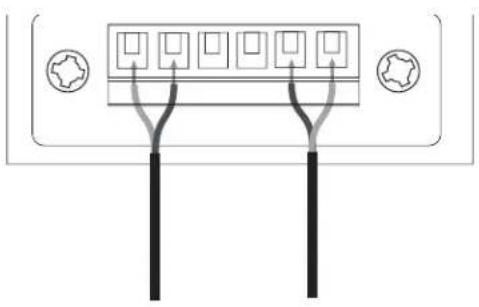

Connection Diagrams

Expose six millimeters ( 14 inch) of bare wire to attach to the terminals.

Note: The loudspeaker is not rated for use with a rigid conduit. The loudspeaker is suitable for a flexible conduit or wiring connection only.

Diagram of a device rear panel with two leads and four ports, no text or symbols present

70V/100V 8Ω

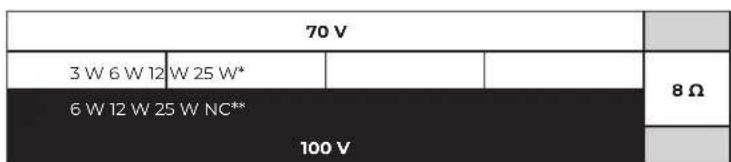

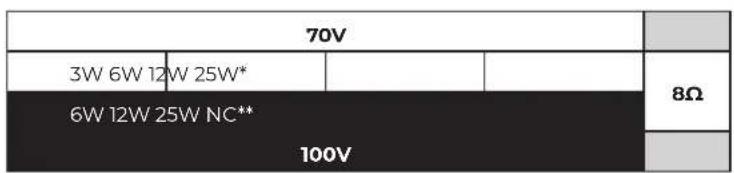

Loudspeaker Settings

** NC: No Connection (do not use)* Factory default

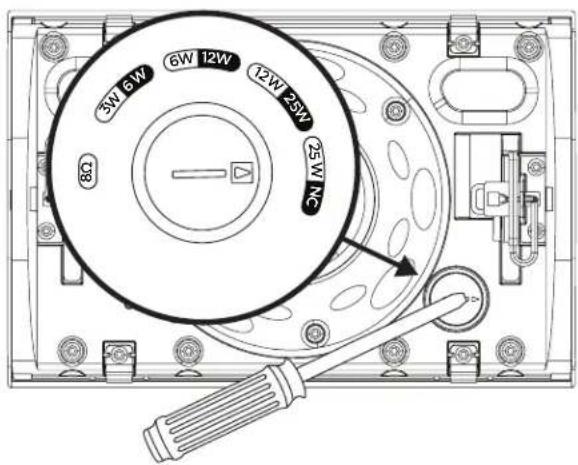

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

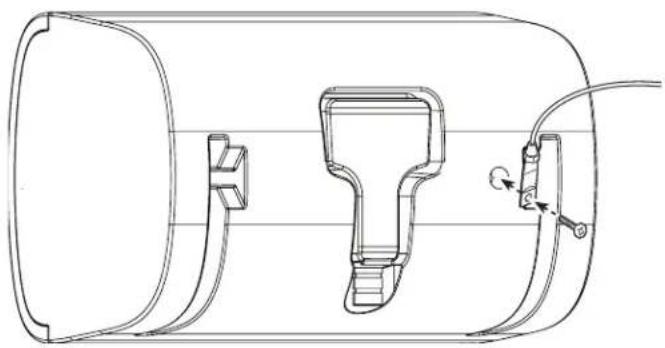

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

A safety cable can be attached to the loudspeaker using the threaded insert on the back of the enclosure.

The insert is sized for an M6 screw (not included) with a depth of 12 millimeters (0.47 inches).

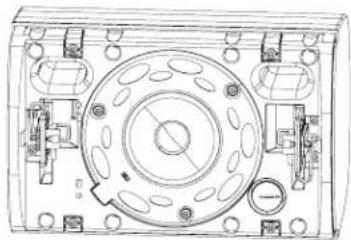

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

Loudspeaker Orientation

Choose the loudspeaker orientation best suited for your installation.

1 Horizontal
② Vertical

Line drawing of a cylindrical object labeled 'BOSE' with no additional text or symbols

Line drawing of a Bose brand container (no text or symbols on body)

Note: Installation in close proximity to cooking surfaces where the loudspeaker may be directly exposed to cooking oils, such as in commercial cooking environments, may decrease the performance or functionality of the loudspeaker.

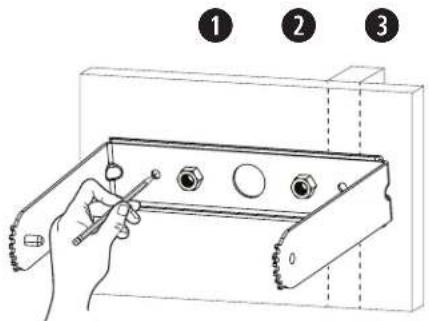

Installing the Bracket

Note: When choosing an installation location, at least one of the mounting bracket's attachment points must be secured to a support structure. Attachment points not secured to a support structure must be secured using appropriate hardware for the installation. Choose fasteners that are consistent with all local building codes and requirements.

Note: Choose appropriate fasteners to support the weight of the loudspeaker (2.8 kg [6.1 lb]).

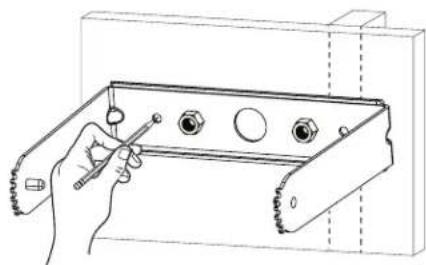

1. Mark the drill holes.
2. Drill two holes (sized for appropriate fasteners) into the wall.
3. Secure the bracket to the wall with two screws (not included). Note: Use M5 or #10 sized screws.

Line drawing of a hand holding a handheld tool (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a component with three bolts (no text or symbols present)

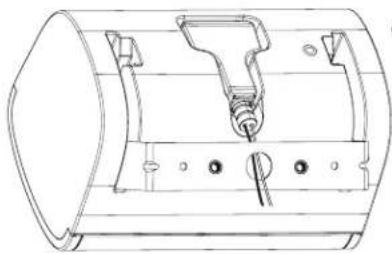

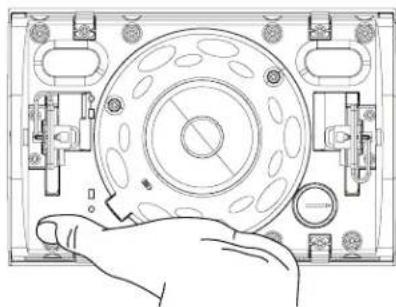

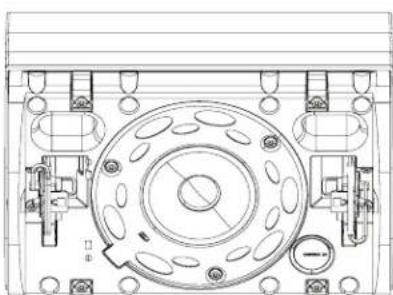

Wiring the Connector

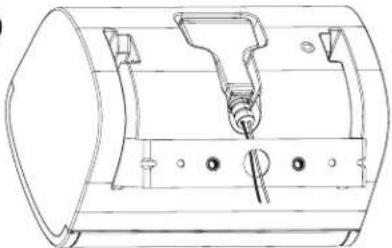

1. Feed the wires through the center hole of the bracket.
2. Remove the connector from the loudspeaker.
3. For outdoor installations, insert the wires through the bottom of the input cover. See Preparing the Weather-resistant Input Cover on page 4.
4. Wire the connector. For wiring information, see Wiring the Loudspeaker on page 5.

Technical line drawing of a mechanical bracket with multiple ports and a central knob (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

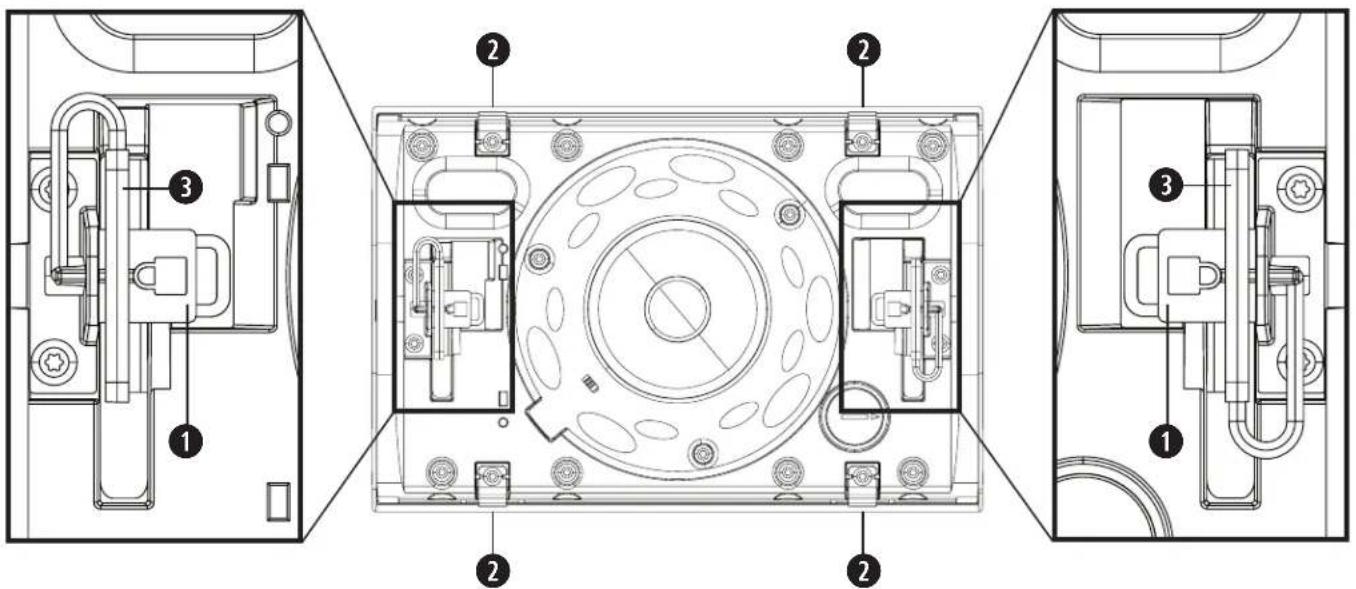

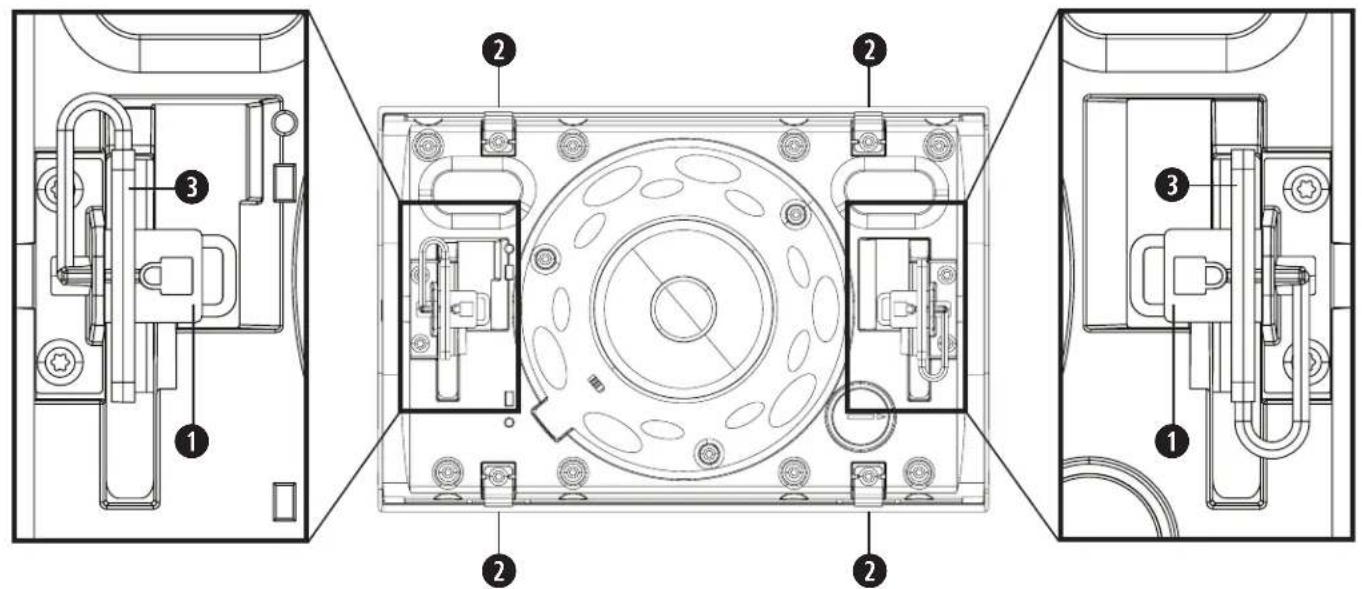

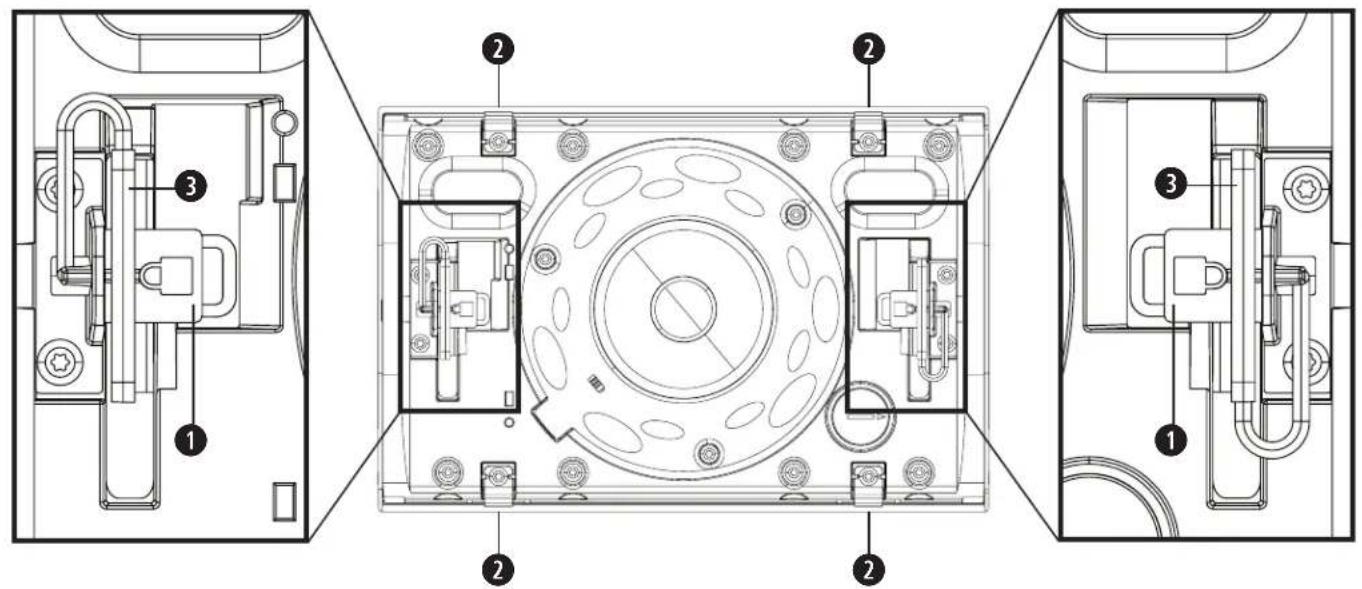

Important Mounting Information

① Bracket lock tabs: Used to secure the loudspeaker angle.
② Grille release tabs: Used to secure the grille to the loudspeaker.
③ Lock forks: Used to secure the loudspeaker to the mounting bracket.
④ Angle labels (on bracket): Identify your desired angle position.

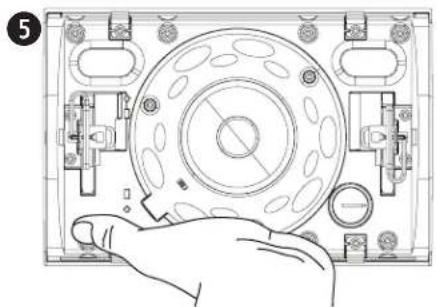

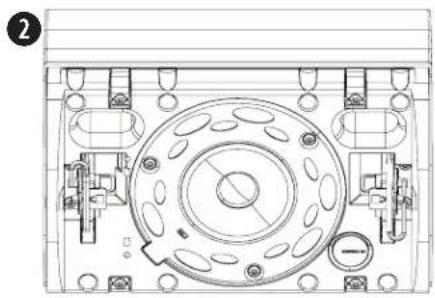

Installing the Loudspeaker

WARNING: Failure to follow the steps below could lead to an unsafe mounting condition, which could create a falling hazard.

1. Remove the lock forks from the lock tabs. Make sure not to pull the lock fork tethers out of the loudspeaker.
2. Attach the loudspeaker to the bracket, adjust the loudspeaker to 45°, and lock the tabs into place.
3. Attach the wired connector to the loudspeaker.

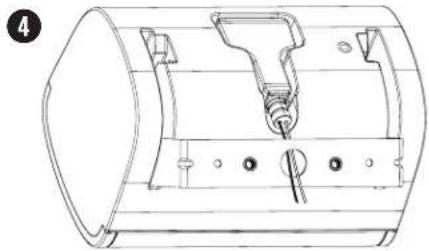

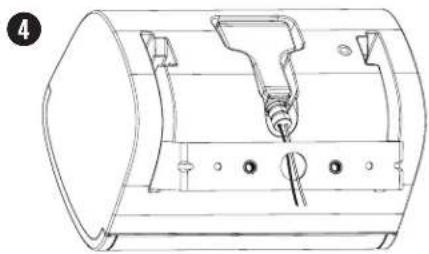

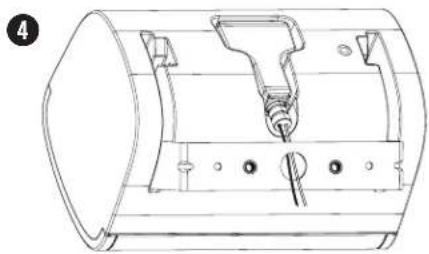

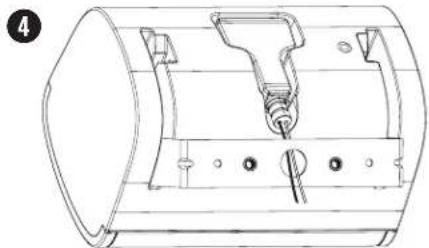

4. For outdoor installations, place the weather-resistant input cover over the connector and press it firmly against the loudspeaker to create a tight seal. See Preparing the Weather-resistant Input Cover on page 4.

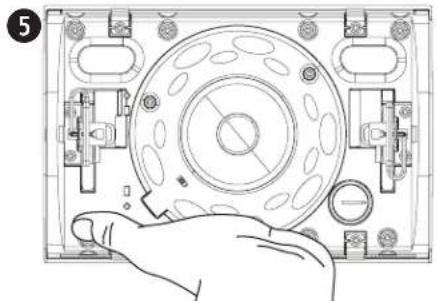

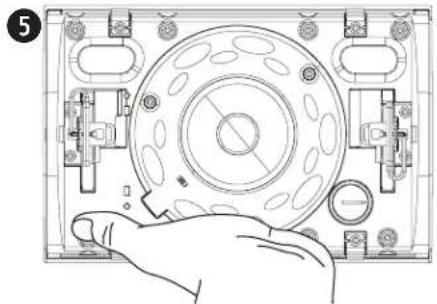

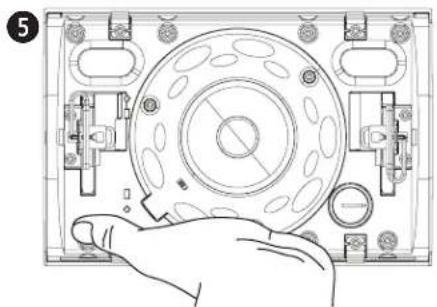

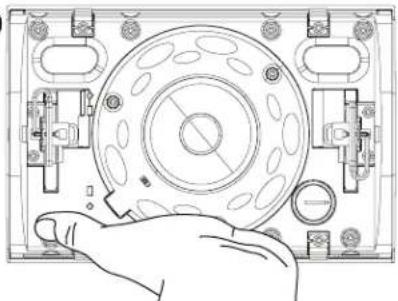

5. Unlock the tabs and adjust the loudspeaker to your desired angle. Make sure to support the weight of the loudspeaker while you adjust the loudspeaker angle. Note: The angle of the loudspeaker can be adjusted to 0^ , 15^ , 30^ , or 45^ .
6. Lock the tabs into place.

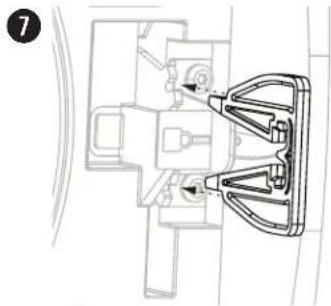

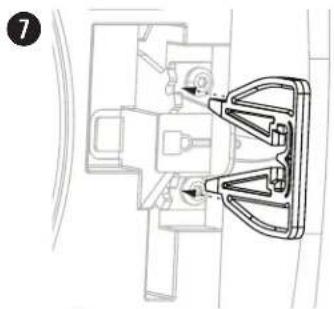

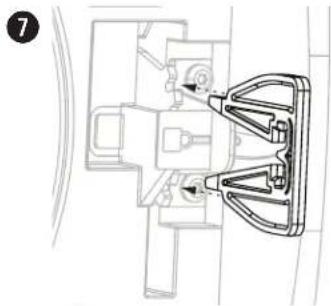

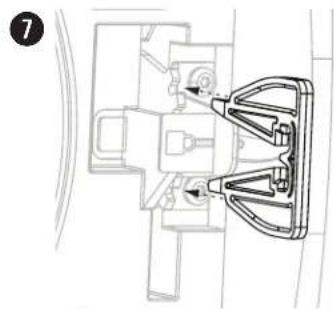

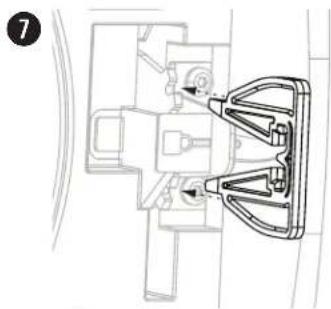

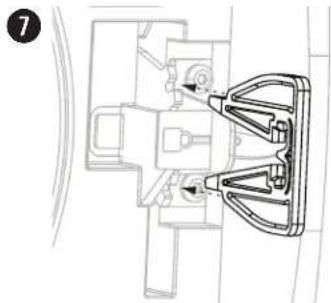

7. Press the lock forks onto the lock tabs until the forks sit securely around the tabs.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a mechanical component with circular housing and adjustment knobs (no text or symbols visible)

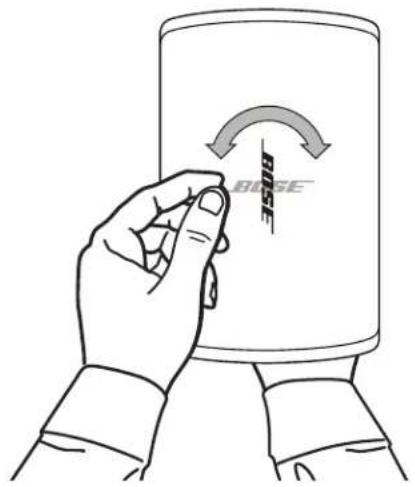

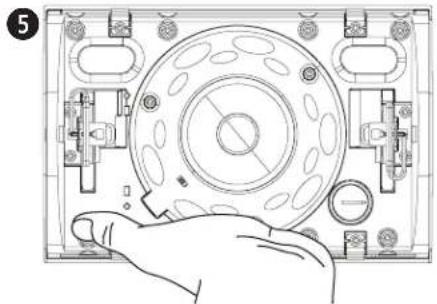

Adjusting the Logo

You can rotate the Bose logo to align with your loudspeaker orientation. With one hand, press the button on the back of the grille. Rotate the logo with the other hand. The logo can be rotated clockwise or counterclockwise.

Note: Do not pinch the button inward unless you intend to remove the logo.

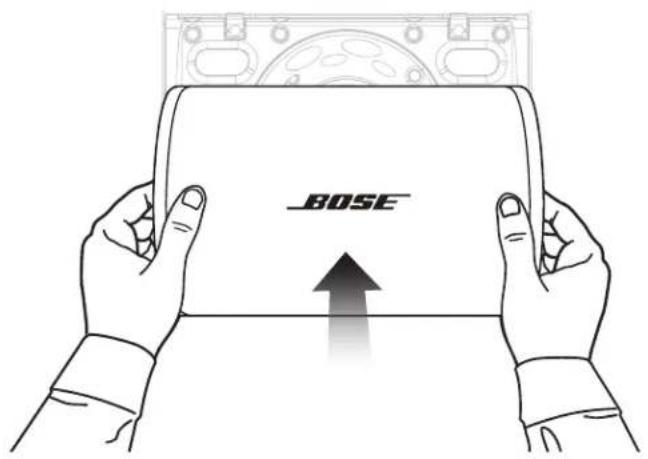

Attaching the Grille

Place the grille over the front of the loudspeaker and push it firmly until it snaps into place.

Removing the Grille

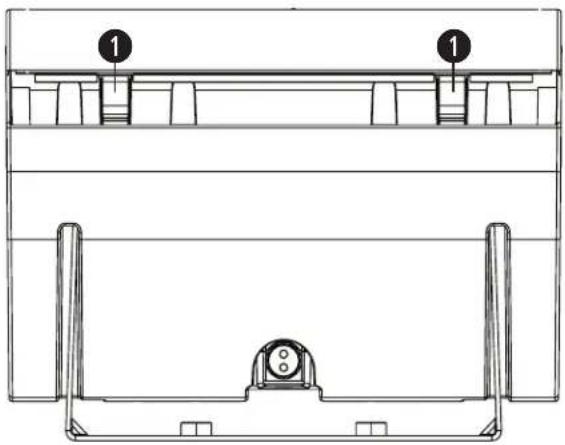

There are two small openings on either side of the grille (1). Along the side of the loudspeaker with the bracket slots, insert a small, flat tool into the grille openings to disengage the release tabs. Pull the grille away from the loudspeaker.

Technical line drawing of a mechanical component with two circular features labeled '1' (no text or symbols present)

Safety and Regulatory Compliance

The DesignMax DM3SE loudspeaker has passed testing and complies with the following specifications and uses:

Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use

General-Purpose Use - UL Category UEAY, File Number S36835

The DesignMax DM3SE is suitable for use outdoors in wet locations

Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

The DesignMax DM3SE loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems:

Tested to IEC60268-5, 2007

Technical line drawing of a mechanical bracket with mounting holes and a circular component (no text or symbols)

2

3

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

4

Line drawing of a mechanical device with a central fan and control dial (no text or symbols)

5

Technical line drawing of a mechanical assembly with a cylindrical body and two connected components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Pure diagram of a device with two leads and four ports, no text or symbols present

70 V/100 V 8 Ω

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

Line drawing of a 3D rectangular object with 'BOSE' branding, no other text or symbols present

Line drawing of a Bose brand container (no text or symbols on the object itself)

Line drawing of a hand holding a handheld tool (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical bracket with multiple ports and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a mechanical component with circular housing and adjustment knobs (no text or symbols visible)

Ajuste del logotipo

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

Technical line drawing of a metal bracket with mounting holes and adjustment knobs (no text or symbols)

2

3

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

4

Technical line drawing of a mechanical device with a central funnel and control knob (no text or symbols)

5

Technical line drawing of a mechanical assembly with a cylindrical component and two connected brackets (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a central hub and mounting flanges (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

Line drawing of a cylindrical object with 'BOSE' branding on the side (no other text or symbols)

2

Line drawing of a Bose brand container (no text or symbols on the object itself)

Line drawing of a hand holding a handheld tool (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a component with three circular ports (no text or symbols)

Technical line drawing of a metal bracket with bolts and a handle (no text or symbols)

3

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a mechanical component with circular housing and adjustment knobs (no text or symbols visible)

Réglage du logo

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

Technical line drawing of a mechanical bracket with mounting holes and a circular component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a funnel and control dial (no text or symbols)

Technical line drawing of a cylindrical mechanical assembly with a central mounting bracket and two side connectors (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a right-pointing arrow indicating direction (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a separate connector (no text or symbols)

Line drawing of a 3D cylindrical object labeled 'BOSE' (no additional text or symbols)

Line drawing of a Bose brand container (no text or symbols on the object itself)

Hand holding a tool interacting with a panel or fixture (no text or symbols visible)

Line drawing of a hand holding a handheld tool (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a component with three bolts (no text or symbols present)

Technical line drawing of a metal bracket with adjustment knobs and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand pressing a button on a mechanical component with no visible text or symbols

Anpassen des Logos

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

4

Line drawing of a mechanical device with a central fan and base mount (no text or symbols)

5

Technical line drawing of a cylindrical mechanical component with mounting flanges and a central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Pure diagram of a device rear panel with two leads and circular ports, no text or symbols present

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

Line drawing of a cylindrical object with 'BOSE' branding on the side (no other text or symbols)

2

Line drawing of a Bose brand container (no text or symbols on the object itself)

Line drawing of a hand holding a handheld tool (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a component with three bolts (no text or symbols present)

Technical line drawing of a metal bracket with bolts and a handle (no text or symbols)

3

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

7

Technical line drawing of a mechanical component with no visible text or symbols

4

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component or connector assembly (no text or symbols)

5

Line drawing of a hand pressing down on a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

Technical line drawing of a mechanical bracket with mounting holes and a circular component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a funnel and base mount (no text or symbols)

Technical line drawing of a cylindrical mechanical component with two attached clamps (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a right-pointing arrow indicating direction (no text or symbols present)

Pure diagram of a device with two vertical connectors and four labeled ports, no text or symbols present.

70 V/100 V 8 Ω

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

Line drawing of a 3D rectangular object with 'BOSE' branding, no other text or symbols present

Line drawing of a Bose brand container (no text or symbols on the object itself)

Line drawing of a hand holding a handheld tool (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a component with three bolts (no text or symbols present)

De connector bekabelen

Technical line drawing of a metal bracket with adjustment knobs and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand pressing a button on a mechanical component with no visible text or symbols

Het logo verstellen

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use

General-Purpose Use - UL Category UEAY, File Number S36835

Importor i EU: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | Britisk importor: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Importor for Japan: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australsk importor: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | Importor for Kina: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importor for Mexico: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | Importor for De forente arabiske emirater: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose er et varemerke for Bose Corporation.

DesignMax er et varemerke for Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

Technical line drawing of a metal bracket with mounting holes and a circular component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a funnel and base mount (no text or symbols)

Technical line drawing of a cylindrical mechanical component with two metal fasteners and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a directional arrow (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Pure diagram of a device with four ports and two leads, no text or symbols present

70/100 V 8Ω

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

Høyttalerretning

Line drawing of a 3D rectangular object with 'BOSE' branding, no other text or symbols present

Line drawing of a Bose brand container (no text or symbols on the object itself)

Technical line drawing of a metal bracket with adjustment knobs and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Hand pressing a button on a mechanical component with no visible text or symbols

Justere logoen

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a funnel and base mount (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a central mounting bracket and two attached wires (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Pure diagram of a device rear panel with two leads and four ports, no text or symbols present

70 V / 100 V

8Ω

Ustawienia głośnika

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

Orientacja głośnika

Line drawing of a cylindrical object labeled 'BOSE' (no additional text or symbols)

Line drawing of a Bose brand container (no text or symbols on the object itself)

Technical line drawing of a metal bracket with adjustment knobs and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Montaż głośnika

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a mechanical component with circular housing and adjustment knobs (no text or symbols visible)

Dostosowywanie logo

Demontaż osłony

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

Technical line drawing of a mechanical bracket with mounting holes and a circular component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a funnel and gauges (no text or symbols)

Technical line drawing of a cylindrical mechanical component with two mounting brackets and a central circular feature (no text or symbols)

安全选件和配件

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

准备防风雨输入防护罩

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a directional arrow indicating motion (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical housing component with an arrow indicating direction (no text or symbols)

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

扬声器朝向

选择最适合您安装条件的扬声器朝向。

① 水平
② 垂直

Line drawing of a 3D rectangular object with a label 'BOSE' on its side, no other text or symbols present.

Line drawing of a Bose brand container (no text or symbols on the object itself)

Line drawing of a hand holding a handheld tool (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a mechanical component (no text or symbols present)

连接接线端子

Technical line drawing of a metal bracket with adjustment knobs and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

重要安装信息

安装扬声器

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a vehicle interior showing a car and its rear view with a traffic cone (no text or labels)

Technical line drawing of a cylindrical mechanical component with internal cavities and mounting holes (no text or symbols)

Pure mechanical diagram showing internal components without any text, numbers, or symbols

Hand pressing a button on a mechanical component with no visible text or symbols

调整徽标

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

安全与法规遵从

歐盟進口商: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | 英國進口商: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | 日本進口商: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | 澳洲進口商: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | 中國進口商: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | 墨西哥進口商: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | 阿拉伯聯合大公國進口商: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

4

Line drawing of a mechanical device with a cylindrical top and base, no text or symbols present

5

Technical line drawing of a cylindrical mechanical assembly with two connected components (no text or symbols)

安裝選項與配件

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with layered structure (no text or symbols)

防風雨輸入端子外蓋安裝前處理

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

揚聲器方向

選擇最適合您安裝方式的揚聲器方向。

① 水平
2 垂直

Line drawing of a cylindrical object labeled 'BOSE' (no additional text or symbols)

Line drawing of a Bose brand container (no text or symbols on the object itself)

Line drawing of a hand holding a handheld tool (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a mechanical component (no text or symbols present)

連接器接線

Technical line drawing of a metal bracket with adjustment knobs and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

重要安裝資訊

安裝揚聲器

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand pressing a button on a mechanical component with no visible text or symbols

調整標誌

Technical line drawing of a mechanical assembly with two numbered components (1), no text or symbols present.

安全與規章遵循

CE This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Technical line drawing of a mechanical bracket with mounting holes and a circular component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a conical top and base (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a central mounting bracket and two side connectors (no text or symbols)

設置 オプションとアクセサリー

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

開口

Technical line drawing of a mechanical component with layered structure (no text or symbols)

耐候入力カバーを準備する

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a central hub and layered base (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

スピーカーの向き

Line drawing of a 3D rectangular object with 'BOSE' branding, no other text or symbols present

Line drawing of a Bose brand container (no text or symbols on the object itself)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

2

Line drawing of a hand holding a handheld tool (no text or symbols)

3

Line drawing of a hand using a power tool to adjust or install a component with three bolts (no text or symbols present)

コネクターを配線する

Technical line drawing of a mechanical bracket with bolts and a pin (no text or symbols)

3

Technical line drawing of a mechanical component with no visible text or symbols

取り付けに関する重要な情報

スピーカーを取り付ける

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

Pure mechanical diagram showing internal components without any text, numbers, or symbols

Hand pressing a button on a mechanical component with no visible text or symbols

ロゴの向きを調整する

Technical line drawing of a mechanical component with two circular features labeled '1' and a central circular feature (no text or symbols present)

安全上のコンプライアンス

Technical line drawing of a metal bracket with mounting holes and circular features (no text or symbols)

2 ×

Simple line drawing of a curved, elongated object with no text or symbols

2 ×

Technical line drawing of a mechanical component with no visible text or symbols

2 ×

أبعاد المنتج

Technical line drawing of a mechanical assembly with a cylindrical body and two rectangular components (no text or symbols)

5

Technical line drawing of a mechanical device with a central fan and base mount (no text or symbols)

4

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

3

2

Technical line drawing of a mechanical bracket with mounting holes and a circular component (no text or symbols)

1

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Technical line drawing of a mechanical component with threaded base and central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a directional arrow indicating left motion (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and an arrow indicating direction (no text or symbols)

Line drawing of a pair of scissors cutting a mechanical component (no text or symbols)

Technical line drawing of a cylindrical device with internal components and wiring (no text or symbols)

استخدام كبل الأمن

Line drawing of a Bose brand container (no text or symbols on body)

2

Line drawing of a cylindrical object with 'BOSE' branding on the side (no other text or symbols)

1

اتجاه مكير الصوت

Line drawing of a hand using a drill bit to adjust or install a mechanical component (no text or symbols present)

2

Line drawing of a hand holding a tool, no text or symbols present

1

Line drawing of a hand using a tool to adjust or install a component on a rectangular panel (no text or symbols)

3

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical bracket with bolt holes and a central pin (no text or symbols)

1

توصيل الموصل سلكياً

مز 1

2

ازل الموصل من مكب 2

Technical line drawing of a mechanical component with no visible text or symbols

7

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal components and mounting holes (no text or symbols)

4

Line drawing of a hand pressing down on a mechanical component with no visible text or symbols

5

الصوت...

من دعم.

مکانها...

广力云

تنبيت الحاجز الشبكي

Technical line drawing of a mechanical component with two labeled parts (1 and 2), no text or symbols present.
