USER MANUAL Mytrax Flex Signature Joie

IMPORTANT - KEEP THESE

Accessories (May not be included in purchase)Accessories may be sold separately or may not be available depending on region.

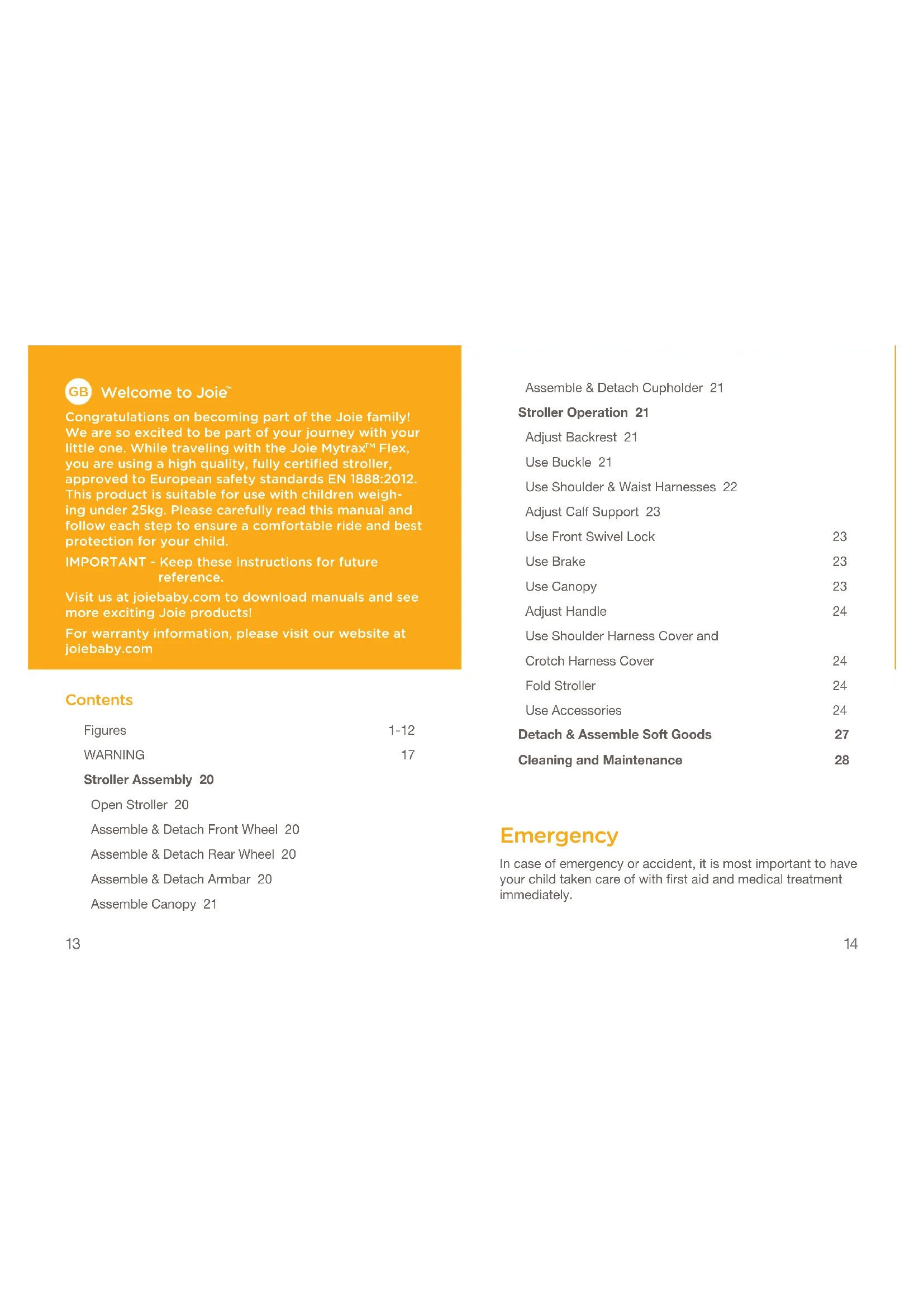

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie Mytrax

Flex, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888:2012. This product is suitable for use with children weigh- ing under 25kg. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child. IMPORTANT - Keep these instructions for future reference. Visit us at joiebaby.com to download manuals and see more exciting Joie products! For warranty information, please visit our website at joiebaby.com Contents Figures 1-12 WARNING 17 Stroller Assembly 20 Open Stroller 20 Assemble & Detach Front Wheel 20 Assemble & Detach Rear Wheel 20 Assemble & Detach Armbar 20 Assemble Canopy 21 Assemble & Detach Cupholder 21 Stroller Operation 21 Adjust Backrest 21 Use Buckle 21 Use Shoulder & Waist Harnesses 22 Adjust Calf Support 23 Use Front Swivel Lock 23 Use Brake 23 Use Canopy 23 Adjust Handle 24 Use Shoulder Harness Cover and Crotch Harness Cover 24 Fold Stroller 24 Use Accessories 24 Detach & Assemble Soft Goods 27 Cleaning and Maintenance 28 Emergency In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.15

Product Information Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model. Product Mytrax Flex Stroller Suitable for Child weighing under 25kg (birth - 36 months) Materials Plastics, metal, fabrics Patent No. Patents pending Made in China Brand Name Joie Website www.joiebaby.com Manufacturer Allison Baby UK Ltd. Parts List Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly. 1 Stroller Frame 2 Canopy 3 Front Wheel 4 Rear Wheel 5 Canopy 6 Seat Pad 7 Armbar 8 Calf Support 9 Front Wheel 10 Swivel Lock 11 Storage Basket 12 Shoulder Harness 13 Cupholder 14 Handle 15 Canopy Window 16 Rear Wheel 17 Brake Lever 18 Storage Mount 19 Storage Latch Accessories (May not be included) 1 Adapter (on certain models) 2 Armbar Cover (on certain models) 3 Rain cover (on certain models) 4 Storage Pocket (on certain models) 5 Insert (on certain models) 6 Footmuff (on certain models) Accessories may be sold separate- ly or may not be available depend- ing on region.

WARNING ! WARNING Always use the restraint system. Safety belts and restraint systems must be used correctly. ! WARNING Ensure that all the locking devices are engaged before use. ! WARNING Do not let your child play with this product. ! WARNING Check that the pram body or infant child restraint attachment devices are correctly engaged before use. ! Adult assembly required. ! Use the stroller with a child weighing less than 25kg. It will cause damage to the stroller with an unfitted child. ! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket. ! The maximum recommended weight in the cupholder is 1lbs (0.5kg). ! Never leave your child unattended. Always keep child in view while in stroller. ! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or canopy. ! Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or rec- ommended by the manufacturer shall be used. ! Overloading, folding incorrectly, or using component parts from other manufacturers may cause the stroller to be dam- aged, broken or unsafe. Please read the instruction manual carefully. ! Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death. ! To avoid serious injury from falling or sliding out, always use seat belt. ! Make sure your child’s body is clear from the moving parts when adjusting the stroller. ! Be sure the stroller is fully open or folded before allowing child near the stroller. ! Child may slip into leg openings and be strangled if the har- ness is not used. ! Never use stroller on stairs or escalators. ! Keep away from high temperature objects, liquids, and electronics. ! Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller. ! Never place the stroller on roads, slopes or dangerous ar- eas. ! To avoid strangulation, DO NOT place items with a string around your child’s neck, suspend strings from this product, or attach strings to toys. ! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the stroller will affect the stability of the stroller. ! DO NOT lift stroller while child is in stroller. ! DO NOT use storage basket as a child carrier. ! To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller. ! To avoid finger entrapment, use care when folding and unfolding the stroller. ! To avoid injury, ensure that your child is kept away when unfolding and folding this product. ! To ensure your child’s safety, please make sure all parts are assembled and fastened properly before using the stroller. ! To avoid strangulation, do make sure your child is clear from the canopy.19

! Always engage the brakes when parking the stroller. ! Discontinue using stroller if it is damaged or broken. ! Stroller to be used only at walking speed. This product is not intended for use while jogging. ! To avoid burns, never put hot liquids in your cupholder. ! To avoid suffocation, remove plastic bag and packaging ma- terials before using this product. The plastic bag and pack- aging materials should then be kept away from babies and children. ! This product is not suitable for running or skating. ! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies. ! The parking device shall be engaged when placing and removing children. ! For infant child restraints used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suit- able pram body, cot or bed. ! Carry cot is only suitable for a child who cannot sit up un- aided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9kg. ! DO NOT use or add any mattress other than the one sup- plied with the carry cot. ! Do not attach items to the handle, seat back or sides of the stroller. Any additional load will affect the stability of the stroller and could cause the stroller to tip. Stroller Assembly (Please refer to figures on page 1-12) Please read all the instructions in this manual before assembling and using this product. Open Stroller see images

Separate storage latch from storage mount

, and then lift the handle upwards

, a click sound means the stroller is open completely. ! Check that the stroller is completely latched before continuing to use. Assemble & Detach Front Wheel see images

! Operating adapters for turning Dunlop valve to Shrader valve is shown as

. Store the adapters shown as

if not use them. ! CHECK the tire pressure before using the stroller. DO NOT INFLATE above the maximum recommended inflation pressure that is written on the side of the tire.

! Over-inflation may cause wheel and/or tire to blowout and could result in serious injury. Assemble & Detach Armbar see images

The completely assembled stroller is shown as

Stroller Operation Adjust Backrest see images

There are 4 recline angles for the backrest. Recline Backrest To recline the backrest, squeeze the recline handle on the back of the seat, pull down on the backrest.

Raise Backrest To raise the backrest, push up.

! Make sure the recline is set properly for use. Use Buckle see images

Release Buckle Press the center button to release the buckle.

Lock Buckle Match the waist belt buckle with the shoulder buckle

- 1, and click into the center buckle.

- 2 A “click” sound means the buckle is locked completely.

! To avoid serious injury from falling or sliding out, always secure your child with harness. ! Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand. ! Do not cross the shoulder belts. This will cause pressure on a child’s neck. Use Shoulder & Waist Harnesses see images

! In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

- 3 Slide adjuster For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots. To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front.

Rethread it through the slot that is closest to child's shoulder height.

Use slide adjuster to change the harness length.

- 2, while pulling the waist harness to proper length.

Adjust Calf Support see images

The calf support has 2 positions. To raise the calf support, push it upwards. A "click" sound means the calf is locked completely. To lower calf support, press the adjustment buttons on both sides of the calf support

- 1, and rotate the calf support downwards.

Push up the front swivel locks to maintain the moving direction.

Tip It is recommended to use swivel locks on uneven surfaces. Use Brake see images

To lock wheels, step the brake lever downwards.

To release wheels, just lift the brake lever upwards.

Tip Always set the parking brake when stroller is not moving. Use Canopy see images

The canopy can be opened or folded, pull it toward front or back. The canopy can be opened completely to protect your child from the sun uttermostly, just unzip the zip

, and then pull the canopy toward front. There is a window on the canopy, through which you can view your baby. Adjust Handle see images

Use Shoulder Harness Cover and Crotch Harness Cover see images

The shoulder harness cover or crotch harness cover

can be removed from the webbing. To assemble shoulder harness cover and crotch harness cover in reverse steps. Fold Stroller see images

! Please fold the canopy before folding the stroller.

2. The storage latch will automatically hook onto the storage

mount, then the stroller is folded and locked completely.

3. The stroller can stand when folded.

Use Accessories Accessories may be sold separately or may not be available depending on region.25

Use with Infant Child Restraint see images

When using with Joie infant child restraint gemm,iGemm & iLevel please refer to the following instructions. ! Before using the infant child restraint, please make sure the backrest has been adjusted to the lowest position and the infant child restraint has been fastened. ! If you have any problems about using the infant child restraint, please refer to their own instruction manuals. ! Please do not fold the stroller when the infant child restraint is still attached. Use with Joie Carry Cot see images

When using with Joie carry cot ramble & ramble xl, please refer to the following instructions.

If you have any problems about using the carry cot, please refer to their own instruction manuals. ! Always use the mattress when using the carry cot. ! Please don’t fold stroller when attaching the carry cot. Use Rain Cover see images

To assemble the rain cover, place it over the stroller, and then attach the 8 pairs of hook and loop fasteners on the rain cover.

! Before using the rain cover, please make sure the backrest has been adjusted to the lowest position and the infant child restraint has been fastened. ! When using the rain cover, please always check its ventilation. ! When not in use, please check that the rain cover has been cleaned and dried before folding. ! Do not fold the stroller after assembling the rain cover. ! Do not place your child into the stroller assembled with rain cover during hot weather. Use Storage Pocket see images

Total maximum weight of storage pocket must not exceed 1.5kg. Use Insert see images

The front and back of insert are available.27

Cleaning and Maintenance see images

! To clean stroller frame, use only household soap and warm water. No bleach or detergent. Please refer to the care label for instructions on cleaning the fabric parts of the stroller. ! Removable soft goods can be washed by machine. No bleach. Do not twist the seat cover and inner padding to dry with great force. It may leave the seat cover and inner padding with wrinkles. ! From time to time, check your stroller for loose screws, worn parts,torn material or stitching. Replace or repair the parts as needed. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water. ! Excessive exposure to sun or heat could cause fading or warping of parts. ! If stroller becomes wet, open canopy and allow to dry thoroughly before storing. ! If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.

! When using your stroller at the beach or other sandy/dusty environments, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies. Use Footmuff see images

unbuckle the harness and remove the shoulder harness pads, crotch pads.

2. Before placing the footmuff on the stroller seat, unzip and

open the front cover of the footmuff.

3. Place the footmuff on the stroller seat and pull the shoulder

harness webbing and buckles through the slots on the footmuff.

Reassemble the shoulder harness pads, crotch pads and and attach the armbar.

4. Zip on the front cover of the footmuff.

1. Remove armbar cover shown as

2. Open the zipper which is on the rear panel of canopy.

! Adjust backrest to the lowest position to be convenient to remove soft goods.

3. Remove calf support cover.

4. Open the buckle which is on the bottom of seat.

! Please keep support board well, must assemble keep support when assembling soft goods.

To re-assemble seat soft goods, follow the steps above in reverse

Allison Baby UK Ltd., Venture Point, Towers Business Park, Rugeley, Staffordshire, WS15 1UZ www.joiebaby.com

Allison Baby UK Ltd., Venture Point, Towers Business Park, Rugeley, Staffordshire, WS15 1UZ www.joiebaby.com www.joiebaby.com.cn

55P-IM0388D view all fine signature selections at joiebaby.com/signature
