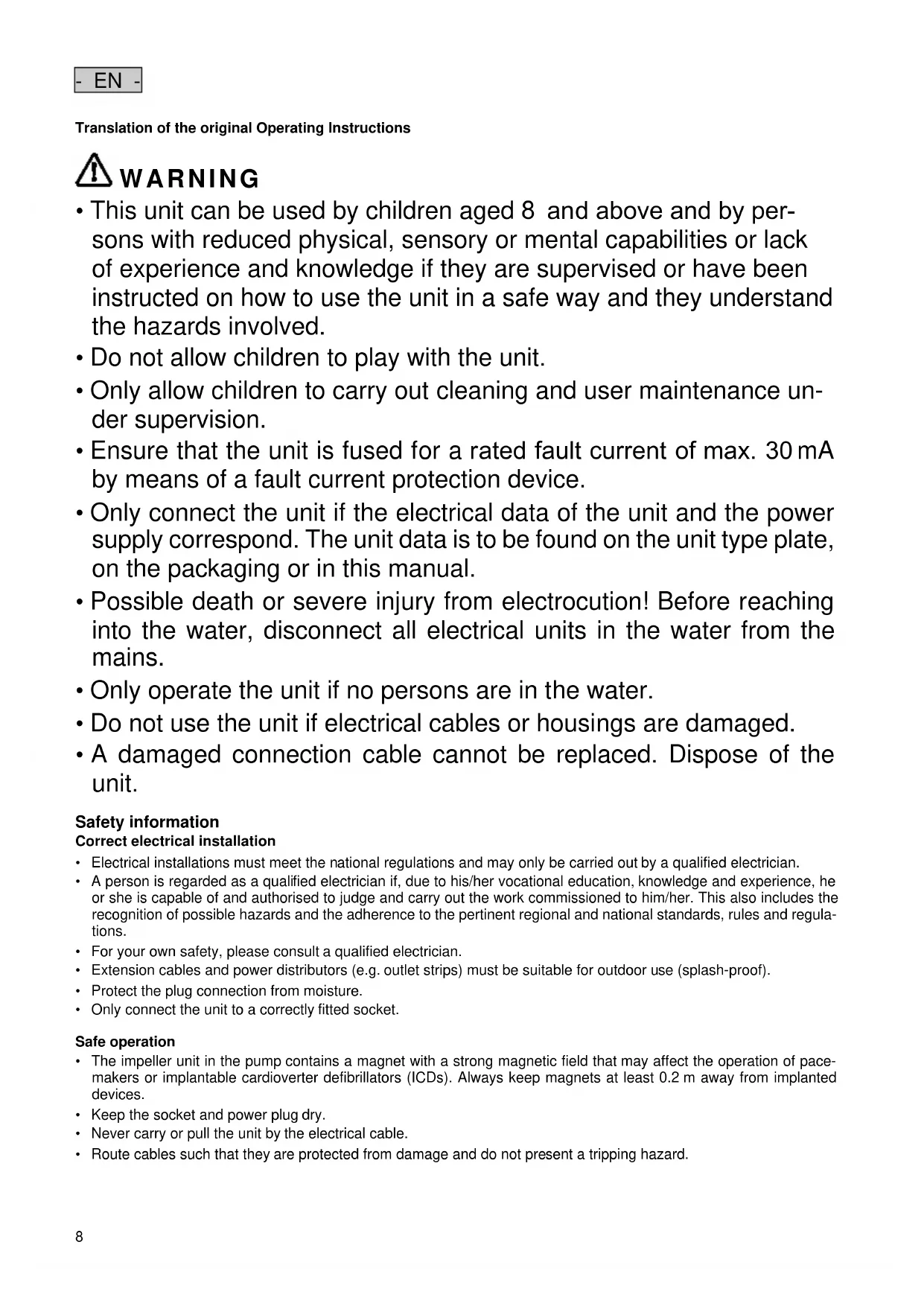

Translation of the original Operating Instructions

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
• Do not allow children to play with the unit.
• Only allow children to carry out cleaning and user maintenance under supervision.
• Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
• Only connect the unit if the electrical data of the unit and the power supply correspond. The unit data is to be found on the unit type plate, on the packaging or in this manual.
• Possible death or severe injury from electrocution! Before reaching into the water, disconnect all electrical units in the water from the mains.
• Only operate the unit if no persons are in the water.
• Do not use the unit if electrical cables or housings are damaged.
• A damaged connection cable cannot be replaced. Dispose of the unit.

Safety information

Correct electrical installation

• Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.
- A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and experience, he or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regulations.
- For your own safety, please consult a qualified electrician.
- Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
- Protect the plug connection from moisture.
- Only connect the unit to a correctly fitted socket.

Safe operation

• The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Always keep magnets at least 0.2 m away from implanted devices.
• Keep the socket and power plug dry.
• Never carry or pull the unit by the electrical cable.

• Route cables such that they are protected from damage and do not present a tripping hazard.

• Never carry out technical changes to the unit.

• Only carry out work on the unit that is described in this manual. If problems cannot be overcome, please contact an authorised customer service point or, if in doubt, the manufacturer.
• Only use original spare parts and accessories for the unit.

Information about these operating instructions

You made a good choice with the purchase of this product PondoCompact.

Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.

Ensure that all work on and with this unit is only carried out in accordance with these instructions.

Adhere to the safety information for the correct and safe use of the unit.

Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new owner.

Warnings used in these instructions

The warning information is categorised by signal words, which indicate the extent of the hazard.

WARNING

• Indicates a possibly hazardous situation.
  • Non-observance may lead to death or serious injuries.

CAUTION

• Indicates a possibly hazardous situation.
  • Non-observance may lead to slight or minor injuries.

NOTE

Information for the purpose of clarification or for preventing possible damage to assets or to the environment.

Cross-references used in these instructions

5 A reference to a figure, e.g. figure A.

→ Reference to another section.

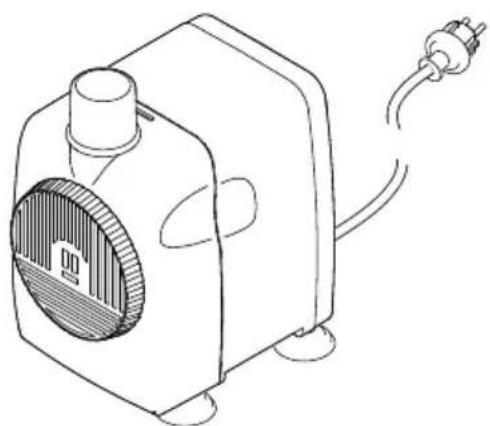

Product Description

PondoCompact pumps are designed for water features.

• PondoCompact 500i: Suitable for indoor use, 13 mm (½") hose connection.
• PondoCompact 800i: Suitable for indoor use, 19 mm ( ^3/4 ") hose connection.
• PondoCompact 1200i: Suitable for indoor use, 19 mm ( ^3/4 ") hose connection.
• PondoCompact 600: Suitable for indoor and outdoor use, 13 mm (½") hose connection.
• PondoCompact 800: Suitable for indoor and outdoor use, 19 mm ( ^3/4 ") hose connection.
• PondoCompact 1200: Suitable for indoor and outdoor use, 19 mm (¾") hose connection.
• Simple regulation of the water volume.

Delivery scope and unit configuration

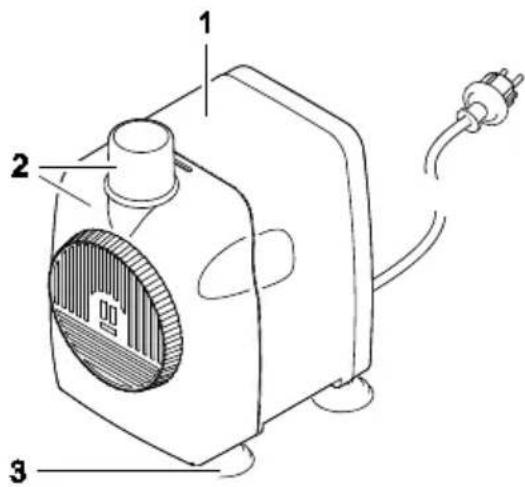

5 A	PondoCompact			Description
	500i	600	800/800i/1200/1200i
	Quantity	Quantity	Quantity
1	1	1	1	Motor housing
2	1	1	-	Pump casing with 13 mm ( 12 ") outlet
	-	-	1	Pump casing with 19 mm ( 34 ") outlet
3	2	4	4	Suction cups

- EN -

Intended use

PondoCompact, referred to as "unit", may only be used as specified in the following:

• For operation with clean water.
• Operate in accordance with instructions.
  The following restrictions apply to the unit:
• Do not use in swimming ponds.
• Never use the unit with fluids other than water.
• Never run the unit without water.
• Do not use for commercial or industrial purposes.
• Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
• Do not connect to the domestic water supply.

Installation and connection

WARNING

Death or serious injuries from hazardous electrical voltage due to operation of this unit in a swimming pond.

- Never operate this unit in a swimming pond.

How to proceed:

5 B

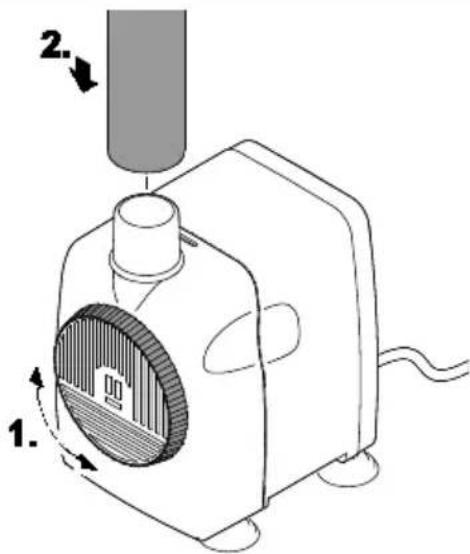

1. Set the flow rate:

2. Turning the socket clockwise: Increases the flow rate.

3. Turning the socket counterclockwise: Decreases the flow rate.

4. Fit the hose onto the outlet.

5 C

1. Install the pump fully submerged.

2. Ensure that the maximum permissible submersion depth of 1 m is not exceeded

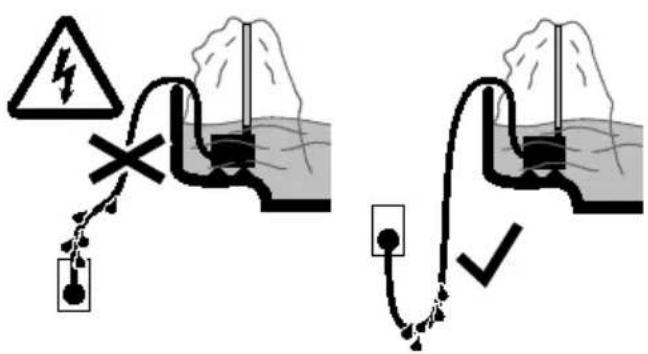

3. Route the power cable so that it forms a loop below the power socket.

Commissioning/start-up

NOTE

Never allow the pump to run dry. Otherwise the pump will be destroyed.

• Ensure that the pump is always flooded during operation.
  • Regularly check the water level.

• Switching on: Insert the power plug into the socket.

• The unit switches on immediately.
• Switching off: Disconnect the power plug.

Remedy of faults

Malfunction	Cause	Remedy
The unit does not start up	No mains voltage	Check the mains voltage
	Impeller unit blocked	Clean
Insufficient fountain height	Regulator closed too far	Adjust regulator
	Filter housing or impeller unit soiled, hose blocked	Clean
	Hose defective	Replace
	Hose kinked	Route hose in a straight line
	Impeller unit worn	Replace impeller unit
Only PondoCompact 1200i/1200: Unit switches off after a short running period	Filter clogged, unit switches off in the event of overload	CleanThe unit will switch on again automatically as soon as it has cooled down
	Water temperature too high, unit switches off in the event of overload	Adhere to max. permissible water temperature (→ Technical Data)The unit will switch on again automatically as soon as it has cooled down

Maintenance and cleaning

WARNING

Possible death or severe injury from hazardous electrical voltage!

• Prior to reaching into the water, isolate (switch off and disconnect) all units/devices used in the water.
• Isolate the device (disconnect from the power supply) before carrying out any work on it.

If necessary, clean the unit with clear water using a soft brush.

• Do not use aggressive cleaning agents or chemical solutions as they could attack the housing or impair the function of the unit
  • Recommended cleaning agent for removing stubborn limescale deposits:

– Vinegar- and chlorine-free household cleaning agent.

• After cleaning, thoroughly rinse all parts in clean water.

Replacing the impeller unit

How to proceed:

5 D

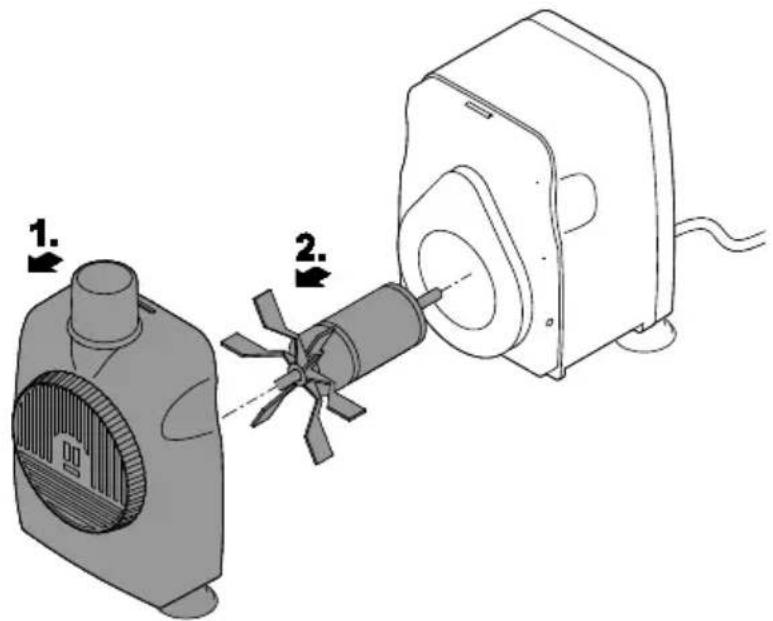

1. Pull off the pump casing.
2. Pull the impeller unit out of the motor housing.
3. Assemble the pump in the reverse order.

Storage/overwintering

The unit is not frost-proof and has to be removed and put into storage if minus temperatures are expected.

How to correctly store the unit:

• Thoroughly clean the unit, check it for damage and replace any damaged parts.
• Protect electrical connections from moisture and dirt.
• Store the pump submerged and in a frost-free environment.
• Protect open plug connections from moisture and dirt.

Wear parts

- Impeller unit

Disposal

Do not dispose of this unit with domestic waste! For disposal purposes, please use the return system provided. Render the unit unusable beforehand by cutting the cables.

Guarantee conditions

PfG grants a 2 year guarantee from the date of sale on proven material and manufacturing faults. Wear parts such as bulbs etc. are exempted from the guarantee. Prerequisite for our guarantee is the presentation of the purchase receipt. Our guarantee will become null and void if the unit is misused, electrically or mechanically damaged by inappropriate use and improper repair by non-authorised workshops. Repairs are reserved for workshops authorised by PfG or by PfG itself. In the case of warranty claims, please return the defective unit or part freight paid to PfG together with a description of the fault and the purchase receipt. PfG reserves the right to invoice repair costs. PfG is not liable for transport damage. Any damage must be claimed against the carrier. Further claims of whatever type, especially consequential damage, are excluded. This guarantee does not affect the final customer's claims against the dealer.
