USER MANUAL VideoScope XL Laserliner

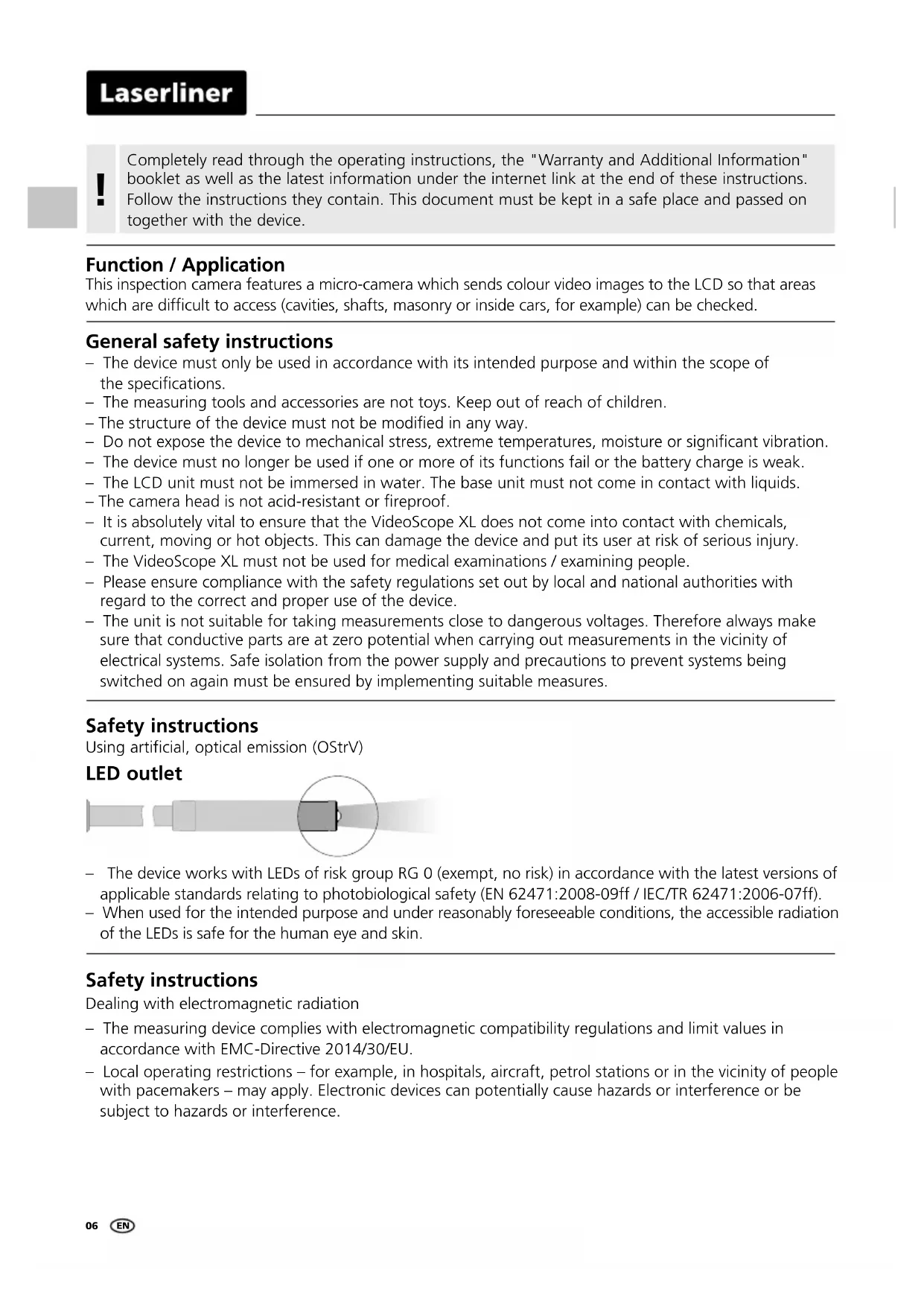

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

This inspection camera features a micro-camera which sends colour video images to the LCD so that areas which are difficult to access (cavities, shafts, masonry or inside cars, for example) can be checked.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• The LCD unit must not be immersed in water. The base unit must not come in contact with liquids.
• The camera head is not acid-resistant or fireproof.
• It is absolutely vital to ensure that the VideoScope XL does not come into contact with chemicals, current, moving or hot objects. This can damage the device and put its user at risk of serious injury.
• The VideoScope XL must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet

The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).
- When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

NOTE: The VideoScope XL delivers sharp images in a range between 3 and 7cm from the camera head. Objects outside this range may appear blurred.

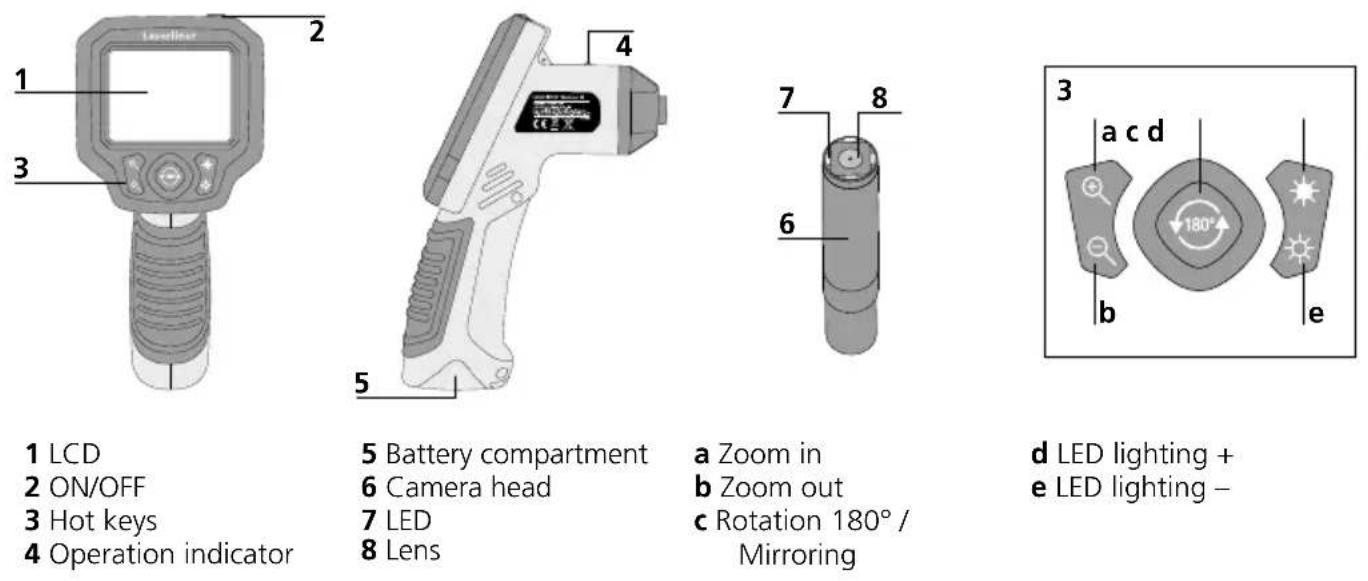

LCD

a Battery status
b Zoom level
c Intensity of LED lighting (5 brightness levels)

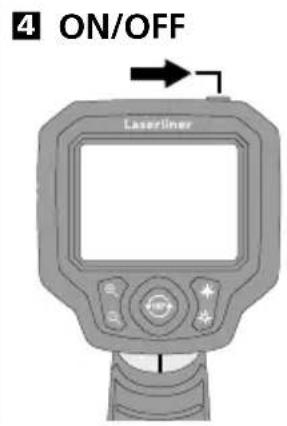

First use

Functions during transmission of images

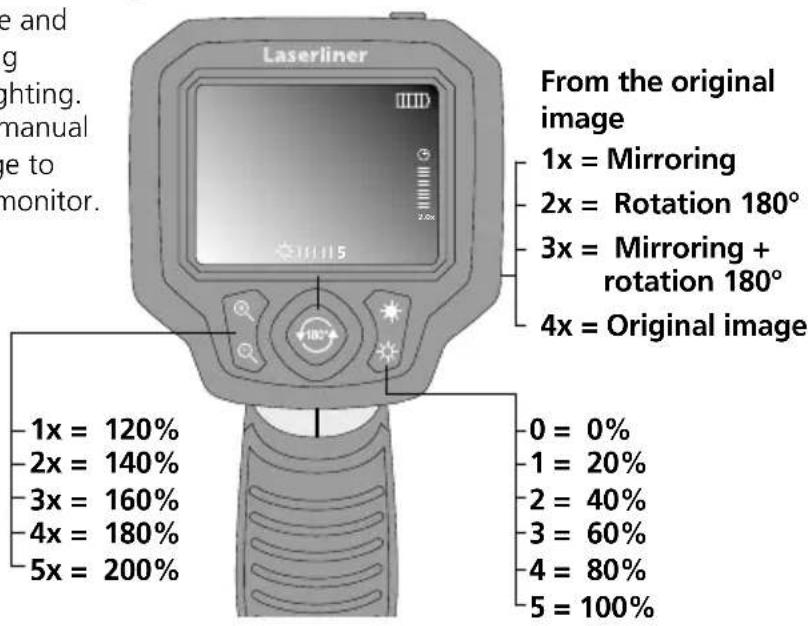

Line up the camera head on the flex cable and move it to the required position. If lighting conditions are poor, switch on the LED lighting. Zoom in on distant or small objects. The manual image rotation function enables the image to be mirrored and rotated by 180^ on the monitor.

Camera head / Focus

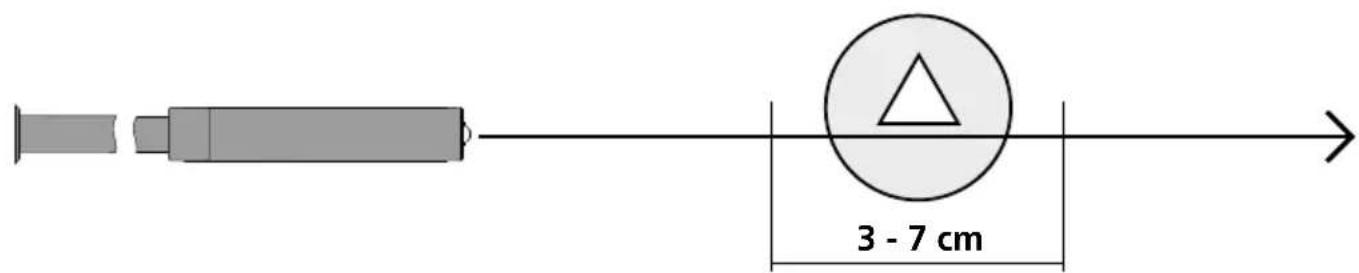

The VideoScope XL delivers sharp images in a range between 3 and 7cm from the camera head.

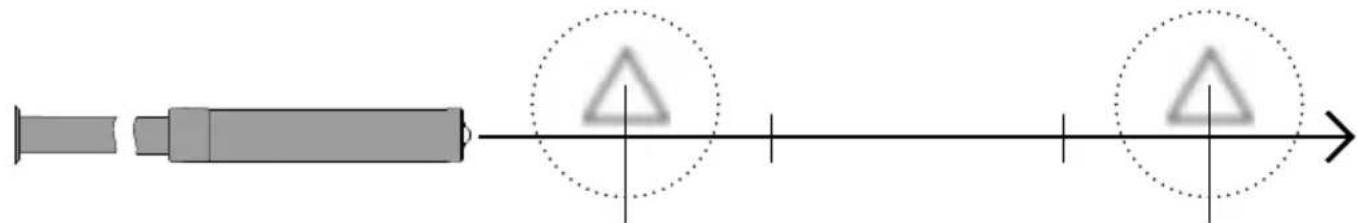

Objects far outside this range may appear blurred.

$$ < 3 \mathrm {c m} > 7 \mathrm {c m} $$

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data Technical revisions reserved. 18W44
Camera headø9 mm, water-resistant, IP 68
Camera focus F3 cm - F7 cm
Screen type 3,5" TFT colour display
Display resolution 320 x 240 pixels
Camera resolution 640 x 480 pixels
LED 5 brightness levels
Zoom 2x digital zoom in 20% increments
Length of flex cable 3,5 m

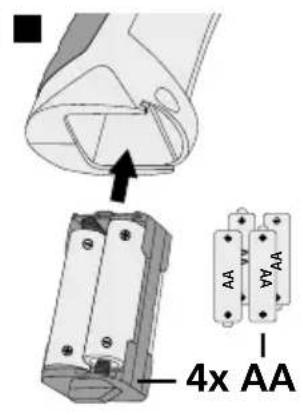

Power supply 4 x AA 1.5 V batteries
Operating conditions	0°C ... 45°C, Max. humidity 20 ... 85% rH, no condensation, Max. working altitude 4000 m above sea level
Storage conditions -10°C ... 60°C, Max.	humidity 80% rH
Weight incl. batteries 745 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=AGP

！
