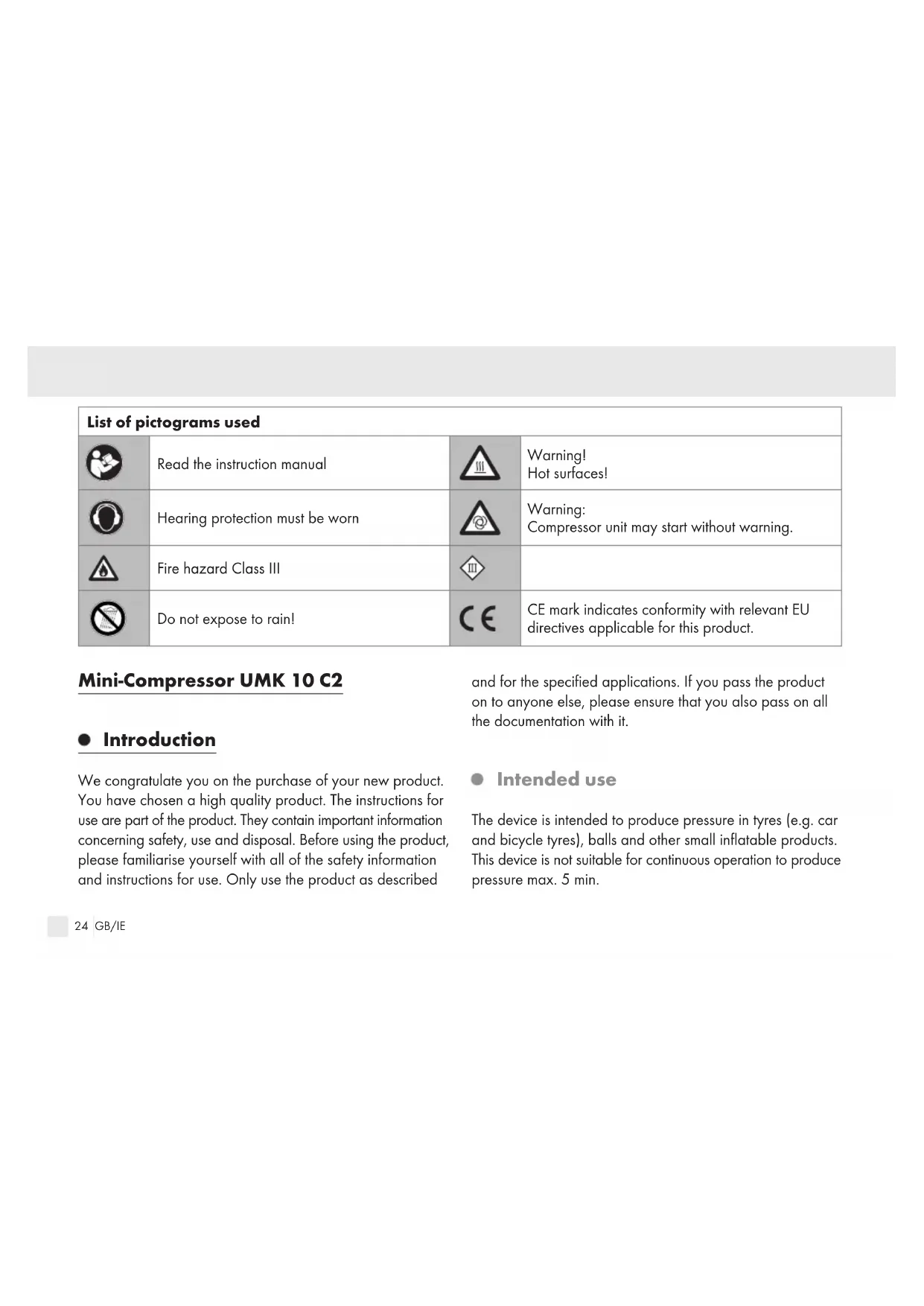

List of pictograms used
	Read the instruction manual		Warning!Hot surfaces!
	Hearing protection must be worn		Warning:Compressor unit may start without warning.
	Fire hazard Class III
	Do not expose to rain!	[SD3D]	CE mark indicates conformity with relevant EU directives applicable for this product.

Mini-Compressor UMK 10 C2

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described

and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

The device is intended to produce pressure in tyres (e.g. car and bicycle tyres), balls and other small inflatable products. This device is not suitable for continuous operation to produce pressure max. 5 min.

Any other use may damage the device and present a serious danger to the user.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

This device is not suitable for commercial use.

Commercial use will void the warranty.

- Contents/Accessories

Unpack the device and verify it is complete:

1 Mini compressor
4 Valve adapters
1 Instructions for use

Dispose of packaging material properly.

Overview

1 Carrying handle
2 Manometer with pressure gauge (not calibrated)

- in bar: black scale

- in psi: red scale

3 Vents
4 Power cable
5 Cigarette lighter plug
6 On/off switch
7 Connection valve
8 Clamping lever
9 Air hose
10 Valve adapter

a+b: for inflatables

c: for balls

d: Adapter screw for bicycle valve adapter (Presta or

Dunlop)

11 Replaceable overload fuse

- Technical data

Mini Compressor: UMK 10 C2

Rated voltage range: 12V

Rated power: 180W

Rated current: 15A

Maximum pressure: 10bar

Max. operating time: 5min (S2) ^*

Air output: 35l/min

Weight: approx. 1.64kg

Power cord length: 3m

Maximum rotational

shaft speed "max: 3200min -1

Noise emission value:

Noise measurement value determined in accordance with ISO 3744:1995. The A-rated noise level is typically as follows:

Sound pressure level: 73.1dB(A)

Uncertainty: 1.93dB

Sound power level: 84.1dB(A)

Uncertainty: 1.93dB

* Continuous operation: do not operate device uninterrupted for more than 5 minutes; then allow to sit for 20 minutes.

Subject to technical and visual changes without notice in the course of advancement.

All dimensions, notices and specifications in these instructions for use are therefore subject to change.

Legal claims based on the instructions for use can therefore not be asserted.

● General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and

ignore tool safety principles.

A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the

battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dsituationsangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Using the device:

■ Within the work area the user is responsible for damages incurred by third party caused by the use of this device.
■ Never aim the device at yourself or others during use, particularly eyes and ears. There is a danger of injury!
■ Never leave the device unattended during operation and follow the inflating instructions of the inflatable. The inflatable may burst and cause serious injuries.
■ Do not use the device whilst driving.
- Keep all openings on the device clear during operation. Do not close the openings with your hands or fingers, and do not cover the device. There is a risk of overheating!

• Do not leave the device in the car in hot outdoor temperature. The device could be damaged beyond repair.
  The device will heat up during operation. Touching hot surfaces poses a risk of burns.
• Do not carry the device by the cable. Do not unplug from the socket by the cable. Protect the cable from heat, oil and sharp edges.
  ■ Only connect the connection cable to the cigarette lighter socket in the car.
  ■ Follow the instructions of your automaker on using the cigarette lighter socket.
  If the cable is damaged, immediately unplug from the cigarette lighter socket.

The connection cable on this device cannot be replaced. Dispose of the device if the cable is damaged.
The portable compressor is not calibrated. After inflating inflatable items where the wrong pressure can be dangerous (e.g. car tyres after a car breakdown), visit a specialised centre with calibrated equipment and check the pressure of the inflatable item.

Operation

- Initial use

Place the product on a level, non-flammable surface. Do not cover the vents. Do not operate the device in dusty environments. Doing so poses a fire hazard and could damage the device.

☐ For inflatables with counterpressure (e.g. partly filled car tyre): Switch on the product before connecting the connection valve 7 to the tyre.

Note: Depending on the inflatable you can use the connection valve 7 directly or along with the included valve adapters 10 (see Fig. A).

Connecting to the cigarette lighter socket:

Note: Verify the socket of the cigarette lighter in your vehicle has an adequately sized fuse.

☐ Verify the product is switched off: on/off switch to position "0".
Plug the cigarette lighter plug into the socket of the 12V cigarette lighter.

Connecting the connection valve 7:

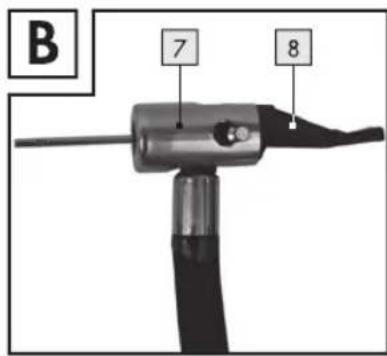

Open the connection valve: clamping lever 8 vertical (see Fig. B).
Connecting without valve adapted:

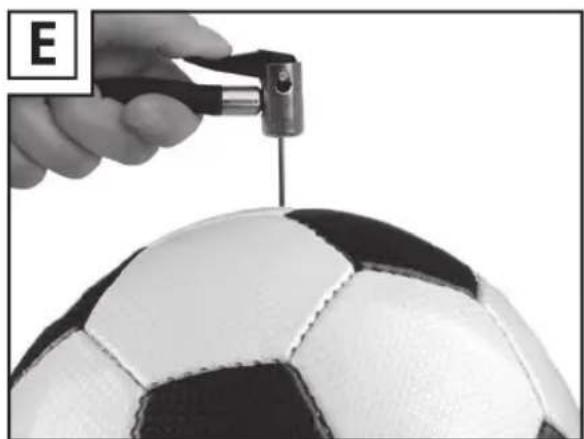

- Insert the open connection valve 7 into the valve of the inflatable (if necessary, first remove valve cover of the inflatable).

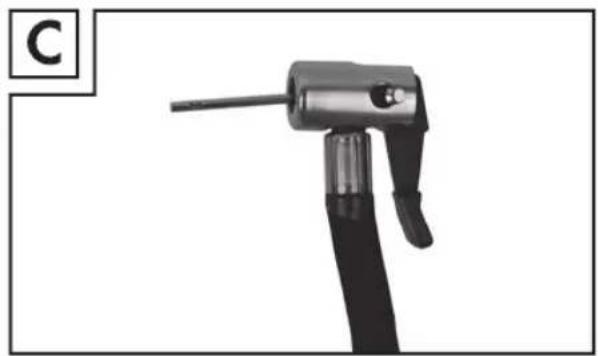

- Hold the connection valve and close: push tensioning lever 8 toward connection valve 7.

Connecting with valve adapted:

- Push the respective valve adapter into the opening in the connection valve 7.

- Secure the valve adapter into the connection valve 7: push clamping lever 8 toward connection valve (see Fig. C).

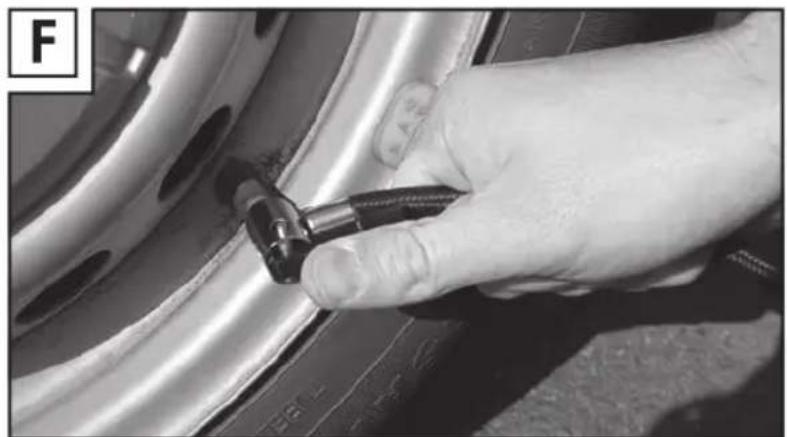

- Insert the valve adapter 10 into the valve on the inflatable (if necessary, first remove valve cover of the inflatable).

Switching on /off:

Switch the device on: on/off switch to position "I".

Once the desired filling pressure has been reached, switch the device off: on/off switch 6 to position "0".

Remove the cigarette lighter plug.

Removing the connetion valve:

Connecting without valve adapted. Open the clamping lever 8 for the connection valve 7 and remove from the valve of the inflatable.

Connecting with valve adapter: Remove the valve adapter from the valve of the inflatable. Open the clamping lever 8 of the connection valve 7 and remove the valve adapter 10.

Note: Air may escape from the valve of the inflatable when removing the connection valve 7. Be sure not to remove the connection valve 7 too quickly.

The manometer is not calibrated. After inflating inflatable items where the wrong pressure can be dangerous (e.g. car tires after a car breakdown), consult a specialized center with calibrated equipment and check the pressure of the inflatable item.

- Working instructions

This product is not suitable for continuous operation. It was developed to produce air pressure, not air volume.

- Do not use the product for longer than 5 minutes without interruption to prevent overheating and damage to the device. Afterwards allow to cool for a minimum of 20 minutes.

- Checking the air pressure

Note: The device does not need to be connected to the cigarette lighter to test air pressure.

Connect the connection valve (see "Initial use").
Read the air pressure on the display of the manometer.
Remove the connection value once more (see "Initial use").
Note: The manometer 2 is not calibrated.

Attention: Please use a calibrated gauge if user needs an accurate measurement.

Overload fuse

In the event of overuse or malfunction the overload fuse 11 in the cigarette lighter plug 5 will trip to protect the device. Replace the fuse after resolving the reason for the fuse tripping (see Fig. D).

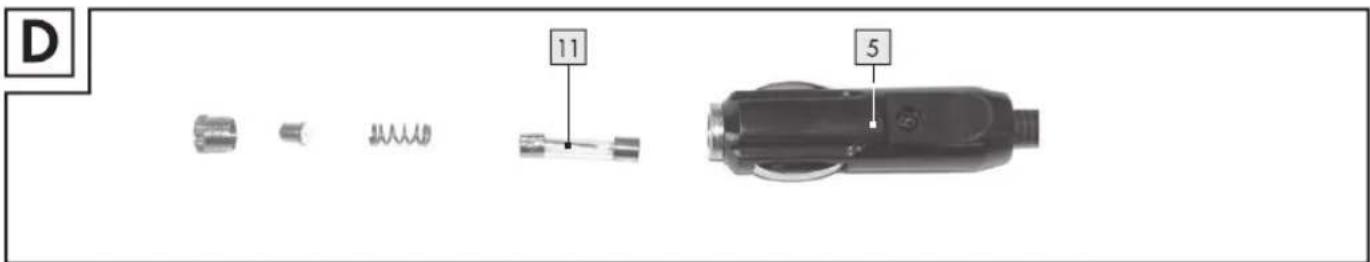

□ Unscrew the tip of the cigarette lighter plug and remove the overload fuse 11.
Insert the new overload fuse and screw the tip of the cigarette lighter plug 5 back on.

⚠️Never use a fuse with a higher tripping current. Otherwise, this poses a fire hazard!

- Cleaning

Never immerse the product in water or spray it with water. Risk of injury due to electric shock if moisture enters the device. Risk of injury due to electric shock if moisture enters the device.

Do not use cleaners or solvents. These could damage the product beyond repair.

Keep the vents and the housing of the device clean.

□ Clean with a damp cloth or a brush.

- Maintenance

The product is maintenance-free.
Before and after each use, check the product and accessories (e.g. accessory tools) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements (see "Technical data").

Storage

- Keep the product in a dry and frost-free location and outside the reach of children.

Be sure not to kink the power cable and the air hose to prevent damage.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 383683_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

EU DECLARATION OF CONFORMITY

IAN:

383681 2110

Product Identification: ModelNumber:

"Ultimate speed" Mini compressor HG02325

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive: 2006/62/EC

Directive: 2014/30/EU

Directive: 2000/14/EI

Directive: 2005/88/EC

References to the relevant harmonized standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 1012-1:2010

EN 62841-1:2015

Directive 2#14/30/EJ

EN 5#498:2010

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Conformity Assessment procedure / name&adress notified body where appropriate: Annex VI, TÜV SÜD Industrie Service GmbH, Westendstraße 199, 80686 München, Germany. Measured sound power level on an equipment representative for this type: 84,1 dB(A) Guaranteed sound power level for this equipment: 51 db(A) Keeper of the technical documentation: OWIM GmbH & Co KG

Name and address of the manufacturer: Owliu GmbH & Co. KG Stiftsberzstraße 1 DE-74167 Neckarulm Germany This declaration of conformity is issued under the sole responsibility of the manufacturer.

Original declaration of conformity

Neckarsulm

Place

23.11.1021

Date

Benjamin Steeb Managing Director

ppa: Jens Buchheim Authorised Senatory

Sécurité anti-surcharge Page 53

Nettoyage Page 54

Maintenance......Page 54

Rangement......Page 54

Mise au rebut....Page 54

Garantie Page 55

Faire valoir sa garantie....Page 57

Service après-vente Page 57

11 Fusible de surcharge interchangeable

- Sécurité anti-surcharge

DÉCLARATION UE DE CONFORMITÉ

IAN:

383683_2110

"Ultimate speed" MINI-COMPRESSEUR

Numéro de modèle :

HG02325

Directive 2006/42/EC

Directive 2014/30/EC

Directive 2000/14/EC

Directive 2005/88/EC

Authorised Signatory

4 adaptery do wentyli

10 Adaptery do wentyli

"Ultimate speed" MINI-KOMPRESOR HG0232S

Directive 2004/42/EC

Directive 2014/30/EC

Directive 2004/14/EC

Directive 2005/88/EC

Benjamin Steeb Managing Director

ppa. Jens Buchheim Authorised Sigratory

"Ultimate speed" MINI KOMPRESOR

Cislo modelu:

HG02325

Directive 2006/42/EC

Directive 2014/30/EC

Directive 2000/14/EC

Directive 2005/84/EC

The image is too blurry to recognize any text content.

Benjamin Steeb

Managing Director

Zoa. Jeff Buchheim

Authorised Signatory

128 SK

Directive 2006/42/EC

Directive 2014/30/EC

Directive 2006/14/EC

Directive 2005/88/EC

Authorised Signatory

146 ES

De anvendte piktogrammers legende....Side 148

Indledning Side 148

"Ultimate speed" MINI-KOMPRESSOR

Modelnummed

HG02325

Genstanden for erklaringen, som beskrevet ovenfor, er i overensstemmelde med den relevante EU-harmonisings-logivning.

Directive 2006/42/EC

Directive 2014/30/EC

Directive 2006/14/EC

Directive 2001/88/EC

Referencer til de relevante anvendte harmoniserede standa-der, eller til de andre tekniske specifikationer, som der erklares overnsstemmelse med:

Nr. / dele

Directive 2006/42/EC

EN 1012-1:2010

EN 62841-1:2015

Directive 2014/30/EU

EN 50498:2010

Overestimate of original overexpression/overexpression

Neckarsulm	21.11.2021
Sted	Dato	Benjamin SteebManaging Director	ppal: Jens BuchheimAuthorised Signatory

163 DK

"Ultimate speed" MINI COMPRESSORE

Numero modello:

HG02325

Directive 2006/42/EC

Directive 2014/30/EC

Directive 2008/14/EC

Directive 2005/88/EC

"Ultimate speed" MINI KOMPRESSOR

Tipuszám:

HG02325

Directive 2006/42/EC

Directive 2014/30/EC

Directive 2006/14/EC

Directive 2005/88/EC

Neckarsulm	21.11.2021
Kelt:	Datum	Benjamin SteelManaging Director	ppA. Jerb BuckheimAuthorised Signatory

198 HU

HU

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Servis

SI Servis Slovenija

Tel.: [phone]

E-Mail: [e-mail]

217 SI

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

"Ultimate speed" MINI KOMPRESOR

Številka modela:

HG02325

Predmet navedene izjave je v. skladu z ustrežno zakonolajo Unije o harmonizaciji

Directive 2000/42/EC

Directive 2014/30/EC

Directive 2000/14/EC

Directive 2005/88/EC

Skilicevanja na uporakljene harmonisirane standarde ali skilicevanja na druge tehnilne apesifikacije v zvezi s skladnostjo, ki je navedenav izjavi:

St. / deli

Directive 2006/42/EC

EN 1012-1:2010

EN 62841-1:2015

Directive 2014/30/EU

EN 50498:2010
