USER MANUAL USKT 60 B2 ULTIMATE SPEED

Operation and Safety NotesTranslation of the original instructions

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

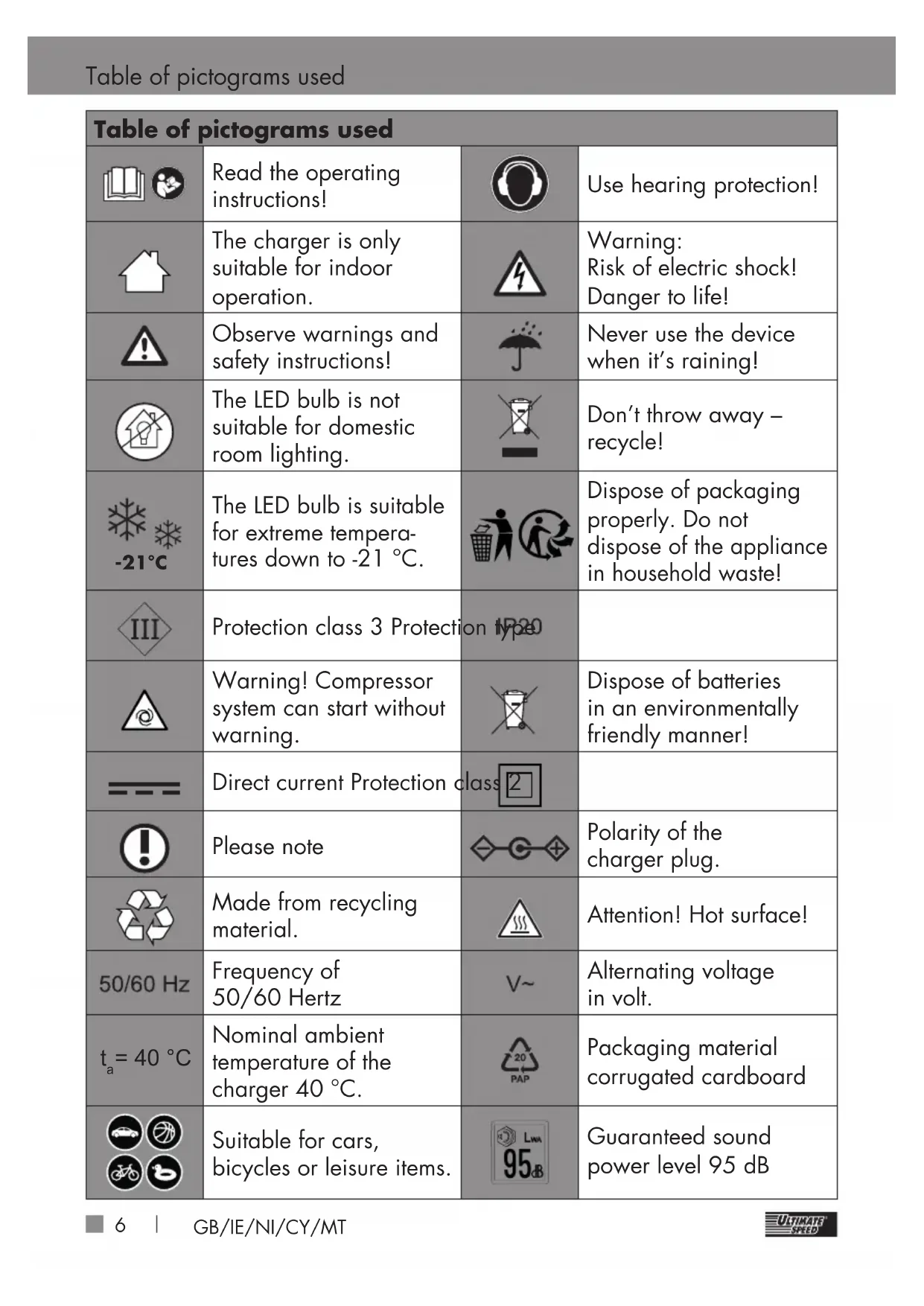

Risk of electric shock! Danger to life! Observe warnings and safety instructions! Never use the device when it’s raining! The LED bulb is not suitable for domestic room lighting. Don’t throw away – recycle! -21°C The LED bulb is suitable for extreme tempera- tures down to -21°C. Dispose of packaging properly. Do not dispose of the appliance in household waste! Protection class 3 Protection type Warning! Compressor system can start without warning. Dispose of batteries in an environmentally friendly manner! Direct current Protection class 2 Please note Polarity of the charger plug. Made from recycling material. Attention! Hot surface! Frequency of 50/60 Hertz Alternating voltage in volt. Nominal ambient temperature of t

charger 40°C. Packaging material corrugated cardboard Suitable for cars, bicycles or leisure items.

z Introduction Congratulations! You have pur- chased one of our high-quality products. Please familiarise yourself with the product before using it for the first time. To do so, please read through the following operating and safety instructions carefully.

KEEP OUT OF THE REACH OF

CHILDREN! z Intended use The integrated compressor unit is designed to adjust the pressure in tyres (e.g. vehicle and bicycle tyres), and for the generation of pressure for balls and other small-scale inflatable articles. Do not use the compressor to inflate tyres which are completely flat or articles with a large volume (e.g. airbeds), as it can overheat rapidly in the absence of back pressure. This portable compressor is not designed for continuous operation to generate pressure for longer than 5 minutes at a time. Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse and disregarding the above warning is not covered by the warranty or any liability on the part of the manufac- turer. The device is not intended for commercial use. If it is used commer- cially then this voids the guarantee. The product must only be started up initially by people who have been trained to do so. The LED bulb is not suitable for domestic room lighting. -21°C The LED bulb is suitable for extreme temperatures down to -21 °C. z Package contents 1 compressor, portable 1 set of operating instructions Accessories: 1 storage bag 1 AC adapter 1 12V cigarette lighter adapter 3 valve adapters 1 compressed air hose with threaded connection8 GB/IE/NI/CY/MT z Equipment After unpacking the product, please check that all of the package contents are pres- ent and that the portable compressor is in perfect condition. Do not use the device if it is defective.

Digital pressure gauge with pressure display (not trade-approved)

On/Off switch for compressor

Compressed air hose connection

Car tyre valve adapter

Compressed air hose with threaded connection

Dunlop valve for bicycle tyres

Valve adapter for balls (ball needle)

Cover cap for the accessory compartment

Charging port 15 V /0.4 A

12V charge control LED

230V charge control LED

Storage bag Note: The use of the term ‘product’ or ‘device’ in the following text refers to the portable compressor described in this instruction manual. z Technical specifications Model: USKT 60 B2 Battery type: Lithium iron phosphate Battery capacity: 500 mAh, 12.8V

6.4Wh Charge cycles: 1000 Charging time: up to 2hours when using an AC adapter Operating temperature for compressor: 0 °C – 60 °C Operating temperature for LED: -21 °C – 60 °C Voltage: 12.8V Input voltage (charging port): 15V

0.4A Current consumption: max. 10A Maximum achievable pressure: 4.1bar Continuous operation: max. 5min* Air flow rate: 15 l/min Motor rating: 90 W Guaranteed sound power level (L

): 95 dB(A) Measured sound Introduction9 GB/IE/NI/CY/MT power level (L

): 3 dB(A) Note: The noise emission values were measured in accordance with EN ISO 3744:1995. Power supply: Name or trade mark of the man- ufacturer, commercial registration number and address: Manufacturer: Shenzhen Keyu Power Supply Technology Co., Ltd. Address: 2~3F, No.13, Lane3, Yuquan East Road the 2nd Industrial park, Yulv, Guangming District, 518000 Shenzhen, China Importer: C.M.C. GmbH Address: Katharina-Loth-Straße 15, 66386 St. Ingbert, Germany Amtsgericht Saarbrücken, HRB 15856 Model number: KC1601- 1500400EUS Input voltage: 100–240 V Input AC frequency: 50/60 Hz Output voltage: 15.0 V Output current: 0.4 A Output power: 6.0 W Average efficiency during operation: 81.45 % Efficiency at low load: N/A Power consumption at zero load: 0.08 W

• Continuous operation: Do not operate the integrated compressor unit for more than 5 minutes without interruption. After this, a resting period of 15 minutes should be observed Changes to technical and visual aspects of the product may be made as part of future developments with- out notice. Accordingly, no warranty is offered for the physical dimen- sions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim. z General safety instructions PLEASE READ THROUGH THE INSTRUCTION MANUAL CAREFULLY BEFORE USE.

THESE FORM PART OF THE

AVAILABLE AT ALL TIMES! This section covers the basic safety instructions applicable when working with the device. Personal safety: This device may be used by Introduction / General safety instructions10 GB/IE/NI/CY/MT children aged 8 years and older, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and knowl- edge, if they are supervised or have been instructed in how to use the device safely and understand the dangers that may arise when using it. Do not allow children to play with the device. Cleaning and day-to-day maintenance must not be performed by children without supervision. Children must be supervised to ensure that they do not play with the device. Keep the device away from people – especially children – and household pets. Within the working area, the user is responsible for any damage or injury to third parties that was caused by the use of the device. During operation, never point the device at yourself or other individuals, and keep the device well way from your ears and eyes. Otherwise there is a risk of injury! Do not leave the device unsu- pervised while running. Com- ply with the filling instructions for the inflatable item. The inflatable article could burst and cause serious injuries. Keep the device in a dry location and out of the reach of children. This helps prevent device damage and possible personal injuries that could result from it: Working with the device: Do not use the device while driving the vehicle. Before setup or first use, check the device for any damage and do not use unless in perfect working order. Do not expose the device to rain or wet weather. Do not let the device come into contact with water. Do not immerse the device in water. There is a risk of electric shock! Keep all openings of the device free during operation. Do not block the openings with your hands or fingers, and do not cover the device. There is a risk of overheating! In hot weather, do not leave the device in a car. This could permanently damage the device. General safety instructions11 GB/IE/NI/CY/MT The device becomes warm during use. There is a risk of burn injuries from touching the hot surfaces. Take care to ensure that sand, dust and other small foreign objects cannot enter the air inlet or air outlet openings. Do not operate the device near to flammable liquids or gases. Do not use the device to draw in hot fumes. Failure to do so risks causing a fire or explosion! Switch the device off and remove the mains plug from the socket in the following cases: – When you are not using the device; – If you are leaving the device unsupervised; – If you are doing cleaning work; – If the connection cable is damaged; – If foreign objects have got into the device or you notice unusual noises. Only use the accessories supplied and recommended by the manufacturer. Do not dismantle or modify the portable compressor. This device must only be repaired by a maintenance technician. Do not use the device in areas with a risk of explo- sion, e.g. near flammable liquids, gases or powders. Do not expose the device to any source of heat. Do not store in places where the temperature can exceed 70 °C. Only charge in an ambient temperature between 0°C and 40°C. Only use the AC adapter

as supplied with the device. CAUTION: How to avoid accidents and injuries resulting from electric shock: Electrical safety: Do not use the device if the switch cannot be switched on and off. Arrange for dam- aged switches to be replaced. Do not carry the device by the cable. Do not unplug the plug from the socket by pulling on the cable. Protect the cable from heat, oil and sharp edges. If the cable is damaged, unplug the plug immediately General safety instructions12 GB/IE/NI/CY/MT from the socket. Batteries: CAUTION! EXPLOSION HAZARD! Do not open and/or short- circuit the portable compres- sor

. This could cause the device to overheat, ignite or explode. Do not expose the portable compressor

to high tem- peratures. The battery could explode. Check the portable compres- sor

regularly for leakage. Leaking or damaged batteries may cause burns if they come into contact with skin. In this situation, always wear suita- ble safety gloves! Carefully wipe up the liquid with a cloth and avoid contact with skin and eyes. In the event of con- tact with skin or eyes, rinse immediately with clean water and seek medical attention. z Specific safety instructions We recommend charging the portable compressor

once a month. A slightly higher temperature during charging is absolutely normal and not a malfunction. However, we do recommend leaving the portable compres- sor

to rest for 15 minutes before using. Protect the portable compres- sor

from moisture and high temperatures, including fires. Store the portable compressor

in a dry place and protect the device from moisture and corrosion. If you notice the portable compressor

is leaking, producing an unusual odour or looking deformed in any way, stop using the device immediately and contact the manufacturer. Do not drop the portable compressor

while it is being used. The portable compressor

is designed for use with car tyres. It is not designed for use with large tyres like tractor or truck tyres. Note: The digital pressure gauge with pressure display

of the portable compressor

is not trade-approved. After pumping up General safety instructions / Specific safety instructions13 GB/IE/NI/CY/MT inflatable items where the wrong pressure could be dangerous (e.g. bicycle tyres), always check the pressure at a service point with a trade-approved device. Check the pressure of the inflatable item there. During inflation, high temper- atures can be produced at the air outlet. There is a risk of burn injuries! The device must not be used while it is being charged. There is a risk of overheating. z Using the device Note: After being switched on, the device switches off automati- cally after approx. 30 seconds, if the compressor or the LED is not switched on. z Checking the capacity of the portable compressor

on by pressing the On/Off switch

The number of illuminated bars in the battery symbol on the digital pressure gauge with pressure display

indicates the charge level of the battery of the portable compressor

If the device is fully charged, all four bars will be lit. z Charging the portable compressor Connect the portable compressor

to a socket using the AC adapter

To do this, connect the power cable

the charging port (15 V

of the portable com- pressor

plug into a mains power socket. During the charging procedure the 230 V charge control LED

will light up red. Once the charging procedure has finished, the 230V charge control LED

will light up green. or: Connect the portable compressor

To do this, connect the power cable

of the 12 V cigarette lighter adapter

to the charging port (15 V /0.4 A)

of the portable compressor

to a 12 V cigarette lighter. During the charging procedure the 12 V charge control LED

will light up red. Attention: Only use the 12 V cigarette lighter adapter

as supplied with the device! Note: An undervoltage protection circuit is installed in the portable compressor

to protect the device from damage. This prevents a deep discharge of the portable compres- sor

and automatically switches the device off once the battery is fully discharged. In this case, the device can no longer be switched on or used. Please re-charge the porta- ble compressor

, as described. z Using the portable compressor Take off the cover cap for the accessory compartment

and remove the compressed air hose with threaded connection

Screw the compressed air hose with threaded connection

of the portable compressor

(see Fig. B or C). Do not operate the device in a dusty environment. This is a fire risk and the device could also be damaged. Note: You can either use the compressed air hose with threaded connection

directly or use it together with the valve adapters

supplied in the scope of delivery. Connecting the compressed air hose without a valve adapter Screw the free end of the com- pressed air hose with threaded connection

directly on to the connection valve of the inflatable item. Connecting the compressed air hose with a valve adapter The valve adapters

are located under the cover cap for the accessory compartment

(see Fig. C). First screw the required valve adapter

to the free end of the compressed air hose with threaded connection

Connect the valve adapters

into the connecting valve on the inflatable item (remove valve cap on inflatable item first if necessary). Remove the compressed air hose Connection without valve adapters

: Screw the compressed connection hose with threaded connection

off the valve of the inflatable item. Connect with the valve adapter

: First undo the valve Using the device15 GB/IE/NI/CY/MT adapter from the connecting valve of the inflatable item. Screw the valve adapters

off the compressed air hose with threaded connection

(if neces- sary, reattach the valve cap on to the inflatable item). Note: When disconnecting the compressed air hose with threaded connection

, air can escape from the valve of the inflatable item. Ensure that you remove the compressed air hose with threaded connection

as quickly as possible. Presetting the air pressure Switch the portable compressor

on using the On/Off switch

Connect the compressed air hose with threaded connection

the portable compressor

to the inflatable item which you want to inflate. To do so, please proceed as follows. Pressing the On/Off switch

again will allow you to select the desired unit of pressure. There is a choice between the following units: pounds per square inch (“PSI”), Bar (“Bar”) and kilo- grammes per square centimetre (“kg/cm²”) (see Fig. A). Use the “+” button

to select the desired pressure. To speed up the selec- tion, you can keep the respective button pressed down for longer. Pressure settings between 0.2 bar and 4.1 bar are possible in

0.05 bar steps (see Fig. A).

Note: If a button is not pressed for at least 5 seconds, the display will show the ACTUAL value of the pressure. The pressure which has been set remains in the memory. Switch the integrated compressor unit on by pressing the On/Off switch for the compressor

once. The compressor will start and pump up the inflatable item. You can switch off the compressor at any time by pressing the On/ Off switch for the compressor

once more. Otherwise, the compressor will switch off automatically once the inflatable item has reached the preset pressure. Disconnect the inflatable item from the compressed air hose with threaded connection

described in the previous section. At the end of work, screw the compressed air hose with threaded connection

back off the com- pressed air hose connection

the portable compressor

Attention: During operation, the compressed air hose connection

of the portable compressor

will get hot. Make sure that you do not come into contact with the device Using the device16 GB/IE/NI/CY/MT during operation to avoid suffering burns. At the end of work, wait for at least 10 minutes before you unscrew the compressed air hose with threaded connection

back off the device. Note: After being switched on, the device switches off automati- cally after approx. 30 seconds, if the compressor or the LED is not switched on. Note: The digital pressure gauge with pressure display

of the portable compressor

is not trade-approved. After pumping up inflatable items where the wrong pressure could be dangerous (e.g. bicycle tyres), always check the pressure at a service point with a trade-approved device. Check the pressure of the inflatable item there. Tips for use The device is not intended for continuous operation. The device was designed to create air pressure – not an air flow. Please do not use the device for more than 5 minutes at a time, to avoid overheating and damage to the device. After 5 minutes contin- uous operation the “OH” display flashes on the digital pressure gauge with pressure display

. This indi- cates imminent overheating. Switch the device off at that point in order to protect it from overheating. Then let the device cool down for at least 15 minutes. We recommend first filling a large-volume item with air, in order to then generate the required pressure with the device. Checking the air pressure with the portable compressor Note: The digital pressure gauge with pressure display

of the portable compressor

is not trade-approved. Connect the inflatable item to the compressed air hose with threaded connection

of the portable compressor

, whose pressure you want to check. To do so, please proceed as described in the section “Connecting the compressed air hose with valve adapter” or “Connecting the compressed air hose without valve adapter”. Switch the portable compressor

on using the On/Off switch

Use the On/On/Off switch

select the desired unit of pressure. There is a choice between the fol- lowing units: pounds per square inch (“PSI”), Bar (“Bar”) and kilogrammes per square centime- tre (“kg/cm²”) (see Fig.A). The digital pressure gauge with pressure display

shows the pressure of the connected inflata- ble item in the preset unit. Disconnect the inflatable item Using the device17 GB/IE/NI/CY/MT Using the device from the compressed air hose with threaded connection

the portable compressor

To do so, please proceed as described in the section “Remove compressed air hose”. Note: When disconnecting the compressed air hose with threaded connection

, air can escape from the valve of the inflatable item. Ensure that you remove the compressed air hose with threaded connection

as quickly as possible. Safety fuse If the device becomes overloaded or malfunctions, the safety fuse triggers to protect the device. Never use a fuse with a higher release current strength. There is a risk of fire! Attention: To protect people and property, an overheat protection circuit has been installed for the battery in the portable compressor

. This prevents an overheating of the battery installed in the device and automatically switches off the portable compressor

if the battery temperature is too high. If this hap- pens, allow the device to cool down prior to r e-commissioning it again. Attention: The compressor function must not be used while the portable compressor

is being charged. There is a risk of overheating. z Switch on lighting Light mode To switch on the LED light

once briefly. Press the LED button

three times to turn the LED lights

off again. Flash mode To switch on the LED light

once briefly. Then the LED light

once again and the LED light

once again and the LED light

will switch to SOS mode. There will be 3 short flashes, 3long flashes and another 3 short flashes. Briefly press the LED button

once again to switch off the LED light

Caution! Do not look directly at the LED lights

as this can damage your eyes. Attention: The light must not be used while the portable compressor

is being charged. There is a risk of overheating.18 GB/IE/NI/CY/MT z Troubleshooting = problem = cause = remedy No reaction when the On/Off switch is pressed

Undervoltage protection is activated for the portable com- pressor

Connect the device to the 15V /0.4A charging port

to a 12 V cigarette lighter. z Cleaning Attention: The device must not come into contact with water or be placed in water. There is a risk of injury due to electric shock if moisture enters the device. Do not use cleaners or solvents. These could damage the device beyond repair. Keep the housing and device accessories clean. Use a damp cloth or a soft brush to clean the device and the accessories. z Storage Keep the device in a dry location and out of the reach of children. To avoid damage, take care to ensure that the compressed air hose with threaded connection

does not become kinked. Store the valve adapters

, as well as the com- pressed air hose with threaded connection

under the cover cap for the accessory compart- ment

(see Fig. C). Store the device in the storage bag provided

z Information about recycling and disposal Don’t throw away – recycle! According to European Direc- tive 2012/19/EU, used electrical devices must be collected separately for environmentally compatible recycling or recovery. Please return this device to an approved waste management company or use your municipal waste collection service. Please ensure you comply with local regulations. If you have any questions, please contact your local authority or waste management company. ... / Cleaning / Storage / Information about recycling and disposal19 GB/IE/NI/CY/MT ... / EU Declaration of Conformity Please return this device, accessories and packaging to your local recycling depot. Do not dispose of electrical appliances in household waste! As the consumer you are legally obliged (by the Ger- man Battery Ordinance) to return any and all used batteries. Batteries containing harmful sub- stances are labelled with the adja- cent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Take used batteries to a waste management company in your city or community or return them to your dealer. This satisfies your legal obligations while also making an important contribution to protecting the environment. Note: The installed battery cannot be separately removed for disposal. z EU Declaration of Conformity We, C. M. C. GmbH Responsible for documentation: Dr Christian Weyler Katharina-Loth-Str. 15 66386 St. Ingbert GERMANY hereby take sole responsibility for declaring that the product Portable cordless compressor IAN: 359668_2101 Art. no.: 2384 Year of manufacture: 2021/39 Model: USKT 60 B2 meets the basic safety requirements as specified in the European Directives Electromagnetic Compatibility: (2014/30/EU) Low Voltage Directive: (2014/35/EU) RoHS Directive: (2011/65/EU) Ecodesign Directive: (2009/125/EU) Machinery Directive: (2006/42/EU) Directive: (2000/14/EC) Annex III Motor rating: 90 W Guaranteed sound power level L
