TCAC 19068 - Air compressor EINHELL - Free user manual and instructions

Product Type	Air compressor
Brand	Einhell
Model	TCAC 19068
Supply voltage	230 V ~ 50 Hz
Motor power	1500 W
Rotation speed	2850 rpm
Max. operating pressure	8 bar
Tank volume	24 litres
Theoretical suction power	230 L/min
Air flow at 7 bar	83 L/min
Air flow at 4 bar	102 L/min
Sound pressure level	94 dB(A)
Protection rating	IP20
Weight	Approximately 25 kg
Oil capacity	Approximately 0.23 litres
Recommended oil	SAE 5W/40 or equivalent
Compressor type	Piston, with tank
Main functions	Compressed air production for pneumatic tools, inflation, painting
Regular maintenance	Drain condensation water after each use, check oil level, clean air filter every 300 h
Safety	Safety valve, overload switch, motor thermal protection
Spare parts and repairability	Spare parts available (air filter, check valve, seals); repair by authorized after-sales service
Included accessories	2 wheels, 2 support feet, oil plug, hubcaps, screws, washers, instruction manual

Frequently Asked Questions - TCAC 19068 EINHELL

What to do if the compressor does not start?

First check the presence of mains voltage (cable, plug, fuse). If the voltage is too low, avoid excessively long extension cords. If the outside temperature is below +5°C, the motor may have difficulty starting. In case of overheating, let the motor cool down and reset the overload switch (pos. 16).

The compressor runs but does not reach the pressure. What to check?

This may be due to a defective check valve (23), broken seals, or a permeable condensation drain plug (11). Check these components and replace defective parts if necessary.

How to drain condensation water from the tank?

After each use, turn off the compressor and unplug it. Open the threaded drain plug (11) located under the tank to drain the water. Then close it again. Condensation water contains oil residues; dispose of it at an appropriate collection point.

What oil to use and how to check the level?

Use SAE 5W/40 or equivalent oil. Place the compressor on a level surface; the level should be between the MIN and MAX marks on the sight glass (pos. 17). To drain, remove the oil drain plug (15), collect the used oil, and fill through the fill opening (13).

When should the compressor oil be changed?

The first oil change should be performed after 100 operating hours. Subsequently, drain and replace the oil every 500 operating hours.

How to clean the air filter?

Remove the air filter (1) by unscrewing the screw. Open the housing, blow out the elements with low-pressure compressed air (approx. 3 bar). Then reassemble the filter. Wear a dust mask during cleaning.

What to do in case of air leakage at the connections?

Check the tightness of quick couplings (5) and hoses. If a seal is damaged, replace it. Also ensure that the pressure regulator (7) is sufficiently open and that the pressure gauge (6) indicates the set pressure.

How does the safety valve work?

The safety valve (10) is set to the maximum tank pressure (8 bar). To check its proper function, pull the ring until you hear air hissing, then release. Never adjust or seal the valve.

Can the compressor be used outdoors or in the rain?

No, the compressor must be used in a dry place, protected from moisture. The IP20 protection rating does not guarantee protection against water. Avoid splashing and do not use in a humid environment.

How to transport the compressor safely?

Use the transport handle (9) to move the compressor. Before transport, unplug it and drain the tank to reduce weight. Protect the device from shocks and excessive vibrations.

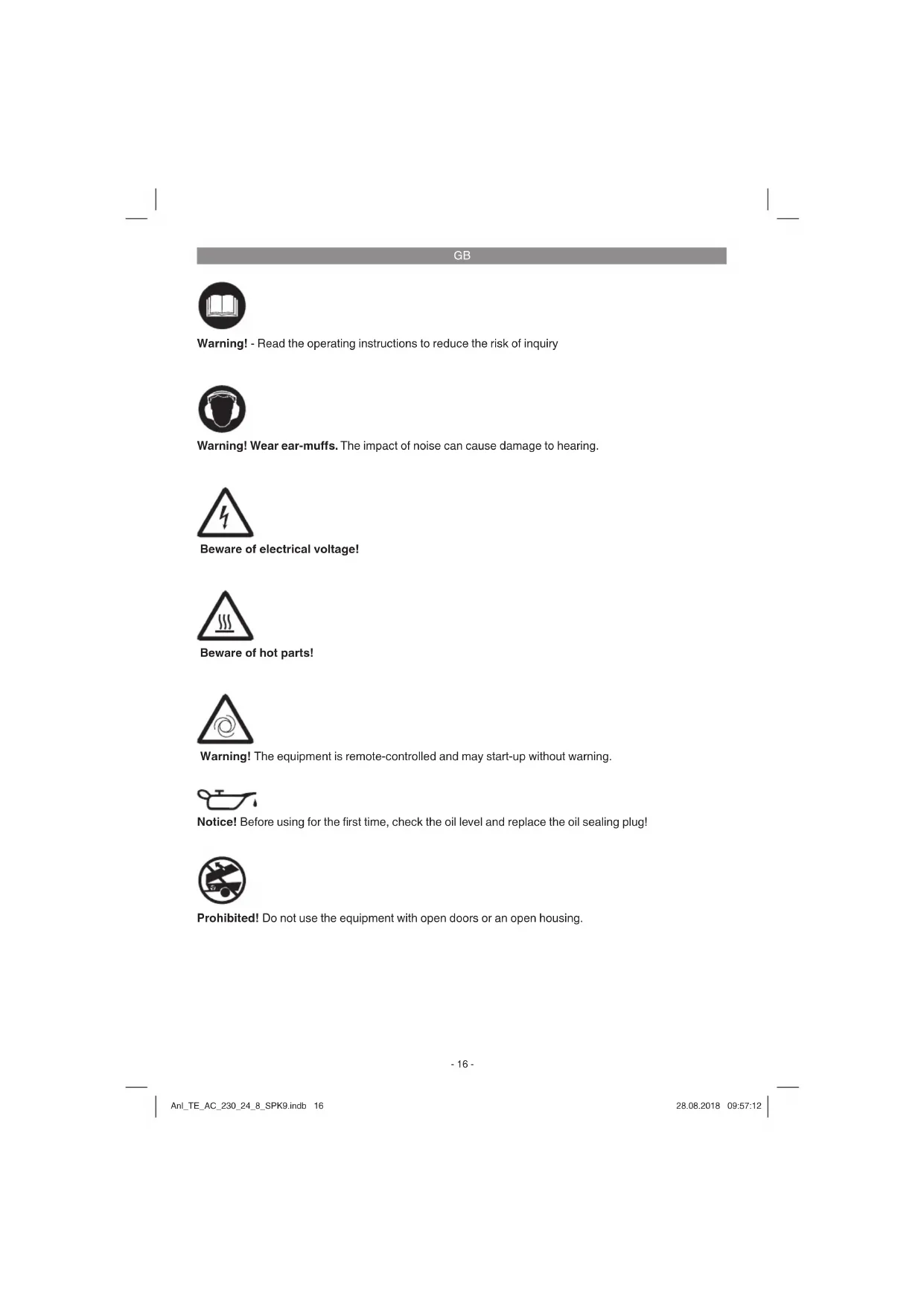

USER MANUAL TCAC 19068 EINHELL

Warning! - Read the operating instructions to reduce the risk of inquiry

Warning! Wear ear-muffs. The impact of noise can cause damage to hearing.

Beware of electrical voltage!

Beware of hot parts!

Warning! The equipment is remote-controlled and may start-up without warning.

Notice! Before using for the first time, check the oil level and replace the oil sealing plug!

Prohibited! Do not use the equipment with open doors or an open housing.

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. Layout and items supplied

2.1 Layout (Fig. 1-4)

1. Intake air filter
2. Pressure tank
   3.Wheel
3. Foot
4. Quick-lock coupling (regulated compressed air)
5. Pressure gauge (for reading the set pressure)
6. Pressure regulator
7. On/Off switch
8. Transport handle
9. Safety valve
10. Drainage screw for condensation water

11. Pressure gauge (for reading the vessel pressure)

12. Oil filer opening

13. Oil sealing plug
14. Oil drainage screw
15. Overload switch
16. Oil level window
    18.Wheel cap
17. Axle screw
18. Spring washer
19. Nut
20. Washer
21. Non-return valve

2.2 Items supplied

Please check that the article is complete as spcified in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

Intake air filter
Wheel (2x)
Foot
Oil sealing plug
Wheel cap (
- Washer (4x)
- Axle screw (2x)
Spring washer (2x)
Nut for fitting the axle (2x)
Original operating instructions
Safety information

GB

3. Proper use

The compressor is designed for generating compressed air for tools operated by compressed air.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains connection: 230 V ~ 50 Hz

Motor rating: 1500 W

Compressor speed min: 2850

Operating pressure bar: max. 8

Pressure vessel capacity (in liters): 24

Theoretical suction rate l/min. 230

Output (compressed air) at 7 bar: ....83 liters/min

Output (compressed air) at 4 bar: ...102 liters/min
Sound power level L_WA in dB: 94

Weight of the unit in kg: approx. 25 kg

Oil quantity: approx. 0.23 liters

Danger!

Noise

The noise emission values were measured in accordance with EN ISO 2151:2008.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Examine the machine for signs of transit damage. Report any damage immediately to the company which delivered the compressor.
The compressor should be set up near the working consumer.
- Avoid long air lines and long supply lines (extensions).
Make sure the intake air is dry and dust-free.
- Do not set up the compressor in damp or wet rooms.
The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5^ to +40^ ). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room.
The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.
- The oil level in the compressor pump has to be checked before putting the equipment into operation.
The equipment must be set up where it can stand securely.
- Use flexible hoses in order to prevent transmitting unacceptable loads to the pipeline system at the connection between the compressor system and the pipeline system.
It is essential to use separators, traps and drains which process the liquids produced by the compressor before the compressor system is put into operation.
Supply hoses at pressures above 7 bar should be equipped with a safety cable (e.g. a wire rope).

GB

6. Assembly and starting

Notice!

You must fully assemble the appliance before using it for the first time.

6.1 Fitting the wheels (3)

Fit the supplied wheels as shown in Fig. 5.

6.2 Fitting the supporting feet (4)

Fit the supplied supporting feet (4) as shown in Fig. 6.

6.3 Replacing the oil sealing plug (14)

Remove the transportation cover from the oil fi ler opening with a screwdriver and insert the supplied oil sealing plug (14) into the oil fi ler opening (Fig. 7-8).

6.4 Fitting the air filter (1)

Use a screwdriver to remove the transportation cover from the air fi iter connection. Screw in the supplied air fi iter (Fig. 9).

6.5 Power supply

• The motor is fitted with an overload switch (Fig. 3/Item 6). If the compressor overloads, the overload switch switches off the equipment automatically to protect the compressor from overheating. If the overload switch triggers, switch off the compressor using the ON/OFF switch (8) and wait until the compressor cools down. Then press the overload switch (16) and restart the compressor.
• Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up.
  In the case of low temperatures below +5^ , motor start-up is jeopardized as a result of stiffness.

6.6 On/Off switch (8)

To switch on the compressor, pull out the On/Off switch (8).

To switch off the compressor, press the On/Off switch (8) in again. (Figure 2).

6.7 Adjusting the pressure: (Fig. 1,2)

• You can adjust the pressure on the pressure gauge (6) using the pressure regulator (7).
  The set pressure can be taken from the quicklock coupling (5).

6.8 Setting the pressure switch

The pressure switch is set at the factory.

Switch-on pressure 6 bar

Switch-off pressure 8 bar

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

Pull the power plug before doing any cleaning and maintenance work on the appliance.

Warning!

Wait until the compressor has completely cooled down. Risk of burns! Warning!

Always depressurize the tank before carrying out any cleaning and maintenance work. Warning!

After use, always switch off the equipment immediately and pull out the power plug.

8.1 Cleaning

• Keep the safety devices free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  We recommend that you clean the appliance immediately after you use it.
  Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance. Ensure that no water can get into the interior of the appliance.
• You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

8.2 Condensation water (Fig. 1)

Notice! To ensure a long service life of the pressure vessel (2), drain off the condensed water by opening the drain valve (11) each time after using.

GB

Check the pressure vessel for signs of rust and damage each time before using. Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, please contact the customer service workshop.

Notice!

The condensation water from the pressure vessel will contain residual oil. Dispose of the condensation water in an environmentally compatible manner at the appropriate collection point.

8.3 Safety valve (10)

The safety valve has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or remove its seal. Actuate the safety valve from time to time to ensure that it works when required. Pull the ring with sufficient force until you can hear the compressed air being released. Then release the ring again.

8.4 Check the oil level at regular intervals

Place the compressor on a level and straight surface. The oil level must be between the two marks MAX and MIN on the oil oil level window (Fig. 10). Changing the oil: Recommended hydraulic oil: SAE 5W/40 or an alternative of the same quality. It should be refilled for the first time after 100 hours of operation. Thereafter the oil should be drained and reflled after every 500 hours in service.

8.5 Changing the oil

Switch off the engine and pull the mains plug out of the socket. After releasing any air pressure you can unscrew the oil drainage screw (15) from the compressor pump. To prevent the oil from running out in an uncontrolled manner, hold a small metal chute under the opening and collect the oil in a vessel. If the oil does not drain out completely, we recommend tilting the compressor slightly.

Dispose of the old oil at a drop-off point for old oil.

When the oil has drained out, re-fi t the oil drainage screw (15). Fill new oil through the oil fi Ier opening (13) until it comes up to the required level. Then replace the oil sealing plug (14).

8.6 Cleaning the intake filter (1)

The intake fi titer prevents dust and dirt being drawn in. It is essential to clean this fi titer after at least every 300 hours in operation. A clogged intake fi titer will decrease the compressor's performance dramatically. Undo the screw on the

air filter so that the halves of the air filter housing can be opened. Use compressed air at low pressure (approx. 3 bar) to blow out all the parts of the filter and then assemble the filter in reverse order. When cleaning, take adequate precautions against dust (e.g. use a suitable face mask).

8.7 Storage

Warning!

Pull the mains plug out of the socket and ventilate the appliance and all connected pneumatic tools. Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person.

Warning!

Store the compressor only in a dry location which is not accessible to unauthorized persons. Always store upright, never tilted!

8.8 Transport

Use the handle for transporting the compressor and use it to move the compressor about.
Transport the equipment only by carrying it by the transport handle.
- Protect the equipment against unexpected knocks and vibrations.

8.9 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Type of machine
Article number of the machine
Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

GB

10. Possible causes of failure

Problem Cause	Solution
The compressor does not start.	1. No supply voltage.	1. Check the supply voltage, the power plug and the socket-outlet.
	2. Insufficient supply voltage.	2. Make sure that the extension cable is not too long. Use an extension cable with large enough wires.
	3. Outside temperature is too low.	3. Never operate with an outside temperature of below +5°C.
	4. Motor is overheated.	4. Allow the motor to cool down. If necessary, remedy the cause of the overheating.
The compressor starts but there is no pressure.	1. The non-return valve (23) leaks.	1. Have a service center replace the non-return valve (23).
	2. The seals are damaged.	2. Check the seals and have any damaged seals replaced by a service center.
	3. The drain plug for condensation water (11) leaks.	3. Tighten the screw by hand. Check the seal on the screw and replace if necessary.
The compressor starts, pressure is shown on the pressure gauge, but the tools do not start.	1. The hose connections have a leak.	1. Check the compressed air hose and tools and replace if necessary.
	2. A quick-lock coupling has a leak.	2. Check the quick-lock coupling and replace if necessary.
	3. Insufficient pressure set on the pressure regulator.	3. Increase the set pressure with the pressure regulator.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* V-belt, air fi filter
Consumables*
Missing parts

• Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?
Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?

Describe this malfunction.

GB

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Chere cliente, cher client,

6.6 Interru tture ON/OFF (8)

Indkoblingstryk 6 bar

Udkoblingstryk 8 bar

6.6 Interruptor ON/OFF (8)

4. TeviKA xaapaktnpiTikA

Evnpwon yia to epbic

GB explains the following conformity according to EU directives and norms for the following product

Noise: measured Lwa = 92 dB (A); guaranteed Lwa = 94 dB (A)
P = 1.5 kW; L/0 = cm
Notified Body: TUV Sd Service GmbH (Notified Body 0036), Westendstrasse 199, 80686 München, Germany

2012/46/EU Emission No.:

Standard references: EN 1012-1; EN 60204-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR019369

Documents registrar: Hirsekorn Sergey Wiesenweg 22, D-94405 Landau/lsar

EH 08/2018 (01)
