Product type	Air compressor
Brand	Einhell
Model	TCAC 19068 OF Set
Motor power	1,2 kW
Max. working pressure	8 bar
Tank volume	6 liters
Theoretical suction power	190 L/min
Output power at 7 bar	55 L/min
Output power at 4 bar	77 L/min
Sound power level	97 dB(A)
Protection type	IP20
Weight	8,8 kg
Power supply	220-240 V ~ 50 Hz
Delivery contents	Inflator gun with pressure gauge, blow adapter, 8-piece adapter kit, compressed air hose
Main functions	Inflating tires, balloons, mattresses; blowing; use with pneumatic tools
Maintenance and cleaning	Drain condensation water after each use; clean with a damp cloth; do not use solvents
Safety	Safety valve; automatic shut-off in case of overpressure; protection against unintentional restart
Spare parts and repairability	Wear parts: V-belt, air filter; repairs possible by after-sales service
General information	Intended for domestic use; not suitable for professional use

Frequently Asked Questions - TCAC 19068 OF Set EINHELL

How to adjust the output pressure of the compressor?

Use the pressure regulator (7) to adjust the pressure. The set value is readable on the pressure gauge (6). The max. working pressure is 8 bar.

Why does the compressor not start?

Check the mains voltage and the fuse. Make sure the ambient temperature is above +5°C. If the motor is overheated, let it cool down.

How to drain condensation water from the tank?

After each use, open the drain screw (11) located under the tank to drain the water. This prevents rust and extends the service life.

How to use the inflator gun with pressure gauge?

Connect the gun (14) to the compressed air hose. Use the appropriate adapter for the valve (tire, balloon, etc.). The inflation pressure is read on the integrated pressure gauge. To reduce pressure, use the release valve.

How to use the compressor as a blow gun?

Unscrew the hose with the valve adapter from the inflator gun, then screw on the supplied blow adapter (15). You can then blow dust out of hollows and hard-to-reach places.

What accessories are included in the 8-piece adapter kit?

The kit contains: balloon nozzle, Dunlop valve adapter, adapter I (for valves Ø8mm), adapter II (threaded), exhaust adapter, conical universal adapter, and other nozzles. They allow inflating various items (tires, mattresses, boats, etc.).

How to maintain the compressor?

Clean the device with a damp cloth and a little soap after each use. Do not use solvents. Drain condensation water regularly. Check the tank for rust.

What to do if the pressure does not reach the set value?

Check the connections for possible leaks. Check the non-return valve and seals. Make sure the drain plug is tightly closed. If the problem persists, contact the after-sales service.

The compressor is very noisy, is that normal?

The sound power level is 97 dB(A), which is typical for this type of device. Wear hearing protection during use.

How to store the compressor after use?

Disconnect the device and drain condensation. Store it in a dry place, out of reach of unauthorized persons, in an upright position. Do not tip over.

USER MANUAL TCAC 19068 OF Set EINHELL

Soccer ball with decorative patterns and a screwdriver inserted (no text or symbols visible)

Close-up of a mechanical component with threaded fastener and two metal pins, mounted on a curved surface (no text or symbols visible)

6 6d

Mechanical component diagram showing a threaded bolt and a flanged cylindrical part with rotational motion indicator (no text or symbols)

Mechanical component diagram showing a cylindrical part with a threaded end and a rotating arrow indicating rotation (no text or symbols)

Close-up of a metallic mechanical component with threaded shaft and conical tip (no visible text or symbols)

Close-up of a black conical object with a metallic threaded shaft, labeled '10' in the top-left corner (no other text or symbols visible)

D

Danger! - Read the operating instructions to reduce the risk of inquiry

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Beware of electrical voltage!

Beware of hot parts!

Warning! The unit will start up automatically without warning if the pressure drops below cut-in pressure!

PS: Max. operating pressure

T_max : Max. operating temperature

T_min : Min. operating temperature

V: Tank capacity

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. Layout and items supplied

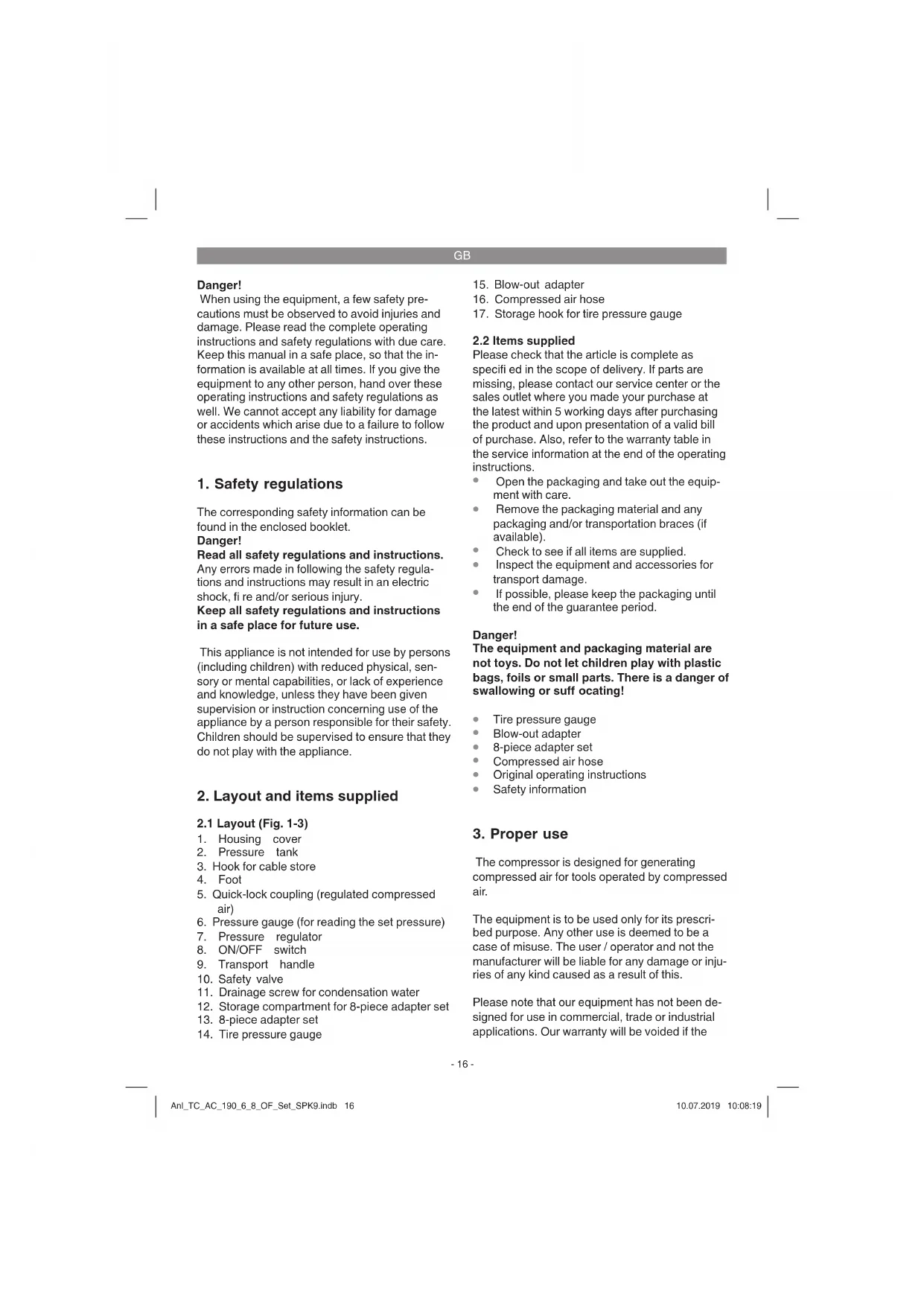

2.1 Layout (Fig. 1-3)

1. Housing cover
2. Pressure tank
3. Hook for cable store
4. Foot
5. Quick-lock coupling (regulated compressed air)
6. Pressure gauge (for reading the set pressure)
7. Pressure regulator
8. ON/OFF switch
9. Transport handle
10. Safety valve
11. Drainage screw for condensation water
12. Storage compartment for 8-piece adapter set
13. 8-piece adapter set

14. Tire pressure gauge

15. Blow-out adapter

16. Compressed air hose

17. Storage hook for tire pressure gauge

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  • If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Tire pressure gauge
• Blow-out adapter
  • 8-piece adapter set
  • Compressed air hose
  • Original operating instructions
  • Safety information

3. Proper use

The compressor is designed for generating compressed air for tools operated by compressed air.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the

GB

machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains connection: 220-240 V \~ 50 Hz

Motor rating kW: 1.2

Compressor speed min ^-1 : 3800

Operating pressure bar: 8

Pressure vessel capacity (in liters): 6

Theoretical suction rate l/min.: 190

Output (compressed air) at 7 bar: ....55 liters/min

Output (compressed air) at 4 bar: ....77 liters/min

Sound power level _LWA in dB: 97

Uncertainty K_WA 0.65 dB

Sound pressure level L_dA in dB: 77

Uncertainty K_pA 0.65 dB

Protection type: IP20

Weight of the unit in kg: ....approx. 8.8

Danger!

Noise

The noise emission values were measured in accordance with EN ISO 3744.

5. Before starting the equipment

Warning!

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

• Examine the machine for signs of transit damage. Report any damage immediately to the company which delivered the compressor.
• The compressor should be set up near the working consumer.
• Avoid long air lines and long supply lines (extensions).
  • Make sure the intake air is dry and dust-free.
• Do not set up the compressor in damp or wet rooms.
• The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5°C to +40°C). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room.
• The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with spray-

ed water.

• The equipment must be set up where it can stand securely.
• Use flexible hoses in order to prevent transmitting unacceptable loads to the pipeline system at the connection between the compressor system and the pipeline system.
• It is essential to use separators, traps and drains which process the liquids produced by the compressor before the compressor system is put into operation.
• Supply hoses at pressures above 7 bar should be equipped with a safety cable (e.g. a wire rope).

6. Assembly and starting

Important!

You must fully assemble the equipment before using it for the first time.

6.1 Mains connection

• Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up.
• At low temperatures below +5°C, sluggishness may make starting difficult or impossible.

6.2 ON/OFF switch (Fig. 1)

To switch on the equipment, set the On/Off switch (8) to position 1.

To switch off the equipment, move the On/Off switch (8) to position 0.

6.3 Setting the pressure (Fig. 1)

• You can adjust the pressure on the pressure gauge (6) using the pressure regulator (7).
• The set pressure can be drawn from the quick-lock coupling (5).

6.4 Setting the pressure switch

The pressure switch is set at the factory.

Cut-in pressure approx. 6 bar

Cut-out pressure approx. 8 bar

GB

7. Operation

7.1 Tire pressure gauge with adapters (Fig. 3) Working pressure in bar: 0 – 8 Range of applications:

The tire pressure gauge (14) allows you to inflate car tires easily and exactly. Use the pressure gauge to check the tire pressure. If the tire pressure is too high, you can reduce the pressure with the integrated relief valve (e). The tire pressure gauge comes with a valve adapter for car tire valves.

Warning! Observe the information supplied by the tire manufacturer and the vehicle manufacturer relating to the recommended tire pressure. Warning! This equipment is not calibrated! For a calibrated measurement value, check the actual tire pressure using a calibrated meter after you have inflated the tires yourself, e.g. at a petrol station.

Use as a blow-out pistol

To use the tire pressure gauge as a blow-out pistol you must fi rst unscrew and remove the hose with the valve adapter for care tires. Now the blow-out adapter (15) can be screwed to the tire pressure gauge.

Range of applications:

For cleaning and blowing out hollow spaces or hard-to-reach areas, as well as for cleaning soiled equipment. The infinitely variable trigger lever allows an exact dosing of compressed air.

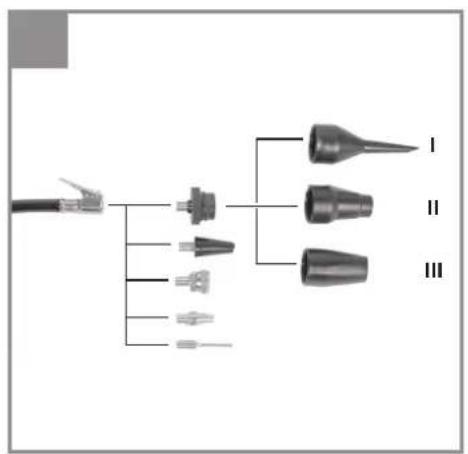

7.2 Instructions for the adapter set

For information on the correct use of the adapters for the various valves, please refer to the following overview (see Fig. 11 which shows how to connect the adapter to the compressor).

• Ball needle (Fig. 4)

Area of application: For inflating balls. The ball needle can be used to inflate a variety of different balls.

TIP: To avoid damaging the valve, moisten the needle slightly before inserting it.

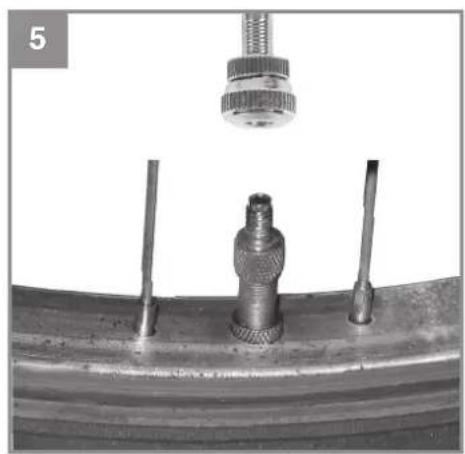

• Valve adapter (Fig. 5)

Area of application: For Dunlop cycle tire valves.

This Dunlop valve adapter is designed for inflating cycle tires.

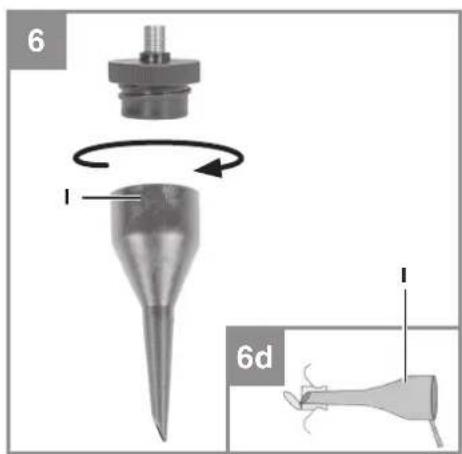

• Adapter I (Fig. 6/Item I)

Area of application: For all valves with an internal diameter of 8 mm or more. You can use this adapter to inflate airbeds, pools and even boats.

TIP: Insert the adapter I into the valve as shown in Figure 6, drawing d. Important! The valve cap must be opened a little by being pressed together slightly.

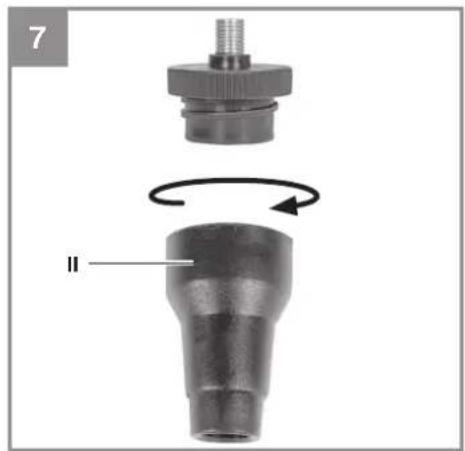

• Adapter II (Fig. 7/Item II)

Area of application: For screw valves. This adapter can be used for all conventional boats, kayaks and other large items such as pools, which are fitted with a screw valve.

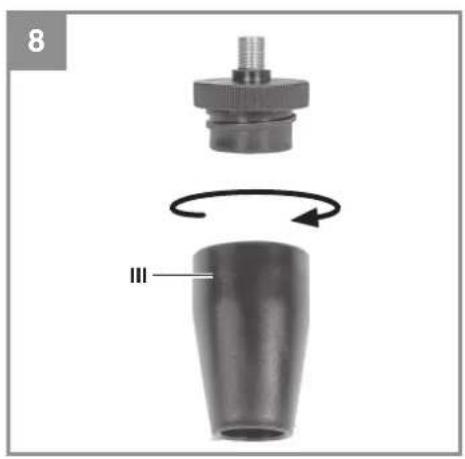

• Vent adapter (Fig. 8/Item III)

Area of application: For deflation valves you can find a deflation valve combined with other valves (standard valve, screw valve, etc.) on many large articles such as an inflatable mattress.

• Conical universal adapter (Fig. 9-10)

Area of application: The universal adapter can be used for inflating airbeds and other similar items.

8. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

9. Cleaning, maintenance and ordering of spare parts

Danger!

Pull the power plug before doing any cleaning and maintenance work on the appliance.

Warning!

Wait until the compressor has completely cooled down. Risk of burns!

Warning!

Always depressurize the tank before carrying out any cleaning and maintenance work.

Danger!

After use, always switch off the equipment immediately and pull out the power plug.

GB

9.1 Cleaning

• Keep the safety devices free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the appliance immediately after you use it.
• Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance. Ensure that no water can get into the interior of the appliance.
• You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

9.2 Condensed water (Fig. 1)

Important! To ensure a long service life of the pressure vessel (2), drain off the condensed water by opening the drain screw (11) each time after using.

Check the pressure vessel for signs of rust and damage each time before using. Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, please contact the customer service workshop.

9.3 Safety valve (10)

The safety valve has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or remove its seal. Actuate the safety valve from time to time to ensure that it works when required. Pull the ring with sufficient force until you can hear the compressed air being released. Then release the ring again.

9.4 Storage

Warning!

Pull the mains plug out of the socket and ventilate the appliance and all connected pneumatic tools. Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person.

Warning!

Store the compressor only in a dry location which is not accessible to unauthorized persons. Always store upright, never tilted!

9.5 Transport

• Transport the equipment only by carrying it by the transport handle.
• Protect the equipment against unexpected knocks and vibrations.

9.6 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

10. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

11. Possible causes of failure

Problem Cause Solution
Thecompressor does not start.	1. No supply voltage.2. Insufficient supply voltage.3. Outside temperature is too low.4. Motor is overheated.	1. Check the supply voltage, the power plug and the socket-outlet.2. Make sure that the extension cable is not too long. Use an extension cable with large enough wires.3. Never operate with an outside temperature of below +5°C.4. Allow the motor to cool down. If necessary, remedy the cause of the overheating.
Thecompressor starts but there is no pressure.	1. The non-return valve leaks.2. The seals are damaged.3. The drain plug for condensation water leaks.	1. Have a service center replace the non-return valve.2. Check the seals and have any damaged seals replaced by a service center.3. Tighten the screw by hand. Check the seal on the screw and replace if necessary.
Thecompressor starts, pressure is shown on the pressure gauge, but the tools do not start.	1. The hose connections have a leak.2. A quick-lock coupling has a leak.3. Insufficient pressure set on the pressure regulator.	1. Check the compressed air hose and tools and replace if necessary.2. Check the quick-lock coupling and replace if necessary.3. Increase the set pressure with the pressure regulator.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* V-belt, air fi iter
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

6.3 Drukinstelling (afb. 1)

• Adapter I (afb. 6, pos. I)

X 2006/42/EC
□ Annex IV
Notified Body:
Reg. No.:

X 2000/14/EC_2005/88/EC

□ Annex V

X Annex VI

Noise: measured L_w = 96 dB (A); guaranteed L_w = 97 dB (A)

P = 1,2 KW; L/∅ = cm

Notified Body: INTERTEK TESTING & CERTIFICATION LTD

(Notified Body 0359)

□2012/46/EU_(EU)2016/1628

Emission No.:

Standard references:

EN 1012-1; EN 60204-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Joss Doug Dong/Product-ManagementWeichselgartner/General-Manager

First CE: 19

Art.-No.: 40.206.50 I.-No.:11018

Subject to change without notice

Archive-File/Record: NAPR018052

Documents registrar: Hirsekorn

Wiesenweg 22, D-94405 Landau/Isar

EH 07/2019 (01)
