Product type	Mobile monoblock air conditioner
Brand	Wilfa
Model	Cool 12
Refrigerant	R290 (flammable, environmentally friendly)
Power supply	220-240 V ~ 50 Hz
Cooling power	Approximately 7000 BTU/h (estimate)
Dimensions (W x D x H)	Approximately 45 x 38 x 70 cm
Net weight	Approximately 25 kg
Operating modes	Auto, Cooling, Drying, Fan
Fan speed	3 speeds + Auto
Timer	Programmable from 0.5 to 24 hours
Remote control	Yes, with AAA 1.5 V batteries
Wi-Fi	Yes (dedicated button, reset possible)
Noise level	Not specified, estimated 55-65 dB
Recommended area	Up to 25 m² (estimate)
Temperature range	16 to 30 °C (cooling mode)
Filter maintenance	Clean every 3 months; wash with warm water (max 40 °C)
Safety	Auto shut-off, anti-freeze protection, flammable gas R290
Warranty	5 years (household use)
Included accessories	Exhaust hose, seal, clip, remote control, batteries, manual
Repairability	Spare parts available via wilfa.com; repair by certified professional

Frequently Asked Questions - Cool 12 WILFA

What type of refrigerant gas is used and is it dangerous?

The refrigerant is R290 (propane), a flammable and odorless gas. It is environmentally friendly but requires precautions: the appliance must be installed in a room of at least 11 m², without any ignition source. Any intervention must be carried out by a professional.

How to clean the filter of my Wilfa Cool 12 air conditioner?

Turn off and unplug the appliance. Remove the filter by pressing the latch, wash it with warm water (max 40 °C) with a neutral detergent, dry it in the shade, then reassemble. Cleaning is recommended every 3 months.

What should I do if the appliance displays error code E8 or H3?

These codes indicate overheating or blockage. Check that the ambient temperature is below 35 °C, that the evaporator and condenser are not blocked. Turn off the appliance, wait, then turn on again. If the error persists, contact Wilfa technical support.

Can I use an extension cord with this air conditioner?

No, it is strictly forbidden to use an extension cord. Plug the appliance directly into a grounded wall outlet. Using an extension cord may cause fire or electric shock.

How to install the heat exhaust hose?

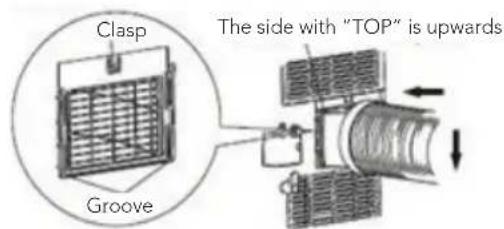

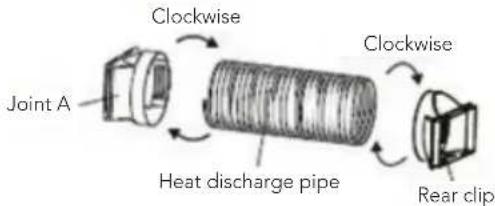

Attach the seal A and the rear clip to the ends of the hose. Insert the seal into the groove at the rear of the appliance (TOP facing up). Direct the hose outside through a window or opening. For optimal efficiency, the hose should be as short as possible (< 1 m) and not bent.

Why is my air conditioner not cooling enough?

Check that the air filter is clean, that doors and windows are closed, and that the set temperature is low enough. Also ensure that the appliance is not obstructed and that the exhaust hose is not bent or too long.

How to activate sleep mode?

Press the Sleep button on the remote control. This mode automatically adjusts the temperature for optimal comfort and reduced consumption. The function is available in cooling or heating mode (if applicable).

The remote control is not working, what should I do?

Check that the batteries are correctly installed (2 AAA 1.5 V batteries) and that they are not depleted. Ensure there is no obstacle between the remote control and the appliance, and that the distance does not exceed 8 m. Avoid fluorescent lamps that may disturb the signal.

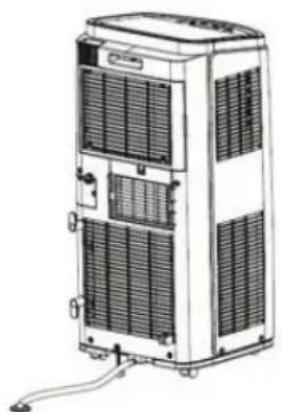

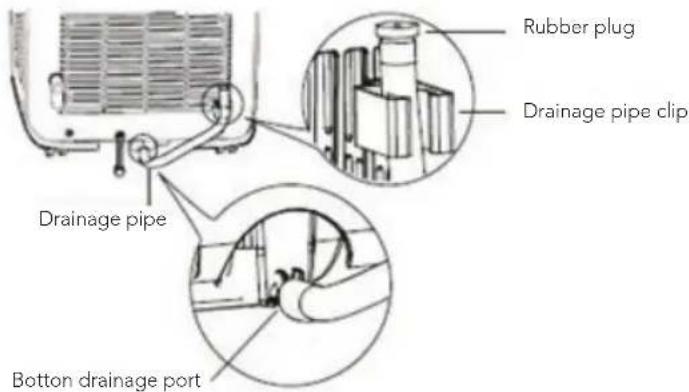

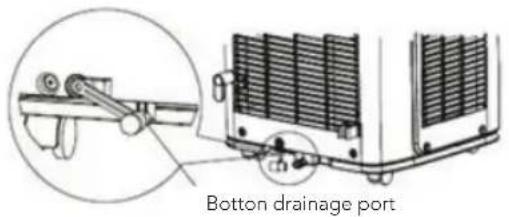

How to drain the accumulated water from the air conditioner?

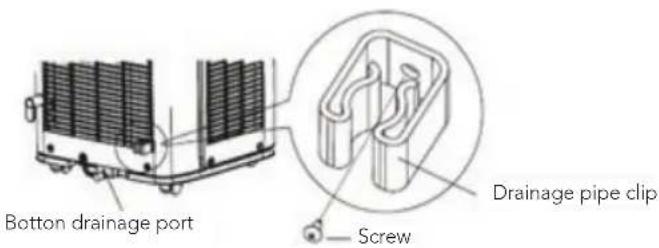

Turn off and unplug the appliance. Place a container under the lower drain hole (rubber plug) or use the central drain connection with a 13 mm hose. Remove the plug to drain. After draining, replace the plug.

What is the maximum area that the Wilfa Cool 12 can cool?

Although not officially specified, for a 7000 BTU/h unit, the recommended area is approximately 20 to 25 m² under normal conditions. Close doors and windows to optimize performance.

USER MANUAL Cool 12 WILFA

INSTRUCTION MANUAL·AIR CONDITIONER

CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS
6 EXCEPTION CLUSES
7 THE REFRIGERANT
9 OPERATION ENVIRONMENT
12 PRODUCT OVERVIEW - MAIN UNIT
14 PRODUCT OVERVIEW - CONTROL PANEL
16 PRODUCT OVERVIEW - REMOTE CONTROL
17 PRODUCT OVERVIEW - REMOTE CONTROL DISPLAY
19 REPLACEMENT OF BATTERIES
20 CLEANING AND MAINTENANCE
21 CHECKS
21 LONG-TIME STORAGE
21 NOTICE FOR RECOVERY
22 TROUBLESHOOTING
24 ERROR CODE
25 INSTALLATION
32 GUARANTEE
33 PRODUCT SPECIFICATIONS
33 SUPPORT AND SPARE PARTS
33 RECYCLABILITY

EN

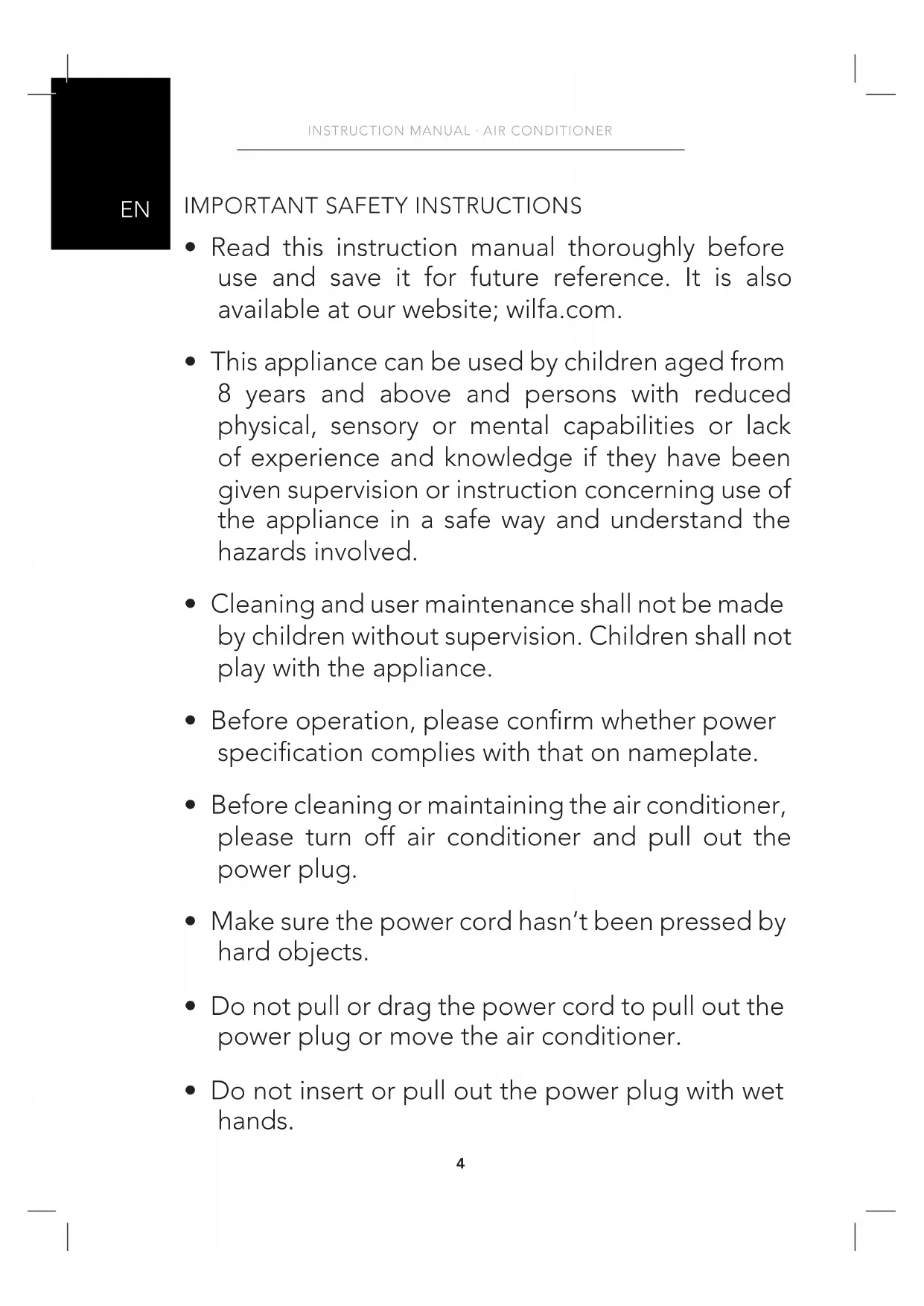

IMPORTANT SAFETY INSTRUCTIONS

• Read this instruction manual thoroughly before use and save it for future reference. It is also available at our website; wilfa.com.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision. Children shall not play with the appliance.
• Before operation, please confirm whether power specification complies with that on nameplate.
• Before cleaning or maintaining the air conditioner, please turn off air conditioner and pull out the power plug.
• Make sure the power cord hasn't been pressed by hard objects.
• Do not pull or drag the power cord to pull out the power plug or move the air conditioner.
• Do not insert or pull out the power plug with wet hands.

EN

• Please use the grounded power. Make sure the grounding is reliable.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• If abnormal condition occurs (e.g. burned smell), please disconnect power at once and then contact local dealer.
• When nobody is taking care of the unit, please turn it off and remove the power plug or disconnect power.
• Do not splash or pour water on air conditioner. Otherwise, it may cause short circuit or damage to air conditioner.
• If drainage hose is used, ambient temperature can't be lower than 0^ . Otherwise, it will cause water leakage to air conditioner.
• Prohibit operating heating equipment around the air conditioner.
• Prohibit operating the unit in the bathroom or laundry room.
• Far away from fire source, inflammable and explosive objects.

EN

Children and disabled people are not allowed to use the unit without supervision.
- Keep children from playing or climbing on the air conditioner.
- Do not put or hang dripping objects above the air conditioner.
- Do not repair or disassemble the air conditioner by yourself.
- Prohibit inserting any objects into the air conditioner.
- Do not use an extension cord.
- Do not put sundries into the air duct. If sundries get into the air duct, please contact the professionals to deal with it.

EXCEPTION CLUSES

Supplier will bear no responsibilities when personal injury or property loss is caused by the following reasons:

1. Damage the product due to improper use or misuse of the product.
2. Alter, change, maintain or use the product with other equipment without abiding by the instruction manual of manufacturer.

EN

1. After verification, the defect of product is directly caused by corrosive gas.
2. After verification, defects are due to improper operation during transportation of product.
3. Operate, repair, maintain the unit without abiding by instruction manual or related regulations.
4. After verification, the problem or dispute is caused by the quality specification or performance of parts and components that produced by other manufacturers.
5. The damage is caused by natural calamities, bad using environment or force majeure.

Appliance filled with flammable gas R290.

fore installing and using the appliance, read the manual first.

THE REFRIGERANT

• To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R290, which is specially cleaned.

EN

• The refrigerant is flammable and inodorous. Furthermore, it can lead to explosion under certain conditions.
• Compared to common refrigerants, R290 is a non-polluting refrigerant with no harm to the ozonosphere. The influence upon the greenhouse effect is also lower. R290 has got very good thermodynamic features which lead to a high energy efficiency. The units therefore need a less filling.
• Please refer to the nameplate for the charging quantity of R290.

WARNING

• Appliance filled with flammable gas R290.
• Appliance shall be installed, operated and stored in a room with a floor area larger than 11m^2
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.)
• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• The appliance shall be stored to prevent mechanical damage from occurring.

EN

• Ducts connected to an appliance shall not contain an ignition source.
• Keep any required ventilation openings clear of obstruction.
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• Do not use means to accelerate the defrosting processortoclean,otherthanthoserecommended by the manufacturer.
  Servicings shall be performed only as recommended by the manufacturer.
• Should repair be necessary, contact your nearest authorized Service Centre.
• Any repairs carried out by unqualified personnel may be dangerous.
• Compliance with national gas regulations shall be observed.

• The air conditioner must be operated within the temperature range: 16^ 35^ .
• The appliance is for indoor use only.

EN

• The appliance must be positioned so that the plug is accessible.
• This air conditioner is for domestic, non-commercial use only.
• Reserved space around the air conditioner should be 30cm at least.
• Do not operate the air conditioner at humid environment.
• Please keep air inlet and air outlet clean, no obstacles.
• During operation, close doors and windows to improve cooling effect.
• Please put the air conditioner at smooth and flat ground for operation to avoid noise and vibration.
• This air conditioner is equipped with castors. Castors should slide at smooth and flat ground.
• Prohibit inclining or turning over the air conditioner. If there's abnormality, please disconnect power immediately and contact dealer.
• Avoid direct sunshine.

EN

INSTRUCTION MANUAL·AIR CONDITIONER

PRODUCT OVERVIEW - MAIN UNIT

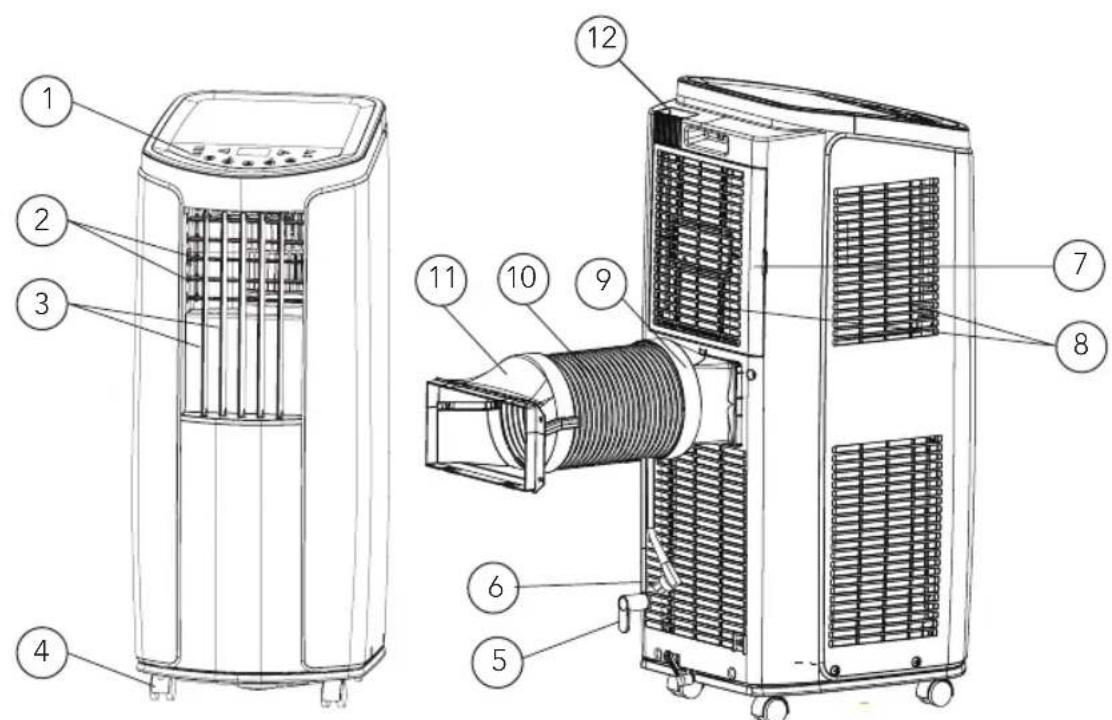

1. Controller panel
2. Horizontal louver
3. Vertical louver
4. Castor

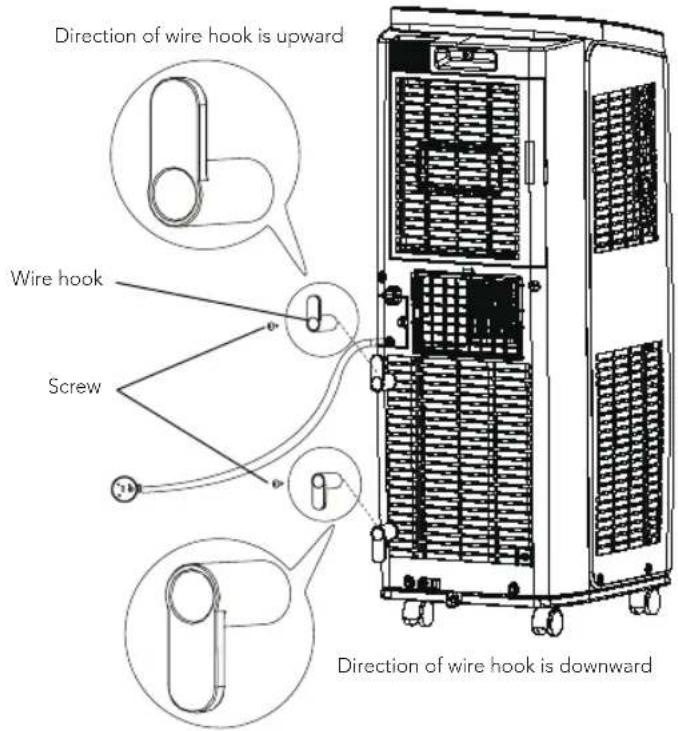

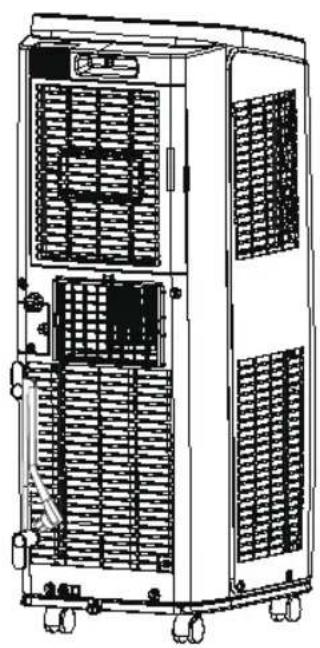

5. Wire-fixing hook
6. Plug of power cord

7. Filter

8. Air inlet

9. Joint
10. Heat discharge pipe
11. Rear clip
12. Remote controller hook

USE

To change air direction:

1. Up/Down air flow direction:

2. Hold the horizontal louvers and adjust the air flow directions.

3. Do not adjust the horizontal louvers to the lowest or the highest position in the COOL or DRY mode with the fan speed set too low for an extended period of time, Condensation may form on the louvers.

4. Left/right air flow direction. Hold the vertical louver and adjust the air flow direction.

Caution:

• Do not adjust the vertical louvers to the extreme left or right in the COOL or DRY mode with the fan speed set too low for an extended period. Condensation may form on the louvers.

OPERATION TEST

• Press on/off button on the remote controller to start the unit.
• Press mode button to select auto, cooling, drying or fan function, and check if the unit operates normally.
• If ambient temperature is below 16^ the unit cannot operate in cooling mode.

EN

INSTRUCTION MANUAL·AIR CONDITIONER

PRODUCT OVERVIEW - CONTROL PANEL

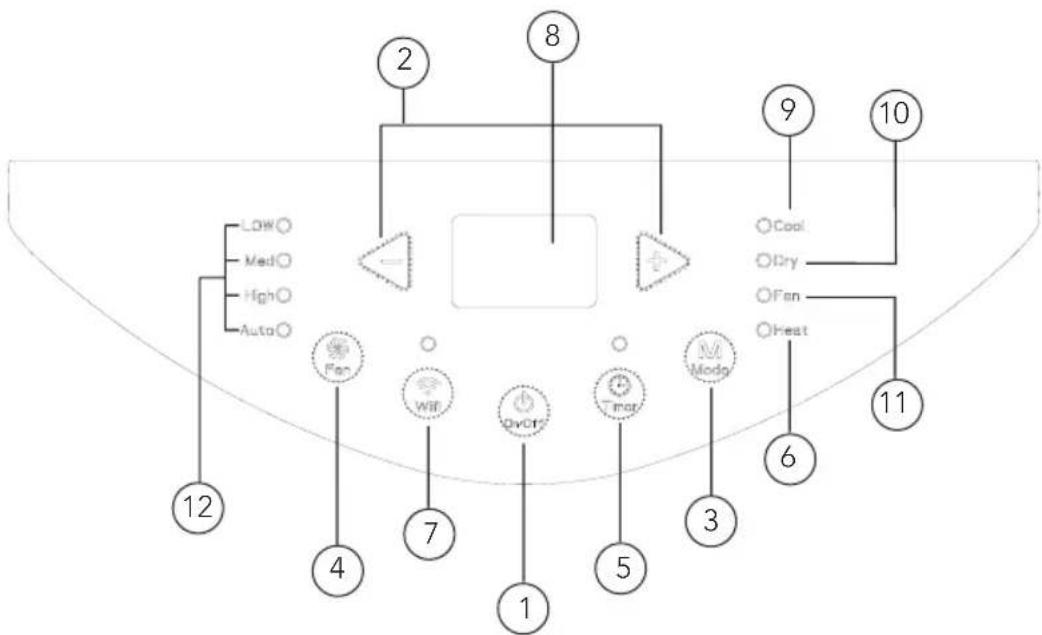

1. ON/OFF button
2. +/- button
   3.Mode button
3. Fan button
4. Timer button
5. Heat - not available

6. Wi-fi button

7. Display

8. Cool mode indicator
9. Dry mode indicator
10. Fan mode indicator
11. Fan speed indicator

USE

• After connecting the air conditioner to the power supply, it will sound a beep. After that, you can operate the air conditioner by the control panel.
• Under ON status, after each pressing of the button on control panel, the air conditioner will give out a sound. Meanwhile, corresponding indicator on control panel will be bright.

① ON/OFF button

Pressing this button will turn on or turn off the air conditioner.

② +-button

Under cooling or heating mode, press "+" or "-" button to increase or decrease the temperature by 1^ (°F). Set temperature range is 16^ 30^ Under drying or fan mode, this button is invalid.

③ Mode button

Press this button and the mode will circulate according to below sequence: Cool-> Dry-> Fan-> Heat

• Cool: Under this mode, cooling mode indicator is bright. The display shows set temperature. Temperature setting range is 16-30 degrees Celsius.
• Dry: Under this mode, drying mode indicator is bright.
• Fan: Under this mode, the air conditioner only blow fan. Fan indicator is bright.
• Heat: Not available

④ Fan button

Press this button and the fan speed will circulate as "low speed-medium speed-high speed-auto fan-low speed"

⑤ Timer button

• Press timer button to enter timer setting mode.
• Under this mode, press " + " or " - " button to adjust the timer.
• The timer will increase or decrease 0.5 hour by pressing "+" or "-" within 10 hours.

Exceeding 10 hours, the timer will increase or decrease 1 hour when pressing "+" or "-". After setting the timer, the display shows the temperature if there's no operation for 5s. If timer function is started up, the upper indicator will keep the display status. Under timer mode, press timer button again to cancel timer mode.

⑥ Heat-notavailable

⑦ Wi-fi button

• Press "WiFi" button to turn on WiFi function, "WiFi" icon will be displayed on the remote controller: Hold "WiFi" button for 5s to turn off WiFi function and "WiFi" icon will disappear.
• Under off status, press "MODE" and "WiFi" buttons simultaneously for 1s, WiFi module will restore factory settings.

EN

INSTRUCTION MANUAL·AIR CONDITIONER

PRODUCT OVERVIEW - REMOTE CONTROL

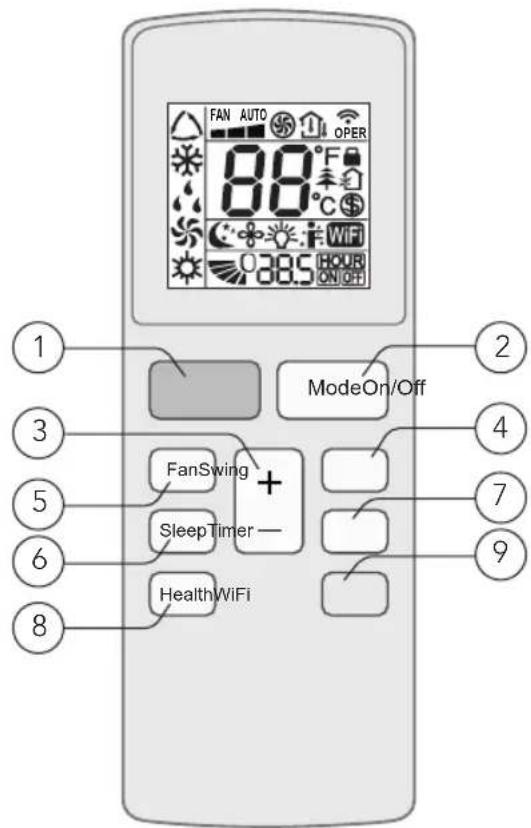

1. ON/OFF button
2. Timer button
3. Mode button
4. Health button (not available)
5. +/- button
6. WiFi button
7. Swing button (not available)
8. Fan button
9. Sleep button

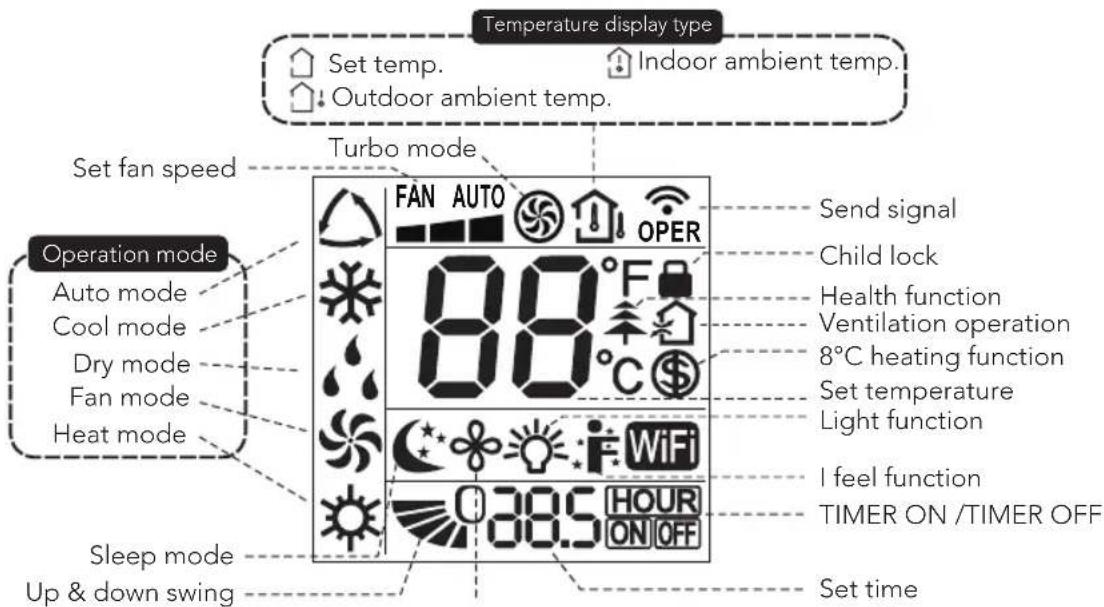

PRODUCT OVERVIEW - REMOTE CONTROL DISPLAY

EN

Note:

This is a general use remote controller, and some functions, as described are non-functioning.

USE

① ON/OFF button

Press this button to turn on the unit. Press this button again to turn off the unit.

② Mode button

Press this button and the mode will circulate according to below sequence: Auto -> Cool -> Dry-> Fan-> Heat

• Auto: During auto the unit will automatically adjust the settings. The set temperature cannot be changed.
  Cool: Under this mode, air conditioner operates under cooling mode. Cooling indicator will be on. Press "Fan Speed" button to adjust the fan speed.
• Dry: Under this mode, the unit runs in low fan speed for dehumidification and the corresponding indicator is on. The fan speed cannot be adjusted.
• Fan: Under this mode, air conditioner will not cool or heat, only blow wind. Fan indicator will be on. Press "Fan Speed" button to adjust the fan speed.
• Heat: Not available

EN

③ +/- button

• Pressing "+" or "-" button once will increase or decrease set temperature by 1^ ( ^ ). Hold "+" or "-" button for 2s, set temperature on remote controller will change quickly.
• Release the button after your required set temperature is reached.

Under timer setting status, after each pressing of "+" or "-" button, time will increase or decrease 0.5h. Hold "+" or "-" button and the time on the display will change quickly.

④ Swing button

Not available for this unit.

⑤ Fan button

This button sets the fan speed. The sequence goes from auto, 1, 2, 3, and back to auto.

⑥ Sleep button

Press this button to turn the sleep mode on. This function maintains the most comfortable temperature for you.

⑦ Timer button

• Press this button once and the characters of HOUR ON (OFF) will flash.
• Meanwhile, press "+" button or "-" button to adjust timer setting (time will change quickly if holding "+" or "-" button). Time range is 0.5~24hours.
• Press this button again to confirm timer setting and the characters of HOUR ON (OFF) will stop flashing.

If the characters are flashing but you haven't press timer button, timer setting status will be stopped after 5s. If timer is confirmed, press this button again to cancel timer.

Health button

Not available for this unit.

⑨ Wi-fi button

• Press "WiFi" button to turn on WiFi function, "WiFi" icon will be displayed on the remote controller: Hold "WiFi" button for 5s to turn off WiFi function and "WiFi" icon will disappear.
• Under off status, press "MODE" and "WiFi" buttons simultaneously for 1s, WiFi module will restore factory settings.

Combination of buttons:

• Temperature display switchover function: Under OFF status, press "-" and "Mode" buttons simultaneously to switch temperature display between ^ C and ^ F .
• Light function: Under switch-on or switch-off state, you may hold "+" and "FAN" buttons simultaneously to set the lamp on or off and send the code. After being energized the lamp is defaulted on.

REPLACEMENT OF BATTERIES

1. Press the back side of remote controller on the spot marked with and push the cover of the battery box along the arrow direction.
2. Replace two (AAA 1.5V) dry batteries, and make sure the positions of + and - are correct.
3. Reinstall the cover of the battery box.

Note:

• During operation, point the remote-control signal sender at the receiving window on unit.
• The distance between signal sender and receiving window should be no more than 8m , and there should be no obstacles between them.
• Signal may be interfered easily in the room where there is fluorescent lamp or wireless telephone; remote controller should be close to the unit during operation.
• Replace new batteries of the same model when replacement is required.
• When you don't use remote controller for a long time, please take out the batteries.
• If the display on remote controller is fuzzy or there's no display, please replace batteries.

EN

CLEANING AND MAINTENANCE

Warning:

• Before cleaning the air conditioner, please turn off the unit and disconnect power. Otherwise, it may cause electric shock.
• Do not wash air conditioner with water. It may cause electric shock.
• Do not use volatile liquid (such as thinner or gas) to clean the air conditioner. Otherwise, it may damage the appearance of air conditioner.
• Do not splash water or any other liquid into it, it may damage the plastic components, even cause electric shock.

CLEAN OUTER CASE

If there is dust on the surface of outer case, please use soft towel to wipe it. If the outer case is very dirty (such as grease), please use neutral abluent to wipe it.

CLEAN GRILLE

Use cleaner or soft brush to clean it.

CLEAN FILTER

1. Remove the filter.

2. Press the clasp, and then remove the filter 1.

3. Pull out the filter 2.

4. Clean filter

5. Use cleaner or water to clean the filter. If the filter is very dirty (such as grease), use warm water 40^ (104^) mixed with neutral detergent to clean it and then put at shady place to dry it.

6. Install the filter.

7. After the filter is cleaned and dried, reinstall it correctly.

Note:

• The filter should be cleaned about once every three months. If there's much dust in the operation environment, you can increase clean frequency.
• Do not dry the filter with fire or hair drier. Otherwise, it may be deformed or catch fire.

CLEAN HEAT DISCHARGE PIPE

Remove the heat discharge pipe from air conditioner, clean and dry it, and then reinstall it. (For the method of installation and removal, please refer to the instruction for "installation and disassembly of heat discharge pipe").

CHECKS

CHECKING BEFORE USE

1. Check whether air inlets and air outlets are blocked.
2. Check whether plug and socket are in good condition.
3. Check whether filter is clean.
4. Check whether batteries are installed in remote controller.
5. Check whether joint, window bracket and heat discharge pipe are installed tightly.
6. Check whether heat discharge pipe is damaged.

CHECK AFTER USE

1. Disconnect power supply.
2. Clean filter and outer case.
3. Remove dust and other impurities from the air conditioner.
4. Eliminate accumulated water in chassis (refer to the section of "drainage way" for details).
5. Check whether window bracket is damaged or not. If yes, please contact dealer.

LONG-TIME STORAGE

If you don't use the air conditioner for a long time, please maintain it by following steps for good performance:

• Make sure there's no accumulated water in chassis and that the heat discharge pipe is disassembled.
• Pull out the plug and wrap the power cord.
• Clean the air conditioner and pack it well to prevent dust.

NOTICE FOR RECOVERY

• Parts of gift packaging is recycled. Users are advised to follow local regulations or take contact with personnel at the local recycling centre for further guidance.
• If you want to throw away the air conditioner, please contact local division on consultant service centre for the correct disposal method.

EN

TROUBLESHOOTING

Please check below items before asking for maintenance. If the malfunction still can't be eliminated, please contact local dealer or qualified professionals.

Problem Possible reasons Solutions
Air conditioner can’t operate	Power failure	Wait after power recover
	Is the plug loose?	Reinsert the plug
	Has the air switch tripped off or has the fuse been blown?	Ask for professional help to replace air switch or fuse.
	Is there’s malfunction for the circuit?	Ask for professional help to replace circuit.
	Has the unit been restarted immediately after a stop?	Wait for 3min, and then try turning it on again.
Poor cooling Is the power too low?		Make sure that the device has been connected to a proper power source.
		Clean the air filter
		Adjust the temperature.
		Close the door and window.
Air conditioner can’t receive signal from remote controller or remote controller is not sensible.	Is normal operation interrupted by events such as static pressure, unstable voltage?	Please pull out the plug. Insert the plug after about 3min, and then turn on the unit.
	Is the remote controller within the receiving range?	The receiving range of remote controller is 8m. Do not exceed this range.
	Does any physical obstacles block free sight between remote and unit?	Remove the obstacles.
	Is sensitivity of remote controller low?	Check the batteries of remote controller. If the power is low, please replace the batteries.
	Is there a fluorescence lamp in the room?	Move the remote controller close to air conditioner.
		Turn off the fluorescence lamp and try it again.
No fan blown out from air conditioner.	Is the air outlet or inlet blocked?	Eliminate the obstacles.
	Is the filter dirty?	Clean the filters.
Set temperature can’t be adjusted.	Has the unit been set to auto mode or has child lock been activated?	Temperature can’t be adjusted under auto mode. Child lock can be unlocked by pressing "+" and "-".
	Is the room temperature within the temperature range for the unit?	Temperature setting range: 16°C-30°C.
There is off flavour. There’s off flavour source in the room, such as furniture, cigarette etc.		Remove the off flavour source. Clean the filter.
There’s abnormal sound during Operation.	Were the unit interfered by thunder, radio, etc?	Disconnect the power, put the power on again, then turn on the unit.

EN

You can hear water-flowing sound.	Were the unit just turned on or off?	There is a sound of the refrigerant inside the unit. This is normal.
It sounds like something is breaking.	Were the unit just turned on or off?	Heat expansion or shrinkage for the panel due to change of temperature can cause friction sound. This is normal.

ERROR CODE

Error code Troubleshooting

F0, F1, F2, F4 Please contact our service-centre.

E8, H3 1. Check if the unit is in a high-temperature and high-humidity

Environment. If ambient temperature is too high, power off the unit and then energize it for operation after the ambient temperature drops to 35^(95^) below.

1. Check if the evaporator and condenser are blocked by some objects; if yes, take away the objects, power off the unit and then energize it for operation.
2. If the malfunction still occurs, please contact our servicecentre.

H8 1. Pour the water inside the chassis out.

1. If H8 still occurs, please contact our service-centre.

Warning:

• If there're following phenomena, please turn off the air conditioner and disconnect the power immediately, and then contact dealer immediately.
• Power cord is overheating or damaged.
• Abnormal sound during operation.
• Off-flavor.
  Water leakage.
• Do not repair or refit the air conditioner by yourself.
• If operate the air conditioner! under abnormal condition, it may cause malfunction, electric shock or fire hazard.

INSTALLATION

PRECAUTIONS

Warning:

• Observe all governing codes and ordinances.
• Do not use damaged or non-standard power cord.
• Be careful during installation and maintenance. Prohibit incorrect operation to prevent electric shock, casualty and other accidents.

SELECTION OF INSTALLATION LOCATION - BASIC REQUIREMENTS

Installing the unit in the following places may cause malfunction. If it is unavoidable, please consult the local dealer:

1. The place with strong heat sources, vapours, flammable, or explosive gas, or volatile objects spread in the air.
2. The place with high-frequency devices (such as welding machine, medical equipment).
3. The place near coast area.
4. The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
7. It's not allowed to be installed on the unstable or motive base structure (such as truck) or in the corrosive environment (such as chemical factory).

REQUIREMENT OF AIR CONDITIONER

1. Air inlet should be far away from obstacles and do not put any objects near air outlet. Otherwise, it will affect the radiation of heat discharge pipe.
2. Please try your best to keep far away from fluorescent lamp.
3. The appliance shall not be installed in the laundry. High humidity can cause malfunction.

REQUIREMENTS FOR ELECTRIC CONNECTION

Safety precautions:

1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualified power supply circuit.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity and safety.

EN

1. Do not put through the power before finishing installation.
2. The air conditioner is first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance shall be installed in accordance with national wiring regulations.

PREPARATION BEFORE INSTALLATION

Note: Check if the accessories are available before installation.

Accessory list

Joint A Heat discharge pipe Rear clip Wire hook
Pipe clip Screw Drainage pipe Rubber plug
Drain connector Remote control Battery (AAA 1.5V) User manual

INSTALL WIRE HOOK

• Assemble the wire hook at the back of the unit with screws (the direction of wire hook is as shown in following figure)

• Wind the power cord around the wire hook

EN

REMOVING COLLECTED WATER

When using the bottom drainage port to drain water, install the drainage pipe before use. Poor drainage will affect normal operation of the unit.

Instruction for drainage pipe installation as follows:

1. Fix the drainage pipe clip on the right of rear side plate near drainage port with a screw.

1. Remove the rubber plug from the bottom drainage port.

1. Put the drainage pipe into the bottom drainage port and screw it in.
2. Put the rubber plug into the other side of the drainage pipe, then fix it in the drainage pipe clip.

DRAINAGE METHOD

1. Drainwater from the bottom drainage port

2. Turn the unit off, and pull the plug from the socket.

3. Place a water container under the bottom drainage port, or move the unit to a place where it can drain.
4. Remove the rubber plug of the bottom drainage port to drain water.
5. After draining, insert the rubber plug.
6. Insert the plug into the socket and turn the unit on.

1. Drain water from the middle drainage port.

Note: Water can be automatically emptied into a floor drain by attaching 13 mm inner diameter hose (not included)

• Remove the drain cap by turning it anti clockwise then remove the rubber stopper from the spout.

• Screw the drain connector to the spout by turning clockwise.

EN

• Insert the drainage hose into the drain connector.

Note: When using continuous drainage option from the middle drainage port, place portable on a level surface and make sure garden hose is clear of any obstructions and is directed downward. Placing portable on an uneven surface or improper hose installation may result in water filling up the chassis and causing the unit to shut off. Empty water in the chassis if shut off occurs, then check portable location and hose for proper setup.

INSTALLATION OF HEAT DISCHARGE PIPE

1. Rotate joint A and Rear clip clockwise into the two ends of heat discharge pipe.

1. Insert joint A of heat discharge pipe (The side with TOP is upwards) into the groove until you hear a sound.

1. Lead the heat discharge pipe outdoors. For best effect, choose a window without direct sunlight. Keep the other windows closed.

EN

1. Slide and open the exhaust cover on the window panel and attach the Rear clip. (Optional)

NOTE OF INSTALLING HEAT DISCHARGE PIPE

• In order to improve cooling efficiency, the heat discharge pipe should be as short as possible and flat without curve to ensure smooth heat discharge.
• The length of the heat discharge pipe is less than 1m . It is recommended to use it with shortest length.

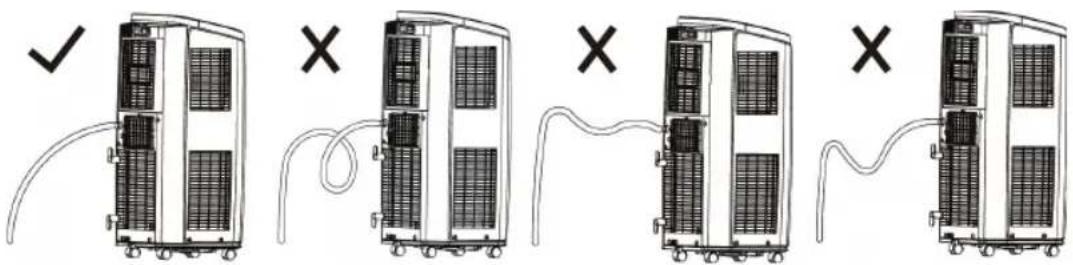

• When installing, heat discharge pipe should be as flat as possible. Don't prolong the pipe or connect it with other heat discharge pipe.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

220V~240V~50Hz

EN

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

36 VIKTIGE SIKKERHETSANVISNINGER
38 UNNTAKSKLAUSULER
39 KJØLEMIDDELET
41 DRIFTSMILJ0
44 PRODUKTOVERSIKT - HOVEDENHET
46 PRODUKTOVERSIKT - BETJENINGSPANEL
48 PRODUKTOVERSIKT - FJERNKONTROLL
49 PRODUKTOVERSIKT - FJERNKONTROLLDISPLAY
51 BYTTE AV BATTERIER
52 RENGJØRING OG VEDLIKEHOLD
53 INSPEKSJONER
53 LANGVARIG OPPBEVARING
53 MERKNAD OM GJENBRUK
54 FEILSØKING
56 FEILKODE
57 INSTALLASJON
64 GARANTI
65 PRODUKTSPESIFIKASJONER
65 SUPPORT OG RESERVEDELER
65 GJENVINNING

VIKTIGE SIKKERHETSANVISNINGER

RENGJØRING OG VEDLIKEHOLD

Advarsel:

8.Health-terveyspainike

⑥ Sleep-valmiustilapainike

Health-terveyspainike

④Przycisk Fan (Wentylator)

⑤ Przycisk Fan (Wentylator)

REplacement DES PILES

CARACTERISTIQUES DU PRODUIT

220V\~240V\~50Hz

Pulsante "Health" (Salute)
